Overview

When VR-Vantage destroys an entity (typically due to a DIS or HLA/RPR event) it does a number of things. It switches the model from its normal state to it's damaged state. It adds / starts a detonation effect (which is a particle system) that looks like an explosion, with pieces of a generic vehicle flying through the air; it makes a previously placed flame effect on the entity visible(also a particle system); and it makes a previously placed smoke plume visible (particle system).

Expected Result

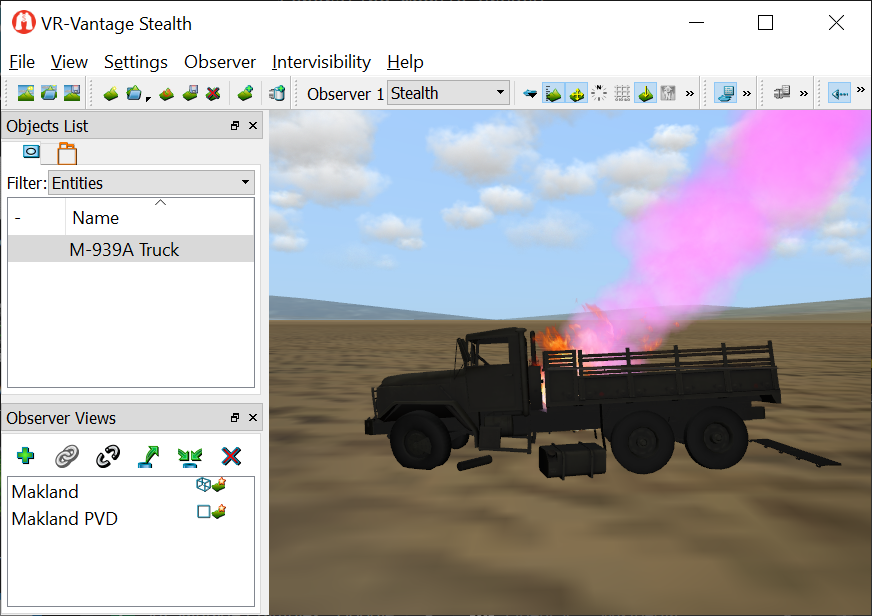

Effect Plugin Result

Example details

This example loads a terrain (Makland); creates a truck entity using the DtEntityFacade class; shows how to switch between states in a model; and how to create, add and control the three different effects. It also demonstrates how to extend the DtOsgParticleSystemModel to include the ability to modify the model's color through a shader (using code from exampleCustomShaders). Control of the entity's damage state and the smoke color when displayed are bound to keyboard commands.

The method createEntityFacade() creates and add the three particle systems to the entity; one for the detonation, one for the flames, and one for the smoke plume. The smoke plume uses the extended particle system that allows the color to be changed using a shader (see further down). All the effects are made invisible.

The method toggleDamage() checks the current state, and then makes all the effects visible or invisible to create the destroyed or restored effects. The detonation effect is special since it has a specific start and end rather than just a loop; so it is restarted in toggleDamage() when the entity is destroyed. toggleDamage() also toggles the internal model switch to show its damaged state or normal state. This method is called when the 'x' key is pressed. The key binding is set up in the plugin initialization code (found in exampleEffectsPluginInit.cxx). This assumes that the model has been configured with comments on switch node that controls the damage state using the WRM Specification (Fred, you can point to that).

To add the shader from exampleCustomShader that changes the color of the smoke, the DtOsgParticleSystemModel class is extended. This class has a distributed (agent-based) interface and is agent-created; therefore a .ocdx file has to be created for it as well (using the dcgen application). This file is used to generate the related agent classes for the object.

The extended class overrides the setInstance() method in the model to be notified when the model instance is created or destroyed, and uses it to set up the shader manager from the shader example. The changeColorOverride() method is added to its distributed interface (so its defined in the .ocdx file as well) and it calls the shader manager's changeColorOverride() method. By extending the distributed model object in this manner, the color change ability will work on remote displays as well as master displays. A final changeColorOverride() method is added to the DtExampleEffectsDriver, which is bound to several different keys (r, <shift-r>, g, <shift-g>, b, and <shift-b>); it in turn calls the equivalent colorChangeOverride() method in the extended particle system.

Building the Example

VR-Vantage includes pre-built versions of the example plug-in. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a plug-in. You can run it by running ./bin64/exampleEffectTexturePlugin_stealth.bat (on Windows) or ./bin64/exampleEffectTexturePlugin_stealth.sh (on Linux). Use the key "x" to toggle the destroyed state and use the keys r, <shift-r>, g, <shift-g>, b, and <shift-b> to change the color of the smoke

For more information about running examples, please see Running Applications and Examples.

Example Source Files

• DtExampleEffectsDriver.cxx
• DtExampleEffectsDriver.h
• exampleEffectsPlugin.h
• exampleEffectsPluginInit.cxx
• exampleEffectsPluginInit.h
• MyParticleSystemModel.cxx
• MyParticleSystemModel.h

---

DtExampleEffectsDriver.cxx

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/


#include "DtExampleEffectsDriver.h"
#include "MyParticleSystemModelAgent.hpp"

#include <vrvCore/DtAgentManager.h>
#include <vrvCore/DtDataBank.h>
#include <vrvCore/DtDe.h>
#include <vrvCore/DtDeSharedState.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtElementAttributes.h>
#include <vrvCore/DtElementData.h>
#include <vrvCore/DtEntityFacade.h>
#include <vrvCore/DtEntity3dFacade.h>
#include <vrvCore/DtInputDriver.h>
#include <vrvCore/DtModelSemanticsMapper.h>
#include <vrvCore/DtObserver.h>
#include <vrvCore/DtObserverSettingsManager.h>
#include <vrvCore/DtParticleSystemModelAgent.hpp>
#include <vrvCore/DtScene.h>
#include <vrvCore/DtSceneObjectAgent.hpp>

// Use the VR-Vantage namespace.
// All classes in VR-Vantage are in this namespace.
using namespace makVrv;

//
// Driver implementation
//

DtExampleEffectsDriver::DtExampleEffectsDriver( DtAgentManager& am )
   : makVrv::DtDriver( am, "DtExampleEffectsDriver" )
   , myEntityFacade( 0 )
   , myDamagedFlag( false )
   , myFlamesAgent( 0 )
   , mySmokePlumeAgent( 0 )
   , myDetonationAgent( 0 )
{
}

DtExampleEffectsDriver::~DtExampleEffectsDriver()
{
   DtExampleEffectsDriver::onStop();
}

const std::string& DtExampleEffectsDriver::className() const
{
   static std::string name = "DtExampleEffectsDriver";
   return name;
}

void DtExampleEffectsDriver::toggleDamage(DtDe& de)
{
   if ( myEntityFacade && myEntityFacade->findFacadeFor3d()  )
   {
      if ( myDamagedFlag )
      {
         myEntityFacade->findFacadeFor3d()->setSwitchState(
            DtModelSemanticsMapper::States::damage, 0 );
         myDamagedFlag = false;
         myFlamesAgent->setVisible( false );
         mySmokePlumeAgent->setVisible( false );
      }
      else
      {
         myEntityFacade->findFacadeFor3d()->setSwitchState(
            DtModelSemanticsMapper::States::damage, 3 );
         myFlamesAgent->setVisible( true );
         mySmokePlumeAgent->setVisible( true );

         // Restart the detonation effect
         myDetonationAgent->start();

         myDetonationAgent->setVisible( true );
         myDamagedFlag = true;
      }
   }
}

bool DtExampleEffectsDriver::onStart()
{
   // Load the Makland terrain programatically.
   DtScene& sceneDriver = myAgentManager.de().scene();
   std::string maklandPath = myAgentManager.de().dePathConfiguration().userPath();
   maklandPath += "/terrains/Makland.mtf";
   sceneDriver.loadTerrain( maklandPath );

   // Create an element that represents the entity.
   DtElementID parentElementId = 0;

   std::string entityDisplayName = "M-939A Truck";

   DtElementID elementId = myAgentManager.createNewUniqueId();
   reportElementCreated( elementId, parentElementId, DtElementEntry::Entity );
   reportElementAttribute(elementId, new DtElementAttributeElementSubtype(DtElementAttributes::Friendly));
   reportElementAttribute(elementId, new DtElementAttributeDriverType("Example Effects Driver"));

   reportElementAttribute( elementId, new DtElementAttributeVisibility(true) );
   reportElementAttribute( elementId, new DtElementAttributeDisplayName(entityDisplayName) );

   // Instantiate the entity facade.
   const DtModelSetRealizationManager::ModelSetRealizations& setsToRealize =
      myAgentManager.de().sharedState().modelSetRealizationManager().modelSetRealizations();

   myEntityFacade = createEntityFacade( myAgentManager, elementId, setsToRealize, true );
   myEntityFacade->setPosition( DtVector(25242., 19900., 100.) );
   myEntityFacade->setOrientation( DtTaitBryan(0., 0., 0.) );

   // Attach to entity.
   std::vector<DtUniqueID> objects;
   objects.push_back( myEntityFacade->elementId() );
   DtInputDriver& inputDriver = myAgentManager.de().driverManager().inputDriver();
   inputDriver.currentObserver()->setPrimaryAttachment( objects );

   return true;
}

bool DtExampleEffectsDriver::onStop()
{
   if ( myEntityFacade )
   {
      reportElementDestroyed( myEntityFacade->elementId() );
      delete myEntityFacade;
      myEntityFacade = 0;
   }

   delete mySmokePlumeAgent;
   mySmokePlumeAgent = 0;
   delete myFlamesAgent;
   myFlamesAgent = 0;
   delete myDetonationAgent;
   myDetonationAgent = 0;

   return true;
}

bool DtExampleEffectsDriver::onTick()
{
   return true;
}

void DtExampleEffectsDriver::slot_displayEngineAdded( const DtDeRecord& igRecord )
{
   stop();
   start();
}

DtEntityFacade* DtExampleEffectsDriver::createEntityFacade( DtAgentManager& am, DtElementID elementId,
   const DtModelSetRealizationManager::ModelSetRealizations& modelSets, bool distribute )
{
   DtEntityFacade* facade = new DtEntityFacade( am,
      DtSharedSettingsManager::instance( am.de() ), elementId, modelSets,
      distribute );

   // Initialize the 3D facade.
   DtEntity3dFacade* facade3d = facade->findFacadeFor3d();
   if ( facade3d )
   {
      int modelSet = facade3d->modelSet();

      facade3d->setArticulatedModelDefinition("WheeledM-939A25-TonTruck");

      // The clean thing to do here would be to extend DtEntityFacade/DtEntity3dFacade
      // and add these to it.  But for the sake of example its fine to let the driver
      // create and own them.

      // create the flame effect
      myFlamesAgent = DtParticleSystemModelAgent::create( am );
      myFlamesAgent->setModelDefinition( "Flames" );

      // attach it to the entity
      facade3d->sceneObjectAgent().addModel( myFlamesAgent, DtObserverSettingsManager::ShowFire );

      // and turn it off by default
      myFlamesAgent->setVisible( false );

      // For the smoke plume, we use our extended particle system that will allow us to modify
      // its color
      mySmokePlumeAgent = MyParticleSystemModelAgent::create( am );
      mySmokePlumeAgent->setModelDefinition( "SmokePlume" );
      facade3d->sceneObjectAgent().addModel( mySmokePlumeAgent, DtObserverSettingsManager::ShowSmokePlumes );
      mySmokePlumeAgent->setVisible( false );

      // and we'll use this for an initial detonation effect
      myDetonationAgent = DtParticleSystemModelAgent::create( am );
      myDetonationAgent->setModelDefinition( "DetonationEntityImpact" );
      facade3d->sceneObjectAgent().addModel( myDetonationAgent, DtObserverSettingsManager::ShowDetonations );
      myDetonationAgent->setVisible( false );

      mySceneObjectIds[modelSet] = facade3d->sceneObjectAgent().uniqueId();
   }

   return facade;
}

void DtExampleEffectsDriver::changeColorOverride(int color, float deltaChange)
{
   if ( mySmokePlumeAgent )
   {
      mySmokePlumeAgent->changeColorOverride( color, deltaChange );
   }
}

DtExampleEffectsDriver.h

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/

#pragma once

#include "exampleEffectsPlugin.h"

#include <vrvCore/DtDriver.h>
#include <vrvCore/DtModelSetRealizationManager.h>

#include <boost/unordered_map.hpp>

#include <matrix/vlTaitBryan.h>
#include <matrix/vlVector.h>

namespace makVrv
{
   class DtDe;
   class DtEntityFacade;
   class DtParticleSystemModelAgent;
   class MyParticleSystemModelAgent;
}


class DT_DLL_EXAMPLEEFFECTSPLUGIN DtExampleEffectsDriver : public makVrv::DtDriver
{
public:

   DtExampleEffectsDriver( makVrv::DtAgentManager& am );

   virtual ~DtExampleEffectsDriver();


   virtual const std::string& className() const;

   virtual bool onStart();

   virtual bool onStop();

   virtual bool onTick();

   virtual void slot_displayEngineAdded( const makVrv::DtDeRecord& igRecord );

   virtual void toggleDamage(makVrv::DtDe& de);

   // Function for connecting our color-based key bindings to the
   // particile system shader manager
   virtual void changeColorOverride(int color, float deltaChange);

protected:

   makVrv::DtEntityFacade* createEntityFacade( makVrv::DtAgentManager& am, makVrv::DtElementID elementId,
      const makVrv::DtModelSetRealizationManager::ModelSetRealizations& modelSets, bool distribute );

protected:

   typedef boost::unordered_map<int,makVrv::DtUniqueID> SceneObjectIdsByModelSet;
   SceneObjectIdsByModelSet mySceneObjectIds;

   makVrv::DtEntityFacade* myEntityFacade;

   bool myDamagedFlag;

   // Agents for creating the flames, smoke plume, and detonation effects.  Note
   // that for the smoke plume, we use our extended MyParticleSystemModel, which
   // creates a shader to modify the smoke plume color
   makVrv::DtParticleSystemModelAgent* myFlamesAgent;
   makVrv::MyParticleSystemModelAgent* mySmokePlumeAgent;
   makVrv::DtParticleSystemModelAgent* myDetonationAgent;
};

exampleEffectsPlugin.h

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/


#pragma once

#ifdef _WIN32
#ifdef EXAMPLEEFFECTSPLUGIN_EXPORTS
#define DT_DLL_EXAMPLEEFFECTSPLUGIN __declspec ( dllexport )
#else
#define DT_DLL_EXAMPLEEFFECTSPLUGIN __declspec ( dllimport )
#endif
#else
#define DT_DLL_EXAMPLEEFFECTSPLUGIN
#endif

exampleEffectsPluginInit.cxx

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/



#include "exampleEffectsPlugin.h"
#include "exampleEffectsPluginInit.h"
#include "DtExampleEffectsDriver.h"

#include <vrvCore/DtDe.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtInputDriver.h>
#include <vrvCore/DtKeyMap.h>
#include <vrvCore/DtKeyMapManager.h>

#include <vrvCore/DtDeMainWindow.h>

#include <vrvCoreQt/DtQtDeMainWindow.h>

#include <boost/ref.hpp>

bool initDeModule(makVrv::DtDe* de)
{
   makVrv::vrvExampleEffectsPlugin::init(*de);
   return true;
}

namespace makVrv
{
   namespace vrvExampleEffectsPlugin
   {

      void installDriverAndKeyBindings(DtDe& de)
      {
         de.signal_postInitialize.disconnect(boost::bind(
            &installDriverAndKeyBindings, boost::ref(de) ));

         // Create example comm lines driver.
         DtExampleEffectsDriver* driver = new DtExampleEffectsDriver(
            de.agentManager() );

         // The driver is now owned by the display engine. Do not delete it.
         de.driverManager().addDriver( driver );

         // Start the driver, creating the agent.
         de.driverManager().startDriver( driver );

         // The input driver responds to input events by calling key functions. To
         // bind a key to an arbitrary function, there are two steps:
         // 1. Create a KeyFunction that calls the desired function and add it
         //    to the input driver
         // 2. Add a key binding from some key to the KeyFunction defined in step 1
         //    to the keymap
         DtInputDriver& inputDriver = de.driverManager().inputDriver();

         DtKeyMapManager& keyMapManager = DtKeyMapManager::instance(de);

         // Create the Key Functions
         keyMapManager.addKeyFunction( "Toggle Damage", boost::bind(
            &DtExampleEffectsDriver::toggleDamage, driver, boost::ref(de)),
            DtKeyMapManager::Miscellaneous );

         keyMapManager.addKeyFunction( "Inc Red", boost::bind(
            &DtExampleEffectsDriver::changeColorOverride, driver, 0, .05), DtKeyMapManager::Rendering);

         keyMapManager.addKeyFunction( "Inc Green", boost::bind(
            &DtExampleEffectsDriver::changeColorOverride, driver, 1, .05), DtKeyMapManager::Rendering);

         keyMapManager.addKeyFunction( "Inc Blue", boost::bind(
            &DtExampleEffectsDriver::changeColorOverride, driver, 2, .05), DtKeyMapManager::Rendering);

         keyMapManager.addKeyFunction( "Dec Red", boost::bind(
            &DtExampleEffectsDriver::changeColorOverride, driver, 0, -.05), DtKeyMapManager::Rendering);

         keyMapManager.addKeyFunction( "Dec Green", boost::bind(
            &DtExampleEffectsDriver::changeColorOverride, driver, 1, -.05), DtKeyMapManager::Rendering);

         keyMapManager.addKeyFunction( "Dec Blue", boost::bind(
            &DtExampleEffectsDriver::changeColorOverride, driver, 2, -.05), DtKeyMapManager::Rendering);

         DtKeyMap* obsFrame = keyMapManager.findKeyMap( "Observer Frame" );

         // Bind the above key functions to some keys in the default
         // ("Observer Frame") key map
         if ( obsFrame )
         {
            // Map function to toggle the entity damage state
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_X, "Toggle Damage" );

            //map functions for modifying the color of the smoke
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_R, "Inc Red" , DtKeyState::NO_MODIFIER, true);
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_G, "Inc Green", DtKeyState::NO_MODIFIER, true);
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_B, "Inc Blue", DtKeyState::NO_MODIFIER, true);
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_R, "Dec Red" , DtKeyState::SHIFT_MODIFIER, true);
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_G, "Dec Green" , DtKeyState::SHIFT_MODIFIER, true);
            inputDriver.addKeyBinding( obsFrame, DtKeyState::KEY_B, "Dec Blue" , DtKeyState::SHIFT_MODIFIER, true);
         }

         // Don't show the startup dialog for selecting a terrain.
         DtDeMainWindow& mw = DtDeMainWindowProvider::instance(de).igMainWindow();
         DtQtDeMainWindow& mainWindow = dynamic_cast<DtQtDeMainWindow&>(mw);
         mainWindow.hideStartupDialog();
      }

      void init(DtDe& de)
      {
         DT_DE_INIT_ONCE(de);

         // We only want to create the driver if we are running in master mode.
         if (de.isInMasterMode())
         {
            // The accessory must be created after the DE's initialization is
            // finished, to make sure all the objects it uses exist.
            de.signal_postInitialize.connect(boost::bind(
               &installDriverAndKeyBindings, boost::ref(de) ));
         }
      }
   }
}

exampleEffectsPluginInit.h

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/

#pragma once

// Get proper local export symbol
#include "exampleEffectsPlugin.h"

// Setup proper plugin export symbol
#define DT_DE_PLUGIN_EXPORT_MACRO DT_DLL_EXAMPLEEFFECTSPLUGIN

// Export plugging function bool initDeModule(DtDe* de);
#include <vrvCore/exportPlugin.h>

namespace makVrv
{
   class DtDe;
   namespace vrvExampleEffectsPlugin
   {
      DT_DLL_EXAMPLEEFFECTSPLUGIN void init(DtDe& anIG);
   }
}

MyParticleSystemModel.cxx

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/


#include "MyParticleSystemModel.h"
#include <vrvOsg/DtOsgModelInstance.h>

#include <osg/Uniform>

namespace makVrv
{

   //
   // Shader manager implementation; taken from exampleCustomShaders
   //

   //Constructor that sets up the shaders and uniforms for the stateset passed in
   MyShaderManager::MyShaderManager( DtDe& de, osg::StateSet *ss )
      : myDe(de)
      , myModelStateSet(ss)
   {

      //Create uniforms for the color and scale of the model
      myColorToAdd = ss->getOrCreateUniform("colorToAdd", osg::Uniform::FLOAT_VEC3);
      myColorToAdd->set(osg::Vec3(0.0f,0.0f,0.0f));

      //Virtual Programs are how shaders are handled in VR-Vantage.
      // They allow multiple shader functions to be added anywhere in the scenegraph
      // and it handles the main function and program creation.
      // Just get or create the virtual program for any stateset and
      // all nodes below that stateset will use the functions on the virtual program
      myVirtualProgram = osgEarth::VirtualProgram::getOrCreate(ss);

      //create a function that will add the colorToAdd uniform to the current color.
      // customLightingFunction is the name of the function to call from main
      // second parameter is the fragment shader code that is to be included in the program
      // third parameter is the location (lighting is the second of three fragment locations)
      // fourth parameter is a function that can use the current state to disable this function
      // fifth parameter is the order (100.0 will make this run after all other lighting functions.)
      myVirtualProgram->setFunction("customLightingFunction",
         "uniform vec3 colorToAdd;\
         void customLightingFunction(inout vec4 color) \
         {\
         color.rgb += colorToAdd;\
         }\
         ",
         osgEarth::ShaderComp::LOCATION_FRAGMENT_LIGHTING,
         NULL,
         100.0
         );

   }

   MyShaderManager::~MyShaderManager()
   {
   }

   //Function for changing the color that will be added to the fragments color
   void MyShaderManager::changeColorOverride(int color, float deltaChange)
   {
      osg::Vec3 curVal;
      myColorToAdd->get(curVal);
      switch(color)
      {
         case 0:
            curVal.x() += deltaChange;
            curVal.x() = curVal.x() < -1.0 ? -1.0 : curVal.x();
            curVal.x() = curVal.x() > 1.0 ? 1.0 : curVal.x();
            break;
         case 1:
            curVal.y() += deltaChange;
            curVal.y() = curVal.y() < -1.0 ? -1.0 : curVal.y();
            curVal.y() = curVal.y() > 1.0 ? 1.0 : curVal.y();
            break;
         case 2:
            curVal.z() += deltaChange;
            curVal.z() = curVal.z() < -1.0 ? -1.0 : curVal.z();
            curVal.z() = curVal.z() > 1.0 ? 1.0 : curVal.z();
            break;
         default:
            break;
      }
      myColorToAdd->set(curVal);
   }

   //
   // Extended Particle System Model Implementation
   //

   MyParticleSystemModel::MyParticleSystemModel(DtDe& de, DtUniqueID& id)
      : DtOsgParticleSystemModel(de, id)
      , myShaderManager( 0 )
   {
   }

   MyParticleSystemModel::~MyParticleSystemModel()
   {
      delete myShaderManager;
      myShaderManager = 0;
   }

   void MyParticleSystemModel::setModelInstance(DtModelInstance* instance )
   {
      // Call down to base implementation
      DtOsgParticleSystemModel::setModelInstance( instance );

      if ( instance )
      {
         DtOsgModelInstance* mi = dynamic_cast<DtOsgModelInstance*>( instance );
         if(mi &&  mi->rootNode())
         {
            myShaderManager = new MyShaderManager( myDe, mi->rootNode()->getOrCreateStateSet() );
         }
      }
      else
      {
         // setting model instance to 0, so delete the shader manager
         delete myShaderManager;
         myShaderManager = 0;
      }
   }

   // Called via the distributed interface; invoke the shader manager
   void MyParticleSystemModel::changeColorOverride( int color, float deltaChange )
   {
      if ( myShaderManager )
      {
         myShaderManager->changeColorOverride( color, deltaChange );
      }
   }
}

MyParticleSystemModel.h

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/


#pragma once

#include "exampleEffectsPlugin.h"

#include <vrvCore/DtUniqueID.h>
#include <vrvOsg/DtOsgParticleSystemModel.h>

#include <osgEarth/VirtualProgram>
#include <osg/ref_ptr>

namespace osg
{
   class StateSet;
   class Uniform;
}

namespace makVrv
{
   class DtDe;

   class DT_DLL_EXAMPLEEFFECTSPLUGIN MyShaderManager
   {

   public:

      MyShaderManager(DtDe& de, osg::StateSet *ss);

      virtual ~MyShaderManager();

      //Function for changing the color that will be added to the fragments color
      virtual void changeColorOverride(int color, float deltaChange);

   protected:

      DtDe& myDe;

      //model state set to attach the custom shaders to
      osg::ref_ptr<osg::StateSet> myModelStateSet;

      //Uniforms used by the custom shaders
      osg::ref_ptr<osg::Uniform> myColorToAdd;

      //virtual program for the stateset
      osg::ref_ptr<osgEarth::VirtualProgram> myVirtualProgram;

   };

   class DT_DLL_EXAMPLEEFFECTSPLUGIN MyParticleSystemModel
      : public DtOsgParticleSystemModel
   {
   public:
      MyParticleSystemModel(DtDe& de, DtUniqueID& id);

      virtual ~MyParticleSystemModel();

      virtual void setModelInstance(DtModelInstance* modelInstance );

      virtual void changeColorOverride( int color, float deltaChange );

   protected:
      MyShaderManager* myShaderManager;
   };
}

[<< Examples] [Home] [Top of Page]
