exampleSendControl

Table of Contents

• Overview
• Expected Result
• Example details
• Building the Example
• Running the Example
• Example Source Files
• sendControl.cxx

Overview

This example demonstrates how to use the vrvControlToolkit to send view control messages to an instance of VR-Vantage. It can send a Wireframe Control message and the LightCommand Control Message that the

See Also

exampleViewControl plugin enables in VR-Vantage.

Expected Result

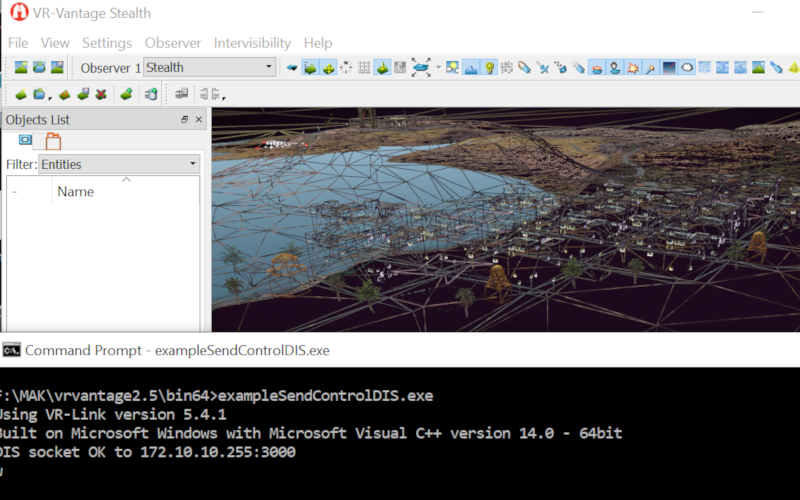

Send Control Result

Example details

When running this example, type 'w' (and press Enter) into the example's console window and it will send a view control message to VR-Vantage telling it to toggle wireframe mode on or off (the first message enables wireframe, further messages toggle). In order for VR-Vantage to listen and respond to the view control messages, make sure "Listen for View Controls" is checked in the connection's configuration page. Typing 'q' will shut down the example.

To test the custom view control packet, type 'l' (and press Enter). If VR-Vantage is running the plug-in created in exampleViewControl, this will toggle the ambient and diffuse settings between different values.

Building the Example

VR-Vantage includes prebuilt versions of the example application. To build it yourself, follow the instructions in Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a VR-Link application, and requires a VR-Link license to run. Start Vantage first, then load a terrain and connect with the protocol you want to test. Then run ./bin64/exampleSendControl<protocol>.exe (on Windows) or ./bin64/exampleSendControl<protocol> (on Linux) and press 'w' to send a 'toggle to wireframe' message to VR-Vantage or 'l' to toggle between different values for ambient and diffuse lighting. For more information about running examples, please see Running Applications and Examples.

Example Source Files

• sendControl.cxx

---

sendControl.cxx

/*********************************************************************
** Copyright (c) 2019 MaK Technologies, Inc.
** All rights reserved.
*********************************************************************/
#include <vl/dataInteraction.h>
#include <vrvControl/DtVrlinkDataInterMarshaller.h>
#include <vrvControl/vrvControlToolkitDataTypes.h>
#include "MyViewControlDataTypes.h"

#include <vl/exerciseConn.h>
#include <vl/exerciseConnInitializer.h>
#include <vlutil/vlKeyboard.h>

using namespace vrvControlToolkit;

DtTime dt = 0.05;

int keyTick()
{
   char *keyPtr = DtPollBlockingInputLine();
   if (keyPtr && (*keyPtr == 'q' || *keyPtr == 'Q'))
   {
      return -1;
   }
   if (keyPtr && (*keyPtr == 'w' || *keyPtr == 'W'))
   {
      return 1;
   }
   if (keyPtr && (*keyPtr == 'l' || *keyPtr == 'L'))
   {
      return 2;
   }
   return 0;
}

int main(int argc, char** argv)
{
   //Initial wireframe state
   bool wireframeState = false;
   bool lightState = false;

   // Initialize the application and connect
   DtVrlApplicationInitializer appInit(argc, argv, "sendControl");
   appInit.parseCmdLine();

   DtExerciseConn exConn(appInit);
   exConn.setApplicationId(3, 5);
   DtClock* clock = exConn.clock();
   DtTime simTime = 0;

   while (true)
   {
      int key = keyTick();
      if (key == -1)
      {
         break;
      }
      else
      {
         DtDataInteraction data;
         DtVrlinkDataInterMarshaller<DtDataInteraction> marshall;

         if (key == 1) // 'w' or 'W'
         {
            //send a wireframe control PDU
            wireframeState = !wireframeState;
            DtWireframe_v1 cmd;
            cmd.myState = wireframeState;
            marshall.encode(&cmd, &data);
         }
         else if (key == 2) // 'l' or 'L'
         {
            // send a Light Command PDU.  This will only be recognized if VR-Vantage is
            // using the exampleViewControl plugin which adds support for this packet
            lightState = !lightState;
            MyControlToolkit::MyLightScale_v1 cmd;
            if (lightState)
            {
               cmd.myDiffuseLightScale = 3.;
               cmd.myAmbientLightScale = 3.;
               cmd.myValuesSetFlags = MyControlToolkit::MyLightScale_v1::DiffuseLightScaleSet |
                  MyControlToolkit::MyLightScale_v1::AmbientLightScaleSet;
            }
            else
            {
               cmd.myDiffuseLightScale = 1.;
               cmd.myAmbientLightScale = 1.;
               cmd.myValuesSetFlags = MyControlToolkit::MyLightScale_v1::DiffuseLightScaleSet |
                  MyControlToolkit::MyLightScale_v1::AmbientLightScaleSet;
            }
            marshall.encode(&cmd, &data);
         }
#ifdef DtDIS
         data.setExerciseId(1);
#endif
         exConn.send(data);
      }

      // Tell VR-Link the current value of simulation time.
      clock->setSimTime(simTime);

      // Process any incoming messages.
      exConn.drainInput();

      DtTime sleeptime = ( simTime += dt ) - clock->elapsedRealTime();
      DtSleep( sleeptime ); // returns immediately if negative
   }

   return 0;
}
