Overview

This example shows how to build a plugin that customizes the VR-Vantage UI.

Expected Result

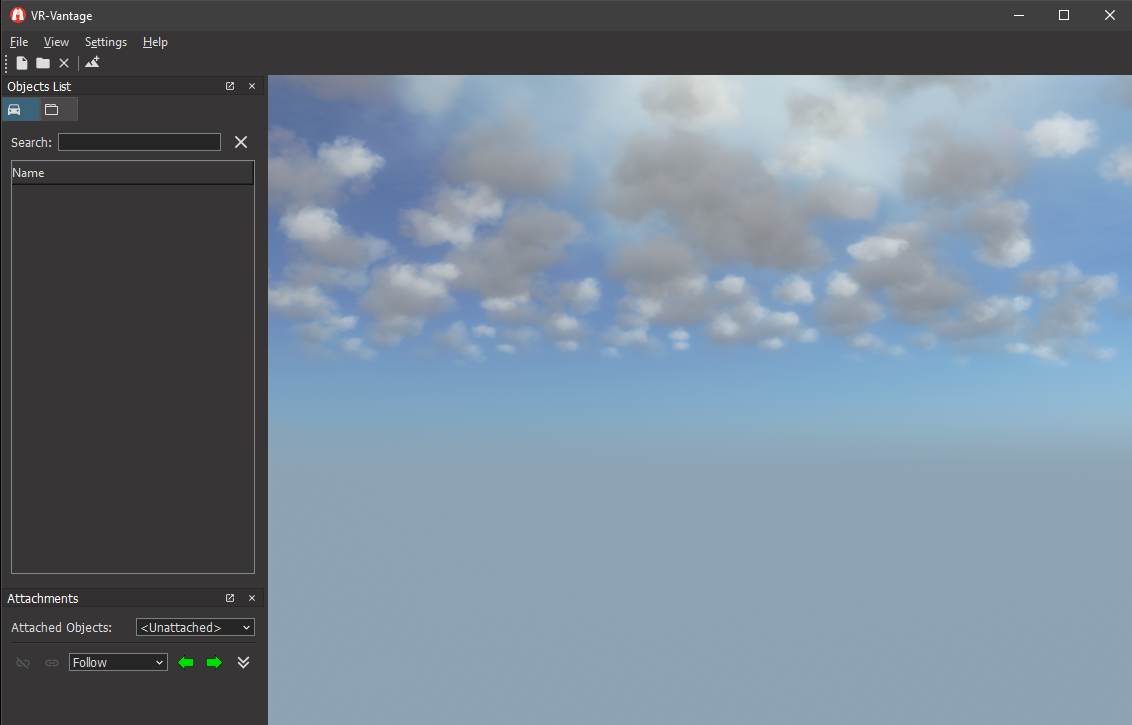

Custom Application Result

Example details

What if you wanted to build your own application that looked different that any of the existing VR-Vantage applications, yet also use all of the existing widgets, pages and other parts? The easist way to do that is to build a plugin that loads only the UI elements you want.

The basic strategy here is let the DtVrvApplication do its thing, then just customize the way it looks. Let it load plug-ins, settings, data, etc. and then just what GUI elements are assembled right before the code that assembles the GUI executes. In this way, you get all the benefits of the plug-in architecture, but all the control of programatically created GUI.

The trick to doing that is to install an application transform, which is really just a function that gets called at a certain point. In this example we are going to install a function that gets called right after the plug-ins are loaded and before the GUI is assembled.

Here is the function we want to install. It's signature has to be the same as the DtVrvApplication::ApplicationTransform functor:

void postPluginTransform(DtDeInitializer& initializer, DtDe& de, DtVrvApplicationConfiguration& appConfig)
{
   // Setup the pages
   appConfig.setMasterModePageConfiguration(createCustomPages());
   // Setup the menus
   appConfig.setMasterModeMenuConfiguration(createCustomMenu());
   // Setup the toolbars
   appConfig.setMasterModeToolbarConfiguration(createCustomToolbar());
}

Building the Example

VR-Vantage includes pre-built versions of the example application. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a plugin. For more information about running examples, please see Running Applications and Examples.

Example Source Files

• exampleCustomUI.cxx

---

exampleCustomUI.cxx

/******************************************************************************
** Copyright (c) 2023 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/


#include "exampleCustomUI.h"

#include <vrvCore/DtDe.h>
#include <vrvCore/DtVrvApplication.h>
#include <vrvCore/DtMenuPath.h>

#include <vrvCoreQt/DtQtMenuAssembler.h>

using namespace makVrv;

DtPageConfiguration createCustomPages()
{
   DtPageConfiguration pages;
   pages.addPageCollection("DtObjectsListPanel", DtUnicode::fromAscii("Objects List"), DtPageConfiguration::DockLeft, true, "DtOverlaysPage");
   pages.addPagePath(DtPagePath::collection("DtObjectsListPanel").page("DtObjectsListPage"));
   pages.addPagePath(DtPagePath::collection("DtObjectsListPanel").page("DtOverlaysPage"));
   pages.addPageCollection("DtAttachmentPanel", DtUnicode::fromAscii("Attachments"), DtPageConfiguration::DockLeft, true, "DtAttachWidget");
   pages.addPagePath(DtPagePath::collection("DtAttachmentPanel").page("DtAttachWidget"));
   return pages;
}

DtMenuConfiguration createCustomMenu()
{
   DtMenuConfiguration menus;
   //*********************************************************************
   //The File Menu.
   //*********************************************************************
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").menu("DtNewMenu"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").menu("DtOpenMenu"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").separator("1"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").menu("DtAddMenu"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").separator("2"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").menu("DtCloseMenu"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtFileMenu").item("DtExitItem"));
   menus.addMenuPathBefore(DtMenuPath::mainMenu("DtFileMenu").separator("ExitSeparator"),
      DtMenuPath::mainMenu("DtFileMenu").item("DtExitItem"));
   //Relative menus
   menus.addMenuPath(DtMenuPath::menu("DtNewMenu").item("DtNewSceneItem"));
   menus.addMenuPath(DtMenuPath::menu("DtNewMenu").item("DtNewTerrainItem"));
   menus.addMenuPath(DtMenuPath::menu("DtOpenMenu").item("DtOpenSceneItem"));
   menus.addMenuPath(DtMenuPath::menu("DtOpenMenu").item("DtOpenTerrainItem"));
   menus.addMenuPath(DtMenuPath::menu("DtAddMenu").item("DtAddTerrainPatchMenuItem"));
   menus.addMenuPath(DtMenuPath::menu("DtAddMenu").item("DtAddFeatureLayerItem"));
   menus.addMenuPath(DtMenuPath::menu("DtCloseMenu").item("DtCloseTerrainItem"));
   //*********************************************************************
   //The Window Menu.
   //*********************************************************************
   menus.addMenuPath(DtMenuPath::mainMenu("DtViewMenu"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtViewMenu").item("DtAttachmentPanel"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtViewMenu").item("DtObjectsListPanel"));
   //Add a separator after the DtObjectsListPanel.
   menus.addMenuPathAfter(DtMenuPath::mainMenu("DtViewMenu").separator("1"),
      DtMenuPath::mainMenu("DtViewMenu").item("DtObjectsListPanel"));
   menus.addMenuPathAfter(DtMenuPath::mainMenu("DtViewMenu").item("DtTerrainToolbar"),
      DtMenuPath::mainMenu("DtViewMenu").separator( "1" ) );
   menus.addMenuPathAfter(DtMenuPath::mainMenu("DtViewMenu").item("DtSimulationConnectionsToolbar"),
      DtMenuPath::mainMenu("DtViewMenu").item("DtDisplaySettingsToolbar"));
   menus.addMenuPathAfter(DtMenuPath::mainMenu("DtViewMenu").separator("2"),
      DtMenuPath::mainMenu("DtViewMenu").item("DtSimulationConnectionsToolbar"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtViewMenu").item("DtFullScreenItem"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtSettingsMenu"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtSettingsMenu").item("DtConnectionsMenuItem"));
   //*********************************************************************
   //The Help Menu.
   //*********************************************************************
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").item("DtHelpItem"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").separator("1"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").item("DtAboutItem"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").separator("2"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").item("DtProductsWebSiteMenuItem"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").item("DtForumWebSiteMenuItem"));
   menus.addMenuPath(DtMenuPath::mainMenu("DtHelpMenu").item("DtVersionWebSiteMenuItem"));
   //*********************************************************************
   //The right object context menu.
   //*********************************************************************
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtObjectInfoItem"));
   menus.addMenuPathAfter(DtMenuPath::popupMenu("DtObjectContextMenu").separator("1"),
      DtMenuPath::popupMenu("DtObjectContextMenu").item("DtObjectInfoItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtTransparencyToggleItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachTetherItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachFollowItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachMimicItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachTrackItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachTetherTrackItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachMimicTrackItem"));
   menus.addMenuPathAfter(DtMenuPath::popupMenu("DtObjectContextMenu").separator("2"),
      DtMenuPath::popupMenu("DtObjectContextMenu").item("DtAttachMimicTrackItem"));
   menus.addMenuPath(DtMenuPath::popupMenu("DtObjectContextMenu").item("DtCreateInsetViewItem"));
   return menus;
}

DtToolbarConfiguration createCustomToolbar()
{
   DtToolbarConfiguration toolbars;
   toolbars.addToolbarPath(DtToolbarPath::toolbar("DtTerrainToolbar").item("DtNewTerrainItem"));
   toolbars.addToolbarPath(DtToolbarPath::toolbar("DtTerrainToolbar").item("DtOpenTerrainItem"));
   toolbars.addToolbarPath(DtToolbarPath::toolbar("DtTerrainToolbar").item("DtCloseTerrainItem"));
   toolbars.addToolbarPath(DtToolbarPath::toolbar("DtTerrainToolbar").separator("DtTerrainToolbarSeparator"));
   toolbars.addToolbarPath(DtToolbarPath::toolbar("DtTerrainToolbar").item("DtAddTerrainPatchMenuItem"));
   return toolbars;
}

void postPluginTransform(DtDeInitializer& initializer, DtDe& de, DtVrvApplicationConfiguration& appConfig)
{
   // Setup the pages
   appConfig.setMasterModePageConfiguration(createCustomPages());
   // Setup the menus
   appConfig.setMasterModeMenuConfiguration(createCustomMenu());
   // Setup the toolbars
   appConfig.setMasterModeToolbarConfiguration(createCustomToolbar());
}

void init(DtDe& de)
{
   // Ensure that init only gets called once (not strictly necessary
   // here, but this is good practice in general)
   DT_DE_INIT_ONCE(de);

   std::cout << "Loading custom GUI plugin" << std::endl;

   if (de.isInMasterMode())
   {
      DtVrvApplication* app = DtVrvApplication::findFromDe(de);

      // Install our application transform to execute after the plug-ins
      // are loaded and before the GUI is assembled.
      if (app)
      {
         DtVrvApplication::ApplicationTransform functor = std::bind(&postPluginTransform, std::placeholders::_1, std::placeholders::_2, std::placeholders::_3);
         app->installPostPluginTransform(functor, "SetupGUIPostPluginTransform");
      }
   }
}

bool initDeModule(DtDe* de)
{
   init(*de);
   return true;
}
