DtVehicleSim Class Reference

Part of the F18 example. More...

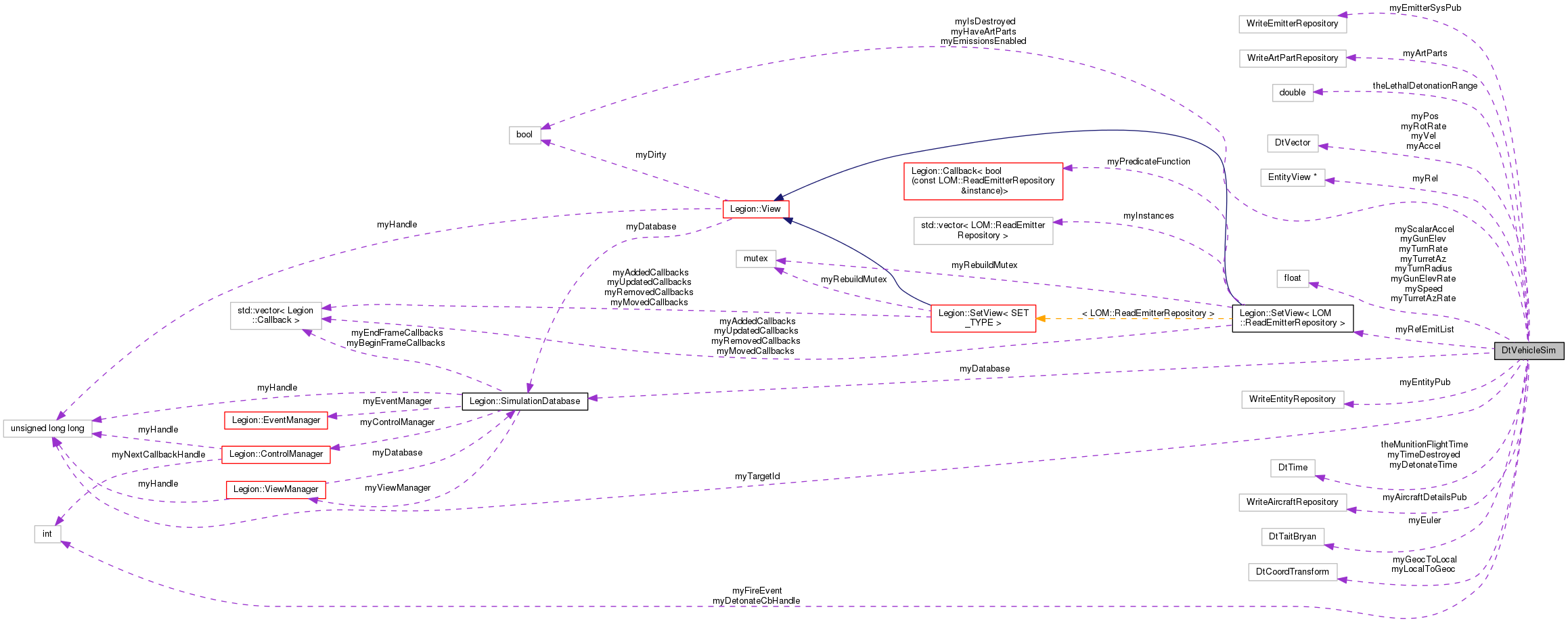

+ Collaboration diagram for DtVehicleSim:

Public Member Functions

 DtVehicleSim (Legion::SimulationDatabase *database, LOM::EntityView *rel, Legion::UInt64 id, const Legion::ObjectType &type, const std::string &name, const std::string markings, bool haveArtParts)
 Constructor. More...

virtual ~DtVehicleSim ()
 Destructor. More...

virtual void init (double initLat, double initLon, double initAlt, double initSpeed, double initHeading, double initTRadius, double initPitch, double initRoll, bool autoRoll)
 Set initial values for simulation parameters. More...

virtual void simTick (DtTime dt)
 Call once per frame to simulate, and make necessary VR-Link calls. More...

virtual void fireMunition (const Legion::UInt64 &targetGid)
 Fire and detonate functions. More...

virtual void fireMunition ()

virtual void detonateMunition ()

virtual void munitionTick ()

virtual void processDetonation (const LOM::DetonateEvent &inter)
 Reaction to detonations. More...

virtual int checkDetonation (const LOM::DetonateEvent &inter)

virtual void reactToDamage ()

virtual bool isDestroyed ()

virtual DtTime timeDestroyed ()

virtual void toggleEmissions ()
 Emissions (radar) More...

virtual void enableEmissions ()

virtual void disableEmissions ()

virtual void setFrozen (bool frozen)


Static Public Member Functions

static void setLethalDetonationRange (double range)

static void setMunitionFlightTime (DtTime time)


Protected Member Functions

virtual void moveArtParts (DtTime dt)

virtual LOM::ReadEntityRepository nearestEntity ()

virtual void emitterSystemAdditionCallback (const std::vector< LOM::ReadEmitterRepository > &obj)

virtual void emitterSystemRemovalCallback (const std::vector< LOM::ReadEmitterRepository > &obj)

void detonationCb (Legion::Span< LOM::DetonateEvent > &events)


Protected Attributes

Legion::SimulationDatabase * myDatabase

LOM::WriteEntityRepository myEntityPub

LOM::WriteAircraftRepository myAircraftDetailsPub

LOM::WriteArtPartRepository myArtParts [MAX_ARTPARTS]

LOM::WriteEmitterRepository myEmitterSysPub

LOM::EntityView * myRel

Legion::SetView
< LOM::ReadEmitterRepository > * 		myRefEmitList

float mySpeed

float myTurnRadius

float myTurnRate

float myScalarAccel

DtCoordTransform myLocalToGeoc

DtCoordTransform myGeocToLocal

DtTaitBryan myEuler

DtVector myPos
 topographic Euler angles More...

DtVector myVel
 in topographic (N, E, down) coordinates More...

DtVector myAccel
 in topographic (N, E, down) coordinates More...

DtVector myRotRate
 in topographic (N, E, down) coordinates More...

float myTurretAz
 in body coordinates More...

float myTurretAzRate

float myGunElev

float myGunElevRate

DtTime myDetonateTime

DtTime myTimeDestroyed

bool myIsDestroyed

bool myHaveArtParts

bool myEmissionsEnabled

UInt32 myDetonateCbHandle

UInt64 myTargetId

UInt32 myFireEvent


Static Protected Attributes

static double theLethalDetonationRange = 20.0

static DtTime theMunitionFlightTime = 3.0


Detailed Description

Part of the F18 example.

This class simulates a vehicle.

Constructor & Destructor Documentation

DtVehicleSim::DtVehicleSim ( Legion::SimulationDatabase *  database,
LOM::EntityView *  rel,
Legion::UInt64  id,
const Legion::ObjectType &  type,
const std::string &  name,
const std::string  markings,
bool  haveArtParts
)

Constructor.

refLat and refLon are in radians. id is a DIS-style site-app-entity triple, regardless of whether we are using HLA or DIS.

References Legion::EventManager::addEventCallback(), Legion::SetView< SET_TYPE >::addInstanceAddedCallback(), Legion::SetView< SET_TYPE >::addInstanceRemovedCallback(), Legion::SimulationDatabase::createInstance(), Legion::ViewManager::createSetView(), detonationCb(), emitterSystemAdditionCallback(), emitterSystemRemovalCallback(), Legion::SimulationDatabase::eventManager(), myAircraftDetailsPub, myDatabase, myDetonateCbHandle, myDetonateTime, myEmissionsEnabled, myEmitterSysPub, myEntityPub, myHaveArtParts, myIsDestroyed, myRefEmitList, myRel, myTimeDestroyed, and Legion::SimulationDatabase::viewManager().

DtVehicleSim::~DtVehicleSim ( )
virtual

Destructor.

References Legion::SimulationDatabase::destroyInstance(), Legion::ViewManager::destroyView(), disableEmissions(), Legion::SimulationDatabase::eventManager(), myDatabase, myDetonateCbHandle, myEntityPub, myRefEmitList, Legion::EventManager::removeEventCallback(), and Legion::SimulationDatabase::viewManager().

Member Function Documentation

int DtVehicleSim::checkDetonation ( const LOM::DetonateEvent &  inter)
virtual

References myEntityPub, and theLethalDetonationRange.

Referenced by processDetonation().

void DtVehicleSim::detonateMunition ( )
virtual

References Legion::EventManager::addEvent(), Legion::EventManager::createEvent(), Legion::SimulationDatabase::eventManager(), myDatabase, myEntityPub, myFireEvent, myPos, myRel, myTargetId, and theMunitionFlightTime.

Referenced by munitionTick().

void DtVehicleSim::detonationCb ( Legion::Span< LOM::DetonateEvent > &  events)
protected

References processDetonation(), and Legion::Span< DATA_TYPE >::size().

Referenced by DtVehicleSim().

void DtVehicleSim::disableEmissions ( )
virtual

References Legion::SimulationDatabase::destroyInstance(), myDatabase, myEmissionsEnabled, myEmitterSysPub, and myEntityPub.

Referenced by toggleEmissions(), and ~DtVehicleSim().

void DtVehicleSim::emitterSystemAdditionCallback ( const std::vector< LOM::ReadEmitterRepository > &  obj)
protectedvirtual

Referenced by DtVehicleSim().

void DtVehicleSim::emitterSystemRemovalCallback ( const std::vector< LOM::ReadEmitterRepository > &  obj)
protectedvirtual

Referenced by DtVehicleSim().

void DtVehicleSim::enableEmissions ( )
virtual

References Legion::SimulationDatabase::createInstance(), myDatabase, myEmissionsEnabled, myEmitterSysPub, and myEntityPub.

Referenced by toggleEmissions().

void DtVehicleSim::fireMunition ( const Legion::UInt64 &  targetGid)
virtual

Fire and detonate functions.

References Legion::EventManager::addEvent(), Legion::EventManager::createEvent(), Legion::SimulationDatabase::eventManager(), myDatabase, myDetonateTime, myEntityPub, myFireEvent, myTargetId, Legion::EventManager::nextId(), Legion::SimulationDatabase::simTime(), and theMunitionFlightTime.

Referenced by keybrdTick().

void DtVehicleSim::fireMunition ( )
virtual

References nearestEntity().

void DtVehicleSim::init ( double  initLat,
double  initLon,
double  initAlt,
double  initSpeed,
double  initHeading,
double  initTRadius,
double  initPitch,
double  initRoll,
bool  autoRoll
)
virtual

Set initial values for simulation parameters.

References Legion::SimulationDatabase::createInstance(), MAX_ARTPARTS, myAccel, myArtParts, myDatabase, myEntityPub, myEuler, myGeocToLocal, myGunElev, myHaveArtParts, myLocalToGeoc, myPos, myRotRate, myScalarAccel, mySpeed, myTurnRadius, myTurnRate, myTurretAz, myTurretAzRate, and myVel.

Referenced by main().

bool DtVehicleSim::isDestroyed ( )
virtual

References myIsDestroyed.

Referenced by main().

void DtVehicleSim::moveArtParts ( DtTime  dt)
protectedvirtual

References MAX_ARTPARTS, myArtParts, myDatabase, and Legion::SimulationDatabase::simTime().

Referenced by simTick().

void DtVehicleSim::munitionTick ( )
virtual

References detonateMunition(), myDatabase, myDetonateTime, myFireEvent, and Legion::SimulationDatabase::simTime().

Referenced by simTick().

LOM::ReadEntityRepository DtVehicleSim::nearestEntity ( )
protectedvirtual

References myEntityPub, and myRel.

Referenced by fireMunition().

void DtVehicleSim::processDetonation ( const LOM::DetonateEvent &  inter)
virtual

Reaction to detonations.

References checkDetonation(), and reactToDamage().

Referenced by detonationCb().

void DtVehicleSim::reactToDamage ( )
virtual

References myAccel, myAircraftDetailsPub, myDatabase, myEntityPub, myIsDestroyed, myRotRate, mySpeed, myTimeDestroyed, myTurnRate, myVel, and Legion::SimulationDatabase::simTime().

Referenced by processDetonation().

void DtVehicleSim::setFrozen ( bool  frozen)
virtual

References myEntityPub.

Referenced by keybrdTick().

void DtVehicleSim::setLethalDetonationRange ( double  range)
static

References theLethalDetonationRange.

Referenced by main().

void DtVehicleSim::setMunitionFlightTime ( DtTime  time)
static

References theMunitionFlightTime.

Referenced by main().

void DtVehicleSim::simTick ( DtTime  dt)
virtual

Call once per frame to simulate, and make necessary VR-Link calls.

References moveArtParts(), munitionTick(), myAccel, myEntityPub, myEuler, myHaveArtParts, myLocalToGeoc, myPos, myRotRate, myScalarAccel, myTurnRate, and myVel.

Referenced by main().

DtTime DtVehicleSim::timeDestroyed ( )
virtual

References myTimeDestroyed.

Referenced by main().

void DtVehicleSim::toggleEmissions ( )
virtual

Emissions (radar)

References disableEmissions(), enableEmissions(), and myEmissionsEnabled.

Referenced by keybrdTick().

Member Data Documentation

DtVector DtVehicleSim::myAccel
protected

in topographic (N, E, down) coordinates

Referenced by init(), reactToDamage(), and simTick().

LOM::WriteAircraftRepository DtVehicleSim::myAircraftDetailsPub
protected

Referenced by DtVehicleSim(), and reactToDamage().

LOM::WriteArtPartRepository DtVehicleSim::myArtParts[MAX_ARTPARTS]
protected

Referenced by init(), and moveArtParts().

Legion::SimulationDatabase* DtVehicleSim::myDatabase
protected

Referenced by detonateMunition(), disableEmissions(), DtVehicleSim(), enableEmissions(), fireMunition(), init(), moveArtParts(), munitionTick(), reactToDamage(), and ~DtVehicleSim().

UInt32 DtVehicleSim::myDetonateCbHandle
protected

Referenced by DtVehicleSim(), and ~DtVehicleSim().

DtTime DtVehicleSim::myDetonateTime
protected

Referenced by DtVehicleSim(), fireMunition(), and munitionTick().

bool DtVehicleSim::myEmissionsEnabled
protected

Referenced by disableEmissions(), DtVehicleSim(), enableEmissions(), and toggleEmissions().

LOM::WriteEmitterRepository DtVehicleSim::myEmitterSysPub
protected

Referenced by disableEmissions(), DtVehicleSim(), and enableEmissions().

LOM::WriteEntityRepository DtVehicleSim::myEntityPub
protected

Referenced by checkDetonation(), detonateMunition(), disableEmissions(), DtVehicleSim(), enableEmissions(), fireMunition(), init(), nearestEntity(), reactToDamage(), setFrozen(), simTick(), and ~DtVehicleSim().

DtTaitBryan DtVehicleSim::myEuler
protected

Referenced by init(), and simTick().

UInt32 DtVehicleSim::myFireEvent
protected

Referenced by detonateMunition(), fireMunition(), and munitionTick().

DtCoordTransform DtVehicleSim::myGeocToLocal
protected

Referenced by init().

float DtVehicleSim::myGunElev
protected

Referenced by init().

float DtVehicleSim::myGunElevRate
protected
bool DtVehicleSim::myHaveArtParts
protected

Referenced by DtVehicleSim(), init(), and simTick().

bool DtVehicleSim::myIsDestroyed
protected

Referenced by DtVehicleSim(), isDestroyed(), and reactToDamage().

DtCoordTransform DtVehicleSim::myLocalToGeoc
protected

Referenced by init(), and simTick().

DtVector DtVehicleSim::myPos
protected

topographic Euler angles

Referenced by detonateMunition(), init(), and simTick().

Legion::SetView<LOM::ReadEmitterRepository>* DtVehicleSim::myRefEmitList
protected

Referenced by DtVehicleSim(), and ~DtVehicleSim().

LOM::EntityView* DtVehicleSim::myRel
protected

Referenced by detonateMunition(), DtVehicleSim(), and nearestEntity().

DtVector DtVehicleSim::myRotRate
protected

in topographic (N, E, down) coordinates

Referenced by init(), reactToDamage(), and simTick().

float DtVehicleSim::myScalarAccel
protected

Referenced by init(), and simTick().

float DtVehicleSim::mySpeed
protected

Referenced by init(), and reactToDamage().

UInt64 DtVehicleSim::myTargetId
protected

Referenced by detonateMunition(), and fireMunition().

DtTime DtVehicleSim::myTimeDestroyed
protected

Referenced by DtVehicleSim(), reactToDamage(), and timeDestroyed().

float DtVehicleSim::myTurnRadius
protected

Referenced by init().

float DtVehicleSim::myTurnRate
protected

Referenced by init(), reactToDamage(), and simTick().

float DtVehicleSim::myTurretAz
protected

in body coordinates

Referenced by init().

float DtVehicleSim::myTurretAzRate
protected

Referenced by init().

DtVector DtVehicleSim::myVel
protected

in topographic (N, E, down) coordinates

Referenced by init(), reactToDamage(), and simTick().

double DtVehicleSim::theLethalDetonationRange = 20.0
staticprotected

Referenced by checkDetonation(), and setLethalDetonationRange().

double DtVehicleSim::theMunitionFlightTime = 3.0
staticprotected

Referenced by detonateMunition(), fireMunition(), and setMunitionFlightTime().

The documentation for this class was generated from the following files:
