The SetView is a concrete view class that provides a view of the database for instances of a given type. More...

Inheritance diagram for Legion::SetView< SET_TYPE >:

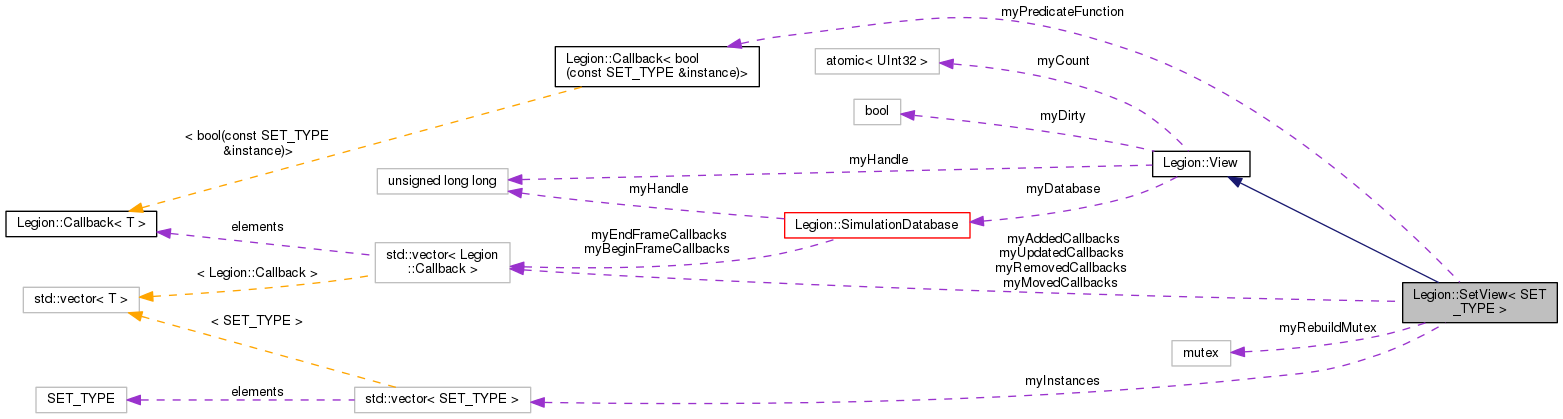

Collaboration diagram for Legion::SetView< SET_TYPE >:

Classes
struct	InstanceUpdateData

Public Types
typedef Callback< void(const std::vector< SET_TYPE > &)>	InstanceCallback
	Callback for when instances are added or removed from the view. More...

typedef Callback< void(const std::vector < InstanceUpdateData > &)>	InstanceUpdateCallback

typedef Callback< bool(const SET_TYPE &instance)>	PredicateCallback

Public Member Functions
	SetView (ViewHandle handle, SimulationDatabase &database)
	constructor More...

virtual	~SetView ()
	destructor More...

std::vector< SET_TYPE > &	instances ()
	Returns the instances in this view. More...

virtual bool	addInstanceAddedCallback (InstanceCallback cb)
	Add/Remove Instances added callbacks. More...

virtual bool	removeInstanceAddedCallback (InstanceCallback cb)

virtual bool	addInstanceMovedCallback (InstanceCallback cb)
	Add/Remove Instances moved callbacks. More...

virtual bool	removeInstanceMovedCallback (InstanceCallback cb)

virtual bool	addInstanceRemovedCallback (InstanceCallback cb)
	Add/Remove Instances removed callbacks. More...

virtual bool	removeInstanceRemovedCallback (InstanceCallback cb)

virtual bool	addInstanceUpdatedCallback (InstanceUpdateCallback cb, const std::vector< int > *attributeIndexFilter=nullptr)
	Add/Remove Instances updated callbacks if attributeIndexFiter == null then all attributes will be tested and returned. More...

virtual bool	removeInstanceUpdatedCallback (InstanceUpdateCallback cb)

virtual void	setPredicateFunction (PredicateCallback cb)

Public Member Functions inherited from Legion::View
	View (ViewHandle handle, SimulationDatabase &database)
	constructor More...

virtual	~View ()
	destructor More...

virtual void	initialize ()
	initializes the view once the derived class has installed any predicates/callbacks More...

virtual std::string	name () const
	Get the name of the view. More...

virtual UInt32	count () const
	Get the number entities in this view. More...

virtual Scope	scope () const
	Get the scope of the view Scope determines if the view contains local, remote, or mixed instances. More...

SimulationDatabase &	database () const
	The database this view uses. More...

Protected Member Functions
virtual void	rebuildInstanceList ()
	Rebuilds the instance list if instances are added/removed. More...

void	callAddedCallbacks (const InstanceHandle *instances, UInt32 count)

void	callMovedCallbacks (const InstanceHandle *instances, UInt32 count)

void	callRemovedCallbacks (const InstanceHandle *instances, UInt32 count)

void	callUpdatedCallbacks (const LEG_InstanceUpdateData *instances, UInt32 count, int cbIndex)

Protected Member Functions inherited from Legion::View
virtual void	reset ()

Static Protected Member Functions
static void	addedCallback (void usr, const InstanceHandle instances, UInt32 count)

static void	movedCallback (void usr, const InstanceHandle instances, UInt32 count)

static void	removedCallback (void usr, const InstanceHandle instances, UInt32 count)

static void	updatedCallback (void usr, const LEG_InstanceUpdateData instances, UInt32 count, int cbIndex)

static int	predicate (void *usr, InstanceHandle instance)

Protected Attributes
std::vector< SET_TYPE >	myInstances

std::mutex	myRebuildMutex

std::vector< InstanceCallback >	myAddedCallbacks

std::vector< InstanceCallback >	myMovedCallbacks

std::vector< InstanceCallback >	myRemovedCallbacks

std::vector < InstanceUpdateCallback >	myUpdatedCallbacks

PredicateCallback	myPredicateFunction

Protected Attributes inherited from Legion::View
ViewHandle	myHandle

SimulationDatabase &	myDatabase

std::atomic< UInt32 >	myCount

bool	myDirty

Detailed Description

template<typename SET_TYPE>
class Legion::SetView< SET_TYPE >

The SetView is a concrete view class that provides a view of the database for instances of a given type.

Users should derive from this class and overload the predicate function to create custom views of an instance type.

Member Typedef Documentation

template<typename SET_TYPE>

typedef Callback<void(const std::vector<SET_TYPE>&)> Legion::SetView< SET_TYPE >::InstanceCallback

Callback for when instances are added or removed from the view.

template<typename SET_TYPE>

typedef Callback<void(const std::vector<InstanceUpdateData>&)> Legion::SetView< SET_TYPE >::InstanceUpdateCallback

template<typename SET_TYPE>

typedef Callback<bool(const SET_TYPE& instance)> Legion::SetView< SET_TYPE >::PredicateCallback

Constructor & Destructor Documentation

template<typename SET_TYPE >

Legion::SetView< SET_TYPE >::SetView	(	ViewHandle	handle,
		SimulationDatabase &	database
	)

constructor

References legion_view_addInstanceAddedCallback(), legion_view_addInstanceMovedCallback(), legion_view_addInstanceRemovedCallback(), and legion_view_addPredicate().

template<typename SET_TYPE >

Legion::SetView< SET_TYPE >::~SetView ( )

virtual

destructor

Member Function Documentation

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::addedCallback	(	void *	usr,
		const InstanceHandle *	instances,
		UInt32	count
	)

staticprotected

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::addInstanceAddedCallback ( InstanceCallback cb )

virtual

Add/Remove Instances added callbacks.

Referenced by DtVehicleSim::DtVehicleSim().

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::addInstanceMovedCallback ( InstanceCallback cb )

virtual

Add/Remove Instances moved callbacks.

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::addInstanceRemovedCallback ( InstanceCallback cb )

virtual

Add/Remove Instances removed callbacks.

Referenced by DtVehicleSim::DtVehicleSim().

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::addInstanceUpdatedCallback	(	InstanceUpdateCallback	cb,
		const std::vector< int > *	attributeIndexFilter = `nullptr`
	)

virtual

Add/Remove Instances updated callbacks if attributeIndexFiter == null then all attributes will be tested and returned.

References legion_view_addInstanceUpdatedCallback().

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::callAddedCallbacks	(	const InstanceHandle *	instances,
		UInt32	count
	)

protected

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::callMovedCallbacks	(	const InstanceHandle *	instances,
		UInt32	count
	)

protected

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::callRemovedCallbacks	(	const InstanceHandle *	instances,
		UInt32	count
	)

protected

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::callUpdatedCallbacks	(	const LEG_InstanceUpdateData *	instances,
		UInt32	count,
		int	cbIndex
	)

protected

References LEG_InstanceUpdateData::attrCount, LEG_InstanceUpdateData::attributes, and LEG_InstanceUpdateData::inst.

template<typename SET_TYPE >

std::vector< SET_TYPE > & Legion::SetView< SET_TYPE >::instances ( )

Returns the instances in this view.

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::movedCallback	(	void *	usr,
		const InstanceHandle *	instances,
		UInt32	count
	)

staticprotected

template<typename SET_TYPE >

int Legion::SetView< SET_TYPE >::predicate	(	void *	usr,
		InstanceHandle	instance
	)

staticprotected

References Legion::SetView< SET_TYPE >::myPredicateFunction.

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::rebuildInstanceList ( )

protectedvirtual

Rebuilds the instance list if instances are added/removed.

References legion_view_instances().

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::removedCallback	(	void *	usr,
		const InstanceHandle *	instances,
		UInt32	count
	)

staticprotected

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::removeInstanceAddedCallback ( InstanceCallback cb )

virtual

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::removeInstanceMovedCallback ( InstanceCallback cb )

virtual

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::removeInstanceRemovedCallback ( InstanceCallback cb )

virtual

template<typename SET_TYPE >

bool Legion::SetView< SET_TYPE >::removeInstanceUpdatedCallback ( InstanceUpdateCallback cb )

virtual

References legion_view_removeInstanceUpdatedCallback().

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::setPredicateFunction ( PredicateCallback cb )

virtual

template<typename SET_TYPE >

void Legion::SetView< SET_TYPE >::updatedCallback	(	void *	usr,
		const LEG_InstanceUpdateData *	instances,
		UInt32	count,
		int	cbIndex
	)

staticprotected

Member Data Documentation

template<typename SET_TYPE>

std::vector<InstanceCallback> Legion::SetView< SET_TYPE >::myAddedCallbacks

protected

template<typename SET_TYPE>

std::vector<SET_TYPE> Legion::SetView< SET_TYPE >::myInstances

protected

template<typename SET_TYPE>

std::vector<InstanceCallback> Legion::SetView< SET_TYPE >::myMovedCallbacks

protected

template<typename SET_TYPE>

PredicateCallback Legion::SetView< SET_TYPE >::myPredicateFunction

protected

Referenced by Legion::SetView< SET_TYPE >::predicate().

template<typename SET_TYPE>

std::mutex Legion::SetView< SET_TYPE >::myRebuildMutex

protected

template<typename SET_TYPE>

std::vector<InstanceCallback> Legion::SetView< SET_TYPE >::myRemovedCallbacks

protected

template<typename SET_TYPE>

std::vector<InstanceUpdateCallback> Legion::SetView< SET_TYPE >::myUpdatedCallbacks

protected

The documentation for this class was generated from the following files:
