This class handles the conversion between a byte stream and an English readable view of the data in an OMT Tree. More...

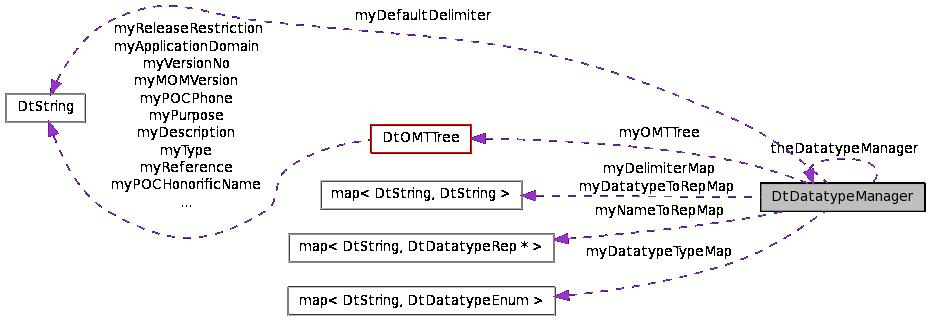

Collaboration diagram for DtDatatypeManager:

Public Types
enum	DtDatatypeEnum { SIMPLE = 1, ENUMERATED, COMPLEX, ARRAY, VARIANT, FIXED, DEFINED, DATATYPE_MAX }
Public Member Functions
virtual	~DtDatatypeManager ()
	destructor
virtual void	initOMTData (DtOMTTree *omtTree)
	Fills the datatype type tree with OMT information This function is required at initialization.
virtual DtOMTTree *	omtTree ()
virtual void	fillDefaultDatatypeRepList ()
	fills the simple database with the usual suspects.
virtual void	addDatatypeRep (DtDatatypeRep *)
virtual void	addDefinedDatatypeRep (DtDatatypeRep *)
virtual DtDatatypeRep *	getSimpleDatatypeRep (const DtString &datatypeName)
virtual std::map< DtString, DtDatatypeRep * >::iterator	getNameRepMapList ()
	get a list of all representations.
virtual std::map< DtString, DtDatatypeRep * >::iterator	getNameRepMapListEnd ()
virtual void	addDelimiterMap (const DtString &datatype, const DtString &delimiter)
	A delimiter is the divider between elements in an array, complex, or fixed.
virtual void	removeDelimiterMap (const DtString &datatype)
virtual void	setDefaultDelimiter (const DtString &str)
	if no delimiter is specified, this function uses this
virtual DtString	getDelimiterMap (const DtString &datatypeName, bool *isAvailable=0)
	get the delimiter for this datatype or the default if its undefined
virtual std::map< DtString, DtString >::iterator	getDelimiterList ()
virtual std::map< DtString, DtString >::iterator	getDelimiterListEnd ()
virtual void	readFile (DtString str)
	Read the datatype mapping file.
virtual void	writeFile (DtString str)
	Write out to the datatype mapping file.
virtual void	addRepMapping (const DtString &datatype, const DtString &rep)
virtual void	removeRepMapping (const DtString &datatype)
virtual bool	modifyRepMapping (const DtString &datatype, const DtString &rep)
	Modify a mapping.
virtual std::map< DtString, DtString >::iterator	getRepMapList ()
	Get a list of all the Representation mappings.
virtual std::map< DtString, DtString >::iterator	getRepMapListEnd ()
virtual DtString	getStringRep (const DtDatatypeFedNode currFedNode, const void value, int size, int &returnSize)
	Get the string representation from the datatype and the value The size input is the size that the network says the datatype is, but that gets modified to the actual size read.
virtual DtString	getStringRep (const DtString &datatypeName, const void *value, int size, int &returnSize)
virtual DtStringTree *	createStringTreeRep (const DtDatatypeFedNode currFedNode, const void value, int size, int &returnSize, unsigned int currentOffset=0, DtObjectHistory *=0)
	Creates a string tree from a datatype.
virtual DtStringTree *	createStringTreeRep (const DtString &datatypeName, const void value, int size, int &returnSize, const DtOMTNode omtNode=0, unsigned int currentOffset=0, DtStringTree strParentTree=0, DtObjectHistory =0)
virtual DtString	convertStringTreeToString (DtStringTree *)
	Flatten a string tree.
virtual DtDatatypeEnum	getDatatypeEnum (const DtString &datatypeName)
Static Public Member Functions
static DtDatatypeManager *	defaultInstance ()
	returns the one single rule handler
Protected Types
typedef std::map< DtString, DtString >	DatatypeNameRepNameMap
typedef std::map< DtString, DtDatatypeRep * >	RepNamePtrMap
Protected Member Functions
virtual void	checkOrphanMappings ()
virtual void	checkObjOrphans (DtObjectClassFedNode *objClass)
virtual void	checkIntOrphans (DtInteractionClassFedNode *intClass)
virtual void	getDefaultRep (const void *value, int size, int &returnSize, DtString &returnString)
	Helper functions for getStringRep and createStringTreeRep.
virtual void	getDatatypeRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getEnumRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getVariantRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	getArrayRep (const DtString &datatypeName, const void *value, int size, int &returnSize, DtString &returnString)
virtual void	createComplexTreeRep (const DtOMTNode omtNode, const DtString &datatypeName, const void value, int size, int &returnSize, DtStringTree strTree, DtStringTree strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
	Helper functions for createStringTreeRep.
virtual void	createArrayTreeRep (const DtOMTNode omtNode, const DtString &datatypeName, const void value, int size, int &returnSize, DtStringTree strTree, DtStringTree strParentTree=0, unsigned int currentOffset=0, DtObjectHistory *=0)
virtual void	processMappings (DtlObjPtr &ptr)
	Helper function for the datatype Mapping file.
virtual int	getComplexDatatypeCount (DtComplexComponentNode compNode, DtComplexDatatypeNode parentNode, const void value, int valueSize, int alreadyRead, const DtStringTree strTree=0, const DtStringTree *parentTree=0)
	Complex and array datatypes have an undetermined amount of elements This function returns the correct element count.
virtual int	getArrayDatatypeCount (DtArrayDatatypeNode arrayNode, const void value, int valueSize, const DtStringTree strTree=0, const DtStringTree parentTree=0)
Protected Attributes
DtOMTTree *	myOMTTree
std::map< DtString, DtDatatypeEnum >	myDatatypeTypeMap
DatatypeNameRepNameMap	myDatatypeToRepMap
RepNamePtrMap	myNameToRepMap
DtString	myDefaultDelimiter
std::map< DtString, DtString >	myDelimiterMap
Static Protected Attributes
static DtDatatypeManager *	theDatatypeManager
	Protected member data.
Private Member Functions
	DtDatatypeManager ()
	default constructor
	DtDatatypeManager (const DtDatatypeManager &orig)
	Copy Constructor.
DtDatatypeManager &	operator= (const DtDatatypeManager &rhs)
	Assignment Operator.

Detailed Description

This class handles the conversion between a byte stream and an English readable view of the data in an OMT Tree.

Member Enumeration Documentation

enum DtDatatypeManager::DtDatatypeEnum

Enumerator:

ENUMERATED	A basic datatype such as int or bool.
COMPLEX	An Enumeration that maps an integer to a string value.
ARRAY	A collection of different data types in one.
VARIANT	A collection of the same datatype in one.
FIXED	A datatype that could be of a different type at runtime.
DEFINED	A fixed set of a collection of different data types.
DATATYPE_MAX	An INTERNALLY defined set of different data types.

Member Function Documentation

virtual void DtDatatypeManager::addDelimiterMap	(	const DtString &	datatype,
		const DtString &	delimiter
	)		`[virtual]`

A delimiter is the divider between elements in an array, complex, or fixed.

For example, if the delimiter is :. Then an array of ints would look like this: 4:67:2:1

virtual DtString DtDatatypeManager::convertStringTreeToString ( DtStringTree * ) [virtual]

Flatten a string tree.

This basically converts any function created by createStringTreeRep to the same result as getStringRep

virtual DtStringTree* DtDatatypeManager::createStringTreeRep	(	const DtDatatypeFedNode *	currFedNode,
		const void *	value,
		int	size,
		int &	returnSize,
		unsigned int	currentOffset = `0`,
		DtObjectHistory *	= `0`
	)		`[virtual]`

Creates a string tree from a datatype.

This can be a single string if this is a simple datatype, or a more elaborate structure on more complex datatype. Note that this is a 'create' function and the caller is responsible for deleting the string tree

Parameters:

datatypeName	The Name of the datatype that is defined in value
value	A series of bytes from the network.
size	The total size of bytes in value
returnSize	This gets filled with the actual number of bytes read. If there is a problem and the number of bytes is too many, this returns -1.

virtual int DtDatatypeManager::getComplexDatatypeCount	(	DtComplexComponentNode *	compNode,
		DtComplexDatatypeNode *	parentNode,
		const void *	value,
		int	valueSize,
		int	alreadyRead,
		const DtStringTree *	strTree = `0`,
		const DtStringTree *	parentTree = `0`
	)		`[protected, virtual]`

Complex and array datatypes have an undetermined amount of elements This function returns the correct element count.

Parameters:

parentTree A filled string tree.

virtual DtString DtDatatypeManager::getStringRep	(	const DtDatatypeFedNode *	currFedNode,
		const void *	value,
		int	size,
		int &	returnSize
	)		`[virtual]`

Get the string representation from the datatype and the value The size input is the size that the network says the datatype is, but that gets modified to the actual size read.

Parameters:

datatypeName	The Name of the datatype that is defined in value
value	A series of bytes from the network.
size	The total size of bytes in value
returnSize	This gets filled with the actual number of bytes read. If there is a problem and the number of bytes is too many, this returns -1.

virtual bool DtDatatypeManager::modifyRepMapping	(	const DtString &	datatype,
		const DtString &	rep
	)		`[virtual]`

Modify a mapping.

Do not do anything if the mapping does not exist returns true if a mapping is modified, false otherwise

The documentation for this class was generated from the following file:

datatypeManager.h
