MAKLogger::DtLgrAnnotationSlots Class Reference

Annotation slots connects menu bar and annotation control. More...

Inheritance diagram for MAKLogger::DtLgrAnnotationSlots:

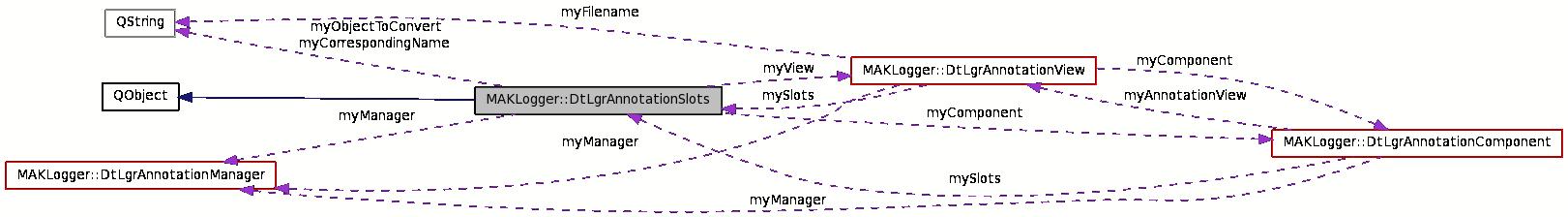

Collaboration diagram for MAKLogger::DtLgrAnnotationSlots:

List of all members.

Public Slots
void	postModelUpdate (DtLgrGuiModel &model)
	Slot for post updates.
void	openCorrespondingFile (QString)
	Slot for opening a file via it's logger tape name.
void	closeCorrespondingFile (bool opening)
	Slot for closing a file.
void	loggerFileDataChanged (const DtLgrEditorInterface::FileDataOperations &fileOp)
	Slot for handling when the logger file's data has been edited.
void	setAutoLoad (bool)
	Slot for setting whether annotations files are automatically loaded.
void	setAllowChanges (bool)
	Slot for enabling /disable modifications to the annotations.
void	openFile ()
void	openFile (const QString &filename)
void	importFile ()
void	saveFile ()
void	saveFileAs ()
bool	prepareFileForClose ()
	Prepare file for close, this will save the necessary file.
bool	closeFile ()
	Attempt to close a file.
void	createAnnotation ()
	Slot for creating an annotation.
void	modifyAnnotation ()
	Slot for modifying an annotation.
void	quickModifyAnnotation ()
	Slot for doing a 'quick' modify (using the current context settings).
void	deleteAnnotation ()
	Slot for deleting an annotation.
void	selectAnnotation ()
	Slot for selecting an annotation.
void	convertAnnotationFromMenu ()
	Slot for converting an annotation.
void	convertAnnotation ()
	FOR INTERNAL USE ONLY use convertAnnotationFromMenu.
void	convertAnnotation (QString type)
	Slot for converting an annotation.
void	jumpToPrevious ()
	Slot for jumping the current time to the previous of an annotation.
void	jumpToNext ()
	Slot for jumping the current time to the next of an annotation.
void	jumpToStart ()
	Slot for jumping the current time to the start of an annotation.
void	jumpToEnd ()
	Slot for jumping the current time to the end of an annotation.
void	boundToStartAndEnd ()
	Slot for setting the playback bounds ot that of an annotation.
void	zoomToStartAndEnd ()
	Slot for zooming to an annotation.
void	showHelp ()
	Slot for showing help.
void	emitAnnotationsChanged ()
	Slot for emitting when annotations have changed.
void	selectedAnnotationChanged (DtLgrAnnotation *)
Signals
void	fileOpened ()
void	fileSaved ()
void	fileClosed ()
void	annotationsChanged ()
Public Member Functions
	DtLgrAnnotationSlots (DtLgrAnnotationComponent *component, DtLgrAnnotationManager *manager, DtLgrAnnotationView *view)
	CTOR which will connect the control bar and the menu bar to the.
virtual	~DtLgrAnnotationSlots ()
	DTOR.
Protected Attributes
DtLgrAnnotationComponent *	myComponent
DtLgrAnnotationView *	myView
DtLgrAnnotationManager *	myManager
QString	myCorrespondingName
QString	myObjectToConvert
Private Member Functions
	DtLgrAnnotationSlots (const DtLgrAnnotationSlots &)
	Not Implemented.
DtLgrAnnotationSlots &	operator= (const DtLgrAnnotationSlots &)
	Not Implemented.

---

Detailed Description

Annotation slots connects menu bar and annotation control.

---

Constructor & Destructor Documentation

MAKLogger::DtLgrAnnotationSlots::DtLgrAnnotationSlots	(	DtLgrAnnotationComponent *	component,
		DtLgrAnnotationManager *	manager,
		DtLgrAnnotationView *	view
	)

CTOR which will connect the control bar and the menu bar to the.

slots.

---

Member Function Documentation

bool MAKLogger::DtLgrAnnotationSlots::closeFile

(

)

[slot]

Attempt to close a file.

This may cause the view to query the user to determine if the close is desired (due to unsaved data).

Returns:

Whether the file was actually closed or simply canceled.

Return values:

true	The file was closed.
false	The close was canceled.

void MAKLogger::DtLgrAnnotationSlots::convertAnnotationFromMenu

(

)

[slot]

Slot for converting an annotation.

The signal emitter object must have the name of the type. This is the method dynamic menu items use.

bool MAKLogger::DtLgrAnnotationSlots::prepareFileForClose

(

)

[slot]

Prepare file for close, this will save the necessary file.

Return values:

true	The file is ready to be closed.
false	The close was canceled.

void MAKLogger::DtLgrAnnotationSlots::setAutoLoad

(

bool

)

[slot]

Slot for setting whether annotations files are automatically loaded.

This is typically linked the the 'auto play' concept for lgr tapes.

---

The documentation for this class was generated from the following file:

• lgrAnnotationSlots.h
