Populates and displays the Federations View dialog. More...

Inheritance diagram for DtAssistantFederationsViewMgr:

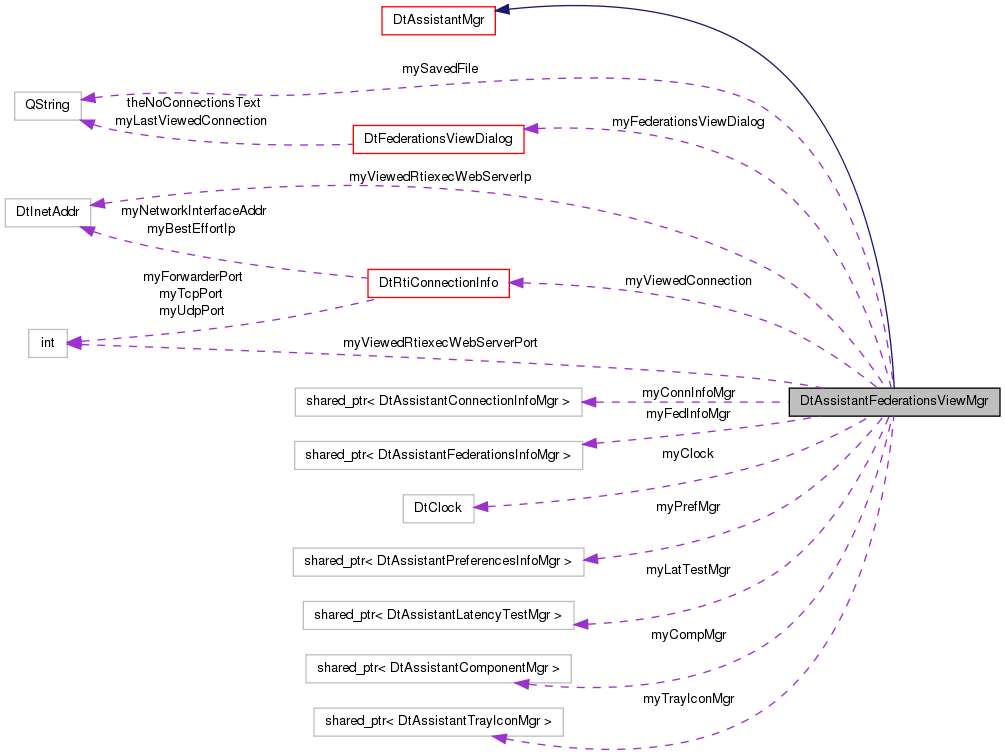

Collaboration diagram for DtAssistantFederationsViewMgr:

Public Slots
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes the remove of connections.
GUI Event Handlers
Slots which handle GUI events
void	showFederationsView ()
	Displays the federations view dialog.
void	changeViewedConnection (const DtRtiConnectionInfo &conn=DtRtiConnectionInfo::invalidConn())
	Changes which connection is currently being viewed.
void	resignFederate (int, const QString &)
	Tells the rtiexec to resign the given federate.
void	destroyFederation (const QString &)
	Tells the rtiexec to destroy the given federation.
void	showRtiexecWebSpy ()
	Processes a request to display the current rtiexec's web spy page.
void	showFederateWebSpy (const QString &fedexName, int fedHandle)
	Processes a request to display the web spy page for the given federate.
void	sendRidParamRequest ()
	Sends a request to the currently displayed rtiexec for its RID parameters.
void	sendNetworkTestingEnableMsg (const QString &fedexName)
	Sends a message to enable network testing for the given federation.
void	sendNetworkTestingDisableMsg (const QString &fedexName)
	Sends a message to disable network testing for the given federation.
void	showLatencyTestDialog (const QString &fedexName, int fedHandle)
	Opens a latency test dialog for the specified federate.
void	processFederationUpdate (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Handles a federation update.
void	processFederationRemoved (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Handles the removal of a federation.
void	processFederateUpdated (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Handles the addition of a new federate.
void	processFederateRemoved (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Handles the removal of a federate.
void	removeLoadingIndication (const DtRtiConnectionInfo &conn)
	Removes loading indication when an rtiexec responds to observation.
void	processViewedWebSpyInfoUpdated (const MAKRti::DtInetAddr &addr, int port)
	Handles an update of the web spy info for the currently viewed connection.
void	saveToLog ()
	Saves the currently displayed federation information to a log file.
Signals
void	federateRemovalTimeChanged (float period)
	Emitted when the defunct federate removal time changes.
Public Member Functions
	DtAssistantFederationsViewMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr > prefMgr, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr, DtBoost::shared_ptr< DtAssistantFederationsInfoMgr > fedInfoMgr, DtBoost::shared_ptr< DtAssistantTrayIconMgr > trayIconMgr, DtBoost::shared_ptr< DtAssistantConnQueryMgr > connQueryMgr, DtBoost::shared_ptr< DtAssistantLatencyTestMgr > latTestMgr, const MAKRti::DtFilename &configDir)
	Constructor.
	~DtAssistantFederationsViewMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if this manager has any visible dialogs.
void	saveGuiState ()
	Saves the current GUI state to a file.
Protected Member Functions
virtual void	processConnectionRemoval (const DtRtiConnectionInfoDataPair &conn)
	Processes the removal of a known connection.
void	logConnectionInfo (std::ofstream &fileStrm)
	Logs connection info to the file stream.
void	logFederationInfo (std::ofstream &fileStrm, const DtFederationStateByNameMap *federations)
	Logs full federation info to the file stream.
void	logFomInfo (std::ofstream &fileStrm, const std::list< MAKRti::DtString > *foms)
	Logs FED file/FOM module info to the file stream.
void	logFederateInfo (std::ofstream &fileStrm, const DtFederateInfoByHandleMap *federates)
	Logs federates' info to the file stream.
Protected Attributes
DtBoost::shared_ptr < DtAssistantPreferencesInfoMgr >	myPrefMgr
	The preferences manager.
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The component manager.
DtBoost::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The connection info manager.
DtBoost::shared_ptr < DtAssistantFederationsInfoMgr >	myFedInfoMgr
	The federations info manager.
DtBoost::shared_ptr < DtAssistantTrayIconMgr >	myTrayIconMgr
	The tray icon manager.
DtBoost::shared_ptr < DtAssistantLatencyTestMgr >	myLatTestMgr
	The latency test manager.
DtRtiConnectionInfo	myViewedConnection
	The connection currently being viewed at this Assistant.
MAKRti::DtInetAddr	myViewedRtiexecWebServerIp
	The IP address of the currently viewed rtiexec's web server.
int	myViewedRtiexecWebServerPort
	The port of the currently viewed rtiexec's web server.
DtFederationsViewDialog *	myFederationsViewDialog
	The dialog used to display federation information.
MAKRti::DtClock	myClock
	Clock used to determine if we need to resend lost messages.
QString	mySavedFile
	The previously saved file name.
Private Member Functions
	DtAssistantFederationsViewMgr (DtAssistantFederationsViewMgr const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtAssistantFederationsViewMgr &	operator= (DtAssistantFederationsViewMgr const &)
	Assignment not implemented -- Assignment Not Allowed!
Message Callbacks
Callbacks for federation information and command messages
virtual void	processRidParamMsg (const DtAssistantRidParamsMsg &msg)
	Called by the callback function to process a RID parameter message.
static void	processRidParamMsg (const DtAssistantRidParamsMsg &msg, void *usr)
	Callback to process a RID parameter message.

Detailed Description

Populates and displays the Federations View dialog.

Constructor & Destructor Documentation

DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr >	prefMgr,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr,
		DtBoost::shared_ptr< DtAssistantFederationsInfoMgr >	fedInfoMgr,
		DtBoost::shared_ptr< DtAssistantTrayIconMgr >	trayIconMgr,
		DtBoost::shared_ptr< DtAssistantConnQueryMgr >	connQueryMgr,
		DtBoost::shared_ptr< DtAssistantLatencyTestMgr >	latTestMgr,
		const MAKRti::DtFilename &	configDir
	)

DtAssistantFederationsViewMgr::~DtAssistantFederationsViewMgr ( )

Destructor.

References myFederationsViewDialog, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, processRidParamMsg(), and DtAssistantRidParamsMsg::removeCallback().

DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr ( DtAssistantFederationsViewMgr const & ) [private]

Copy Constructor not implemented -- Copy Not Allowed!

Member Function Documentation

void DtAssistantFederationsViewMgr::changeViewedConnection ( const DtRtiConnectionInfo & conn = DtRtiConnectionInfo::invalidConn() ) [slot]

void DtAssistantFederationsViewMgr::destroyFederation ( const QString & federationName ) [slot]

Tells the rtiexec to destroy the given federation.

References DtAssistantFederationInfo::federationHandle(), myConnInfoMgr, myFedInfoMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

bool DtAssistantFederationsViewMgr::dialogsVisible ( ) const [virtual]

Determines if this manager has any visible dialogs.

Reimplemented from DtAssistantMgr.

References myFederationsViewDialog.

void DtAssistantFederationsViewMgr::federateRemovalTimeChanged ( float period ) [signal]

Emitted when the defunct federate removal time changes.

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::logConnectionInfo ( std::ofstream & fileStrm ) [protected]

Logs connection info to the file stream.

References DtRtiConnectionInfo::description(), DtRtiConnectionInfo::isValid(), and myViewedConnection.

Referenced by saveToLog().

void DtAssistantFederationsViewMgr::logFederateInfo	(	std::ofstream &	fileStrm,
		const DtFederateInfoByHandleMap *	federates
	)		`[protected]`

Logs federates' info to the file stream.

References DtHlaVersionFromId().

Referenced by logFederationInfo().

void DtAssistantFederationsViewMgr::logFederationInfo	(	std::ofstream &	fileStrm,
		const DtFederationStateByNameMap *	federations
	)		`[protected]`

Logs full federation info to the file stream.

References logFederateInfo(), logFomInfo(), myFedInfoMgr, and myViewedConnection.

Referenced by saveToLog().

void DtAssistantFederationsViewMgr::logFomInfo	(	std::ofstream &	fileStrm,
		const std::list< MAKRti::DtString > *	foms
	)		`[protected]`

Logs FED file/FOM module info to the file stream.

Referenced by logFederationInfo().

DtAssistantFederationsViewMgr& DtAssistantFederationsViewMgr::operator= ( DtAssistantFederationsViewMgr const & ) [private]

Assignment not implemented -- Assignment Not Allowed!

void DtAssistantFederationsViewMgr::processConnectionRemoval ( const DtRtiConnectionInfoDataPair & conn ) [protected, virtual]

Processes the removal of a known connection.

References myConnInfoMgr, myFederationsViewDialog, and DtFederationsViewDialog::removeConnection().

Referenced by processConnectionsRemoval(), and processConnectionsUpdate().

void DtAssistantFederationsViewMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration & conns ) [slot]

Processes the remove of connections.

References DtRtiConnectionAndConfiguration::connections(), and processConnectionRemoval().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration & conns ) [slot]

Processes changes in connection state

References DtFederationsViewDialog::addConnection(), DtRtiConnectionAndConfiguration::connections(), myConnInfoMgr, myFederationsViewDialog, and processConnectionRemoval().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processFederateRemoved	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle
	)		`[slot]`

Handles the removal of a federate.

References myFederationsViewDialog, myViewedConnection, and DtFederationsViewDialog::removeFederate().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processFederateUpdated	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle
	)		`[slot]`

Handles the addition of a new federate.

References myFederationsViewDialog, myFedInfoMgr, myViewedConnection, and DtFederationsViewDialog::updateFederate().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processFederationRemoved	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName
	)		`[slot]`

Handles the removal of a federation.

References myFederationsViewDialog, myViewedConnection, and DtFederationsViewDialog::removeFederation().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processFederationUpdate	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName
	)		`[slot]`

Handles a federation update.

References myFederationsViewDialog, myFedInfoMgr, myViewedConnection, and DtFederationsViewDialog::updateFederation().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processRidParamMsg	(	const DtAssistantRidParamsMsg &	msg,
		void *	usr
	)		`[static]`

Callback to process a RID parameter message.

Referenced by DtAssistantFederationsViewMgr(), and ~DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::processRidParamMsg ( const DtAssistantRidParamsMsg & msg ) [virtual]

Called by the callback function to process a RID parameter message.

References DtAssistantMsg::compId(), DtAssistantComponentInfo::connUsed(), DtAssistantRidParamsMsg::getRidParams(), DtAssistantMsg::isAssistantToAssistantMessage(), DtAssistantRidParamsMsg::isRequest(), myCompMgr, myConnInfoMgr, myFederationsViewDialog, myFedInfoMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, myViewedConnection, DtAssistantRidParamsMsg::ridFilename(), DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), DtAssistantMsg::sourceId(), and DtFederationsViewDialog::updateRidParams().

void DtAssistantFederationsViewMgr::processViewedWebSpyInfoUpdated	(	const MAKRti::DtInetAddr &	addr,
		int	port
	)		`[slot]`

Handles an update of the web spy info for the currently viewed connection.

References DtFederationsViewDialog::enableWebSpy(), DtRtiConnectionInfo::isValid(), myFederationsViewDialog, myViewedConnection, myViewedRtiexecWebServerIp, and myViewedRtiexecWebServerPort.

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::removeLoadingIndication ( const DtRtiConnectionInfo & conn ) [slot]

Removes loading indication when an rtiexec responds to observation.

References myFederationsViewDialog, myViewedConnection, and DtFederationsViewDialog::removeLoadingIndication().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::resignFederate	(	int	fedHdl,
		const QString &	federationName
	)		`[slot]`

Tells the rtiexec to resign the given federate.

References DtAssistantFederationInfo::federationHandle(), myConnInfoMgr, myFedInfoMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::saveGuiState ( )

Saves the current GUI state to a file.

References myFederationsViewDialog, and DtFederationsViewDialog::saveGuiState().

Referenced by startShutdown().

void DtAssistantFederationsViewMgr::saveToLog ( ) [slot]

Saves the currently displayed federation information to a log file.

References DtRtiConnectionInfo::hostName(), DtRtiConnectionInfo::isValid(), logConnectionInfo(), logFederationInfo(), myFederationsViewDialog, myFedInfoMgr, mySavedFile, myViewedConnection, DtRtiConnectionInfo::tcpPort(), DtRtiConnectionInfo::udpPort(), and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::sendNetworkTestingDisableMsg ( const QString & fedexName ) [slot]

Sends a message to disable network testing for the given federation.

References DtAssistantFederationInfo::federationHandle(), DtRtiConnectionInfo::isValid(), myConnInfoMgr, myFedInfoMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::sendNetworkTestingEnableMsg ( const QString & fedexName ) [slot]

Sends a message to enable network testing for the given federation.

References DtAssistantFederationInfo::federationHandle(), DtRtiConnectionInfo::isValid(), myConnInfoMgr, myFedInfoMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, myViewedConnection, true, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::sendRidParamRequest ( ) [slot]

Sends a request to the currently displayed rtiexec for its RID parameters.

References DtRtiConnectionInfo::isValid(), myConnInfoMgr, myFedInfoMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::showFederateWebSpy	(	const QString &	fedexName,
		int	fedHandle
	)		`[slot]`

Processes a request to display the web spy page for the given federate.

References DtAssistantFederateInfo::connId(), myFedInfoMgr, myTrayIconMgr, myViewedConnection, DtAssistantFederateInfo::webSpyAddr(), and DtAssistantFederateInfo::webSpyHttpPort().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::showFederationsView ( ) [slot]

Displays the federations view dialog.

References DtRtiConnectionInfo::invalidConn(), myFederationsViewDialog, myFedInfoMgr, mySavedFile, and myViewedConnection.

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::showLatencyTestDialog	(	const QString &	fedexName,
		int	fedHandle
	)		`[slot]`

Opens a latency test dialog for the specified federate.

References DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::localFederateCompId(), myFedInfoMgr, myLatTestMgr, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::showRtiexecWebSpy ( ) [slot]

Processes a request to display the current rtiexec's web spy page.

References DtRtiConnectionInfo::isValid(), myTrayIconMgr, myViewedConnection, myViewedRtiexecWebServerIp, and myViewedRtiexecWebServerPort.

Referenced by DtAssistantFederationsViewMgr().

void DtAssistantFederationsViewMgr::startShutdown ( ) [virtual]

Performs any necessary processing at the start of shutdown.

Reimplemented from DtAssistantMgr.

References saveGuiState().

void DtAssistantFederationsViewMgr::tick ( ) [virtual]

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

References DtFederationsViewDialog::enableCommands(), DtRtiConnectionInfo::invalidConn(), DtRtiConnectionInfo::isValid(), myConnInfoMgr, myFederationsViewDialog, myFedInfoMgr, mySavedFile, myViewedConnection, and DtFederationsViewDialog::tick().

Member Data Documentation

MAKRti::DtClock DtAssistantFederationsViewMgr::myClock [protected]

Clock used to determine if we need to resend lost messages.

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantFederationsViewMgr::myCompMgr [protected]

The component manager.

Referenced by changeViewedConnection(), and processRidParamMsg().

DtBoost::shared_ptr<DtAssistantConnectionInfoMgr> DtAssistantFederationsViewMgr::myConnInfoMgr [protected]

The connection info manager.

Referenced by changeViewedConnection(), destroyFederation(), DtAssistantFederationsViewMgr(), processConnectionRemoval(), processConnectionsUpdate(), processRidParamMsg(), resignFederate(), sendNetworkTestingDisableMsg(), sendNetworkTestingEnableMsg(), sendRidParamRequest(), and tick().

DtFederationsViewDialog* DtAssistantFederationsViewMgr::myFederationsViewDialog [protected]

The dialog used to display federation information.

Referenced by changeViewedConnection(), dialogsVisible(), DtAssistantFederationsViewMgr(), processConnectionRemoval(), processConnectionsUpdate(), processFederateRemoved(), processFederateUpdated(), processFederationRemoved(), processFederationUpdate(), processRidParamMsg(), processViewedWebSpyInfoUpdated(), removeLoadingIndication(), saveGuiState(), saveToLog(), showFederationsView(), tick(), and ~DtAssistantFederationsViewMgr().

DtBoost::shared_ptr<DtAssistantFederationsInfoMgr> DtAssistantFederationsViewMgr::myFedInfoMgr [protected]

The federations info manager.

Referenced by changeViewedConnection(), destroyFederation(), DtAssistantFederationsViewMgr(), logFederationInfo(), processFederateUpdated(), processFederationUpdate(), processRidParamMsg(), resignFederate(), saveToLog(), sendNetworkTestingDisableMsg(), sendNetworkTestingEnableMsg(), sendRidParamRequest(), showFederateWebSpy(), showFederationsView(), showLatencyTestDialog(), and tick().

DtBoost::shared_ptr<DtAssistantLatencyTestMgr> DtAssistantFederationsViewMgr::myLatTestMgr [protected]

The latency test manager.

Referenced by showLatencyTestDialog().

DtBoost::shared_ptr<DtAssistantPreferencesInfoMgr> DtAssistantFederationsViewMgr::myPrefMgr [protected]

The preferences manager.

Referenced by DtAssistantFederationsViewMgr().

QString DtAssistantFederationsViewMgr::mySavedFile [protected]

The previously saved file name.

Referenced by changeViewedConnection(), saveToLog(), showFederationsView(), and tick().

DtBoost::shared_ptr<DtAssistantTrayIconMgr> DtAssistantFederationsViewMgr::myTrayIconMgr [protected]

The tray icon manager.

Referenced by DtAssistantFederationsViewMgr(), showFederateWebSpy(), and showRtiexecWebSpy().

DtRtiConnectionInfo DtAssistantFederationsViewMgr::myViewedConnection [protected]

The connection currently being viewed at this Assistant.

Referenced by changeViewedConnection(), destroyFederation(), logConnectionInfo(), logFederationInfo(), processFederateRemoved(), processFederateUpdated(), processFederationRemoved(), processFederationUpdate(), processRidParamMsg(), processViewedWebSpyInfoUpdated(), removeLoadingIndication(), resignFederate(), saveToLog(), sendNetworkTestingDisableMsg(), sendNetworkTestingEnableMsg(), sendRidParamRequest(), showFederateWebSpy(), showFederationsView(), showLatencyTestDialog(), showRtiexecWebSpy(), and tick().

MAKRti::DtInetAddr DtAssistantFederationsViewMgr::myViewedRtiexecWebServerIp [protected]

The IP address of the currently viewed rtiexec's web server.

Referenced by changeViewedConnection(), processViewedWebSpyInfoUpdated(), and showRtiexecWebSpy().

int DtAssistantFederationsViewMgr::myViewedRtiexecWebServerPort [protected]

The port of the currently viewed rtiexec's web server.

Referenced by changeViewedConnection(), processViewedWebSpyInfoUpdated(), and showRtiexecWebSpy().

The documentation for this class was generated from the following files:

Public Slots

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Message Callbacks

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
