Maintains list of known RTI license servers and processes license queries from RTI components. More...

Inheritance diagram for DtAssistantLicenseQueryMgr:

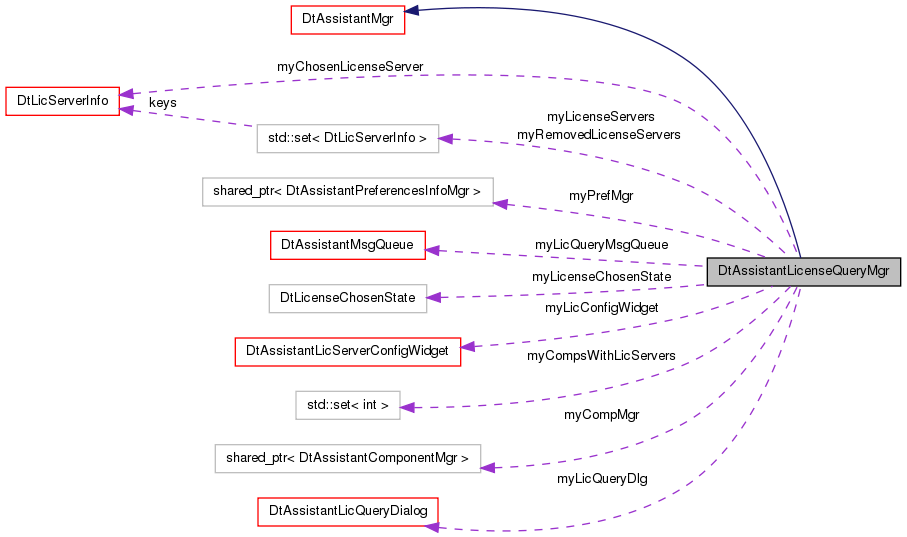

Collaboration diagram for DtAssistantLicenseQueryMgr:

Public Slots
void	processLicQueryResults (int result)
	Processes the results of a license query dialog.
void	closeLicQueryDialogForId (int id)
	Closes the license query dialog if it is for the component with the matching ID.
void	addLicenseServerFromComponent (int id)
	Adds a new license server (or servers if string contains multiple) to the list.
void	removeLicenseServer (const MAKRti::DtString &server)
	Removes a license server from the list.
void	sendLicenseServerUpdate ()
	Sends a license server update message.
void	clearStoredLicense ()
	Clears the stored license.
Signals
void	chosenLicServerUpdated (const QString &name, int port)
	Emitted when the chosen license server changes.
void	unlicensedModeChosen (bool)
	Emitted when unlicensed mode is chosen or unchosen.
Public Member Functions
	DtAssistantLicenseQueryMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr > prefMgr, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr)
	Constructor.
virtual	~DtAssistantLicenseQueryMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
Protected Types
enum	DtLicenseChosenState { NothingChosen, UnlicensedChosen, LicenseChosen }
Protected Member Functions
virtual void	updateLicQuery ()
	Updates the list of available license servers.
Protected Attributes
DtAssistantMsgQueue	myLicQueryMsgQueue
	The queue which holds license query messages.
DtBoost::shared_ptr < DtAssistantPreferencesInfoMgr >	myPrefMgr
	The manager that keeps track of Assistant preferences.
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The manager that keeps track of all local RTI components.
DtAssistantLicQueryDialog *	myLicQueryDlg
	The dialog which queries the user for license information.
DtAssistantLicServerConfigWidget *	myLicConfigWidget
	The widget that displays the current preferred license in the configuration dialog.
DtLicenseChosenState	myLicenseChosenState
	Whether a license is chosen, unlicensed mode is chosen, or nothing is chosen.
DtLicServerInfo	myChosenLicenseServer
	The currently chosen license server.
DtLicServerSet	myLicenseServers
	Set of license servers known to this assistant.
DtLicServerSet	myRemovedLicenseServers
	Set of removed local license servers since last update was sent.
std::set< int >	myCompsWithLicServers
	The set of components we've received license servers from.
Private Member Functions
	DtAssistantLicenseQueryMgr (DtAssistantLicenseQueryMgr const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtAssistantLicenseQueryMgr &	operator= (DtAssistantLicenseQueryMgr const &)
	Assignment not implemented -- Assignment Not Allowed!
Message Callbacks
Callbacks for license messages
static void	addLicQueryMsgToQueue (const DtAssistantLicQueryMsg &msg, void *usr)
	Callback to add license query message to queue.
static void	processLicQueryMsg (const DtAssistantLicQueryMsg &msg, void *usr)
	Callback to process a license query message from a component.
static void	processLicServerInfoMsg (const DtAssistantLicServerInfoMsg &msg, void *usr)
	Called to process a change in the available license servers.
virtual void	addLicQueryMsgToQueue (const DtAssistantLicQueryMsg &msg)
	Called by the callback function to add a message to the queue.
virtual void	processLicQueryMsg (const DtAssistantLicQueryMsg &msg)
	Called by the callback function to process license query messages.
virtual void	processLicServerInfoMsg (const DtAssistantLicServerInfoMsg &msg)
	Called by the callback function to process the a change in the available license servers.

Detailed Description

Maintains list of known RTI license servers and processes license queries from RTI components.

Member Enumeration Documentation

enum DtAssistantLicenseQueryMgr::DtLicenseChosenState [protected]

Enumerator:

NothingChosen
UnlicensedChosen
LicenseChosen

Constructor & Destructor Documentation

DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr >	prefMgr,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr
	)

DtAssistantLicenseQueryMgr::~DtAssistantLicenseQueryMgr ( ) [virtual]

Destructor.

References addLicQueryMsgToQueue(), myLicQueryMsgQueue, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, processLicQueryMsg(), processLicServerInfoMsg(), DtAssistantLicServerInfoMsg::removeCallback(), and DtAssistantLicQueryMsg::removeCallback().

DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr ( DtAssistantLicenseQueryMgr const & ) [private]

Copy Constructor not implemented -- Copy Not Allowed!

Member Function Documentation

void DtAssistantLicenseQueryMgr::addLicenseServerFromComponent ( int id ) [slot]

Adds a new license server (or servers if string contains multiple) to the list.

References DtAssistantComponentInfo::licenseServer(), myCompMgr, myCompsWithLicServers, and myLicenseServers.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::addLicQueryMsgToQueue	(	const DtAssistantLicQueryMsg &	msg,
		void *	usr
	)		`[static, protected]`

Callback to add license query message to queue.

License query messages should be added to a queue in order to be processed one at a time. Two license query dialogs should not be displayed at the same time.

Referenced by DtAssistantLicenseQueryMgr(), and ~DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::addLicQueryMsgToQueue ( const DtAssistantLicQueryMsg & msg ) [protected, virtual]

Called by the callback function to add a message to the queue.

References DtAssistantMsgQueue::addMsg(), myLicQueryMsgQueue, and DtAssistantMgr::myServer.

void DtAssistantLicenseQueryMgr::chosenLicServerUpdated	(	const QString &	name,
		int	port
	)		`[signal]`

Emitted when the chosen license server changes.

Referenced by processLicQueryResults().

void DtAssistantLicenseQueryMgr::clearStoredLicense ( ) [slot]

Clears the stored license.

References lm, myChosenLicenseServer, myLicenseChosenState, myPrefMgr, NothingChosen, DtLicServerInfo::setServerName(), DtLicServerInfo::setServerPort(), and UnlicensedChosen.

Referenced by DtAssistantLicenseQueryMgr(), and processLicQueryMsg().

void DtAssistantLicenseQueryMgr::closeLicQueryDialogForId ( int id ) [slot]

Closes the license query dialog if it is for the component with the matching ID.

References DtAssistantMsgQueue::currentCompId(), myLicQueryDlg, and myLicQueryMsgQueue.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::configWidget	(	DtAssistantConfigWidget **	widget,
		QIcon &	icon,
		QString &	name
	)		`[virtual]`

Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.

Reimplemented from DtAssistantMgr.

References DtRtiLibPath(), and myLicConfigWidget.

DtAssistantLicenseQueryMgr& DtAssistantLicenseQueryMgr::operator= ( DtAssistantLicenseQueryMgr const & ) [private]

Assignment not implemented -- Assignment Not Allowed!

void DtAssistantLicenseQueryMgr::processLicQueryMsg	(	const DtAssistantLicQueryMsg &	msg,
		void *	usr
	)		`[static, protected]`

Callback to process a license query message from a component.

Referenced by DtAssistantLicenseQueryMgr(), and ~DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::processLicQueryMsg ( const DtAssistantLicQueryMsg & msg ) [protected, virtual]

void DtAssistantLicenseQueryMgr::processLicQueryResults ( int result ) [slot]

Processes the results of a license query dialog.

References chosenLicServerUpdated(), DtAssistantMsgQueue::currentCompId(), DtAssistantMsgQueue::finishProcessMsg(), DtAssistantLicQueryDialog::getResults(), LicenseChosen, lm, myChosenLicenseServer, myCompMgr, myLicenseChosenState, myLicQueryDlg, myLicQueryMsgQueue, myPrefMgr, DtAssistantMgr::myServer, DtAssistantComponentInfo::setLicenseServer(), DtLicServerInfo::setServerName(), DtLicServerInfo::setServerPort(), DtAssistantMgr::showDialog(), DtLicServerInfo::string(), and UnlicensedChosen.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::processLicServerInfoMsg	(	const DtAssistantLicServerInfoMsg &	msg,
		void *	usr
	)		`[static, protected]`

Called to process a change in the available license servers.

Referenced by DtAssistantLicenseQueryMgr(), and ~DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::processLicServerInfoMsg ( const DtAssistantLicServerInfoMsg & msg ) [protected, virtual]

Called by the callback function to process the a change in the available license servers.

References DtAssistantLicServerInfoMsg::getLicenseServers(), DtAssistantLicServerInfoMsg::isRemoval(), myLicenseServers, myLicQueryDlg, and updateLicQuery().

void DtAssistantLicenseQueryMgr::removeLicenseServer ( const MAKRti::DtString & server ) [slot]

Removes a license server from the list.

References myLicenseServers, and myRemovedLicenseServers.

void DtAssistantLicenseQueryMgr::sendLicenseServerUpdate ( ) [slot]

Sends a license server update message.

References myLicenseServers, DtAssistantMgr::myPeer, and myRemovedLicenseServers.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::tick ( ) [virtual]

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

References DtAssistantMsgQueue::beginProcessMsg(), and myLicQueryMsgQueue.

void DtAssistantLicenseQueryMgr::unlicensedModeChosen ( bool ) [signal]

Emitted when unlicensed mode is chosen or unchosen.

void DtAssistantLicenseQueryMgr::updateConfigWidget ( ) [virtual]

Forces the configuration widget to be updated.

Reimplemented from DtAssistantMgr.

References LicenseChosen, myChosenLicenseServer, myLicConfigWidget, myLicenseChosenState, DtLicServerInfo::serverName(), DtLicServerInfo::serverPort(), DtAssistantLicServerConfigWidget::setConfiguration(), and UnlicensedChosen.

void DtAssistantLicenseQueryMgr::updateLicQuery ( ) [protected, virtual]

Updates the list of available license servers.

References DtAssistantLicQueryDialog::addServer(), DtAssistantLicQueryDialog::clearServers(), myLicenseServers, and myLicQueryDlg.

Referenced by processLicQueryMsg(), and processLicServerInfoMsg().

Member Data Documentation

DtLicServerInfo DtAssistantLicenseQueryMgr::myChosenLicenseServer [protected]

The currently chosen license server.

Referenced by clearStoredLicense(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), and updateConfigWidget().

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantLicenseQueryMgr::myCompMgr [protected]

The manager that keeps track of all local RTI components.

Referenced by addLicenseServerFromComponent(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), and processLicQueryResults().

std::set<int> DtAssistantLicenseQueryMgr::myCompsWithLicServers [protected]

The set of components we've received license servers from.

Referenced by addLicenseServerFromComponent().

DtAssistantLicServerConfigWidget* DtAssistantLicenseQueryMgr::myLicConfigWidget [protected]

The widget that displays the current preferred license in the configuration dialog.

Referenced by configWidget(), DtAssistantLicenseQueryMgr(), and updateConfigWidget().

DtLicenseChosenState DtAssistantLicenseQueryMgr::myLicenseChosenState [protected]

Whether a license is chosen, unlicensed mode is chosen, or nothing is chosen.

Referenced by clearStoredLicense(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), and updateConfigWidget().

DtLicServerSet DtAssistantLicenseQueryMgr::myLicenseServers [protected]

Set of license servers known to this assistant.

Referenced by addLicenseServerFromComponent(), processLicServerInfoMsg(), removeLicenseServer(), sendLicenseServerUpdate(), and updateLicQuery().

DtAssistantLicQueryDialog* DtAssistantLicenseQueryMgr::myLicQueryDlg [protected]

The dialog which queries the user for license information.

Referenced by closeLicQueryDialogForId(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), processLicServerInfoMsg(), and updateLicQuery().

DtAssistantMsgQueue DtAssistantLicenseQueryMgr::myLicQueryMsgQueue [protected]

The queue which holds license query messages.

Only one may be processed at a time, but this should not prevent the processing of other messages.

Referenced by addLicQueryMsgToQueue(), closeLicQueryDialogForId(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), tick(), and ~DtAssistantLicenseQueryMgr().

DtBoost::shared_ptr<DtAssistantPreferencesInfoMgr> DtAssistantLicenseQueryMgr::myPrefMgr [protected]

The manager that keeps track of Assistant preferences.

Referenced by clearStoredLicense(), DtAssistantLicenseQueryMgr(), and processLicQueryResults().

DtLicServerSet DtAssistantLicenseQueryMgr::myRemovedLicenseServers [protected]

Set of removed local license servers since last update was sent.

Referenced by removeLicenseServer(), and sendLicenseServerUpdate().

The documentation for this class was generated from the following files:
