DtConsoleWidget Class Reference

Qt widget that provides the GUI for a console display. More...

Inheritance diagram for DtConsoleWidget:

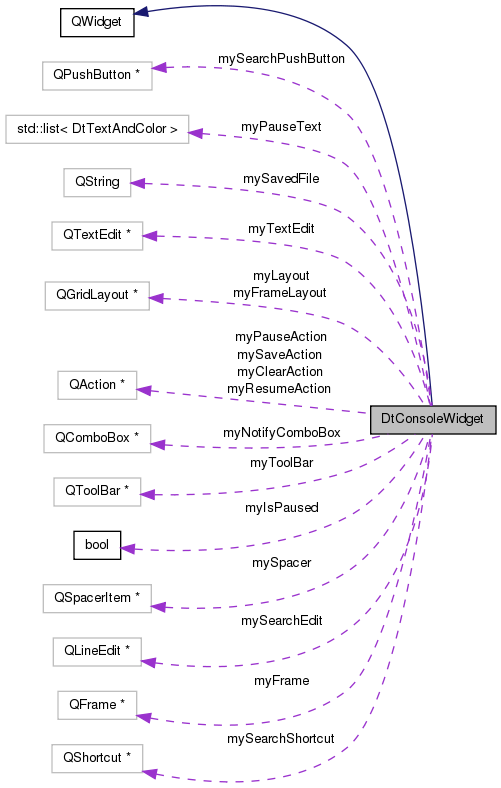

Collaboration diagram for DtConsoleWidget:

List of all members.

Classes
struct	DtTextAndColor
Public Slots
virtual void	processNotifyComboxBoxUpdate (int level)
	Catches the notify level combo box update and emits the notifyLevelUpdated signal with the new notifyLevel.
virtual void	processSave ()
	Processes the pressing of the save button.
virtual void	processPause ()
	Processes the pressing of the pause button.
virtual void	processResume ()
	Processes the pressing of the resume button.
virtual void	processSearch ()
	Processes the pressing of the search button.
virtual void	focusSearchEdit ()
	Focus on the search.
Signals
void	notifyLevelUpdated (MAKRti::DtNotifyLevelType notifyLevel)
	Signals that the notify level has been updated by the user.
Public Member Functions
	DtConsoleWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtConsoleWidget ()
	Destructor.
virtual void	writeText (const QString &st, QColor color=Qt::black)
	Writes the text to the display in the specified color.
virtual void	clear ()
	Clears all of the text from the display.
virtual void	setNotifyLevel (MAKRti::DtNotifyLevelType notifyLevel)
	Sets the notify level in the combo box.
virtual void	setMaximumLines (int max)
	Sets the maximum number of lines which can be in the buffer.
virtual void	setDocument (QTextDocument *document)
	Sets the given document to be the document of the text edit.
virtual void	removeNotifyComboBox ()
	removes the notify level combo box
virtual void	showToolBar (bool showBar=true)
	Shows or hides the tool bar items.
virtual void	showClearButton (bool showButton=true)
	Shows or hides the tool bar items.
virtual void	showSaveButton (bool showButton=true)
	Shows or hides the tool bar items.
virtual void	showPauseResumeButton (bool showButton=true)
	Shows or hides the tool bar items.
virtual void	showNotifyLevelBox (bool showBox=true)
	Shows or hides the tool bar items.
Protected Types
typedef std::list< DtTextAndColor >	DtTextAndColorList
Protected Member Functions
virtual void	saveToFile ()
	Saves the console output to a file.
Protected Attributes
QToolBar *	myToolBar
	The tool bar for a console widget.
QAction *	myClearAction
	The tool bar action which clears the console.
QAction *	mySaveAction
	The tool bar action which saves the full log to a file.
QAction *	myPauseAction
	The tool bar action which pauses the console, preventing it from updating and scrolling.
QAction *	myResumeAction
	The tool bar action which resumes the console after it has been paused.
QComboBox *	myNotifyComboBox
	The tool bar combo box which will update the notify level.
QTextEdit *	myTextEdit
	The text edit box which displays the log.
QFrame *	myFrame
	The frame of the widget.
QGridLayout *	myLayout
	The layout of the widget.
QGridLayout *	myFrameLayout
	The layout of the frame.
QString	mySavedFile
	The previously saved file.
QLineEdit *	mySearchEdit
	The search edit box.
QPushButton *	mySearchPushButton
	The search button.
QSpacerItem *	mySpacer
	Spacer item for the grid layout.
QShortcut *	mySearchShortcut
	Search edit shortcut.
bool	myIsPaused
	Indicates if the console is currently paused.
DtTextAndColorList	myPauseText
	Used to store text while pause is on.

---

Detailed Description

Qt widget that provides the GUI for a console display.

---

Member Typedef Documentation

typedef std::list< DtTextAndColor > DtConsoleWidget::DtTextAndColorList [protected]

---

Constructor & Destructor Documentation

DtConsoleWidget::DtConsoleWidget	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

References clear(), connect(), DtRtiLibPath(), focusSearchEdit(), myClearAction, myFrame, myFrameLayout, myLayout, myNotifyComboBox, myPauseAction, myResumeAction, mySaveAction, mySearchEdit, mySearchPushButton, mySearchShortcut, mySpacer, myTextEdit, myToolBar, processNotifyComboxBoxUpdate(), processPause(), processResume(), processSave(), and processSearch().

DtConsoleWidget::~DtConsoleWidget

(

)

[virtual]

Destructor.

---

Member Function Documentation

void DtConsoleWidget::clear

(

)

[virtual]

Clears all of the text from the display.

Reimplemented in DtExecConsoleWidget.

References myTextEdit.

Referenced by DtConsoleWidget().

void DtConsoleWidget::focusSearchEdit

(

)

[virtual, slot]

Focus on the search.

References mySearchEdit.

Referenced by DtConsoleWidget().

void DtConsoleWidget::notifyLevelUpdated

(

MAKRti::DtNotifyLevelType

notifyLevel

)

[signal]

Signals that the notify level has been updated by the user.

DtConsoleWidget does not update the notify level. This signal should be attached to a slot which actually changes the notify level.

Referenced by processNotifyComboxBoxUpdate().

void DtConsoleWidget::processNotifyComboxBoxUpdate

(

int

level

)

[virtual, slot]

Catches the notify level combo box update and emits the notifyLevelUpdated signal with the new notifyLevel.

References notifyLevelUpdated().

Referenced by DtConsoleWidget().

void DtConsoleWidget::processPause

(

)

[virtual, slot]

Processes the pressing of the pause button.

References myIsPaused, myPauseAction, and myResumeAction.

Referenced by DtConsoleWidget().

void DtConsoleWidget::processResume

(

)

[virtual, slot]

Processes the pressing of the resume button.

References myIsPaused, myPauseAction, myPauseText, myResumeAction, and writeText().

Referenced by DtConsoleWidget().

void DtConsoleWidget::processSave

(

)

[virtual, slot]

Processes the pressing of the save button.

References saveToFile().

Referenced by DtConsoleWidget().

void DtConsoleWidget::processSearch

(

)

[virtual, slot]

Processes the pressing of the search button.

References mySearchEdit, and myTextEdit.

Referenced by DtConsoleWidget().

void DtConsoleWidget::removeNotifyComboBox

(

)

[virtual]

removes the notify level combo box

References myFrameLayout, and myNotifyComboBox.

Referenced by DtAssistantPreferencesViewMgr::showAssistantLog().

void DtConsoleWidget::saveToFile

(

)

[protected, virtual]

Saves the console output to a file.

Prompts the user with a dialog to select or enter a file.

Reimplemented in DtFileConsoleWidget.

References mySavedFile, and myTextEdit.

Referenced by processSave().

void DtConsoleWidget::setDocument

(

QTextDocument *

document

)

[virtual]

Sets the given document to be the document of the text edit.

The document's parent will be reset to be the text edit.

References myTextEdit.

void DtConsoleWidget::setMaximumLines

(

int

max

)

[virtual]

Sets the maximum number of lines which can be in the buffer.

When the limit is reached, the oldest lines will be discarded.

References myTextEdit.

Referenced by DtFileConsoleWidget::DtFileConsoleWidget(), and DtRtiNetworkComponentViewDialog::setupUI().

void DtConsoleWidget::setNotifyLevel

(

MAKRti::DtNotifyLevelType

notifyLevel

)

[virtual]

Sets the notify level in the combo box.

Reimplemented in DtExecConsoleWidget.

References myNotifyComboBox.

Referenced by DtAssistantTrayIconMgr::enableComponentLog().

void DtConsoleWidget::showClearButton

(

bool

showButton = true

)

[virtual]

Shows or hides the tool bar items.

References myClearAction.

void DtConsoleWidget::showNotifyLevelBox

(

bool

showBox = true

)

[virtual]

Shows or hides the tool bar items.

References myNotifyComboBox.

Referenced by DtAssistantTrayIconMgr::DtAssistantTrayIconMgr().

void DtConsoleWidget::showPauseResumeButton

(

bool

showButton = true

)

[virtual]

Shows or hides the tool bar items.

References myIsPaused, myPauseAction, and myResumeAction.

void DtConsoleWidget::showSaveButton

(

bool

showButton = true

)

[virtual]

Shows or hides the tool bar items.

References mySaveAction.

void DtConsoleWidget::showToolBar

(

bool

showBar = true

)

[virtual]

Shows or hides the tool bar items.

References myToolBar.

void DtConsoleWidget::writeText	(	const QString &	st,
		QColor	color = Qt::black
	)		[virtual]

Writes the text to the display in the specified color.

The default is black if no color is specified.

Reimplemented in DtExecConsoleWidget.

References DtConsoleWidget::DtTextAndColor::color, myIsPaused, myPauseText, and myTextEdit.

Referenced by processResume(), and DtFileConsoleWidget::updateConsole().

---

Member Data Documentation

QAction* DtConsoleWidget::myClearAction [protected]

The tool bar action which clears the console.

Referenced by DtConsoleWidget(), and showClearButton().

QFrame* DtConsoleWidget::myFrame [protected]

The frame of the widget.

Referenced by DtConsoleWidget().

QGridLayout* DtConsoleWidget::myFrameLayout [protected]

The layout of the frame.

Referenced by DtConsoleWidget(), DtExecConsoleWidget::DtExecConsoleWidget(), and removeNotifyComboBox().

bool DtConsoleWidget::myIsPaused [protected]

Indicates if the console is currently paused.

Referenced by processPause(), processResume(), showPauseResumeButton(), DtFileConsoleWidget::updateConsole(), and writeText().

QGridLayout* DtConsoleWidget::myLayout [protected]

The layout of the widget.

Referenced by DtConsoleWidget().

QComboBox* DtConsoleWidget::myNotifyComboBox [protected]

The tool bar combo box which will update the notify level.

Referenced by DtConsoleWidget(), DtExecConsoleWidget::DtExecConsoleWidget(), removeNotifyComboBox(), setNotifyLevel(), and showNotifyLevelBox().

QAction* DtConsoleWidget::myPauseAction [protected]

The tool bar action which pauses the console, preventing it from updating and scrolling.

Referenced by DtConsoleWidget(), processPause(), processResume(), and showPauseResumeButton().

DtTextAndColorList DtConsoleWidget::myPauseText [protected]

Used to store text while pause is on.

Will be written to the console when it resumes.

Referenced by processResume(), and writeText().

QAction* DtConsoleWidget::myResumeAction [protected]

The tool bar action which resumes the console after it has been paused.

Referenced by DtConsoleWidget(), processPause(), processResume(), and showPauseResumeButton().

QAction* DtConsoleWidget::mySaveAction [protected]

The tool bar action which saves the full log to a file.

Referenced by DtConsoleWidget(), and showSaveButton().

QString DtConsoleWidget::mySavedFile [protected]

The previously saved file.

Referenced by DtFileConsoleWidget::saveToFile(), and saveToFile().

QLineEdit* DtConsoleWidget::mySearchEdit [protected]

The search edit box.

Referenced by DtConsoleWidget(), focusSearchEdit(), and processSearch().

QPushButton* DtConsoleWidget::mySearchPushButton [protected]

The search button.

Referenced by DtConsoleWidget().

QShortcut* DtConsoleWidget::mySearchShortcut [protected]

Search edit shortcut.

Referenced by DtConsoleWidget().

QSpacerItem* DtConsoleWidget::mySpacer [protected]

Spacer item for the grid layout.

Referenced by DtConsoleWidget().

QTextEdit* DtConsoleWidget::myTextEdit [protected]

The text edit box which displays the log.

Referenced by clear(), DtConsoleWidget(), processSearch(), saveToFile(), setDocument(), setMaximumLines(), and writeText().

QToolBar* DtConsoleWidget::myToolBar [protected]

The tool bar for a console widget.

Referenced by DtConsoleWidget(), DtExecConsoleWidget::DtExecConsoleWidget(), and showToolBar().

---

The documentation for this class was generated from the following files:

• consoleWidget.h
• consoleWidget.cxx
