DtExecConsoleWidget Class Reference

Provides the GUI for a console which displays the contents of an rtiexec log. More...

Inheritance diagram for DtExecConsoleWidget:

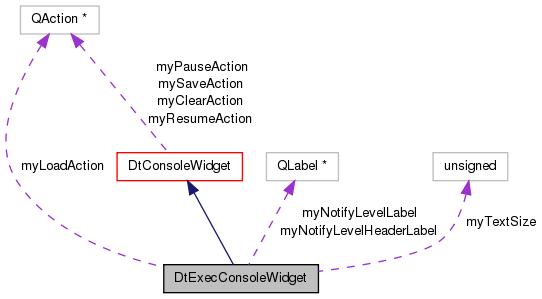

Collaboration diagram for DtExecConsoleWidget:

List of all members.

Signals
void	loadLog ()
	Emitted when the user requests a load of the full log.
Public Member Functions
	DtExecConsoleWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtExecConsoleWidget ()
	Destructor.
virtual void	writeText (const QString &st, QColor color=Qt::black)
	Writes the text to the display in the specified color.
virtual void	clear ()
	Clears all of the text from the display.
virtual unsigned	textSize () const
	Gets the size of the text which has been written to this console.
virtual void	setNotifyLevel (MAKRti::DtNotifyLevelType notifyLevel)
	Sets the displayed notify level.
virtual void	clearNotifyLevel ()
	Clears the displayed notify level.
Protected Attributes
QAction *	myLoadAction
	The tool bar action which loads the most recent rtiexec log entries to the console.
QLabel *	myNotifyLevelHeaderLabel
	The header label for the notify level.
QLabel *	myNotifyLevelLabel
	The label that indicates the notify level of the viewed rtiexec.
unsigned	myTextSize
	Size of the currently displayed (and stored if paused) text in bytes.
Private Member Functions
	DtExecConsoleWidget (DtExecConsoleWidget const &)
	Copy constructor not implemented.
DtExecConsoleWidget &	operator= (DtExecConsoleWidget const &)
	Assignment operator not implemented.

---

Detailed Description

Provides the GUI for a console which displays the contents of an rtiexec log.

DtExecConsoleWidget is derived from DtConsoleWidget.

---

Constructor & Destructor Documentation

DtExecConsoleWidget::DtExecConsoleWidget	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

References connect(), DtRtiLibPath(), loadLog(), DtConsoleWidget::myFrameLayout, myLoadAction, DtConsoleWidget::myNotifyComboBox, myNotifyLevelHeaderLabel, myNotifyLevelLabel, and DtConsoleWidget::myToolBar.

DtExecConsoleWidget::~DtExecConsoleWidget

(

)

[virtual]

Destructor.

DtExecConsoleWidget::DtExecConsoleWidget

(

DtExecConsoleWidget const &

)

[private]

Copy constructor not implemented.

---

Member Function Documentation

void DtExecConsoleWidget::clear

(

)

[virtual]

Clears all of the text from the display.

Reimplemented from DtConsoleWidget.

References myTextSize.

Referenced by DtRtiNetworkComponentViewDialog::clearConsole().

void DtExecConsoleWidget::clearNotifyLevel

(

)

[virtual]

Clears the displayed notify level.

References myNotifyLevelLabel.

Referenced by DtRtiNetworkComponentViewDialog::clearConsole().

void DtExecConsoleWidget::loadLog

(

)

[signal]

Emitted when the user requests a load of the full log.

Referenced by DtExecConsoleWidget().

DtExecConsoleWidget& DtExecConsoleWidget::operator=

(

DtExecConsoleWidget const &

)

[private]

Assignment operator not implemented.

void DtExecConsoleWidget::setNotifyLevel

(

MAKRti::DtNotifyLevelType

notifyLevel

)

[virtual]

Sets the displayed notify level.

Reimplemented from DtConsoleWidget.

References myNotifyLevelLabel.

Referenced by DtRtiNetworkComponentViewDialog::updateNotifyLevel().

unsigned DtExecConsoleWidget::textSize

(

)

const [virtual]

Gets the size of the text which has been written to this console.

References myTextSize.

Referenced by DtRtiNetworkComponentViewDialog::consoleTextSize().

void DtExecConsoleWidget::writeText	(	const QString &	st,
		QColor	color = Qt::black
	)		[virtual]

Writes the text to the display in the specified color.

The default is black if no color is specified.

Reimplemented from DtConsoleWidget.

References myTextSize.

Referenced by DtRtiNetworkComponentViewDialog::writeToConsole().

---

Member Data Documentation

QAction* DtExecConsoleWidget::myLoadAction [protected]

The tool bar action which loads the most recent rtiexec log entries to the console.

Referenced by DtExecConsoleWidget().

QLabel* DtExecConsoleWidget::myNotifyLevelHeaderLabel [protected]

The header label for the notify level.

Referenced by DtExecConsoleWidget().

QLabel* DtExecConsoleWidget::myNotifyLevelLabel [protected]

The label that indicates the notify level of the viewed rtiexec.

Referenced by clearNotifyLevel(), DtExecConsoleWidget(), and setNotifyLevel().

unsigned DtExecConsoleWidget::myTextSize [protected]

Size of the currently displayed (and stored if paused) text in bytes.

Referenced by clear(), textSize(), and writeText().

---

The documentation for this class was generated from the following files:

• execConsoleWidget.h
• execConsoleWidget.cxx
