Instances of DtFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) and manages the objects responsible for handling general communication, objects, interactions, the FOM, MOM, and data distribution mmg. More...

Inheritance diagram for DtFederateMgr:

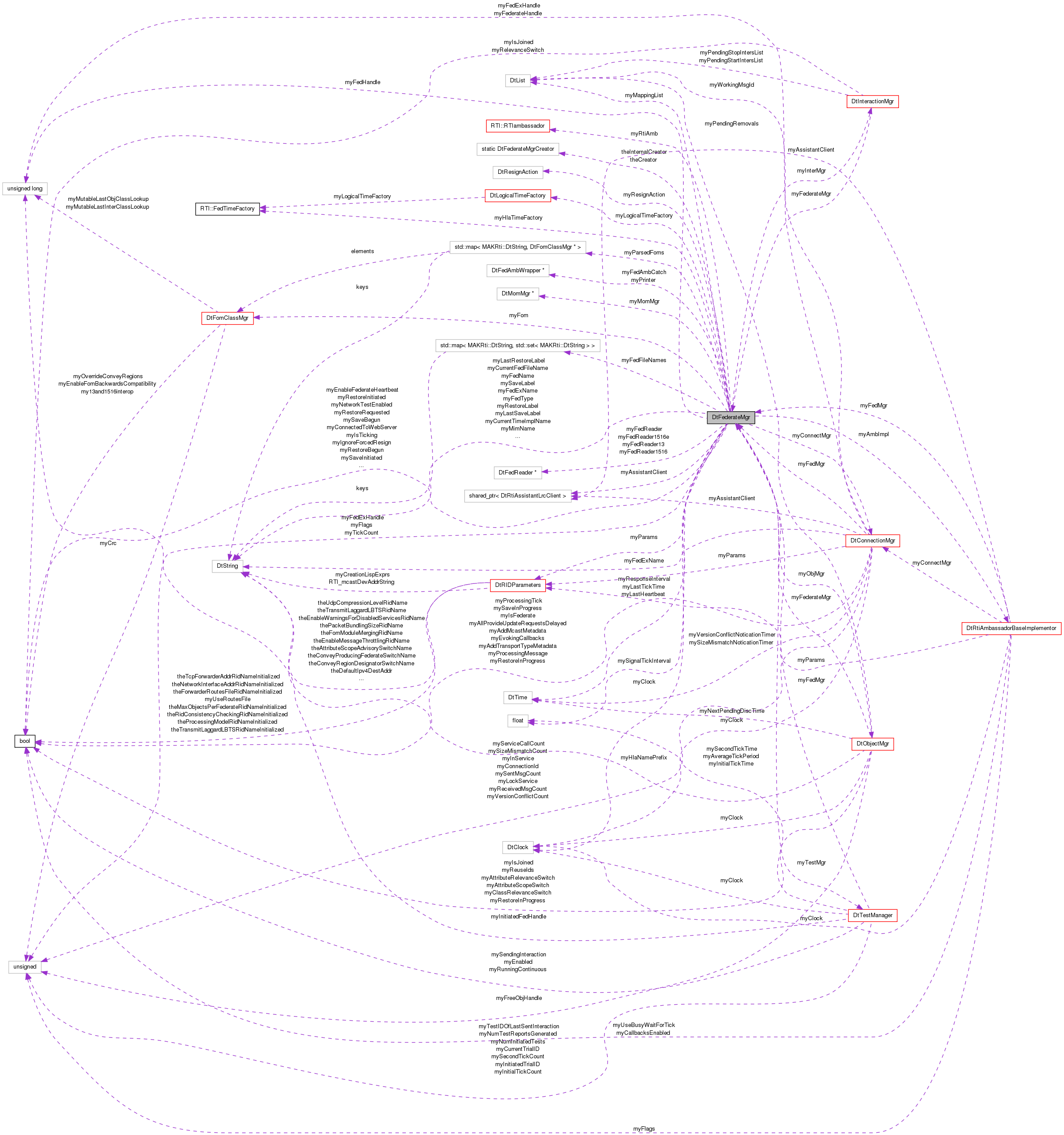

Collaboration diagram for DtFederateMgr:

List of all members.

Public Types
typedef DtFederateMgr (	DtFederateMgrCreator )(DtRIDParameters ridParams, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Federate manager creator.
Public Member Functions
virtual	~DtFederateMgr ()
	Destructor.
virtual void	createFederationExecution (const char executionName, const char timeImplName, const char *fed)=0
	Process the create federation execution service.
virtual void	destroyFederationExecution (const char *executionName)=0
	Process the destroy federation execution service.
virtual RTI::FederateHandle	joinFederationExecution (const char yourName, const char executionName, RTI::FederateAmbassador *federateAmbassadorReference, unsigned long flags)=0
	Process the join federation execution service.
virtual void	resignFederationExecution (RTI::ResignAction theAction)
	Process the resign federation execution service.
virtual void	registerFederationSynchronizationPoint (const char label, const char theTag)=0
	Process the register federation synchronization point service.
virtual void	registerFederationSynchronizationPoint (const char label, const char theTag, DtFederateHandleSet const &syncSet)=0
	Process the register federation synchronization point service.
virtual void	synchronizationPointAchieved (const char *label, bool successfully=true)=0
	Process the synchronization point achieved service.
virtual MAKRti::DtString	fedFileName (MAKRti::DtString execName)
	Return the .fed file name associated with the federation execution name.
virtual MAKRti::DtString	timeImplName (MAKRti::DtString execName)
	Return the time implementation name associated with the federation execution name.
virtual void	init ()
	Virtual initialization within create.
virtual bool	tick ()
	Update the state of the federation.
virtual void	pretick ()
virtual void	posttick ()
virtual void	requestFederationSave (const char label, const RTI::FedTime time=NULL)=0
	Process the requested federation save service.
virtual void	federateSaveBegun ()=0
	Process the federate save begun service.
virtual void	federateSaveComplete ()=0
	Process the federate save complete service.
virtual void	federateSaveNotComplete ()=0
	Process the federate save not complete service.
virtual void	requestFederationRestore (const char *label)=0
	Process the request federation restore service.
virtual void	federateRestoreComplete ()=0
	Process the federate restore complete service.
virtual void	federateRestoreNotComplete ()=0
	Process the federate restore not complete service.
virtual char *	getTransportationName (MAKRti::DtTransportType transport)
	Get transport name service.
virtual char *	getOrderName (MAKRti::DtOrderType order)
	Get order name service.
virtual MAKRti::DtTransportType	getTransportationHandle (MAKRti::DtString transport)
	Get transport handle service.
virtual MAKRti::DtOrderType	getOrderHandle (MAKRti::DtString order)
	Get order handle service.
virtual DtFederateHandle	federateHandle () const
	Get the federate handle.
virtual MAKRti::DtString const &	fedType () const
	Get the federate type.
virtual MAKRti::DtString const &	fedName () const
	Get the federate name (HLA Evolved)
virtual MAKRti::DtString const &	fedExName () const
	Get the federation execution name.
virtual unsigned long	fedExHandle () const
	Get the federation execution handle.
virtual bool	isJoined () const
	Return boolean: federate is joined?
virtual DtConnectionMgr *	connectMgr ()
	Access to the connection manager.
virtual DtConnectionMgr *	connectMgr () const
virtual DtRIDParameters *	params ()
	Access to the RID parameters.
virtual DtRIDParameters *	params () const
virtual DtFomClassMgr *	fom ()
	Access to the fom.
virtual DtFomClassMgr *	fom () const
virtual DtInteractionMgr *	interMgr ()
	Access to the interaction mgr.
virtual DtInteractionMgr *	interMgr () const
virtual DtTestManager *	testMgr ()
	Access to the test Manager.
virtual DtTestManager *	testMgr () const
virtual DtObjectMgr *	objMgr ()
	Access to the object mgr.
virtual DtObjectMgr *	objMgr () const
virtual DtLogicalTimeFactory *	timeFactory ()
	Access to the time factory.
virtual DtLogicalTimeFactory *	timeFactory () const
virtual DtRtiAssistantLrcClient *	assistantClient ()
	Access to the RTI Assistant client.
virtual DtRtiAssistantLrcClient *	assistantClient () const
virtual bool	isJoinedFederate (DtFederateHandle federateHandleValue) const
	Return bool: Is the federate handle known to be in the federation.
virtual bool	saveInitiated () const
	return bool: save initiated?
virtual bool	saveBegun () const
	return bool: save begun?
virtual bool	restoreRequested () const
	return bool: restore requested?
virtual bool	restoreInitiated () const
	return bool: restore initiated ?
virtual bool	restoreBegun () const
	return bool: restore begun?
virtual const MAKRti::DtString &	restoreLabel () const
	return current restore label
virtual const MAKRti::DtString &	lastRestoreLabel () const
	return last restore label
const MAKRti::DtString &	currentFedFileName () const
	get/set current FED file name
void	setCurrentFedFileName (const MAKRti::DtString &)
const MAKRti::DtString &	mimName () const
	get/set MIM name
void	setMimName (const MAKRti::DtString &)
const MAKRti::DtString &	currentTimeImplName () const
	get/set current time implementation name
void	setCurrentTimeImplName (const MAKRti::DtString &)
virtual const MAKRti::DtString &	saveLabel () const
	Set/Get save label.
virtual void	setSaveLabel (const MAKRti::DtString &value)
virtual const MAKRti::DtString &	lastSaveLabel () const
	Set/Get last save label.
virtual void	setLastSaveLabel (const MAKRti::DtString &value)
virtual void	testSaveProgress ()=0
	Perform exception tests on save/restore state.
virtual void	initiateSave ()
	Perform the actual save possibly after waiting to enter time advancing state.
virtual void	initiateTimedSave (RTI::FedTime const &saveTime)
	Save is initiated possibly after waiting to enter time advancing state.
virtual bool	save (DtRtiSaveFile &file)
	Perform the actual save.
virtual bool	restore (DtRtiSaveFile &file)
	Perform the actual restore.
virtual MAKRti::DtString &	getSaveFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName, bool extendName=true)
	Create a save file name from the label and return in supplied parameter.
virtual MAKRti::DtString &	getRestoreFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName)
	Create a restore file name from the label and return in supplied parameter.
virtual unsigned long	tickCount () const
	Return the number of ticks.
virtual bool	isTicking () const
	Return true if currently processing tick.
virtual void	reportLatencyTestResults (const DtLatencyReportMsg &msg)
	Report results of a latency test.
virtual void	reportLatencyTestStatus (const DtTestMgrStatusMsg &msg)
	Report current latency test status.
virtual void	setWebServerConnected (bool connected)
	Inform assistant and rtiexec that a web server connection has been established.
unsigned long	flags () const
DtResignAction	automaticResignDirective () const

virtual void	setTopLevelAmbassador (RTI::RTIambassador *ambPtr)
	Provide access to top level RTI Ambassador (and Federate Ambassador for 1516E)

RTI::RTIambassador *	rtiAmb ()
	Access to the top level RTI Ambassador given to the federate.
RTI::RTIambassador *	rtiAmb () const
	Access to the top level RTI Ambassador given to the federate.

virtual RTI::FederateAmbassador *	federateAmbassador () const
	Access to the Federate Ambassador submitted by the federate.
Static Public Member Functions
static DtFederateMgr *	create (DtRIDParameters params, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	A Federate Manager instance is created, initialized, and its pointer is returned.
static void	setCreatorFunction (DtFederateMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtFederateMgrCreator fn)
	Register alternate internal creators.
Protected Member Functions
	DtFederateMgr (DtRIDParameters params, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Constructor.
virtual void	sendAlive ()
	Send the alive message.
virtual void	sendResignMsg (const char *fedExName, DtFederateHandle fedHandle, DtResignAction action)
	Send the resign message.
void	sendTickedMsg ()
	Send the signal ticked message.
virtual void	applyRidParameters ()
	Apply RID parameters.
virtual MAKRti::DtFilename	fedFileNameToUse (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Utility function, finds fed file name to use based on fed file name and exeution name.
virtual void	testReadFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Attempts to read a fed file but does not fill in the fom class.
virtual void	readFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Reads a FED file into a DtFomClassMgr object.
virtual void	readFedFilePtr (const FILE *fp, const MAKRti::DtString &fileName, const MAKRti::DtString &executionName)
	Reads a FED file into a DtFomClassMgr object.
virtual void	addFedExNameMapping (const MAKRti::DtString &execName, const MAKRti::DtString &timeImplName, const MAKRti::DtString &fed)
	Add mapping between federation execution name, time Impl Name and fed file name.
virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const std::vector< MAKRti::DtString > &modules)
virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const MAKRti::DtString &modules)
virtual DtResignAction	testResign (RTI::ResignAction theAction)
	Test the resign action and return the internal representation.
virtual void	postJoinInit (const char federateType, const char executionName, const char federateName, RTI::FederateAmbassador federateAmbassadorReference)
	Uses the given information to initialize federate data.
virtual MAKRti::DtResignAction	convertResignAction (RTI::ResignAction) const
virtual RTI::ResignAction	convertResignAction (MAKRti::DtResignAction) const
DtFedReader *	getReader (DtFomType theFomType, DtFomClassMgr *target)
DtFedReader *	getReader (DtFomType theFomType)
void	addToParsedFomMap (DtFedReader myFedReader, const MAKRti::DtString &fileNameToUse, DtFomClassMgr fedTarget, unsigned long theCrc=0)
MessageHandling
Process federation management messages Registered callback call these methods
virtual void	processResign (const DtResignMsg &msg)
	Process resign message.
virtual void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg)
	disable network testing
virtual void	processSaveInitiate (const DtSaveInitiateMsg &msg)
	Process save initiate message.
virtual void	processSaveResponse (const DtSaveResponseMsg &msg)
	Process save resonse message.
virtual void	processSaveFinished (const DtSaveFinishedMsg &msg)
	Process save finished message.
virtual void	processRestoreReply (const DtRestoreReplyMsg &msg)
	Process restore reply message.
virtual void	processRestoreInitiate (const DtRestoreInitiateMsg &msg)
	Process restore initiate message.
virtual void	processRestoreEnd (const DtRestoreEndMsg &msg)
	Process restore end message.
virtual void	processRestore (const DtRestoreMsg &msg)
	Process restore message.
AssistantMessageHandling
Process assistant messages Registered callback call these methods
virtual void	processAssistantResign (const DtAssistantExitMsg &msg)
	Process resign message from Assistant.
virtual void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg)
	Process resign message from Assistant.
virtual void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg)
	Process resign message from Assistant.
CreateManager
Create various managers
virtual void	createObjectMgr ()
	Create the Object Manager.
virtual void	createInteractionMgr ()
	Create the Interaction Manager.
virtual void	createDdmMgr ()
	Create the DDM Manager.
virtual void	createTimeMgr ()
	Create the Time manager.
virtual void	createMomMgr ()
	Create the MOM Manager.
virtual void	createTestMgr ()
	Create the test Manager.
Static Protected Member Functions
MessageCallbacks
Register these callbacks methods with connection manager. Pass this manager as the user data.
static void	processResign (const DtResignMsg &msg, void *usr)
	resign message callback
static void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg, void *usr)
	process enable / disable network testing callback
static void	processSaveInitiate (const DtSaveInitiateMsg &msg, void *usr)
	save initiate message callback
static void	processSaveResponse (const DtSaveResponseMsg &msg, void *usr)
	save response message callback
static void	processSaveFinished (const DtSaveFinishedMsg &msg, void *usr)
	save finished message callback
static void	processRestoreReply (const DtRestoreReplyMsg &msg, void *usr)
	restore reply message callback
static void	processRestore (const DtRestoreMsg &msg, void *usr)
	restore message callback
static void	processRestoreInitiate (const DtRestoreInitiateMsg &msg, void *usr)
	restore initiate message callback
static void	processRestoreEnd (const DtRestoreEndMsg &msg, void *usr)
	restore end message callback
AssistantMessageCallbacks
Register these callbacks methods with the assistant client. Pass this manager as the user data.
static void	processAssistantResign (const DtAssistantExitMsg &msg, void *usr)
	Assistant resign message callback.
static void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg, void *usr)
	Assistant logging enable message callback.
static void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg, void *usr)
	Assistant signal tick interval message callback.
Protected Attributes
RTI::RTIambassador *	myRtiAmb
	The federate's RTI Ambassador.
DtRtiAmbassadorBaseImplementor *	myAmbImpl
	The federate's RTI Ambassador Implementor.
MAKRti::DtTime	myResponseInterval
	Interval to wait for response message during a message protocol.
MAKRti::DtString	myFedExName
	Federation execution name.
unsigned long	myFedExHandle
	Federation handle.
MAKRti::DtString	myFedType
	Federate type.
MAKRti::DtString	myFedName
	Federate name.
DtFederateHandle	myFedHandle
	Federate handle.
MAKRti::DtString	myCurrentFedFileName
	Current FED/FDD file name.
MAKRti::DtString	myMimName
	MIM name.
MAKRti::DtString	myCurrentTimeImplName
	Current time implementation name.
MAKRti::DtTime	myLastHeartbeat
	Time of last heartbeat.
DtLogicalTimeFactory *	myLogicalTimeFactory
	Logical time factory Even if NULL, need to have this factory.
RTI::FedTimeFactory	myHlaTimeFactory
DtFedAmbWrapper *	myPrinter
	Prints data for federate ambassador calls.
DtFedAmbWrapper *	myFedAmbCatch
	Catches exceptions from federate ambassador calls.
DtRIDParameters *	myParams
	Initialization data.
DtFedReader *	myFedReader
	Temporary internal reader used until changes made to VR-Link fed reader.
DtFedReader *	myFedReader13
DtFedReader *	myFedReader1516
DtFedReader *	myFedReader1516e
MAKRti::DtList	myMappingList
	List of federation execution names with FED files names and time implementation names.
std::map< MAKRti::DtString, std::set< MAKRti::DtString > >	myFedFileNames
std::map< MAKRti::DtString, DtFomClassMgr * >	myParsedFoms
	Map containing FOMs parsed into FedTargets.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	Manages the connection to the RTI Assistant.
bool	myIgnoreForcedResign
	Prevents forcing duplicate resign.
MAKRti::DtClock	myClock
	Clock for timing.
unsigned long	myTickCount
	Tick counter.
bool	myIsTicking
	indicates currently processing tick
bool	myEnableFederateHeartbeat
	is heartbeating enabled?
bool	myConnectedToWebServer
	This is set when the federate connects to the web server.
unsigned long	myFlags
DtTestManager *	myTestMgr
bool	myNetworkTestEnabled
float	mySignalTickInterval
	The Signal Tick Interval.
DtTime	myLastTickTime
	The last tick time.
MAKRti::DtResignAction	myResignAction
	The resign action.
ManagerAccess
Access to various manager components
DtConnectionMgr *	myConnectMgr
	The connection manager.
DtFomClassMgr *	myFom
	The FOM manager.
DtInteractionMgr *	myInterMgr
	The interaction manager.
DtObjectMgr *	myObjMgr
	The object manager.
DtMomMgr *	myMomMgr
	The MOM manager.
SaveRestoreData
Data used for processing save and restore.
bool	mySaveInitiated
	Indicates save initiated.
bool	mySaveBegun
	Indicates save begun.
bool	myRestoreRequested
	Indicates restore requested.
bool	myRestoreInitiated
	Indicates restore initiated.
bool	myRestoreBegun
	Indicates restore begun.
MAKRti::DtString	mySaveLabel
	The save label.
MAKRti::DtString	myLastSaveLabel
	The last save label.
MAKRti::DtString	myRestoreLabel
	The restore label.
MAKRti::DtString	myLastRestoreLabel
	The last restore label.
Static Protected Attributes
static DtFederateMgrCreator	theCreator = 0
	The plugin creator.
static DtFederateMgrCreator	theInternalCreator = 0
	The internal creator.
Private Member Functions
	DtFederateMgr (DtFederateMgr const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtFederateMgr &	operator= (DtFederateMgr const &)
	Assignment not implemented -- Assignment Not Allowed!

Detailed Description

Instances of DtFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) and manages the objects responsible for handling general communication, objects, interactions, the FOM, MOM, and data distribution mmg.

Users should generally not need to override this class directly. Instead, they should override either DtRtiExecFederateMgr (which is instantiated when using the rtiexec) or DtSimpleFederateMgr (which is used when LRCs communicate peer to peer). To inspect federation data, users can obtain a pointer to an instance of this class through the RTI's DtRtiAmbassadorBaseImplementor instance.

Member Typedef Documentation

typedef DtFederateMgr*(* DtFederateMgr::DtFederateMgrCreator)(DtRIDParameters *ridParams, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)

Federate manager creator.

Constructor & Destructor Documentation

DtFederateMgr::DtFederateMgr	(	DtRIDParameters *	params,
		DtRtiAmbassadorBaseImplementor *	ambImplPtr,
		DtConnectionMgr *	connMgr,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient
	)		`[protected]`

Constructor.

References myConnectMgr, and DtConnectionMgr::setFederateMgr().

DtFederateMgr::~DtFederateMgr ( ) [virtual]

Destructor.

DtFederateMgr::DtFederateMgr ( DtFederateMgr const & ) [private]

Copy Constructor not implemented -- Copy Not Allowed!

Member Function Documentation

void DtFederateMgr::addFedExNameMapping	(	const MAKRti::DtString &	execName,
		const MAKRti::DtString &	timeImplName,
		const MAKRti::DtString &	fed
	)		`[protected, virtual]`

Add mapping between federation execution name, time Impl Name and fed file name.

References myMappingList.

Referenced by DtRtiExecFederateMgr::initializeFOM().

void DtFederateMgr::addFomModuleNameMapping	(	const MAKRti::DtString	executionName,
		const std::vector< MAKRti::DtString > &	modules
	)		`[protected, virtual]`

References myFedFileNames.

Referenced by addFomModuleNameMapping().

void DtFederateMgr::addFomModuleNameMapping	(	const MAKRti::DtString	executionName,
		const MAKRti::DtString &	modules
	)		`[protected, virtual]`

References addFomModuleNameMapping().

void DtFederateMgr::addToParsedFomMap	(	DtFedReader *	myFedReader,
		const MAKRti::DtString &	fileNameToUse,
		DtFomClassMgr *	fedTarget,
		unsigned long	theCrc = `0`
	)		`[protected]`

References DtLibRTIUtil::crcOfBuff(), DtFomClassMgr::myCrc, and myParsedFoms.

Referenced by readFedFile(), testReadFedFile(), and DtRtiExecFederateMgr::testReadFomModules().

void DtFederateMgr::applyRidParameters ( ) [protected, virtual]

Apply RID parameters.

Reimplemented in DtRtiExecFederateMgr.

References DtConnectionMgr::addFedAmbWrapper(), connectMgr(), DtRIDParameters::DtAsynchronousCallbacks, DtRIDParameters::enableFederateHeartbeat, myEnableFederateHeartbeat, myFedAmbCatch, myParams, myPrinter, myResignAction, params(), setVariableLengthDataUsesNull(), theFedAmbCatchName, and thePrinterName.

Referenced by init().

DtRtiAssistantLrcClient * DtFederateMgr::assistantClient ( ) [virtual]

Access to the RTI Assistant client.

References myAssistantClient.

Referenced by create(), posttick(), DtRtiExecFederateMgr::processJoinResponseMsg(), DtTestManager::processLatencyTest(), DtTestManager::sendStatusMessages(), and sendTickedMsg().

DtRtiAssistantLrcClient * DtFederateMgr::assistantClient ( ) const [virtual]

References myAssistantClient.

DtResignAction DtFederateMgr::automaticResignDirective ( ) const

References myResignAction.

Referenced by DtObjectMgr::processResign().

DtConnectionMgr * DtFederateMgr::connectMgr ( ) [virtual]

Access to the connection manager.

References myConnectMgr.

DtConnectionMgr * DtFederateMgr::connectMgr ( ) const [virtual]

References myConnectMgr.

DtResignAction DtFederateMgr::convertResignAction ( RTI::ResignAction action ) const [protected, virtual]

Referenced by processResign(), and testResign().

virtual RTI::ResignAction DtFederateMgr::convertResignAction ( MAKRti::DtResignAction ) const [protected, virtual]

DtFederateMgr * DtFederateMgr::create	(	DtRIDParameters *	params,
		DtRtiAmbassadorBaseImplementor *	ambImplPtr,
		DtConnectionMgr *	connMgr,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient
	)		`[static]`

A Federate Manager instance is created, initialized, and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated. Note: A NULL pointer will be returned unless a plugin or internal creator is set because this class is abstract.

Reimplemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

References assistantClient(), init(), params(), theCreator, and theInternalCreator.

Referenced by DtRtiAmbassadorBaseImplementor::completeConnection(), createDdmMgr(), createInteractionMgr(), createMomMgr(), createObjectMgr(), createTimeMgr(), readFedFile(), readFedFilePtr(), setCreatorFunction(), and setInternalCreatorFunction().

void DtFederateMgr::createDdmMgr ( ) [protected, virtual]

Create the DDM Manager.

References create(), dataDistMgmt, ddmFixedGrid, params(), and setInternalCreatorFunction().

virtual void DtFederateMgr::createFederationExecution	(	const char *	executionName,
		const char *	timeImplName,
		const char *	fed
	)		`[pure virtual]`

Process the create federation execution service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

void DtFederateMgr::createInteractionMgr ( ) [protected, virtual]

Create the Interaction Manager.

References create(), dataDistMgmt, ddmFixedGrid, myInterMgr, params(), and setInternalCreatorFunction().

void DtFederateMgr::createMomMgr ( ) [protected, virtual]

Create the MOM Manager.

References create(), momServiceAvailable, myMomMgr, and params().

void DtFederateMgr::createObjectMgr ( ) [protected, virtual]

Create the Object Manager.

References create(), dataDistMgmt, ddmFixedGrid, myObjMgr, params(), and setInternalCreatorFunction().

void DtFederateMgr::createTestMgr ( ) [protected, virtual]

Create the test Manager.

References myNetworkTestEnabled, myTestMgr, and params().

void DtFederateMgr::createTimeMgr ( ) [protected, virtual]

Create the Time manager.

References create(), and params().

const MAKRti::DtString & DtFederateMgr::currentFedFileName ( ) const

get/set current FED file name

References myCurrentFedFileName.

Referenced by DtSimpleFederateMgr::joinFederationExecution().

const MAKRti::DtString & DtFederateMgr::currentTimeImplName ( ) const

get/set current time implementation name

References myCurrentTimeImplName.

virtual void DtFederateMgr::destroyFederationExecution ( const char * executionName ) [pure virtual]

Process the destroy federation execution service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

RTI::FederateAmbassador * DtFederateMgr::federateAmbassador ( ) const [virtual]

Access to the Federate Ambassador submitted by the federate.

References DtConnectionMgr::fedAmb(), and myConnectMgr.

DtFederateHandle DtFederateMgr::federateHandle ( ) const [virtual]

Get the federate handle.

References myFedHandle.

Referenced by DtRtiExecFederateMgr::federateSaveComplete(), DtTestManager::processChangeLatencyTestStatus(), processResign(), DtRtiExecFederateMgr::processRestoreInitiate(), DtTestManager::receiveInteraction(), sendAlive(), DtRtiExecFederateMgr::sendRestoreBegunMsg(), and DtTestManager::sendStatusMessages().

virtual void DtFederateMgr::federateRestoreComplete ( ) [pure virtual]

Process the federate restore complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateRestoreNotComplete ( ) [pure virtual]

Process the federate restore not complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateSaveBegun ( ) [pure virtual]

Process the federate save begun service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateSaveComplete ( ) [pure virtual]

Process the federate save complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateSaveNotComplete ( ) [pure virtual]

Process the federate save not complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

unsigned long DtFederateMgr::fedExHandle ( ) const [virtual]

Get the federation execution handle.

References myFedExHandle.

Referenced by DtTestManager::sendStatusMessages().

MAKRti::DtString const & DtFederateMgr::fedExName ( ) const [virtual]

Get the federation execution name.

References myFedExName.

Referenced by DtSimpleFederateMgr::joinFederationExecution().

MAKRti::DtString DtFederateMgr::fedFileName ( MAKRti::DtString execName ) [virtual]

Return the .fed file name associated with the federation execution name.

If none has been registered using addFedExNameMapping, we use <execName>.fed.

References DtFedFileMapping::execName(), DtFedFileMapping::fedFileName(), and myMappingList.

Referenced by fedFileNameToUse(), and DtSimpleFederateMgr::joinFederationExecution().

MAKRti::DtFilename DtFederateMgr::fedFileNameToUse	(	MAKRti::DtString	fileName,
		MAKRti::DtString	executionName
	)		`[protected, virtual]`

Utility function, finds fed file name to use based on fed file name and exeution name.

Back-compat with pre-1.3.6 releases, where FED file name does not come in a join response message.

References fedFileName().

Referenced by readFedFile(), and testReadFedFile().

MAKRti::DtString const & DtFederateMgr::fedName ( ) const [virtual]

Get the federate name (HLA Evolved)

References myFedName.

MAKRti::DtString const & DtFederateMgr::fedType ( ) const [virtual]

Get the federate type.

References myFedType.

Referenced by DtRecipientLatencyTest::addNetSendTimeStamp(), DtSimpleFederateMgr::joinFederationExecution(), and DtInitiatorLatencyTest::takeCompletedTestReport().

unsigned long DtFederateMgr::flags ( ) const

References myFlags.

DtFomClassMgr * DtFederateMgr::fom ( ) [virtual]

Access to the fom.

References myFom.

Referenced by DtObjectMgr::fom(), DtInteractionMgr::fom(), and DtRtiAmbassadorBaseImplementor::fomMgr().

DtFomClassMgr * DtFederateMgr::fom ( ) const [virtual]

References myFom.

MAKRti::DtOrderType DtFederateMgr::getOrderHandle ( MAKRti::DtString order ) [virtual]

Get order handle service.

References theReceiveName, and theTimestampName.

char * DtFederateMgr::getOrderName ( MAKRti::DtOrderType order ) [virtual]

Get order name service.

References NULL, theReceiveName, and theTimestampName.

DtFedReader * DtFederateMgr::getReader	(	DtFomType	theFomType,
		DtFomClassMgr *	target
	)		`[protected]`

Referenced by readFedFile(), readFedFilePtr(), and testReadFedFile().

DtFedReader * DtFederateMgr::getReader ( DtFomType theFomType ) [protected]

Reimplemented in DtRtiExecFederateMgr.

References myFedReader, myFedReader13, myFedReader1516, myFedReader1516e, and NULL.

MAKRti::DtString & DtFederateMgr::getRestoreFileName	(	const char *	label,
		DtFederateHandle	fedHandle,
		MAKRti::DtString &	fileName
	)		`[virtual]`

Create a restore file name from the label and return in supplied parameter.

The default name is extended if a file with that name already exists. Name extension can be turned off using the supplied parameter. Returns a reference to the supplied file name parameter

References getSaveFileName().

Referenced by DtRtiExecFederateMgr::processRestoreInitiate().

MAKRti::DtString & DtFederateMgr::getSaveFileName	(	const char *	label,
		DtFederateHandle	fedHandle,
		MAKRti::DtString &	fileName,
		bool	extendName = `true`
	)		`[virtual]`

Create a save file name from the label and return in supplied parameter.

The default name is extended if a file with that name already exists. Name extension can be turned off using the supplied parameter. Returns a reference to the supplied file name parameter

References myFedExName, myFedType, params(), and DtRIDParameters::saveRestoreDirectoryPath().

Referenced by DtRtiExecFederateMgr::federateSaveComplete(), and getRestoreFileName().

MAKRti::DtTransportType DtFederateMgr::getTransportationHandle ( MAKRti::DtString transport ) [virtual]

Get transport handle service.

References theBestEffortName, and theReliableName.

char * DtFederateMgr::getTransportationName ( MAKRti::DtTransportType transport ) [virtual]

Get transport name service.

References NULL, theBestEffortName, and theReliableName.

void DtFederateMgr::init ( ) [virtual]

Virtual initialization within create.

Reimplemented in DtRtiExecFederateMgr.

References applyRidParameters().

Referenced by create().

void DtFederateMgr::initiateSave ( ) [virtual]

Perform the actual save possibly after waiting to enter time advancing state.

Reimplemented in DtRtiExecFederateMgr.

void DtFederateMgr::initiateTimedSave ( RTI::FedTime const & saveTime ) [virtual]

Save is initiated possibly after waiting to enter time advancing state.

Provide time of save.

Reimplemented in DtRtiExecFederateMgr.

DtInteractionMgr * DtFederateMgr::interMgr ( ) [virtual]

Access to the interaction mgr.

References myInterMgr.

Referenced by DtRtiAmbassadorBaseImplementor::interMgr(), DtTestManager::postJoinInit(), posttick(), pretick(), processResign(), DtTestManager::resign(), and DtTestManager::sendInteraction().

DtInteractionMgr * DtFederateMgr::interMgr ( ) const [virtual]

References myInterMgr.

bool DtFederateMgr::isJoined ( ) const [virtual]

Return boolean: federate is joined?

References myFedExName.

Referenced by tick().

bool DtFederateMgr::isJoinedFederate ( DtFederateHandle federateHandleValue ) const [virtual]

Return bool: Is the federate handle known to be in the federation.

References myMomMgr.

bool DtFederateMgr::isTicking ( ) const [virtual]

Return true if currently processing tick.

References myIsTicking.

Referenced by DtAsyncConnectionMgr::send(), DtConnectionMgr::send(), and DtAsyncConnectionMgr::sendAndDelete().

virtual RTI::FederateHandle DtFederateMgr::joinFederationExecution	(	const char *	yourName,
		const char *	executionName,
		RTI::FederateAmbassador *	federateAmbassadorReference,
		unsigned long	flags
	)		`[pure virtual]`

Process the join federation execution service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

const MAKRti::DtString & DtFederateMgr::lastRestoreLabel ( ) const [virtual]

return last restore label

References myLastRestoreLabel.

const MAKRti::DtString & DtFederateMgr::lastSaveLabel ( ) const [virtual]

Set/Get last save label.

References myLastSaveLabel.

const MAKRti::DtString & DtFederateMgr::mimName ( ) const

get/set MIM name

References myMimName.

DtObjectMgr * DtFederateMgr::objMgr ( ) [virtual]

Access to the object mgr.

References myObjMgr.

Referenced by DtRtiAmbassadorBaseImplementor::objMgr(), posttick(), pretick(), processResign(), and testResign().

DtObjectMgr * DtFederateMgr::objMgr ( ) const [virtual]

References myObjMgr.

DtFederateMgr& DtFederateMgr::operator= ( DtFederateMgr const & ) [private]

Assignment not implemented -- Assignment Not Allowed!

DtRIDParameters * DtFederateMgr::params ( ) [virtual]

Access to the RID parameters.

References myParams.

DtRIDParameters * DtFederateMgr::params ( ) const [virtual]

References myParams.

void DtFederateMgr::postJoinInit	(	const char *	federateType,
		const char *	executionName,
		const char *	federateName,
		RTI::FederateAmbassador *	federateAmbassadorReference
	)		`[protected, virtual]`

Uses the given information to initialize federate data.

DtFomClassMgr needs to be initialized before this function is called.

Reimplemented in DtRtiExecFederateMgr.

Referenced by DtSimpleFederateMgr::joinFederationExecution(), and DtRtiExecFederateMgr::postJoinInit().

void DtFederateMgr::posttick ( ) [virtual]

Reimplemented in DtRtiExecFederateMgr.

References assistantClient(), connectMgr(), interMgr(), myIsTicking, objMgr(), DtInteractionMgr::postTick(), DtObjectMgr::postTick(), DtConnectionMgr::processQueuedMessages(), DtConnectionMgr::testAutoProvideDelay(), DtConnectionMgr::testTransmitDelay(), and DtRtiAssistantClient::tick().

Referenced by DtAsyncConnectionMgr::disconnectFederation(), DtAsyncConnectionMgr::handleMsg(), DtAsyncConnectionMgr::processMsgQueueCallbacks(), DtAsyncConnectionMgr::processPendingMsgMakeCallbacks(), DtAsyncConnectionMgr::processPendingMsgQueueCallbacks(), and DtAsyncConnectionMgr::workerThread().

void DtFederateMgr::pretick ( ) [virtual]

References interMgr(), myIsTicking, myTickCount, objMgr(), DtInteractionMgr::preTick(), and DtObjectMgr::preTick().

void DtFederateMgr::processAssistantEnableLogging ( const DtAssistantLogEnableMsg & msg ) [protected, virtual]

Process resign message from Assistant.

References DtRtiAmbassadorBaseImplementor::enableLogging(), DtAssistantLogEnableMsg::isEnable(), and myAmbImpl.

Referenced by postJoinInit().

void DtFederateMgr::processAssistantEnableLogging	(	const DtAssistantLogEnableMsg &	msg,
		void *	usr
	)		`[static, protected]`

Assistant logging enable message callback.

void DtFederateMgr::processAssistantResign ( const DtAssistantExitMsg & msg ) [protected, virtual]

Process resign message from Assistant.

References RTI::DELETE_OBJECTS_AND_RELEASE_ATTRIBUTES, rti1516::DELETE_OBJECTS_THEN_DIVEST, rti1516e::DELETE_OBJECTS_THEN_DIVEST, myFedHandle, myIgnoreForcedResign, and resignFederationExecution().

Referenced by postJoinInit().

void DtFederateMgr::processAssistantResign	(	const DtAssistantExitMsg &	msg,
		void *	usr
	)		`[static, protected]`

Assistant resign message callback.

void DtFederateMgr::processEnableDisableNetworkTesting ( const DtEnableDisableNetworkTestingMsg & msg ) [protected, virtual]

disable network testing

References DtTestManager::disableNetworkTesting(), DtTestManager::enableNetworkTesting(), myNetworkTestEnabled, myTestMgr, and DtEnableDisableNetworkTestingMsg::networkTestingEnabled().

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processEnableDisableNetworkTesting	(	const DtEnableDisableNetworkTestingMsg &	msg,
		void *	usr
	)		`[static, protected]`

process enable / disable network testing callback

void DtFederateMgr::processResign ( const DtResignMsg & msg ) [protected, virtual]

Process resign message.

References connectMgr(), convertResignAction(), DtRtiMsg::federateHandle(), federateHandle(), DtConnectionMgr::fedHandle(), interMgr(), myFedHandle, myIgnoreForcedResign, objMgr(), DtTestManager::processResign(), DtInteractionMgr::processResign(), DtObjectMgr::processResign(), DtResignMsg::resignAction(), resignFederationExecution(), and testMgr().

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processResign	(	const DtResignMsg &	msg,
		void *	usr
	)		`[static, protected]`

resign message callback

void DtFederateMgr::processRestore ( const DtRestoreMsg & msg ) [protected, virtual]

Process restore message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processRestore	(	const DtRestoreMsg &	msg,
		void *	usr
	)		`[static, protected]`

restore message callback

void DtFederateMgr::processRestoreEnd ( const DtRestoreEndMsg & msg ) [protected, virtual]

Process restore end message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processRestoreEnd	(	const DtRestoreEndMsg &	msg,
		void *	usr
	)		`[static, protected]`

restore end message callback

void DtFederateMgr::processRestoreInitiate ( const DtRestoreInitiateMsg & msg ) [protected, virtual]

Process restore initiate message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processRestoreInitiate	(	const DtRestoreInitiateMsg &	msg,
		void *	usr
	)		`[static, protected]`

restore initiate message callback

void DtFederateMgr::processRestoreReply ( const DtRestoreReplyMsg & msg ) [protected, virtual]

Process restore reply message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processRestoreReply	(	const DtRestoreReplyMsg &	msg,
		void *	usr
	)		`[static, protected]`

restore reply message callback

void DtFederateMgr::processSaveFinished ( const DtSaveFinishedMsg & msg ) [protected, virtual]

Process save finished message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processSaveFinished	(	const DtSaveFinishedMsg &	msg,
		void *	usr
	)		`[static, protected]`

save finished message callback

void DtFederateMgr::processSaveInitiate ( const DtSaveInitiateMsg & msg ) [protected, virtual]

Process save initiate message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by postJoinInit(), resignFederationExecution(), and ~DtFederateMgr().

void DtFederateMgr::processSaveInitiate	(	const DtSaveInitiateMsg &	msg,
		void *	usr
	)		`[static, protected]`

save initiate message callback

void DtFederateMgr::processSaveResponse ( const DtSaveResponseMsg & msg ) [protected, virtual]

Process save resonse message.

Reimplemented in DtRtiExecFederateMgr.

Referenced by DtRtiExecFederateMgr::requestImmediateSave().

void DtFederateMgr::processSaveResponse	(	const DtSaveResponseMsg &	msg,
		void *	usr
	)		`[static, protected]`

save response message callback

void DtFederateMgr::processSignalTickInterval ( const DtAssistantFederateSignalTickIntervalMsg & msg ) [protected, virtual]

Process resign message from Assistant.

References myClock, myLastTickTime, mySignalTickInterval, and DtAssistantFederateSignalTickIntervalMsg::signalTickInterval().

Referenced by postJoinInit().

void DtFederateMgr::processSignalTickInterval	(	const DtAssistantFederateSignalTickIntervalMsg &	msg,
		void *	usr
	)		`[static, protected]`

Assistant signal tick interval message callback.

void DtFederateMgr::readFedFile	(	MAKRti::DtString	fileName,
		MAKRti::DtString	executionName
	)		`[protected, virtual]`

Reads a FED file into a DtFomClassMgr object.

If fileName = "", this class will try to read in a file with the name <executionName>.fed

References addToParsedFomMap(), DtScopedNotifyLevelChange::changeNotifyLevel(), DtFomClassMgr::clone(), DtLibRTIUtil::crcOfRTIFedFileContents(), create(), DtToWString(), dumpFed, fedFileNameToUse(), getReader(), myFedReader, myFom, myParsedFoms, myResignAction, NULL, DtLibRTIUtil::openFedFile(), params(), and DtAssistantPopupHelper::popupAssistantMessage().

Referenced by DtRtiExecFederateMgr::initializeFOM(), and DtSimpleFederateMgr::joinFederationExecution().

void DtFederateMgr::readFedFilePtr	(	const FILE *	fp,
		const MAKRti::DtString &	fileName,
		const MAKRti::DtString &	executionName
	)		`[protected, virtual]`

Reads a FED file into a DtFomClassMgr object.

This form is preferred when using the distributed Fed File option.

References DtScopedNotifyLevelChange::changeNotifyLevel(), create(), DtToWString(), DtRIDParameters::dumpFed, getReader(), myFedReader, myFom, myResignAction, NULL, params(), and DtAssistantPopupHelper::popupAssistantMessage().

virtual void DtFederateMgr::registerFederationSynchronizationPoint	(	const char *	label,
		const char *	theTag
	)		`[pure virtual]`

Process the register federation synchronization point service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::registerFederationSynchronizationPoint	(	const char *	label,
		const char *	theTag,
		DtFederateHandleSet const &	syncSet
	)		`[pure virtual]`

Process the register federation synchronization point service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

void DtFederateMgr::reportLatencyTestResults ( const DtLatencyReportMsg & msg ) [virtual]

Report results of a latency test.

References connectMgr(), and DtConnectionMgr::sendStamped().

Referenced by DtTestManager::processLatencyTest().

void DtFederateMgr::reportLatencyTestStatus ( const DtTestMgrStatusMsg & msg ) [virtual]

Report current latency test status.

References connectMgr(), and DtConnectionMgr::sendStamped().

Referenced by DtTestManager::sendStatusMessages().

virtual void DtFederateMgr::requestFederationRestore ( const char * label ) [pure virtual]

Process the request federation restore service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::requestFederationSave	(	const char *	label,
		const RTI::FedTime *	time = `NULL`
	)		`[pure virtual]`

Process the requested federation save service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

void DtFederateMgr::resignFederationExecution ( RTI::ResignAction theAction ) [virtual]

Process the resign federation execution service.

Reimplemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

Referenced by processAssistantResign(), DtPartnerMgr::processPartnerReject(), processResign(), DtSimpleFederateMgr::resignFederationExecution(), and DtRtiExecFederateMgr::resignFederationExecution().

virtual bool DtFederateMgr::restore ( DtRtiSaveFile & file ) [inline, virtual]

Perform the actual restore.

Reimplemented in DtRtiExecFederateMgr.

bool DtFederateMgr::restoreBegun ( ) const [virtual]

return bool: restore begun?

References myRestoreBegun.

Referenced by DtRtiExecFederateMgr::testSaveProgress().

bool DtFederateMgr::restoreInitiated ( ) const [virtual]

return bool: restore initiated ?

References myRestoreInitiated.

const MAKRti::DtString & DtFederateMgr::restoreLabel ( ) const [virtual]

return current restore label

References myRestoreLabel.

bool DtFederateMgr::restoreRequested ( ) const [virtual]

return bool: restore requested?

References myRestoreRequested.

RTI::RTIambassador * DtFederateMgr::rtiAmb ( )

Access to the top level RTI Ambassador given to the federate.

References myRtiAmb.

Referenced by DtTestManager::rtiAmb().

RTI::RTIambassador * DtFederateMgr::rtiAmb ( ) const

Access to the top level RTI Ambassador given to the federate.

References myRtiAmb.

virtual bool DtFederateMgr::save ( DtRtiSaveFile & file ) [inline, virtual]

Perform the actual save.

Reimplemented in DtRtiExecFederateMgr.

bool DtFederateMgr::saveBegun ( ) const [virtual]

return bool: save begun?

References mySaveBegun.

bool DtFederateMgr::saveInitiated ( ) const [virtual]

return bool: save initiated?

References mySaveInitiated.

Referenced by DtRtiExecFederateMgr::testSaveProgress().

const MAKRti::DtString & DtFederateMgr::saveLabel ( ) const [virtual]

Set/Get save label.

References mySaveLabel.

void DtFederateMgr::sendAlive ( ) [protected, virtual]

Send the alive message.

References connectMgr(), federateHandle(), and DtConnectionMgr::sendStampedAndDelete().

Referenced by tick().

void DtFederateMgr::sendResignMsg	(	const char *	fedExName,
		DtFederateHandle	fedHandle,
		DtResignAction	action
	)		`[protected, virtual]`

Send the resign message.

References connectMgr(), DtConnectionMgr::create(), DtNormalResign, DtResignMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtResignMsg::set().

void DtFederateMgr::sendTickedMsg ( ) [protected]

Send the signal ticked message.

References assistantClient(), and DtRtiAssistantClient::sendSignalTickedMsg().

Referenced by tick().

void DtFederateMgr::setCreatorFunction ( DtFederateMgrCreator fn ) [static]

Register a creator function.

When set, it will be used to create the Federate Manager.

References create(), DtBindCreator(), and theCreator.

void DtFederateMgr::setCurrentFedFileName ( const MAKRti::DtString & newFileName )

References myCurrentFedFileName.

Referenced by DtRtiExecFederateMgr::initializeFOM(), and DtSimpleFederateMgr::joinFederationExecution().

void DtFederateMgr::setCurrentTimeImplName ( const MAKRti::DtString & newName )

References myCurrentTimeImplName.

Referenced by DtRtiExecFederateMgr::initializeTimeFactory().

void DtFederateMgr::setInternalCreatorFunction ( DtFederateMgrCreator fn ) [static]

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

References create(), and theInternalCreator.

Referenced by DtRtiAmbassadorBaseImplementor::completeConnection(), createDdmMgr(), createInteractionMgr(), and createObjectMgr().

void DtFederateMgr::setLastSaveLabel ( const MAKRti::DtString & value ) [virtual]

References myLastSaveLabel.

void DtFederateMgr::setMimName ( const MAKRti::DtString & newMimName )

References myMimName.

Referenced by DtRtiExecFederateMgr::initializeFOM().

void DtFederateMgr::setSaveLabel ( const MAKRti::DtString & value ) [virtual]

References mySaveLabel.

void DtFederateMgr::setTopLevelAmbassador ( RTI::RTIambassador * ambPtr ) [virtual]

Provide access to top level RTI Ambassador (and Federate Ambassador for 1516E)

void DtFederateMgr::setWebServerConnected ( bool connected ) [virtual]

Inform assistant and rtiexec that a web server connection has been established.

References myConnectedToWebServer.

virtual void DtFederateMgr::synchronizationPointAchieved	(	const char *	label,
		bool	successfully = `true`
	)		`[pure virtual]`

Process the synchronization point achieved service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

DtTestManager * DtFederateMgr::testMgr ( ) [virtual]

Access to the test Manager.

References myTestMgr.

Referenced by DtConnectionMgr::getMessage(), DtConnectionMgr::processConnection(), DtAsyncConnectionMgr::processMsgQueueCallbacks(), processResign(), DtAsyncConnectionMgr::queueMsg(), DtAsyncConnectionMgr::receivePacket(), DtAsyncConnectionMgr::receivePackets(), DtConnectionMgr::send(), and DtAsyncConnectionMgr::sendPackets().

DtTestManager * DtFederateMgr::testMgr ( ) const [virtual]

References myTestMgr.

void DtFederateMgr::testReadFedFile	(	MAKRti::DtString	fileName,
		MAKRti::DtString	executionName
	)		`[protected, virtual]`

Attempts to read a fed file but does not fill in the fom class.

References addToParsedFomMap(), DtScopedNotifyLevelChange::changeNotifyLevel(), DtLibRTIUtil::crcOfRTIFedFileContents(), DtFomClassMgr::create(), DtGlobalSpaceHandle, DtLocateConfigFile(), DtRIDParameters::dumpFed, extend13and1516interop, fedFileNameToUse(), getReader(), myFedReader, myParsedFoms, DtLibRTIUtil::openFedFile(), params(), DtAssistantPopupHelper::popupAssistantMessage(), and DtFomClassMgr::setExtend13and1516interop().

DtResignAction DtFederateMgr::testResign ( RTI::ResignAction theAction ) [protected, virtual]

Test the resign action and return the internal representation.

References convertResignAction(), myFedExName, objMgr(), and DtObjectMgr::testResign().

virtual void DtFederateMgr::testSaveProgress ( ) [pure virtual]

Perform exception tests on save/restore state.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

bool DtFederateMgr::tick ( ) [virtual]

Update the state of the federation.

References connectMgr(), isJoined(), myClock, myEnableFederateHeartbeat, myLastHeartbeat, myLastTickTime, mySignalTickInterval, myTestMgr, myTickCount, params(), sendAlive(), sendTickedMsg(), DtTestManager::tick(), and DtConnectionMgr::tick().

Referenced by DtRtiExecFederateMgr::initRidTester(), DtRtiAmbassadorBaseImplementor::tickOnce(), and DtRtiExecFederateMgr::waitForJoinResponse().

unsigned long DtFederateMgr::tickCount ( ) const [virtual]

Return the number of ticks.

References myTickCount.

Referenced by DtConnectionMgr::processMsg(), DtAsyncConnectionMgr::send(), DtConnectionMgr::send(), and DtAsyncConnectionMgr::sendAndDelete().

DtLogicalTimeFactory * DtFederateMgr::timeFactory ( ) [virtual]

Access to the time factory.

References myLogicalTimeFactory.

Referenced by DtRtiExecFederateMgr::initializeTimeFactory().

DtLogicalTimeFactory * DtFederateMgr::timeFactory ( ) const [virtual]

References myLogicalTimeFactory.

MAKRti::DtString DtFederateMgr::timeImplName ( MAKRti::DtString execName ) [virtual]

Return the time implementation name associated with the federation execution name.

If none has been registered using addFedExNameMapping, an empty string (default implementation) is returned

References DtFedFileMapping::execName(), myMappingList, and DtFedFileMapping::timeImplName().

Referenced by DtRtiExecFederateMgr::initializeTimeFactory().

Member Data Documentation

DtRtiAmbassadorBaseImplementor* DtFederateMgr::myAmbImpl [protected]

The federate's RTI Ambassador Implementor.

Referenced by processAssistantEnableLogging().

DtBoost::shared_ptr<DtRtiAssistantLrcClient> DtFederateMgr::myAssistantClient [protected]

Manages the connection to the RTI Assistant.

Referenced by assistantClient(), and ~DtFederateMgr().

MAKRti::DtClock DtFederateMgr::myClock [protected]

Clock for timing.

Referenced by DtRtiExecFederateMgr::destroyFederationExecution(), DtRtiExecFederateMgr::initRidTester(), processSignalTickInterval(), DtRtiExecFederateMgr::requestImmediateSave(), tick(), and DtRtiExecFederateMgr::waitForJoinResponse().

bool DtFederateMgr::myConnectedToWebServer [protected]

This is set when the federate connects to the web server.

Referenced by DtRtiExecFederateMgr::sendJoinMsg(), and setWebServerConnected().

DtConnectionMgr* DtFederateMgr::myConnectMgr [protected]

The connection manager.

Referenced by connectMgr(), DtFederateMgr(), federateAmbassador(), DtRtiExecFederateMgr::initializeDistributor(), DtRtiExecFederateMgr::initRidTester(), DtRtiExecFederateMgr::restore(), and ~DtFederateMgr().

MAKRti::DtString DtFederateMgr::myCurrentFedFileName [protected]

Current FED/FDD file name.

Referenced by currentFedFileName(), and setCurrentFedFileName().

MAKRti::DtString DtFederateMgr::myCurrentTimeImplName [protected]

Current time implementation name.

Referenced by currentTimeImplName(), and setCurrentTimeImplName().

bool DtFederateMgr::myEnableFederateHeartbeat [protected]

is heartbeating enabled?

Referenced by applyRidParameters(), and tick().

DtFedAmbWrapper* DtFederateMgr::myFedAmbCatch [protected]

Catches exceptions from federate ambassador calls.

Referenced by applyRidParameters(), and ~DtFederateMgr().

unsigned long DtFederateMgr::myFedExHandle [protected]

Federation handle.

Referenced by fedExHandle(), DtRtiExecFederateMgr::handleFailedJoin(), DtRtiExecFederateMgr::processSyncPointMsg(), and DtRtiExecFederateMgr::restore().

MAKRti::DtString DtFederateMgr::myFedExName [protected]

Federation execution name.

Referenced by DtRtiExecFederateMgr::destroyFederationExecution(), fedExName(), getSaveFileName(), isJoined(), DtRtiExecFederateMgr::processSyncPointMsg(), and testResign().

std::map<MAKRti::DtString, std::set<MAKRti::DtString> > DtFederateMgr::myFedFileNames [protected]

Referenced by addFomModuleNameMapping(), and DtRtiExecFederateMgr::findFedFileNameFromMapping().

DtFederateHandle DtFederateMgr::myFedHandle [protected]

Federate handle.

MAKRti::DtString DtFederateMgr::myFedName [protected]

Federate name.

In HLA Evolved, the federate may choose this. In other HLA versions, the name is always assigned by the RTI.

Referenced by DtRtiExecFederateMgr::checkJoinResponse(), and fedName().

DtFedReader* DtFederateMgr::myFedReader [protected]

Temporary internal reader used until changes made to VR-Link fed reader.

Referenced by DtRtiExecFederateMgr::getReader(), getReader(), DtRtiExecFederateMgr::initializeFOM(), readFedFile(), readFedFilePtr(), testReadFedFile(), and DtRtiExecFederateMgr::testReadFomModules().

DtFedReader* DtFederateMgr::myFedReader13 [protected]

Reimplemented in DtRtiExecFederateMgr.

Referenced by getReader(), and ~DtFederateMgr().

DtFedReader* DtFederateMgr::myFedReader1516 [protected]

Reimplemented in DtRtiExecFederateMgr.

Referenced by getReader(), and ~DtFederateMgr().

DtFedReader* DtFederateMgr::myFedReader1516e [protected]

Reimplemented in DtRtiExecFederateMgr.

Referenced by getReader(), and ~DtFederateMgr().

MAKRti::DtString DtFederateMgr::myFedType [protected]

Federate type.

Referenced by fedType(), and getSaveFileName().

unsigned long DtFederateMgr::myFlags [protected]

Referenced by flags().

DtFomClassMgr* DtFederateMgr::myFom [protected]

The FOM manager.

Referenced by fom(), DtRtiExecFederateMgr::mergeFomModules(), DtRtiExecFederateMgr::prepareToRestoreLRC(), readFedFile(), readFedFilePtr(), DtRtiExecFederateMgr::restoreLRC(), DtRtiExecFederateMgr::saveLRC(), and ~DtFederateMgr().

RTI::FedTimeFactory DtFederateMgr::myHlaTimeFactory [protected]

Referenced by DtRtiExecFederateMgr::initializeTimeFactory(), and DtSimpleFederateMgr::joinFederationExecution().

bool DtFederateMgr::myIgnoreForcedResign [protected]

Prevents forcing duplicate resign.

Referenced by processAssistantResign(), and processResign().

DtInteractionMgr* DtFederateMgr::myInterMgr [protected]

The interaction manager.

Referenced by createInteractionMgr(), interMgr(), DtRtiExecFederateMgr::prepareToRestoreLRC(), DtRtiExecFederateMgr::restoreLRC(), DtRtiExecFederateMgr::saveLRC(), and ~DtFederateMgr().

bool DtFederateMgr::myIsTicking [protected]

indicates currently processing tick

Referenced by isTicking(), posttick(), and pretick().

MAKRti::DtTime DtFederateMgr::myLastHeartbeat [protected]

Time of last heartbeat.

Referenced by tick().

MAKRti::DtString DtFederateMgr::myLastRestoreLabel [protected]

The last restore label.

Referenced by lastRestoreLabel().

MAKRti::DtString DtFederateMgr::myLastSaveLabel [protected]

The last save label.

Referenced by DtRtiExecFederateMgr::federateSaveComplete(), lastSaveLabel(), and setLastSaveLabel().

DtTime DtFederateMgr::myLastTickTime [protected]

The last tick time.

Referenced by processSignalTickInterval(), and tick().

DtLogicalTimeFactory* DtFederateMgr::myLogicalTimeFactory [protected]

Logical time factory Even if NULL, need to have this factory.

Referenced by DtRtiExecFederateMgr::initializeTimeFactory(), DtSimpleFederateMgr::joinFederationExecution(), timeFactory(), and ~DtFederateMgr().

MAKRti::DtList DtFederateMgr::myMappingList [protected]

List of federation execution names with FED files names and time implementation names.

These names are collected when creating federation executions.

Referenced by addFedExNameMapping(), fedFileName(), timeImplName(), and ~DtFederateMgr().

MAKRti::DtString DtFederateMgr::myMimName [protected]

MIM name.

Referenced by mimName(), and setMimName().

DtMomMgr* DtFederateMgr::myMomMgr [protected]

The MOM manager.

Referenced by createMomMgr(), isJoinedFederate(), DtRtiExecFederateMgr::prepareToRestoreLRC(), DtRtiExecFederateMgr::processDesignatedFederateMsg(), DtRtiExecFederateMgr::restoreLRC(), DtRtiExecFederateMgr::saveLRC(), and ~DtFederateMgr().

bool DtFederateMgr::myNetworkTestEnabled [protected]

Referenced by createTestMgr(), and processEnableDisableNetworkTesting().

DtObjectMgr* DtFederateMgr::myObjMgr [protected]

The object manager.

Referenced by createObjectMgr(), objMgr(), DtRtiExecFederateMgr::prepareToRestoreLRC(), DtRtiExecFederateMgr::restoreLRC(), DtRtiExecFederateMgr::saveLRC(), and ~DtFederateMgr().

DtRIDParameters* DtFederateMgr::myParams [protected]

Initialization data.

Referenced by DtRtiExecFederateMgr::applyRidParameters(), applyRidParameters(), DtRtiExecFederateMgr::initRidTester(), and params().

std::map<MAKRti::DtString, DtFomClassMgr*> DtFederateMgr::myParsedFoms [protected]

Map containing FOMs parsed into FedTargets.

Referenced by addToParsedFomMap(), DtRtiExecFederateMgr::getCrcsOfFoms(), DtRtiExecFederateMgr::mergeFomModules(), readFedFile(), testReadFedFile(), DtRtiExecFederateMgr::testReadFomModules(), and ~DtFederateMgr().

DtFedAmbWrapper* DtFederateMgr::myPrinter [protected]

Prints data for federate ambassador calls.

Referenced by applyRidParameters(), and ~DtFederateMgr().

MAKRti::DtResignAction DtFederateMgr::myResignAction [protected]

The resign action.

Referenced by applyRidParameters(), automaticResignDirective(), readFedFile(), and readFedFilePtr().

MAKRti::DtTime DtFederateMgr::myResponseInterval [protected]

Interval to wait for response message during a message protocol.

bool DtFederateMgr::myRestoreBegun [protected]

Indicates restore begun.

Referenced by DtRtiExecFederateMgr::processRestore(), DtRtiExecFederateMgr::processRestoreEnd(), and restoreBegun().

bool DtFederateMgr::myRestoreInitiated [protected]

Indicates restore initiated.

Referenced by DtRtiExecFederateMgr::processRestoreEnd(), DtRtiExecFederateMgr::processRestoreInitiate(), and restoreInitiated().

MAKRti::DtString DtFederateMgr::myRestoreLabel [protected]

The restore label.

Referenced by DtRtiExecFederateMgr::federateRestoreComplete(), DtRtiExecFederateMgr::federateRestoreNotComplete(), DtRtiExecFederateMgr::processRestore(), DtRtiExecFederateMgr::processRestoreInitiate(), DtRtiExecFederateMgr::requestFederationRestore(), restoreLabel(), and DtRtiExecFederateMgr::testSaveProgress().

bool DtFederateMgr::myRestoreRequested [protected]

Indicates restore requested.

Referenced by DtRtiExecFederateMgr::processRestoreEnd(), DtRtiExecFederateMgr::requestFederationRestore(), and restoreRequested().

RTI::RTIambassador* DtFederateMgr::myRtiAmb [protected]

The federate's RTI Ambassador.

Referenced by rtiAmb().

bool DtFederateMgr::mySaveBegun [protected]

Indicates save begun.

Referenced by DtRtiExecFederateMgr::federateSaveBegun(), DtRtiExecFederateMgr::federateSaveComplete(), DtRtiExecFederateMgr::processSaveFinished(), and saveBegun().

bool DtFederateMgr::mySaveInitiated [protected]

Indicates save initiated.

Referenced by DtRtiExecFederateMgr::federateSaveNotComplete(), DtRtiExecFederateMgr::initiateSave(), DtRtiExecFederateMgr::processSaveFinished(), and saveInitiated().

MAKRti::DtString DtFederateMgr::mySaveLabel [protected]

The save label.

Referenced by DtRtiExecFederateMgr::federateSaveComplete(), DtRtiExecFederateMgr::federateSaveNotComplete(), DtRtiExecFederateMgr::initiateSave(), DtRtiExecFederateMgr::processSaveInitiate(), DtRtiExecFederateMgr::requestFederationSave(), saveLabel(), setSaveLabel(), and DtRtiExecFederateMgr::testSaveProgress().

float DtFederateMgr::mySignalTickInterval [protected]

The Signal Tick Interval.

Referenced by processSignalTickInterval(), and tick().

DtTestManager* DtFederateMgr::myTestMgr [protected]

Referenced by createTestMgr(), processEnableDisableNetworkTesting(), testMgr(), tick(), and ~DtFederateMgr().

unsigned long DtFederateMgr::myTickCount [protected]

Tick counter.

Referenced by pretick(), tick(), and tickCount().

DtFederateMgr::DtFederateMgrCreator DtFederateMgr::theCreator = 0 [static, protected]

The plugin creator.

Referenced by create(), and setCreatorFunction().

DtFederateMgr::DtFederateMgrCreator DtFederateMgr::theInternalCreator = 0 [static, protected]

The internal creator.

Referenced by create(), and setInternalCreatorFunction().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
