DtRtiMsg is the base class for messages between RTI components. More...

Inherits DtBaseMsg.

Inherited by DtAbortRestoreMsg, DtAliveMsg, DtChangeLatencyTestModeMsg, DtConnectConfirmMsg, DtConnectMsg, DtCreateMsg, DtCreateResponseMsg, DtDeleteMsg, DtDesignatedFederateMsg, DtDestroyMsg, DtDestroyResponseMsg, DtDiscObjMsg, DtEnableDisableNetworkTestingMsg, DtFedAmbCallbackMsg, DtFomModuleDistributionMsg, DtFomModuleRequestMsg, DtForwarderConnectionLostMsg, DtForwarderCounterMsg, DtForwarderNodeInfoMsg, DtForwarderPingMsg, DtForwarderPortMsg, DtForwarderResignMsg, DtInteractionMsg, DtJoinConfirmMsg, DtJoinLightWeightMsg, DtJoinMsg, DtJoinResponseMsg, DtLatencyReportMsg, DtListFederationsMsg, DtLocDelMsg, DtMacAddrMsg, DtMcastConfigureMsg, DtMulticastDiscoveryMsg, DtMultiNameReservedMsg, DtNetworkMapReqMsg, DtNetworkMapRspMsg, DtNullMsg, DtOwnershipMsg, DtPartnerFederateMsg, DtPubInterMsg, DtPubObjMsg, DtQueryInterTransportMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtQueryTransportMsg, DtQueueFullMsg, DtReconnectMsg, DtRegObjMsg, DtReleaseMultiNameMsg, DtReportFederationsMsg, DtReqDiscObjMsg, DtRequestMsg, DtReserveMultiNameMsg, DtResignDirectiveMsg, DtResignMsg, DtRestoreBegunMsg, DtRestoreInitiateMsg, DtRestoreReplyMsg, DtRidTestRequestMsg, DtRtiExecConnectMsg, DtRtiExecHandshakeMsg, DtRtiExecShutdownForwarderMsg, DtSaveMsg, DtSaveResponseMsg, DtSmEnrollmentMsg, DtSubInterMsg, DtSubObjMsg, DtSyncPointMsg, DtSyncPointQueryMsg, DtTestMgrStatusMsg, DtTransferRidParamsMsg, DtUnpubInterMsg, DtUnpubObjMsg, DtUnsubInterMsg, DtUnsubObjMsg, DtUpdateMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtWwwFederateStateReqMsg, DtWwwFederateStateRspMsg, DtWwwStateReqMsg, and DtWwwStateRspMsg.

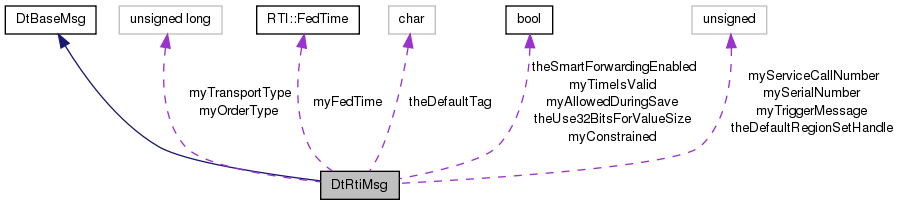

Collaboration diagram for DtRtiMsg:

List of all members.

Public Member Functions
virtual	~DtRtiMsg ()
	Destructor.
virtual DtRtiMsg *	clone (bool copy=true) const =0
	Return a copy/empty object of the same type as this.
virtual DtRtiMsg *	cloneWithTransport (bool copy=true) const
	Return a copy/empty object of the same type as this using clone and set the transport type from the host message.
virtual DtNetMsgHeader *	netHeader () const
	Get header of network representation.
virtual int	version () const
	Return the message version.
virtual bool	isValidVersion () const
	Returns bool: message version is valid?
virtual void	setFedEx (const MAKRti::DtString &name)
	All RTI messages contain information to identify which federation execution the message applies to.
virtual void	setFedEx (int handle)
	Set federation execution identifier as a handle.
virtual bool	isForExec (const MAKRti::DtString &execName, int execHandle) const
	Returns true if the current message belongs to the indicated federation execution, false otherwise.
virtual DtRtiMsgKind	msgKind () const
	Get the message kind.
virtual const char *	kindString () const
	Returns the message kind string name.
virtual bool	isConstrained () const
	Return boolean: message type can be time constrained?
virtual bool	isAllowedDuringSave () const
	Return boolean: message type can be processed during save?
virtual void	setTime (const RTI::FedTime &time)
	Set/Get time Used in timestamped messages.
virtual RTI::FedTime const *	time (DtLogicalTimeFactory *fedTimeFactory) const
virtual bool	hasTime () const
	Returns true if time field is valid.
virtual void	setSerialNumber (unsigned long serialNumberValue)
	Set/Get event retraction serial number Used in timestamped messages.
virtual unsigned long	serialNumber () const
virtual void	setTransportType (DtTransportHandle type)
	Set/Get transport type.
virtual DtTransportHandle	transportType () const
virtual DtOrderHandle	orderType () const
	This base implementation always returns recieve order.
virtual bool	isMetadataPresent () const
	Test if metadata has been added to a DtRtiMsg object.
virtual bool	addMetadata (caddr_t mtdAddr, unsigned int size, unsigned int alignPad, unsigned int *headerPad=NULL)
	Allocate space for next block of metadata.
virtual void	removeMetadata (unsigned int size)
	Update the size of the message when metadata has been removed.
bool	isInteractionMsgType () const
	Utility functions, check the message type against known interaciton/update message types.
bool	isUpdateMsgType () const
virtual void	print (DtLogicalTimeFactory *logicalTimeFactory) const
	Printing functions.
virtual void	printHeader (DtLogicalTimeFactory *logicalTimeFactory) const
virtual void	printData (DtLogicalTimeFactory *logicalTimeFactory) const
virtual void	printTime (const char label, RTI::FedTime const timeValue) const
	Print the given time.
virtual void	printInterval (const char label, RTI::FedTime const intervalValue) const
	Print the interval.
virtual int	status () const
	Returns MSG_STATUS_OK if OK, a reason enumeration otherwise.

virtual const MAKRti::DtString	fedExName () const
	These two functions should be avoided in favor of isForExec().
virtual int	fedExHandle () const
	Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name.

virtual void	setFederateHandle (DtFederateHandle handle)
	Set/Get federate handle.
virtual DtFederateHandle	federateHandle () const
	Set/Get federate handle.

virtual void	setSequenceNumber (unsigned long value)
	Set/Get message sequence number.
virtual unsigned long	sequenceNumber () const
	Set/Get message sequence number.

virtual void	setServiceCallNumber (unsigned long value)
	Set/Get service call number.
virtual unsigned long	serviceCallNumber () const
	Set/Get service call number.

virtual void	setTriggerMessageNumber (unsigned long value)
	Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).
virtual unsigned long	triggerMessageNumber () const
	Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).
Static Public Member Functions
static const char *	kindToString (DtRtiMsgKind kind)
	Returns the name of the message, by kind enumeration.
static const char *	kindString (const void *buffer)
	Extracts the message kind from the given buffer and returns its string name.
static void	setDefaultRegionSet (unsigned long defaultRegionSet)
	Set the default region set handle.
static void	setUse32BitsForValueSize (bool use32BitsForValueSizeEnabled)
	Set/Get flag to enable use of 32 bit size field for attribute/parameter values.
static bool	use32BitsForValueSize ()
static void	setSmartForwardingEnabled (bool enabled)
	Set/Get is SmartForwarding enabled?
static bool	smartForwardingEnabled ()
Static Public Attributes
static unsigned long	theDefaultRegionSetHandle = 0
static const char *	theDefaultTag = NULL
Protected Member Functions
	DtRtiMsg ()
	Constructor.
virtual DtRtiMsgKind	internalDtRtiMsgKind ()=0
virtual void	sizeChanged (int size)
	Called whenever size is changed using changeSize, or insert/deleteBytes.
void	initDtRtiMsg (int size, DtRtiMsgKind msgKindVal, DtBufferPtr buffer)
	Called by ctor, so not virtual.
void	initDtRtiMsg (const void *initial, int size, DtBufferPtr buffer)
void	initDtRtiMsg (const DtNetMsgHeader *header, DtBufferPtr buffer)
virtual void	adjustBytes (int offset, int numBytes)
	Adjust numBytes bytes at the indicated offset in the net rep.
virtual void	adjustBytes (void *address, int numBytes)
	Adjust the numBytes starting at the indicated addres.
Protected Attributes
DtTransportHandle	myTransportType
DtOrderHandle	myOrderType
RTI::FedTime *	myFedTime
bool	myTimeIsValid
bool	myConstrained
bool	myAllowedDuringSave
unsigned long	mySerialNumber
unsigned long	myServiceCallNumber
unsigned long	myTriggerMessage
Static Protected Attributes
static bool	theUse32BitsForValueSize = false
static bool	theSmartForwardingEnabled = false

Detailed Description

DtRtiMsg is the base class for messages between RTI components.

Constructor & Destructor Documentation

DtRtiMsg::~DtRtiMsg ( ) [virtual]

Destructor.

References myFedTime.

DtRtiMsg::DtRtiMsg ( ) [protected]

Constructor.

References DtBindMessage().

Member Function Documentation

bool DtRtiMsg::addMetadata	(	caddr_t *	mtdAddr,
		unsigned int	size,
		unsigned int *	alignPad,
		unsigned int *	headerPad = `NULL`
	)		`[virtual]`

Allocate space for next block of metadata.

Start address is returned in mtdAddr. Alignment indicated in alignPad and amount of padding needed to align metadata returned in the same variable. If an extra byte is needed to align the header after the payload the headerPad argument will be set if the pointer is not NULL. Return value indicates whether this is the first metadata added to the message.

References DtNetMsgHeader::metadataInMessage(), DtNetMsgHeader::metadataSize, netHeader(), and DtNetMsgHeader::setMetadataInMessage().

Referenced by DtRtiMtdNull::set(), DtRtiMtdMcastAddr::set(), DtRtiMtdTimeStamp::set(), DtRtiMtdTestId::set(), DtRtiMtdForwarderGroupId::set(), DtRtiMtdDestinationList::set(), DtRtiMtdFederateHostInformation::set(), and DtRtiMetadata::setLengthAsValue().

void DtRtiMsg::adjustBytes	(	int	offset,
		int	numBytes
	)		`[inline, protected, virtual]`

Adjust numBytes bytes at the indicated offset in the net rep.

Uses insertBytes or deleteBytes based on sign of numBytes

References rti1516e::insertBytes().

Referenced by DtLatencyReportMsg::resize(), DtUpdateMsg::setObjName(), DtUpdateMsg::setSizeOfNetAttrs(), DtInteractionMsg::setSizeOfNetParams(), DtDeleteMsg::setTag(), DtInteractionMsg::setTag(), DtUpdateMsg::setTag(), and DtRequestMsg::setTag().

void DtRtiMsg::adjustBytes	(	void *	address,
		int	numBytes
	)		`[inline, protected, virtual]`

Adjust the numBytes starting at the indicated addres.

Assumes that address falls within the net rep. Uses insertBytes or deleteBytes based on sign of numBytes

References rti1516e::insertBytes().

virtual DtRtiMsg* DtRtiMsg::clone ( bool copy = true ) const [pure virtual]

Return a copy/empty object of the same type as this.

NOTE: The transport type is not carried in the network representation used to make clones; therefore, it must be set after the clone is made

Implemented in DtForwarderNodeInfoMsg, DtOwnershipMsg, DtJoinResponseMsg, DtSyncPointMsg, DtTestMgrStatusMsg, DtRequestMsg, DtFedAmbCallbackMsg, DtJoinMsg, DtMcastConfigureMsg, DtMulticastDiscoveryMsg, DtResignMsg, DtLatencyReportMsg, DtQueryTransportMsg, DtSmEnrollmentMsg, DtChangeLatencyTestModeMsg, DtRestoreInitiateMsg, DtSaveTimeMsg, DtRestoreReplyMsg, DtSaveFinishedMsg, DtSyncPointQueryMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtCreateResponseMsg, DtJoinConfirmMsg, DtRestoreEndMsg, DtForwarderCounterMsg, DtPartnerFederateMsg, DtDeleteRoMsg, DtFomModuleRequestMsg, DtSaveResponseMsg, DtUpdateRoMsg, DtCreateMsg, DtRtiExecHandshakeMsg, DtForwarderPortMsg, DtReconnectMsg, DtDestroyMsg, DtForwarderPingMsg, DtForwarderResignMsg, DtJoinLightWeightMsg, DtRestoreBegunMsg, DtDestroyResponseMsg, DtInteractionRoMsg, DtLocDelMsg, DtMacAddrMsg, DtRegObjMsg, DtWwwFederateStateRspMsg, DtMultiNameReservedMsg, DtQueryInterTransportMsg, DtReportFederationsMsg, DtWwwStateRspMsg, DtDiscObjMsg, DtRtiExecConnectMsg, DtNetworkMapReqMsg, DtNetworkMapRspMsg, DtResignDirectiveMsg, DtRidTestRequestMsg, DtSubObjMsg, DtTransferRidParamsMsg, DtWwwFederateStateReqMsg, DtConnectMsg, DtEnableDisableNetworkTestingMsg, DtPubObjMsg, DtReleaseMultiNameMsg, DtReserveMultiNameMsg, DtUnsubObjMsg, DtWwwStateReqMsg, DtConnectConfirmMsg, DtRestoreCompleteMsg, DtRestoreRequestMsg, DtRestoreMsg, DtSaveCompleteMsg, DtSaveInitiateConstrainedMsg, DtSaveInitiateMsg, DtSaveRequestMsg, DtUnpubObjMsg, DtDeleteSocketMsg, DtDesignatedFederateMsg, DtForwarderConnectionLostMsg, DtReqDiscObjMsg, DtUnpubInterMsg, DtUnsubInterMsg, DtListFederationsMsg, DtPubInterMsg, DtSubInterMsg, DtDisconnectMsg, DtRtiExecDisconnectMsg, DtFomModuleDistributionMsg, DtQueueFullMsg, DtAliveMsg, DtRtiExecShutdownForwarderMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtAbortRestoreMsg, DtSaveBegunMsg, DtAbortSaveMsg, DtInitiatedSaveMsg, and DtSaveTimeAdvanceMsg.

Referenced by cloneWithTransport(), DtMessageThrottle::queueMessage(), DtAsyncConnectionMgr::receivePacket(), and DtAsyncConnectionMgr::send().

DtRtiMsg * DtRtiMsg::cloneWithTransport ( bool copy = true ) const [virtual]

Return a copy/empty object of the same type as this using clone and set the transport type from the host message.

References clone(), setTransportType(), and transportType().

Referenced by DtSmConnectionMgr::getMessage(), DtAsyncConnectionMgr::getMessage(), DtConnectionMgr::getMessage(), DtConnectionMgr::handleMsg(), DtRtiMsgQueue::queueMsg(), and DtSmRtiConnection::send().

DtFederateHandle DtRtiMsg::federateHandle ( ) const [inline, virtual]

Set/Get federate handle.

Reimplemented in DtReconnectMsg.

References DtNetMsgHeader::fedHandle, and netHeader().

int DtRtiMsg::fedExHandle ( ) const [virtual]

Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name.

References DtNetMsgHeader::fedExecId, and netHeader().

Referenced by DtRtiExecWebManager::federateStateReqHandler(), DtRtiShmQNetMgr::filterReliableLoopbacks(), DtRtiExecWebManager::issueChangeRidParamsCommand(), DtRtiExecWebManager::issueLrcLogRequest(), DtRtiExecWebManager::issueStateRequest(), DtRtiExecWebManager::issueUndiscoverObjectCommand(), DtFedExec::multFileRequestedCb(), DtSmEnrollmentMsg::printData(), printHeader(), DtRtiexecObserverForWebService::processControlRspMsg(), DtRtiexecObserverForWebService::processFederateStateRspMsg(), DtFedExec::processJoinMsg(), DtRtiexecObserverForAssistant::processLatencyTestResultsMsg(), DtRtiexecObserverForAssistant::processLatencyTestStatusMsg(), DtRtiShmQNetMgr::processMsg(), DtConnectionMgr::processMsg(), DtRtiExec::processQueueFull(), DtRtiExec::processReconnect(), DtFedExec::processResign(), DtRtiexecObserverForWebService::processStateRspMsg(), DtRtiExec::ridRequestCb(), DtSmConnectionMgr::send(), DtAsyncConnectionMgr::send(), DtConnectionMgr::send(), DtAsyncConnectionMgr::sendAndDelete(), and DtConnectionMgr::sendStampedUtilityFunction().

const MAKRti::DtString DtRtiMsg::fedExName ( ) const [virtual]

These two functions should be avoided in favor of isForExec().

They provide detail about how a federation execution identifier has been encoded in the message. Get the federation execution identifier as a string Returns an empty string if the identifier is being represented as a handle.

References DtNetExecNameSize, and netHeader().

Referenced by DtSmartForwardingProcessor::federateJoined(), printHeader(), DtFedExec::processJoinMsg(), and DtConnectionMgr::sendStampedUtilityFunction().

bool DtRtiMsg::hasTime ( ) const [virtual]

Returns true if time field is valid.

References myTimeIsValid.

Referenced by DtInteractionMgr::processInteraction(), and DtObjectMgr::processUpdate().

void DtRtiMsg::initDtRtiMsg	(	int	size,
		DtRtiMsgKind	msgKindVal,
		DtBufferPtr	buffer
	)		`[protected]`

Called by ctor, so not virtual.

References DtInvalidMsgKind, DtRtiMessageVersion, DtRtiMetadata::metadataMaxSize(), DtNetMsgHeader::metadataSize, DtNetMsgHeader::msgKind, netHeader(), setFederateHandle(), setFedEx(), DtNetMsgHeader::version, and DtNetMsgHeader::versionCheck.

Referenced by DtAbortRestoreMsg::DtAbortRestoreMsg(), DtAbortSaveMsg::DtAbortSaveMsg(), DtAliveMsg::DtAliveMsg(), DtChangeLatencyTestModeMsg::DtChangeLatencyTestModeMsg(), DtConnectConfirmMsg::DtConnectConfirmMsg(), DtConnectMsg::DtConnectMsg(), DtCreateMsg::DtCreateMsg(), DtCreateResponseMsg::DtCreateResponseMsg(), DtDeleteRoMsg::DtDeleteRoMsg(), DtDesignatedFederateMsg::DtDesignatedFederateMsg(), DtDestroyMsg::DtDestroyMsg(), DtDestroyResponseMsg::DtDestroyResponseMsg(), DtDiscObjMsg::DtDiscObjMsg(), DtEnableDisableNetworkTestingMsg::DtEnableDisableNetworkTestingMsg(), DtFedAmbCallbackMsg::DtFedAmbCallbackMsg(), DtFomModuleDistributionMsg::DtFomModuleDistributionMsg(), DtFomModuleRequestMsg::DtFomModuleRequestMsg(), DtForwarderConnectionLostMsg::DtForwarderConnectionLostMsg(), DtForwarderCounterMsg::DtForwarderCounterMsg(), DtForwarderNodeInfoMsg::DtForwarderNodeInfoMsg(), DtForwarderPingMsg::DtForwarderPingMsg(), DtForwarderPortMsg::DtForwarderPortMsg(), DtForwarderResignMsg::DtForwarderResignMsg(), DtInteractionRoMsg::DtInteractionRoMsg(), DtJoinConfirmMsg::DtJoinConfirmMsg(), DtJoinLightWeightMsg::DtJoinLightWeightMsg(), DtJoinMsg::DtJoinMsg(), DtJoinResponseMsg::DtJoinResponseMsg(), DtLatencyReportMsg::DtLatencyReportMsg(), DtListFederationsMsg::DtListFederationsMsg(), DtLocDelMsg::DtLocDelMsg(), DtMacAddrMsg::DtMacAddrMsg(), DtMcastConfigureMsg::DtMcastConfigureMsg(), DtMulticastDiscoveryMsg::DtMulticastDiscoveryMsg(), DtMultiNameReservedMsg::DtMultiNameReservedMsg(), DtNetworkMapReqMsg::DtNetworkMapReqMsg(), DtNetworkMapRspMsg::DtNetworkMapRspMsg(), DtNullMsg::DtNullMsg(), DtOwnershipMsg::DtOwnershipMsg(), DtPartnerFederateMsg::DtPartnerFederateMsg(), DtPubInterMsg::DtPubInterMsg(), DtPubObjMsg::DtPubObjMsg(), DtQueryInterTransportMsg::DtQueryInterTransportMsg(), DtQueryRestoreStatusMsg::DtQueryRestoreStatusMsg(), DtQuerySaveStatusMsg::DtQuerySaveStatusMsg(), DtQueryTransportMsg::DtQueryTransportMsg(), DtQueueFullMsg::DtQueueFullMsg(), DtReconnectMsg::DtReconnectMsg(), DtRegObjMsg::DtRegObjMsg(), DtReleaseMultiNameMsg::DtReleaseMultiNameMsg(), DtReportFederationsMsg::DtReportFederationsMsg(), DtReqDiscObjMsg::DtReqDiscObjMsg(), DtRequestMsg::DtRequestMsg(), DtReserveMultiNameMsg::DtReserveMultiNameMsg(), DtResignDirectiveMsg::DtResignDirectiveMsg(), DtResignMsg::DtResignMsg(), DtRestoreBegunMsg::DtRestoreBegunMsg(), DtRestoreEndMsg::DtRestoreEndMsg(), DtRestoreInitiateMsg::DtRestoreInitiateMsg(), DtRestoreMsg::DtRestoreMsg(), DtRestoreReplyMsg::DtRestoreReplyMsg(), DtRestoreRequestMsg::DtRestoreRequestMsg(), DtRidTestRequestMsg::DtRidTestRequestMsg(), DtRtiExecConnectMsg::DtRtiExecConnectMsg(), DtRtiExecHandshakeMsg::DtRtiExecHandshakeMsg(), DtRtiExecShutdownForwarderMsg::DtRtiExecShutdownForwarderMsg(), DtSaveBegunMsg::DtSaveBegunMsg(), DtSaveCompleteMsg::DtSaveCompleteMsg(), DtSaveFinishedMsg::DtSaveFinishedMsg(), DtSaveInitiateConstrainedMsg::DtSaveInitiateConstrainedMsg(), DtSaveInitiateMsg::DtSaveInitiateMsg(), DtSaveRequestMsg::DtSaveRequestMsg(), DtSaveResponseMsg::DtSaveResponseMsg(), DtSaveTimeMsg::DtSaveTimeMsg(), DtSmEnrollmentMsg::DtSmEnrollmentMsg(), DtSubInterMsg::DtSubInterMsg(), DtSubObjMsg::DtSubObjMsg(), DtSyncPointMsg::DtSyncPointMsg(), DtSyncPointQueryMsg::DtSyncPointQueryMsg(), DtTestMgrStatusMsg::DtTestMgrStatusMsg(), DtTransferRidParamsMsg::DtTransferRidParamsMsg(), DtUnpubInterMsg::DtUnpubInterMsg(), DtUnpubObjMsg::DtUnpubObjMsg(), DtUnsubInterMsg::DtUnsubInterMsg(), DtUnsubObjMsg::DtUnsubObjMsg(), DtUpdateRoMsg::DtUpdateRoMsg(), DtWwwControlMsg::DtWwwControlMsg(), DtWwwControlRspMsg::DtWwwControlRspMsg(), DtWwwFederateStateReqMsg::DtWwwFederateStateReqMsg(), DtWwwFederateStateRspMsg::DtWwwFederateStateRspMsg(), DtWwwStateReqMsg::DtWwwStateReqMsg(), and DtWwwStateRspMsg::DtWwwStateRspMsg().

void DtRtiMsg::initDtRtiMsg	(	const void *	initial,
		int	size,
		DtBufferPtr	buffer
	)		`[protected]`

void DtRtiMsg::initDtRtiMsg	(	const DtNetMsgHeader *	header,
		DtBufferPtr	buffer
	)		`[protected]`

References DtNetMsgHeader::totalSize.

virtual DtRtiMsgKind DtRtiMsg::internalDtRtiMsgKind ( ) [protected, pure virtual]

Implemented in DtJoinResponseMsg, DtSyncPointMsg, DtOwnershipMsg, DtJoinMsg, DtForwarderNodeInfoMsg, DtRequestMsg, DtCreateMsg, DtQueryTransportMsg, DtConnectConfirmMsg, DtResignMsg, DtChangeLatencyTestModeMsg, DtFomModuleDistributionMsg, DtJoinLightWeightMsg, DtTestMgrStatusMsg, DtMulticastDiscoveryMsg, DtRtiExecHandshakeMsg, DtLatencyReportMsg, DtMcastConfigureMsg, DtSyncPointQueryMsg, DtForwarderCounterMsg, DtRtiExecConnectMsg, DtWwwFederateStateRspMsg, DtDiscObjMsg, DtFomModuleRequestMsg, DtRestoreReplyMsg, DtCreateResponseMsg, DtQueryInterTransportMsg, DtSaveResponseMsg, DtRegObjMsg, DtSubObjMsg, DtWwwStateRspMsg, DtJoinConfirmMsg, DtReconnectMsg, DtUpdateRoMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtInteractionRoMsg, DtDeleteRoMsg, DtMultiNameReservedMsg, DtPartnerFederateMsg, DtRestoreBegunMsg, DtForwarderPortMsg, DtReportFederationsMsg, DtSmEnrollmentMsg, DtDestroyResponseMsg, DtReleaseMultiNameMsg, DtReserveMultiNameMsg, DtForwarderPingMsg, DtForwarderResignMsg, DtSaveTimeMsg, DtMacAddrMsg, DtResignDirectiveMsg, DtWwwFederateStateReqMsg, DtNetworkMapRspMsg, DtPubObjMsg, DtTransferRidParamsMsg, DtUnsubObjMsg, DtDestroyMsg, DtForwarderConnectionLostMsg, DtReqDiscObjMsg, DtUnpubObjMsg, DtLocDelMsg, DtUnsubInterMsg, DtEnableDisableNetworkTestingMsg, DtNetworkMapReqMsg, DtRestoreEndMsg, DtRestoreInitiateMsg, DtSaveFinishedMsg, DtSubInterMsg, DtConnectMsg, DtUnpubInterMsg, DtWwwStateReqMsg, DtPubInterMsg, DtDesignatedFederateMsg, DtRidTestRequestMsg, DtListFederationsMsg, DtSaveCompleteMsg, DtSaveRequestMsg, DtSaveMsg, DtAliveMsg, DtRtiExecShutdownForwarderMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtRestoreCompleteMsg, DtAbortRestoreMsg, DtQueueFullMsg, DtRestoreRequestMsg, DtRestoreMsg, DtSaveInitiateConstrainedMsg, DtSaveInitiateMsg, DtDeleteSocketMsg, DtDisconnectMsg, DtRtiExecDisconnectMsg, DtFedAmbCallbackMsg, DtSaveBegunMsg, DtAbortSaveMsg, DtInitiatedSaveMsg, DtSaveTimeAdvanceMsg, and DtNullMsg.

bool DtRtiMsg::isAllowedDuringSave ( ) const [virtual]

Return boolean: message type can be processed during save?

References myAllowedDuringSave.

Referenced by DtConnectionMgr::handleMsg().

bool DtRtiMsg::isConstrained ( ) const [virtual]

Return boolean: message type can be time constrained?

References myConstrained.

Referenced by DtConnectionMgr::handleMsg(), DtConnectionMgr::processPendingMsg(), DtRtiMsgQueue::queueMsg(), and DtConnectionMgr::sendLoopback().

bool DtRtiMsg::isForExec	(	const MAKRti::DtString &	execName,
		int	execHandle
	)		const `[virtual]`

Returns true if the current message belongs to the indicated federation execution, false otherwise.

If you are not using an rtiexec, use a handle of zero.

References DtNetMsgHeader::isForExec(), and netHeader().

bool DtRtiMsg::isInteractionMsgType ( ) const

Utility functions, check the message type against known interaciton/update message types.

References DtDdmInteractionRoMsgKind, DtDdmInteractionTsoMsgKind, DtInteractionRoMsgKind, DtInteractionTsoMsgKind, and msgKind().

Referenced by DtTestManager::getTestIDFromMetaData(), and DtTestManager::shouldAddMetadataToMessage().

bool DtRtiMsg::isMetadataPresent ( ) const [virtual]

Test if metadata has been added to a DtRtiMsg object.

References DtNetMsgHeader::metadataInMessage(), and netHeader().

bool DtRtiMsg::isUpdateMsgType ( ) const

References DtDdmUpdateRoMsgKind, DtDdmUpdateTsoMsgKind, DtUpdateRoMsgKind, DtUpdateTsoMsgKind, and msgKind().

bool DtRtiMsg::isValidVersion ( ) const [virtual]

Returns bool: message version is valid?

References DtRtiMessageVersion, netHeader(), and DtNetMsgHeader::versionMatches().

const char * DtRtiMsg::kindString ( ) const [virtual]

Returns the message kind string name.

References kindToString(), and msgKind().

Referenced by DtInOutForwarderPort::getInitializationMsg(), DtInOutForwarderPort::getNextMsg(), DtInOutForwarderPort::sendToAllReliable(), and DtInOutForwarderPort::sendToListReliable().

const char * DtRtiMsg::kindString ( const void * buffer ) [static]

Extracts the message kind from the given buffer and returns its string name.

References kindToString(), and msgKind().

const char * DtRtiMsg::kindToString ( DtRtiMsgKind kind ) [static]

Returns the name of the message, by kind enumeration.

References DtAbortRestoreMsgKind, DtAbortSaveMsgKind, DtAliveMsgKind, DtAssocPubRegMsgKind, DtAssocSubRegMsgKind, DtCallbackMsgKind, DtChangeLatencyTestModeMsgKind, DtConnectConfirmMsgKind, DtConnectMsgKind, DtConstrainedEnabledMsgKind, DtConstrainedSyncMsgKind, DtCreateMsgKind, DtCreateResponseMsgKind, DtDdmInteractionRoMsgKind, DtDdmInteractionTsoMsgKind, DtDdmUpdateRoMsgKind, DtDdmUpdateTsoMsgKind, DtDeleteRegMsgKind, DtDeleteRoMsgKind, DtDeleteSocketMsgKind, DtDeleteTsoMsgKind, DtDesignatedFederateMsgKind, DtDestroyMsgKind, DtDestroyResponseMsgKind, DtDisableMsgKind, DtDiscObjMsgKind, DtDisconnectMsgKind, DtEnableConstrainedMsgKind, DtEnableDisableNetworkTestingMsgKind, DtEnableRegulationMsgKind, DtFomModuleDistributionMsgKind, DtFomModuleRequestMsgKind, DtForwarderConnectionLostMsgKind, DtForwarderCounterMsgKind, DtForwarderNodeInfoMsgKind, DtForwarderPingMsgKind, DtForwarderPortMsgKind, DtForwarderResignMsgKind, DtInitiatedSaveMsgKind, DtInteractionRoMsgKind, DtInteractionTsoMsgKind, DtInterRegSetMsgKind, DtInvalidMsgKind, DtJoinConfirmMsgKind, DtJoinLightWeightMsgKind, DtJoinMsgKind, DtJoinResponseMsgKind, DtKINDSTR, DtLatencyReportMsgKind, DtLbtsMsgKind, DtListFederationsMsgKind, DtLocDelMsgKind, DtMacAddrMsgKind, DtMcastConfigureMsgKind, DtMulticastDiscoveryMsgKind, DtMultiNameReservedMsgKind, DtNameReservedMsgKind, DtNerLbtsMsgKind, DtNetworkMapReqMsgKind, DtNetworkMapRspMsgKind, DtNextEventRequestMsgKind, DtNotifyRegMsgKind, DtObjRegSetMsgKind, DtOwnershipMsgKind, DtPartnerFederateMsgKind, DtPubInterMsgKind, DtPubObjMsgKind, DtQueryInterTransportMsgKind, DtQueryRestoreStatusMsgKind, DtQuerySaveStatusMsgKind, DtQueryTransportMsgKind, DtQueueFullMsgKind, DtReconnectMsgKind, DtRegionRealizationMsgKind, DtRegObjMsgKind, DtRegulationEnabledMsgKind, DtRegulationRequestMsgKind, DtRegulationResponseMsgKind, DtReleaseMultiNameMsgKind, DtReportFederationsMsgKind, DtReqDiscObjMsgKind, DtRequestMsgKind, DtReserveMultiNameMsgKind, DtReserveNameMsgKind, DtResignDirectiveMsgKind, DtResignMsgKind, DtRestoreBegunMsgKind, DtRestoreCompleteMsgKind, DtRestoreEndMsgKind, DtRestoreInitiateMsgKind, DtRestoreMsgKind, DtRestoreReplyMsgKind, DtRestoreRequestMsgKind, DtRestoreStatusMsgKind, DtResumeConstrainedMsgKind, DtRetractMsgKind, DtRidTestRequestMsgKind, DtRtiExecConnectMsgKind, DtRtiExecDisconnectMsgKind, DtRtiExecHandshakeMsgKind, DtRtiExecShutdownForwarderMsgKind, DtSaveBegunMsgKind, DtSaveCompleteMsgKind, DtSaveFinishedMsgKind, DtSaveInitiateConstrainedMsgKind, DtSaveInitiateMsgKind, DtSaveRequestMsgKind, DtSaveRequestTsoMsgKind, DtSaveResponseMsgKind, DtSaveStatusMsgKind, DtSaveTimeAdvanceMsgKind, DtSaveTimeMsgKind, DtSmEnrollmentMsgKind, DtSubInterMsgKind, DtSubObjMsgKind, DtSyncConstrainedMsgKind, DtSyncPointMsgKind, DtSyncPointQueryMsgKind, DtTestMgrStatusMsgKind, DtTimeAdvanceRequestMsgKind, DtTimeRegMsgKind, DtTransferRidParamsMsgKind, DtUnpubInterMsgKind, DtUnpubObjMsgKind, DtUnsubInterMsgKind, DtUnsubObjMsgKind, DtUpdateRoMsgKind, DtUpdateTsoMsgKind, DtWwwControlMsgKind, DtWwwControlRspMsgKind, DtWwwFederateStateReqMsgKind, DtWwwFederateStateRspMsgKind, DtWwwStateReqMsgKind, and DtWwwStateRspMsgKind.

Referenced by DtForwarderNodeInfoFilter::applyFilter(), DtFederateCounterFilter::applyFilter(), DtForwarderPingFilter::applyFilter(), DtRtiExecHandshakeFilter::applyFilter(), DtForwarderWebManagerFilter::applyFilter(), DtNetworkMapFilter::applyFilter(), DtUpdateInterDestinationFilter< ParentClass >::applyFilter(), DtFederateConnectFilter< ParentClass >::applyFilter(), DtFederateJoinResignFilter< ParentClass >::applyFilter(), DtMulticastListenDropFilter< ParentClass >::applyFilter(), DtForwarderFedexMsgFilter::applyFilter(), DtRtiExecConnectionFilter< DtRtiExecHandshakeProcessor >::applyFilter(), DtConnectConfirmFilter::doFilter(), DtRoutePrinterFilter::doFilter(), DtFederateTrackingFilter::doFilter(), DtFedexMsgFilter::doFilter(), DtRtiExecTrackingFilter::doFilter(), DtTcpRtiConnectionMgr::establishConnection(), DtTcpWwwSpyAdapter::getConnectMsg(), DtLanForwarderPort::getNextMsg(), kindString(), DtRtiConnection::netRead(), DtTcpWwwSpyAdapter::netRead(), DtTcpRtiConnectionMgr::netRead(), DtWwwClientProtocol::parseResponse(), printHeader(), DtFilteredTcpForwarder::readAndForward(), DtObjectMgr::sendBestEffortUpdateMsg(), DtInteractionMgr::sendInteractionMsg(), and DtObjectMgr::sendReliableUpdateMsg().

DtRtiMsgKind DtRtiMsg::msgKind ( ) const [inline, virtual]

Get the message kind.

References netHeader().

Referenced by DtPartnerMgr::acceptMessage(), DtInteractionRoMsg::addCallback(), DtUpdateRoMsg::addCallback(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), DtConnectionMgr::destroyRelConn(), DtTcpRtiConnectionMgr::establishConnection(), DtTcpWwwSpyAdapter::getConnectMsg(), isInteractionMsgType(), isUpdateMsgType(), kindString(), DtConnectionMgr::momProcessMsg(), DtWwwClientProtocol::parseResponse(), printHeader(), DtRtiShmQNetMgr::processMsg(), DtConnectionMgr::processMsg(), DtInteractionRoMsg::removeCallback(), DtUpdateRoMsg::removeCallback(), DtConnectionMgr::repairFederationConnection(), DtObjectMgr::sendBestEffortUpdateMsg(), DtInteractionMgr::sendInteractionMsg(), DtObjectMgr::sendReliableUpdateMsg(), DtForwarderWebManager::tick(), and DtRtiExecWebManager::tickOnce().

DtNetMsgHeader * DtRtiMsg::netHeader ( ) const [inline, virtual]

DtOrderHandle DtRtiMsg::orderType ( ) const [virtual]

This base implementation always returns recieve order.

References myOrderType.

Referenced by DtInteractionRoMsg::printData(), DtUpdateRoMsg::printData(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), DtRtiMsgQueue::queueMsg(), and DtConnectionMgr::sendStampedUtilityFunction().

void DtRtiMsg::print ( DtLogicalTimeFactory * logicalTimeFactory ) const [virtual]

void DtRtiMsg::printData ( DtLogicalTimeFactory * logicalTimeFactory ) const [virtual]

Reimplemented in DtJoinResponseMsg, DtSyncPointMsg, DtOwnershipMsg, DtJoinMsg, DtRequestMsg, DtCreateMsg, DtQueryTransportMsg, DtConnectConfirmMsg, DtResignMsg, DtJoinLightWeightMsg, DtFomModuleDistributionMsg, DtMulticastDiscoveryMsg, DtMcastConfigureMsg, DtSyncPointQueryMsg, DtWwwFederateStateRspMsg, DtRtiExecConnectMsg, DtDiscObjMsg, DtRtiExecHandshakeMsg, DtFomModuleRequestMsg, DtForwarderCounterMsg, DtUpdateRoMsg, DtSaveResponseMsg, DtWwwStateRspMsg, DtFedAmbCallbackMsg, DtRegObjMsg, DtReconnectMsg, DtSubObjMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtJoinConfirmMsg, DtQueryInterTransportMsg, DtCreateResponseMsg, DtDeleteRoMsg, DtInteractionRoMsg, DtMultiNameReservedMsg, DtRestoreBegunMsg, DtReportFederationsMsg, DtSaveTimeMsg, DtSmEnrollmentMsg, DtDestroyResponseMsg, DtForwarderPingMsg, DtForwarderResignMsg, DtRestoreReplyMsg, DtTestMgrStatusMsg, DtWwwFederateStateReqMsg, DtNetworkMapRspMsg, DtResignDirectiveMsg, DtSaveMsg, DtPubObjMsg, DtForwarderConnectionLostMsg, DtNetworkMapReqMsg, DtUnsubObjMsg, DtDestroyMsg, DtLatencyReportMsg, DtReqDiscObjMsg, DtTransferRidParamsMsg, DtUnpubObjMsg, DtChangeLatencyTestModeMsg, DtLocDelMsg, DtPartnerFederateMsg, DtRestoreInitiateMsg, DtUnsubInterMsg, DtEnableDisableNetworkTestingMsg, DtSubInterMsg, DtWwwStateReqMsg, DtConnectMsg, DtRidTestRequestMsg, DtReleaseMultiNameMsg, DtReserveMultiNameMsg, DtSaveCompleteMsg, DtUnpubInterMsg, DtPubInterMsg, DtSaveRequestMsg, DtDesignatedFederateMsg, DtListFederationsMsg, DtAliveMsg, DtRtiExecShutdownForwarderMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtAbortRestoreMsg, DtSaveBegunMsg, DtAbortSaveMsg, and DtNullMsg.

References netHeader().

Referenced by print().

void DtRtiMsg::printHeader ( DtLogicalTimeFactory * logicalTimeFactory ) const [virtual]

References DtRtiMessageVersionString(), federateHandle(), fedExHandle(), fedExName(), DtRtiMtdDestinationList::get(), DtRtiMtdDestinationList::getMaxDestinations(), kindToString(), msgKind(), netHeader(), DtBitMask::print(), sequenceNumber(), serviceCallNumber(), smartForwardingEnabled(), triggerMessageNumber(), and version().

Referenced by print().

void DtRtiMsg::printInterval	(	const char *	label,
		RTI::FedTime const *	intervalValue
	)		const `[virtual]`

Print the interval.

References RTI::FedTime::getPrintableLength(), RTI::FedTime::getPrintableString(), and RTI::FedTime::isPositiveInfinity().

void DtRtiMsg::printTime	(	const char *	label,
		RTI::FedTime const *	timeValue
	)		const `[virtual]`

Print the given time.

References RTI::FedTime::getPrintableLength(), RTI::FedTime::getPrintableString(), and RTI::FedTime::isPositiveInfinity().

Referenced by DtSaveTimeMsg::printData().

void DtRtiMsg::removeMetadata ( unsigned int size ) [virtual]

Update the size of the message when metadata has been removed.

Does not do the actual removing (that's done by DtRtiMetadata::remove())

Referenced by DtRtiMetadata::remove().

unsigned long DtRtiMsg::sequenceNumber ( ) const [virtual]

Set/Get message sequence number.

References netHeader(), and DtNetMsgHeader::sequenceNumber.

Referenced by printHeader().

unsigned long DtRtiMsg::serialNumber ( ) const [virtual]

References mySerialNumber.

Referenced by DtRetractInfoList::add(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), and DtRtiMsgQueue::removeMsg().

unsigned long DtRtiMsg::serviceCallNumber ( ) const [virtual]

Set/Get service call number.

References myServiceCallNumber.

Referenced by printHeader().

void DtRtiMsg::setDefaultRegionSet ( unsigned long defaultRegionSet ) [static]

Set the default region set handle.

References theDefaultRegionSetHandle.

void DtRtiMsg::setFederateHandle ( DtFederateHandle handle ) [virtual]

Set/Get federate handle.

Reimplemented in DtReconnectMsg.

References DtNetMsgHeader::fedHandle, and netHeader().

Referenced by DtResignMsg::DtResignMsg(), DtSmEnrollmentMsg::DtSmEnrollmentMsg(), DtTestMgrStatusMsg::DtTestMgrStatusMsg(), DtTcpRtiConnectionMgr::establishConnection(), DtSmartForwardingProcessor::federateJoined(), initDtRtiMsg(), DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted(), DtRtiExecTrackingFilter::processDisconnectMsg(), DtFedExec::processFedFileRequestMsg(), DtRtiExecDistributedTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processTimeout(), DtSynchronousFileDistributor::pullEntireFedFile(), DtFileDistributor::pushFedFile(), DtRtiExec::ridRequestCb(), DtObjectMgr::sendDeleteMsg(), DtObjectMgr::sendRegisterMsg(), DtRidFileTester::sendRequestForTesting(), DtConnectionMgr::sendStampedUtilityFunction(), DtFedExec::sendSyncPointStatusReport(), DtSmEnrollmentMsg::set(), DtResignMsg::set(), DtRtiMsgForwarder::tcpSocketAdditionCb(), DtRtiMsgForwarder::tcpSocketRemovalCb(), DtFilteredTcpForwarder::updateQueuedSockets(), and DtSmConnectionMgr::~DtSmConnectionMgr().

void DtRtiMsg::setFedEx ( const MAKRti::DtString & name ) [virtual]

All RTI messages contain information to identify which federation execution the message applies to.

The federation execution is identified differently depending on whether or not an rtiexec is being used. When using an rtiexec, use setFedEx(int fedExHandle) to add a federation execution identifier to a message, passing the handle you received from the rtiexec in a joinResponse message when you joined. When not using an rtiexec, use setFedEx(const MAKRti::DtString fedExName), passing the name of the federation execution. In this case, the first three letters of the name will be used as the identifier. In either case, use isForExec() to find out if a received message is for a particular federation execution. Pass the federation execution name and the handle (if using an rtiexec). Set federation execution identifier as a string

References DtNetExecNameSize, DtNetMsgHeader::fedExecId, and netHeader().

Referenced by DtFedExec::changeLatencyTestMode(), DtEnableDisableNetworkTestingMsg::DtEnableDisableNetworkTestingMsg(), DtResignMsg::DtResignMsg(), DtSmEnrollmentMsg::DtSmEnrollmentMsg(), DtTestMgrStatusMsg::DtTestMgrStatusMsg(), DtWwwControlMsg::DtWwwControlMsg(), DtWwwControlRspMsg::DtWwwControlRspMsg(), DtWwwFederateStateReqMsg::DtWwwFederateStateReqMsg(), DtWwwFederateStateRspMsg::DtWwwFederateStateRspMsg(), DtFedExec::endRestore(), DtFedExec::endSave(), DtTcpRtiConnectionMgr::establishConnection(), initDtRtiMsg(), DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted(), DtWwwClientProtocol::parseCommand(), DtFedExec::processFedFileRequestMsg(), DtFedExec::processRestoreBegun(), DtFedExec::processRestoreRequest(), DtRtiExecTrackingFilter::processTimeout(), DtSynchronousFileDistributor::pullEntireFedFile(), DtFileDistributor::pushFedFile(), DtConnectionMgr::repairFederationConnection(), DtRtiExecFederateMgr::restore(), DtFedExec::restoreFederateConnection(), DtRtiExec::ridRequestCb(), DtFedExec::sendDesignatedFederate(), DtFedExec::sendEnableDisableNetworkTestingMsg(), DtFedExec::sendJoinResponseMsg(), DtFedExec::sendMultiNameReservedMsg(), DtFedExec::sendNameReservedMsg(), DtFedExec::sendResignMsg(), DtFedExec::sendRestoreStatus(), DtFedExec::sendSaveInitiateConstrainedMsg(), DtFedExec::sendSaveInitiateMsg(), DtFedExec::sendSaveResponse(), DtFedExec::sendSaveStatus(), DtConnectionMgr::sendStampedUtilityFunction(), DtFedExec::sendSyncPointMsg(), DtFedExec::sendSyncPointReport(), DtFedExec::sendSyncPointStatusReport(), DtTcpWwwSpyAdapter::sendTypeInfo(), DtEnableDisableNetworkTestingMsg::set(), DtSmEnrollmentMsg::set(), DtResignMsg::set(), DtRtiMsgForwarder::tcpSocketAdditionCb(), DtRtiMsgForwarder::tcpSocketRemovalCb(), DtFilteredTcpForwarder::updateQueuedSockets(), and DtSmConnectionMgr::~DtSmConnectionMgr().

void DtRtiMsg::setFedEx ( int handle ) [virtual]

Set federation execution identifier as a handle.

References DtNetMsgHeader::fedExecId, and netHeader().

void DtRtiMsg::setSequenceNumber ( unsigned long value ) [virtual]

Set/Get message sequence number.

References netHeader(), and DtNetMsgHeader::sequenceNumber.

Referenced by DtConnectionMgr::send(), DtObjectMgr::sendRegisterMsg(), DtObjectMgr::sendUpdateMessage(), and DtAsyncConnectionMgr::setMessageTracking().

void DtRtiMsg::setSerialNumber ( unsigned long serialNumberValue ) [virtual]

Set/Get event retraction serial number Used in timestamped messages.

Network data must be maintained by derived messages

References mySerialNumber.

void DtRtiMsg::setServiceCallNumber ( unsigned long value ) [virtual]

Set/Get service call number.

References myServiceCallNumber.

Referenced by DtConnectionMgr::send(), and DtAsyncConnectionMgr::setMessageTracking().

void DtRtiMsg::setSmartForwardingEnabled ( bool enabled ) [static]

Set/Get is SmartForwarding enabled?

References theSmartForwardingEnabled.

Referenced by DtConnectionMgr::enableSmartForwarding(), and DtRtiMsgForwarder::init().

void DtRtiMsg::setTime ( const RTI::FedTime & time ) [virtual]

Set/Get time Used in timestamped messages.

Network data must be maintained by derived messages

Reimplemented in DtSaveMsg.

void DtRtiMsg::setTransportType ( DtTransportHandle type ) [virtual]

Set/Get transport type.

References myTransportType.

Referenced by cloneWithTransport(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), DtQueuePacket::DtQueuePacket(), DtSmConnectionMgr::getMessage(), DtConnectionMgr::getMessage(), DtSmConnectionMgr::processConnection(), DtRtiShmQNetMgr::processConnection(), DtConnectionMgr::processConnection(), DtAsyncConnectionMgr::receivePacket(), DtConnectionMgr::repairFederationConnection(), DtRtiExecFederateMgr::restore(), DtConnectionMgr::send(), DtInteractionMgr::sendInteractionMsg(), and DtObjectMgr::sendUpdateMessage().

void DtRtiMsg::setTriggerMessageNumber ( unsigned long value ) [virtual]

Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).

References myTriggerMessage.

Referenced by DtConnectionMgr::send(), and DtAsyncConnectionMgr::setMessageTracking().

void DtRtiMsg::setUse32BitsForValueSize ( bool use32BitsForValueSizeEnabled ) [static]

Set/Get flag to enable use of 32 bit size field for attribute/parameter values.

References theUse32BitsForValueSize.

Referenced by DtConnectionMgr::initParams().

void DtRtiMsg::sizeChanged ( int size ) [protected, virtual]

Called whenever size is changed using changeSize, or insert/deleteBytes.

References netHeader(), and DtNetMsgHeader::totalSize.

bool DtRtiMsg::smartForwardingEnabled ( ) [static]

References theSmartForwardingEnabled.

Referenced by DtInteractionClassInfo::addRemotePassiveSubscription(), DtRtiObject::addRemoteSubscribe(), DtInteractionClassInfo::addRemoteSubscription(), DtFedExec::deleteFederate(), DtInteractionClassInfo::deleteRemoteSubscription(), DtFedExec::getNextFreeFedHandle(), printHeader(), DtFedExec::processJoinConfirm(), DtFedExec::processResign(), DtRtiObject::remotePassiveSubscribe(), DtInteractionClassInfo::remoteUnsubscribe(), DtRtiObject::removeDiscoveredClass(), DtFedExec::removeFederateConnection(), DtRtiObject::removeRemoteSubscribe(), DtFedExec::restore(), DtRtiObject::setDiscoveredClass(), DtRtiMsgForwarder::ConnectionInfo::setFederateInfo(), and DtFedExec::tickJoin().

int DtRtiMsg::status ( ) const [inline, virtual]

Returns MSG_STATUS_OK if OK, a reason enumeration otherwise.

References MSG_STATUS_OK.

Referenced by DtForwarderCounterMsg::DtForwarderCounterMsg(), DtForwarderPingMsg::DtForwarderPingMsg(), DtForwarderResignMsg::DtForwarderResignMsg(), DtMulticastDiscoveryMsg::DtMulticastDiscoveryMsg(), DtReconnectMsg::DtReconnectMsg(), DtFederateTrackingFilter::handleJoinResponseMsg(), DtRtiConnection::netRead(), DtTcpWwwSpyAdapter::netRead(), DtTcpRtiConnectionMgr::netRead(), DtForwarderResignMsg::printData(), DtForwarderCounterMsg::printData(), and DtRtiExecHandshakeMsg::printData().

RTI::FedTime const * DtRtiMsg::time ( DtLogicalTimeFactory * fedTimeFactory ) const [virtual]

Reimplemented in DtSaveMsg.

References NULL.

Referenced by DtRetractInfoList::add(), DtRtiMsgQueue::nextTsoMsg(), DtMessageItem::operator<(), DtMessageItem::operator<=(), DtMessageItem::operator==(), DtMessageItem::operator>(), DtMessageItem::operator>=(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), DtRtiMsgQueue::queueMsg(), and DtLatencyReportMsg::setTime().

DtTransportHandle DtRtiMsg::transportType ( ) const [virtual]

References myTransportType.

Referenced by DtRecipientLatencyTest::addNetReceiveTimeStamp(), DtInitiatorLatencyTest::addNetReceiveTimeStamp(), cloneWithTransport(), DtRtiShmQNetMgr::filterReliableLoopbacks(), DtInteractionRoMsg::printData(), DtUpdateRoMsg::printData(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), DtRtiExecFederateMgr::save(), DtAsyncConnectionMgr::sendPackets(), and DtQueryTransportMsg::transportationType().

unsigned long DtRtiMsg::triggerMessageNumber ( ) const [virtual]

Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).

References myTriggerMessage.

Referenced by printHeader().

bool DtRtiMsg::use32BitsForValueSize ( ) [static]

References theUse32BitsForValueSize.

Referenced by DtUpdateMsg::getAttrs(), DtInteractionMsg::getParams(), DtUpdateMsg::numAttrs(), DtInteractionMsg::numParams(), DtUpdateMsg::setAttrs(), DtInteractionMsg::setParams(), DtUpdateMsg::sizeNeededForNetAttrs(), and DtInteractionMsg::sizeNeededForNetParams().

int DtRtiMsg::version ( ) const [virtual]

Return the message version.

References DtRtiMessageVersion, and netHeader().

Referenced by printHeader().

Member Data Documentation

bool DtRtiMsg::myAllowedDuringSave [protected]

Referenced by DtAbortRestoreMsg::DtAbortRestoreMsg(), DtEnableDisableNetworkTestingMsg::DtEnableDisableNetworkTestingMsg(), DtFedAmbCallbackMsg::DtFedAmbCallbackMsg(), DtInitiatedSaveMsg::DtInitiatedSaveMsg(), DtInteractionMsg::DtInteractionMsg(), DtQueryRestoreStatusMsg::DtQueryRestoreStatusMsg(), DtQuerySaveStatusMsg::DtQuerySaveStatusMsg(), DtResignMsg::DtResignMsg(), DtRestoreInitiateMsg::DtRestoreInitiateMsg(), DtSaveMsg::DtSaveMsg(), DtSaveTimeAdvanceMsg::DtSaveTimeAdvanceMsg(), DtUpdateMsg::DtUpdateMsg(), and isAllowedDuringSave().

bool DtRtiMsg::myConstrained [protected]

Referenced by DtDeleteMsg::DtDeleteMsg(), DtInteractionMsg::DtInteractionMsg(), DtUpdateMsg::DtUpdateMsg(), and isConstrained().

RTI::FedTime* DtRtiMsg::myFedTime [protected]

Referenced by DtSaveMsg::time(), and ~DtRtiMsg().

DtOrderHandle DtRtiMsg::myOrderType [protected]

Referenced by orderType().

unsigned long DtRtiMsg::mySerialNumber [protected]

Referenced by serialNumber(), and setSerialNumber().

unsigned long DtRtiMsg::myServiceCallNumber [protected]

Referenced by serviceCallNumber(), and setServiceCallNumber().

bool DtRtiMsg::myTimeIsValid [protected]

Referenced by hasTime().

DtTransportHandle DtRtiMsg::myTransportType [protected]

Reimplemented in DtQueryTransportMsg.

Referenced by setTransportType(), and transportType().

unsigned long DtRtiMsg::myTriggerMessage [protected]

Referenced by setTriggerMessageNumber(), and triggerMessageNumber().

unsigned long DtRtiMsg::theDefaultRegionSetHandle = 0 [static]

Referenced by setDefaultRegionSet().

const char * DtRtiMsg::theDefaultTag = NULL [static]

Referenced by DtObjectMgr::deleteAllOwnedObjects(), DtDeleteRoMsg::DtDeleteRoMsg(), DtObjectMgr::prepareToResign(), and DtRtiExecFederateMgr::processSyncPointMsg().

bool DtRtiMsg::theSmartForwardingEnabled = false [static, protected]

Referenced by setSmartForwardingEnabled(), and smartForwardingEnabled().

bool DtRtiMsg::theUse32BitsForValueSize = false [static, protected]

Referenced by setUse32BitsForValueSize(), and use32BitsForValueSize().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
