DtLanForwarderPort Class Reference

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent. More...

Inheritance diagram for DtLanForwarderPort:

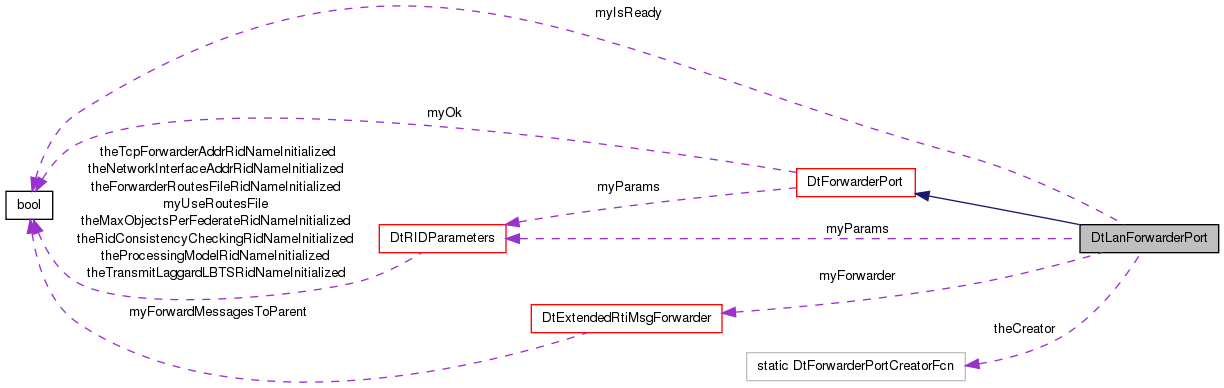

Collaboration diagram for DtLanForwarderPort:

List of all members.

Public Member Functions
virtual	~DtLanForwarderPort ()
virtual bool	isReady () const
	Is the Port fully usable and available?
virtual DtAddressMsgPair	getNextMsg ()
	Get the next message to forward and the source connection.
virtual void	sendByTransport (const DtForwarderMsg &msg) const
	Check transport metadata and send message to appropriate destinations.
virtual void	sendToAllReliable (const DtForwarderMsg &msg) const
	Send a message via reliable transport to all available destinations.
virtual void	sendToListReliable (const DtForwarderMsg &msg, const DtAddressPortList &destinations) const
	Send a message via reliable transport to the specified list of destinations.
virtual bool	flush ()
	Flush any unsent/buffered packets; return true if flush sent data.
virtual void	setForwarderId (unsigned long id)
	Set forwarder ID.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)
	Add this port's current select() notification set to the passed set.
virtual void	updateRoutes ()
	Handle changes to the Routing map.
virtual int	checkConnectionStatus (const DtInetAddrAndPort *target=0)
	Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.
virtual void	clearNeededConnections ()
	Clear the list of connections that this forwarder needs to establish.
virtual unsigned int	abortPendingConnections ()
	Abort any embryonic connections.
unsigned int	pendingConnectionsAborted ()
	Return count of aborted connections.
virtual DtAddressPortList	connections () const
	Get the list of all current connections to this port.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
	Listen / drop multicast groups (LAN-port-only)
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Update locally connected federate connection ID (LAN-port-only)
virtual const DtFederateTrackingFilter *	fedTrackingFilter () const
	return federateTrackingFilter
virtual bool	populateConnectionInformation (unsigned int &numForwarderClientConns, unsigned int &numForwarderExecConns, std::vector< MAKRti::DtString > &clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs) const
Static Public Member Functions
static DtForwarderPort *	create (const DtRIDParameters *params, const DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &forwardertoConnectTo)
	Creates an instance of a DtLanForwarderPort.
static void	setCreatorFunction (DtForwarderPortCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtLanForwarderPort with their own derived class.
Protected Member Functions
	DtLanForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &forwardertoConnectTo)
	Base Ctor - called by default creator.
	DtLanForwarderPort ()
	Default Ctor, Copy Ctor, Assignment - unimplemented.
	DtLanForwarderPort (const DtLanForwarderPort &orig)
DtLanForwarderPort &	operator= (const DtLanForwarderPort &orig)
Protected Attributes
const DtRIDParameters *	myParams
DtExtendedRtiMsgForwarder *	myForwarder
bool	myIsReady
Static Protected Attributes
static DtForwarderPortCreatorFcn	theCreator = 0

---

Detailed Description

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent.

---

Constructor & Destructor Documentation

DtLanForwarderPort::DtLanForwarderPort	(	const DtRIDParameters *	params,
		DtBoost::shared_ptr< DtRouteMap >	routes,
		const MAKRti::DtInetAddr &	host,
		int	forwarderPort,
		const MAKRti::DtInetAddr &	forwardertoConnectTo
	)		[protected]

Base Ctor - called by default creator.

References DtExtendedRtiMsgForwarder::addExecConnectionEstablishedCb(), DtExtendedRtiMsgForwarder::addExecConnectionLostCb(), DtExtendedRtiMsgForwarder::addFederateJoinedCb(), DtExtendedRtiMsgForwarder::addFederateResignedCb(), DtExtendedRtiMsgForwarder::addSocketAdditionCb(), DtExtendedRtiMsgForwarder::addSocketRemovalCb(), DtExtendedRtiMsgForwarder::applyFilters(), DtForwarderPort::connectionEstablished(), DtForwarderPort::connectionLost(), DtForwarderPort::execConnected(), DtForwarderPort::execDisconnected(), DtForwarderPort::federateJoined(), DtForwarderPort::federateResigned(), myForwarder, myIsReady, DtForwarderPort::myRoutes, and DtRIDParameters::tcpPort.

DtLanForwarderPort::~DtLanForwarderPort

(

)

[virtual]

References DtForwarderPort::execConnected(), DtForwarderPort::execDisconnected(), myForwarder, DtExtendedRtiMsgForwarder::removeExecConnectionEstablishedCb(), and DtExtendedRtiMsgForwarder::removeExecConnectionLostCb().

DtLanForwarderPort::DtLanForwarderPort

(

)

[protected]

Default Ctor, Copy Ctor, Assignment - unimplemented.

Referenced by create().

DtLanForwarderPort::DtLanForwarderPort

(

const DtLanForwarderPort &

orig

)

[protected]

---

Member Function Documentation

unsigned int DtLanForwarderPort::abortPendingConnections

(

)

[virtual]

Abort any embryonic connections.

Since LAN port does not initiate connections it cannot abort them either, so this method always returns 0

Implements DtForwarderPort.

int DtLanForwarderPort::checkConnectionStatus

(

const DtInetAddrAndPort *

target = 0

)

[virtual]

Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.

Implements DtForwarderPort.

References myForwarder, and DtRtiMsgForwarder::shouldStop().

void DtLanForwarderPort::clearNeededConnections

(

)

[virtual]

Clear the list of connections that this forwarder needs to establish.

Since the LAN port does not try to establish connections, this method does nothing.

Implements DtForwarderPort.

DtForwarderPort::DtAddressPortList DtLanForwarderPort::connections

(

)

const [virtual]

Get the list of all current connections to this port.

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::connections(), and myForwarder.

Referenced by populateConnectionInformation().

DtForwarderPort * DtLanForwarderPort::create	(	const DtRIDParameters *	params,
		const DtBoost::shared_ptr< DtRouteMap >	routes,
		const MAKRti::DtInetAddr &	host,
		int	forwarderPort,
		const MAKRti::DtInetAddr &	forwardertoConnectTo
	)		[static]

Creates an instance of a DtLanForwarderPort.

References DtLanForwarderPort(), and theCreator.

Referenced by setCreatorFunction().

void DtLanForwarderPort::dropMulticastGroup

(

const MAKRti::DtInetAddr &

mcastAddr

)

[virtual]

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::dropMulticastGroup(), and myForwarder.

const DtFederateTrackingFilter * DtLanForwarderPort::fedTrackingFilter

(

)

const [virtual]

return federateTrackingFilter

References DtExtendedRtiMsgForwarder::fedHandleTrackingFilter(), and myForwarder.

bool DtLanForwarderPort::flush

(

)

[inline, virtual]

Flush any unsent/buffered packets; return true if flush sent data.

Reimplemented from DtForwarderPort.

References DtExtendedRtiMsgForwarder::flush(), myForwarder, and DtRtiMsgForwarder::updateTcpForwarderQueuedSockets().

DtForwarderPort::DtAddressMsgPair DtLanForwarderPort::getNextMsg

(

)

[virtual]

Get the next message to forward and the source connection.

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::getNextMsg(), DtRtiMsg::kindToString(), DtForwarderPort::myAddress, myForwarder, and DtForwarderPort::myPortToUse.

bool DtLanForwarderPort::isReady

(

)

const [virtual]

Is the Port fully usable and available?

Implements DtForwarderPort.

References myIsReady.

void DtLanForwarderPort::listenToMulticastGroup

(

const MAKRti::DtInetAddr &

mcastAddr

)

[virtual]

Listen / drop multicast groups (LAN-port-only)

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::listenToMulticastGroup(), and myForwarder.

DtLanForwarderPort& DtLanForwarderPort::operator=

(

const DtLanForwarderPort &

orig

)

[protected]

unsigned int DtLanForwarderPort::pendingConnectionsAborted

(

)

[virtual]

Return count of aborted connections.

Since LAN port does not initiate connections it cannot abort them either, so this method always returns 0

Implements DtForwarderPort.

bool DtLanForwarderPort::populateConnectionInformation	(	unsigned int &	numForwarderClientConns,
		unsigned int &	numForwarderExecConns,
		std::vector< MAKRti::DtString > &	clientConnectionHostNames,
		std::vector< MAKRti::DtInetAddr > &	clientConnectionAddrs
	)		const [virtual]

References connections(), DtRtiMsgForwarder::getConnToConnInfoMap(), DtRtiMsgForwarder::hasExec(), and myForwarder.

Referenced by DtForwarderNode::connectionInformation().

void DtLanForwarderPort::selectParams

(

MAKRti::DtSelectParamWithWrite &

selectParams

)

[virtual]

Add this port's current select() notification set to the passed set.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::selectParams().

void DtLanForwarderPort::sendByTransport

(

const DtForwarderMsg &

msg

)

const [virtual]

Check transport metadata and send message to appropriate destinations.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::sendByTransport().

void DtLanForwarderPort::sendToAllReliable

(

const DtForwarderMsg &

msg

)

const [virtual]

Send a message via reliable transport to all available destinations.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::sendToAllReliable().

void DtLanForwarderPort::sendToListReliable	(	const DtForwarderMsg &	msg,
		const DtAddressPortList &	destinations
	)		const [virtual]

Send a message via reliable transport to the specified list of destinations.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::sendToAllReliable().

void DtLanForwarderPort::setCreatorFunction

(

DtForwarderPortCreatorFcn

creator

)

[static]

Call this function to set an alternate creator function With this function, users can replace this DtLanForwarderPort with their own derived class.

References create(), DtBindCreator(), and theCreator.

void DtLanForwarderPort::setForwarderId

(

unsigned long

id

)

[virtual]

Set forwarder ID.

When forwarder is configured via routes files, forwarderID is known at construction, but when configured dynamically it is determined by interactions between peer forwarders and must be set.

Reimplemented from DtForwarderPort.

References myForwarder, myIsReady, DtForwarderPort::myRoutes, and DtRtiMsgForwarder::setForwarderId().

bool DtLanForwarderPort::updateFederateConnectionId	(	unsigned long	orig,
		unsigned long	final
	)		[virtual]

Update locally connected federate connection ID (LAN-port-only)

Implements DtForwarderPort.

References myForwarder, and DtRtiMsgForwarder::updateFederateConnectionId().

void DtLanForwarderPort::updateRoutes

(

)

[virtual]

Handle changes to the Routing map.

Implements DtForwarderPort.

---

Member Data Documentation

DtExtendedRtiMsgForwarder* DtLanForwarderPort::myForwarder [protected]

Referenced by checkConnectionStatus(), connections(), dropMulticastGroup(), DtLanForwarderPort(), fedTrackingFilter(), flush(), getNextMsg(), listenToMulticastGroup(), populateConnectionInformation(), selectParams(), sendByTransport(), sendToAllReliable(), sendToListReliable(), setForwarderId(), updateFederateConnectionId(), and ~DtLanForwarderPort().

bool DtLanForwarderPort::myIsReady [protected]

Referenced by DtLanForwarderPort(), isReady(), and setForwarderId().

const DtRIDParameters* DtLanForwarderPort::myParams [protected]

Reimplemented from DtForwarderPort.

DtForwarderPort::DtForwarderPortCreatorFcn DtLanForwarderPort::theCreator = 0 [static, protected]

Referenced by create(), and setCreatorFunction().

---

The documentation for this class was generated from the following files:

• lanForwarderPort.h
• lanForwarderPort.cxx
