Inheritance diagram for DtExtendedRtiMsgForwarder:

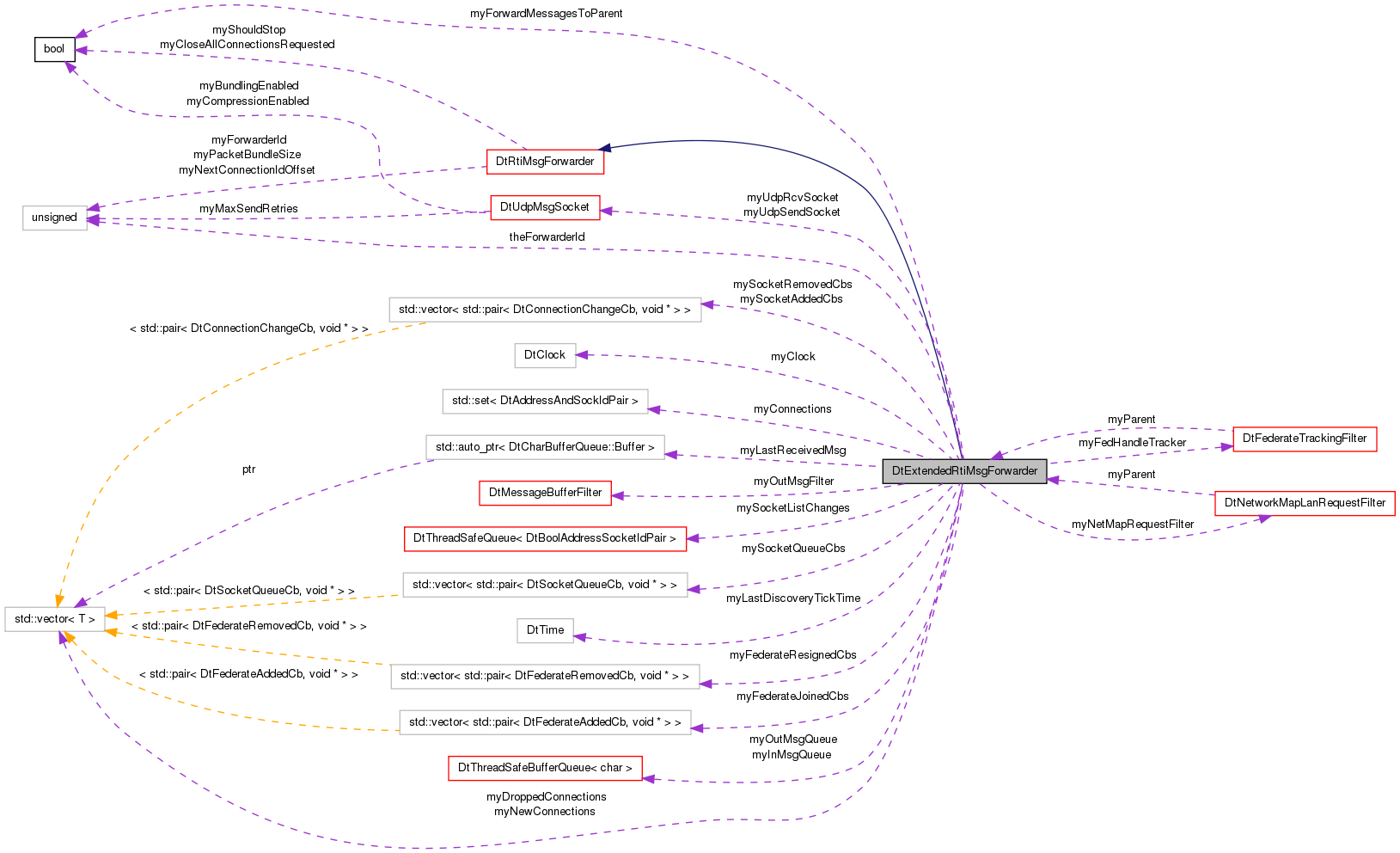

Collaboration diagram for DtExtendedRtiMsgForwarder:

Public Types
typedef DtThreadSafeBufferQueue< char >	DtCharBufferQueue
Public Member Functions
virtual	~DtExtendedRtiMsgForwarder ()
	Default Dtor.
virtual void	applyFilters ()
	Instruct the forwarder to register all filters - called after all desired filters are registered (accessor for protected base member: applyRegisteredFilters)
virtual void	sendByTransport (const DtForwarderPort::DtForwarderMsg &msg)
	Check transport metadata and send message to appropriate socket(s)
virtual void	sendToAllReliable (const DtForwarderPort::DtForwarderMsg &msg)
	Apply registered filters and send message to unfiltered TCP sockets.
virtual void	sendBestEffort (const DtForwarderPort::DtForwarderMsg &msg)
	Apply registered filters and send message to LAN via UDP socket.
virtual void	sendMessageToWan (const DtRtiMsg &msg)
	Allow filters to send messages only to the WAN (not back to the LAN) (useful to distributed forwarder mode filters)
virtual bool	flush ()
	Send buffered messages.
virtual const DtCharBufferQueue::Buffer *	getNextMsg ()
	Get the next message received from the connected sockets.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)
	Get a set of file descriptors to select against for socket notification.
virtual DtForwarderPort::DtAddressPortList	newConnections () const
	Get the list of connections created since last call.
virtual DtForwarderPort::DtAddressPortList	droppedConnections () const
	Get the list of connections lost since last call.
virtual DtForwarderPort::DtAddressPortList	connections () const
	Get the list of all current connections to this port.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
	Listen / drop multicast groups.
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
virtual void	federateJoined (const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId)
	callbacks when the federate tracking filter notices a federate join/resign event.
virtual void	federateResigned (const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &)
virtual void	updateSocketQueueStatus (unsigned int connId, int connQueueStatus)
virtual void	addFederateJoinedCb (DtForwarderPort::DtFederateAddedCb callback, void *usr)
virtual void	addFederateResignedCb (DtForwarderPort::DtFederateRemovedCb callback, void *usr)
virtual void	addSocketAdditionCb (DtForwarderPort::DtConnectionChangeCb cb, void *usr)
virtual void	addSocketRemovalCb (DtForwarderPort::DtConnectionChangeCb cb, void *usr)
virtual void	addSocketQueueCb (DtForwarderPort::DtSocketQueueCb cb, void *usr)
virtual void	addExecConnectionEstablishedCb (DtForwarderPort::DtExecAddChangeCb callback, void *usr)
	Register/Unregister a callback for new connections.
virtual void	removeExecConnectionEstablishedCb (DtForwarderPort::DtExecAddChangeCb callback, void *usr)
virtual void	addExecConnectionLostCb (DtForwarderPort::DtExecRemovedChangeCb callback, void *usr)
	Register/Unregister a callback for new connections.
virtual void	removeExecConnectionLostCb (DtForwarderPort::DtExecRemovedChangeCb callback, void *usr)
virtual const DtFederateTrackingFilter *	fedHandleTrackingFilter () const
Static Public Member Functions
static DtExtendedRtiMsgForwarder *	create (unsigned int id, const DtRIDParameters &params, bool postMessagesToParent=true)
	Creator.
Static Public Attributes
static const unsigned int	theForwarderId
	Address space for connection IDs for this LAN.
Protected Types
typedef std::pair < DtInetAddrAndPort, int >	DtAddressAndSockIdPair
typedef std::pair< bool, DtAddressAndSockIdPair >	DtBoolAddressSocketIdPair
	These lists are mutable since they are simply used to cache a reflection of back-end thread lists (rather than requiring synchronization)
Protected Member Functions
	DtExtendedRtiMsgForwarder (unsigned long id, const DtRIDParameters &params, bool postMessagesToParent=true)
	Default Ctor.
virtual void	init ()
	Virtual ctor idiom (continues initialization after both base and derived are initialized)
virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)
	Over-ride socket addition/removal callback to track socket list.
virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)
virtual void	refreshConnectionList () const
	Get all changes to connections since last call This method is const so that const front-end threads can call it.
Protected Attributes
DtUdpMsgSocket *	myUdpRcvSocket
DtUdpMsgSocket *	myUdpSendSocket
std::auto_ptr < DtCharBufferQueue::Buffer >	myLastReceivedMsg
DtCharBufferQueue	myInMsgQueue
DtCharBufferQueue	myOutMsgQueue
DtMessageBufferFilter *	myOutMsgFilter
DtNetworkMapLanRequestFilter *	myNetMapRequestFilter
DtFederateTrackingFilter *	myFedHandleTracker
DtClock	myClock
	Local timer.
MAKRti::DtTime	myLastDiscoveryTickTime
	Time of last pass for mcast discovery.
DtForwarderPort::DtFederateAddedCallbackList	myFederateJoinedCbs
DtForwarderPort::DtFederateRemovedCallbackList	myFederateResignedCbs
DtForwarderPort::DtSocketQueueCallbackList	mySocketQueueCbs
DtForwarderPort::DtCallbackList	mySocketAddedCbs
DtForwarderPort::DtCallbackList	mySocketRemovedCbs
DtThreadSafeQueue < DtBoolAddressSocketIdPair >	mySocketListChanges
std::set< DtAddressAndSockIdPair >	myConnections
DtForwarderPort::DtAddressPortList	myNewConnections
DtForwarderPort::DtAddressPortList	myDroppedConnections
bool	myForwardMessagesToParent
	Should the local forwarder pass a copy of all messages on to the Parent or simply forward within the local LAN (allows optimization when this is a stand-alone forwarder)

Member Typedef Documentation

typedef std::pair< DtInetAddrAndPort, int > DtExtendedRtiMsgForwarder::DtAddressAndSockIdPair [protected]

typedef std::pair< bool, DtAddressAndSockIdPair > DtExtendedRtiMsgForwarder::DtBoolAddressSocketIdPair [protected]

These lists are mutable since they are simply used to cache a reflection of back-end thread lists (rather than requiring synchronization)

changes to the actual lists occur asynchronously in the back-end, so these lists may need to be updated before any use.

typedef DtThreadSafeBufferQueue<char> DtExtendedRtiMsgForwarder::DtCharBufferQueue

Constructor & Destructor Documentation

DtExtendedRtiMsgForwarder::DtExtendedRtiMsgForwarder	(	unsigned long	id,
		const DtRIDParameters &	params,
		bool	postMessagesToParent = `true`
	)		`[protected]`

Default Ctor.

Referenced by create().

DtExtendedRtiMsgForwarder::~DtExtendedRtiMsgForwarder ( ) [virtual]

Default Dtor.

References myFedHandleTracker, myNetMapRequestFilter, myOutMsgFilter, myUdpSendSocket, and DtRtiMsgForwarder::removePacketFilter().

Member Function Documentation

void DtExtendedRtiMsgForwarder::addExecConnectionEstablishedCb	(	DtForwarderPort::DtExecAddChangeCb	callback,
		void *	usr
	)		`[virtual]`

Register/Unregister a callback for new connections.

References DtRtiExecTrackingFilter::addExecConnectionEstablishedCb(), and DtRtiMsgForwarder::myRtiExecMonitor.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::addExecConnectionLostCb	(	DtForwarderPort::DtExecRemovedChangeCb	callback,
		void *	usr
	)		`[virtual]`

Register/Unregister a callback for new connections.

References DtRtiExecTrackingFilter::addExecConnectionLostCb(), and DtRtiMsgForwarder::myRtiExecMonitor.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::addFederateJoinedCb	(	DtForwarderPort::DtFederateAddedCb	callback,
		void *	usr
	)		`[virtual]`

References myFederateJoinedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::addFederateResignedCb	(	DtForwarderPort::DtFederateRemovedCb	callback,
		void *	usr
	)		`[virtual]`

References myFederateResignedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::addSocketAdditionCb	(	DtForwarderPort::DtConnectionChangeCb	cb,
		void *	usr
	)		`[virtual]`

References mySocketAddedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::addSocketQueueCb	(	DtForwarderPort::DtSocketQueueCb	cb,
		void *	usr
	)		`[virtual]`

References mySocketQueueCbs.

void DtExtendedRtiMsgForwarder::addSocketRemovalCb	(	DtForwarderPort::DtConnectionChangeCb	cb,
		void *	usr
	)		`[virtual]`

References mySocketRemovedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::applyFilters ( ) [virtual]

Instruct the forwarder to register all filters - called after all desired filters are registered (accessor for protected base member: applyRegisteredFilters)

References DtRtiMsgForwarder::applyRegisteredFilters().

Referenced by DtLanForwarderPort::DtLanForwarderPort().

DtForwarderPort::DtAddressPortList DtExtendedRtiMsgForwarder::connections ( ) const [virtual]

Get the list of all current connections to this port.

References myConnections, and refreshConnectionList().

Referenced by DtLanForwarderPort::connections().

DtExtendedRtiMsgForwarder * DtExtendedRtiMsgForwarder::create	(	unsigned int	id,
		const DtRIDParameters &	params,
		bool	postMessagesToParent = `true`
	)		`[static]`

Creator.

Caller may set postMessagesToParent as an optimization if there is never any need for the parent to access the message stream (ie - if this is being used by a stand-alone forwarder and getNextMsg is used simply to tick the Forwarder)

References DtExtendedRtiMsgForwarder(), and init().

void DtExtendedRtiMsgForwarder::dropMulticastGroup ( const MAKRti::DtInetAddr & mcastAddr ) [virtual]

References DtUdpMsgSocket::dropMulticastGroup(), and myUdpRcvSocket.

Referenced by DtLanForwarderPort::dropMulticastGroup().

DtForwarderPort::DtAddressPortList DtExtendedRtiMsgForwarder::droppedConnections ( ) const [virtual]

Get the list of connections lost since last call.

References myDroppedConnections, and refreshConnectionList().

void DtExtendedRtiMsgForwarder::federateJoined	(	const MAKRti::DtString &	federateName,
		const MAKRti::DtString &	federateType,
		const MAKRti::DtString &	federationName,
		unsigned int	connectId,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	connAddr,
		const MAKRti::DtString &	connHost,
		unsigned int	processId,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	commandArgs,
		DtHlaVersionId	hlaVersion
	)		`[virtual]`

callbacks when the federate tracking filter notices a federate join/resign event.

References myFederateJoinedCbs.

Referenced by DtFederateTrackingFilter::handleJoinConfirmMsg().

void DtExtendedRtiMsgForwarder::federateResigned	(	const MAKRti::DtString &	federateName,
		const MAKRti::DtString &	federateType,
		unsigned int	connectId,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	connAddr
	)		`[virtual]`

References myFederateResignedCbs.

Referenced by DtFederateTrackingFilter::handleResignMsg().

virtual const DtFederateTrackingFilter* DtExtendedRtiMsgForwarder::fedHandleTrackingFilter ( ) const [inline, virtual]

Referenced by DtLanForwarderPort::fedTrackingFilter().

bool DtExtendedRtiMsgForwarder::flush ( ) [inline, virtual]

Send buffered messages.

Returns the status indicating error, flush is complete or incomplete.

References DtUdpMsgSocket::flush(), DtUdpMsgSocket::isOpen(), and myUdpSendSocket.

Referenced by DtLanForwarderPort::flush().

const DtExtendedRtiMsgForwarder::DtCharBufferQueue::Buffer * DtExtendedRtiMsgForwarder::getNextMsg ( ) [virtual]

Get the next message received from the connected sockets.

Buffer is valid until the next call to getNextMsg()

References DtRtiMsgForwarder::closeAllConnectionsIfRequested(), Dt_SocketReadAllowance, DtTcpMsgSocket::flush(), DtTcpMsgSocket::isConnected(), DtRIDParameters::mcastDiscoveryEnabled, myClock, myLastDiscoveryTickTime, myLastReceivedMsg, DtRtiMsgForwarder::myMcastDiscoveryMgr, myOutMsgQueue, DtRtiMsgForwarder::myParams, DtRtiMsgForwarder::myRtiExecMonitor, DtRtiMsgForwarder::mySocketMgr, DtRtiMsgForwarder::myTcpForwarder, myUdpRcvSocket, DtThreadSafeBufferQueue< T >::pop(), DtTcpMsgSocketMgr::processConnections(), DtRtiExecTrackingFilter::processTimeout(), DtThreadSafeBufferQueue< T >::push(), DtFilteredTcpForwarder::readAndForward(), DtUdpMsgSocket::recvMessage(), DtThreadSafeBufferQueue< T >::releaseBuffer(), DtTcpMsgSocketMgr::removeAndDelete(), DtThreadSafeBufferQueue< T >::size(), DtTcpMsgSocketMgr::socketSet(), and DtMulitcastDiscoveryMgr::tick().

Referenced by DtLanForwarderPort::getNextMsg().

void DtExtendedRtiMsgForwarder::init ( ) [protected, virtual]

Virtual ctor idiom (continues initialization after both base and derived are initialized)

Reimplemented from DtRtiMsgForwarder.

References DtRtiMsgForwarder::addPacketFilter(), DtRIDParameters::bestEffortSendRetryWaitUsec, DtRIDParameters::destAddr(), DtRIDParameters::enableBestEffortSendRetry, DtUdpMsgSocket::enableBundling(), DtUdpMsgSocket::enableCompression(), DtRIDParameters::enablePacketBundling, DtRIDParameters::isUdpCompressionEnabled, DtMsgSocket::localEndpoint(), DtRIDParameters::maxUdpPacketSize, DtRtiMsgForwarder::myConnToConnInfoMap, DtRtiMsgForwarder::myFedexMsgRouter, myFedHandleTracker, DtRtiMsgForwarder::myForwarderAddr, myForwardMessagesToParent, myNetMapRequestFilter, myOutMsgFilter, myOutMsgQueue, DtRtiMsgForwarder::myParams, DtRtiMsgForwarder::myPort, DtRtiMsgForwarder::myRtiExecMonitor, myUdpRcvSocket, myUdpSendSocket, DtRIDParameters::networkInterfaceAddr(), DtUdpMsgSocket::openSocket(), DtRIDParameters::packetBundlingSize, DtRtiMsgForwarder::removePacketFilter(), DtRIDParameters::responseInterval, DtRIDParameters::rtiExecReconnectPause, DtUdpMsgSocket::setFilterPort(), DtUdpMsgSocket::setMcastTtlOption(), DtFedexMsgFilter::setMonitor(), DtMsgSocket::setRecvBufferSize(), DtUdpMsgSocket::setRetryOnSend(), DtMsgSocket::setSendBufferSize(), DtRIDParameters::socketReceiveBufferSize, DtRIDParameters::socketSendBufferSize, and DtRIDParameters::udpCompressionLevel.

Referenced by create().

void DtExtendedRtiMsgForwarder::listenToMulticastGroup ( const MAKRti::DtInetAddr & mcastAddr ) [virtual]

Listen / drop multicast groups.

References DtUdpMsgSocket::joinMulticastGroup(), and myUdpRcvSocket.

Referenced by DtLanForwarderPort::listenToMulticastGroup().

DtForwarderPort::DtAddressPortList DtExtendedRtiMsgForwarder::newConnections ( ) const [virtual]

Get the list of connections created since last call.

References myNewConnections, and refreshConnectionList().

void DtExtendedRtiMsgForwarder::refreshConnectionList ( ) const [protected, virtual]

Get all changes to connections since last call This method is const so that const front-end threads can call it.

this hides the fact that changes actually occur in a separate thread and the front-end merely reflects back-end state
ie - the actual state is stored in the back-end and this method IS const with respect to it

References myConnections, myDroppedConnections, myNewConnections, mySocketListChanges, and DtThreadSafeQueue< T >::pop().

Referenced by connections(), droppedConnections(), newConnections(), and selectParams().

void DtExtendedRtiMsgForwarder::removeExecConnectionEstablishedCb	(	DtForwarderPort::DtExecAddChangeCb	callback,
		void *	usr
	)		`[virtual]`

References DtRtiMsgForwarder::myRtiExecMonitor, and DtRtiExecTrackingFilter::removeExecConnectionEstablishedCb().

Referenced by DtLanForwarderPort::~DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::removeExecConnectionLostCb	(	DtForwarderPort::DtExecRemovedChangeCb	callback,
		void *	usr
	)		`[virtual]`

References DtRtiMsgForwarder::myRtiExecMonitor, and DtRtiExecTrackingFilter::removeExecConnectionLostCb().

Referenced by DtLanForwarderPort::~DtLanForwarderPort().

void DtExtendedRtiMsgForwarder::selectParams ( MAKRti::DtSelectParamWithWrite & selectParams ) [virtual]

Get a set of file descriptors to select against for socket notification.

References DtMsgSocket::descriptor(), myConnections, myUdpRcvSocket, and refreshConnectionList().

Referenced by DtLanForwarderPort::selectParams().

void DtExtendedRtiMsgForwarder::sendBestEffort ( const DtForwarderPort::DtForwarderMsg & msg ) [virtual]

Apply registered filters and send message to LAN via UDP socket.

References DtRIDParameters::destAddr(), DtRtiMtdMcastAddr::get(), DtForwarderPort::DtForwarderMsg::length, DtForwarderPort::DtForwarderMsg::msg, DtRtiMsgForwarder::myParams, myUdpSendSocket, and DtUdpMsgSocket::sendMessage().

Referenced by sendByTransport().

void DtExtendedRtiMsgForwarder::sendByTransport ( const DtForwarderPort::DtForwarderMsg & msg ) [virtual]

Check transport metadata and send message to appropriate socket(s)

References sendBestEffort(), sendToAllReliable(), and DtForwarderPort::DtForwarderMsg::transport.

Referenced by DtLanForwarderPort::sendByTransport().

void DtExtendedRtiMsgForwarder::sendMessageToWan ( const DtRtiMsg & msg ) [virtual]

Allow filters to send messages only to the WAN (not back to the LAN) (useful to distributed forwarder mode filters)

References myOutMsgQueue, DtRtiMsgForwarder::myParams, DtThreadSafeBufferQueue< T >::push(), and DtRtiMtdTransportType::set().

Referenced by DtNetworkMapLanRequestFilter::doFilter().

void DtExtendedRtiMsgForwarder::sendToAllReliable ( const DtForwarderPort::DtForwarderMsg & msg ) [virtual]

Apply registered filters and send message to unfiltered TCP sockets.

References DtFilteredTcpForwarder::filterAndSend(), DtForwarderPort::DtForwarderMsg::length, DtForwarderPort::DtForwarderMsg::msg, and DtRtiMsgForwarder::myTcpForwarder.

Referenced by sendByTransport(), DtLanForwarderPort::sendToAllReliable(), and DtLanForwarderPort::sendToListReliable().

void DtExtendedRtiMsgForwarder::tcpSocketAdditionCb ( DtTcpMsgSocket * sock ) [protected, virtual]

Over-ride socket addition/removal callback to track socket list.

Reimplemented from DtRtiMsgForwarder.

References DtMsgSocket::descriptor(), DtTcpMsgSocket::destination(), DtRtiMsgForwarder::getConnectionInfoBySocket(), mySocketAddedCbs, mySocketListChanges, and DtThreadSafeQueue< T >::push_back().

void DtExtendedRtiMsgForwarder::tcpSocketRemovalCb ( DtTcpMsgSocket * sock ) [protected, virtual]

Reimplemented from DtRtiMsgForwarder.

References DtMsgSocket::descriptor(), DtTcpMsgSocket::destination(), DtRtiMsgForwarder::getConnectionInfoBySocket(), mySocketListChanges, mySocketRemovedCbs, and DtThreadSafeQueue< T >::push_back().

void DtExtendedRtiMsgForwarder::updateSocketQueueStatus	(	unsigned int	connId,
		int	connQueueStatus
	)		`[virtual]`

References mySocketQueueCbs.

Member Data Documentation

DtClock DtExtendedRtiMsgForwarder::myClock [protected]

Local timer.

Referenced by getNextMsg().

std::set< DtAddressAndSockIdPair > DtExtendedRtiMsgForwarder::myConnections [mutable, protected]

Referenced by connections(), refreshConnectionList(), and selectParams().

DtForwarderPort::DtAddressPortList DtExtendedRtiMsgForwarder::myDroppedConnections [mutable, protected]

Referenced by droppedConnections(), and refreshConnectionList().

DtForwarderPort::DtFederateAddedCallbackList DtExtendedRtiMsgForwarder::myFederateJoinedCbs [protected]

Referenced by addFederateJoinedCb(), and federateJoined().

DtForwarderPort::DtFederateRemovedCallbackList DtExtendedRtiMsgForwarder::myFederateResignedCbs [protected]

Referenced by addFederateResignedCb(), and federateResigned().

DtFederateTrackingFilter* DtExtendedRtiMsgForwarder::myFedHandleTracker [protected]

Referenced by init(), and ~DtExtendedRtiMsgForwarder().

bool DtExtendedRtiMsgForwarder::myForwardMessagesToParent [protected]

Should the local forwarder pass a copy of all messages on to the Parent or simply forward within the local LAN (allows optimization when this is a stand-alone forwarder)

Referenced by init().

DtCharBufferQueue DtExtendedRtiMsgForwarder::myInMsgQueue [protected]

MAKRti::DtTime DtExtendedRtiMsgForwarder::myLastDiscoveryTickTime [protected]

Time of last pass for mcast discovery.

Referenced by getNextMsg().

std::auto_ptr<DtCharBufferQueue::Buffer> DtExtendedRtiMsgForwarder::myLastReceivedMsg [protected]

Referenced by getNextMsg().

DtNetworkMapLanRequestFilter* DtExtendedRtiMsgForwarder::myNetMapRequestFilter [protected]

Referenced by init(), and ~DtExtendedRtiMsgForwarder().

DtForwarderPort::DtAddressPortList DtExtendedRtiMsgForwarder::myNewConnections [mutable, protected]

Referenced by newConnections(), and refreshConnectionList().

DtMessageBufferFilter* DtExtendedRtiMsgForwarder::myOutMsgFilter [protected]
