DtRtiMsgForwarder manages connections and message distribution to local federates and remote Forwarders (if any). More...

Inheritance diagram for DtRtiMsgForwarder:

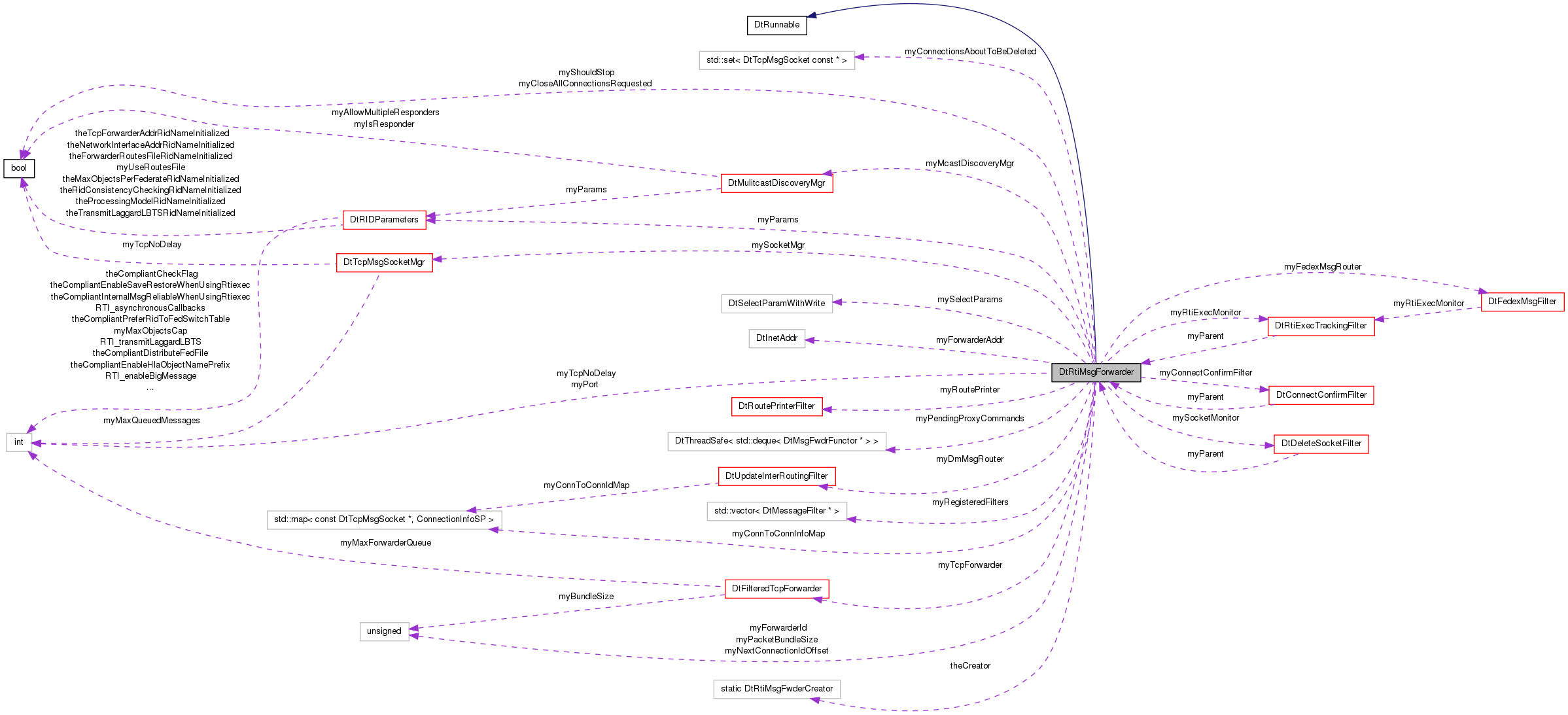

Collaboration diagram for DtRtiMsgForwarder:

List of all members.

Classes
struct	ConnectionInfo
Public Types
typedef DtBoost::shared_ptr < ConnectionInfo >	ConnectionInfoSP
typedef DtBoost::weak_ptr < ConnectionInfo >	ConnectionInfoWP
typedef std::map< const DtTcpMsgSocket *, ConnectionInfoSP >	SocketToConnInfoMap
Public Member Functions
virtual	~DtRtiMsgForwarder ()
	Destructor.
virtual void	init ()
	Initialize the forwarder (called by creator)
virtual bool	hasExec () const
	Query the rtiExec Handshake monitor for whether it has an exec.
virtual void	run ()
	Main execution routine.
virtual void	setEnableBundling (unsigned int maxBundleSize)
	Get the rtiexec's socket if known.
virtual void	setUseSmartForwarding (bool yesNo)
	Enable Smart DM Subscription Filtering.
virtual void	setRouteFedexMessages (bool yesNo)
	Enable Smart Fedex Message Filtering.
virtual void	addPacketFilter (DtMessageFilter *filter)
	[Un]Register a forwarding filter on incoming packets
virtual void	removePacketFilter (DtMessageFilter *filter)
virtual unsigned long	forwarderId () const
	Return the forwarder ID (defines the address space for connIds for this forwarder)
virtual void	setForwarderId (unsigned long newId)
	set the forwarder ID.
void	updateTcpForwarderQueuedSockets ()
	update the tcp forwarders queued sockets
virtual const DtRtiMsgForwarder::SocketToConnInfoMap &	getConnToConnInfoMap () const
	WARNING: These methods are not thread-safe and may only be called by the back-end forwarder thread!
virtual ConnectionInfoSP	getConnectionInfoByConnId (unsigned long connId) const
	Get a shared pointer to the connection info for a connection by Conn ID.
virtual ConnectionInfoSP	getConnectionInfoByHandle (unsigned long federateHandle) const
	Get a shared pointer to the connection info for a connection by Federate Handle.
virtual ConnectionInfoSP	getConnectionInfoBySocket (const DtTcpMsgSocket *sock) const
	Get a shared pointer to the connection info for a connection by Socket.
virtual std::pair< bool, unsigned long >	rtiExecConnected () const
	Is the rtiexec connected and if so what is its connId?
virtual void	sendMessage (const DtRtiMsg &msg, const DtTcpMsgSocket *src=0)
	Send a message to all local sockets (filters will be applied)
virtual void	requestCloseAllConnections ()
	Disconnect all open connections after this pass through run-loop completes.
virtual void	requestKillSingleConnection (const DtTcpMsgSocket *sock)
	Disconnect the requestedTcpSocket.
virtual void	markConnectionAsAboutToBeDeleted (DtTcpMsgSocket const *socket, unsigned int connectionId)
	Mark the given socket as one that is to be deleted silently.
virtual bool	isConnectionMarkedForDeletion (unsigned int connectionId) const
	Return boolean: given connection has been marked for deletion?
virtual void	removeOldConnection (unsigned int connectionId)
	Remove the socket specified by the given connection.
virtual void	shutdownRequestedByExec ()
	Shutdown the forwarder application.
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Set a locally connected federate's connId in the associated connection info struct.
virtual bool	updateFederateWebServer (unsigned long connId, MAKRti::DtInetAddr ip, int port)
	Set a locally connected federate's web server address.
virtual void	updateConnectionProcessParameters (unsigned long connId, unsigned long processId, MAKRti::DtString processName, MAKRti::DtString commandArgs)
	Set a connections process information.
virtual bool	shouldStop ()
	should this forwarder stop.
Static Public Member Functions
static DtRtiMsgForwarder *	create (unsigned long id, const DtRIDParameters &params)
	Create an instance of a DtRtiMsgForwarder.
static void	setCreatorFunction (DtRtiMsgFwderCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiMsgForwarder with their own derived class.
static void	tcpSocketAdditionCb (DtTcpMsgSocket sock, void usr)
	Callbacks on addition/removal of TCP sockets.
static void	tcpSocketRemovalCb (DtTcpMsgSocket sock, void usr)
Protected Member Functions
	DtRtiMsgForwarder (unsigned long id, const DtRIDParameters &params)
	Default Constructor.
virtual void	performMcastDiscovery ()
virtual void	applyRegisteredFilters ()
	Enable / Disable all filters registered with forwarder.
virtual void	disableRegisteredFilters ()
virtual void	waitForIo ()
	Wait on sockets for next IO event (allows RTIspy users to control the wait mechanism and period)
virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)
virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)
virtual unsigned long	consumeConnId ()
	Get and consume Connection ID.
virtual void	preRunLoopEvent ()
	Plug-in defined Run Loop operations Gives users the ability to add functionality to the Run() loop without over-riding it completely.
virtual void	runLoopEvent ()
virtual void	postRunLoopEvent ()
virtual bool	populateConnectionInformation (unsigned int &numForwarderToForwarderConns, std::vector< MAKRti::DtString > &forwarderIdentifiers, std::vector< MAKRti::DtString > &forwarderConnectionHostNames, std::vector< MAKRti::DtInetAddr > &forwarderConnectionAddrs, unsigned int &numForwarderClientConns, std::vector< MAKRti::DtString > &clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs) const
virtual void	closeAllConnectionsIfRequested ()
	Disconnect all open connections.
	DtRtiMsgForwarder (const DtRtiMsgForwarder &orig)
	Copy Ctor and Assignment Operator unimplemented.
DtRtiMsgForwarder &	operator= (const DtRtiMsgForwarder &orig)
Protected Attributes
unsigned long	myForwarderId
	Data Members.
MAKRti::DtInetAddr	myForwarderAddr
	Local host IP address (used by rtiExec monitor filter, among other uses)
bool	myCloseAllConnectionsRequested
	Connection shutdown requested?
DtFilteredTcpForwarder *	myTcpForwarder
	Tcp Forwarder with Filtering Capabilities.
DtTcpMsgSocketMgr *	mySocketMgr
	Tcp Socket Manager (handles passive connections to Federates)
int	myPort
	Port for local federate connections.
int	myTcpNoDelay
unsigned long	myNextConnectionIdOffset
	The ID to be assigned to the next Federate or Forwarder connection The IDs are offset from the forwarderId.
unsigned int	myPacketBundleSize
	Packet Bundle size (if bundle size = 0, bundling is disabled)
DtRtiExecTrackingFilter *	myRtiExecMonitor
	If registered, Monitors rtiexec connection life-cycle.
DtRoutePrinterFilter *	myRoutePrinter
	Smart DM Forwarding Filters.
DtUpdateInterRoutingFilter *	myDmMsgRouter
DtFedexMsgFilter *	myFedexMsgRouter
	Fedex Routing Filter.
DtConnectConfirmFilter *	myConnectConfirmFilter
	Extracts info from connect confirm messages.
DtDeleteSocketFilter *	mySocketMonitor
	Marks sockets that are being disconnected normally so that no complaint is given when they disconnect versus abnormal disconnect.
const DtRIDParameters &	myParams
	Local access to the RID Parameters.
DtMulitcastDiscoveryMgr	myMcastDiscoveryMgr
DtThreadSafe< std::deque < DtMsgFwdrFunctor * > >	myPendingProxyCommands
std::vector< DtMessageFilter * >	myRegisteredFilters
	Registered Message Filters.
SocketToConnInfoMap	myConnToConnInfoMap
	Map from socket (conn) to ConnectionInfo object for that connection notes:
std::set< DtTcpMsgSocket const * >	myConnectionsAboutToBeDeleted
	Set of connections that when deleted there should be no complaint.
MAKRti::DtSelectParamWithWrite	mySelectParams
bool	myShouldStop
	should this forwarder stop.
Static Protected Attributes
static DtRtiMsgFwderCreator	theCreator = NULL

Detailed Description

DtRtiMsgForwarder manages connections and message distribution to local federates and remote Forwarders (if any).

It is designed to run as a thread, asynchronous to the main execution.

Member Typedef Documentation

typedef DtBoost::shared_ptr<ConnectionInfo> DtRtiMsgForwarder::ConnectionInfoSP

typedef DtBoost::weak_ptr<ConnectionInfo> DtRtiMsgForwarder::ConnectionInfoWP

typedef std::map< const DtTcpMsgSocket*, ConnectionInfoSP > DtRtiMsgForwarder::SocketToConnInfoMap

Constructor & Destructor Documentation

DtRtiMsgForwarder::DtRtiMsgForwarder	(	unsigned long	id,
		const DtRIDParameters &	params
	)		`[protected]`

Default Constructor.

References setForwarderId().

Referenced by create().

DtRtiMsgForwarder::~DtRtiMsgForwarder ( ) [virtual]

Destructor.

References myConnectConfirmFilter, myConnToConnInfoMap, myDmMsgRouter, myFedexMsgRouter, myRoutePrinter, myRtiExecMonitor, mySocketMgr, mySocketMonitor, myTcpForwarder, DtTcpMsgSocketMgr::removeSocketAdditionCallback(), DtTcpMsgSocketMgr::removeSocketRemovalCallback(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtRtiMsgForwarder::DtRtiMsgForwarder ( const DtRtiMsgForwarder & orig ) [protected]

Copy Ctor and Assignment Operator unimplemented.

Member Function Documentation

void DtRtiMsgForwarder::addPacketFilter ( DtMessageFilter * filter ) [virtual]

[Un]Register a forwarding filter on incoming packets

Filters directly modify the current Destination list

References myRegisteredFilters.

Referenced by init(), DtExtendedRtiMsgForwarder::init(), setRouteFedexMessages(), and setUseSmartForwarding().

void DtRtiMsgForwarder::applyRegisteredFilters ( ) [protected, virtual]

Enable / Disable all filters registered with forwarder.

called only once at start and stop of run

References DtFilteredTcpForwarder::addPacketFilter(), myRegisteredFilters, and myTcpForwarder.

Referenced by DtExtendedRtiMsgForwarder::applyFilters(), and run().

void DtRtiMsgForwarder::closeAllConnectionsIfRequested ( ) [protected, virtual]

Disconnect all open connections.

References myCloseAllConnectionsRequested, myTcpForwarder, DtTcpMsgSocketMgr::removeAndDelete(), DtTcpForwarder__vl__::socketMgr(), and DtTcpMsgSocketMgr::socketSet().

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), and run().

unsigned long DtRtiMsgForwarder::consumeConnId ( ) [protected, virtual]

Get and consume Connection ID.

References myForwarderId, and myNextConnectionIdOffset.

Referenced by tcpSocketAdditionCb().

DtRtiMsgForwarder * DtRtiMsgForwarder::create	(	unsigned long	id,
		const DtRIDParameters &	params
	)		`[static]`

Create an instance of a DtRtiMsgForwarder.

References DtRtiMsgForwarder(), init(), and theCreator.

void DtRtiMsgForwarder::disableRegisteredFilters ( ) [protected, virtual]

References myRegisteredFilters, myTcpForwarder, and DtFilteredTcpForwarder::removePacketFilter().

Referenced by run().

unsigned long DtRtiMsgForwarder::forwarderId ( ) const [inline, virtual]

Return the forwarder ID (defines the address space for connIds for this forwarder)

References myForwarderId.

Referenced by DtNetworkMapLanRequestFilter::buildNetworkMap(), and DtNetworkMapLanRequestFilter::doFilter().

DtRtiMsgForwarder::ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoByConnId ( unsigned long connId ) const [virtual]

Get a shared pointer to the connection info for a connection by Conn ID.

References myConnToConnInfoMap.

Referenced by DtFederateTrackingFilter::handleJoinConfirmMsg(), DtFederateTrackingFilter::handleJoinMsg(), DtFederateTrackingFilter::handleJoinResponseMsg(), isConnectionMarkedForDeletion(), DtRtiExecDistributedTrackingFilter::processHandshakeMsg(), and removeOldConnection().

DtRtiMsgForwarder::ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoByHandle ( unsigned long federateHandle ) const [virtual]

Get a shared pointer to the connection info for a connection by Federate Handle.

References myConnToConnInfoMap.

DtRtiMsgForwarder::ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoBySocket ( const DtTcpMsgSocket * sock ) const [virtual]

Get a shared pointer to the connection info for a connection by Socket.

References myConnToConnInfoMap.

Referenced by DtRtiExecTrackingFilter::processReconnectMsg(), DtRtiExecTrackingFilter::processRtiExecConnectMsg(), DtExtendedRtiMsgForwarder::tcpSocketAdditionCb(), and DtExtendedRtiMsgForwarder::tcpSocketRemovalCb().

const DtRtiMsgForwarder::SocketToConnInfoMap & DtRtiMsgForwarder::getConnToConnInfoMap ( ) const [inline, virtual]

WARNING: These methods are not thread-safe and may only be called by the back-end forwarder thread!

Get a handle to the connection to connId map

References myConnToConnInfoMap.

Referenced by DtNetworkMapLanRequestFilter::buildNetworkMap(), and DtLanForwarderPort::populateConnectionInformation().

bool DtRtiMsgForwarder::hasExec ( ) const [virtual]

Query the rtiExec Handshake monitor for whether it has an exec.

References myRtiExecMonitor, and DtRtiExecTrackingFilter::rtiExecAvailable().

Referenced by DtLanForwarderPort::populateConnectionInformation().

void DtRtiMsgForwarder::init ( ) [virtual]

Initialize the forwarder (called by creator)

Reimplemented in DtExtendedRtiMsgForwarder.

References addPacketFilter(), DtDefaultInterfaceAddr(), DtRIDParameters::maxForwarderQueue, myConnectConfirmFilter, myForwarderAddr, myParams, myPort, myRtiExecMonitor, mySocketMgr, mySocketMonitor, myTcpForwarder, myTcpNoDelay, DtRIDParameters::networkInterfaceAddr(), performMcastDiscovery(), DtAssistantPopupHelper::popupAssistantMessage(), DtRIDParameters::responseInterval, DtRIDParameters::rtiExecReconnectPause, DtRtiMtdDestinationList::setMaxDestinations(), setRouteFedexMessages(), DtRtiMsg::setSmartForwardingEnabled(), setUseSmartForwarding(), DtTcpForwarder__vl__::socketMgr(), DtRIDParameters::socketReceiveBufferSize, DtRIDParameters::socketSendBufferSize, tcpSocketAdditionCb(), and tcpSocketRemovalCb().

Referenced by create().

bool DtRtiMsgForwarder::isConnectionMarkedForDeletion ( unsigned int connectionId ) const [virtual]

Return boolean: given connection has been marked for deletion?

References getConnectionInfoByConnId(), and myConnectionsAboutToBeDeleted.

Referenced by DtRtiExecTrackingFilter::processDisconnectMsg().

void DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted	(	DtTcpMsgSocket const *	socket,
		unsigned int	connectionId
	)		`[virtual]`

Mark the given socket as one that is to be deleted silently.

The forwarder won't complain when the given socket disconnects. If known, the socket connection ID should be provided A confirmation message is returned through the socket.

References myConnectionsAboutToBeDeleted, myParams, sendMessage(), DtRtiMtdTransportType::set(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

Referenced by DtDeleteSocketFilter::handleDeleteSocketMsg().

DtRtiMsgForwarder& DtRtiMsgForwarder::operator= ( const DtRtiMsgForwarder & orig ) [protected]

void DtRtiMsgForwarder::performMcastDiscovery ( ) [protected, virtual]

References DtMulitcastDiscoveryMgr::discover(), DtIsIpOfLocalInterface(), DtRIDParameters::getFullPathToRidFile(), DtMulitcastDiscoveryMgr::init(), DtRIDParameters::mcastDiscoveryEnabled, myMcastDiscoveryMgr, myParams, DtAssistantPopupHelper::popupAssistantMessage(), DtRIDParameters::tcpForwarderAddr(), and DtRIDParameters::tcpForwarderAddrString().

Referenced by init().

bool DtRtiMsgForwarder::populateConnectionInformation	(	unsigned int &	numForwarderToForwarderConns,
		std::vector< MAKRti::DtString > &	forwarderIdentifiers,
		std::vector< MAKRti::DtString > &	forwarderConnectionHostNames,
		std::vector< MAKRti::DtInetAddr > &	forwarderConnectionAddrs,
		unsigned int &	numForwarderClientConns,
		std::vector< MAKRti::DtString > &	clientConnectionHostNames,
		std::vector< MAKRti::DtInetAddr > &	clientConnectionAddrs
	)		const `[protected, virtual]`

References DtGetLocalHostName(), myForwarderAddr, and myForwarderId.

virtual void DtRtiMsgForwarder::postRunLoopEvent ( ) [inline, protected, virtual]

Referenced by run().

virtual void DtRtiMsgForwarder::preRunLoopEvent ( ) [inline, protected, virtual]

Plug-in defined Run Loop operations Gives users the ability to add functionality to the Run() loop without over-riding it completely.

Referenced by run().

void DtRtiMsgForwarder::removeOldConnection ( unsigned int connectionId ) [virtual]

Remove the socket specified by the given connection.

Used by reconnect to clean up orphaned sockets where client detected break but server has not.

References DtMsgSocket::descriptor(), getConnectionInfoByConnId(), myConnectionsAboutToBeDeleted, myConnToConnInfoMap, and mySelectParams.

Referenced by DtRtiExecTrackingFilter::processReconnectMsg().

void DtRtiMsgForwarder::removePacketFilter ( DtMessageFilter * filter ) [virtual]

References myRegisteredFilters.

Referenced by DtExtendedRtiMsgForwarder::init(), and DtExtendedRtiMsgForwarder::~DtExtendedRtiMsgForwarder().

void DtRtiMsgForwarder::requestCloseAllConnections ( ) [virtual]

Disconnect all open connections after this pass through run-loop completes.

cannot immediately disconnect since this may be called from a RTI Forwarder callback

References myCloseAllConnectionsRequested.

Referenced by DtRtiExecTrackingFilter::processRtiExecDisconnectMsg().

void DtRtiMsgForwarder::requestKillSingleConnection ( const DtTcpMsgSocket * sock ) [virtual]

Disconnect the requestedTcpSocket.

Introduced so that the rtiExecTrackingFilter can have connections deleted. The alternative is that the myTcpForwarder be made publicly accessible. Filter will call this on sockets from which it receives rtiExecReconnectMsgs when it is still connected to the rtiExec, and connect and disconnect messages from the exec when we are still connected and are not connected to the rtiExec respectively.

References DtTcpMsgSocket::destination(), myTcpForwarder, DtTcpMsgSocketMgr::removeAndDelete(), and DtTcpForwarder__vl__::socketMgr().

std::pair< bool, unsigned long > DtRtiMsgForwarder::rtiExecConnected ( ) const [virtual]

Is the rtiexec connected and if so what is its connId?

References myRtiExecMonitor, DtRtiExecTrackingFilter::rtiExecAvailable(), and DtRtiExecTrackingFilter::rtiExecConnId().

Referenced by DtNetworkMapLanRequestFilter::buildNetworkMap().

void DtRtiMsgForwarder::run ( ) [virtual]

Main execution routine.

Called by start() when run as a thread
Can be called directly to run sequentially

References applyRegisteredFilters(), closeAllConnectionsIfRequested(), disableRegisteredFilters(), DtRIDParameters::mcastDiscoveryEnabled, myMcastDiscoveryMgr, myParams, myRtiExecMonitor, mySocketMgr, myTcpForwarder, postRunLoopEvent(), preRunLoopEvent(), DtTcpMsgSocketMgr::processConnections(), DtRtiExecTrackingFilter::processTimeout(), DtFilteredTcpForwarder::readAndForward(), runLoopEvent(), shouldStop(), DtMulitcastDiscoveryMgr::tick(), and waitForIo().

virtual void DtRtiMsgForwarder::runLoopEvent ( ) [inline, protected, virtual]

Referenced by run().

void DtRtiMsgForwarder::sendMessage	(	const DtRtiMsg &	msg,
		const DtTcpMsgSocket *	src = `0`
	)		`[virtual]`

Send a message to all local sockets (filters will be applied)

References DtFilteredTcpForwarder::filterAndSend(), myParams, myTcpForwarder, and DtRtiMtdTransportType::set().

Referenced by markConnectionAsAboutToBeDeleted(), DtRtiExecTrackingFilter::processDisconnectMsg(), DtRtiExecDistributedTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processReconnectMsg(), DtRtiExecTrackingFilter::processTimeout(), and tcpSocketRemovalCb().

void DtRtiMsgForwarder::setCreatorFunction ( DtRtiMsgFwderCreator fn ) [static]

Call this function to set an alternate creator function With this function, users can replace this DtRtiMsgForwarder with their own derived class.

References DtBindCreator(), and theCreator.

void DtRtiMsgForwarder::setEnableBundling ( unsigned int maxBundleSize ) [virtual]

Get the rtiexec's socket if known.

Enable Message Bundling optimization

References DtTcpMsgSocketMgr::enableBundling(), and mySocketMgr.

void DtRtiMsgForwarder::setForwarderId ( unsigned long newId ) [virtual]

set the forwarder ID.

References myForwarderId.

Referenced by DtRtiMsgForwarder(), and DtLanForwarderPort::setForwarderId().

void DtRtiMsgForwarder::setRouteFedexMessages ( bool yesNo ) [virtual]

Enable Smart Fedex Message Filtering.

References addPacketFilter(), myFedexMsgRouter, and myRtiExecMonitor.

Referenced by init().

void DtRtiMsgForwarder::setUseSmartForwarding ( bool yesNo ) [virtual]

Enable Smart DM Subscription Filtering.

References addPacketFilter(), myConnToConnInfoMap, myDmMsgRouter, and myRoutePrinter.

Referenced by init().

bool DtRtiMsgForwarder::shouldStop ( ) [virtual]

should this forwarder stop.

References myShouldStop.

Referenced by DtLanForwarderPort::checkConnectionStatus(), and run().

void DtRtiMsgForwarder::shutdownRequestedByExec ( ) [virtual]

Shutdown the forwarder application.

Triggered by the rtiExec sending a forwarderShutdown message to the RTI Forwarder.

References myShouldStop.

Referenced by DtRtiExecTrackingFilter::processShutdownMsg().

void DtRtiMsgForwarder::tcpSocketAdditionCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		`[static]`

Callbacks on addition/removal of TCP sockets.

References tcpSocketAdditionCb().

Referenced by init(), tcpSocketAdditionCb(), and ~DtRtiMsgForwarder().

void DtRtiMsgForwarder::tcpSocketAdditionCb ( DtTcpMsgSocket * sock ) [protected, virtual]

Reimplemented in DtExtendedRtiMsgForwarder.

References consumeConnId(), DtMsgSocket::descriptor(), DtTcpMsgSocket::destination(), myConnToConnInfoMap, myForwarderAddr, myParams, mySelectParams, DtTcpMsgSocket::sendMessage(), DtRtiMtdTransportType::set(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

void DtRtiMsgForwarder::tcpSocketRemovalCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		`[static]`

References tcpSocketRemovalCb().

Referenced by init(), tcpSocketRemovalCb(), and ~DtRtiMsgForwarder().

void DtRtiMsgForwarder::tcpSocketRemovalCb ( DtTcpMsgSocket * sock ) [protected, virtual]

Reimplemented in DtExtendedRtiMsgForwarder.

References DtMsgSocket::descriptor(), myConnectionsAboutToBeDeleted, myConnToConnInfoMap, myRtiExecMonitor, mySelectParams, DtRtiExecTrackingFilter::rtiExecConnId(), sendMessage(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

void DtRtiMsgForwarder::updateConnectionProcessParameters	(	unsigned long	connId,
		unsigned long	processId,
		MAKRti::DtString	processName,
		MAKRti::DtString	commandArgs
	)		`[virtual]`
