The DtForwarderWebManager class stores the current state of a single LRC as viewable by web clients, and manages the web service which provides to the state to clients. More...

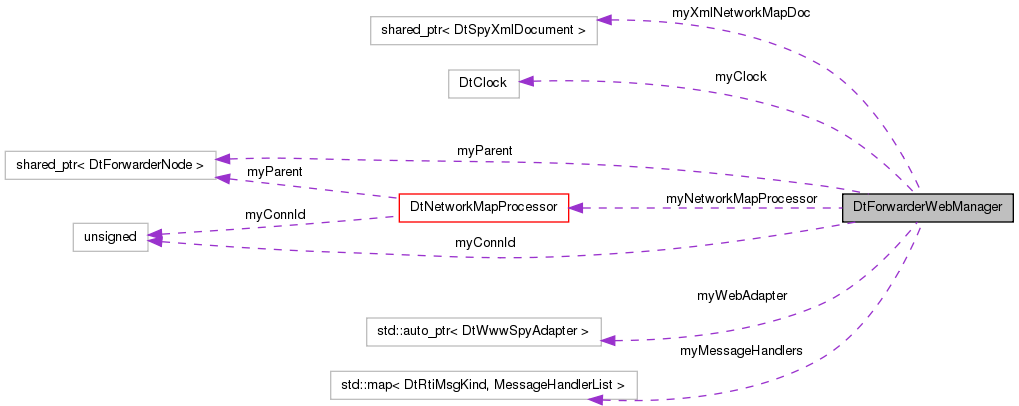

Collaboration diagram for DtForwarderWebManager:

Public Types
typedef bool(DtForwarderWebManager::*	NetworkMapMsgRspHandlerMemberCb )(MAKRti::DtInetAddr src, const DtNetworkMapRspMsg &msg)
	Pointer to member function callbacks used by the port filters.
Public Member Functions
	DtForwarderWebManager (DtBoost::shared_ptr< DtForwarderNode > parent)
	Ctor / Dtor.
virtual	~DtForwarderWebManager ()
virtual MAKRti::DtString	printableNetworkMap (bool drawTree=true) const
	Get a human readable string containing the current network map Suitable for writing to an output stream If drawTree Then draw map as a Tree rooted at this forwarder.
virtual DtSpyXmlDocumentSP	getNetworkMap () const
	Get a handle to the current network map (for printing, etc.)
virtual bool	tick (double maxTime)
	Give the Web manager time to process any messages arriving from the local HTTP connection.
Static Public Member Functions
static void	requestComplete (DtNetworkMapRspMsg &msg, void *usr)
	Callback for completed network map requests from the network map processor.
Protected Types
typedef void(DtForwarderWebManager::*	MessageHandlerFn )(const DtRtiMsg *)
typedef std::list < MessageHandlerFn >	MessageHandlerList
typedef std::map< DtRtiMsgKind, MessageHandlerList >	MessageHandlersByKind
Protected Member Functions
void	requestComplete (DtNetworkMapRspMsg &msg)
	Callback for completed network map requests from the network map processor.
virtual void	registerMsgHandler (DtRtiMsgKind kind, MessageHandlerFn func)
	(Un)Register a handler for a specific msg kind
virtual void	unRegisterMsgHandler (DtRtiMsgKind kind, MessageHandlerFn func)
virtual const MessageHandlerList &	messageHandlersForKind (DtRtiMsgKind kind)
	Return a list of registered handlers for a given msg kind.
virtual void	handleWwwCommandMsg (const DtRtiMsg *)
	WWW Message Handlers.
virtual void	handleStateRequestMsg (const DtRtiMsg *msg)
virtual DtWwwControlRspMsg *	buildWwwCommandResponse (DtWebSpyUtils::WwwControlMsgCommandId commandType, const MAKRti::DtString &commandString)
	Build the substance of the responses.
virtual std::auto_ptr < MAKRti::DtString >	buildWwwStateResponse (DtWebSpyUtils::StateComponentType requestType)
virtual void	issueNetworkMapRequest () const
	Issue a network map request.
void	printForwarder (DtNetMapForwarderXmlBlockSP forwarderSP, MAKRti::DtString &target, MAKRti::DtString indentLevel, bool drawTree=true) const
	Helper method for generating a printable string from an XML network map.
Protected Attributes
DtClock	myClock
unsigned long	myConnId
DtBoost::shared_ptr < DtForwarderNode >	myParent
DtNetworkMapProcessor *	myNetworkMapProcessor
std::auto_ptr< DtWwwSpyAdapter >	myWebAdapter
MessageHandlersByKind	myMessageHandlers
DtSpyXmlDocumentSP	myXmlNetworkMapDoc
	Current Network Map state repository.

Detailed Description

The DtForwarderWebManager class stores the current state of a single LRC as viewable by web clients, and manages the web service which provides to the state to clients.

IMPORTANT: The DtForwarderWebManager uses libxml2. Libxml2 is only safe to use in a secondary thread after calling xmlInitParser() ( done through appEnvInit() )

Member Typedef Documentation

typedef void( DtForwarderWebManager::* DtForwarderWebManager::MessageHandlerFn)(const DtRtiMsg *) [protected]

typedef std::list< MessageHandlerFn > DtForwarderWebManager::MessageHandlerList [protected]

typedef std::map< DtRtiMsgKind, MessageHandlerList > DtForwarderWebManager::MessageHandlersByKind [protected]

typedef bool(DtForwarderWebManager::* DtForwarderWebManager::NetworkMapMsgRspHandlerMemberCb)(MAKRti::DtInetAddr src, const DtNetworkMapRspMsg &msg)

Pointer to member function callbacks used by the port filters.

Constructor & Destructor Documentation

DtForwarderWebManager::DtForwarderWebManager ( DtBoost::shared_ptr< DtForwarderNode > parent )

Ctor / Dtor.

References DtNetworkMapProcessor::addRequestCompletedCb(), DtTcpWwwSpyAdapter::create(), DtWwwSpyAdapter::create(), DtWebSpyUtils::DtForwarderConnection, DtWwwControlMsgKind, DtWwwStateReqMsgKind, handleStateRequestMsg(), handleWwwCommandMsg(), myConnId, myNetworkMapProcessor, myParent, myWebAdapter, registerMsgHandler(), requestComplete(), and DtWwwSpyAdapter::setCreatorFunction().

DtForwarderWebManager::~DtForwarderWebManager ( ) [virtual]

References myNetworkMapProcessor, DtNetworkMapProcessor::removeRequestCompletedCb(), and requestComplete().

Member Function Documentation

DtWwwControlRspMsg * DtForwarderWebManager::buildWwwCommandResponse	(	DtWebSpyUtils::WwwControlMsgCommandId	commandType,
		const MAKRti::DtString &	commandString
	)		`[protected, virtual]`

Build the substance of the responses.

References DtWebSpyUtils::DtNetworkMapMsg, DtWebSpyUtils::DtTypeInfoCntlMsg, issueNetworkMapRequest(), myConnId, myXmlNetworkMapDoc, and DtSpyXmlDocument::root().

Referenced by handleWwwCommandMsg().

std::auto_ptr< MAKRti::DtString > DtForwarderWebManager::buildWwwStateResponse ( DtWebSpyUtils::StateComponentType requestType ) [protected, virtual]

References DtWebSpyUtils::DtNetworkMapStateType, issueNetworkMapRequest(), and myXmlNetworkMapDoc.

Referenced by handleStateRequestMsg().

DtSpyXmlDocumentSP DtForwarderWebManager::getNetworkMap ( ) const [virtual]

Get a handle to the current network map (for printing, etc.)

References issueNetworkMapRequest(), and myXmlNetworkMapDoc.

void DtForwarderWebManager::handleStateRequestMsg ( const DtRtiMsg * msg ) [protected, virtual]

References buildWwwStateResponse(), DtMAX_FRAGMENT_SIZE, myConnId, myWebAdapter, and DtWwwStateReqMsg::requestType().

Referenced by DtForwarderWebManager().

void DtForwarderWebManager::handleWwwCommandMsg ( const DtRtiMsg * msg ) [protected, virtual]

WWW Message Handlers.

References buildWwwCommandResponse(), DtWwwControlMsg::command(), DtWwwControlMsg::commandId(), and myWebAdapter.

Referenced by DtForwarderWebManager().

void DtForwarderWebManager::issueNetworkMapRequest ( ) const [protected, virtual]

Issue a network map request.

References DtNetworkMapProcessor::gotNetworkMapRequest(), myConnId, myNetworkMapProcessor, and myParent.

Referenced by buildWwwCommandResponse(), buildWwwStateResponse(), getNetworkMap(), and printableNetworkMap().

const DtForwarderWebManager::MessageHandlerList & DtForwarderWebManager::messageHandlersForKind ( DtRtiMsgKind kind ) [protected, virtual]

Return a list of registered handlers for a given msg kind.

References myMessageHandlers.

MAKRti::DtString DtForwarderWebManager::printableNetworkMap ( bool drawTree = true ) const [virtual]

Get a human readable string containing the current network map Suitable for writing to an output stream If drawTree Then draw map as a Tree rooted at this forwarder.

References DtNetMapXmlBlock::childForwarders(), issueNetworkMapRequest(), myXmlNetworkMapDoc, and printForwarder().

void DtForwarderWebManager::printForwarder	(	DtNetMapForwarderXmlBlockSP	forwarderSP,
		MAKRti::DtString &	target,
		MAKRti::DtString	indentLevel,
		bool	drawTree = `true`
	)		const `[protected]`
