DtWwwClientProtocol Class Reference

The DtWwwClientProtocol class is implements the communications protocol for communications between the HTTP server and the browser-based client. More...

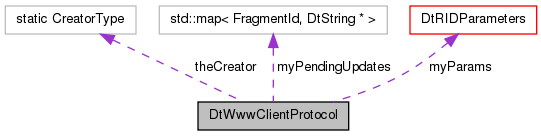

Collaboration diagram for DtWwwClientProtocol:

List of all members.

Public Types
typedef DtWwwClientProtocol *(*	CreatorType )(const DtRIDParameters &params)
	Web Spy Protocol creator method.
Public Member Functions
virtual	~DtWwwClientProtocol ()
	Dtor.
virtual std::auto_ptr< DtRtiMsg >	parseCommand (std::auto_ptr< DtString > command) const
	Decode the command message from the Web Client, and return the corresponding RTI control message and destination component id Returns NULL control msg if command is unrecognized or malformed.
virtual void	parseResponse (DtWebSpyServer &parent, const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtRtiMsg > response)
	Decode the response from the RTI and update the web server.
Static Public Member Functions
static DtWwwClientProtocol *	create (const DtRIDParameters &params)
	Virtual constructor.
static void	setCreatorFunction (CreatorType creator)
	Set the concrete type for the virtual constructor method.
Protected Types
typedef std::pair< unsigned long, unsigned long >	FragmentId
typedef std::map< FragmentId, DtString * >	MsgFragmentsByIdMap
Protected Member Functions
	DtWwwClientProtocol (const DtRIDParameters &params)
	Ctor protected - use virtual constructor method.
virtual void	parseControlMsg (DtWebSpyServer &parent, const DtWebSpyUtils::ConnectionIdentifier &connInfo, const DtWwwControlRspMsg *cntlMsg) const
	Specific Message parsers:
virtual void	parseFederateStateMsg (DtWebSpyServer &parent, const DtWebSpyUtils::ConnectionIdentifier &connInfo, const DtWwwFederateStateRspMsg *fedStateMsg)
virtual void	parseComponentStateMsg (DtWebSpyServer &parent, const DtWebSpyUtils::ConnectionIdentifier &connInfo, const DtWwwStateRspMsg *stateMsg)
virtual void	handleLrcLogResponse (DtWebSpyServer &parent, const DtWebSpyUtils::ConnectionIdentifier &connInfo, unsigned long componentId, DtWwwRequestXmlBlockSP response) const
	Deal with specific Command Response types.
Protected Attributes
const DtRIDParameters &	myParams
MsgFragmentsByIdMap	myPendingUpdates
Static Protected Attributes
static CreatorType	theCreator = 0
Private Member Functions
	DtWwwClientProtocol (const DtWwwClientProtocol &)
	Copy and Assignment unimplemented.
DtWwwClientProtocol &	operator= (DtWwwClientProtocol &)
	Copy and Assignment unimplmented.

---

Detailed Description

The DtWwwClientProtocol class is implements the communications protocol for communications between the HTTP server and the browser-based client.

Protocol Format for messages from Web-Client:

<request id="DtWebspyUtils::WwwControlMsgCommandId" link="wwwComponentId" conn="rtiConnectionId" fedex="federationHandle" fed="federateHandle">

Parameters:

attr1
attr2

</request>

---

Member Typedef Documentation

typedef DtWwwClientProtocol*(* DtWwwClientProtocol::CreatorType)(const DtRIDParameters &params)

Web Spy Protocol creator method.

typedef std::pair< unsigned long, unsigned long > DtWwwClientProtocol::FragmentId [protected]

typedef std::map< FragmentId, DtString* > DtWwwClientProtocol::MsgFragmentsByIdMap [protected]

---

Constructor & Destructor Documentation

DtWwwClientProtocol::DtWwwClientProtocol

(

const DtWwwClientProtocol &

)

[private]

Copy and Assignment unimplemented.

Referenced by create().

DtWwwClientProtocol::~DtWwwClientProtocol

(

)

[virtual]

Dtor.

DtWwwClientProtocol::DtWwwClientProtocol

(

const DtRIDParameters &

params

)

[protected]

Ctor protected - use virtual constructor method.

---

Member Function Documentation

DtWwwClientProtocol * DtWwwClientProtocol::create

(

const DtRIDParameters &

params

)

[static]

Virtual constructor.

References DtWwwClientProtocol(), and theCreator.

Referenced by DtWebSpyServer::DtWebSpyServer().

void DtWwwClientProtocol::handleLrcLogResponse	(	DtWebSpyServer &	parent,
		const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		unsigned long	componentId,
		DtWwwRequestXmlBlockSP	response
	)		const [protected, virtual]

Deal with specific Command Response types.

References DtWebSpyServer::appendConnectionLogEvent().

Referenced by parseControlMsg().

DtWwwClientProtocol& DtWwwClientProtocol::operator=

(

DtWwwClientProtocol &

)

[private]

Copy and Assignment unimplmented.

std::auto_ptr< DtRtiMsg > DtWwwClientProtocol::parseCommand

(

std::auto_ptr< DtString >

command

)

const [virtual]

Decode the command message from the Web Client, and return the corresponding RTI control message and destination component id Returns NULL control msg if command is unrecognized or malformed.

References DtWwwRequestXmlBlock::connectionId(), DtCreateExternalRtiMsg(), DtWebSpyUtils::DtRequestStateUpdateMsg, DtWwwControlMsgKind, DtWwwFederateStateReqMsgKind, DtWwwStateReqMsgKind, DtWwwControlMsg::setCommand(), DtWwwControlMsg::setCommandId(), DtWwwControlMsg::setConnectionId(), DtRtiMsg::setFedEx(), DtWwwFederateStateReqMsg::setProxied(), DtWwwStateReqMsg::setRequestType(), DtWwwFederateStateReqMsg::setRequestType(), DtWwwStateReqMsg::setTargetConnectionId(), DtWwwFederateStateReqMsg::setTargetConnectionId(), DtWwwFederateStateReqMsg::setTargetFederateHandle(), and DtWwwControlMsg::setTargetFederateHandle().

Referenced by DtWebSpyServer::postHttpCommand().

void DtWwwClientProtocol::parseComponentStateMsg	(	DtWebSpyServer &	parent,
		const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		const DtWwwStateRspMsg *	stateMsg
	)		[protected, virtual]

References DtWwwStateRspMsg::isComplete(), DtWwwStateRspMsg::isReplacementNotAppend(), myPendingUpdates, DtWwwStateRspMsg::payload(), DtWwwStateRspMsg::responseType(), DtWwwStateRspMsg::source(), and DtWebSpyServer::updateConnection().

Referenced by parseResponse().

void DtWwwClientProtocol::parseControlMsg	(	DtWebSpyServer &	parent,
		const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		const DtWwwControlRspMsg *	cntlMsg
	)		const [protected, virtual]

Specific Message parsers:

References DtWwwControlRspMsg::command(), DtWwwControlRspMsg::connectionId(), DtWebSpyUtils::DtLrcLogEventsMsg, and handleLrcLogResponse().

Referenced by parseResponse().

void DtWwwClientProtocol::parseFederateStateMsg	(	DtWebSpyServer &	parent,
		const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		const DtWwwFederateStateRspMsg *	fedStateMsg
	)		[protected, virtual]

References DtWwwFederateStateRspMsg::isComplete(), DtWwwFederateStateRspMsg::isReplacementNotAppend(), myPendingUpdates, DtWwwFederateStateRspMsg::payload(), DtWwwFederateStateRspMsg::responseType(), DtWwwFederateStateRspMsg::sourceConnectionId(), and DtWebSpyServer::updateConnection().

Referenced by parseResponse().

void DtWwwClientProtocol::parseResponse	(	DtWebSpyServer &	parent,
		const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtRtiMsg >	response
	)		[virtual]

Decode the response from the RTI and update the web server.

References DtWwwControlRspMsgKind, DtWwwFederateStateRspMsgKind, DtWwwStateRspMsgKind, DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), parseComponentStateMsg(), parseControlMsg(), and parseFederateStateMsg().

Referenced by DtWebSpyServer::postRtiResponse().

void DtWwwClientProtocol::setCreatorFunction

(

CreatorType

creator

)

[static]

Set the concrete type for the virtual constructor method.

References theCreator.

---

Member Data Documentation

const DtRIDParameters& DtWwwClientProtocol::myParams [protected]

MsgFragmentsByIdMap DtWwwClientProtocol::myPendingUpdates [protected]

Referenced by parseComponentStateMsg(), and parseFederateStateMsg().

DtWwwClientProtocol::CreatorType DtWwwClientProtocol::theCreator = 0 [static, protected]

Referenced by create(), and setCreatorFunction().

---

The documentation for this class was generated from the following files:

• wwwClientProtocol.h
• wwwClientProtocol.cxx
