The DtWebSpyServer is the http server component of the web spy. More...

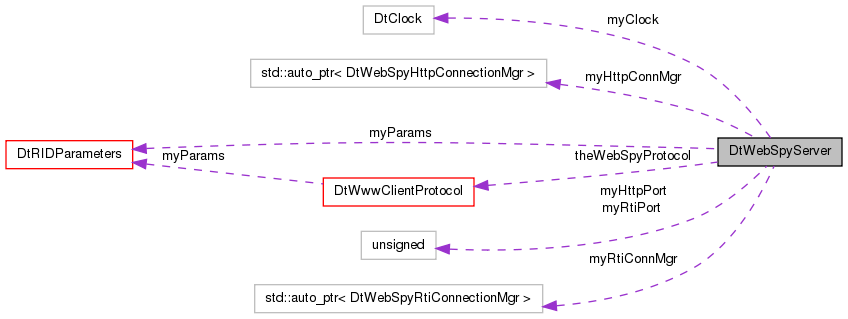

Collaboration diagram for DtWebSpyServer:

Public Member Functions
	DtWebSpyServer (const DtRIDParameters &params)
	Ctor.
virtual	~DtWebSpyServer ()
	Dtor.
virtual void	tick (unsigned int timeout=0)
	Do the actual message processing (may process several web commands and RTI responses)
virtual unsigned int	numRtiConnections () const
	Return the number of connected RTI components.
virtual void	addConnection (const DtWebSpyUtils::ConnectionIdentifier &connInfo)
	Add a new RTI object with associated connection information.
virtual void	updateConnection (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtWebSpyUtils::ConnectionState > connState, bool appendToExisting)
	Update an individual state component with new data.
virtual void	appendConnectionLogEvent (const DtWebSpyUtils::ConnectionIdentifier &connInfo, unsigned long componentId, DtLrcConsoleLogXmlBlockSP logSegmentSP)
	Update an individual component's log with new events.
virtual void	removeConnection (const DtWebSpyUtils::ConnectionIdentifier &connInfo, const DtString &dropNotificationMsg="")
	Remove a connection and replace it with a disconnect message when its corresponding connection is dropped Caller may specify additional information about the reason for the drop via the optional dropNotificationMsg (accepts HTML)
virtual void	postHttpCommand (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtString > command)
	Decode the command message from the Web Client, and give appropriate instructions to the RTI components Called from HTTP conn mgr tick()
virtual void	postRtiResponse (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtRtiMsg > response)
	Decode the response message from an RTI component and give appropriate instructions to the HTTP server Called from RTI conn mgr tick()
const DtRIDParameters &	params () const
	Provide access to the RID.
Protected Attributes
unsigned int	myHttpPort
unsigned int	myRtiPort
DtClock	myClock
const DtRIDParameters &	myParams
std::auto_ptr < DtWebSpyHttpConnectionMgr >	myHttpConnMgr
	Connection Manager for the HTTP web interface side.
std::auto_ptr < DtWebSpyRtiConnectionMgr >	myRtiConnMgr
	Connection Manager for the RTI socket interface side.
Static Protected Attributes
static DtWwwClientProtocol *	theWebSpyProtocol = 0
	Encoder/Decoder for messages to/from the www client.
Private Member Functions
	DtWebSpyServer (const DtWebSpyServer &)
	Copy and Assignment unimplemented.
DtWebSpyServer &	operator= (DtWebSpyServer &)
	Copy and Assignment unimplmented.

Detailed Description

The DtWebSpyServer is the http server component of the web spy.

It is the point of interface between the RTI and the web client.

Constructor & Destructor Documentation

DtWebSpyServer::DtWebSpyServer ( const DtWebSpyServer & ) [private]

Copy and Assignment unimplemented.

DtWebSpyServer::DtWebSpyServer ( const DtRIDParameters & params )

Ctor.

References DtWwwClientProtocol::create(), myParams, and theWebSpyProtocol.

DtWebSpyServer::~DtWebSpyServer ( ) [virtual]

Dtor.

Member Function Documentation

void DtWebSpyServer::addConnection ( const DtWebSpyUtils::ConnectionIdentifier & connInfo ) [virtual]

Add a new RTI object with associated connection information.

References myHttpConnMgr.

Referenced by DtTcpRtiConnectionMgr::tcpSocketAdditionCb().

void DtWebSpyServer::appendConnectionLogEvent	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		unsigned long	componentId,
		DtLrcConsoleLogXmlBlockSP	logSegmentSP
	)		`[virtual]`

Update an individual component's log with new events.

References myHttpConnMgr.

Referenced by DtWwwClientProtocol::handleLrcLogResponse().

unsigned int DtWebSpyServer::numRtiConnections ( ) const [inline, virtual]

Return the number of connected RTI components.

References myRtiConnMgr.

DtWebSpyServer& DtWebSpyServer::operator= ( DtWebSpyServer & ) [private]

Copy and Assignment unimplmented.

const DtRIDParameters & DtWebSpyServer::params ( ) const [inline]

Provide access to the RID.

References myParams.

Referenced by DtTcpRtiConnectionMgr::DtTcpRtiConnectionMgr(), DtTcpRtiConnectionMgr::establishConnection(), DtWebSpyHttpConnectionMgr::params(), and DtTcpRtiConnectionMgr::tick().

void DtWebSpyServer::postHttpCommand	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtString >	command
	)		`[virtual]`

Decode the command message from the Web Client, and give appropriate instructions to the RTI components Called from HTTP conn mgr tick()

References myRtiConnMgr, DtWwwClientProtocol::parseCommand(), and theWebSpyProtocol.

Referenced by DtEhsHttpConnectionMgr::tick().

void DtWebSpyServer::postRtiResponse	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtRtiMsg >	response
	)		`[virtual]`

Decode the response message from an RTI component and give appropriate instructions to the HTTP server Called from RTI conn mgr tick()

References DtWwwClientProtocol::parseResponse(), and theWebSpyProtocol.

Referenced by DtTcpRtiConnectionMgr::readAndForward().

void DtWebSpyServer::removeConnection	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		const DtString &	dropNotificationMsg = `""`
	)		`[virtual]`

Remove a connection and replace it with a disconnect message when its corresponding connection is dropped Caller may specify additional information about the reason for the drop via the optional dropNotificationMsg (accepts HTML)

References myHttpConnMgr.

Referenced by DtTcpRtiConnectionMgr::tcpSocketRemovalCb().

void DtWebSpyServer::tick ( unsigned int timeout = 0 ) [virtual]

Do the actual message processing (may process several web commands and RTI responses)

References myClock, myHttpConnMgr, and myRtiConnMgr.

void DtWebSpyServer::updateConnection	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtWebSpyUtils::ConnectionState >	connState,
		bool	appendToExisting
	)		`[virtual]`
