Instances of DtSmConnectionMgr manage the communication objects that the RTI will use to communicate via shared memory or communicate with the LRC application (using the federate ambassador pointer). More...

Inheritance diagram for DtSmConnectionMgr:

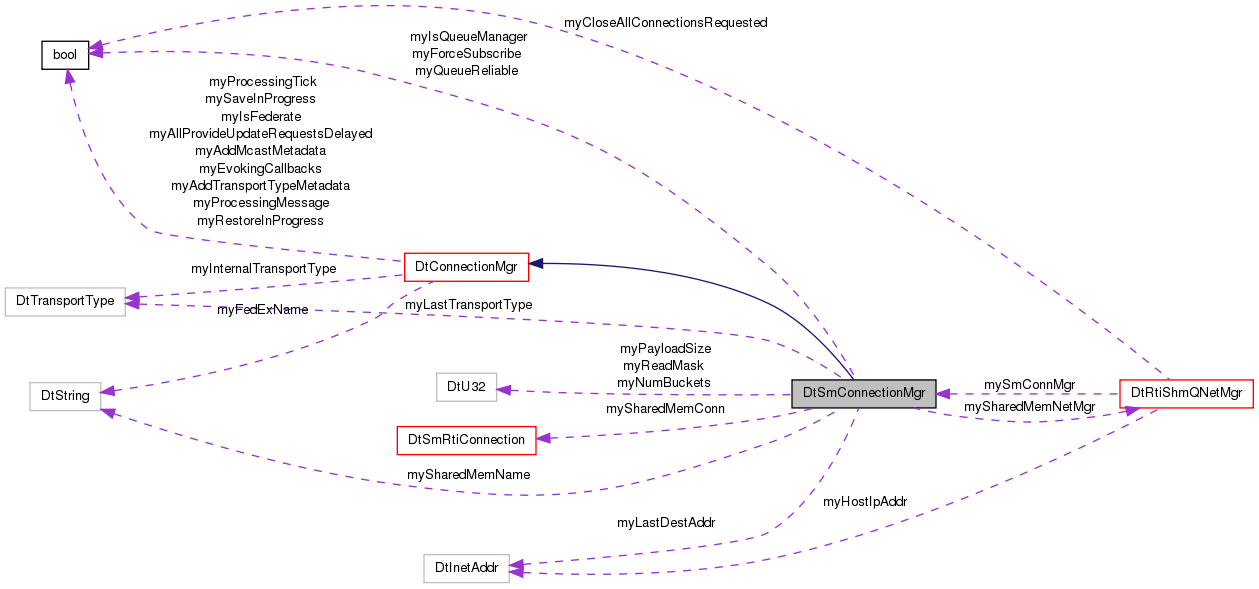

Collaboration diagram for DtSmConnectionMgr:

List of all members.

Public Member Functions
virtual	~DtSmConnectionMgr ()
virtual void	initQMgr (DtU32 numBuckets, DtU32 payloadSize, bool reliable, bool forceMgrSubscribe)
	This method is called by the queue manager to setup the queue.
virtual int	send (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Sending.
virtual bool	flush ()
	Send buffered messages.
virtual bool	processConnection (DtRtiConnection *conn, MAKRti::DtTransportType trans)
	Receiving.
virtual bool	processConnections ()
	Override of base class method.
virtual DtRtiMsg *	getMessage ()
	Get a message if one exists Message must be destroyed by caller.
virtual DtRtiMsg *	getMessageWithNetInfo (MAKRti::DtInetAddr addr, MAKRti::DtTransportType trans, DtU32 *priority=NULL)
	These methods return the network information (destination address, transport method, and priority - if any) associated with a message in shared memory.
virtual MAKRti::DtInetAddr	getLastDestAddr () const
virtual MAKRti::DtTransportType	getLastTransportType () const
virtual int	readFileDescriptor (RTI::TransportType transport)
	Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.
virtual DtSmRtiConnection *	sharedMemConn () const
	Returns the connection created by createSharedMemConn().
virtual void	setNetConnMgr (DtRtiShmQNetMgr *smNetConnMgr)
	Shared memory queue manager will allow messages to be exchanged between the shared memory connection manager and the network I/O connection manager.
virtual bool	sm_shutdown (bool ruthless=false)
	Attempts to shutdown shared memory queue.
virtual bool	setupSelectParams (DtSelectParam *params)
	adds Read File descriptors to a DtSelectParams
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Get/Set the message factory.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection.
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual void	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Override listen count and force drop multicast address.
virtual void	connectFederation (RTI::FederateAmbassador fedAmb, DtLogicalTimeFactory logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle fedHandle, int fedExHandle)
	The LRC associates its federation information with its network connections.
virtual bool	repairFederationConnection ()
	Attempt to re-establish a broken connection to the federation Returns true if successful.
virtual void	disconnectFederation ()
	The LRC disassociates its connections from the federation.
virtual bool	wait (MAKRti::DtTime period=0.0, bool unlockWhileWaiting=false)
	Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?
virtual int	subscriberCount () const
	Return a count of the number of subscribers currently attached to the shared memory queue.
Static Public Member Functions
static DtConnectionMgr *	create (DtRIDParameters *p, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Creates an instance of a DtSmConnectionMgr; If an alternate creator function has been set, that creator function will be called from within this function.
static DtConnectionMgr *	createQMgr (DtRIDParameters params, DtU32 numBuckets, DtU32 payloadSize, bool queueReliable, bool forceMgrSubscribe, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >(), DtRtiShmQNetMgr smNetConnMgr=0)
	Creates an instance of a DtSmConnectionMgr which acts on behalf of the shared memory queue manager.
Protected Member Functions
	DtSmConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
virtual void	startSharedMemMgr ()
	Launch detached process to create the shared memory pool, subscribable message queue, and shared memory manager.
virtual int	initConnections ()
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's shared memory connections should override these functions.
virtual bool	createSharedMemConn ()
	Create connection (attach) to subscribable shared memory queue; Returns true if successful.
Protected Attributes
DtSmRtiConnection *	mySharedMemConn
MAKRti::DtString	mySharedMemName
DtRtiShmQNetMgr *	mySharedMemNetMgr
bool	myIsQueueManager
	These members are specific to the queue manager's connection manager.
DtU32	myNumBuckets
	indicates this is the queue manager
DtU32	myPayloadSize
	number of message slots in shared memory queue
bool	myQueueReliable
	number of bytes available in each message slot
bool	myForceSubscribe
	indicates shared mem queue in reliable mode
DtU32	myReadMask
	should only be used by queue manager
MAKRti::DtInetAddr	myLastDestAddr
	controls what type of messages are read/skipped
MAKRti::DtTransportType	myLastTransportType

Detailed Description

Instances of DtSmConnectionMgr manage the communication objects that the RTI will use to communicate via shared memory or communicate with the LRC application (using the federate ambassador pointer).

Override this class to change the way in which the MAK RTI communicates with other LRC components (or the rtiexec) using shared memory. Refer to DtConnectionMgr for other methods of communication.

Constructor & Destructor Documentation

DtSmConnectionMgr::DtSmConnectionMgr	(	DtRIDParameters *	params,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`
	)		`[protected]`

Referenced by create(), and createQMgr().

DtSmConnectionMgr::~DtSmConnectionMgr ( ) [virtual]

References DtConnectionMgr::create(), DtDisconnectMsgKind, DtSmEnrollmentMsgKind, DtSmUnregister, DtConnectionMgr::emptyPendingMsgList(), DtConnectionMgr::internalTransportType(), DtConnectionMgr::myBestEffortConn, DtConnectionMgr::myConnectionId, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myFedExHandle, DtConnectionMgr::myPrimaryReliableConn, mySharedMemConn, DtConnectionMgr::sendAndDelete(), DtSmEnrollmentMsg::set(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), and DtRtiConnection::socket().

Member Function Documentation

void DtSmConnectionMgr::connectFederation	(	RTI::FederateAmbassador *	fedAmb,
		DtLogicalTimeFactory *	logicalTimeFactoryPtr,
		MAKRti::DtString	fedExName,
		DtFederateHandle	fedHandle,
		int	fedExHandle
	)		`[virtual]`

The LRC associates its federation information with its network connections.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is created here.

DtConnectionMgr * DtSmConnectionMgr::create	(	DtRIDParameters *	p,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`
	)		`[static]`

Creates an instance of a DtSmConnectionMgr; If an alternate creator function has been set, that creator function will be called from within this function.

Reimplemented from DtConnectionMgr.

References DtSmConnectionMgr().

Referenced by DtRtiExec::DtRtiExec(), and DtRtiAmbassadorBaseImplementor::setupConnection().

DtConnectionMgr * DtSmConnectionMgr::createQMgr	(	DtRIDParameters *	params,
		DtU32	numBuckets,
		DtU32	payloadSize,
		bool	queueReliable,
		bool	forceMgrSubscribe,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`,
		DtRtiShmQNetMgr *	smNetConnMgr = `0`
	)		`[static]`

Creates an instance of a DtSmConnectionMgr which acts on behalf of the shared memory queue manager.

This function prototype is intentionally different than the nominal DtConnectionMgr create method to make it incompatible with the setCreator() method. This will prevent it being set as the default creator of DtConnectionMgr objects. Only one shared memory queue manager should be created (per shared memory queue).

References DtSmConnectionMgr(), DtConnectionMgr::init(), initQMgr(), and setNetConnMgr().

bool DtSmConnectionMgr::createSharedMemConn ( ) [protected, virtual]

Create connection (attach) to subscribable shared memory queue; Returns true if successful.

References DtRtiSmSocket::initializeSmQueue(), DtConnectionMgr::msgFactory(), myForceSubscribe, myIsQueueManager, myNumBuckets, myPayloadSize, myQueueReliable, myReadMask, mySharedMemConn, mySharedMemName, DtRtiConnection::setMsgFactory(), DtRtiSmSocket::setReceiveMask(), and sharedMemConn().

Referenced by connectFederation(), initConnections(), and repairFederationConnection().

void DtSmConnectionMgr::disconnectFederation ( ) [virtual]

The LRC disassociates its connections from the federation.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is destroyed here.

Reimplemented from DtConnectionMgr.

void DtSmConnectionMgr::dropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)		`[virtual]`

Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.

The multicast is not actually dropped until the listen count goes to zero.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtMulticastEntry::count, DtConnectionMgr::create(), DtMcastConfigureMsgKind, DtMcastDrop, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myMulticastGroups, DtConnectionMgr::sendAndDelete(), and DtMcastConfigureMsg::set().

bool DtSmConnectionMgr::flush ( ) [virtual]

Send buffered messages.

Returns indication of whether the flush is complete or incomplete.

Reimplemented from DtConnectionMgr.

References sharedMemConn().

Referenced by getMessage().

void DtSmConnectionMgr::forceDropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)		`[virtual]`

Override listen count and force drop multicast address.

Listen count goes to zero.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtConnectionMgr::create(), DtMcastConfigureMsgKind, DtMcastDrop, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myMulticastGroups, DtConnectionMgr::sendAndDelete(), and DtMcastConfigureMsg::set().

MAKRti::DtInetAddr DtSmConnectionMgr::getLastDestAddr ( ) const [virtual]

References myLastDestAddr.

MAKRti::DtTransportType DtSmConnectionMgr::getLastTransportType ( ) const [virtual]

References myLastTransportType.

DtRtiMsg * DtSmConnectionMgr::getMessage ( ) [virtual]

Get a message if one exists Message must be destroyed by caller.

Reimplemented from DtConnectionMgr.

References DtRtiMsg::cloneWithTransport(), DtNET_READ_NO_PACKETS, flush(), DtRtiConnection::netRead(), DtConnectionMgr::processReadResult(), DtRtiMsg::setTransportType(), and sharedMemConn().

Referenced by getMessageWithNetInfo().

DtRtiMsg * DtSmConnectionMgr::getMessageWithNetInfo	(	MAKRti::DtInetAddr *	addr,
		MAKRti::DtTransportType *	trans,
		DtU32 *	priority = `NULL`
	)		`[virtual]`

These methods return the network information (destination address, transport method, and priority - if any) associated with a message in shared memory.

References getMessage(), and sharedMemConn().

int DtSmConnectionMgr::initConnections ( ) [protected, virtual]

Initialize the RTI's exercise connections Users who wish to override the MAK RTI's shared memory connections should override these functions.

Reimplemented from DtConnectionMgr.

References createSharedMemConn(), DtMAX_SHMEMCONN_TRIES, DtSM_WAIT_FOR_SHMMGR, DtConnectionMgr::myBestEffortConn, DtConnectionMgr::myConnectionId, DtConnectionMgr::myInternalTransportType, myIsQueueManager, DtConnectionMgr::myParams, DtConnectionMgr::myPrimaryReliableConn, mySharedMemName, DtAssistantPopupHelper::popupAssistantMessage(), DtRIDParameters::responseInterval, sharedMemConn(), DtRtiConnection::socket(), startSharedMemMgr(), and DtRIDParameters::useRtiExec.

void DtSmConnectionMgr::initQMgr	(	DtU32	numBuckets,
		DtU32	payloadSize,
		bool	reliable,
		bool	forceMgrSubscribe
	)		`[virtual]`

This method is called by the queue manager to setup the queue.

It must be called ONLY by the queue manager and must be called before calling the init() method to ensure proper initialization of the queue manager.

References DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtSMQ_SKIP_MINE, myForceSubscribe, myIsQueueManager, myNumBuckets, myPayloadSize, myQueueReliable, myReadMask, and DtConnectionMgr::setMetadataControl().

Referenced by createQMgr().

void DtSmConnectionMgr::listenToMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)		`[virtual]`

Add/Drop multicast groups from the best effort connection.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtMulticastEntry::count, DtConnectionMgr::create(), DtMcastConfigureMsgKind, DtMcastListen, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myMulticastGroups, DtConnectionMgr::sendAndDelete(), and DtMcastConfigureMsg::set().

bool DtSmConnectionMgr::processConnection	(	DtRtiConnection *	conn,
		MAKRti::DtTransportType	trans
	)		`[virtual]`

Receiving.

Read from the given connection and process the message (if received) Return boolean: message was received? (i.e. could be more input).

Reimplemented from DtConnectionMgr.

References DtNET_READ_NO_PACKETS, DtNET_READ_SUCCESS, DtConnectionMgr::handleMsg(), myLastDestAddr, myLastTransportType, DtRtiConnection::netRead(), and DtRtiMsg::setTransportType().

Referenced by processConnections().

bool DtSmConnectionMgr::processConnections ( ) [virtual]

Override of base class method.

Shared memory only has one connection to worry about, not multiple. Return true if there is more backlogged data to send, false if done.

Reimplemented from DtConnectionMgr.

References DtSmRtiConnection::flush(), DtConnectionMgr::myInternalTransportType, DtConnectionMgr::params(), processConnection(), repairFederationConnection(), and sharedMemConn().

int DtSmConnectionMgr::readFileDescriptor ( RTI::TransportType transport ) [virtual]

Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.

Returns -1 if no such file descriptor.

Reimplemented from DtConnectionMgr.

bool DtSmConnectionMgr::repairFederationConnection ( ) [virtual]

Attempt to re-establish a broken connection to the federation Returns true if successful.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::create(), createSharedMemConn(), DtSmEnrollmentMsgKind, DtSmRegister, DtSmUnregister, federateReconnectPause, DtConnectionMgr::myBestEffortConn, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myFedExHandle, DtConnectionMgr::myFedExName, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myPrimaryReliableConn, mySharedMemConn, DtConnectionMgr::params(), rtiExecReconnectPause, DtConnectionMgr::sendAndDelete(), DtSmEnrollmentMsg::set(), DtRtiConnection::setFederateHandle(), DtRtiConnection::setFedExHandle(), DtRtiConnection::setFedExName(), sharedMemConn(), and useRtiExec.

Referenced by processConnections().

int DtSmConnectionMgr::send	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)		`[virtual]`

Sending.

Send a message Returns the size of the data sent.

Reimplemented from DtConnectionMgr.

References DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtRtiMsg::fedExHandle(), DtConnectionMgr::isMetadataEnabled(), DtSmRtiConnection::isReliable(), DtConnectionMgr::logicalTimeFactory(), DtRtiMsg::print(), DtSmRtiConnection::send(), DtRtiMtdTransportType::set(), DtRtiMtdMcastAddr::set(), and sharedMemConn().

void DtSmConnectionMgr::setMsgFactory ( DtRtiMsgFactory * fact ) [virtual]

Get/Set the message factory.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::myMsgFactory, DtRtiConnection::setMsgFactory(), and sharedMemConn().

void DtSmConnectionMgr::setNetConnMgr ( DtRtiShmQNetMgr * smNetConnMgr ) [virtual]

Shared memory queue manager will allow messages to be exchanged between the shared memory connection manager and the network I/O connection manager.

References mySharedMemNetMgr.

Referenced by createQMgr().

bool DtSmConnectionMgr::setupSelectParams ( DtSelectParam * params ) [virtual]

adds Read File descriptors to a DtSelectParams

Reimplemented from DtConnectionMgr.

DtSmRtiConnection * DtSmConnectionMgr::sharedMemConn ( ) const [virtual]

Returns the connection created by createSharedMemConn().

References mySharedMemConn.

Referenced by connectFederation(), createSharedMemConn(), disconnectFederation(), flush(), getMessage(), getMessageWithNetInfo(), initConnections(), processConnections(), repairFederationConnection(), send(), setMsgFactory(), sm_shutdown(), subscriberCount(), and wait().

bool DtSmConnectionMgr::sm_shutdown ( bool ruthless = false ) [virtual]

Attempts to shutdown shared memory queue.

References myIsQueueManager, sharedMemConn(), and DtSmRtiConnection::sm_shutdown().

void DtSmConnectionMgr::startSharedMemMgr ( ) [protected, virtual]

Launch detached process to create the shared memory pool, subscribable message queue, and shared memory manager.

Will fork new child process, but child will never return control to parent. If a shared memory mgr process is already running the forked process will simply exit, but will not signal the parent.

References DtCreateProcess__rti__(), DtProcFullyDetached__rti__, DtRtiSearchPathList(), DtSHMQMGR_EXEC, DtRIDParameters::getFullPathToRidFile(), and DtConnectionMgr::params().

Referenced by initConnections().

int DtSmConnectionMgr::subscriberCount ( ) const [virtual]

Return a count of the number of subscribers currently attached to the shared memory queue.

References sharedMemConn(), and DtSmRtiConnection::subscriberCount().

bool DtSmConnectionMgr::wait	(	MAKRti::DtTime	period = `0.0`,
		bool	unlockWhileWaiting = `false`
	)		`[virtual]`

Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), DtConnectionMgr::inServiceCall(), DtConnectionMgr::lockServiceCall(), DtConnectionMgr::serviceCallLocked(), sharedMemConn(), DtConnectionMgr::unlockServiceCall(), and DtSmRtiConnection::waitForMessages().

Member Data Documentation

bool DtSmConnectionMgr::myForceSubscribe [protected]

indicates shared mem queue in reliable mode

Referenced by createSharedMemConn(), and initQMgr().

bool DtSmConnectionMgr::myIsQueueManager [protected]

These members are specific to the queue manager's connection manager.

Referenced by createSharedMemConn(), initConnections(), initQMgr(), and sm_shutdown().

MAKRti::DtInetAddr DtSmConnectionMgr::myLastDestAddr [protected]

controls what type of messages are read/skipped

This member is part of an ugly hack to get the destination address from the next message in the shared memory queue so the network I/O manager within the shared memory queue manager knows where to send messages retrieved from shared memory.

Referenced by getLastDestAddr(), and processConnection().

MAKRti::DtTransportType DtSmConnectionMgr::myLastTransportType [protected]

Referenced by getLastTransportType(), and processConnection().

DtU32 DtSmConnectionMgr::myNumBuckets [protected]

indicates this is the queue manager

Referenced by createSharedMemConn(), and initQMgr().

DtU32 DtSmConnectionMgr::myPayloadSize [protected]

number of message slots in shared memory queue

Referenced by createSharedMemConn(), and initQMgr().

bool DtSmConnectionMgr::myQueueReliable [protected]

number of bytes available in each message slot

Referenced by createSharedMemConn(), and initQMgr().
