DtRtiMetadata is added to some RTI messages depending on the configuration of the RTI. More...

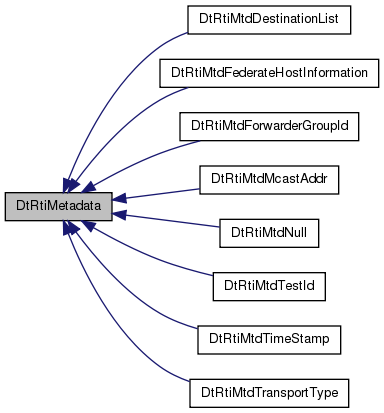

Inheritance diagram for DtRtiMetadata:

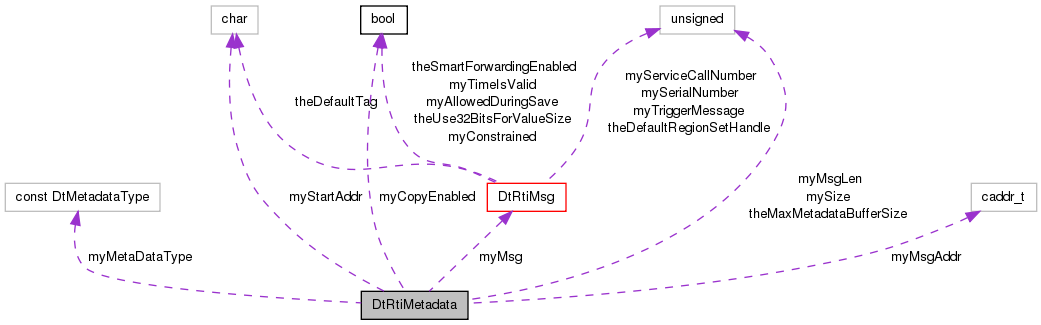

Collaboration diagram for DtRtiMetadata:

Public Member Functions
	DtRtiMetadata (caddr_t msg, DtMetadataType type)
	Constructor.
	DtRtiMetadata (DtRtiMsg *msg, DtMetadataType type)
virtual	~DtRtiMetadata ()
	Destructor.
virtual bool	locate (void **mdVal, unsigned int &size) const
	Traverse metadata headers of attached message to find this instance's metadata type.
virtual bool	nullify ()
	Find specified type and change type field in header to DtMetadataTypeNull but don't remove from message buffer.
virtual unsigned int	remove ()
	Find specified type and remove from buffer, relocating metadata that remains and adjusting reported size of buffer.
virtual unsigned int	purge ()
	Traverse metadata headers to find all nullified blocks and remove them from buffer, relocating metadata that remains and adjusting reported size of buffer.
virtual bool	isCopyEnabled ()
	Set/Get the 'copy' bit in the specified metadata header.
virtual void	setCopyEnable (bool copyEnable)
virtual bool	setLengthAsValue (unsigned int value)
	Set an integer value to be transmitted without using an actual payload.
virtual bool	getLengthAsValue (unsigned int &value) const
	Get an integer payload value from the payload length.
Static Public Member Functions
static unsigned int	metadataMaxSize ()
	Report maximum size of metadata buffer.
Protected Types
typedef std::list < DtMetadataNetHeader * >	DtMetadataHeaderList
Protected Member Functions
virtual DtMetadataNetHeader *	getFirstHeader () const
virtual DtMetadataNetHeader *	getHeaderByType () const
virtual DtU16	compactMetadata (char *dst, DtMetadataHeaderList &retentionPool, bool newFinal)
Static Protected Member Functions
static bool	locate (char const msg, DtMetadataType type, void *mdVal, unsigned int &size)
	Traverse metadata headers of the given message to find the given metadata type.
static bool	typeIsPresent (char const *msg, DtMetadataType type)
	Determines whether metadata type is present in msg.
static DtMetadataNetHeader *	getFirstHeader (char const *msg)
static DtMetadataNetHeader *	getNextHeader (DtMetadataNetHeader *hdr)
static DtMetadataNetHeader *	getHeaderByType (char const *msg, DtMetadataType type)
static void	transmogrifyHeader (DtMetadataNetHeader &src, DtMetadataNetHeader &dest)
	Transform from network to host format.
static void	reverseTransmogrifyHeader (DtMetadataNetHeader &src, DtMetadataNetHeader &dest)
	Transform from host format to network format.
static unsigned int	metadataSize (DtMetadataNetHeader &hdr)
static unsigned int	metadataPayloadSize (DtMetadataNetHeader &hdr)
Protected Attributes
DtRtiMsg *	myMsg
caddr_t	myMsgAddr
unsigned int	myMsgLen
char *	myStartAddr
unsigned int	mySize
	address returned by DtRtiMsg::addMetadata()
bool	myCopyEnabled
const DtMetadataType	myMetaDataType
Static Protected Attributes
static unsigned int	theMaxMetadataBufferSize = 2048
Private Member Functions
	DtRtiMetadata (const DtRtiMetadata &)
	Copy CTOR Not Implemented -- Copy Not Allowed!
DtRtiMetadata &	operator= (const DtRtiMetadata &)
	Assignment Operator Not Implemented -- Assignment Not Allowed!

Detailed Description

DtRtiMetadata is added to some RTI messages depending on the configuration of the RTI.

Member Typedef Documentation

typedef std::list< DtMetadataNetHeader* > DtRtiMetadata::DtMetadataHeaderList [protected]

Constructor & Destructor Documentation

DtRtiMetadata::DtRtiMetadata	(	caddr_t	msg,
		DtMetadataType	type
	)

Constructor.

References myMsgAddr, and myMsgLen.

DtRtiMetadata::DtRtiMetadata	(	DtRtiMsg *	msg,
		DtMetadataType	type
	)

References myMsgAddr, and myMsgLen.

DtRtiMetadata::~DtRtiMetadata ( ) [virtual]

Destructor.

References myMsgAddr, and NULL.

DtRtiMetadata::DtRtiMetadata ( const DtRtiMetadata & ) [private]

Copy CTOR Not Implemented -- Copy Not Allowed!

Member Function Documentation

DtU16 DtRtiMetadata::compactMetadata	(	char *	dst,
		DtMetadataHeaderList &	retentionPool,
		bool	newFinal
	)		`[protected, virtual]`

Referenced by purge(), and remove().

DtMetadataNetHeader * DtRtiMetadata::getFirstHeader ( ) const [protected, virtual]

References myMsgAddr.

Referenced by getHeaderByType(), purge(), and remove().

DtMetadataNetHeader * DtRtiMetadata::getFirstHeader ( char const * msg ) [static, protected]

References DtNetMsgHeader::metadataInMessage(), and DtNetMsgHeader::totalSize.

DtMetadataNetHeader * DtRtiMetadata::getHeaderByType ( ) const [protected, virtual]

References myMetaDataType, and myMsgAddr.

Referenced by isCopyEnabled(), locate(), nullify(), DtRtiMtdNull::set(), DtRtiMtdMcastAddr::set(), DtRtiMtdTimeStamp::set(), DtRtiMtdTestId::set(), DtRtiMtdForwarderGroupId::set(), DtRtiMtdDestinationList::set(), DtRtiMtdFederateHostInformation::set(), setCopyEnable(), setLengthAsValue(), and typeIsPresent().

DtMetadataNetHeader * DtRtiMetadata::getHeaderByType	(	char const *	msg,
		DtMetadataType	type
	)		`[static, protected]`

References DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, getFirstHeader(), getNextHeader(), DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::more, transmogrifyHeader(), and DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::type.

bool DtRtiMetadata::getLengthAsValue ( unsigned int & value ) const [virtual]

Get an integer payload value from the payload length.

Return boolean: metadata was found and value retrieved?

References locate().

Referenced by DtRtiMtdTransportType::get().

DtMetadataNetHeader * DtRtiMetadata::getNextHeader ( DtMetadataNetHeader * hdr ) [static, protected]

References metadataSize(), and transmogrifyHeader().

Referenced by getHeaderByType(), purge(), and remove().

bool DtRtiMetadata::isCopyEnabled ( ) [virtual]

Set/Get the 'copy' bit in the specified metadata header.

References DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::copy, DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, getHeaderByType(), and transmogrifyHeader().

bool DtRtiMetadata::locate	(	void **	mdVal,
		unsigned int &	size
	)		const `[virtual]`

Traverse metadata headers of attached message to find this instance's metadata type.

The address and size of the payload are returned in the supplied parameters. Returns boolean: type was found?

References myMetaDataType, and myMsgAddr.

Referenced by DtRtiMtdNull::get(), DtRtiMtdMcastAddr::get(), DtRtiMtdTimeStamp::get(), DtRtiMtdTestId::get(), DtRtiMtdDestinationList::get(), DtRtiMtdForwarderGroupId::get(), DtRtiMtdFederateHostInformation::get(), getLengthAsValue(), DtRtiMtdMcastAddr::set(), DtRtiMtdTimeStamp::set(), DtRtiMtdTestId::set(), DtRtiMtdForwarderGroupId::set(), DtRtiMtdDestinationList::set(), and DtRtiMtdFederateHostInformation::set().

bool DtRtiMetadata::locate	(	char const *	msg,
		DtMetadataType	type,
		void **	mdVal,
		unsigned int &	size
	)		`[static, protected]`

Traverse metadata headers of the given message to find the given metadata type.

The address and size of the payload are returned in the supplied parameters.

unsigned int DtRtiMetadata::metadataMaxSize ( ) [static]

Report maximum size of metadata buffer.

References theMaxMetadataBufferSize.

Referenced by DtRtiMsg::initDtRtiMsg().

unsigned int DtRtiMetadata::metadataPayloadSize ( DtMetadataNetHeader & hdr ) [static, protected]

References DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::hasPayload, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::len, DtMetadataHeader_s::lenOrVal, and DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::payloadLen.

Referenced by compactMetadata().

unsigned int DtRtiMetadata::metadataSize ( DtMetadataNetHeader & hdr ) [static, protected]

References DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::alignPad, DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::hasPayload, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::len, DtMetadataHeader_s::lenOrVal, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::pad, and DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::payloadLen.

Referenced by getNextHeader(), purge(), and remove().

bool DtRtiMetadata::nullify ( ) [virtual]

Find specified type and change type field in header to DtMetadataTypeNull but don't remove from message buffer.

Returns true if specified type found, false otherwise.

References DtMetadataHeader_s::ctl, DtMetadataTypeNull, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, getHeaderByType(), myMsgAddr, reverseTransmogrifyHeader(), transmogrifyHeader(), and DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::type.

DtRtiMetadata& DtRtiMetadata::operator= ( const DtRtiMetadata & ) [private]

Assignment Operator Not Implemented -- Assignment Not Allowed!

unsigned int DtRtiMetadata::purge ( ) [virtual]

Traverse metadata headers to find all nullified blocks and remove them from buffer, relocating metadata that remains and adjusting reported size of buffer.

Returns number of metadata bytes purged.

References compactMetadata(), DtMetadataHeader_s::ctl, DtMetadataTypeNull, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, getFirstHeader(), getNextHeader(), metadataSize(), DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::more, myMsgAddr, myMsgLen, transmogrifyHeader(), and DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::type.

unsigned int DtRtiMetadata::remove ( ) [virtual]

Find specified type and remove from buffer, relocating metadata that remains and adjusting reported size of buffer.

Returns number of metadata bytes removed, including changes in padding.

References compactMetadata(), DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, getFirstHeader(), getNextHeader(), metadataSize(), DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::more, myMetaDataType, myMsg, myMsgAddr, myMsgLen, DtRtiMsg::removeMetadata(), transmogrifyHeader(), and DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::type.

void DtRtiMetadata::reverseTransmogrifyHeader	(	DtMetadataNetHeader &	src,
		DtMetadataNetHeader &	dest
	)		`[static, protected]`

Transform from host format to network format.

Contents of src parameter is in host format and result is assigned to contents of dest parameter

References DtMetadataHeader_s::DtMetadataHeaderCtl_u::allFields, DtMetadataHeader_s::ctl, DtMetadataHeader_s::lenOrVal, and DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::val.

Referenced by compactMetadata(), nullify(), DtRtiMtdNull::set(), DtRtiMtdMcastAddr::set(), DtRtiMtdTimeStamp::set(), DtRtiMtdTestId::set(), DtRtiMtdDestinationList::set(), DtRtiMtdForwarderGroupId::set(), DtRtiMtdFederateHostInformation::set(), setCopyEnable(), and setLengthAsValue().

void DtRtiMetadata::setCopyEnable ( bool copyEnable ) [virtual]

References DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::copy, DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, getHeaderByType(), NULL, reverseTransmogrifyHeader(), and transmogrifyHeader().

bool DtRtiMetadata::setLengthAsValue ( unsigned int value ) [virtual]

Set an integer value to be transmitted without using an actual payload.

The payload length/padding data area is used (DtU16 size). This metadata value can be modified if it already exists in the message; however, it can only be added if the metadata is attached to a message. A message can allocate the space for the metadata whereas a buffer cannot. Return boolean: value was set successfully? /warning Not to be used if metadata contains actual payload data.
