The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent. More...

Inheritance diagram for DtForwarderPort:

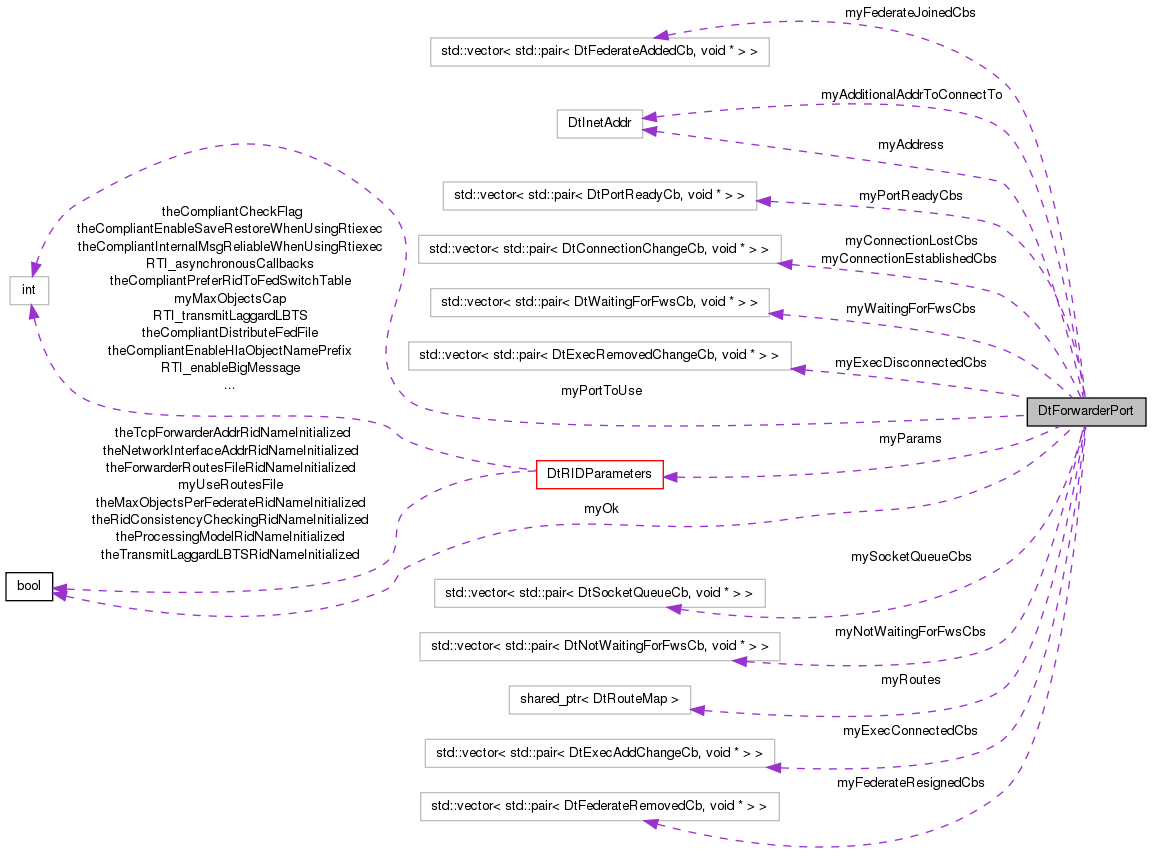

Collaboration diagram for DtForwarderPort:

List of all members.

Classes
struct	DtForwarderMsg
Public Types
typedef DtForwarderPort (	DtForwarderPortCreatorFcn )(const DtRIDParameters *, const DtBoost::shared_ptr< DtRouteMap >, const MAKRti::DtInetAddr &, int, const MAKRti::DtInetAddr &)
	DtForwarderPort creator signature.
typedef DtRouteMap::DtAddressPortList	DtAddressPortList
typedef DtRouteMap::DtAddressList	DtAddressList
typedef DtRouteMap::DtInterfaceAddrSet	DtInterfaceAddrSet
typedef std::vector < DtTcpMsgSocket * >	DtSocketList
typedef std::set < DtTcpMsgSocket * >	DtSocketSet
typedef std::pair < DtInetAddrAndPort, DtForwarderMsg >	DtAddressMsgPair
typedef std::pair < DtTcpMsgSocket *, DtForwarderMsg >	DtSockMsgPair
typedef std::map < DtInetAddrAndPort, DtTcpMsgSocket * >	DtAddrToConnMap
typedef std::map < DtInetAddrAndPort, MAKRti::DtString >	DtConnAndNameMap
typedef int(*	DtConnectionChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtFederateAddedCb )(const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId, void *)
typedef void(*	DtFederateRemovedCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtPortReadyCb )(unsigned long, void *)
typedef int(*	DtExecAddChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, bool, void *)
typedef int(*	DtExecRemovedChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef int(*	DtSocketQueueCb )(unsigned int, int, void *)
typedef void(*	DtWaitingForFwsCb )(const DtConnAndNameMap &, const DtConnAndNameMap &, void *)
typedef void(*	DtNotWaitingForFwsCb )(void *)
typedef std::vector< std::pair < DtConnectionChangeCb, void * > >	DtCallbackList
typedef std::vector< std::pair < DtFederateAddedCb, void * > >	DtFederateAddedCallbackList
typedef std::vector< std::pair < DtFederateRemovedCb, void * > >	DtFederateRemovedCallbackList
typedef std::vector< std::pair < DtPortReadyCb, void * > >	DtPortReadyCallbackList
typedef std::vector< std::pair < DtExecAddChangeCb, void * > >	DtExecAddedCallbackList
typedef std::vector< std::pair < DtExecRemovedChangeCb, void * > >	DtExecRemovedCallbackList
typedef std::vector< std::pair < DtSocketQueueCb, void * > >	DtSocketQueueCallbackList
typedef std::vector< std::pair < DtWaitingForFwsCb, void * > >	DtWaitingForFwsCallbackList
typedef std::vector< std::pair < DtNotWaitingForFwsCb, void * > >	DtNotWaitingForFwsCallbackList
Public Member Functions
virtual	~DtForwarderPort ()
virtual bool	isOk () const
	Is the Port still alive?
virtual bool	isReady () const =0
	Is the Port fully usable and available?
virtual DtAddressMsgPair	getNextMsg ()=0
	Get the next message to forward and the source connection.
virtual void	sendByTransport (const DtForwarderMsg &msg) const =0
	Check transport metadata and send message to appropriate socket(s)
virtual void	sendToAllReliable (const DtForwarderMsg &msg) const =0
	Send a message to all available destinations.
virtual void	sendToListReliable (const DtForwarderMsg &msg, const DtRouteMap::DtAddressPortList &destinations) const =0
	Send a message to the specified list of destinations excluding the list of filtered destinations.
virtual bool	flush ()
	Flush any unsent/buffered packets; return true if flush sent data.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)=0
	Add this port's current select() notification set to the passed set.
virtual void	updateRoutes ()=0
	Handle changes to the Routing map.
virtual int	checkConnectionStatus (const DtInetAddrAndPort *target=0)=0
	Test for lost connections - returns true if targeted connection is active or, if no target specified, returns false if at least one drop detected.
virtual void	clearNeededConnections ()=0
	Clear the list of connections that this forwarder needs to establish.
virtual unsigned int	abortPendingConnections ()=0
	Abort any embryonic connections.
virtual unsigned int	pendingConnectionsAborted ()=0
	Return count of aborted connections.
virtual DtAddressPortList	connections () const =0
	Get the list of all current connections to this port.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)=0
	Listen / drop multicast groups (LAN-port-only)
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)=0
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)=0
	Update locally connected federate connection ID (LAN-port-only)
virtual void	addConnectionEstablishedCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister a callback for new connections.
virtual void	removeConnectionEstablishedCb (DtConnectionChangeCb callback, void *usr)
virtual void	addConnectionLostCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister a callback for dropped connections.
virtual void	removeConnectionLostCb (DtConnectionChangeCb callback, void *usr)
virtual void	addForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
virtual void	removeForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
virtual void	addFederateJoinedCb (DtFederateAddedCb callback, void *usr)
virtual void	removeFederateJoinedCb (DtFederateAddedCb callback, void *usr)
virtual void	addFederateResignedCb (DtFederateRemovedCb callback, void *usr)
virtual void	removeFederateResignedCb (DtFederateRemovedCb callback, void *usr)
virtual void	addSocketQueueCb (DtSocketQueueCb callback, void *usr)
	Register/Unregister a callback for socket queuing.
virtual void	removeSocketQueueCb (DtSocketQueueCb callback, void *usr)
virtual void	addWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
	Register/Unregister a callback for entrance to the "waiting for forwarder connections" state.
virtual void	removeWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
virtual void	addNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
	Register/Unregister a callback for exit from the "waiting for forwarder connections" state.
virtual void	removeNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
virtual void	addExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
virtual void	removeExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
virtual void	addExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
virtual void	removeExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
virtual int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant)
virtual int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
virtual int	socketQueueStatus (unsigned int connId, int connQueueStatus)
virtual void	forwarderNodeIsReady (unsigned long id)
virtual void	waitingForForwarderConnections (const DtConnAndNameMap &allNeededFws, const DtConnAndNameMap &stillNeededFws)
	Specifies that this port is waiting for other forwarder connections.
virtual void	notWaitingForForwarderConnections ()
virtual void	setForwarderId (unsigned long id)
	Set forwarder ID.
Protected Member Functions
	DtForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, MAKRti::DtInetAddr host, int forwarderPort, MAKRti::DtInetAddr addnlConnection)
virtual int	connectionEstablished (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
	Call the appropriate callbacks for New or Lost connections.
virtual int	connectionLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
virtual void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr)
virtual void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion)
Static Protected Member Functions
static int	connectionEstablished (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static int	connectionLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion, void *usr)
static void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, void *usr)
static int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant, void *usr)
static int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static int	socketQueueStatus (unsigned int connId, int connQueueStatus, void *usr)
static void	forwarderNodeIsReady (unsigned long id, void *usr)
Protected Attributes
const DtRIDParameters *	myParams
DtBoost::shared_ptr< DtRouteMap >	myRoutes
const MAKRti::DtInetAddr	myAddress
bool	myOk
int	myPortToUse
MAKRti::DtInetAddr	myAdditionalAddrToConnectTo
DtCallbackList	myConnectionEstablishedCbs
DtCallbackList	myConnectionLostCbs
DtFederateAddedCallbackList	myFederateJoinedCbs
DtFederateRemovedCallbackList	myFederateResignedCbs
DtPortReadyCallbackList	myPortReadyCbs
DtExecAddedCallbackList	myExecConnectedCbs
DtExecRemovedCallbackList	myExecDisconnectedCbs
DtSocketQueueCallbackList	mySocketQueueCbs
DtWaitingForFwsCallbackList	myWaitingForFwsCbs
DtNotWaitingForFwsCallbackList	myNotWaitingForFwsCbs

Detailed Description

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent.

Member Typedef Documentation

typedef DtRouteMap::DtAddressList DtForwarderPort::DtAddressList

typedef std::pair< DtInetAddrAndPort, DtForwarderMsg > DtForwarderPort::DtAddressMsgPair

typedef DtRouteMap::DtAddressPortList DtForwarderPort::DtAddressPortList

typedef std::map< DtInetAddrAndPort, DtTcpMsgSocket* > DtForwarderPort::DtAddrToConnMap

typedef std::vector< std::pair< DtConnectionChangeCb, void* > > DtForwarderPort::DtCallbackList

typedef std::map<DtInetAddrAndPort, MAKRti::DtString> DtForwarderPort::DtConnAndNameMap

typedef int(* DtForwarderPort::DtConnectionChangeCb)(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)

typedef int(* DtForwarderPort::DtExecAddChangeCb)(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, bool, void *)

typedef std::vector< std::pair< DtExecAddChangeCb, void* > > DtForwarderPort::DtExecAddedCallbackList

typedef std::vector< std::pair< DtExecRemovedChangeCb, void* > > DtForwarderPort::DtExecRemovedCallbackList

typedef int(* DtForwarderPort::DtExecRemovedChangeCb)(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)

typedef std::vector< std::pair< DtFederateAddedCb, void* > > DtForwarderPort::DtFederateAddedCallbackList

typedef void(* DtForwarderPort::DtFederateAddedCb)(const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId, void *)

typedef std::vector< std::pair< DtFederateRemovedCb, void* > > DtForwarderPort::DtFederateRemovedCallbackList

typedef void(* DtForwarderPort::DtFederateRemovedCb)(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)

typedef DtForwarderPort*(* DtForwarderPort::DtForwarderPortCreatorFcn)(const DtRIDParameters *, const DtBoost::shared_ptr< DtRouteMap >, const MAKRti::DtInetAddr &, int, const MAKRti::DtInetAddr &)

DtForwarderPort creator signature.

typedef DtRouteMap::DtInterfaceAddrSet DtForwarderPort::DtInterfaceAddrSet

typedef std::vector< std::pair< DtNotWaitingForFwsCb, void* > > DtForwarderPort::DtNotWaitingForFwsCallbackList

typedef void(* DtForwarderPort::DtNotWaitingForFwsCb)(void *)

typedef std::vector< std::pair< DtPortReadyCb, void*> > DtForwarderPort::DtPortReadyCallbackList

typedef void(* DtForwarderPort::DtPortReadyCb)(unsigned long, void *)

typedef std::vector<DtTcpMsgSocket*> DtForwarderPort::DtSocketList

typedef std::vector< std::pair< DtSocketQueueCb, void* > > DtForwarderPort::DtSocketQueueCallbackList

typedef int(* DtForwarderPort::DtSocketQueueCb)(unsigned int, int, void *)

typedef std::set<DtTcpMsgSocket*> DtForwarderPort::DtSocketSet

typedef std::pair<DtTcpMsgSocket*, DtForwarderMsg> DtForwarderPort::DtSockMsgPair

typedef std::vector< std::pair< DtWaitingForFwsCb, void* > > DtForwarderPort::DtWaitingForFwsCallbackList

typedef void(* DtForwarderPort::DtWaitingForFwsCb)(const DtConnAndNameMap &, const DtConnAndNameMap &, void *)

Constructor & Destructor Documentation

DtForwarderPort::DtForwarderPort	(	const DtRIDParameters *	params,
		DtBoost::shared_ptr< DtRouteMap >	routes,
		MAKRti::DtInetAddr	host,
		int	forwarderPort,
		MAKRti::DtInetAddr	addnlConnection
	)		`[inline, protected]`

virtual DtForwarderPort::~DtForwarderPort ( ) [inline, virtual]

Member Function Documentation

virtual unsigned int DtForwarderPort::abortPendingConnections ( ) [pure virtual]

Abort any embryonic connections.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::abortPendingConnections(), and DtForwarderNode::continueWithoutUnconnectedFws().

void DtForwarderPort::addConnectionEstablishedCb	(	DtConnectionChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

Register/Unregister a callback for new connections.

References myConnectionEstablishedCbs.

Referenced by DtForwarderFaultProcessor::DtForwarderFaultProcessor(), and DtForwarderNode::DtForwarderNode().

void DtForwarderPort::addConnectionLostCb	(	DtConnectionChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

Register/Unregister a callback for dropped connections.

References myConnectionLostCbs.

Referenced by DtForwarderFaultProcessor::DtForwarderFaultProcessor(), and DtForwarderNode::DtForwarderNode().

void DtForwarderPort::addExecConnectionEstablishedCb	(	DtExecAddChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myExecConnectedCbs.

void DtForwarderPort::addExecDisconnectedCb	(	DtExecRemovedChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myExecDisconnectedCbs.

void DtForwarderPort::addFederateJoinedCb	(	DtFederateAddedCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myFederateJoinedCbs.

void DtForwarderPort::addFederateResignedCb	(	DtFederateRemovedCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myFederateResignedCbs.

void DtForwarderPort::addForwarderPortReadyCb	(	DtPortReadyCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myPortReadyCbs.

Referenced by DtForwarderNode::DtForwarderNode().

void DtForwarderPort::addNotWaitingForForwarderConnectionsCb	(	DtNotWaitingForFwsCb	callback,
		void *	usr
	)		`[inline, virtual]`

Register/Unregister a callback for exit from the "waiting for forwarder connections" state.

References myNotWaitingForFwsCbs.

void DtForwarderPort::addSocketQueueCb	(	DtSocketQueueCb	callback,
		void *	usr
	)		`[inline, virtual]`

Register/Unregister a callback for socket queuing.

References mySocketQueueCbs.

void DtForwarderPort::addWaitingForForwarderConnectionsCb	(	DtWaitingForFwsCb	callback,
		void *	usr
	)		`[inline, virtual]`

Register/Unregister a callback for entrance to the "waiting for forwarder connections" state.

References myWaitingForFwsCbs.

virtual int DtForwarderPort::checkConnectionStatus ( const DtInetAddrAndPort * target = 0 ) [pure virtual]

Test for lost connections - returns true if targeted connection is active or, if no target specified, returns false if at least one drop detected.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::abortPendingConnections(), DtForwarderNode::nextForwarderOnRoute(), and DtForwarderNode::refreshConnections().

virtual void DtForwarderPort::clearNeededConnections ( ) [pure virtual]

Clear the list of connections that this forwarder needs to establish.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::continueWithoutUnconnectedFws().

int DtForwarderPort::connectionEstablished	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr
	)		`[inline, protected, virtual]`

Call the appropriate callbacks for New or Lost connections.

References myConnectionEstablishedCbs.

Referenced by DtInOutForwarderPort::connectionCompleted(), and DtLanForwarderPort::DtLanForwarderPort().

int DtForwarderPort::connectionEstablished	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr,
		void *	usr
	)		`[inline, static, protected]`

int DtForwarderPort::connectionLost	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr
	)		`[inline, protected, virtual]`

References myConnectionLostCbs.

Referenced by DtInOutForwarderPort::checkConnectionStatus(), DtLanForwarderPort::DtLanForwarderPort(), and DtInOutForwarderPort::socketRemovalCb().

int DtForwarderPort::connectionLost	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr,
		void *	usr
	)		`[inline, static, protected]`

virtual DtAddressPortList DtForwarderPort::connections ( ) const [pure virtual]

Get the list of all current connections to this port.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::dropMulticastGroup ( const MAKRti::DtInetAddr & mcastAddr ) [pure virtual]

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::lanPortDropMulticastGroup().

int DtForwarderPort::execConnected	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr,
		const MAKRti::DtString &	hostName,
		bool	fullyCompliant
	)		`[inline, virtual]`

References myExecConnectedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort(), and DtLanForwarderPort::~DtLanForwarderPort().

int DtForwarderPort::execConnected	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr,
		const MAKRti::DtString &	hostName,
		bool	fullyCompliant,
		void *	usr
	)		`[inline, static, protected]`

int DtForwarderPort::execDisconnected	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr
	)		`[inline, virtual]`

References myExecDisconnectedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort(), and DtLanForwarderPort::~DtLanForwarderPort().

int DtForwarderPort::execDisconnected	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr,
		void *	usr
	)		`[inline, static, protected]`

void DtForwarderPort::federateJoined	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	connType,
		const MAKRti::DtString &	federationName,
		unsigned int	connID,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	addr,
		const MAKRti::DtString &	hostName,
		unsigned int	processId,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	commandArgs,
		DtHlaVersionId	hlaVersion
	)		`[inline, protected, virtual]`

References myFederateJoinedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtForwarderPort::federateJoined	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	connType,
		const MAKRti::DtString &	federationName,
		unsigned int	connID,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	addr,
		const MAKRti::DtString &	hostName,
		unsigned int	processId,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	commandArgs,
		DtHlaVersionId	hlaVersion,
		void *	usr
	)		`[inline, static, protected]`

void DtForwarderPort::federateResigned	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	connType,
		unsigned int	connID,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	addr
	)		`[inline, protected, virtual]`

References myFederateResignedCbs.

Referenced by DtLanForwarderPort::DtLanForwarderPort().

void DtForwarderPort::federateResigned	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	connType,
		unsigned int	connID,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	addr,
		void *	usr
	)		`[inline, static, protected]`

bool DtForwarderPort::flush ( ) [inline, virtual]

Flush any unsent/buffered packets; return true if flush sent data.

Reimplemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::tick().

void DtForwarderPort::forwarderNodeIsReady ( unsigned long id ) [inline, virtual]

References myPortReadyCbs.

Referenced by DtInOutForwarderPort::updateRoutes().

void DtForwarderPort::forwarderNodeIsReady	(	unsigned long	id,
		void *	usr
	)		`[inline, static, protected]`

virtual DtAddressMsgPair DtForwarderPort::getNextMsg ( ) [pure virtual]

Get the next message to forward and the source connection.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::tick().

virtual bool DtForwarderPort::isOk ( ) const [inline, virtual]

Is the Port still alive?

Referenced by DtForwarderNode::DtForwarderNode().

virtual bool DtForwarderPort::isReady ( ) const [pure virtual]

Is the Port fully usable and available?

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::abortPendingConnections(), and DtForwarderNode::refreshConnections().

virtual void DtForwarderPort::listenToMulticastGroup ( const MAKRti::DtInetAddr & mcastAddr ) [pure virtual]

Listen / drop multicast groups (LAN-port-only)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::lanPortListenToMulticastGroup().

void DtForwarderPort::notWaitingForForwarderConnections ( ) [inline, virtual]

References myNotWaitingForFwsCbs.

Referenced by DtInOutForwarderPort::updateRoutes().

virtual unsigned int DtForwarderPort::pendingConnectionsAborted ( ) [pure virtual]

Return count of aborted connections.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

void DtForwarderPort::removeConnectionEstablishedCb	(	DtConnectionChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myConnectionEstablishedCbs.

Referenced by DtForwarderFaultProcessor::~DtForwarderFaultProcessor(), and DtForwarderNode::~DtForwarderNode().

void DtForwarderPort::removeConnectionLostCb	(	DtConnectionChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myConnectionLostCbs.

Referenced by DtForwarderFaultProcessor::~DtForwarderFaultProcessor(), and DtForwarderNode::~DtForwarderNode().

void DtForwarderPort::removeExecConnectionEstablishedCb	(	DtExecAddChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myExecConnectedCbs.

void DtForwarderPort::removeExecDisconnectedCb	(	DtExecRemovedChangeCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myExecDisconnectedCbs.

void DtForwarderPort::removeFederateJoinedCb	(	DtFederateAddedCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myFederateJoinedCbs.

void DtForwarderPort::removeFederateResignedCb	(	DtFederateRemovedCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myFederateResignedCbs.

void DtForwarderPort::removeForwarderPortReadyCb	(	DtPortReadyCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myPortReadyCbs.

Referenced by DtForwarderNode::~DtForwarderNode().

void DtForwarderPort::removeNotWaitingForForwarderConnectionsCb	(	DtNotWaitingForFwsCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myNotWaitingForFwsCbs.

void DtForwarderPort::removeSocketQueueCb	(	DtSocketQueueCb	callback,
		void *	usr
	)		`[inline, virtual]`

References mySocketQueueCbs.

void DtForwarderPort::removeWaitingForForwarderConnectionsCb	(	DtWaitingForFwsCb	callback,
		void *	usr
	)		`[inline, virtual]`

References myWaitingForFwsCbs.

virtual void DtForwarderPort::selectParams ( MAKRti::DtSelectParamWithWrite & selectParams ) [pure virtual]

Add this port's current select() notification set to the passed set.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::selectParams().

virtual void DtForwarderPort::sendByTransport ( const DtForwarderMsg & msg ) const [pure virtual]

Check transport metadata and send message to appropriate socket(s)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::sendToLanPort().

virtual void DtForwarderPort::sendToAllReliable ( const DtForwarderMsg & msg ) const [pure virtual]

Send a message to all available destinations.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::sendToListReliable	(	const DtForwarderMsg &	msg,
		const DtRouteMap::DtAddressPortList &	destinations
	)		const `[pure virtual]`

Send a message to the specified list of destinations excluding the list of filtered destinations.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderFaultProcessor::newConnection(), and DtForwarderNode::sendToOutPort().

void DtForwarderPort::setForwarderId ( unsigned long id ) [inline, virtual]

Set forwarder ID.

When forwarder is configured via routes files, forwarderID is known at construction, but when configured dynamically it is determined by interactions between peer forwarders and must be set.

Reimplemented in DtLanForwarderPort.

Referenced by DtForwarderNode::inOutForwarderPortReady().

int DtForwarderPort::socketQueueStatus	(	unsigned int	connId,
		int	connQueueStatus
	)		`[inline, virtual]`

References mySocketQueueCbs.

int DtForwarderPort::socketQueueStatus	(	unsigned int	connId,
		int	connQueueStatus,
		void *	usr
	)		`[inline, static, protected]`

virtual bool DtForwarderPort::updateFederateConnectionId	(	unsigned long	orig,
		unsigned long	final
	)		`[pure virtual]`

Update locally connected federate connection ID (LAN-port-only)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::lanPortUpdateFederateConnectionId().

virtual void DtForwarderPort::updateRoutes ( ) [pure virtual]

Handle changes to the Routing map.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

Referenced by DtForwarderNode::lostInPortConnection(), DtForwarderNode::lostOutPortConnection(), DtForwarderNode::newInPortConnection(), and DtForwarderNode::refreshConnections().

void DtForwarderPort::waitingForForwarderConnections	(	const DtConnAndNameMap &	allNeededFws,
		const DtConnAndNameMap &	stillNeededFws
	)		`[inline, virtual]`
