The DtTcpMsgSocket class provides an address family independent TCP socket that handles RTI messages. More...

Inheritance diagram for DtTcpMsgSocket:

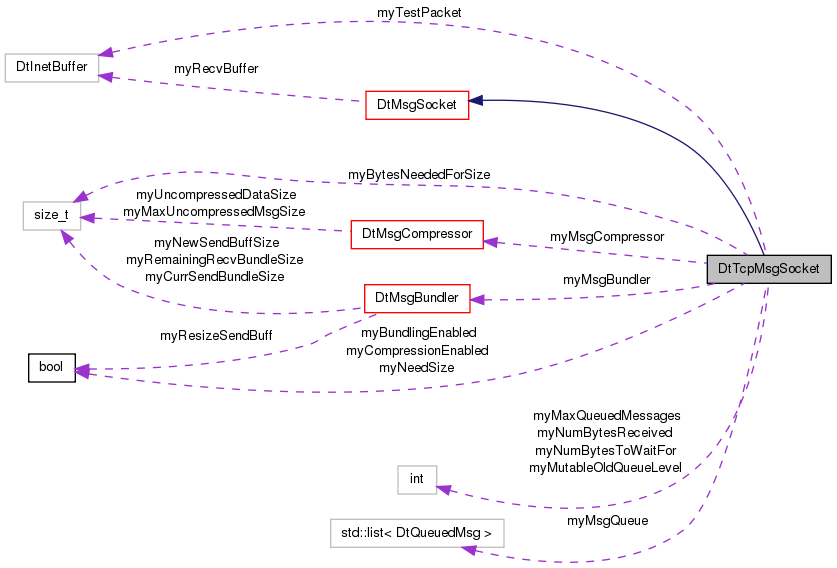

Collaboration diagram for DtTcpMsgSocket:

Public Member Functions
	DtTcpMsgSocket (DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBufferSize=20000, int maxQueuedMsgs=-1)
	Constructor.
	DtTcpMsgSocket (std::auto_ptr< DtInetTcpSocket > socket, DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize=20000, int maxQueuedMsgs=-1)
	Constructor which takes a pre-created DtInetTcpSocket pointer.
virtual	~DtTcpMsgSocket ()
	Destructor.
virtual void	openServerSocket (DtU16 localPort, DtU32 flags=DtDefaultSockOpts, DtInetDevice *hostIf=NULL, DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4)
	Opens a server socket if not already open.
virtual void	openClientSocket (const DtInetEndpoint &dest, DtU32 flags=DtDefaultSockOpts, DtU16 localPort=0, DtInetDevice *hostIf=NULL)
	Opens a client socket if not already open.
virtual int	sendMessage (caddr_t msg, size_t msgSize, bool deleteAfterSend, const DtInetAddr &destAddr=DtInetAddr::inaddrAny())
	Sends a message, queuing it up if the receiver's buffer is full.
virtual bool	flush ()
	Attempts to send any queued messages and bundled messages.
virtual int	recvMessage (caddr_t *buffptr)
	Gets the next message from the stream of incoming data.
virtual int	recvMessageWithSrc (caddr_t *buffptr, DtInetEndpoint &src)
	Gets the next message from the stream of incoming data.
virtual void	enableBundling (size_t maxBundleSize)
	Enables message bundling and sets the maximum bundle size.
virtual void	disableBundling ()
	Disables message bundling.
virtual unsigned	bundleSize () const
	Returns the bundle size, or 0 if bundling disabled.
virtual void	enableCompression (DtU8 compressionLevel)
	Enables message compression and sets the compression level.
virtual void	disableCompression ()
	Disables message compression.
virtual unsigned	compressionLevel () const
	Returns the compression level, or 0 if compression disabled.
virtual bool	testConnectionStatus ()
virtual void	setMaxQueuedMessages (int size)
	Sets the maximum number of messages that can be queued.
virtual int	maxQueuedMessages () const
	Returns the maximum number of messages that can be queued.
virtual bool	getQueueStatus (int &percentFull) const
	Gets the percentage full of the message queue.
virtual void	setTcpNoDelay (bool enable)
	Changes the setting of TCP_NODELAY.
virtual void	setNonBlocking (bool nonBlocking)
	Makes the socket non-blocking or blocking.
virtual const DtInetEndpoint &	destination () const
	Returns the destination endpoint of this socket.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
DtInetTcpSocket *	inetTcpSocket ()
	Returns a pointer to the DtInetTcpSocket.
bool	isConnected () const
	Returns true if the socket is connected.
bool	isConnectionInProgress () const
	Returns true if the socket is in the process of connecting.
Protected Member Functions
virtual int	sendData (caddr_t msg, size_t msgSize, bool deleteAfterSend)
	Sends data on the socket, queues if it cannot be sent.
virtual bool	flushQueue ()
	Attempts to send any queued messages.
virtual bool	queueMessage (caddr_t msg, size_t msgSize)
	Adds a message to the transmit queue. Returns true if successful.
virtual void	resizeTestPacket ()
	Resizes the test packet used to test the connection.
Protected Attributes
bool	myNeedSize
	Whether we still need to receive the size field for the next/current message.
int	myNumBytesToWaitFor
	The number of bytes we are waiting for to complete the message.
int	myNumBytesReceived
	The number of bytes we have so far received for the current message.
DtInetBuffer	myTestPacket
	The buffer to store test packets in.
std::list< DtQueuedMsg >	myMsgQueue
	The queue of unsent messages.
DtMsgBundler	myMsgBundler
	Bundler for outgoing messages.
bool	myBundlingEnabled
	Whether message bundling is enabled.
DtMsgCompressor	myMsgCompressor
	Message compressor and uncompressor.
bool	myCompressionEnabled
	Whether message compression is enabled.
int	myMaxQueuedMessages
	The maximum size the send queue is allowed to reach.
int	myMutableOldQueueLevel
	The queue level the last time the user was notified of queue state.
size_t	myBytesNeededForSize
	The number of bytes needed to read the size from the message header.

Detailed Description

The DtTcpMsgSocket class provides an address family independent TCP socket that handles RTI messages.

Constructor & Destructor Documentation

DtTcpMsgSocket::DtTcpMsgSocket	(	DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBufferSize = `20000`,
		int	maxQueuedMsgs = `-1`
	)

Constructor.

Requires a header reader to extract information from message headers. Does NOT open the socket. A call to openServerSocket() or openClientSocket() is required.

References myBytesNeededForSize, myNumBytesToWaitFor, and resizeTestPacket().

DtTcpMsgSocket::DtTcpMsgSocket	(	std::auto_ptr< DtInetTcpSocket >	socket,
		DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBuffSize = `20000`,
		int	maxQueuedMsgs = `-1`
	)

Constructor which takes a pre-created DtInetTcpSocket pointer.

Gives ownership and responsibility of the socket to the DtTcpMsgSocket object.

References myBytesNeededForSize, myNumBytesToWaitFor, and resizeTestPacket().

DtTcpMsgSocket::~DtTcpMsgSocket ( ) [virtual]

Destructor.

Member Function Documentation

unsigned DtTcpMsgSocket::bundleSize ( ) const [virtual]

Returns the bundle size, or 0 if bundling disabled.

References DtMsgBundler::maxSendBundleSize(), myBundlingEnabled, and myMsgBundler.

Referenced by flush(), DtFilteredTcpForwarder::readAndForward(), sendMessage(), DtInOutForwarderPort::sendToAllReliable(), and DtInOutForwarderPort::sendToListReliable().

unsigned DtTcpMsgSocket::compressionLevel ( ) const [virtual]

Returns the compression level, or 0 if compression disabled.

References DtMsgCompressor::compressionLevel(), myCompressionEnabled, and myMsgCompressor.

const DtInetEndpoint & DtTcpMsgSocket::destination ( ) const [virtual]

Returns the destination endpoint of this socket.

References DtMsgSocket::mySocket.

void DtTcpMsgSocket::disableBundling ( ) [virtual]

Disables message bundling.

Implements DtMsgSocket.

References myBundlingEnabled.

void DtTcpMsgSocket::disableCompression ( ) [virtual]

Disables message compression.

Implements DtMsgSocket.

References myCompressionEnabled.

void DtTcpMsgSocket::enableBundling ( size_t maxBundleSize ) [virtual]

Enables message bundling and sets the maximum bundle size.

Implements DtMsgSocket.

References myBundlingEnabled, myMsgBundler, and DtMsgBundler::setMaxSendBundleSize().

Referenced by DtInOutForwarderPort::connectionCompleted(), DtPeerToPeerTcpSockMgr::connectToPeer(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), and DtTcpMsgSocketMgr::socketAdded().

void DtTcpMsgSocket::enableCompression ( DtU8 compressionLevel ) [virtual]

Enables message compression and sets the compression level.

Implements DtMsgSocket.

References myCompressionEnabled, myMsgCompressor, and DtMsgCompressor::setCompressionLevel().

Referenced by DtInOutForwarderPort::connectionCompleted(), DtPeerToPeerTcpSockMgr::connectToPeer(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), and DtTcpMsgSocketMgr::socketAdded().

bool DtTcpMsgSocket::flush ( ) [virtual]

Attempts to send any queued messages and bundled messages.

Returns true if all queued and bundled messages were sent.

Implements DtMsgSocket.

References bundleSize(), flushQueue(), DtMsgBundler::getBundle(), myBundlingEnabled, myMsgBundler, myMsgQueue, and sendData().

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), DtTcpForwarder__vl__::readAndForward(), DtFilteredTcpForwarder::readAndForward(), DtInOutForwarderPort::sendForwarderNodeInfoMsg(), DtInOutForwarderPort::sendMacAddrMsg(), DtRtiAssistantClient::sendMsgAndWait(), DtInOutForwarderPort::sendPortMsg(), DtInOutForwarderPort::sendToAllReliable(), DtInOutForwarderPort::sendToListReliable(), and DtRtiMsgForwarder::waitForIo().

bool DtTcpMsgSocket::flushQueue ( ) [protected, virtual]

Attempts to send any queued messages.

Returns true if all queued messages were sent.

References myMsgQueue, and DtMsgSocket::mySocket.

Referenced by flush(), and sendData().

bool DtTcpMsgSocket::getQueueStatus ( int & percentFull ) const [virtual]

Gets the percentage full of the message queue.

Return value indicates whether a threshold has been hit such that a user alert is necessary.

References myMaxQueuedMessages, myMsgQueue, and myMutableOldQueueLevel.

Referenced by DtFilteredTcpForwarder::sendToList().

DtInetTcpSocket * DtTcpMsgSocket::inetTcpSocket ( ) [inline]

Returns a pointer to the DtInetTcpSocket.

Referenced by DtTcpMsgSocketMgr::addSocket(), DtMessageFilter::addToSocketMap(), DtRtiAssistantServer::readAndProcess(), DtMessageFilter::removeFromSocketMap(), and DtTcpMsgSocketMgr::socketIter().

bool DtTcpMsgSocket::isConnected ( ) const [inline]

Returns true if the socket is connected.

Referenced by DtInOutForwarderPort::addSocketUsingRoutesFile(), DtInOutForwarderPort::checkConnectionStatus(), DtPeerToPeerTcpSockMgr::connectToPeer(), DtInOutForwarderPort::connectToPeer(), DtTcpWwwSpyAdapter::connectToWebServer(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), DtTcpRtiConnectionMgr::establishConnection(), DtTcpWwwSpyAdapter::getNextMsg(), DtInOutForwarderPort::getNextMsg(), DtExtendedRtiMsgForwarder::getNextMsg(), DtRtiAssistantClient::isConnected(), DtRtiAssistantClient::makeSingleConnectionAttempt(), DtRtiAssistantClient::netRead(), DtTcpWwwSpyAdapter::postMsg(), DtPeerToPeerTcpSockMgr::processConnections(), DtTcpForwarder__vl__::readAndForward(), DtTcpRtiConnectionMgr::readAndForward(), DtRtiAssistantClient::readAndProcess(), DtRtiAssistantServer::readAndProcess(), DtInOutForwarderPort::sendForwarderNodeInfoMsg(), DtRtiAssistantClient::sendMsg(), DtRtiAssistantClient::sendMsgAndWait(), DtTcpForwarder__vl__::sendToAll(), DtInOutForwarderPort::sendToAllReliable(), DtFilteredTcpForwarder::sendToList(), DtInOutForwarderPort::sendToListReliable(), DtInOutForwarderPort::socketAdditionCb(), DtRtiExecConnectionState::testRtiExecConnectionStatus(), and DtRtiAssistantClient::tick().

bool DtTcpMsgSocket::isConnectionInProgress ( ) const [inline]

Returns true if the socket is in the process of connecting.

Referenced by DtInOutForwarderPort::addSocketUsingRoutesFile(), DtPeerToPeerTcpSockMgr::connectToPeer(), DtInOutForwarderPort::connectToPeer(), and DtPeerToPeerTcpSockMgr::processConnections().

DtU32 DtTcpMsgSocket::maxMsgSize ( ) const [virtual]

Gets the maximum message size.

References DtMsgSocket::mySocket.

int DtTcpMsgSocket::maxQueuedMessages ( ) const [virtual]

Returns the maximum number of messages that can be queued.

A negative value indicates no limit is imposed.

References myMaxQueuedMessages.

void DtTcpMsgSocket::openClientSocket	(	const DtInetEndpoint &	dest,
		DtU32	flags = `DtDefaultSockOpts`,
		DtU16	localPort = `0`,
		DtInetDevice *	hostIf = `NULL`
	)		`[virtual]`

Opens a client socket if not already open.

Takes a DtInetEndpoint (containing the destination address, protocol - TCP or UDP, and destination port number), a source port number to use, a pointer to the local network interface device the socket will be bound to, and socket option flags. The address family (IPv4 or IPv6) is assumed from the dest endpoint object. If the specified local port is 0 an ephemeral port will be chosen for the connection UNLESS the destination is a broadcast or multicast address, in which case the destination port is used as the local port also. If no host interface is specified the most appropriate interface will be chosen based on the destination. This ctor will not throw exceptions on failure. Check the socket status by calling state() to determine if the socket is ready.

References DtMsgSocket::myLastError, and DtMsgSocket::mySocket.

Referenced by DtPeerToPeerTcpSockMgr::connectToPeer(), DtTcpWwwSpyAdapter::connectToWebServer(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), and DtRtiAssistantClient::makeSingleConnectionAttempt().

void DtTcpMsgSocket::openServerSocket	(	DtU16	localPort,
		DtU32	flags = `DtDefaultSockOpts`,
		DtInetDevice *	hostIf = `NULL`,
		DtInetUtils::DtInetAddrFamily	family = `DtInetUtils::DtInetAddrFamily_IPv4`
	)		`[virtual]`

Opens a server socket if not already open.

Takes a port number to listen on, a pointer to the local network interface device the socket will be bound to, an address family indication (IPv4 or IPv6), socket option flags, and a trigger to open the socket immediately. If no host interface is specified the socket will be bound to INADDR_ANY (or IN6ADDR_ANY). Socket will be opened immediately. This ctor will not throw exceptions on failure. Check the socket status by calling state() to determine if the socket is ready to use.

References DtMsgSocket::myLastError, and DtMsgSocket::mySocket.

bool DtTcpMsgSocket::queueMessage	(	caddr_t	msg,
		size_t	msgSize
	)		`[protected, virtual]`

Adds a message to the transmit queue. Returns true if successful.

References DtMsgSocket::myLastError, myMaxQueuedMessages, and myMsgQueue.

Referenced by sendData().

int DtTcpMsgSocket::recvMessage ( caddr_t * buffptr ) [virtual]

Gets the next message from the stream of incoming data.

Implements DtMsgSocket.

References DtMsgSocket::expandRecvBuffer(), DtMsgCompressor::isCompressed(), myBytesNeededForSize, DtMsgSocket::myHeaderReader, DtMsgSocket::myLastError, myMsgCompressor, myNeedSize, myNumBytesReceived, myNumBytesToWaitFor, DtMsgSocket::myRecvBuffer, DtMsgSocket::mySocket, and DtMsgCompressor::uncompressMsg().

Referenced by DtInOutForwarderPort::getNextMsg(), DtTcpWwwSpyAdapter::netRead(), DtTcpRtiConnectionMgr::netRead(), DtRtiAssistantClient::netRead(), DtRtiAssistantServer::netRead(), DtTcpForwarder__vl__::readAndForward(), DtFilteredTcpForwarder::readAndForward(), and recvMessageWithSrc().

int DtTcpMsgSocket::recvMessageWithSrc	(	caddr_t *	buffptr,
		DtInetEndpoint &	src
	)		`[virtual]`

Gets the next message from the stream of incoming data.

Implements DtMsgSocket.

References DtMsgSocket::mySocket, and recvMessage().

void DtTcpMsgSocket::resizeTestPacket ( ) [protected, virtual]

Resizes the test packet used to test the connection.

References myBytesNeededForSize, DtMsgSocket::myHeaderReader, and myTestPacket.

Referenced by DtTcpMsgSocket().

int DtTcpMsgSocket::sendData	(	caddr_t	msg,
		size_t	msgSize,
		bool	deleteAfterSend
	)		`[protected, virtual]`

Sends data on the socket, queues if it cannot be sent.

References flushQueue(), DtMsgSocket::myLastError, DtMsgSocket::mySocket, and queueMessage().

Referenced by flush(), and sendMessage().

int DtTcpMsgSocket::sendMessage	(	caddr_t	msg,
		size_t	msgSize,
		bool	deleteAfterSend,
		const DtInetAddr &	destAddr = `DtInetAddr::inaddrAny()`
	)		`[virtual]`
