DtTcpWwwSpyAdapter Class Reference

The DtTcpWwwSpyAdapter class provides the interface between any RTI component and the WebSpy server. More...

Inheritance diagram for DtTcpWwwSpyAdapter:

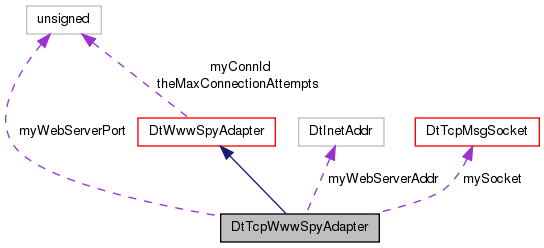

Collaboration diagram for DtTcpWwwSpyAdapter:

List of all members.

Public Member Functions
virtual	~DtTcpWwwSpyAdapter ()
	Dtor.
virtual DtRtiMsg *	getNextMsg ()
	Read a message from the web server (returns null if none pending)
virtual void	postMsg (const DtRtiMsg &msg)
	Post a response to the web server.
Static Public Member Functions
static DtWwwSpyAdapter *	create (const DtRIDParameters &params, DtWebSpyUtils::ConnectionType type, unsigned long connId)
	Virtual constructor.
Protected Member Functions
	DtTcpWwwSpyAdapter (const DtRIDParameters &params, DtWebSpyUtils::ConnectionType type, unsigned long connId)
	Ctor protected - use virtual ctor method.
virtual bool	connectToWebServer ()
	Attempt to open a connection and handshake with the server Returns false if connection fails.
virtual bool	startWebServer ()
	Attempt to start a new web server Return boolean: process started (not necessarily complete but at least the executable was there)
virtual bool	getConnectMsg ()
	Wait for the server to send a connect msg in response to a new connection.
virtual void	sendTypeInfo ()
	Send component type information to the server.
DtRtiMsg *	netRead (int *retCode) const
	Attempt to read a new message from the socket.
Protected Attributes
MAKRti::DtInetAddr	myWebServerAddr
unsigned int	myWebServerPort
DtTcpMsgSocket *	mySocket
Private Member Functions
	DtTcpWwwSpyAdapter (const DtTcpWwwSpyAdapter &)
	Copy and Assignment unimplemented.
DtTcpWwwSpyAdapter &	operator= (DtTcpWwwSpyAdapter &)
	Copy and Assignment unimplmented.

---

Detailed Description

The DtTcpWwwSpyAdapter class provides the interface between any RTI component and the WebSpy server.

It is responsible for creating, connecting to, and communicating with the web server.

---

Constructor & Destructor Documentation

DtTcpWwwSpyAdapter::DtTcpWwwSpyAdapter

(

const DtTcpWwwSpyAdapter &

)

[private]

Copy and Assignment unimplemented.

Referenced by create().

DtTcpWwwSpyAdapter::~DtTcpWwwSpyAdapter

(

)

[virtual]

Dtor.

References mySocket.

DtTcpWwwSpyAdapter::DtTcpWwwSpyAdapter	(	const DtRIDParameters &	params,
		DtWebSpyUtils::ConnectionType	type,
		unsigned long	connId
	)		[protected]

Ctor protected - use virtual ctor method.

---

Member Function Documentation

bool DtTcpWwwSpyAdapter::connectToWebServer

(

)

[protected, virtual]

Attempt to open a connection and handshake with the server Returns false if connection fails.

Implements DtWwwSpyAdapter.

References getConnectMsg(), DtTcpMsgSocket::isConnected(), mySocket, myWebServerAddr, myWebServerPort, DtTcpMsgSocket::openClientSocket(), sendTypeInfo(), and DtTcpMsgSocket::setNonBlocking().

DtWwwSpyAdapter * DtTcpWwwSpyAdapter::create	(	const DtRIDParameters &	params,
		DtWebSpyUtils::ConnectionType	type,
		unsigned long	connId
	)		[static]

Virtual constructor.

Reimplemented from DtWwwSpyAdapter.

References DtTcpWwwSpyAdapter(), and lm.

Referenced by DtForwarderWebManager::DtForwarderWebManager(), and DtRtiExecWebManager::DtRtiExecWebManager().

bool DtTcpWwwSpyAdapter::getConnectMsg

(

)

[protected, virtual]

Wait for the server to send a connect msg in response to a new connection.

References DtConnectMsgKind, DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), DtWwwSpyAdapter::myClock, DtWwwSpyAdapter::myParams, netRead(), and DtRIDParameters::responseInterval.

Referenced by connectToWebServer().

DtRtiMsg * DtTcpWwwSpyAdapter::getNextMsg

(

)

[virtual]

Read a message from the web server (returns null if none pending)

Implements DtWwwSpyAdapter.

References DtTcpMsgSocket::isConnected(), DtWwwSpyAdapter::myConnectionStatus, mySocket, and netRead().

DtRtiMsg * DtTcpWwwSpyAdapter::netRead

(

int *

retCode

)

const [protected]

Attempt to read a new message from the socket.

References DtCreateExternalRtiMsg(), DtInvalidMsgKind, DtNET_BUFFER_TOO_SMALL, DtNET_READ_BAD_PACKET, DtNET_READ_FILTERED_PACKET, DtNET_READ_NO_PACKETS, DtNET_READ_SIZE_MISMATCH, DtNET_READ_SUCCESS, DtNET_UNKNOWN_ERROR, DtRtiMessageVersion, DtRtiMsg::kindToString(), MSG_STATUS_OK, DtWwwSpyAdapter::myParams, mySocket, NULL, DtTcpMsgSocket::recvMessage(), and DtRtiMsg::status().

Referenced by getConnectMsg(), and getNextMsg().

DtTcpWwwSpyAdapter& DtTcpWwwSpyAdapter::operator=

(

DtTcpWwwSpyAdapter &

)

[private]

Copy and Assignment unimplmented.

void DtTcpWwwSpyAdapter::postMsg

(

const DtRtiMsg &

msg

)

[virtual]

Post a response to the web server.

Implements DtWwwSpyAdapter.

References DtTcpMsgSocket::isConnected(), DtWwwSpyAdapter::myConnectionStatus, mySocket, and DtTcpMsgSocket::sendMessage().

Referenced by sendTypeInfo().

void DtTcpWwwSpyAdapter::sendTypeInfo

(

)

[protected, virtual]

Send component type information to the server.

References DtCreateExternalRtiMsg(), DtWebSpyUtils::DtTypeInfoCntlMsg, DtWwwControlMsgKind, DtWwwSpyAdapter::myConnId, DtWwwSpyAdapter::myType, postMsg(), DtWwwControlMsg::setCommand(), DtWwwControlMsg::setCommandId(), DtWwwControlMsg::setConnectionId(), DtRtiMsg::setFedEx(), and DtWwwControlMsg::setTargetFederateHandle().

Referenced by connectToWebServer().

bool DtTcpWwwSpyAdapter::startWebServer

(

)

[protected, virtual]

Attempt to start a new web server Return boolean: process started (not necessarily complete but at least the executable was there)

Implements DtWwwSpyAdapter.

References DtRtiLibPath(), DtRIDParameters::getFullPathToRidFile(), DtWwwSpyAdapter::myParams, and DtWwwSpyAdapter::startWebServerProcess().

---

Member Data Documentation

DtTcpMsgSocket* DtTcpWwwSpyAdapter::mySocket [protected]

Referenced by connectToWebServer(), getNextMsg(), netRead(), postMsg(), and ~DtTcpWwwSpyAdapter().

MAKRti::DtInetAddr DtTcpWwwSpyAdapter::myWebServerAddr [protected]

Referenced by connectToWebServer().

unsigned int DtTcpWwwSpyAdapter::myWebServerPort [protected]

Referenced by connectToWebServer().

---

The documentation for this class was generated from the following files:

• tcpWwwSpyAdapter.h
• tcpWwwSpyAdapter.cxx
