Inheritance diagram for DtTcpMsgSocketMgr:

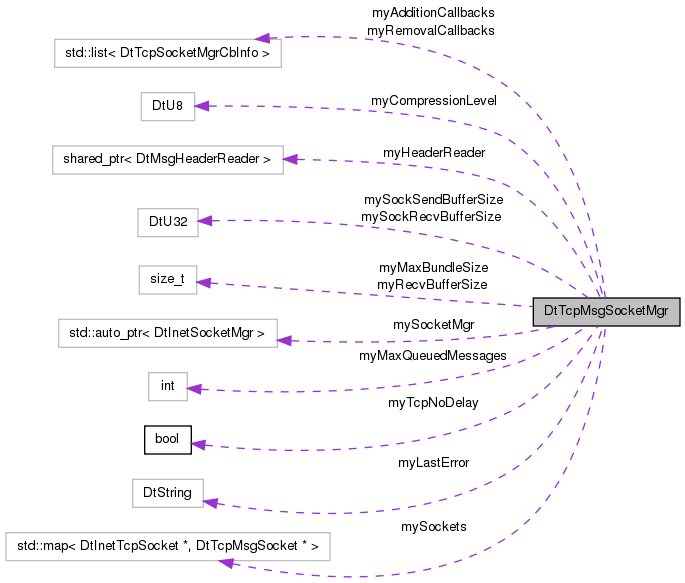

Collaboration diagram for DtTcpMsgSocketMgr:

Public Member Functions
	DtTcpMsgSocketMgr (DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBufferSize=20000, int maxQueuedMsgs=-1)
	Constructor. Will not open a server socket.
virtual	~DtTcpMsgSocketMgr ()
	Destructor.
virtual bool	openServerSocket (DtU16 localPort, DtInetDevice *hostIf=NULL, DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4, DtU32 flags=(DtDefaultSockOpts\|DtSockOptNonBlocking))
	Opens a server socket if not already open.
virtual void	processConnections ()
	Check for incoming connection attempts.
virtual void	addSocket (DtTcpMsgSocket *sock)
	Add a new socket to be managed that was created and opened outside of this class.
bool	socketAdded (DtInetSocket *sock)
bool	socketRemoved (DtInetSocket *sock)
virtual void	removeAndDelete (DtTcpMsgSocket *sock)
	Remove the specified socket from the list and delete it.
virtual void	enableBundling (size_t maxBundleSize)
	Enables message bundling and sets the maximum bundle size.
virtual void	disableBundling ()
	Disables message bundling.
virtual void	enableCompression (DtU8 compressionLevel)
	Enables message compression and sets the compression level.
virtual void	disableCompression ()
	Disables message compression.
virtual void	setTcpNoDelay (bool enable)
	Changes the setting of the TCP_NODELAY option.
virtual void	setSendBufferSize (DtU32 size)
	Sets the socket send buffer size.
virtual void	setRecvBufferSize (DtU32 size)
	Sets the socket receive buffer size.
virtual DtInetSockState	serverSocketState () const
	Returns the state of the server socket.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
DtTcpMsgSocketMap &	socketSet ()
	Returns the list of sockets managed by this manager.
DtTcpMsgSocketMap::iterator	socketIter (DtTcpMsgSocket *sock)
	Returns the iterator for the given socket, if the socket is managed by this manager.
DtString	getLastError () const
	Get a description of the last error.
bool	isListening () const
	Returns true if the socket is open.
Add / Delete Socket Addition Callbacks
Add/remove socket addition callback to be invoked when a new socket connection is accepted.
virtual void	addSocketAdditionCallback (DtTcpSocketAdditionCallback cb, void *usr)
virtual void	removeSocketAdditionCallback (DtTcpSocketAdditionCallback cb, void *usr)
Add / Delete Socket Removal Callbacks
Add/remove socket removal callback to be invoked when a managed socket connection is removed.
virtual void	addSocketRemovalCallback (DtTcpSocketRemovalCallback cb, void *usr)
virtual void	removeSocketRemovalCallback (DtTcpSocketRemovalCallback cb, void *usr)
Static Public Member Functions
static bool	socketAdded (DtInetSocket sock, void usr)
	Callback handler for socket addition callbacks from DtInetSocketMgr.
static bool	socketRemoved (DtInetSocket sock, void usr)
	Callback handler for socket removal callbacks from DtInetSocketMgr.
Protected Attributes
std::auto_ptr< DtInetSocketMgr >	mySocketMgr
	The underlying socket manager.
DtTcpMsgSocketMap	mySockets
	List of sockets managed by this manager, mapped by the underlying DtInetTcpSocket.
DtBoost::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	The message header reader to be used by all managed sockets.
int	myMaxQueuedMessages
	The maximum size the send queue for each socket is allowed to reach.
size_t	myRecvBufferSize
	The size of the sockets' receive buffers.
bool	myTcpNoDelay
	The sockets' TCP_NODELAY setting.
size_t	myMaxBundleSize
	The maximum size of outgoing message bundles.
MAKRti::DtU8	myCompressionLevel
	The maximum size of outgoing message bundles.
MAKRti::DtU32	mySockRecvBufferSize
	The receive buffer size for managed sockets.
MAKRti::DtU32	mySockSendBufferSize
	The send buffer size for managed sockets.
std::list< DtTcpSocketMgrCbInfo >	myAdditionCallbacks
	Socket addition callbacks.
std::list< DtTcpSocketMgrCbInfo >	myRemovalCallbacks
	Socket removal callbacks.
DtString	myLastError
	Description of the last error.
Private Member Functions
	DtTcpMsgSocketMgr (const DtTcpMsgSocketMgr &)
DtTcpMsgSocketMgr &	operator= (const DtTcpMsgSocketMgr &)

Constructor & Destructor Documentation

DtTcpMsgSocketMgr::DtTcpMsgSocketMgr	(	DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBufferSize = `20000`,
		int	maxQueuedMsgs = `-1`
	)

Constructor. Will not open a server socket.

DtTcpMsgSocketMgr::~DtTcpMsgSocketMgr ( ) [virtual]

Destructor.

References mySockets, and removeAndDelete().

DtTcpMsgSocketMgr::DtTcpMsgSocketMgr ( const DtTcpMsgSocketMgr & ) [private]

Member Function Documentation

void DtTcpMsgSocketMgr::addSocket ( DtTcpMsgSocket * sock ) [virtual]

Add a new socket to be managed that was created and opened outside of this class.

References DtTcpMsgSocket::inetTcpSocket(), mySocketMgr, and mySockets.

Referenced by DtPeerToPeerTcpSockMgr::processConnections(), and DtPeerToPeerTcpSockMgr::removeAndDeletePeerConnection().

void DtTcpMsgSocketMgr::addSocketAdditionCallback	(	DtTcpSocketAdditionCallback	cb,
		void *	usr
	)		`[virtual]`

References myAdditionCallbacks.

Referenced by DtInOutForwarderPort::DtInOutForwarderPort().

void DtTcpMsgSocketMgr::addSocketRemovalCallback	(	DtTcpSocketRemovalCallback	cb,
		void *	usr
	)		`[virtual]`

References myRemovalCallbacks.

Referenced by DtInOutForwarderPort::DtInOutForwarderPort().

void DtTcpMsgSocketMgr::disableBundling ( ) [virtual]

Disables message bundling.

References myMaxBundleSize, and mySockets.

void DtTcpMsgSocketMgr::disableCompression ( ) [virtual]

Disables message compression.

References myCompressionLevel, and mySockets.

void DtTcpMsgSocketMgr::enableBundling ( size_t maxBundleSize ) [virtual]

Enables message bundling and sets the maximum bundle size.

References myMaxBundleSize, and mySockets.

Referenced by DtRtiMsgForwarder::setEnableBundling(), and DtFilteredTcpForwarder::setEnablePacketBundling().

void DtTcpMsgSocketMgr::enableCompression ( DtU8 compressionLevel ) [virtual]

Enables message compression and sets the compression level.

References myCompressionLevel, and mySockets.

Referenced by DtFilteredTcpForwarder::setEnableCompression().

DtString DtTcpMsgSocketMgr::getLastError ( ) const [inline]

Get a description of the last error.

bool DtTcpMsgSocketMgr::isListening ( ) const [inline]

Returns true if the socket is open.

Referenced by DtInOutForwarderPort::DtInOutForwarderPort().

DtU32 DtTcpMsgSocketMgr::maxMsgSize ( ) const [virtual]

Gets the maximum message size.

References mySocketMgr.

bool DtTcpMsgSocketMgr::openServerSocket	(	DtU16	localPort,
		DtInetDevice *	hostIf = `NULL`,
		DtInetUtils::DtInetAddrFamily	family = `DtInetUtils::DtInetAddrFamily_IPv4`,
		DtU32	flags = `(DtDefaultSockOpts \| DtSockOptNonBlocking)`
	)		`[virtual]`

Opens a server socket if not already open.

Takes a port number to listen on, a pointer to the local network interface device the socket will be bound to, an address family indication (IPv4 or IPv6), socket option flags, and a trigger to open the socket immediately. If no host interface is specified the socket will be bound to INADDR_ANY (or IN6ADDR_ANY). Socket will be opened immediately. Returns false if unsuccessful.

References mySocketMgr, myTcpNoDelay, serverSocketState(), socketAdded(), and socketRemoved().

Referenced by DtFilteredTcpForwarder::DtFilteredTcpForwarder(), and DtInOutForwarderPort::DtInOutForwarderPort().

DtTcpMsgSocketMgr& DtTcpMsgSocketMgr::operator= ( const DtTcpMsgSocketMgr & ) [private]

void DtTcpMsgSocketMgr::processConnections ( ) [virtual]

Check for incoming connection attempts.

Any socket addition callbacks registered by the application will be invoked. The new connections will be automatically added to the list of managed connections if all socket addition callbacks return true.

Reimplemented in DtPeerToPeerTcpSockMgr.

References mySocketMgr.

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), and DtRtiMsgForwarder::run().

void DtTcpMsgSocketMgr::removeAndDelete ( DtTcpMsgSocket * sock ) [virtual]

Remove the specified socket from the list and delete it.

References DtMsgSocket::inetSocket(), and mySocketMgr.

Referenced by DtRtiMsgForwarder::closeAllConnectionsIfRequested(), DtInOutForwarderPort::flush(), DtExtendedRtiMsgForwarder::getNextMsg(), DtInOutForwarderPort::processLostConnection(), DtTcpForwarder__vl__::readAndForward(), DtPeerToPeerTcpSockMgr::removeAndDeletePeerConnection(), DtRtiMsgForwarder::requestKillSingleConnection(), DtFilteredTcpForwarder::updateQueuedSockets(), and ~DtTcpMsgSocketMgr().
