The DtTcpRtiConnectionMgr is a concrete implementation of the DtWebSpyRtiConnectionMgr It is the RTI connection manager component of the web spy. More...

Inheritance diagram for DtTcpRtiConnectionMgr:

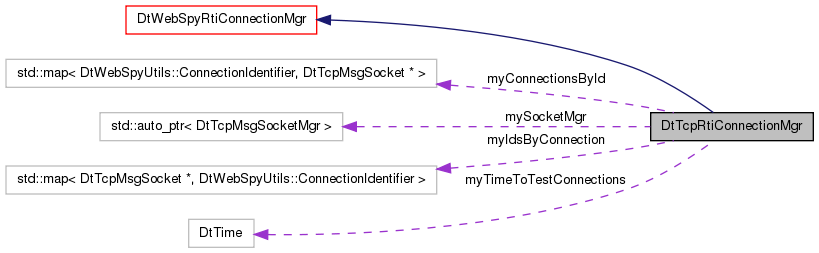

Collaboration diagram for DtTcpRtiConnectionMgr:

List of all members.

Public Member Functions
virtual	~DtTcpRtiConnectionMgr ()
	Dtor.
virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing.
virtual unsigned int	numConnections () const
	Return the number of current RTI component connections.
virtual void	postCommand (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtRtiMsg > command)
	Post the next command message from the HTTP server to the specified connection.
Static Public Member Functions
static DtWebSpyRtiConnectionMgr *	create (DtWebSpyServer &parent)
	Virtual constructor.
static void	tcpSocketAdditionCb (DtTcpMsgSocket sock, void usr)
	Callbacks on addition/removal of TCP sockets.
static void	tcpSocketRemovalCb (DtTcpMsgSocket sock, void usr)
Protected Types
typedef std::map < DtTcpMsgSocket *, DtWebSpyUtils::ConnectionIdentifier >	SocketToConnIdMap
typedef std::map < DtWebSpyUtils::ConnectionIdentifier, DtTcpMsgSocket * >	ConnIdToSocketMap
Protected Member Functions
	DtTcpRtiConnectionMgr (DtWebSpyServer &parent)
	Uses Virtual Constructor idiom.
virtual void	testConnections ()
	Verify connection status and mark bad connections for removal.
virtual bool	readAndForward (DtTime maxTimePerSocket)
	Make a single pass over the socket list allocating upto max. time per socket to each.
virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)
	Callbacks on addition/removal of TCP sockets.
virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)
virtual DtWebSpyUtils::ConnectionIdentifier	establishConnection (DtTcpMsgSocket *sock)
	Initialize new connection using the connection handshake protocol, returns the connection identifier for the connection.
virtual std::auto_ptr< DtRtiMsg >	netRead (DtTcpMsgSocket sock, int retCode) const
	Read a messagae from a socket.
Protected Attributes
SocketToConnIdMap	myIdsByConnection
ConnIdToSocketMap	myConnectionsById
MAKRti::DtTime	myTimeToTestConnections
std::auto_ptr< DtTcpMsgSocketMgr >	mySocketMgr
Private Member Functions
	DtTcpRtiConnectionMgr (const DtTcpRtiConnectionMgr &)
	Copy and Assignment unimplemented.
DtTcpRtiConnectionMgr &	operator= (DtTcpRtiConnectionMgr &)
	Copy and Assignment unimplmented.

Detailed Description

The DtTcpRtiConnectionMgr is a concrete implementation of the DtWebSpyRtiConnectionMgr It is the RTI connection manager component of the web spy.

It handles all connections between the web server and the RTI components using TCP sockets.

Member Typedef Documentation

typedef std::map< DtWebSpyUtils::ConnectionIdentifier, DtTcpMsgSocket* > DtTcpRtiConnectionMgr::ConnIdToSocketMap [protected]

typedef std::map< DtTcpMsgSocket*, DtWebSpyUtils::ConnectionIdentifier > DtTcpRtiConnectionMgr::SocketToConnIdMap [protected]

Constructor & Destructor Documentation

DtTcpRtiConnectionMgr::DtTcpRtiConnectionMgr ( const DtTcpRtiConnectionMgr & ) [private]

Copy and Assignment unimplemented.

Referenced by create().

DtTcpRtiConnectionMgr::~DtTcpRtiConnectionMgr ( ) [virtual]

Dtor.

DtTcpRtiConnectionMgr::DtTcpRtiConnectionMgr ( DtWebSpyServer & parent ) [protected]

Uses Virtual Constructor idiom.

References DtWebSpyRtiConnectionMgr::myRtiPort, mySocketMgr, DtWebSpyServer::params(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

Member Function Documentation

DtWebSpyRtiConnectionMgr * DtTcpRtiConnectionMgr::create ( DtWebSpyServer & parent ) [static]

Virtual constructor.

Reimplemented from DtWebSpyRtiConnectionMgr.

References DtTcpRtiConnectionMgr(), and lm.

DtWebSpyUtils::ConnectionIdentifier DtTcpRtiConnectionMgr::establishConnection ( DtTcpMsgSocket * sock ) [protected, virtual]

Initialize new connection using the connection handshake protocol, returns the connection identifier for the connection.

Returns the connection type if handshake succeeds or DtUnknownConnectionType if it fails

References DtWwwControlMsg::command(), DtWwwControlMsg::commandId(), DtWwwControlMsg::connectionId(), DtWebSpyRtiConnectionMgr::createDescription(), DtTcpMsgSocket::destination(), DtConnectMsgKind, DtCreateExternalRtiMsg(), DtNET_READ_NO_PACKETS, DtWebSpyUtils::DtRtiExecConnection, DtWebSpyUtils::DtUnknownConnectionType, DtWwwControlMsgKind, DtTcpMsgSocket::isConnected(), DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), DtWebSpyRtiConnectionMgr::myClock, DtWebSpyRtiConnectionMgr::myParent, netRead(), DtWebSpyServer::params(), DtRIDParameters::responseInterval, DtTcpMsgSocket::sendMessage(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), DtRIDParameters::tcpPort, and DtRIDParameters::webserviceEnableForwarding.

Referenced by tcpSocketAdditionCb().

std::auto_ptr< DtRtiMsg > DtTcpRtiConnectionMgr::netRead	(	DtTcpMsgSocket *	sock,
		int *	retCode
	)		const `[protected, virtual]`

Read a messagae from a socket.

References DtCreateExternalRtiMsg(), DtNET_BUFFER_TOO_SMALL, DtNET_READ_BAD_PACKET, DtNET_READ_FILTERED_PACKET, DtNET_READ_NO_PACKETS, DtNET_READ_SIZE_MISMATCH, DtNET_READ_SUCCESS, DtNET_UNKNOWN_ERROR, DtRtiMsg::kindToString(), MSG_STATUS_OK, DtTcpMsgSocket::recvMessage(), and DtRtiMsg::status().

Referenced by establishConnection(), and readAndForward().

unsigned int DtTcpRtiConnectionMgr::numConnections ( ) const [virtual]

Return the number of current RTI component connections.

Implements DtWebSpyRtiConnectionMgr.

References myIdsByConnection.

DtTcpRtiConnectionMgr& DtTcpRtiConnectionMgr::operator= ( DtTcpRtiConnectionMgr & ) [private]

Copy and Assignment unimplmented.

void DtTcpRtiConnectionMgr::postCommand	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtRtiMsg >	command
	)		`[virtual]`

Post the next command message from the HTTP server to the specified connection.

Implements DtWebSpyRtiConnectionMgr.

References myConnectionsById, and DtTcpMsgSocket::sendMessage().

bool DtTcpRtiConnectionMgr::readAndForward ( DtTime maxTimePerSocket ) [protected, virtual]

Make a single pass over the socket list allocating upto max. time per socket to each.

References DtNET_READ_SUCCESS, DtTcpMsgSocket::isConnected(), DtWebSpyRtiConnectionMgr::myClock, myIdsByConnection, DtWebSpyRtiConnectionMgr::myParent, mySocketMgr, netRead(), and DtWebSpyServer::postRtiResponse().

Referenced by tick().

void DtTcpRtiConnectionMgr::tcpSocketAdditionCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		`[static]`

Callbacks on addition/removal of TCP sockets.

Referenced by DtTcpRtiConnectionMgr().

void DtTcpRtiConnectionMgr::tcpSocketAdditionCb ( DtTcpMsgSocket * sock ) [protected, virtual]

Callbacks on addition/removal of TCP sockets.

References DtWebSpyServer::addConnection(), DtWebSpyUtils::DtRtiExecConnection, DtWebSpyUtils::DtUnknownConnectionType, establishConnection(), myConnectionsById, myIdsByConnection, DtWebSpyRtiConnectionMgr::myParent, mySocketMgr, and DtWebSpyUtils::ConnectionIdentifier::type().

void DtTcpRtiConnectionMgr::tcpSocketRemovalCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		`[static]`

Referenced by DtTcpRtiConnectionMgr().

void DtTcpRtiConnectionMgr::tcpSocketRemovalCb ( DtTcpMsgSocket * sock ) [protected, virtual]

References DtWebSpyUtils::DtUnknownConnectionType, myConnectionsById, myIdsByConnection, DtWebSpyRtiConnectionMgr::myParent, and DtWebSpyServer::removeConnection().

void DtTcpRtiConnectionMgr::testConnections ( ) [protected, virtual]

Verify connection status and mark bad connections for removal.

References mySocketMgr, and DtTcpMsgSocket::testConnectionStatus().

Referenced by tick().

bool DtTcpRtiConnectionMgr::tick ( unsigned int timeout = 0 ) [virtual]

Do the actual message processing.

RTI connections are treated as synchronous in main thread

Implements DtWebSpyRtiConnectionMgr.

References DtWebSpyRtiConnectionMgr::myClock, DtWebSpyRtiConnectionMgr::myParent, mySocketMgr, myTimeToTestConnections, DtWebSpyServer::params(), readAndForward(), and testConnections().

Member Data Documentation

ConnIdToSocketMap DtTcpRtiConnectionMgr::myConnectionsById [protected]

Referenced by postCommand(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

SocketToConnIdMap DtTcpRtiConnectionMgr::myIdsByConnection [protected]

Referenced by numConnections(), readAndForward(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

std::auto_ptr<DtTcpMsgSocketMgr> DtTcpRtiConnectionMgr::mySocketMgr [protected]

Referenced by DtTcpRtiConnectionMgr(), readAndForward(), tcpSocketAdditionCb(), testConnections(), and tick().

MAKRti::DtTime DtTcpRtiConnectionMgr::myTimeToTestConnections [protected]

Referenced by tick().

The documentation for this class was generated from the following files:
