Maintains list of known RTI connections and processes connection queries from RTI components. More...

Inheritance diagram for DtAssistantConnQueryMgr:

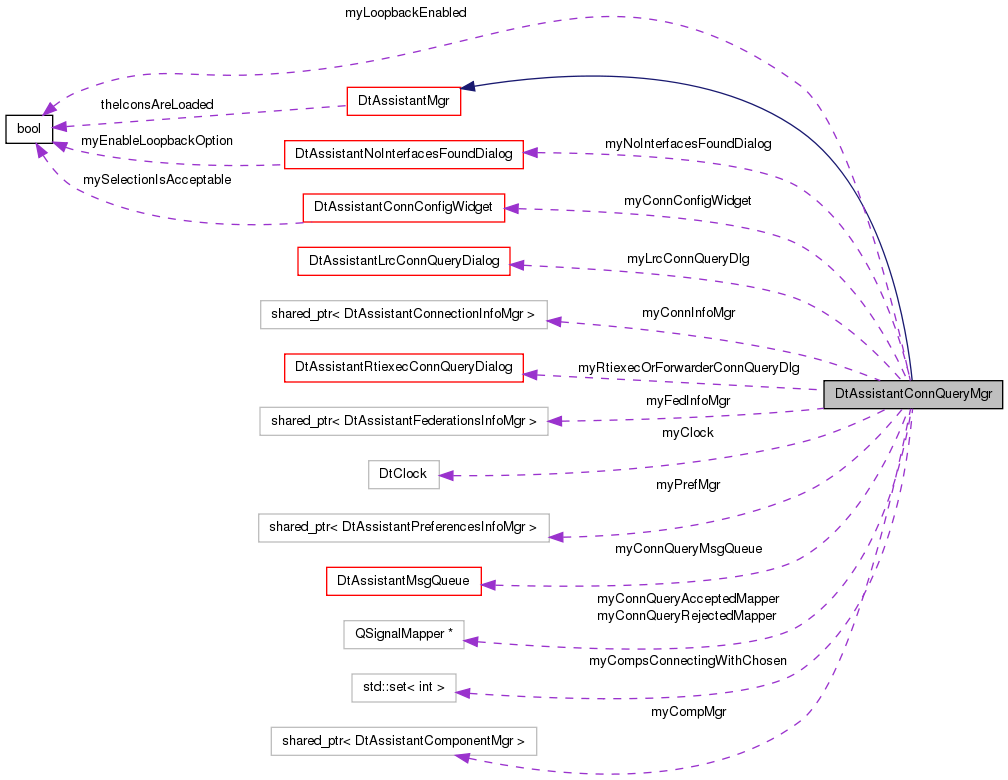

Collaboration diagram for DtAssistantConnQueryMgr:

Public Slots
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
	Processes an update to existing connections or the discovery of new connections.
void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes the removal of existing connections.
void	processAssistantFound (const DtAssistantInfo &assistant)
	Process the discovery of a remote assistant.
void	processAssistantLost (const DtAssistantInfo &assistant)
	Process the loss of a discovered remote assistant.
void	processConnQueryAccepted (QWidget *widget)
	Processes the acceptance of a connection query dialog.
void	processConnQueryRejected (QWidget *widget)
	Processes the rejection of a connection query dialog.
void	startRtiexec (const DtRtiConnectionInfoDataPair &, const DtRtiConnectionConfigurationInfo &)
	Starts an rtiexec with the given connection and configuration.
void	addProhibitedPort (int port, const MAKRti::DtString &reason)
	Adds a port that will not be allowed to use in choosing a connection.
void	removeProhibitedPort (int port)
	Removes a port that will not be allowed to use in choosing a connection.
void	closeConnQueryDialog (int id)
	Closes the displayed connection query dialog if it matches the given ID.
void	enableLoopbackDevice (bool val)
	Updates whether the loopback device is enabled for RTI connections.
void	processNewUserAddedConnection (const DtRtiConnectionInfoDataPair &, DtAssistantConnQueryWidget *)
	Processes the addition of a new user defined connection that has not yet been accepted.
void	checkForConflictingUnsavedConns (DtAssistantConnQueryWidget *widget)
	Checks the unsaved user-added connections from the given widget in order to set whether the connection is conflicting or not.
void	setStartRtiexecEnableBasedOnConn (const DtRtiConnectionInfoDataPair &)
	Enables or disables the "Start rtiexec" functionality based on the given connection.
Public Member Functions
	DtAssistantConnQueryMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr > prefMgr, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr, DtBoost::shared_ptr< DtAssistantFederationsInfoMgr > fedInfoMgr)
	Constructor.
virtual	~DtAssistantConnQueryMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.
virtual bool	updateConfigFromWidgetResults (DtRtiConnectionInfoDataPair &connInfo, DtRtiConnectionConfigurationInfo &config, DtAssistantConnQueryWidget *widget)
	Updates the stored configuration from the results of widget.
virtual void	updateConnQueryWidget (DtAssistantConnQueryWidget *widget, bool preserveSelection)
	Updates the given connection query widget with the latest RTI connections from the cache.
Protected Member Functions
virtual bool	checkForInterfaces ()
	Checks for the existence of at least one usable network interface.
void	processConnQueryResults (QWidget *widget, bool accepted)
	Processes the results of a connection query.
virtual void	processUserAddedConnections (const DtRtiConnectionAndConfiguration &conns)
	Process the addition of new connections.
virtual void	processUserRemovedConnections (const DtRtiConnectionAndConfiguration &conns)
	Process the removal of connections.
virtual void	addToAllConnQuery (const DtRtiConnectionAndConfiguration &conns)
	Adds a set of connections and configurations to all connection query widgets.
virtual void	removeFromAllConnQuery (const DtRtiConnectionAndConfiguration &conns)
	Removes the set of connections to all connection query widgets.
void	setChosenConnection (const DtRtiConnectionInfo &conn, const DtRtiConnectionConfigurationInfo &config)
	Process a request to set the connection and config chosen to be used automatically in the future.
void	clearChosenConnection ()
	Process a request to remove the connection chosen to be used automatically in the future.
Protected Attributes
DtAssistantMsgQueue	myConnQueryMsgQueue
	The queue which holds connection query messages.
DtBoost::shared_ptr < DtAssistantPreferencesInfoMgr >	myPrefMgr
	The manager that keeps track of Assistant preferences.
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The manager that keeps track of all local RTI components.
DtBoost::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The manager that keeps track of all active and inactive connections.
DtBoost::shared_ptr < DtAssistantFederationsInfoMgr >	myFedInfoMgr
	The manager that keeps track of all federations and federates.
DtClock	myClock
	Clock for determining when local interfaces should be checked.
DtAssistantLrcConnQueryDialog *	myLrcConnQueryDlg
	The dialog which queries the user for LRC connection information.
DtAssistantRtiexecConnQueryDialog *	myRtiexecOrForwarderConnQueryDlg
	The dialog which queries the user for rtiexec or Forwarder connection information.
DtAssistantConnConfigWidget *	myConnConfigWidget
	Connection configuration widget to be inserted into the assistant configuration dialog.
DtAssistantNoInterfacesFoundDialog *	myNoInterfacesFoundDialog
	The dialog that informs users that no network interfaces were found.
bool	myLoopbackEnabled
	Determines whether or not the loopback device is a supported device for RTI connections.
std::set< int >	myCompsConnectingWithChosen
	The set of components that have been told to try to use the current chosen connection.

QSignalMapper *	myConnQueryAcceptedMapper
	Signal mappers for the connection query dialogs.
QSignalMapper *	myConnQueryRejectedMapper
	Signal mappers for the connection query dialogs.
Private Member Functions
	DtAssistantConnQueryMgr (DtAssistantConnQueryMgr const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtAssistantConnQueryMgr &	operator= (DtAssistantConnQueryMgr const &)
	Assignment not implemented -- Assignment Not Allowed!
Message Callbacks
Callbacks for connection query messages
static void	addConnQueryMsgToQueue (const DtAssistantConnQueryMsg &msg, void *usr)
	Callback to add connection query message to queue.
static void	processConnQueryMsg (const DtAssistantConnQueryMsg &msg, void *usr)
	Callback to process a connection query message from a component.
virtual void	addConnQueryMsgToQueue (const DtAssistantConnQueryMsg &msg)
	Called by the callback function to add a message to the queue.
virtual void	processConnQueryMsg (const DtAssistantConnQueryMsg &msg)
	Called by the callback function to process connection query messages.

Detailed Description

Maintains list of known RTI connections and processes connection queries from RTI components.

Constructor & Destructor Documentation

DtAssistantConnQueryMgr::DtAssistantConnQueryMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr >	prefMgr,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr,
		DtBoost::shared_ptr< DtAssistantFederationsInfoMgr >	fedInfoMgr
	)

Constructor.

References DtAssistantConnQueryMsg::addCallback(), addConnQueryMsgToQueue(), DtAssistantLrcConnQueryWidget::addKnownAssistant(), addProhibitedPort(), closeConnQueryDialog(), connect(), DtDefaultInterfaceAddr(), DtGetLocalHostName(), enableLoopbackDevice(), myCompMgr, myConnConfigWidget, myConnInfoMgr, myConnQueryAcceptedMapper, myConnQueryMsgQueue, myConnQueryRejectedMapper, myLoopbackEnabled, myLrcConnQueryDlg, myNoInterfacesFoundDialog, DtAssistantMgr::myPeer, myPrefMgr, myRtiexecOrForwarderConnQueryDlg, DtAssistantMgr::myServer, processAssistantFound(), processAssistantLost(), processConnectionsRemoval(), processConnectionsUpdate(), processConnQueryAccepted(), processConnQueryMsg(), processConnQueryRejected(), processNewUserAddedConnection(), DtAssistantConnQueryWidget::setEnableLoopbackDevice(), setStartRtiexecEnableBasedOnConn(), DtAssistantMgr::startDialog(), startRtiexec(), DtAssistantRtiexecConnQueryDialog::widget(), and DtAssistantLrcConnQueryDialog::widget().

DtAssistantConnQueryMgr::~DtAssistantConnQueryMgr ( ) [virtual]

Destructor.

References addConnQueryMsgToQueue(), myConnQueryMsgQueue, DtAssistantMgr::myServer, processConnQueryMsg(), and DtAssistantConnQueryMsg::removeCallback().

DtAssistantConnQueryMgr::DtAssistantConnQueryMgr ( DtAssistantConnQueryMgr const & ) [private]

Copy Constructor not implemented -- Copy Not Allowed!

Member Function Documentation

void DtAssistantConnQueryMgr::addConnQueryMsgToQueue	(	const DtAssistantConnQueryMsg &	msg,
		void *	usr
	)		`[static, protected]`

Callback to add connection query message to queue.

Connection query messages should be added to a queue in order to be processed one at a time. Two connection query dialogs should not be displayed at the same time.

Referenced by DtAssistantConnQueryMgr(), and ~DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::addConnQueryMsgToQueue ( const DtAssistantConnQueryMsg & msg ) [protected, virtual]

Called by the callback function to add a message to the queue.

References DtAssistantMsgQueue::addMsg(), myConnQueryMsgQueue, and DtAssistantMgr::myServer.

void DtAssistantConnQueryMgr::addProhibitedPort	(	int	port,
		const MAKRti::DtString &	reason
	)		`[slot]`

Adds a port that will not be allowed to use in choosing a connection.

References DtAssistantConnQueryWidget::addProhibitedPort(), myConnConfigWidget, myLrcConnQueryDlg, myRtiexecOrForwarderConnQueryDlg, DtAssistantRtiexecConnQueryDialog::widget(), and DtAssistantLrcConnQueryDialog::widget().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::addToAllConnQuery ( const DtRtiConnectionAndConfiguration & conns ) [protected, virtual]

Adds a set of connections and configurations to all connection query widgets.

References DtAssistantConnQueryWidget::addConnections(), checkForConflictingUnsavedConns(), myConnConfigWidget, myLrcConnQueryDlg, myRtiexecOrForwarderConnQueryDlg, DtAssistantRtiexecConnQueryDialog::widget(), and DtAssistantLrcConnQueryDialog::widget().

Referenced by processConnectionsUpdate().

void DtAssistantConnQueryMgr::checkForConflictingUnsavedConns ( DtAssistantConnQueryWidget * widget ) [slot]

Checks the unsaved user-added connections from the given widget in order to set whether the connection is conflicting or not.

References DtRtiConnectionAndConfiguration::addConnection(), DtAssistantConnQueryWidget::addConnections(), DtRtiConnectionAndConfiguration::connections(), DtRtiAssociatedConnectionData::DtConnectionConflicting, DtRtiAssociatedConnectionData::DtUnknownState, myConnInfoMgr, DtRtiConnectionAndConfiguration::size(), and DtAssistantConnQueryWidget::userAddedConnections().

Referenced by addToAllConnQuery(), removeFromAllConnQuery(), and updateConnQueryWidget().

bool DtAssistantConnQueryMgr::checkForInterfaces ( ) [protected, virtual]

Checks for the existence of at least one usable network interface.

If not an error dialog will be displayed and the return value will be false.

References DtAssistantNoInterfacesFoundDialog::allowLoopbackDevice(), DtRtiConnectionInfo::localIpAddresses(), DtRtiConnectionInfo::localSupportsIPv4(), DtRtiConnectionInfo::localSupportsIPv6(), DtAssistantNoInterfacesFoundDialog::loopbackOptionEnabled(), myLoopbackEnabled, myNoInterfacesFoundDialog, myPrefMgr, DtRtiConnectionInfo::setLocalIpAddresses(), and DtAssistantNoInterfacesFoundDialog::setLoopbackOptionEnabled().

Referenced by processConnQueryMsg().

void DtAssistantConnQueryMgr::clearChosenConnection ( ) [protected]

Process a request to remove the connection chosen to be used automatically in the future.

void DtAssistantConnQueryMgr::closeConnQueryDialog ( int id ) [slot]

Closes the displayed connection query dialog if it matches the given ID.

References DtAssistantMsgQueue::currentCompId(), myConnQueryMsgQueue, myLrcConnQueryDlg, and myRtiexecOrForwarderConnQueryDlg.

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::configWidget	(	DtAssistantConfigWidget **	widget,
		QIcon &	icon,
		QString &	name
	)		`[virtual]`

Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.

Reimplemented from DtAssistantMgr.

References DtRtiLibPath(), and myConnConfigWidget.

void DtAssistantConnQueryMgr::enableLoopbackDevice ( bool val ) [slot]

Updates whether the loopback device is enabled for RTI connections.

References myConnConfigWidget, myLoopbackEnabled, myLrcConnQueryDlg, myRtiexecOrForwarderConnQueryDlg, DtAssistantConnQueryWidget::setEnableLoopbackDevice(), DtAssistantRtiexecConnQueryDialog::widget(), and DtAssistantLrcConnQueryDialog::widget().

Referenced by DtAssistantConnQueryMgr().

DtAssistantConnQueryMgr& DtAssistantConnQueryMgr::operator= ( DtAssistantConnQueryMgr const & ) [private]

Assignment not implemented -- Assignment Not Allowed!

void DtAssistantConnQueryMgr::processAssistantFound ( const DtAssistantInfo & assistant ) [slot]

Process the discovery of a remote assistant.

References DtAssistantLrcConnQueryWidget::addKnownAssistant(), myConnConfigWidget, myLrcConnQueryDlg, and DtAssistantLrcConnQueryDialog::widget().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processAssistantLost ( const DtAssistantInfo & assistant ) [slot]

Process the loss of a discovered remote assistant.

References myConnConfigWidget, myLrcConnQueryDlg, DtAssistantLrcConnQueryWidget::removeKnownAssistant(), and DtAssistantLrcConnQueryDialog::widget().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processConfigWidgetAccept ( ) [virtual]

Process the changes that were accepted in the configuration widget.

Reimplemented from DtAssistantMgr.

References myConnConfigWidget, and updateConfigFromWidgetResults().

void DtAssistantConnQueryMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration & conns ) [slot]

Processes the removal of existing connections.

References removeFromAllConnQuery().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration & conns ) [slot]

Processes an update to existing connections or the discovery of new connections.

References addToAllConnQuery().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processConnQueryAccepted ( QWidget * widget ) [slot]

Processes the acceptance of a connection query dialog.

References processConnQueryResults().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processConnQueryMsg	(	const DtAssistantConnQueryMsg &	msg,
		void *	usr
	)		`[static, protected]`

Callback to process a connection query message from a component.

Referenced by DtAssistantConnQueryMgr(), and ~DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processConnQueryMsg ( const DtAssistantConnQueryMsg & msg ) [protected, virtual]

void DtAssistantConnQueryMgr::processConnQueryRejected ( QWidget * widget ) [slot]

Processes the rejection of a connection query dialog.

References processConnQueryResults().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processConnQueryResults	(	QWidget *	widget,
		bool	accepted
	)		`[protected]`

Processes the results of a connection query.

References DtAssistantMsgQueue::currentCompId(), DtAssistantMsgQueue::finishProcessMsg(), myCompsConnectingWithChosen, myConnQueryMsgQueue, DtAssistantMgr::myServer, and updateConfigFromWidgetResults().

Referenced by processConnQueryAccepted(), and processConnQueryRejected().

void DtAssistantConnQueryMgr::processNewUserAddedConnection	(	const DtRtiConnectionInfoDataPair &	conn,
		DtAssistantConnQueryWidget *	widget
	)		`[slot]`

Processes the addition of a new user defined connection that has not yet been accepted.

References DtRtiConnectionAndConfiguration::addConnection(), DtAssistantConnQueryWidget::addConnections(), DtRtiAssociatedConnectionData::DtConnectionConflicting, and myConnInfoMgr.

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::processUserAddedConnections ( const DtRtiConnectionAndConfiguration & conns ) [protected, virtual]

Process the addition of new connections.

References myConnInfoMgr, and DtRtiConnectionAndConfiguration::size().

Referenced by updateConfigFromWidgetResults().

void DtAssistantConnQueryMgr::processUserRemovedConnections ( const DtRtiConnectionAndConfiguration & conns ) [protected, virtual]

Process the removal of connections.

References myConnInfoMgr, and DtRtiConnectionAndConfiguration::size().

Referenced by updateConfigFromWidgetResults().

void DtAssistantConnQueryMgr::removeFromAllConnQuery ( const DtRtiConnectionAndConfiguration & conns ) [protected, virtual]

Removes the set of connections to all connection query widgets.

References checkForConflictingUnsavedConns(), myConnConfigWidget, myLrcConnQueryDlg, myRtiexecOrForwarderConnQueryDlg, DtAssistantConnQueryWidget::removeConnections(), DtAssistantRtiexecConnQueryDialog::widget(), and DtAssistantLrcConnQueryDialog::widget().

Referenced by processConnectionsRemoval().

void DtAssistantConnQueryMgr::removeProhibitedPort ( int port ) [slot]

Removes a port that will not be allowed to use in choosing a connection.

References myConnConfigWidget, myLrcConnQueryDlg, myRtiexecOrForwarderConnQueryDlg, DtAssistantConnQueryWidget::removeProhibitedPort(), DtAssistantRtiexecConnQueryDialog::widget(), and DtAssistantLrcConnQueryDialog::widget().

void DtAssistantConnQueryMgr::setChosenConnection	(	const DtRtiConnectionInfo &	conn,
		const DtRtiConnectionConfigurationInfo &	config
	)		`[protected]`

Process a request to set the connection and config chosen to be used automatically in the future.

void DtAssistantConnQueryMgr::setStartRtiexecEnableBasedOnConn ( const DtRtiConnectionInfoDataPair & conn ) [slot]

Enables or disables the "Start rtiexec" functionality based on the given connection.

References myConnInfoMgr, myLrcConnQueryDlg, DtAssistantLrcConnQueryWidget::setStartRtiexecEnabled(), and DtAssistantLrcConnQueryDialog::widget().

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::startRtiexec	(	const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConnectionConfigurationInfo &	config
	)		`[slot]`

Starts an rtiexec with the given connection and configuration.

References DtRtiConnectionAndConfiguration::addConnection(), and myConnInfoMgr.

Referenced by DtAssistantConnQueryMgr().

void DtAssistantConnQueryMgr::tick ( ) [virtual]

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

References DtAssistantMsgQueue::beginProcessMsg(), and myConnQueryMsgQueue.

bool DtAssistantConnQueryMgr::updateConfigFromWidgetResults	(	DtRtiConnectionInfoDataPair &	connInfo,
		DtRtiConnectionConfigurationInfo &	config,
		DtAssistantConnQueryWidget *	widget
	)		`[virtual]`
