Stores the information on an RTI connection known by the Assistant. More...

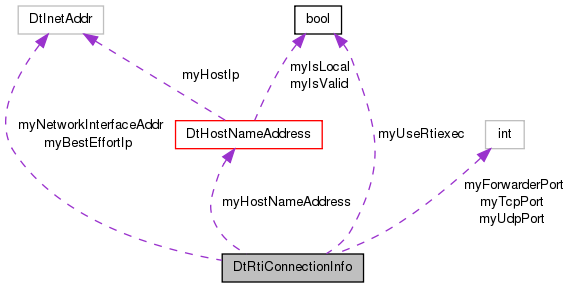

Collaboration diagram for DtRtiConnectionInfo:

Public Member Functions
	DtRtiConnectionInfo ()
	Constructor.
	DtRtiConnectionInfo (const MAKRti::DtString &hostname, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	rtiexec connection constructors
	DtRtiConnectionInfo (const MAKRti::DtInetAddr &reliableAddress, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	DtRtiConnectionInfo (const MAKRti::DtInetAddr &bestEffortAddress, int port, const MAKRti::DtInetAddr &interfaceAddr)
	Lightweight connection constructor.
	DtRtiConnectionInfo (const DtHostNameAddress &host, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, bool useRtiexec, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	Constructor to set all values explicitly.
virtual	~DtRtiConnectionInfo ()
	Destructor.
virtual bool	operator< (const DtRtiConnectionInfo &other) const
	Less than operator.
virtual bool	operator== (const DtRtiConnectionInfo &other) const
	Equals operator.
virtual bool	operator!= (const DtRtiConnectionInfo &other) const
	Not equals operator.
virtual DtRtiConnectionInfo &	operator= (const DtRtiConnectionInfo &other)
	Assignment operator.
virtual bool	isEquivalentHost (const DtRtiConnectionInfo &other) const
	Determines if another connection has an equivalent host, based on the IP address and host name and network interface address.
virtual bool	isEquivalentHostAllInterfaces (const DtRtiConnectionInfo &other) const
	Determines if another connection has an equivalent host, based on the IP address and host name, assuming the host is bound on all interfaces.
virtual bool	isLocalHost () const
	Determines if the host for this connection is the local machine, based on the IP address and host name.
virtual bool	conflictsWith (const DtRtiConnectionInfo &other, MAKRti::DtString &reason) const
	Returns true if the connection conflicts with this connection and sets a description of the reason for the conflict.
virtual MAKRti::DtString	defaultName () const
	Default name for this connection.
virtual MAKRti::DtString	description () const
	Returns a text description of this connection.
virtual const MAKRti::DtInetAddr &	reliableIp () const
	Returns IP address for reliable communication.
virtual void	setReliableIp (const MAKRti::DtInetAddr &ip)
	Sets the reliable IP address.
virtual const MAKRti::DtInetAddr &	bestEffortIp () const
	Returns IP address for best effort communication.
virtual void	setBestEffortIp (const MAKRti::DtInetAddr &ip)
	Sets the best effort IP address.
virtual int	udpPort () const
	Returns UDP port.
virtual void	setUdpPort (int port)
	Sets the UDP port.
virtual int	tcpPort () const
	Returns TCP port.
virtual void	setTcpPort (int port)
	Sets the TCP port.
virtual MAKRti::DtString	hostName () const
	Returns host name.
virtual void	setHostName (const MAKRti::DtString &host)
	Sets the host name.
virtual const MAKRti::DtInetAddr &	networkInterfaceAddr () const
	Returns the local network interface address to use for this connection.
virtual void	setNetworkInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Sets the local network interface address to use for this connection.
virtual bool	useRtiexec () const
	Returns whether this connection uses an rtiexec.
virtual void	setUseRtiexec (bool useExec)
	Sets whether this connection uses an rtiexec.
virtual int	forwarderPort () const
	Returns the forwarder port.
virtual void	setForwarderPort (int port)
	Sets the port.
virtual bool	isValid () const
	Returns true if this connection info passes a basic validity check.
Static Public Member Functions
static const DtRtiConnectionInfo &	invalidConn ()
	Returns an invalid connection.
static void	setLocalIpAddresses (bool reset=false)
	Sets the list of recognized local IP addresses.
static const std::set < MAKRti::DtInetAddr > &	localIpAddresses ()
	Returns list of local IP addresses.
static bool	localSupportsIPv4 (bool reset=false)
	Returns whether any of the local interfaces support IPv4.
static bool	localSupportsIPv6 (bool reset=false)
	Returns whether any of the local interfaces support IPv6.
static MAKRti::DtString	constructConnName (const DtHostNameAddress &hostname, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, bool useRtiexec, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	Constructs the default connection name using the given parameters.
static MAKRti::DtString	constructConnDescription (const DtHostNameAddress &hostname, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, bool useRtiexec, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	Constructs the connection description text using the given parameters.

static const MAKRti::DtInetAddr &	defaultReliableIp ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultBestEffortIp ()
	Returns the default parameters.
static int	defaultLightweightPort ()
	Returns the default parameters.
static int	defaultRtiexecPort ()
	Returns the default parameters.
static const MAKRti::DtString &	defaultHostName ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultNetworkInterfaceAddr ()
	Returns the default parameters.
static int	defaultForwarderPort ()
	Returns the default parameters.
Static Protected Member Functions
static std::set < MAKRti::DtInetAddr > &	theLocalIpAddresses ()
	Returns a reference to a static map of local IP addresses to netmasks.
Protected Attributes
MAKRti::DtInetAddr	myBestEffortIp
	IP address for best effort transport.
int	myUdpPort
	UDP port for the connection.
int	myTcpPort
	TCP port for the connection.
DtHostNameAddress	myHostNameAddress
	Host of the rtiexec or forwarder.
MAKRti::DtInetAddr	myNetworkInterfaceAddr
	Local network interface address to use for this connection.
bool	myUseRtiexec
	Whether or not an rtiexec should be used.
int	myForwarderPort
	The port used by the forwarder to connect to other forwarders.

Detailed Description

Stores the information on an RTI connection known by the Assistant.

Constructor & Destructor Documentation

DtRtiConnectionInfo::DtRtiConnectionInfo ( )

Constructor.

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtString &	hostname,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)

rtiexec connection constructors

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtInetAddr &	reliableAddress,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtInetAddr &	bestEffortAddress,
		int	port,
		const MAKRti::DtInetAddr &	interfaceAddr
	)

Lightweight connection constructor.

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const DtHostNameAddress &	host,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		bool	useRtiexec,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)

Constructor to set all values explicitly.

References setLocalIpAddresses().

DtRtiConnectionInfo::~DtRtiConnectionInfo ( ) [virtual]

Destructor.

Member Function Documentation

const MAKRti::DtInetAddr & DtRtiConnectionInfo::bestEffortIp ( ) const [virtual]

Returns IP address for best effort communication.

References myBestEffortIp.

Referenced by conflictsWith(), operator<(), operator=(), operator==(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

bool DtRtiConnectionInfo::conflictsWith	(	const DtRtiConnectionInfo &	other,
		MAKRti::DtString &	reason
	)		const `[virtual]`

Returns true if the connection conflicts with this connection and sets a description of the reason for the conflict.

References bestEffortIp(), forwarderPort(), isEquivalentHost(), isEquivalentHostAllInterfaces(), myBestEffortIp, myForwarderPort, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), tcpPort(), udpPort(), and useRtiexec().

Referenced by DtRtiConnectionAndConfiguration::willConflict().

MAKRti::DtString DtRtiConnectionInfo::constructConnDescription	(	const DtHostNameAddress &	hostname,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		bool	useRtiexec,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)		`[static]`

Constructs the connection description text using the given parameters.

References forwarderPort(), DtHostNameAddress::hostName(), and DtHostNameAddress::ip().

Referenced by description().

MAKRti::DtString DtRtiConnectionInfo::constructConnName	(	const DtHostNameAddress &	hostname,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		bool	useRtiexec,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)		`[static]`

Constructs the default connection name using the given parameters.

References DtHostNameAddress::hostName(), DtHostNameAddress::ip(), and DtHostNameAddress::isValid().

Referenced by defaultName().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::defaultBestEffortIp ( ) [static]

Returns the default parameters.

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

int DtRtiConnectionInfo::defaultForwarderPort ( ) [static]

Returns the default parameters.

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

const MAKRti::DtString & DtRtiConnectionInfo::defaultHostName ( ) [static]

Returns the default parameters.

References DtGetLocalHostName().

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

int DtRtiConnectionInfo::defaultLightweightPort ( ) [static]

Returns the default parameters.

Referenced by DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

MAKRti::DtString DtRtiConnectionInfo::defaultName ( ) const [virtual]

Default name for this connection.

References constructConnName(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, and myUseRtiexec.

Referenced by DtAssistantStateObserveMsg::printData(), and DtAssistantFederationStateMsg::printData().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::defaultNetworkInterfaceAddr ( ) [static]

Returns the default parameters.

References DtDefaultInterfaceAddr().

Referenced by DtAssistantConnectionInfoMgr::DtAssistantConnectionInfoMgr(), DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::defaultReliableIp ( ) [static]

Returns the default parameters.

References DtDefaultInterfaceAddr().

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

int DtRtiConnectionInfo::defaultRtiexecPort ( ) [static]

Returns the default parameters.

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

MAKRti::DtString DtRtiConnectionInfo::description ( ) const [virtual]

Returns a text description of this connection.

References constructConnDescription(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, and myUseRtiexec.

Referenced by DtAssistantFederationsViewMgr::logConnectionInfo(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

int DtRtiConnectionInfo::forwarderPort ( ) const [virtual]

Returns the forwarder port.

References myForwarderPort.

Referenced by conflictsWith(), constructConnDescription(), operator<(), operator=(), operator==(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

MAKRti::DtString DtRtiConnectionInfo::hostName ( ) const [virtual]

Returns host name.

References DtHostNameAddress::hostName(), and myHostNameAddress.

Referenced by DtAssistantLrcConnQueryWidget::isKnownAssistant(), DtAssistantFederationsViewMgr::saveToLog(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

const DtRtiConnectionInfo & DtRtiConnectionInfo::invalidConn ( ) [static]

Returns an invalid connection.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), DtAssistantConnQueryWidget::getSelectedConnection(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), DtFederationsViewDialog::processConnectionSelection(), DtAssistantConnQueryMgr::processConnQueryMsg(), DtAssistantLatencyTestMgr::processLatencyTestDismiss(), DtRtiNetworkComponentViewDialog::processRtiForwarderSelection(), DtFederationsViewDialog::selectedConnection(), DtRtiNetworkComponentViewDialog::selectedRtiForwarder(), DtAssistantFederationsViewMgr::showFederationsView(), DtAssistantNetworkCompViewMgr::showRtiNetworkComponentView(), DtAssistantFederationsViewMgr::tick(), DtAssistantNetworkCompViewMgr::tick(), DtAssistantFederationsInfoMgr::viewFederationsForConnection(), and DtAssistantNetworkCompInfoMgr::viewNetworkComponentsForConnection().

bool DtRtiConnectionInfo::isEquivalentHost ( const DtRtiConnectionInfo & other ) const [virtual]

Determines if another connection has an equivalent host, based on the IP address and host name and network interface address.

References DtHostNameAddress::compareHostName(), DtHostNameAddress::ip(), isLocalHost(), DtHostNameAddress::isValid(), myHostNameAddress, myNetworkInterfaceAddr, and networkInterfaceAddr().

Referenced by conflictsWith(), operator<(), operator=(), and operator==().

bool DtRtiConnectionInfo::isEquivalentHostAllInterfaces ( const DtRtiConnectionInfo & other ) const [virtual]

Determines if another connection has an equivalent host, based on the IP address and host name, assuming the host is bound on all interfaces.

References isLocalHost(), and myHostNameAddress.

Referenced by conflictsWith().

bool DtRtiConnectionInfo::isLocalHost ( ) const [virtual]

Determines if the host for this connection is the local machine, based on the IP address and host name.

References DtHostNameAddress::isLocal(), and myHostNameAddress.

Referenced by isEquivalentHost(), and isEquivalentHostAllInterfaces().

bool DtRtiConnectionInfo::isValid ( ) const [virtual]

Returns true if this connection info passes a basic validity check.

References DtHostNameAddress::isValid(), myBestEffortIp, myHostNameAddress, myTcpPort, myUdpPort, and myUseRtiexec.

const std::set< MAKRti::DtInetAddr > & DtRtiConnectionInfo::localIpAddresses ( ) [inline, static]

Returns list of local IP addresses.

References theLocalIpAddresses().

Referenced by DtRtiAssistantPeer::addSocketsForInterfaces(), DtAssistantConnQueryMgr::checkForInterfaces(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), DtAssistantConnQueryMgr::processConnQueryMsg(), DtAssistantConnectionInfoMgr::processInterfaceFound(), and DtAssistantConnectionInfoMgr::tick().

bool DtRtiConnectionInfo::localSupportsIPv4 ( bool reset = false ) [static]

Returns whether any of the local interfaces support IPv4.

References theLocalIpAddresses().

Referenced by DtAssistantConnQueryMgr::checkForInterfaces(), DtRtiAssistant::DtRtiAssistant(), and setLocalIpAddresses().

bool DtRtiConnectionInfo::localSupportsIPv6 ( bool reset = false ) [static]

Returns whether any of the local interfaces support IPv6.

References theLocalIpAddresses().

Referenced by DtAssistantConnQueryMgr::checkForInterfaces(), DtRtiAssistant::DtRtiAssistant(), and setLocalIpAddresses().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::networkInterfaceAddr ( ) const [virtual]

Returns the local network interface address to use for this connection.

References myNetworkInterfaceAddr.

Referenced by conflictsWith(), isEquivalentHost(), DtAssistantLrcConnQueryWidget::isKnownAssistant(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), operator<(), operator=(), operator==(), DtRtiAssistantPeer::sendObserveFederationsMsg(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

bool DtRtiConnectionInfo::operator!= ( const DtRtiConnectionInfo & other ) const [virtual]

Not equals operator.

bool DtRtiConnectionInfo::operator< ( const DtRtiConnectionInfo & other ) const [virtual]

Less than operator.

Comparisons are based on the following parameters in the order listed: 1) Lightweight connections are "less than" rtiexec connections 2) For lightweight connections: best effort IP and port 3) For rtiexec connections: host name or IP address (host name is used if available, though it is resolved to an IP and that is used as the actual value for comparison), port, best effort IP, forwarder port

References bestEffortIp(), forwarderPort(), isEquivalentHost(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), tcpPort(), udpPort(), and useRtiexec().

DtRtiConnectionInfo & DtRtiConnectionInfo::operator= ( const DtRtiConnectionInfo & other ) [virtual]

Assignment operator.

If the connections have equivalent hosts and the host name is already set, it will not be overwritten.

References bestEffortIp(), forwarderPort(), DtHostNameAddress::hostName(), isEquivalentHost(), DtHostNameAddress::isValid(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), reliableIp(), DtHostNameAddress::setHostName(), DtHostNameAddress::setIp(), tcpPort(), udpPort(), and useRtiexec().

bool DtRtiConnectionInfo::operator== ( const DtRtiConnectionInfo & other ) const [virtual]

Equals operator.

References bestEffortIp(), forwarderPort(), isEquivalentHost(), myBestEffortIp, myForwarderPort, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), tcpPort(), udpPort(), and useRtiexec().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::reliableIp ( ) const [virtual]

Returns IP address for reliable communication.

References DtHostNameAddress::ip(), and myHostNameAddress.

Referenced by DtAssistantLrcConnQueryWidget::isKnownAssistant(), operator=(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

void DtRtiConnectionInfo::setBestEffortIp ( const MAKRti::DtInetAddr & ip ) [virtual]

Sets the best effort IP address.

References myBestEffortIp.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

void DtRtiConnectionInfo::setForwarderPort ( int port ) [virtual]

Sets the port.

References myForwarderPort.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

void DtRtiConnectionInfo::setHostName ( const MAKRti::DtString & host ) [virtual]

Sets the host name.

References myHostNameAddress, and DtHostNameAddress::setHostName().

Referenced by DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setLocalIpAddresses ( bool reset = false ) [static]

Sets the list of recognized local IP addresses.

If the set of local IP addresses has already been created it will not be reset unless the reset flag is true.

References DtEnumerateInterfaces(), localSupportsIPv4(), localSupportsIPv6(), and theLocalIpAddresses().

Referenced by DtRtiAssistantPeer::addSocketsForInterfaces(), DtAssistantConnQueryMgr::checkForInterfaces(), DtRtiAssistant::DtRtiAssistant(), and DtRtiConnectionInfo().

void DtRtiConnectionInfo::setNetworkInterfaceAddr ( const MAKRti::DtInetAddr & addr ) [virtual]

Sets the local network interface address to use for this connection.

References myNetworkInterfaceAddr.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

void DtRtiConnectionInfo::setReliableIp ( const MAKRti::DtInetAddr & ip ) [virtual]

Sets the reliable IP address.

References myHostNameAddress, and DtHostNameAddress::setIp().

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

void DtRtiConnectionInfo::setTcpPort ( int port ) [virtual]

Sets the TCP port.

References myTcpPort.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

void DtRtiConnectionInfo::setUdpPort ( int port ) [virtual]

Sets the UDP port.

References myUdpPort.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), and DtRtiNetworkComponentViewDialog::viewedConnectionDescription().

void DtRtiConnectionInfo::setUseRtiexec ( bool useExec ) [virtual]

Sets whether this connection uses an rtiexec.

References myUseRtiexec.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

int DtRtiConnectionInfo::tcpPort ( ) const [virtual]

Returns TCP port.

References myTcpPort.

Referenced by conflictsWith(), operator<(), operator=(), operator==(), DtAssistantFederationsViewMgr::saveToLog(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

std::set< MAKRti::DtInetAddr > & DtRtiConnectionInfo::theLocalIpAddresses ( ) [static, protected]

Returns a reference to a static map of local IP addresses to netmasks.

This is a shallow wrapper function which is provided to guarantee the std::map is initialized. Please note that this class is only used by the assistant, which is single threaded. If this class is ever used by a multithreaded application, this static member should be mutex protected.

Referenced by localIpAddresses(), localSupportsIPv4(), localSupportsIPv6(), and setLocalIpAddresses().

int DtRtiConnectionInfo::udpPort ( ) const [virtual]

Returns UDP port.

References myUdpPort.

Referenced by conflictsWith(), operator<(), operator=(), operator==(), DtAssistantFederationsViewMgr::saveToLog(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtRtiNetworkComponentViewDialog::setViewedConnectionDescription().

bool DtRtiConnectionInfo::useRtiexec ( ) const [virtual]

Returns whether this connection uses an rtiexec.

References myUseRtiexec.
