DtFederationsViewDialog Class Reference

Inheritance diagram for DtFederationsViewDialog:

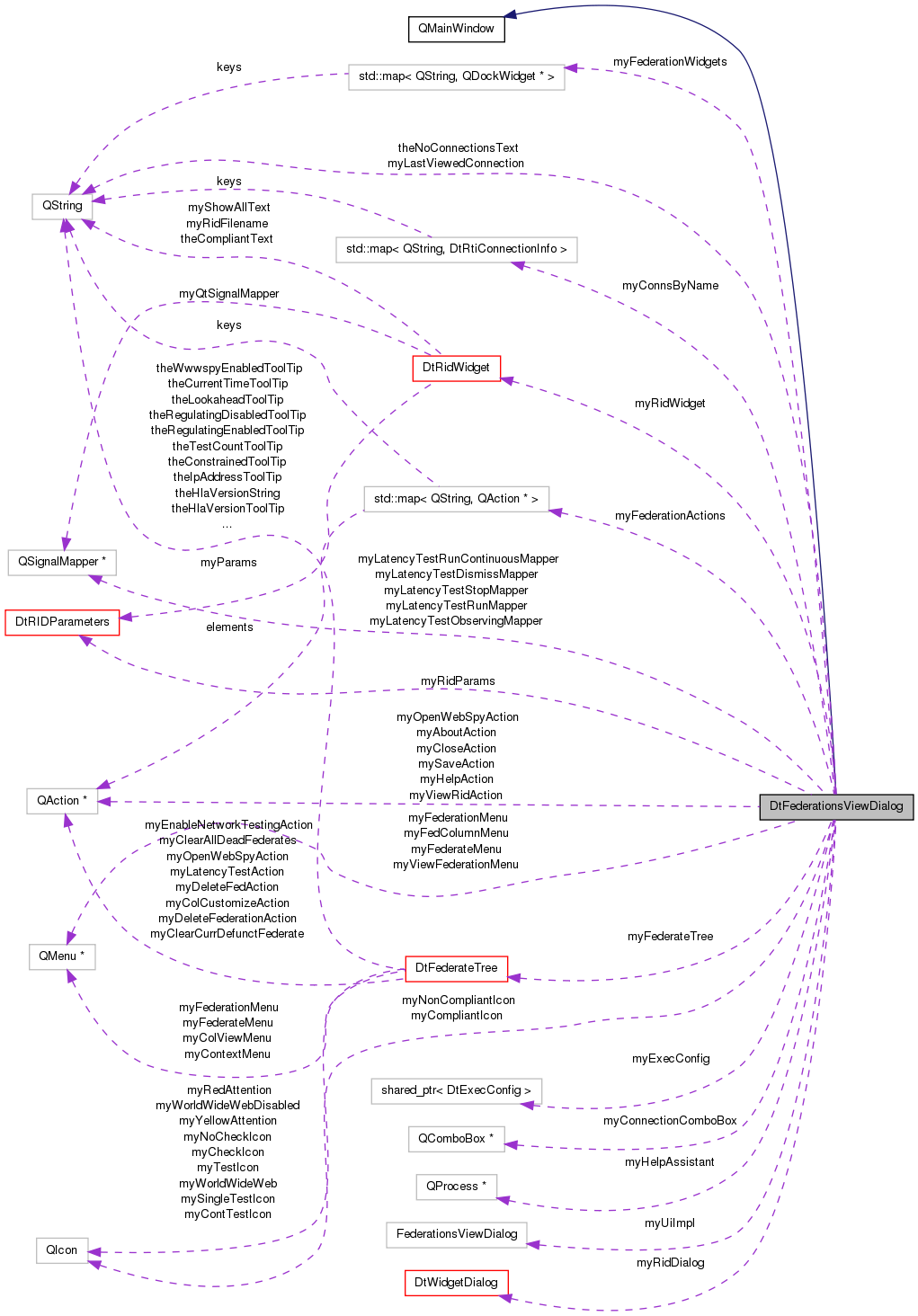

Collaboration diagram for DtFederationsViewDialog:

List of all members.

Public Slots
virtual void	processConnectionSelection (int index, bool ignoreVisibility=false)
	Processes the selection of a new connection.
virtual void	showHelpDialog ()
	Shows the help dialog.
virtual void	processHelpDialogClose ()
	Handles cleanup of the help dialog after it is closed.
virtual void	showRidDialog ()
	Shows the RID dialog.
virtual void	clearRidParams ()
	Clears the parameters currently displayed in the RID dialog.
virtual void	enableOrDisableRidViewing (const DtRtiConnectionInfo &conn)
	Enables or disables RID viewing based on selected connection.
virtual void	updateFederateRemovalTime (float period)
	Processes an update to the defunct federate removal period.
virtual void	enableWebSpy (bool enable)
	Processes a command to enable/disable the rtiexec web spy view command.
float	getFederateRemovalTime () const
	Get the federate Removal time.
virtual void	updateFedViewWidgetEnable (const QString &)
	Update the Federations View "Network Testing: " widget.
virtual void	updateFedViewWidgetDisable (const QString &)
Signals
void	viewedConnectionChanged (const DtRtiConnectionInfo &conn)
	Emitted when the user chooses to update the connection to be viewed.
void	forceFederateResign (int, const QString &)
	Emitted when user has requested to resign a federate.
void	forceFederationDestroy (const QString &)
	Emitted when user has requested to destroy a federation.
void	showRtiexecWebSpy ()
	Emitted to request display of the current rtiexec's web spy page.
void	showFederateWebSpy (const QString &fedexName, int fedHandle)
	Emitted to request display a web spy page for the given federate.
void	requestRidParams ()
	Emitted when RID parameters for the current rtiexec are requested.
void	showLatencyTestDialog (const QString &fedexName, int fedHandle)
	Emitted when a latency test is requested.
void	aboutDialogRequested ()
	Emitted when the RTI about dialog is requested.
void	enableNetworkTesting (const QString &fedexName)
	Emitted to enable network testing for the given federation.
void	disableNetworkTesting (const QString &fedexName)
	Emitted to disable network testing for the given federation.
void	saveToLog ()
	Emitted when a user requests to save the currently displayed federation information to a log file.
Public Member Functions
	DtFederationsViewDialog (const MAKRti::DtFilename &configDir, QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor.
virtual	~DtFederationsViewDialog ()
	Destructor.
virtual void	tick ()
	Performs periodic functions.
virtual int	addConnection (const MAKRti::DtString &name, const DtRtiConnectionInfo &conn, bool isLocal)
	Adds a connection to the list of viewable connections.
virtual void	removeConnection (const MAKRti::DtString &name)
	Removes an rtiexec from the list of viewable rtiexecs.
virtual void	setConnectionIsLocal (const MAKRti::DtString &name, bool isLocal)
	Changes the state of whether the given connection is local.
virtual void	updateFederations (const DtFederationStateByNameMap &federations)
	Updates the displayed federation information for the currently displayed connection.
virtual void	updateFederation (const DtAssistantFederationInfo &federation)
	Updates a federation of the currently displayed connection.
virtual void	removeFederation (const MAKRti::DtString &federationName)
	Removes a federation from the currently displayed connection.
virtual void	removeAllFederations ()
	Removes all federations from the display.
virtual void	updateFederate (const DtAssistantFederateInfo &federate, const MAKRti::DtString &federationName)
	Updates a federate in the given federation of the currently displayed connection.
virtual void	removeFederate (int federateHandle, const MAKRti::DtString &federationName)
	Removes a federate from the given federation of the currently displayed connection.
virtual void	updateSyncPoint (const MAKRti::DtString &syncPtName, const DtPendingAchievedPair &pendAchvFeds, const DtFederateInfoByHandleMap &federates, const MAKRti::DtString &federationName)
	Updates the sync pt in the given federation of the currently displayed connection.
virtual void	removeSyncPoint (const MAKRti::DtString &syncPtName, const MAKRti::DtString &federationName)
	Removes the sync pt in the given federation of the currently displayed connection.
virtual void	updateFederateTestStatus (const DtAssistantFederateInfo &federate, const MAKRti::DtString &federationName, bool isRunningTest, int numInitiated, int numReports)
	Updates a federate in the given federation of the currently displayed connection.
virtual bool	selectedConnection (DtRtiConnectionInfo &conn) const
	If there is a currently selected connection, its information is populated in the given connection information.
virtual int	selectedConnection () const
	If there is a currently selected rtiexec, return its index.
virtual void	updateRidParams (const MAKRti::DtString &params, const MAKRti::DtString &hostName, const MAKRti::DtString &filename)
	Updates the current RID params.
virtual void	enableCommands (bool enable)
	Enables or disables the rtiexec command options (shutdown, resign federate, destroy federation).
virtual void	displayLoadingIndication ()
	Displays a message that the current federation information is loading.
virtual void	removeLoadingIndication ()
	Removes the loading indication messages.
virtual void	saveGuiState ()
	Saves the current GUI state to file.
virtual QMenu *	createPopupMenu ()
	Override Qt function to create menu when right clicking menu bar.
virtual void	clearFederationActions ()
	Removes all the federation view menu.
Protected Member Functions
virtual void	addFederationWidget (const DtAssistantFederationInfo &federationState)
	Adds a new federation widget to the main window.
virtual void	removeFederationWidget (const QString &federationName, const QString &federationMenuName)
	Removes and deletes a federation widget from the main window.
virtual void	addFederationMenuAction (QAction *action)
	Adds an action to the federation view menu.
virtual void	removeFederationMenuAction (const QString &name)
	Removes an item from the federation view menu.
virtual void	showEvent (QShowEvent *event)
	Handles the showing of this dialog.
virtual void	closeEvent (QCloseEvent *event)
	Handles the closing of this dialog.
virtual void	keyPressEvent (QKeyEvent *event)
	Handles key press events.
virtual void	convertToFederateTreeStrings (std::map< QString, std::pair< int, bool > > &columns) const
virtual void	convertToConfigStrings (std::map< QString, std::pair< int, bool > > &columns) const
virtual void	fedExNameAndFedHandleToString (const QString &fedExName, int fedHandle, QString &str)
	Combines a fedEx name and federate handle into a single string.
virtual void	stringToFedExNameAndFedHandle (const QString &str, QString &fedExName, int &fedHandle)
	Extracts the fedEx name and federate handle from a string created by fedExNameAndFedHandleToString().
Setup methods
void	setupConnectionComboBox ()
	Sets up the connection combo box.
void	setupFederateTree ()
	Sets up the federate tree, including the initial column display and the View/Column menu actions.
void	setupMenus ()
	Populates the menus with the submenus and actions.
void	connectSignals ()
	Connects Qt signals and slots.
Protected Attributes
Ui::FederationsViewDialog	myUiImpl
DtWidgetDialog *	myRidDialog
	RID display dialog.
DtRidWidget *	myRidWidget
	Widget that displays the RID parameters.
QProcess *	myHelpAssistant
	Help application.
DtFederateTree *	myFederateTree
	Federate tree.
QComboBox *	myConnectionComboBox
	Combo box for selecting a connection.
DtRIDParameters *	myRidParams
	RID parameters of the currently displayed rtiexec.
std::map< QString, QDockWidget * >	myFederationWidgets
	Federation dock widgets.
DtBoost::shared_ptr< DtExecConfig >	myExecConfig
	Configuration information.
QIcon	myCompliantIcon
	Compliant / non-compliant icons.
QIcon	myNonCompliantIcon
std::map< QString, DtRtiConnectionInfo >	myConnsByName
	Name to connection info map.
QString	myLastViewedConnection
	Name of connection shown last time dialog was displayed.
QSignalMapper *	myLatencyTestObservingMapper
	Signal mappers for each of the latency test dialog signals.
QSignalMapper *	myLatencyTestRunMapper
	Signal mappers for each of the latency test dialog signals.
QSignalMapper *	myLatencyTestRunContinuousMapper
	Signal mappers for each of the latency test dialog signals.
QSignalMapper *	myLatencyTestStopMapper
	Signal mappers for each of the latency test dialog signals.
QSignalMapper *	myLatencyTestDismissMapper
	Signal mappers for each of the latency test dialog signals.
Menus and actions
QAction *	mySaveAction
	File menu Save to file action.
QAction *	myCloseAction
	Close dialog action.
QAction *	myOpenWebSpyAction
	View menu Web spy.
QMenu *	myFedColumnMenu
	Federate tree column view menu.
QMenu *	myViewFederationMenu
	Federation display menu.
std::map< QString, QAction * >	myFederationActions
	Federation display menu actions.
QAction *	myViewRidAction
	RID parameter display menu action.
QMenu *	myFederateMenu
	Federate menu.
QMenu *	myFederationMenu
	Federation Menu.
QAction *	myHelpAction
	Help menu.
QAction *	myAboutAction
	File menu Save to file action.
Static Protected Attributes
static QString	theNoConnectionsText = tr("No known active connections available")
	Text displayed in the combo box if there are no known active connections.

---

Constructor & Destructor Documentation

DtFederationsViewDialog::DtFederationsViewDialog	(	const MAKRti::DtFilename &	configDir,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

Constructor.

References connectSignals(), myExecConfig, myUiImpl, setupConnectionComboBox(), setupFederateTree(), and setupMenus().

DtFederationsViewDialog::~DtFederationsViewDialog

(

)

[virtual]

Destructor.

References myHelpAssistant, and myRidDialog.

---

Member Function Documentation

void DtFederationsViewDialog::aboutDialogRequested

(

)

[signal]

Emitted when the RTI about dialog is requested.

Referenced by connectSignals().

int DtFederationsViewDialog::addConnection	(	const MAKRti::DtString &	name,
		const DtRtiConnectionInfo &	conn,
		bool	isLocal
	)		[virtual]

Adds a connection to the list of viewable connections.

Returns the index of the new connection (index is only useful internally to this class). If isLocal is true this connection will be identified as a potential default connection to be shown.

References myConnectionComboBox, myConnsByName, processConnectionSelection(), and theNoConnectionsText.

Referenced by DtAssistantFederationsViewMgr::processConnectionsUpdate().

void DtFederationsViewDialog::addFederationMenuAction

(

QAction *

action

)

[protected, virtual]

Adds an action to the federation view menu.

References myFederationActions, and myViewFederationMenu.

Referenced by addFederationWidget().

void DtFederationsViewDialog::addFederationWidget

(

const DtAssistantFederationInfo &

federationState

)

[protected, virtual]

Adds a new federation widget to the main window.

References addFederationMenuAction(), DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::federationName(), federationName(), myFederationWidgets, and DtRtiFederationWidget::update().

Referenced by updateFederation().

void DtFederationsViewDialog::clearFederationActions

(

)

[virtual]

Removes all the federation view menu.

References myFederationActions.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection().

void DtFederationsViewDialog::clearRidParams

(

)

[virtual, slot]

Clears the parameters currently displayed in the RID dialog.

References DtRidWidget::clearRidParams(), myRidParams, and myRidWidget.

Referenced by connectSignals().

void DtFederationsViewDialog::closeEvent

(

QCloseEvent *

event

)

[protected, virtual]

Handles the closing of this dialog.

References processConnectionSelection().

void DtFederationsViewDialog::connectSignals

(

)

[protected]

Connects Qt signals and slots.

References aboutDialogRequested(), clearRidParams(), connect(), disableNetworkTesting(), enableNetworkTesting(), enableOrDisableRidViewing(), forceFederateResign(), forceFederationDestroy(), myAboutAction, myCloseAction, myConnectionComboBox, myFederateTree, myHelpAction, myOpenWebSpyAction, mySaveAction, myViewRidAction, processConnectionSelection(), saveToLog(), showFederateWebSpy(), showHelpDialog(), showLatencyTestDialog(), showRidDialog(), showRtiexecWebSpy(), updateFedViewWidgetDisable(), updateFedViewWidgetEnable(), and viewedConnectionChanged().

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::convertToConfigStrings

(

std::map< QString, std::pair< int, bool > > &

columns

)

const [protected, virtual]

References DtExecConfig::theConstrainedString, DtFederateTree::theConstrainedString, DtExecConfig::theCurrentTimeString, DtFederateTree::theCurrentTimeString, DtExecConfig::theFederateNameString, DtFederateTree::theFederateNameString, DtExecConfig::theFederationFederateString, DtFederateTree::theFederationFederateString, DtExecConfig::theHlaVersionString, DtFederateTree::theHlaVersionString, DtExecConfig::theIpAddressString, DtFederateTree::theIpAddressString, DtExecConfig::theLBTSString, DtFederateTree::theLBTSString, DtExecConfig::theLookaheadString, DtFederateTree::theLookaheadString, DtExecConfig::theRegulatingString, DtFederateTree::theRegulatingString, DtExecConfig::theTestCountString, DtFederateTree::theTestCountString, DtExecConfig::theTestStatusString, DtFederateTree::theTestStatusString, DtExecConfig::theWwwSpyString, and DtFederateTree::theWwwspyString.

Referenced by saveGuiState().

void DtFederationsViewDialog::convertToFederateTreeStrings

(

std::map< QString, std::pair< int, bool > > &

columns

)

const [protected, virtual]

References DtExecConfig::theConstrainedString, DtFederateTree::theConstrainedString, DtExecConfig::theCurrentTimeString, DtFederateTree::theCurrentTimeString, DtExecConfig::theFederateNameString, DtFederateTree::theFederateNameString, DtExecConfig::theFederationFederateString, DtFederateTree::theFederationFederateString, DtExecConfig::theHlaVersionString, DtFederateTree::theHlaVersionString, DtExecConfig::theIpAddressString, DtFederateTree::theIpAddressString, DtExecConfig::theLBTSString, DtFederateTree::theLBTSString, DtExecConfig::theLookaheadString, DtFederateTree::theLookaheadString, DtExecConfig::theRegulatingString, DtFederateTree::theRegulatingString, DtExecConfig::theTestCountString, DtFederateTree::theTestCountString, DtExecConfig::theTestStatusString, DtFederateTree::theTestStatusString, DtExecConfig::theWwwSpyString, and DtFederateTree::theWwwspyString.

Referenced by setupFederateTree().

QMenu * DtFederationsViewDialog::createPopupMenu

(

)

[virtual]

Override Qt function to create menu when right clicking menu bar.

void DtFederationsViewDialog::disableNetworkTesting

(

const QString &

fedexName

)

[signal]

Emitted to disable network testing for the given federation.

Referenced by connectSignals().

void DtFederationsViewDialog::displayLoadingIndication

(

)

[virtual]

Displays a message that the current federation information is loading.

References DtFederateTree::displayLoadingIndication(), and myFederateTree.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection().

void DtFederationsViewDialog::enableCommands

(

bool

enable

)

[virtual]

Enables or disables the rtiexec command options (shutdown, resign federate, destroy federation).

References DtFederateTree::enableDeletion(), and myFederateTree.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), and DtAssistantFederationsViewMgr::tick().

void DtFederationsViewDialog::enableNetworkTesting

(

const QString &

fedexName

)

[signal]

Emitted to enable network testing for the given federation.

Referenced by connectSignals().

void DtFederationsViewDialog::enableOrDisableRidViewing

(

const DtRtiConnectionInfo &

conn

)

[virtual, slot]

Enables or disables RID viewing based on selected connection.

References DtRtiConnectionInfo::isValid(), myViewRidAction, and DtRtiConnectionInfo::useRtiexec().

Referenced by connectSignals().

void DtFederationsViewDialog::enableWebSpy

(

bool

enable

)

[virtual, slot]

Processes a command to enable/disable the rtiexec web spy view command.

References myOpenWebSpyAction.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), and DtAssistantFederationsViewMgr::processViewedWebSpyInfoUpdated().

void DtFederationsViewDialog::fedExNameAndFedHandleToString	(	const QString &	fedExName,
		int	fedHandle,
		QString &	str
	)		[protected, virtual]

Combines a fedEx name and federate handle into a single string.

void DtFederationsViewDialog::forceFederateResign	(	int	,
		const QString &
	)		[signal]

Emitted when user has requested to resign a federate.

Referenced by connectSignals().

void DtFederationsViewDialog::forceFederationDestroy

(

const QString &

)

[signal]

Emitted when user has requested to destroy a federation.

Referenced by connectSignals().

float DtFederationsViewDialog::getFederateRemovalTime

(

)

const [slot]

Get the federate Removal time.

References DtFederateTree::getFederateRemovalTime(), and myFederateTree.

void DtFederationsViewDialog::keyPressEvent

(

QKeyEvent *

event

)

[protected, virtual]

Handles key press events.

References showHelpDialog().

void DtFederationsViewDialog::processConnectionSelection	(	int	index,
		bool	ignoreVisibility = false
	)		[virtual, slot]

Processes the selection of a new connection.

If ignoreVisibility is set, the selection change will be processed even if the dialog is not visible.

References DtRtiConnectionInfo::invalidConn(), myConnectionComboBox, myConnsByName, myLastViewedConnection, and viewedConnectionChanged().

Referenced by addConnection(), closeEvent(), connectSignals(), and showEvent().

void DtFederationsViewDialog::processHelpDialogClose

(

)

[virtual, slot]

Handles cleanup of the help dialog after it is closed.

References myHelpAssistant.

Referenced by showHelpDialog().

void DtFederationsViewDialog::removeAllFederations

(

)

[virtual]

Removes all federations from the display.

References myFederateTree, myFederationWidgets, myOpenWebSpyAction, DtFederateTree::removeAllFederations(), and removeFederationMenuAction().

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection().

void DtFederationsViewDialog::removeConnection

(

const MAKRti::DtString &

name

)

[virtual]

Removes an rtiexec from the list of viewable rtiexecs.

References myConnectionComboBox, myConnsByName, myLastViewedConnection, and theNoConnectionsText.

Referenced by DtAssistantFederationsViewMgr::processConnectionRemoval().

void DtFederationsViewDialog::removeFederate	(	int	federateHandle,
		const MAKRti::DtString &	federationName
	)		[virtual]

Removes a federate from the given federation of the currently displayed connection.

References myFederateTree, myFederationWidgets, and DtFederateTree::removeFederate().

Referenced by DtAssistantFederationsViewMgr::processFederateRemoved().

void DtFederationsViewDialog::removeFederation

(

const MAKRti::DtString &

federationName

)

[virtual]

Removes a federation from the currently displayed connection.

References DtFederateTree::getTreeFederationName(), myFederateTree, DtFederateTree::removeFederation(), and removeFederationWidget().

Referenced by DtAssistantFederationsViewMgr::processFederationRemoved().

void DtFederationsViewDialog::removeFederationMenuAction

(

const QString &

name

)

[protected, virtual]

Removes an item from the federation view menu.

References myFederationActions, and myViewFederationMenu.

Referenced by removeAllFederations(), and removeFederationWidget().

void DtFederationsViewDialog::removeFederationWidget	(	const QString &	federationName,
		const QString &	federationMenuName
	)		[protected, virtual]

Removes and deletes a federation widget from the main window.

References myFederationWidgets, and removeFederationMenuAction().

Referenced by removeFederation().

void DtFederationsViewDialog::removeLoadingIndication

(

)

[virtual]

Removes the loading indication messages.

References myFederateTree, and DtFederateTree::removeLoadingIndication().

Referenced by DtAssistantFederationsViewMgr::removeLoadingIndication().

void DtFederationsViewDialog::removeSyncPoint	(	const MAKRti::DtString &	syncPtName,
		const MAKRti::DtString &	federationName
	)		[virtual]

Removes the sync pt in the given federation of the currently displayed connection.

References myFederationWidgets.

void DtFederationsViewDialog::requestRidParams

(

)

[signal]

Emitted when RID parameters for the current rtiexec are requested.

Referenced by showRidDialog().

void DtFederationsViewDialog::saveGuiState

(

)

[virtual]

Saves the current GUI state to file.

References DtFederateTree::allColumns(), convertToConfigStrings(), myExecConfig, and myFederateTree.

Referenced by DtAssistantFederationsViewMgr::saveGuiState().

void DtFederationsViewDialog::saveToLog

(

)

[signal]

Emitted when a user requests to save the currently displayed federation information to a log file.

Referenced by connectSignals().

bool DtFederationsViewDialog::selectedConnection

(

DtRtiConnectionInfo &

conn

)

const [virtual]

If there is a currently selected connection, its information is populated in the given connection information.

Otherwise returns false and sets the connection info to an invalid value.

References DtRtiConnectionInfo::invalidConn(), myConnectionComboBox, and myConnsByName.

int DtFederationsViewDialog::selectedConnection

(

)

const [virtual]

If there is a currently selected rtiexec, return its index.

References myConnectionComboBox.

void DtFederationsViewDialog::setConnectionIsLocal	(	const MAKRti::DtString &	name,
		bool	isLocal
	)		[virtual]

Changes the state of whether the given connection is local.

References myConnectionComboBox.

void DtFederationsViewDialog::setupConnectionComboBox

(

)

[protected]

Sets up the connection combo box.

References myConnectionComboBox, myUiImpl, and theNoConnectionsText.

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::setupFederateTree

(

)

[protected]

Sets up the federate tree, including the initial column display and the View/Column menu actions.

References convertToFederateTreeStrings(), myExecConfig, myFederateTree, myUiImpl, and DtFederateTree::setAllColumns().

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::setupMenus

(

)

[protected]

Populates the menus with the submenus and actions.

References DtFederateTree::columnViewMenu(), DtRtiLibPath(), DtFederateTree::federateMenu(), DtFederateTree::federationMenu(), myAboutAction, myCloseAction, myFedColumnMenu, myFederateMenu, myFederateTree, myFederationMenu, myHelpAction, myOpenWebSpyAction, mySaveAction, myUiImpl, myViewFederationMenu, and myViewRidAction.

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::showEvent

(

QShowEvent *

event

)

[protected, virtual]

Handles the showing of this dialog.

References myConnectionComboBox, myLastViewedConnection, and processConnectionSelection().

void DtFederationsViewDialog::showFederateWebSpy	(	const QString &	fedexName,
		int	fedHandle
	)		[signal]

Emitted to request display a web spy page for the given federate.

Referenced by connectSignals().

void DtFederationsViewDialog::showHelpDialog

(

)

[virtual, slot]

Shows the help dialog.

References connect(), DtRtiLibPath(), myHelpAssistant, and processHelpDialogClose().

Referenced by connectSignals(), and keyPressEvent().

void DtFederationsViewDialog::showLatencyTestDialog	(	const QString &	fedexName,
		int	fedHandle
	)		[signal]

Emitted when a latency test is requested.

Referenced by connectSignals().

void DtFederationsViewDialog::showRidDialog

(

)

[virtual, slot]

Shows the RID dialog.

References DtRidWidget::displayAllProperties(), myRidDialog, myRidParams, myRidWidget, requestRidParams(), DtRidWidget::setLoadingState(), and DtWidgetDialog::setWidget().

Referenced by connectSignals().

void DtFederationsViewDialog::showRtiexecWebSpy

(

)

[signal]

Emitted to request display of the current rtiexec's web spy page.

Referenced by connectSignals().

void DtFederationsViewDialog::stringToFedExNameAndFedHandle	(	const QString &	str,
		QString &	fedExName,
		int &	fedHandle
	)		[protected, virtual]

Extracts the fedEx name and federate handle from a string created by fedExNameAndFedHandleToString().

void DtFederationsViewDialog::tick

(

)

[virtual]

Performs periodic functions.

References myFederateTree, and DtFederateTree::processInvalidList().

Referenced by DtAssistantFederationsViewMgr::tick().

void DtFederationsViewDialog::updateFederate	(	const DtAssistantFederateInfo &	federate,
		const MAKRti::DtString &	federationName
	)		[virtual]

Updates a federate in the given federation of the currently displayed connection.

Adds the federate if it does not already exist.

References myFederateTree, myFederationWidgets, and DtFederateTree::updateFederate().

Referenced by DtAssistantFederationsViewMgr::processFederateUpdated().

void DtFederationsViewDialog::updateFederateRemovalTime

(

float

period

)

[virtual, slot]

Processes an update to the defunct federate removal period.

References myFederateTree, and DtFederateTree::setFederateRemovalTime().

Referenced by DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr().

void DtFederationsViewDialog::updateFederateTestStatus	(	const DtAssistantFederateInfo &	federate,
		const MAKRti::DtString &	federationName,
		bool	isRunningTest,
		int	numInitiated,
		int	numReports
	)		[virtual]

Updates a federate in the given federation of the currently displayed connection.

Adds the federate if it does not already exist.

void DtFederationsViewDialog::updateFederation

(

const DtAssistantFederationInfo &

federation

)

[virtual]

Updates a federation of the currently displayed connection.

Adds the federation if it does not already exist.

References addFederationWidget(), DtAssistantFederationInfo::federationName(), myFederateTree, myFederationWidgets, and DtFederateTree::updateFederation().

Referenced by DtAssistantFederationsViewMgr::processFederationUpdate(), and updateFederations().

void DtFederationsViewDialog::updateFederations

(

const DtFederationStateByNameMap &

federations

)

[virtual]

Updates the displayed federation information for the currently displayed connection.

References updateFederation().

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection().

void DtFederationsViewDialog::updateFedViewWidgetDisable

(

const QString &

federationName

)

[virtual, slot]

References myFederationWidgets.

Referenced by connectSignals().

void DtFederationsViewDialog::updateFedViewWidgetEnable

(

const QString &

federationName

)

[virtual, slot]

Update the Federations View "Network Testing: " widget.

References myFederationWidgets.

Referenced by connectSignals().

void DtFederationsViewDialog::updateRidParams	(	const MAKRti::DtString &	params,
		const MAKRti::DtString &	hostName,
		const MAKRti::DtString &	filename
	)		[virtual]

Updates the current RID params.

References myRidParams, myRidWidget, DtRidWidget::setLoadingState(), and DtRidWidget::setRidParams().

Referenced by DtAssistantFederationsViewMgr::processRidParamMsg().

void DtFederationsViewDialog::updateSyncPoint	(	const MAKRti::DtString &	syncPtName,
		const DtPendingAchievedPair &	pendAchvFeds,
		const DtFederateInfoByHandleMap &	federates,
		const MAKRti::DtString &	federationName
	)		[virtual]

Updates the sync pt in the given federation of the currently displayed connection.

Adds the sync point if it does not already exist.

References myFederationWidgets.

void DtFederationsViewDialog::viewedConnectionChanged

(

const DtRtiConnectionInfo &

conn

)

[signal]

Emitted when the user chooses to update the connection to be viewed.

Referenced by connectSignals(), and processConnectionSelection().

---

Member Data Documentation

QAction* DtFederationsViewDialog::myAboutAction [protected]

File menu Save to file action.

Referenced by connectSignals(), and setupMenus().

QAction* DtFederationsViewDialog::myCloseAction [protected]

Close dialog action.

Referenced by connectSignals(), and setupMenus().

QIcon DtFederationsViewDialog::myCompliantIcon [protected]

Compliant / non-compliant icons.

QComboBox* DtFederationsViewDialog::myConnectionComboBox [protected]

Combo box for selecting a connection.

Referenced by addConnection(), connectSignals(), processConnectionSelection(), removeConnection(), selectedConnection(), setConnectionIsLocal(), setupConnectionComboBox(), and showEvent().

std::map< QString, DtRtiConnectionInfo > DtFederationsViewDialog::myConnsByName [protected]

Name to connection info map.

Referenced by addConnection(), processConnectionSelection(), removeConnection(), and selectedConnection().

DtBoost::shared_ptr<DtExecConfig> DtFederationsViewDialog::myExecConfig [protected]

Configuration information.

Referenced by DtFederationsViewDialog(), saveGuiState(), and setupFederateTree().

QMenu* DtFederationsViewDialog::myFedColumnMenu [protected]

Federate tree column view menu.

Referenced by setupMenus().

QMenu* DtFederationsViewDialog::myFederateMenu [protected]

Federate menu.

Referenced by setupMenus().

DtFederateTree* DtFederationsViewDialog::myFederateTree [protected]

Federate tree.

Referenced by connectSignals(), displayLoadingIndication(), enableCommands(), getFederateRemovalTime(), removeAllFederations(), removeFederate(), removeFederation(), removeLoadingIndication(), saveGuiState(), setupFederateTree(), setupMenus(), tick(), updateFederate(), updateFederateRemovalTime(), and updateFederation().

std::map< QString, QAction* > DtFederationsViewDialog::myFederationActions [protected]

Federation display menu actions.

Referenced by addFederationMenuAction(), clearFederationActions(), and removeFederationMenuAction().

QMenu* DtFederationsViewDialog::myFederationMenu [protected]

Federation Menu.

Referenced by setupMenus().

std::map< QString, QDockWidget* > DtFederationsViewDialog::myFederationWidgets [protected]

Federation dock widgets.

Referenced by addFederationWidget(), removeAllFederations(), removeFederate(), removeFederationWidget(), removeSyncPoint(), updateFederate(), updateFederation(), updateFedViewWidgetDisable(), updateFedViewWidgetEnable(), and updateSyncPoint().

QAction* DtFederationsViewDialog::myHelpAction [protected]

Help menu.

Referenced by connectSignals(), and setupMenus().

QProcess* DtFederationsViewDialog::myHelpAssistant [protected]

Help application.

Referenced by processHelpDialogClose(), showHelpDialog(), and ~DtFederationsViewDialog().

QString DtFederationsViewDialog::myLastViewedConnection [protected]

Name of connection shown last time dialog was displayed.

Referenced by processConnectionSelection(), removeConnection(), and showEvent().

QSignalMapper* DtFederationsViewDialog::myLatencyTestDismissMapper [protected]

Signal mappers for each of the latency test dialog signals.

QSignalMapper* DtFederationsViewDialog::myLatencyTestObservingMapper [protected]

Signal mappers for each of the latency test dialog signals.

QSignalMapper* DtFederationsViewDialog::myLatencyTestRunContinuousMapper [protected]

Signal mappers for each of the latency test dialog signals.

QSignalMapper* DtFederationsViewDialog::myLatencyTestRunMapper [protected]

Signal mappers for each of the latency test dialog signals.

QSignalMapper* DtFederationsViewDialog::myLatencyTestStopMapper [protected]

Signal mappers for each of the latency test dialog signals.

QIcon DtFederationsViewDialog::myNonCompliantIcon [protected]

QAction* DtFederationsViewDialog::myOpenWebSpyAction [protected]

View menu Web spy.

Referenced by connectSignals(), enableWebSpy(), removeAllFederations(), and setupMenus().

DtWidgetDialog* DtFederationsViewDialog::myRidDialog [protected]

RID display dialog.

Referenced by showRidDialog(), and ~DtFederationsViewDialog().

DtRIDParameters* DtFederationsViewDialog::myRidParams [protected]

RID parameters of the currently displayed rtiexec.

Referenced by clearRidParams(), showRidDialog(), and updateRidParams().

DtRidWidget* DtFederationsViewDialog::myRidWidget [protected]

Widget that displays the RID parameters.

Referenced by clearRidParams(), showRidDialog(), and updateRidParams().

QAction* DtFederationsViewDialog::mySaveAction [protected]

File menu Save to file action.

Referenced by connectSignals(), and setupMenus().

Ui::FederationsViewDialog DtFederationsViewDialog::myUiImpl [protected]

Referenced by DtFederationsViewDialog(), setupConnectionComboBox(), setupFederateTree(), and setupMenus().

QMenu* DtFederationsViewDialog::myViewFederationMenu [protected]

Federation display menu.

Referenced by addFederationMenuAction(), removeFederationMenuAction(), and setupMenus().

QAction* DtFederationsViewDialog::myViewRidAction [protected]

RID parameter display menu action.

Referenced by connectSignals(), enableOrDisableRidViewing(), and setupMenus().

QString DtFederationsViewDialog::theNoConnectionsText = tr("No known active connections available") [static, protected]

Text displayed in the combo box if there are no known active connections.

Referenced by addConnection(), removeConnection(), and setupConnectionComboBox().

---

The documentation for this class was generated from the following files:

• federationsViewDialog.h
• federationsViewDialog.cxx
