Stores the cached connections which the Assistant can provide to components if necessary. More...

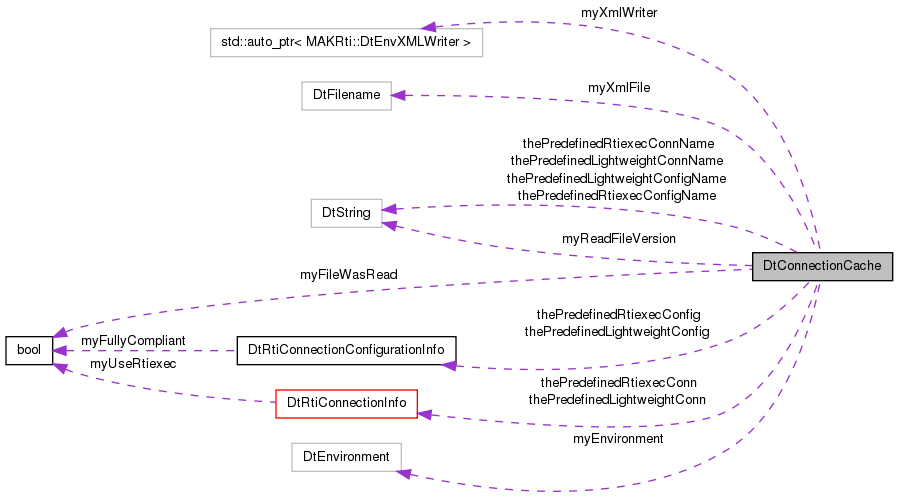

Collaboration diagram for DtConnectionCache:

Public Member Functions
	DtConnectionCache (const MAKRti::DtFilename &xmlFile)
	Constructor.
virtual	~DtConnectionCache ()
	Destructor.
virtual bool	writeToFile ()
	Writes the cache to the default XML file specified at creation.
virtual bool	writeToFile (const MAKRti::DtFilename &xmlFile)
	Writes the cache to the specified XML file. Returns true if successful.
virtual std::ostream &	print (std::ostream &ostr) const
	Prints the cache to the given output stream.
virtual void	getConnections (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieve the connections.
virtual bool	setConnections (const DtRtiConnectionAndConfiguration &conns)
	Set the connections. Returns true on success.
virtual void	clearConnections ()
	Clear all connections.
virtual bool	fileWasRead () const
	Returns true if the cache file was found and read.
virtual bool	getFileVersion (MAKRti::DtString &version) const
	Returns the RTI version of the file that was read.
virtual bool	isCacheVersionOld () const
	Was the cache read from an older file version?
Protected Member Functions
virtual void	getRtiexecConnectionsFromEnv (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieve the rtiexec connections from the XML environment.
virtual void	getLightweightConnectionsFromEnv (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieve the lightweight connections from the XML environment.
virtual void	getConfigurationsFromEnv (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieves the configurations from the XML environment.
virtual MAKRti::DtEnvValueSP	addConnectionToEnv (const DtRtiConnectionInfoDataPair &conn)
	Add a connection/config to the XML environment.
virtual MAKRti::DtEnvValueSP	addConfigurationToEnv (const DtRtiConfigurationInfoDataPair &config)
virtual void	removeConnectionFromEnv (const DtRtiConnectionInfoDataPair &conn)
	Remove a connection from the XML environment.
virtual void	removeConfigurationFromEnv (const DtRtiConfigurationInfoDataPair &config)
void	setConnFromEnv (DtRtiConnectionInfoDataPair &conn, MAKRti::DtEnvValueSP val)
	Sets the connection info from the environment value.
void	setConfigFromEnv (DtRtiConfigurationInfoDataPair &config, MAKRti::DtEnvValueSP val)
	Sets the connection info from the environment value.
bool	parseFile (const MAKRti::DtFilename &filename)
	Build document starting from existing file Non-virtual since this may be called from the constructor.
Protected Attributes
MAKRti::DtEnvironment	myEnvironment
	The cached license environment.
std::auto_ptr < MAKRti::DtEnvXMLWriter >	myXmlWriter
	Document writer - used to convert the document to XML in memory or file myXmlWriter is persistent so that the XML memory buffer does not re-allocate as often.
MAKRti::DtFilename	myXmlFile
	The name of the default XML file to read from and write to.
MAKRti::DtString	myReadFileVersion
	The version of the file that was read.
bool	myFileWasRead
	Indicates whether a cache file was found and read.
Static Protected Attributes
static MAKRti::DtString	thePredefinedLightweightConnName
	The predefined lightweight connection name.
static DtRtiConnectionInfo	thePredefinedLightweightConn
	The predefined lightweight connection.
static MAKRti::DtString	thePredefinedRtiexecConnName
	The predefined rtiexec connection name.
static DtRtiConnectionInfo	thePredefinedRtiexecConn
	The predefined rtiexec connection.
static MAKRti::DtString	thePredefinedLightweightConfigName
	The predefined lightweight configuration name.
static DtRtiConnectionConfigurationInfo	thePredefinedLightweightConfig
	The predefined lightweight configuration.
static MAKRti::DtString	thePredefinedRtiexecConfigName
	The predefined rtiexec configuration name.
static DtRtiConnectionConfigurationInfo	thePredefinedRtiexecConfig
	The predefined rtiexec configuration.
Private Member Functions
	DtConnectionCache (const DtConnectionCache &)
	Copy and assignment not allowed.
DtConnectionCache &	operator= (const DtConnectionCache &)

Detailed Description

Stores the cached connections which the Assistant can provide to components if necessary.

Handles reading and loading this information from an XML file.

Constructor & Destructor Documentation

DtConnectionCache::DtConnectionCache ( const MAKRti::DtFilename & xmlFile )

Constructor.

Creates an Assistant connections cache from the given XML file. If the file cannot be found, an empty cache is created. In this case the file name will be saved as the default file if the cache needs to be written later.

References DtConnectionsVersionString, myEnvironment, myFileWasRead, myReadFileVersion, and myXmlFile.

DtConnectionCache::~DtConnectionCache ( ) [virtual]

Destructor.

DtConnectionCache::DtConnectionCache ( const DtConnectionCache & ) [private]

Copy and assignment not allowed.

Member Function Documentation

MAKRti::DtEnvValueSP DtConnectionCache::addConfigurationToEnv ( const DtRtiConfigurationInfoDataPair & config ) [protected, virtual]

References DtConnectionsChosenString, DtConnectionsConfigString, DtConnectionsFullyCompliantString, and myEnvironment.

Referenced by setConnections().

MAKRti::DtEnvValueSP DtConnectionCache::addConnectionToEnv ( const DtRtiConnectionInfoDataPair & conn ) [protected, virtual]

Add a connection/config to the XML environment.

References DtConnectionsAdditionalForwarderConnString, DtConnectionsBestEffortIPString, DtConnectionsBestEffortPortString, DtConnectionsChosenString, DtConnectionsForwarderPortString, DtConnectionsGivenNameString, DtConnectionsHostString, DtConnectionsLightweightString, DtConnectionsNetworkInterfaceAddrString, DtConnectionsOwnerHostString, DtConnectionsReliableIPString, DtConnectionsReliablePortString, DtConnectionsRtiExecString, and myEnvironment.

Referenced by setConnections().

void DtConnectionCache::clearConnections ( ) [virtual]

Clear all connections.

References DtConnectionsConnectionString, and myEnvironment.

bool DtConnectionCache::fileWasRead ( ) const [virtual]

Returns true if the cache file was found and read.

References myFileWasRead.

void DtConnectionCache::getConfigurationsFromEnv ( DtRtiConnectionAndConfiguration & connsAndConfigs ) [protected, virtual]

Retrieves the configurations from the XML environment.

References DtRtiConnectionAndConfiguration::addConfiguration(), DtRtiConnectionAndConfiguration::connections(), DtConnectionsConfigString, myEnvironment, setConfigFromEnv(), DtRtiConnectionAndConfiguration::setConnectionConfigMapping(), thePredefinedLightweightConfig, thePredefinedLightweightConfigName, thePredefinedRtiexecConfig, and thePredefinedRtiexecConfigName.

Referenced by getConnections().

void DtConnectionCache::getConnections ( DtRtiConnectionAndConfiguration & connsAndConfigs ) [virtual]

Retrieve the connections.

References getConfigurationsFromEnv(), getLightweightConnectionsFromEnv(), and getRtiexecConnectionsFromEnv().

bool DtConnectionCache::getFileVersion ( MAKRti::DtString & version ) const [virtual]

Returns the RTI version of the file that was read.

Returns false if no file was read.

References myFileWasRead, and myReadFileVersion.

Referenced by isCacheVersionOld().

void DtConnectionCache::getLightweightConnectionsFromEnv ( DtRtiConnectionAndConfiguration & connsAndConfigs ) [protected, virtual]

Retrieve the lightweight connections from the XML environment.

Referenced by getConnections().

void DtConnectionCache::getRtiexecConnectionsFromEnv ( DtRtiConnectionAndConfiguration & connsAndConfigs ) [protected, virtual]

Retrieve the rtiexec connections from the XML environment.

Referenced by getConnections().

bool DtConnectionCache::isCacheVersionOld ( ) const [virtual]

Was the cache read from an older file version?

References DtRtiVersionNumber, and getFileVersion().

DtConnectionCache& DtConnectionCache::operator= ( const DtConnectionCache & ) [private]

bool DtConnectionCache::parseFile ( const MAKRti::DtFilename & filename ) [protected]

Build document starting from existing file Non-virtual since this may be called from the constructor.

std::ostream & DtConnectionCache::print ( std::ostream & ostr ) const [virtual]

Prints the cache to the given output stream.

References myEnvironment.

Referenced by operator<<().

void DtConnectionCache::removeConfigurationFromEnv ( const DtRtiConfigurationInfoDataPair & config ) [protected, virtual]

References DtConnectionsConfigString, and myEnvironment.

void DtConnectionCache::removeConnectionFromEnv ( const DtRtiConnectionInfoDataPair & conn ) [protected, virtual]

Remove a connection from the XML environment.

References DtConnectionsLightweightString, DtConnectionsRtiExecString, and myEnvironment.

void DtConnectionCache::setConfigFromEnv	(	DtRtiConfigurationInfoDataPair &	config,
		MAKRti::DtEnvValueSP	val
	)		`[protected]`

Sets the connection info from the environment value.

References DtConnectionsChosenString, DtConnectionsFullyCompliantString, and myEnvironment.

Referenced by getConfigurationsFromEnv().

bool DtConnectionCache::setConnections ( const DtRtiConnectionAndConfiguration & conns ) [virtual]

Set the connections. Returns true on success.

References addConfigurationToEnv(), addConnectionToEnv(), DtRtiConnectionAndConfiguration::configs(), DtRtiConnectionAndConfiguration::connections(), DtConnectionsVersionString, DtRtiVersionNumber, and myEnvironment.

void DtConnectionCache::setConnFromEnv	(	DtRtiConnectionInfoDataPair &	conn,
		MAKRti::DtEnvValueSP	val
	)		`[protected]`

Sets the connection info from the environment value.

References DtConnectionsAdditionalForwarderConnString, DtConnectionsBestEffortIPString, DtConnectionsBestEffortPortString, DtConnectionsChosenString, DtConnectionsForwarderPortString, DtConnectionsGivenNameString, DtConnectionsHostString, DtConnectionsNetworkInterfaceAddrString, DtConnectionsOwnerHostString, DtConnectionsPortString, DtConnectionsReliableIPString, DtConnectionsReliablePortString, DtDefaultInterfaceAddr(), DtGetLocalHostName(), and myEnvironment.

Referenced by getLightweightConnectionsFromEnv(), and getRtiexecConnectionsFromEnv().

bool DtConnectionCache::writeToFile ( ) [virtual]

Writes the cache to the default XML file specified at creation.

Returns true if successful.

References myXmlFile.

bool DtConnectionCache::writeToFile ( const MAKRti::DtFilename & xmlFile ) [virtual]

Writes the cache to the specified XML file. Returns true if successful.

References myEnvironment, and myXmlWriter.

Member Data Documentation

MAKRti::DtEnvironment DtConnectionCache::myEnvironment [protected]

The cached license environment.

Referenced by addConfigurationToEnv(), addConnectionToEnv(), clearConnections(), DtConnectionCache(), getConfigurationsFromEnv(), getLightweightConnectionsFromEnv(), getRtiexecConnectionsFromEnv(), print(), removeConfigurationFromEnv(), removeConnectionFromEnv(), setConfigFromEnv(), setConnections(), setConnFromEnv(), and writeToFile().

bool DtConnectionCache::myFileWasRead [protected]

Indicates whether a cache file was found and read.

Referenced by DtConnectionCache(), fileWasRead(), and getFileVersion().

MAKRti::DtString DtConnectionCache::myReadFileVersion [protected]

The version of the file that was read.

Referenced by DtConnectionCache(), and getFileVersion().

MAKRti::DtFilename DtConnectionCache::myXmlFile [protected]

The name of the default XML file to read from and write to.

Referenced by DtConnectionCache(), and writeToFile().

std::auto_ptr< MAKRti::DtEnvXMLWriter > DtConnectionCache::myXmlWriter [protected]

Document writer - used to convert the document to XML in memory or file myXmlWriter is persistent so that the XML memory buffer does not re-allocate as often.

Referenced by writeToFile().

DtRtiConnectionConfigurationInfo DtConnectionCache::thePredefinedLightweightConfig [static, protected]

The predefined lightweight configuration.

Referenced by getConfigurationsFromEnv().

MAKRti::DtString DtConnectionCache::thePredefinedLightweightConfigName [static, protected]

The predefined lightweight configuration name.

Referenced by getConfigurationsFromEnv().

DtRtiConnectionInfo DtConnectionCache::thePredefinedLightweightConn [static, protected]

The predefined lightweight connection.

Referenced by getLightweightConnectionsFromEnv().

MAKRti::DtString DtConnectionCache::thePredefinedLightweightConnName [static, protected]

The predefined lightweight connection name.
