DtInOutForwarderPort Class Reference

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent. More...

Inheritance diagram for DtInOutForwarderPort:

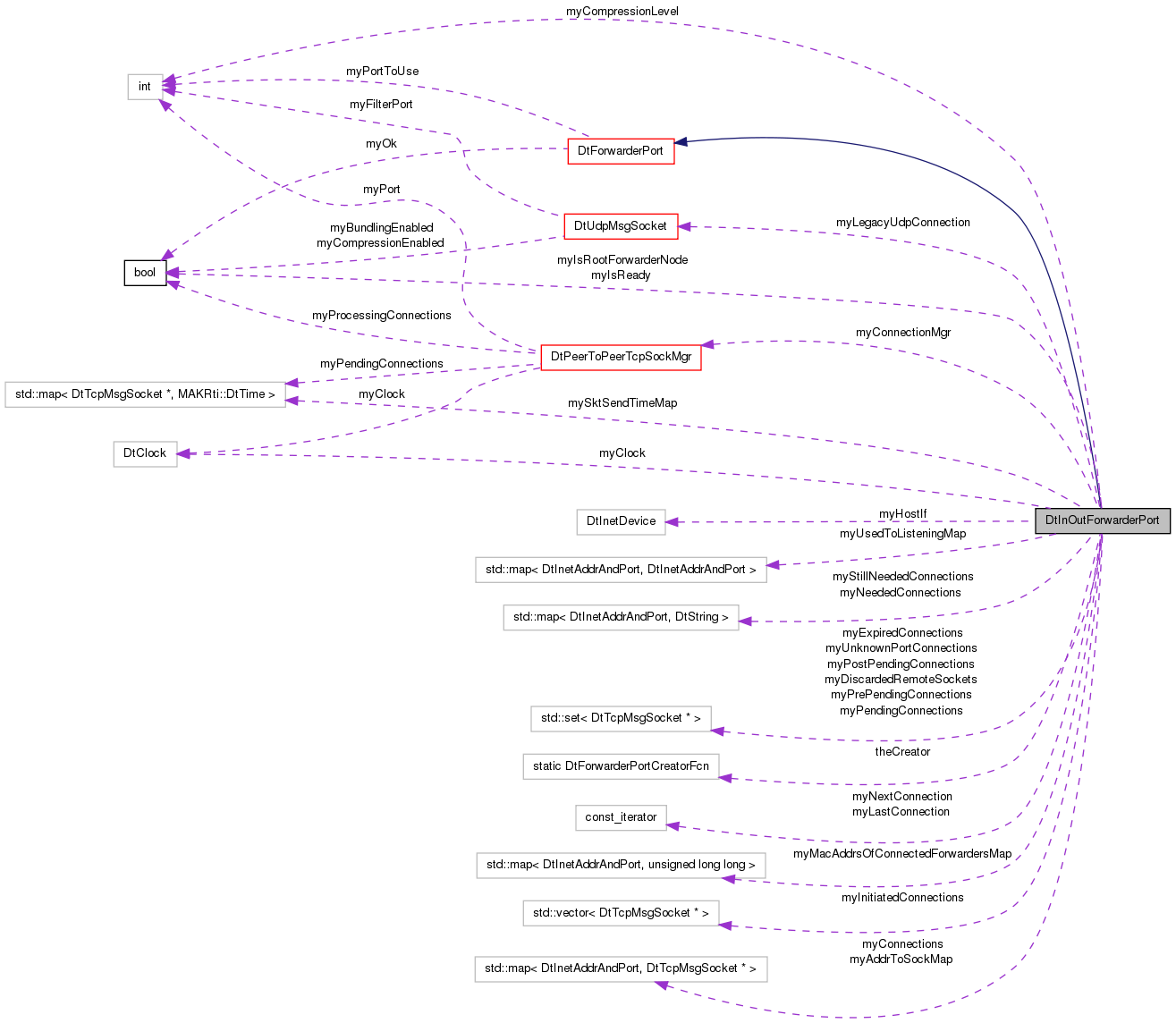

Collaboration diagram for DtInOutForwarderPort:

List of all members.

Public Member Functions
virtual	~DtInOutForwarderPort ()
virtual bool	isReady () const
	Is the Port fully usable and available?
virtual DtAddressMsgPair	getNextMsg ()
	Get the next message to forward and the source connection.
virtual bool	getInitializationMsgs (DtForwarderPort::DtSocketSet &socks, std::list< DtAddressMsgPair > &msgs, bool printBeDestMetadata)
	Get the next initialization messages off of a set of pending TCP sockets.
virtual bool	getInitializationMsg (DtMsgSocket *sock, DtAddressMsgPair &msg, bool printBeDestMetadata)
	Get the next initialization message off of a pending TCP socket.
virtual void	sendByTransport (const DtForwarderMsg &msg) const
	Check transport metadata and send message to appropriate destinations.
virtual void	sendToAllReliable (const DtForwarderMsg &msg) const
	Send a message to all available destinations.
virtual void	sendToListReliable (const DtForwarderMsg &msg, const DtAddressPortList &destinations) const
	Send a message to the specified list of destinations excluding the list of filtered destinations.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)
	Add this port's current select() notification set to the passed set.
virtual void	updateRoutes ()
	Handle changes to the Routing map.
virtual void	processInitializationMessages ()
virtual int	checkConnectionStatus (const DtInetAddrAndPort *target=0)
	Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.
virtual void	clearNeededConnections ()
	Clear the list of needed forwarder connections.
virtual unsigned int	abortPendingConnections ()
	Abort any embryonic connections.
virtual unsigned int	pendingConnectionsAborted ()
	Return a count of aborted or failed connection attempts.
virtual DtAddressPortList	connections () const
	Get the list of all current connections to this port.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
	Listen / drop multicast groups (not implemented in this class)
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Update locally connected federate connection ID (LAN-port-only)
virtual bool	flush ()
	Flush any pending messages.
virtual bool	flushOnly ()
	Flush any pending messages. Does not do any socket disconnect processing.
virtual MAKRti::DtString	connectionListToString (const char *separator=" : ") const
	Print the current connection list.
virtual bool	populateConnectionInformation (unsigned int &numForwarderToForwarderConns, std::vector< MAKRti::DtString > &forwarderIdentifiers, std::vector< MAKRti::DtString > &forwarderConnectionHostNames, std::vector< DtInetAddrAndPort > &forwarderConnectionAddrs) const
virtual void	socketAdditionCb (DtTcpMsgSocket *sock)
virtual void	sendMacAddrMsg (DtTcpMsgSocket *sock)
	Send a populated DtMacAddrMsg to the specified socket.
virtual void	sendPortMsg (DtTcpMsgSocket *sock)
	Send a message indicating our local socket port for the given socket.
virtual void	socketEstablishedCb (DtTcpMsgSocket *sock)
virtual void	socketRemovalCb (DtTcpMsgSocket *sock)
virtual void	processForwarderNodeInfoMsg (const DtForwarderPort::DtAddressMsgPair &msg)
virtual void	processMacAddrMsg (const DtForwarderPort::DtAddressMsgPair &msg)
virtual void	processPortMsg (const DtForwarderPort::DtAddressMsgPair &msgPair)
	Process a message indicating the listening port of the forwarder on the other end of a socket.
void	sendForwarderNodeInfoMsg (DtTcpMsgSocket *sock)
void	sendForwarderNodeInfoMsg ()
Static Public Member Functions
static DtForwarderPort *	create (const DtRIDParameters *params, const DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &additionalForwarderToConnectTo)
	Creates an instance of a DtInOutForwarderPort.
static void	setCreatorFunction (DtForwarderPortCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtInOutForwarderPort with their own derived class.
static void	socketAdditionCb (DtTcpMsgSocket *sock, void *usr)
	Callback for new connections.
static void	socketEstablishedCb (DtTcpMsgSocket *sock, void *usr)
	Callback for established connections.
static void	socketRemovalCb (DtTcpMsgSocket *sock, void *usr)
	Callback for dropped connections.
Protected Member Functions
	DtInOutForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &forwarderAddrToConnectTo)
	Base Ctor - called by default creator.
virtual void	initializeConnections ()
	Initiates a connection to each adjacent node.
virtual bool	connectToPeer (const DtInetAddrAndPort &addrToConnectTo)
	Returns whether sock was ok()
virtual int	processLostConnection (DtTcpMsgSocket *sock)
	Handle lost connections.
void	connectionCompleted (const DtInetAddrAndPort &addrAndPort, DtTcpMsgSocket *sock)
	The new socket has been processed (either via routes files or dynamically).
void	addSocketUsingRoutesFile (DtTcpMsgSocket *sock, const DtInetAddrAndPort &addrAndPort)
	Add this socket to connection using routes file information.
bool	addSocketDynamically (DtTcpMsgSocket *sock)
	Add socket to connections dynamically.
void	addConnection (const DtInetAddrAndPort &newConn, DtTcpMsgSocket *sock)
void	removeConnection (DtAddrToConnMap::iterator pos)
	DtInOutForwarderPort ()
	Default Ctor, Copy Ctor, Assignment - unimplemented.
	DtInOutForwarderPort (const DtInOutForwarderPort &orig)
DtInOutForwarderPort &	operator= (const DtInOutForwarderPort &orig)
bool	removeFromPendingList (DtTcpMsgSocket *addr)
	Remove a connection from the pending list (return true if found and removed)
void	becomeRootForwarderNode ()
	Sets this forwarder node as the root.
Protected Attributes
bool	myIsReady
DtPeerToPeerTcpSockMgr *	myConnectionMgr
DtForwarderPort::DtAddrToConnMap	myConnections
DtForwarderPort::DtAddrToConnMap::const_iterator	myNextConnection
DtForwarderPort::DtAddrToConnMap::const_iterator	myLastConnection
std::map< DtInetAddrAndPort, DtTcpMsgSocket * >	myAddrToSockMap
DtForwarderPort::DtSocketSet	myPendingConnections
	Connections which are in process.
DtForwarderPort::DtSocketSet	myPrePendingConnections
DtForwarderPort::DtSocketSet	myPostPendingConnections
DtForwarderPort::DtSocketSet	myUnknownPortConnections
std::map< DtInetAddrAndPort, DtString >	myNeededConnections
	Connections needed before the forwarding network is complete.
std::map< DtInetAddrAndPort, DtString >	myStillNeededConnections
	Connections still needed before the forwarding network is complete.
std::map< DtInetAddrAndPort, DtInetAddrAndPort >	myUsedToListeningMap
	Map of actual address/port pairs to listening address/port pairs, which are also used for identification.
DtForwarderPort::DtSocketList	myInitiatedConnections
DtForwarderPort::DtSocketSet	myExpiredConnections
DtForwarderPort::DtSocketSet	myDiscardedRemoteSockets
DtUdpMsgSocket *	myLegacyUdpConnection
std::map< DtInetAddrAndPort, unsigned long long >	myMacAddrsOfConnectedForwardersMap
bool	myIsRootForwarderNode
MAKRti::DtClock	myClock
std::map< DtTcpMsgSocket *, MAKRti::DtTime >	mySktSendTimeMap
MAKRti::DtInetDevice	myHostIf
	The interface used for connections with other forwarders.
int	myCompressionLevel
Static Protected Attributes
static DtForwarderPortCreatorFcn	theCreator = 0

---

Detailed Description

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent.

---

Constructor & Destructor Documentation

DtInOutForwarderPort::DtInOutForwarderPort	(	const DtRIDParameters *	params,
		DtBoost::shared_ptr< DtRouteMap >	routes,
		const MAKRti::DtInetAddr &	host,
		int	forwarderPort,
		const MAKRti::DtInetAddr &	forwarderAddrToConnectTo
	)		[protected]

Base Ctor - called by default creator.

References DtTcpMsgSocketMgr::addSocketAdditionCallback(), DtPeerToPeerTcpSockMgr::addSocketEstablishedCallback(), DtTcpMsgSocketMgr::addSocketRemovalCallback(), DtRIDParameters::distributedForwarderPort, DtDefaultInterfaceAddr(), DtGetLocalHostName(), DtIsIpOfLocalInterface(), DtPerformDNSLookup(), initializeConnections(), DtTcpMsgSocketMgr::isListening(), DtRIDParameters::maxForwarderQueue, myClock, myConnectionMgr, myHostIf, DtForwarderPort::myOk, DtForwarderPort::myPortToUse, DtForwarderPort::myRoutes, DtRIDParameters::networkInterfaceAddr(), DtTcpMsgSocketMgr::openServerSocket(), DtRtiForwarderGroup::setConnectionManager(), DtTcpMsgSocketMgr::setRecvBufferSize(), DtTcpMsgSocketMgr::setSendBufferSize(), socketAdditionCb(), socketEstablishedCb(), DtRIDParameters::socketReceiveBufferSize, socketRemovalCb(), and DtRIDParameters::socketSendBufferSize.

DtInOutForwarderPort::~DtInOutForwarderPort

(

)

[virtual]

References myConnectionMgr, myConnections, DtTcpMsgSocketMgr::removeSocketAdditionCallback(), DtPeerToPeerTcpSockMgr::removeSocketEstablishedCallback(), DtTcpMsgSocketMgr::removeSocketRemovalCallback(), socketAdditionCb(), socketEstablishedCb(), and socketRemovalCb().

DtInOutForwarderPort::DtInOutForwarderPort

(

)

[protected]

Default Ctor, Copy Ctor, Assignment - unimplemented.

Referenced by create().

DtInOutForwarderPort::DtInOutForwarderPort

(

const DtInOutForwarderPort &

orig

)

[protected]

---

Member Function Documentation

unsigned int DtInOutForwarderPort::abortPendingConnections

(

)

[virtual]

Abort any embryonic connections.

Implements DtForwarderPort.

References DtPeerToPeerTcpSockMgr::abortPendingConnections(), and myConnectionMgr.

void DtInOutForwarderPort::addConnection	(	const DtInetAddrAndPort &	newConn,
		DtTcpMsgSocket *	sock
	)		[protected]

References DtTcpMsgSocket::destination(), myConnections, myLastConnection, myNextConnection, and myUsedToListeningMap.

Referenced by connectionCompleted().

bool DtInOutForwarderPort::addSocketDynamically

(

DtTcpMsgSocket *

sock

)

[protected]

Add socket to connections dynamically.

Returns whether the socket was added to the routes map.

References DtTcpMsgSocket::destination(), and DtForwarderPort::myRoutes.

Referenced by socketAdditionCb(), and socketEstablishedCb().

void DtInOutForwarderPort::addSocketUsingRoutesFile	(	DtTcpMsgSocket *	sock,
		const DtInetAddrAndPort &	addrAndPort
	)		[protected]

Add this socket to connection using routes file information.

References connectionCompleted(), DtPeerToPeerTcpSockMgr::connectToPeer(), DtTcpMsgSocket::isConnected(), DtTcpMsgSocket::isConnectionInProgress(), DtForwarderPort::myAddress, myConnectionMgr, myConnections, myDiscardedRemoteSockets, myExpiredConnections, myHostIf, myInitiatedConnections, myPendingConnections, DtForwarderPort::myPortToUse, DtForwarderPort::myRoutes, myStillNeededConnections, and DtPeerToPeerTcpSockMgr::removeAndDeletePeerConnection().

Referenced by processPortMsg(), and socketEstablishedCb().

void DtInOutForwarderPort::becomeRootForwarderNode

(

)

[protected]

Sets this forwarder node as the root.

References myIsRootForwarderNode.

Referenced by initializeConnections(), and socketRemovalCb().

int DtInOutForwarderPort::checkConnectionStatus

(

const DtInetAddrAndPort *

target = 0

)

[virtual]

Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.

Implements DtForwarderPort.

References DtForwarderPort::connectionLost(), DtTcpMsgSocket::isConnected(), myClock, myConnectionMgr, myConnections, DtForwarderPort::myRoutes, mySktSendTimeMap, DtPeerToPeerTcpSockMgr::processConnections(), processInitializationMessages(), processLostConnection(), and DtTcpMsgSocket::testConnectionStatus().

void DtInOutForwarderPort::clearNeededConnections

(

)

[virtual]

Clear the list of needed forwarder connections.

Implements DtForwarderPort.

References myNeededConnections, and myStillNeededConnections.

void DtInOutForwarderPort::connectionCompleted	(	const DtInetAddrAndPort &	addrAndPort,
		DtTcpMsgSocket *	sock
	)		[protected]

The new socket has been processed (either via routes files or dynamically).

Record established connection.

References addConnection(), DtForwarderPort::connectionEstablished(), connectionListToString(), DtTcpMsgSocket::enableBundling(), DtTcpMsgSocket::enableCompression(), myClock, DtForwarderPort::myRoutes, mySktSendTimeMap, removeFromPendingList(), and sendForwarderNodeInfoMsg().

Referenced by addSocketUsingRoutesFile(), and processForwarderNodeInfoMsg().

MAKRti::DtString DtInOutForwarderPort::connectionListToString

(

const char *

separator = " : "

)

const [virtual]

Print the current connection list.

References DtForwarderPort::myAddress, and myConnections.

Referenced by connectionCompleted(), and socketRemovalCb().

DtForwarderPort::DtAddressPortList DtInOutForwarderPort::connections

(

)

const [virtual]

Get the list of all current connections to this port.

Implements DtForwarderPort.

References myConnections.

bool DtInOutForwarderPort::connectToPeer

(

const DtInetAddrAndPort &

addrToConnectTo

)

[protected, virtual]

Returns whether sock was ok()

References DtPeerToPeerTcpSockMgr::connectToPeer(), DtTcpMsgSocket::isConnected(), DtTcpMsgSocket::isConnectionInProgress(), myAddrToSockMap, myConnectionMgr, myHostIf, myInitiatedConnections, myPendingConnections, myPrePendingConnections, and DtForwarderPort::myRoutes.

Referenced by initializeConnections(), and processForwarderNodeInfoMsg().

DtForwarderPort * DtInOutForwarderPort::create	(	const DtRIDParameters *	params,
		const DtBoost::shared_ptr< DtRouteMap >	routes,
		const MAKRti::DtInetAddr &	host,
		int	forwarderPort,
		const MAKRti::DtInetAddr &	additionalForwarderToConnectTo
	)		[static]

Creates an instance of a DtInOutForwarderPort.

References DtInOutForwarderPort(), and theCreator.

Referenced by setCreatorFunction().

virtual void DtInOutForwarderPort::dropMulticastGroup

(

const MAKRti::DtInetAddr &

mcastAddr

)

[inline, virtual]

Implements DtForwarderPort.

bool DtInOutForwarderPort::flush

(

)

[virtual]

Flush any pending messages.

Reimplemented from DtForwarderPort.

References flushOnly(), myConnectionMgr, myDiscardedRemoteSockets, myExpiredConnections, and DtTcpMsgSocketMgr::removeAndDelete().

bool DtInOutForwarderPort::flushOnly

(

)

[virtual]

Flush any pending messages. Does not do any socket disconnect processing.

References myConnections.

Referenced by flush(), and socketRemovalCb().

bool DtInOutForwarderPort::getInitializationMsg	(	DtMsgSocket *	sock,
		DtAddressMsgPair &	msg,
		bool	printBeDestMetadata
	)		[virtual]

Get the next initialization message off of a pending TCP socket.

References DtRtiMtdMcastAddr::get(), DtRtiMsg::kindString(), DtForwarderPort::myParams, and DtMsgSocket::recvMessageWithSrc().

Referenced by getInitializationMsgs(), and processInitializationMessages().

bool DtInOutForwarderPort::getInitializationMsgs	(	DtForwarderPort::DtSocketSet &	socks,
		std::list< DtAddressMsgPair > &	msgs,
		bool	printBeDestMetadata
	)		[virtual]

Get the next initialization messages off of a set of pending TCP sockets.

References getInitializationMsg().

Referenced by processInitializationMessages().

DtForwarderPort::DtAddressMsgPair DtInOutForwarderPort::getNextMsg

(

)

[virtual]

Get the next message to forward and the source connection.

Implements DtForwarderPort.

References DtRtiMtdTransportType::get(), DtRtiMtdMcastAddr::get(), DtTcpMsgSocket::isConnected(), DtRtiMsg::kindString(), myConnectionMgr, myConnections, myLastConnection, myLegacyUdpConnection, myNextConnection, DtForwarderPort::myParams, DtPeerToPeerTcpSockMgr::processConnections(), processInitializationMessages(), DtUdpMsgSocket::recvMessage(), and DtTcpMsgSocket::recvMessage().

void DtInOutForwarderPort::initializeConnections

(

)

[protected, virtual]

Initiates a connection to each adjacent node.

References becomeRootForwarderNode(), connectToPeer(), DtIsIpOfLocalInterface(), DtUdpMsgSocket::enableBundling(), DtUdpMsgSocket::enableCompression(), DtRIDParameters::enablePacketBundling, DtUdpMsgSocket::isOpen(), DtRIDParameters::isUdpCompressionEnabled, DtRIDParameters::maxUdpPacketSize, myLegacyUdpConnection, myNeededConnections, DtForwarderPort::myParams, DtForwarderPort::myRoutes, myStillNeededConnections, DtUdpMsgSocket::openSocket(), DtRIDParameters::packetBundlingSize, sendForwarderNodeInfoMsg(), DtMsgSocket::setRecvBufferSize(), DtRIDParameters::socketReceiveBufferSize, and DtRIDParameters::udpCompressionLevel.

Referenced by DtInOutForwarderPort().

bool DtInOutForwarderPort::isReady

(

)

const [virtual]

Is the Port fully usable and available?

Implements DtForwarderPort.

References myIsReady.

virtual void DtInOutForwarderPort::listenToMulticastGroup

(

const MAKRti::DtInetAddr &

mcastAddr

)

[inline, virtual]

Listen / drop multicast groups (not implemented in this class)

Implements DtForwarderPort.

DtInOutForwarderPort& DtInOutForwarderPort::operator=

(

const DtInOutForwarderPort &

orig

)

[protected]

unsigned int DtInOutForwarderPort::pendingConnectionsAborted

(

)

[virtual]

Return a count of aborted or failed connection attempts.

Implements DtForwarderPort.

References myConnectionMgr, and DtPeerToPeerTcpSockMgr::pendingConnectionsAborted().

bool DtInOutForwarderPort::populateConnectionInformation	(	unsigned int &	numForwarderToForwarderConns,
		std::vector< MAKRti::DtString > &	forwarderIdentifiers,
		std::vector< MAKRti::DtString > &	forwarderConnectionHostNames,
		std::vector< DtInetAddrAndPort > &	forwarderConnectionAddrs
	)		const [virtual]

References DtForwarderPort::myAddress, myConnections, DtForwarderPort::myPortToUse, and DtForwarderPort::myRoutes.

Referenced by DtForwarderNode::connectionInformation().

void DtInOutForwarderPort::processForwarderNodeInfoMsg

(

const DtForwarderPort::DtAddressMsgPair &

msg

)

[virtual]

References connectionCompleted(), connectToPeer(), DtIsIpOfLocalInterface(), DtForwarderNodeInfoMsg::forwarderHostName(), DtForwarderNodeInfoMsg::forwarderName(), DtForwarderNodeInfoMsg::getInetAddr(), DtForwarderNodeInfoMsg::getNodeId(), DtForwarderNodeInfoMsg::getPort(), DtForwarderNodeInfoMsg::knownForwarderNodes(), myAddrToSockMap, myConnections, myIsRootForwarderNode, myPostPendingConnections, DtForwarderPort::myRoutes, DtForwarderNodeInfoMsg::nodeIdForRecipientToUse(), sendForwarderNodeInfoMsg(), and updateRoutes().

Referenced by processInitializationMessages().

void DtInOutForwarderPort::processInitializationMessages

(

)

[virtual]

References DtForwarderNodeInfoMsgKind, DtForwarderPortMsgKind, DtMacAddrMsgKind, getInitializationMsg(), getInitializationMsgs(), myConnectionMgr, myLegacyUdpConnection, myPendingConnections, myPostPendingConnections, DtForwarderPort::myRoutes, myUnknownPortConnections, DtPeerToPeerTcpSockMgr::processConnections(), processForwarderNodeInfoMsg(), processMacAddrMsg(), and processPortMsg().

Referenced by checkConnectionStatus(), getNextMsg(), and updateRoutes().

int DtInOutForwarderPort::processLostConnection

(

DtTcpMsgSocket *

sock

)

[protected, virtual]

Handle lost connections.

References myConnectionMgr, and DtTcpMsgSocketMgr::removeAndDelete().

Referenced by checkConnectionStatus(), sendForwarderNodeInfoMsg(), sendToAllReliable(), and sendToListReliable().

void DtInOutForwarderPort::processMacAddrMsg

(

const DtForwarderPort::DtAddressMsgPair &

msg

)

[virtual]

References DtFirstHostMACAddr(), DtMacAddrMsg::macAddr(), myExpiredConnections, myInitiatedConnections, myMacAddrsOfConnectedForwardersMap, myPendingConnections, myPostPendingConnections, removeFromPendingList(), DtMacAddrMsg::senderConnecting(), and sendForwarderNodeInfoMsg().

Referenced by processInitializationMessages().

void DtInOutForwarderPort::processPortMsg

(

const DtForwarderPort::DtAddressMsgPair &

msgPair

)

[virtual]

Process a message indicating the listening port of the forwarder on the other end of a socket.

References DtForwarderPortMsg::address(), addSocketUsingRoutesFile(), DtForwarderPortMsg::connectedPort(), DtTcpMsgSocket::destination(), DtForwarderPortMsg::listeningPort(), myAddrToSockMap, DtForwarderPort::myRoutes, myUnknownPortConnections, and myUsedToListeningMap.

Referenced by processInitializationMessages().

void DtInOutForwarderPort::removeConnection

(

DtAddrToConnMap::iterator

pos

)

[protected]

References myConnections, myLastConnection, and myNextConnection.

Referenced by socketRemovalCb().

bool DtInOutForwarderPort::removeFromPendingList

(

DtTcpMsgSocket *

addr

)

[protected]

Remove a connection from the pending list (return true if found and removed)

References myPendingConnections, myPostPendingConnections, myPrePendingConnections, and myUnknownPortConnections.

Referenced by connectionCompleted(), processMacAddrMsg(), and socketRemovalCb().

void DtInOutForwarderPort::selectParams

(

MAKRti::DtSelectParamWithWrite &

selectParams

)

[virtual]

Add this port's current select() notification set to the passed set.

Implements DtForwarderPort.

References myConnections.

void DtInOutForwarderPort::sendByTransport

(

const DtForwarderMsg &

msg

)

const [virtual]

Check transport metadata and send message to appropriate destinations.

Implements DtForwarderPort.

void DtInOutForwarderPort::sendForwarderNodeInfoMsg

(

DtTcpMsgSocket *

sock

)

References DtTcpMsgSocket::destination(), DtGetLocalHostName(), DtTcpMsgSocket::flush(), DtTcpMsgSocket::isConnected(), DtForwarderPort::myAddress, DtForwarderNodeInfo::myIpAddr, myIsRootForwarderNode, DtForwarderPort::myPortToUse, DtForwarderPort::myRoutes, processLostConnection(), DtTcpMsgSocket::sendMessage(), DtForwarderNodeInfoMsg::setForwarderHostName(), DtForwarderNodeInfoMsg::setForwarderName(), DtForwarderNodeInfoMsg::setInetAddr(), DtForwarderNodeInfoMsg::setKnownForwarderNodes(), DtForwarderNodeInfoMsg::setNodeId(), DtForwarderNodeInfoMsg::setNodeIdForRecipientToUse(), and DtForwarderNodeInfoMsg::setPort().

void DtInOutForwarderPort::sendForwarderNodeInfoMsg

(

)

References myConnections, and myPostPendingConnections.

Referenced by connectionCompleted(), initializeConnections(), processForwarderNodeInfoMsg(), processMacAddrMsg(), socketAdditionCb(), and socketRemovalCb().

void DtInOutForwarderPort::sendMacAddrMsg

(

DtTcpMsgSocket *

sock

)

[virtual]

Send a populated DtMacAddrMsg to the specified socket.

References DtTcpMsgSocket::destination(), DtFirstHostMACAddr(), DtTcpMsgSocket::flush(), myAddrToSockMap, myIsReady, DtForwarderPort::myRoutes, DtTcpMsgSocket::sendMessage(), DtMacAddrMsg::setMacAddr(), and DtMacAddrMsg::setSenderConnecting().

Referenced by socketAdditionCb().

void DtInOutForwarderPort::sendPortMsg

(

DtTcpMsgSocket *

sock

)

[virtual]

Send a message indicating our local socket port for the given socket.

References DtTcpMsgSocket::flush(), DtMsgSocket::localEndpoint(), DtForwarderPort::myRoutes, DtTcpMsgSocket::sendMessage(), DtForwarderPortMsg::setAddress(), DtForwarderPortMsg::setConnectedPort(), and DtForwarderPortMsg::setListeningPort().

Referenced by socketAdditionCb(), and socketEstablishedCb().

void DtInOutForwarderPort::sendToAllReliable

(

const DtForwarderMsg &

msg

)

const [virtual]

Send a message to all available destinations.

Implements DtForwarderPort.

References DtTcpMsgSocket::bundleSize(), DtTcpMsgSocket::flush(), DtTcpMsgSocket::isConnected(), DtRtiMsg::kindString(), DtForwarderPort::DtForwarderMsg::length, DtForwarderPort::DtForwarderMsg::msg, myClock, myConnections, mySktSendTimeMap, processLostConnection(), and DtTcpMsgSocket::sendMessage().

void DtInOutForwarderPort::sendToListReliable	(	const DtForwarderMsg &	msg,
		const DtAddressPortList &	destinations
	)		const [virtual]

Send a message to the specified list of destinations excluding the list of filtered destinations.

Implements DtForwarderPort.

References DtTcpMsgSocket::bundleSize(), DtTcpMsgSocket::flush(), DtTcpMsgSocket::isConnected(), DtRtiMsg::kindString(), DtForwarderPort::DtForwarderMsg::length, DtForwarderPort::DtForwarderMsg::msg, myClock, myConnections, mySktSendTimeMap, processLostConnection(), and DtTcpMsgSocket::sendMessage().

void DtInOutForwarderPort::setCreatorFunction

(

DtForwarderPortCreatorFcn

creator

)

[static]

Call this function to set an alternate creator function With this function, users can replace this DtInOutForwarderPort with their own derived class.

References create(), DtBindCreator(), and theCreator.

void DtInOutForwarderPort::socketAdditionCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		[static]

Callback for new connections.

Referenced by DtInOutForwarderPort(), and ~DtInOutForwarderPort().

void DtInOutForwarderPort::socketAdditionCb

(

DtTcpMsgSocket *

sock

)

[virtual]

References addSocketDynamically(), DtTcpMsgSocket::destination(), DtTcpMsgSocket::isConnected(), myAddrToSockMap, myConnectionMgr, myExpiredConnections, myInitiatedConnections, myPostPendingConnections, myPrePendingConnections, DtForwarderPort::myRoutes, myUnknownPortConnections, DtPeerToPeerTcpSockMgr::removeAndDeletePeerConnection(), sendForwarderNodeInfoMsg(), sendMacAddrMsg(), sendPortMsg(), and DtTcpMsgSocket::testConnectionStatus().

void DtInOutForwarderPort::socketEstablishedCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		[static]

Callback for established connections.

Referenced by DtInOutForwarderPort(), and ~DtInOutForwarderPort().

void DtInOutForwarderPort::socketEstablishedCb

(

DtTcpMsgSocket *

sock

)

[virtual]

References addSocketDynamically(), addSocketUsingRoutesFile(), DtTcpMsgSocket::destination(), myAddrToSockMap, myConnectionMgr, myExpiredConnections, myInitiatedConnections, myPendingConnections, myPrePendingConnections, DtForwarderPort::myRoutes, DtPeerToPeerTcpSockMgr::removeAndDeletePeerConnection(), and sendPortMsg().

void DtInOutForwarderPort::socketRemovalCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)		[static]

Callback for dropped connections.

Referenced by DtInOutForwarderPort(), and ~DtInOutForwarderPort().

void DtInOutForwarderPort::socketRemovalCb

(

DtTcpMsgSocket *

sock

)

[virtual]

References becomeRootForwarderNode(), connectionListToString(), DtForwarderPort::connectionLost(), DtTcpMsgSocket::destination(), flushOnly(), DtForwarderPort::myAdditionalAddrToConnectTo, myAddrToSockMap, myConnections, myDiscardedRemoteSockets, myExpiredConnections, myInitiatedConnections, myIsReady, myIsRootForwarderNode, myPendingConnections, myPostPendingConnections, myPrePendingConnections, DtForwarderPort::myRoutes, myUsedToListeningMap, removeConnection(), removeFromPendingList(), and sendForwarderNodeInfoMsg().

bool DtInOutForwarderPort::updateFederateConnectionId	(	unsigned long	orig,
		unsigned long	final
	)		[inline, virtual]

Update locally connected federate connection ID (LAN-port-only)

Implements DtForwarderPort.

void DtInOutForwarderPort::updateRoutes

(

)

[virtual]

Handle changes to the Routing map.

Implements DtForwarderPort.

References DtForwarderPort::forwarderNodeIsReady(), myConnectionMgr, myIsReady, myIsRootForwarderNode, myNeededConnections, myPendingConnections, myPostPendingConnections, myPrePendingConnections, DtForwarderPort::myRoutes, myStillNeededConnections, DtForwarderPort::notWaitingForForwarderConnections(), DtPeerToPeerTcpSockMgr::processConnections(), processInitializationMessages(), and DtForwarderPort::waitingForForwarderConnections().

Referenced by processForwarderNodeInfoMsg().

---

Member Data Documentation

std::map<DtInetAddrAndPort, DtTcpMsgSocket*> DtInOutForwarderPort::myAddrToSockMap [protected]

Referenced by connectToPeer(), processForwarderNodeInfoMsg(), processPortMsg(), sendMacAddrMsg(), socketAdditionCb(), socketEstablishedCb(), and socketRemovalCb().

MAKRti::DtClock DtInOutForwarderPort::myClock [protected]

Referenced by checkConnectionStatus(), connectionCompleted(), DtInOutForwarderPort(), sendToAllReliable(), and sendToListReliable().

int DtInOutForwarderPort::myCompressionLevel [protected]

DtPeerToPeerTcpSockMgr* DtInOutForwarderPort::myConnectionMgr [protected]

Referenced by abortPendingConnections(), addSocketUsingRoutesFile(), checkConnectionStatus(), connectToPeer(), DtInOutForwarderPort(), flush(), getNextMsg(), pendingConnectionsAborted(), processInitializationMessages(), processLostConnection(), socketAdditionCb(), socketEstablishedCb(), updateRoutes(), and ~DtInOutForwarderPort().

DtForwarderPort::DtAddrToConnMap DtInOutForwarderPort::myConnections [protected]

Referenced by addConnection(), addSocketUsingRoutesFile(), checkConnectionStatus(), connectionListToString(), connections(), flushOnly(), getNextMsg(), populateConnectionInformation(), processForwarderNodeInfoMsg(), removeConnection(), selectParams(), sendForwarderNodeInfoMsg(), sendToAllReliable(), sendToListReliable(), socketRemovalCb(), and ~DtInOutForwarderPort().

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myDiscardedRemoteSockets [protected]

Referenced by addSocketUsingRoutesFile(), flush(), and socketRemovalCb().

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myExpiredConnections [protected]

Referenced by addSocketUsingRoutesFile(), flush(), processMacAddrMsg(), socketAdditionCb(), socketEstablishedCb(), and socketRemovalCb().

MAKRti::DtInetDevice DtInOutForwarderPort::myHostIf [protected]

The interface used for connections with other forwarders.

Referenced by addSocketUsingRoutesFile(), connectToPeer(), and DtInOutForwarderPort().

DtForwarderPort::DtSocketList DtInOutForwarderPort::myInitiatedConnections [protected]

Referenced by addSocketUsingRoutesFile(), connectToPeer(), processMacAddrMsg(), socketAdditionCb(), socketEstablishedCb(), and socketRemovalCb().

bool DtInOutForwarderPort::myIsReady [protected]

Referenced by isReady(), sendMacAddrMsg(), socketRemovalCb(), and updateRoutes().

bool DtInOutForwarderPort::myIsRootForwarderNode [protected]

Referenced by becomeRootForwarderNode(), processForwarderNodeInfoMsg(), sendForwarderNodeInfoMsg(), socketRemovalCb(), and updateRoutes().

DtForwarderPort::DtAddrToConnMap::const_iterator DtInOutForwarderPort::myLastConnection [protected]

Referenced by addConnection(), getNextMsg(), and removeConnection().

DtUdpMsgSocket* DtInOutForwarderPort::myLegacyUdpConnection [protected]

Referenced by getNextMsg(), initializeConnections(), and processInitializationMessages().

std::map<DtInetAddrAndPort, unsigned long long> DtInOutForwarderPort::myMacAddrsOfConnectedForwardersMap [protected]

Referenced by processMacAddrMsg().

std::map<DtInetAddrAndPort, DtString> DtInOutForwarderPort::myNeededConnections [protected]

Connections needed before the forwarding network is complete.

Referenced by clearNeededConnections(), initializeConnections(), and updateRoutes().

DtForwarderPort::DtAddrToConnMap::const_iterator DtInOutForwarderPort::myNextConnection [protected]

Referenced by addConnection(), getNextMsg(), and removeConnection().

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myPendingConnections [protected]

Connections which are in process.

Referenced by addSocketUsingRoutesFile(), connectToPeer(), processInitializationMessages(), processMacAddrMsg(), removeFromPendingList(), socketEstablishedCb(), socketRemovalCb(), and updateRoutes().

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myPostPendingConnections [protected]

Referenced by processForwarderNodeInfoMsg(), processInitializationMessages(), processMacAddrMsg(), removeFromPendingList(), sendForwarderNodeInfoMsg(), socketAdditionCb(), socketRemovalCb(), and updateRoutes().

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myPrePendingConnections [protected]

Referenced by connectToPeer(), removeFromPendingList(), socketAdditionCb(), socketEstablishedCb(), socketRemovalCb(), and updateRoutes().

std::map< DtTcpMsgSocket*, MAKRti::DtTime > DtInOutForwarderPort::mySktSendTimeMap [mutable, protected]

Referenced by checkConnectionStatus(), connectionCompleted(), sendToAllReliable(), and sendToListReliable().

std::map<DtInetAddrAndPort, DtString> DtInOutForwarderPort::myStillNeededConnections [protected]

Connections still needed before the forwarding network is complete.

Referenced by addSocketUsingRoutesFile(), clearNeededConnections(), initializeConnections(), and updateRoutes().

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myUnknownPortConnections [protected]

Referenced by processInitializationMessages(), processPortMsg(), removeFromPendingList(), and socketAdditionCb().

std::map<DtInetAddrAndPort, DtInetAddrAndPort> DtInOutForwarderPort::myUsedToListeningMap [protected]

Map of actual address/port pairs to listening address/port pairs, which are also used for identification.

Referenced by addConnection(), processPortMsg(), and socketRemovalCb().

DtInOutForwarderPort::DtForwarderPortCreatorFcn DtInOutForwarderPort::theCreator = 0 [static, protected]

Referenced by create(), and setCreatorFunction().

---

The documentation for this class was generated from the following files:

• inOutForwarderPort.h
• inOutForwarderPort.cxx
