DtRtiMsg is the base class for messages between RTI components. More...
Inherits DtBaseMsg.
Inherited by DtAbortRestoreMsg, DtAliveMsg, DtChangeLatencyTestModeMsg, DtConnectConfirmMsg, DtConnectMsg, DtCreateMsg, DtCreateResponseMsg, DtDeleteMsg, DtDesignatedFederateMsg, DtDestroyMsg, DtDestroyResponseMsg, DtDiscObjMsg, DtEnableDisableNetworkTestingMsg, DtFedAmbCallbackMsg, DtFomModuleDistributionMsg, DtFomModuleRequestMsg, DtForwarderConnectionLostMsg, DtForwarderCounterMsg, DtForwarderNodeInfoMsg, DtForwarderPingMsg, DtForwarderPortMsg, DtForwarderResignMsg, DtInteractionMsg, DtJoinConfirmMsg, DtJoinLightWeightMsg, DtJoinMsg, DtJoinResponseMsg, DtLatencyReportMsg, DtListFederationsMsg, DtLocDelMsg, DtMacAddrMsg, DtMcastConfigureMsg, DtMulticastDiscoveryMsg, DtMultiNameReservedMsg, DtNetworkMapReqMsg, DtNetworkMapRspMsg, DtNullMsg, DtOwnershipMsg, DtPartnerFederateMsg, DtPubInterMsg, DtPubObjMsg, DtQueryInterTransportMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtQueryTransportMsg, DtQueueFullMsg, DtReconnectMsg, DtRegObjMsg, DtReleaseMultiNameMsg, DtReportFederationsMsg, DtReqDiscObjMsg, DtRequestMsg, DtReserveMultiNameMsg, DtResignDirectiveMsg, DtResignMsg, DtRestoreBegunMsg, DtRestoreInitiateMsg, DtRestoreReplyMsg, DtRidTestRequestMsg, DtRtiExecConnectMsg, DtRtiExecHandshakeMsg, DtRtiExecShutdownForwarderMsg, DtSaveMsg, DtSaveResponseMsg, DtSmEnrollmentMsg, DtSubInterMsg, DtSubObjMsg, DtSyncPointMsg, DtSyncPointQueryMsg, DtTestMgrStatusMsg, DtTransferRidParamsMsg, DtUnpubInterMsg, DtUnpubObjMsg, DtUnsubInterMsg, DtUnsubObjMsg, DtUpdateMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtWwwFederateStateReqMsg, DtWwwFederateStateRspMsg, DtWwwStateReqMsg, and DtWwwStateRspMsg.

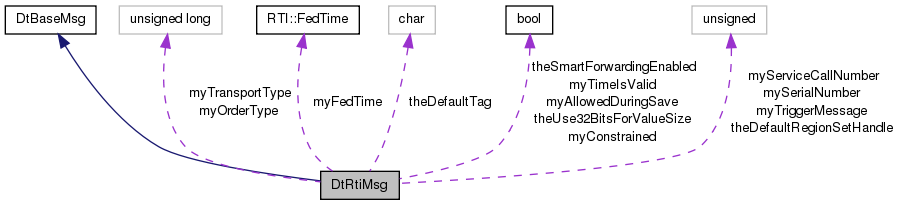

Collaboration diagram for DtRtiMsg:Public Member Functions | |
| virtual | ~DtRtiMsg () |
| Destructor. | |
| virtual DtRtiMsg * | clone (bool copy=true) const =0 |
| Return a copy/empty object of the same type as this. | |
| virtual DtRtiMsg * | cloneWithTransport (bool copy=true) const |
| Return a copy/empty object of the same type as this using clone and set the transport type from the host message. | |
| virtual DtNetMsgHeader * | netHeader () const |
| Get header of network representation. | |
| virtual int | version () const |
| Return the message version. | |
| virtual bool | isValidVersion () const |
| Returns bool: message version is valid? | |
| virtual void | setFedEx (const MAKRti::DtString &name) |
| All RTI messages contain information to identify which federation execution the message applies to. | |
| virtual void | setFedEx (int handle) |
| Set federation execution identifier as a handle. | |
| virtual bool | isForExec (const MAKRti::DtString &execName, int execHandle) const |
| Returns true if the current message belongs to the indicated federation execution, false otherwise. | |
| virtual DtRtiMsgKind | msgKind () const |
| Get the message kind. | |
| virtual const char * | kindString () const |
| Returns the message kind string name. | |
| virtual bool | isConstrained () const |
| Return boolean: message type can be time constrained? | |
| virtual bool | isAllowedDuringSave () const |
| Return boolean: message type can be processed during save? | |
| virtual void | setTime (const RTI::FedTime &time) |
| Set/Get time Used in timestamped messages. | |
| virtual RTI::FedTime const * | time (DtLogicalTimeFactory *fedTimeFactory) const |
| virtual bool | hasTime () const |
| Returns true if time field is valid. | |
| virtual void | setSerialNumber (unsigned long serialNumberValue) |
| Set/Get event retraction serial number Used in timestamped messages. | |
| virtual unsigned long | serialNumber () const |
| virtual void | setTransportType (DtTransportHandle type) |
| Set/Get transport type. | |
| virtual DtTransportHandle | transportType () const |
| virtual DtOrderHandle | orderType () const |
| This base implementation always returns recieve order. | |
| virtual bool | isMetadataPresent () const |
| Test if metadata has been added to a DtRtiMsg object. | |
| virtual bool | addMetadata (caddr_t *mtdAddr, unsigned int size, unsigned int *alignPad, unsigned int *headerPad=NULL) |
| Allocate space for next block of metadata. | |
| virtual void | removeMetadata (unsigned int size) |
| Update the size of the message when metadata has been removed. | |
| bool | isInteractionMsgType () const |
| Utility functions, check the message type against known interaciton/update message types. | |
| bool | isUpdateMsgType () const |
| virtual void | print (DtLogicalTimeFactory *logicalTimeFactory) const |
| Printing functions. | |
| virtual void | printHeader (DtLogicalTimeFactory *logicalTimeFactory) const |
| virtual void | printData (DtLogicalTimeFactory *logicalTimeFactory) const |
| virtual void | printTime (const char *label, RTI::FedTime const *timeValue) const |
| Print the given time. | |
| virtual void | printInterval (const char *label, RTI::FedTime const *intervalValue) const |
| Print the interval. | |
| virtual int | status () const |
| Returns MSG_STATUS_OK if OK, a reason enumeration otherwise. | |
| virtual const MAKRti::DtString | fedExName () const |
| These two functions should be avoided in favor of isForExec(). | |
| virtual int | fedExHandle () const |
| Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name. | |
| virtual void | setFederateHandle (DtFederateHandle handle) |
| Set/Get federate handle. | |
| virtual DtFederateHandle | federateHandle () const |
| Set/Get federate handle. | |
| virtual void | setSequenceNumber (unsigned long value) |
| Set/Get message sequence number. | |
| virtual unsigned long | sequenceNumber () const |
| Set/Get message sequence number. | |
| virtual void | setServiceCallNumber (unsigned long value) |
| Set/Get service call number. | |
| virtual unsigned long | serviceCallNumber () const |
| Set/Get service call number. | |
| virtual void | setTriggerMessageNumber (unsigned long value) |
| Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent). | |
| virtual unsigned long | triggerMessageNumber () const |
| Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent). | |
Static Public Member Functions | |
| static const char * | kindToString (DtRtiMsgKind kind) |
| Returns the name of the message, by kind enumeration. | |
| static const char * | kindString (const void *buffer) |
| Extracts the message kind from the given buffer and returns its string name. | |
| static void | setDefaultRegionSet (unsigned long defaultRegionSet) |
| Set the default region set handle. | |
| static void | setUse32BitsForValueSize (bool use32BitsForValueSizeEnabled) |
| Set/Get flag to enable use of 32 bit size field for attribute/parameter values. | |
| static bool | use32BitsForValueSize () |
| static void | setSmartForwardingEnabled (bool enabled) |
| Set/Get is SmartForwarding enabled? | |
| static bool | smartForwardingEnabled () |
Static Public Attributes | |
| static unsigned long | theDefaultRegionSetHandle = 0 |
| static const char * | theDefaultTag = NULL |
Protected Member Functions | |
| DtRtiMsg () | |
| Constructor. | |
| virtual DtRtiMsgKind | internalDtRtiMsgKind ()=0 |
| virtual void | sizeChanged (int size) |
| Called whenever size is changed using changeSize, or insert/deleteBytes. | |
| void | initDtRtiMsg (int size, DtRtiMsgKind msgKindVal, DtBufferPtr buffer) |
| Called by ctor, so not virtual. | |
| void | initDtRtiMsg (const void *initial, int size, DtBufferPtr buffer) |
| void | initDtRtiMsg (const DtNetMsgHeader *header, DtBufferPtr buffer) |
| virtual void | adjustBytes (int offset, int numBytes) |
| Adjust numBytes bytes at the indicated offset in the net rep. | |
| virtual void | adjustBytes (void *address, int numBytes) |
| Adjust the numBytes starting at the indicated addres. | |
Protected Attributes | |
| DtTransportHandle | myTransportType |
| DtOrderHandle | myOrderType |
| RTI::FedTime * | myFedTime |
| bool | myTimeIsValid |
| bool | myConstrained |
| bool | myAllowedDuringSave |
| unsigned long | mySerialNumber |
| unsigned long | myServiceCallNumber |
| unsigned long | myTriggerMessage |
Static Protected Attributes | |
| static bool | theUse32BitsForValueSize = false |
| static bool | theSmartForwardingEnabled = false |
| DtRtiMsg::~DtRtiMsg | ( | ) | [virtual] |
Destructor.
References myFedTime.
| DtRtiMsg::DtRtiMsg | ( | ) | [protected] |
Constructor.
References DtBindMessage().
| bool DtRtiMsg::addMetadata | ( | caddr_t * | mtdAddr, |
| unsigned int | size, | ||
| unsigned int * | alignPad, | ||
| unsigned int * | headerPad = NULL |
||
| ) | [virtual] |
Allocate space for next block of metadata.
Start address is returned in mtdAddr. Alignment indicated in alignPad and amount of padding needed to align metadata returned in the same variable. If an extra byte is needed to align the header after the payload the headerPad argument will be set if the pointer is not NULL. Return value indicates whether this is the first metadata added to the message.
References DtNetMsgHeader::metadataInMessage(), DtNetMsgHeader::metadataSize, netHeader(), and DtNetMsgHeader::setMetadataInMessage().
Referenced by DtRtiMtdNull::set(), DtRtiMtdMcastAddr::set(), DtRtiMtdTimeStamp::set(), DtRtiMtdTestId::set(), DtRtiMtdForwarderGroupId::set(), DtRtiMtdDestinationList::set(), DtRtiMtdFederateHostInformation::set(), and DtRtiMetadata::setLengthAsValue().
| void DtRtiMsg::adjustBytes | ( | int | offset, |
| int | numBytes | ||
| ) | [inline, protected, virtual] |
Adjust numBytes bytes at the indicated offset in the net rep.
Uses insertBytes or deleteBytes based on sign of numBytes
References rti1516e::insertBytes().
Referenced by DtLatencyReportMsg::resize(), DtUpdateMsg::setObjName(), DtUpdateMsg::setSizeOfNetAttrs(), DtInteractionMsg::setSizeOfNetParams(), DtDeleteMsg::setTag(), DtInteractionMsg::setTag(), DtUpdateMsg::setTag(), and DtRequestMsg::setTag().
| void DtRtiMsg::adjustBytes | ( | void * | address, |
| int | numBytes | ||
| ) | [inline, protected, virtual] |
Adjust the numBytes starting at the indicated addres.
Assumes that address falls within the net rep. Uses insertBytes or deleteBytes based on sign of numBytes
References rti1516e::insertBytes().
| virtual DtRtiMsg* DtRtiMsg::clone | ( | bool | copy = true | ) | const [pure virtual] |
Return a copy/empty object of the same type as this.
NOTE: The transport type is not carried in the network representation used to make clones; therefore, it must be set after the clone is made
Implemented in DtForwarderNodeInfoMsg, DtOwnershipMsg, DtJoinResponseMsg, DtSyncPointMsg, DtTestMgrStatusMsg, DtRequestMsg, DtFedAmbCallbackMsg, DtJoinMsg, DtMcastConfigureMsg, DtMulticastDiscoveryMsg, DtResignMsg, DtLatencyReportMsg, DtQueryTransportMsg, DtSmEnrollmentMsg, DtChangeLatencyTestModeMsg, DtRestoreInitiateMsg, DtSaveTimeMsg, DtRestoreReplyMsg, DtSaveFinishedMsg, DtSyncPointQueryMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtCreateResponseMsg, DtJoinConfirmMsg, DtRestoreEndMsg, DtForwarderCounterMsg, DtPartnerFederateMsg, DtDeleteRoMsg, DtFomModuleRequestMsg, DtSaveResponseMsg, DtUpdateRoMsg, DtCreateMsg, DtRtiExecHandshakeMsg, DtForwarderPortMsg, DtReconnectMsg, DtDestroyMsg, DtForwarderPingMsg, DtForwarderResignMsg, DtJoinLightWeightMsg, DtRestoreBegunMsg, DtDestroyResponseMsg, DtInteractionRoMsg, DtLocDelMsg, DtMacAddrMsg, DtRegObjMsg, DtWwwFederateStateRspMsg, DtMultiNameReservedMsg, DtQueryInterTransportMsg, DtReportFederationsMsg, DtWwwStateRspMsg, DtDiscObjMsg, DtRtiExecConnectMsg, DtNetworkMapReqMsg, DtNetworkMapRspMsg, DtResignDirectiveMsg, DtRidTestRequestMsg, DtSubObjMsg, DtTransferRidParamsMsg, DtWwwFederateStateReqMsg, DtConnectMsg, DtEnableDisableNetworkTestingMsg, DtPubObjMsg, DtReleaseMultiNameMsg, DtReserveMultiNameMsg, DtUnsubObjMsg, DtWwwStateReqMsg, DtConnectConfirmMsg, DtRestoreCompleteMsg, DtRestoreRequestMsg, DtRestoreMsg, DtSaveCompleteMsg, DtSaveInitiateConstrainedMsg, DtSaveInitiateMsg, DtSaveRequestMsg, DtUnpubObjMsg, DtDeleteSocketMsg, DtDesignatedFederateMsg, DtForwarderConnectionLostMsg, DtReqDiscObjMsg, DtUnpubInterMsg, DtUnsubInterMsg, DtListFederationsMsg, DtPubInterMsg, DtSubInterMsg, DtDisconnectMsg, DtRtiExecDisconnectMsg, DtFomModuleDistributionMsg, DtQueueFullMsg, DtAliveMsg, DtRtiExecShutdownForwarderMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtAbortRestoreMsg, DtSaveBegunMsg, DtAbortSaveMsg, DtInitiatedSaveMsg, and DtSaveTimeAdvanceMsg.
Referenced by cloneWithTransport(), DtMessageThrottle::queueMessage(), DtAsyncConnectionMgr::receivePacket(), and DtAsyncConnectionMgr::send().
| DtRtiMsg * DtRtiMsg::cloneWithTransport | ( | bool | copy = true | ) | const [virtual] |
Return a copy/empty object of the same type as this using clone and set the transport type from the host message.
References clone(), setTransportType(), and transportType().
Referenced by DtSmConnectionMgr::getMessage(), DtAsyncConnectionMgr::getMessage(), DtConnectionMgr::getMessage(), DtConnectionMgr::handleMsg(), DtRtiMsgQueue::queueMsg(), and DtSmRtiConnection::send().
| DtFederateHandle DtRtiMsg::federateHandle | ( | ) | const [inline, virtual] |
Set/Get federate handle.
Reimplemented in DtReconnectMsg.
References DtNetMsgHeader::fedHandle, and netHeader().
Referenced by DtInteractionMgr::acceptInteraction(), DtPartnerMgr::acceptMessage(), DtRtiMsgQueue::deleteMsgs(), DtSmartForwardingProcessor::federateJoined(), DtFileDistributor::fileReceived(), DtRtiShmQNetMgr::filterReliableLoopbacks(), DtConnectionMgr::handleMsg(), DtSmEnrollmentMsg::printData(), printHeader(), DtFedExec::processAbortRestore(), DtFedExec::processAbortSave(), DtFedExec::processAlive(), DtObjectMgr::processDelete(), DtObjectMgr::processDiscover(), DtFedExec::processInitiatedSave(), DtInteractionMgr::processInteraction(), DtFedExec::processJoinConfirm(), DtRtiexecObserverForAssistant::processLatencyTestStatusMsg(), DtRtiShmQNetMgr::processMsg(), DtConnectionMgr::processMsg(), DtPartnerMgr::processOtherMessage(), DtFedExec::processOwnership(), DtObjectMgr::processOwnership(), DtPartnerMgr::processPartnerAccept(), DtPartnerMgr::processPartnerConfirm(), DtPartnerMgr::processPartnerMessage(), DtPartnerMgr::processPartnerReject(), DtConnectionMgr::processPendingMsg(), DtInteractionMgr::processPub(), DtObjectMgr::processPub(), DtFedExec::processQueryRestoreStatus(), DtFedExec::processQuerySaveStatus(), DtRtiExec::processQueueFull(), DtObjectMgr::processRegister(), DtFedExec::processReleaseMultiName(), DtObjectMgr::processRequest(), DtObjectMgr::processRequestDiscover(), DtFedExec::processReserveMultiName(), DtTestManager::processResign(), DtInteractionMgr::processResign(), DtFedExec::processResign(), DtFederateMgr::processResign(), DtObjectMgr::processResign(), DtPartnerMgr::processResignMessage(), DtFedExec::processRestoreBegun(), DtFedExec::processRestoreComplete(), DtFedExec::processRestoreRequest(), DtFedExec::processSaveBegun(), DtFedExec::processSaveComplete(), DtFedExec::processSaveRequest(), DtRtiexecObserverForWebService::processStateRspMsg(), DtTestManager::processSub(), DtInteractionMgr::processSub(), DtObjectMgr::processSub(), DtFedExec::processSyncPoint(), DtFedExec::processSyncPointQuery(), DtInteractionMgr::processUnpub(), DtObjectMgr::processUnpub(), DtTestManager::processUnsub(), DtInteractionMgr::processUnsub(), DtObjectMgr::processUnsub(), DtObjectMgr::processUpdate(), DtRtiMsgQueue::removeMsg(), and DtRtiExec::ridRequestCb().
| int DtRtiMsg::fedExHandle | ( | ) | const [virtual] |
Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name.
References DtNetMsgHeader::fedExecId, and netHeader().
Referenced by DtRtiExecWebManager::federateStateReqHandler(), DtRtiShmQNetMgr::filterReliableLoopbacks(), DtRtiExecWebManager::issueChangeRidParamsCommand(), DtRtiExecWebManager::issueLrcLogRequest(), DtRtiExecWebManager::issueStateRequest(), DtRtiExecWebManager::issueUndiscoverObjectCommand(), DtFedExec::multFileRequestedCb(), DtSmEnrollmentMsg::printData(), printHeader(), DtRtiexecObserverForWebService::processControlRspMsg(), DtRtiexecObserverForWebService::processFederateStateRspMsg(), DtFedExec::processJoinMsg(), DtRtiexecObserverForAssistant::processLatencyTestResultsMsg(), DtRtiexecObserverForAssistant::processLatencyTestStatusMsg(), DtRtiShmQNetMgr::processMsg(), DtConnectionMgr::processMsg(), DtRtiExec::processQueueFull(), DtRtiExec::processReconnect(), DtFedExec::processResign(), DtRtiexecObserverForWebService::processStateRspMsg(), DtRtiExec::ridRequestCb(), DtSmConnectionMgr::send(), DtAsyncConnectionMgr::send(), DtConnectionMgr::send(), DtAsyncConnectionMgr::sendAndDelete(), and DtConnectionMgr::sendStampedUtilityFunction().
| const MAKRti::DtString DtRtiMsg::fedExName | ( | ) | const [virtual] |
These two functions should be avoided in favor of isForExec().
They provide detail about how a federation execution identifier has been encoded in the message. Get the federation execution identifier as a string Returns an empty string if the identifier is being represented as a handle.
References DtNetExecNameSize, and netHeader().
Referenced by DtSmartForwardingProcessor::federateJoined(), printHeader(), DtFedExec::processJoinMsg(), and DtConnectionMgr::sendStampedUtilityFunction().
| bool DtRtiMsg::hasTime | ( | ) | const [virtual] |
Returns true if time field is valid.
References myTimeIsValid.
Referenced by DtInteractionMgr::processInteraction(), and DtObjectMgr::processUpdate().
| void DtRtiMsg::initDtRtiMsg | ( | int | size, |
| DtRtiMsgKind | msgKindVal, | ||
| DtBufferPtr | buffer | ||
| ) | [protected] |
Called by ctor, so not virtual.
References DtInvalidMsgKind, DtRtiMessageVersion, DtRtiMetadata::metadataMaxSize(), DtNetMsgHeader::metadataSize, DtNetMsgHeader::msgKind, netHeader(), setFederateHandle(), setFedEx(), DtNetMsgHeader::version, and DtNetMsgHeader::versionCheck.
Referenced by DtAbortRestoreMsg::DtAbortRestoreMsg(), DtAbortSaveMsg::DtAbortSaveMsg(), DtAliveMsg::DtAliveMsg(), DtChangeLatencyTestModeMsg::DtChangeLatencyTestModeMsg(), DtConnectConfirmMsg::DtConnectConfirmMsg(), DtConnectMsg::DtConnectMsg(), DtCreateMsg::DtCreateMsg(), DtCreateResponseMsg::DtCreateResponseMsg(), DtDeleteRoMsg::DtDeleteRoMsg(), DtDesignatedFederateMsg::DtDesignatedFederateMsg(), DtDestroyMsg::DtDestroyMsg(), DtDestroyResponseMsg::DtDestroyResponseMsg(), DtDiscObjMsg::DtDiscObjMsg(), DtEnableDisableNetworkTestingMsg::DtEnableDisableNetworkTestingMsg(), DtFedAmbCallbackMsg::DtFedAmbCallbackMsg(), DtFomModuleDistributionMsg::DtFomModuleDistributionMsg(), DtFomModuleRequestMsg::DtFomModuleRequestMsg(), DtForwarderConnectionLostMsg::DtForwarderConnectionLostMsg(), DtForwarderCounterMsg::DtForwarderCounterMsg(), DtForwarderNodeInfoMsg::DtForwarderNodeInfoMsg(), DtForwarderPingMsg::DtForwarderPingMsg(), DtForwarderPortMsg::DtForwarderPortMsg(), DtForwarderResignMsg::DtForwarderResignMsg(), DtInteractionRoMsg::DtInteractionRoMsg(), DtJoinConfirmMsg::DtJoinConfirmMsg(), DtJoinLightWeightMsg::DtJoinLightWeightMsg(), DtJoinMsg::DtJoinMsg(), DtJoinResponseMsg::DtJoinResponseMsg(), DtLatencyReportMsg::DtLatencyReportMsg(), DtListFederationsMsg::DtListFederationsMsg(), DtLocDelMsg::DtLocDelMsg(), DtMacAddrMsg::DtMacAddrMsg(), DtMcastConfigureMsg::DtMcastConfigureMsg(), DtMulticastDiscoveryMsg::DtMulticastDiscoveryMsg(), DtMultiNameReservedMsg::DtMultiNameReservedMsg(), DtNetworkMapReqMsg::DtNetworkMapReqMsg(), DtNetworkMapRspMsg::DtNetworkMapRspMsg(), DtNullMsg::DtNullMsg(), DtOwnershipMsg::DtOwnershipMsg(), DtPartnerFederateMsg::DtPartnerFederateMsg(), DtPubInterMsg::DtPubInterMsg(), DtPubObjMsg::DtPubObjMsg(), DtQueryInterTransportMsg::DtQueryInterTransportMsg(), DtQueryRestoreStatusMsg::DtQueryRestoreStatusMsg(), DtQuerySaveStatusMsg::DtQuerySaveStatusMsg(), DtQueryTransportMsg::DtQueryTransportMsg(), DtQueueFullMsg::DtQueueFullMsg(), DtReconnectMsg::DtReconnectMsg(), DtRegObjMsg::DtRegObjMsg(), DtReleaseMultiNameMsg::DtReleaseMultiNameMsg(), DtReportFederationsMsg::DtReportFederationsMsg(), DtReqDiscObjMsg::DtReqDiscObjMsg(), DtRequestMsg::DtRequestMsg(), DtReserveMultiNameMsg::DtReserveMultiNameMsg(), DtResignDirectiveMsg::DtResignDirectiveMsg(), DtResignMsg::DtResignMsg(), DtRestoreBegunMsg::DtRestoreBegunMsg(), DtRestoreEndMsg::DtRestoreEndMsg(), DtRestoreInitiateMsg::DtRestoreInitiateMsg(), DtRestoreMsg::DtRestoreMsg(), DtRestoreReplyMsg::DtRestoreReplyMsg(), DtRestoreRequestMsg::DtRestoreRequestMsg(), DtRidTestRequestMsg::DtRidTestRequestMsg(), DtRtiExecConnectMsg::DtRtiExecConnectMsg(), DtRtiExecHandshakeMsg::DtRtiExecHandshakeMsg(), DtRtiExecShutdownForwarderMsg::DtRtiExecShutdownForwarderMsg(), DtSaveBegunMsg::DtSaveBegunMsg(), DtSaveCompleteMsg::DtSaveCompleteMsg(), DtSaveFinishedMsg::DtSaveFinishedMsg(), DtSaveInitiateConstrainedMsg::DtSaveInitiateConstrainedMsg(), DtSaveInitiateMsg::DtSaveInitiateMsg(), DtSaveRequestMsg::DtSaveRequestMsg(), DtSaveResponseMsg::DtSaveResponseMsg(), DtSaveTimeMsg::DtSaveTimeMsg(), DtSmEnrollmentMsg::DtSmEnrollmentMsg(), DtSubInterMsg::DtSubInterMsg(), DtSubObjMsg::DtSubObjMsg(), DtSyncPointMsg::DtSyncPointMsg(), DtSyncPointQueryMsg::DtSyncPointQueryMsg(), DtTestMgrStatusMsg::DtTestMgrStatusMsg(), DtTransferRidParamsMsg::DtTransferRidParamsMsg(), DtUnpubInterMsg::DtUnpubInterMsg(), DtUnpubObjMsg::DtUnpubObjMsg(), DtUnsubInterMsg::DtUnsubInterMsg(), DtUnsubObjMsg::DtUnsubObjMsg(), DtUpdateRoMsg::DtUpdateRoMsg(), DtWwwControlMsg::DtWwwControlMsg(), DtWwwControlRspMsg::DtWwwControlRspMsg(), DtWwwFederateStateReqMsg::DtWwwFederateStateReqMsg(), DtWwwFederateStateRspMsg::DtWwwFederateStateRspMsg(), DtWwwStateReqMsg::DtWwwStateReqMsg(), and DtWwwStateRspMsg::DtWwwStateRspMsg().
| void DtRtiMsg::initDtRtiMsg | ( | const void * | initial, |
| int | size, | ||
| DtBufferPtr | buffer | ||
| ) | [protected] |
| void DtRtiMsg::initDtRtiMsg | ( | const DtNetMsgHeader * | header, |
| DtBufferPtr | buffer | ||
| ) | [protected] |
References DtNetMsgHeader::totalSize.
| virtual DtRtiMsgKind DtRtiMsg::internalDtRtiMsgKind | ( | ) | [protected, pure virtual] |
Implemented in DtJoinResponseMsg, DtSyncPointMsg, DtOwnershipMsg, DtJoinMsg, DtForwarderNodeInfoMsg, DtRequestMsg, DtCreateMsg, DtQueryTransportMsg, DtConnectConfirmMsg, DtResignMsg, DtChangeLatencyTestModeMsg, DtFomModuleDistributionMsg, DtJoinLightWeightMsg, DtTestMgrStatusMsg, DtMulticastDiscoveryMsg, DtRtiExecHandshakeMsg, DtLatencyReportMsg, DtMcastConfigureMsg, DtSyncPointQueryMsg, DtForwarderCounterMsg, DtRtiExecConnectMsg, DtWwwFederateStateRspMsg, DtDiscObjMsg, DtFomModuleRequestMsg, DtRestoreReplyMsg, DtCreateResponseMsg, DtQueryInterTransportMsg, DtSaveResponseMsg, DtRegObjMsg, DtSubObjMsg, DtWwwStateRspMsg, DtJoinConfirmMsg, DtReconnectMsg, DtUpdateRoMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtInteractionRoMsg, DtDeleteRoMsg, DtMultiNameReservedMsg, DtPartnerFederateMsg, DtRestoreBegunMsg, DtForwarderPortMsg, DtReportFederationsMsg, DtSmEnrollmentMsg, DtDestroyResponseMsg, DtReleaseMultiNameMsg, DtReserveMultiNameMsg, DtForwarderPingMsg, DtForwarderResignMsg, DtSaveTimeMsg, DtMacAddrMsg, DtResignDirectiveMsg, DtWwwFederateStateReqMsg, DtNetworkMapRspMsg, DtPubObjMsg, DtTransferRidParamsMsg, DtUnsubObjMsg, DtDestroyMsg, DtForwarderConnectionLostMsg, DtReqDiscObjMsg, DtUnpubObjMsg, DtLocDelMsg, DtUnsubInterMsg, DtEnableDisableNetworkTestingMsg, DtNetworkMapReqMsg, DtRestoreEndMsg, DtRestoreInitiateMsg, DtSaveFinishedMsg, DtSubInterMsg, DtConnectMsg, DtUnpubInterMsg, DtWwwStateReqMsg, DtPubInterMsg, DtDesignatedFederateMsg, DtRidTestRequestMsg, DtListFederationsMsg, DtSaveCompleteMsg, DtSaveRequestMsg, DtSaveMsg, DtAliveMsg, DtRtiExecShutdownForwarderMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtRestoreCompleteMsg, DtAbortRestoreMsg, DtQueueFullMsg, DtRestoreRequestMsg, DtRestoreMsg, DtSaveInitiateConstrainedMsg, DtSaveInitiateMsg, DtDeleteSocketMsg, DtDisconnectMsg, DtRtiExecDisconnectMsg, DtFedAmbCallbackMsg, DtSaveBegunMsg, DtAbortSaveMsg, DtInitiatedSaveMsg, DtSaveTimeAdvanceMsg, and DtNullMsg.
| bool DtRtiMsg::isAllowedDuringSave | ( | ) | const [virtual] |
Return boolean: message type can be processed during save?
References myAllowedDuringSave.
Referenced by DtConnectionMgr::handleMsg().
| bool DtRtiMsg::isConstrained | ( | ) | const [virtual] |
Return boolean: message type can be time constrained?
References myConstrained.
Referenced by DtConnectionMgr::handleMsg(), DtConnectionMgr::processPendingMsg(), DtRtiMsgQueue::queueMsg(), and DtConnectionMgr::sendLoopback().
| bool DtRtiMsg::isForExec | ( | const MAKRti::DtString & | execName, |
| int | execHandle | ||
| ) | const [virtual] |
Returns true if the current message belongs to the indicated federation execution, false otherwise.
If you are not using an rtiexec, use a handle of zero.
References DtNetMsgHeader::isForExec(), and netHeader().
Referenced by DtFedExec::processAbortRestore(), DtFedExec::processAbortSave(), DtFedExec::processInitiatedSave(), DtFedExec::processJoinConfirm(), DtFedExec::processOwnership(), DtFedExec::processReserveMultiName(), DtFedExec::processResign(), DtFedExec::processRestoreBegun(), DtFedExec::processRestoreComplete(), DtFedExec::processRestoreRequest(), DtFedExec::processSaveBegun(), DtFedExec::processSaveComplete(), DtFedExec::processSaveRequest(), DtFedExec::processSyncPoint(), DtRtiExecFederateMgr::processSyncPointMsg(), and DtFedExec::processSyncPointQuery().
| bool DtRtiMsg::isInteractionMsgType | ( | ) | const |
Utility functions, check the message type against known interaciton/update message types.
References DtDdmInteractionRoMsgKind, DtDdmInteractionTsoMsgKind, DtInteractionRoMsgKind, DtInteractionTsoMsgKind, and msgKind().
Referenced by DtTestManager::getTestIDFromMetaData(), and DtTestManager::shouldAddMetadataToMessage().
| bool DtRtiMsg::isMetadataPresent | ( | ) | const [virtual] |
Test if metadata has been added to a DtRtiMsg object.
References DtNetMsgHeader::metadataInMessage(), and netHeader().
| bool DtRtiMsg::isUpdateMsgType | ( | ) | const |
References DtDdmUpdateRoMsgKind, DtDdmUpdateTsoMsgKind, DtUpdateRoMsgKind, DtUpdateTsoMsgKind, and msgKind().
| bool DtRtiMsg::isValidVersion | ( | ) | const [virtual] |
Returns bool: message version is valid?
References DtRtiMessageVersion, netHeader(), and DtNetMsgHeader::versionMatches().
| const char * DtRtiMsg::kindString | ( | ) | const [virtual] |
Returns the message kind string name.
References kindToString(), and msgKind().
Referenced by DtInOutForwarderPort::getInitializationMsg(), DtInOutForwarderPort::getNextMsg(), DtInOutForwarderPort::sendToAllReliable(), and DtInOutForwarderPort::sendToListReliable().
| const char * DtRtiMsg::kindString | ( | const void * | buffer | ) | [static] |
Extracts the message kind from the given buffer and returns its string name.
References kindToString(), and msgKind().
| const char * DtRtiMsg::kindToString | ( | DtRtiMsgKind | kind | ) | [static] |
Returns the name of the message, by kind enumeration.
References DtAbortRestoreMsgKind, DtAbortSaveMsgKind, DtAliveMsgKind, DtAssocPubRegMsgKind, DtAssocSubRegMsgKind, DtCallbackMsgKind, DtChangeLatencyTestModeMsgKind, DtConnectConfirmMsgKind, DtConnectMsgKind, DtConstrainedEnabledMsgKind, DtConstrainedSyncMsgKind, DtCreateMsgKind, DtCreateResponseMsgKind, DtDdmInteractionRoMsgKind, DtDdmInteractionTsoMsgKind, DtDdmUpdateRoMsgKind, DtDdmUpdateTsoMsgKind, DtDeleteRegMsgKind, DtDeleteRoMsgKind, DtDeleteSocketMsgKind, DtDeleteTsoMsgKind, DtDesignatedFederateMsgKind, DtDestroyMsgKind, DtDestroyResponseMsgKind, DtDisableMsgKind, DtDiscObjMsgKind, DtDisconnectMsgKind, DtEnableConstrainedMsgKind, DtEnableDisableNetworkTestingMsgKind, DtEnableRegulationMsgKind, DtFomModuleDistributionMsgKind, DtFomModuleRequestMsgKind, DtForwarderConnectionLostMsgKind, DtForwarderCounterMsgKind, DtForwarderNodeInfoMsgKind, DtForwarderPingMsgKind, DtForwarderPortMsgKind, DtForwarderResignMsgKind, DtInitiatedSaveMsgKind, DtInteractionRoMsgKind, DtInteractionTsoMsgKind, DtInterRegSetMsgKind, DtInvalidMsgKind, DtJoinConfirmMsgKind, DtJoinLightWeightMsgKind, DtJoinMsgKind, DtJoinResponseMsgKind, DtKINDSTR, DtLatencyReportMsgKind, DtLbtsMsgKind, DtListFederationsMsgKind, DtLocDelMsgKind, DtMacAddrMsgKind, DtMcastConfigureMsgKind, DtMulticastDiscoveryMsgKind, DtMultiNameReservedMsgKind, DtNameReservedMsgKind, DtNerLbtsMsgKind, DtNetworkMapReqMsgKind, DtNetworkMapRspMsgKind, DtNextEventRequestMsgKind, DtNotifyRegMsgKind, DtObjRegSetMsgKind, DtOwnershipMsgKind, DtPartnerFederateMsgKind, DtPubInterMsgKind, DtPubObjMsgKind, DtQueryInterTransportMsgKind, DtQueryRestoreStatusMsgKind, DtQuerySaveStatusMsgKind, DtQueryTransportMsgKind, DtQueueFullMsgKind, DtReconnectMsgKind, DtRegionRealizationMsgKind, DtRegObjMsgKind, DtRegulationEnabledMsgKind, DtRegulationRequestMsgKind, DtRegulationResponseMsgKind, DtReleaseMultiNameMsgKind, DtReportFederationsMsgKind, DtReqDiscObjMsgKind, DtRequestMsgKind, DtReserveMultiNameMsgKind, DtReserveNameMsgKind, DtResignDirectiveMsgKind, DtResignMsgKind, DtRestoreBegunMsgKind, DtRestoreCompleteMsgKind, DtRestoreEndMsgKind, DtRestoreInitiateMsgKind, DtRestoreMsgKind, DtRestoreReplyMsgKind, DtRestoreRequestMsgKind, DtRestoreStatusMsgKind, DtResumeConstrainedMsgKind, DtRetractMsgKind, DtRidTestRequestMsgKind, DtRtiExecConnectMsgKind, DtRtiExecDisconnectMsgKind, DtRtiExecHandshakeMsgKind, DtRtiExecShutdownForwarderMsgKind, DtSaveBegunMsgKind, DtSaveCompleteMsgKind, DtSaveFinishedMsgKind, DtSaveInitiateConstrainedMsgKind, DtSaveInitiateMsgKind, DtSaveRequestMsgKind, DtSaveRequestTsoMsgKind, DtSaveResponseMsgKind, DtSaveStatusMsgKind, DtSaveTimeAdvanceMsgKind, DtSaveTimeMsgKind, DtSmEnrollmentMsgKind, DtSubInterMsgKind, DtSubObjMsgKind, DtSyncConstrainedMsgKind, DtSyncPointMsgKind, DtSyncPointQueryMsgKind, DtTestMgrStatusMsgKind, DtTimeAdvanceRequestMsgKind, DtTimeRegMsgKind, DtTransferRidParamsMsgKind, DtUnpubInterMsgKind, DtUnpubObjMsgKind, DtUnsubInterMsgKind, DtUnsubObjMsgKind, DtUpdateRoMsgKind, DtUpdateTsoMsgKind, DtWwwControlMsgKind, DtWwwControlRspMsgKind, DtWwwFederateStateReqMsgKind, DtWwwFederateStateRspMsgKind, DtWwwStateReqMsgKind, and DtWwwStateRspMsgKind.
Referenced by DtForwarderNodeInfoFilter::applyFilter(), DtFederateCounterFilter::applyFilter(), DtForwarderPingFilter::applyFilter(), DtRtiExecHandshakeFilter::applyFilter(), DtForwarderWebManagerFilter::applyFilter(), DtNetworkMapFilter::applyFilter(), DtUpdateInterDestinationFilter< ParentClass >::applyFilter(), DtFederateConnectFilter< ParentClass >::applyFilter(), DtFederateJoinResignFilter< ParentClass >::applyFilter(), DtMulticastListenDropFilter< ParentClass >::applyFilter(), DtForwarderFedexMsgFilter::applyFilter(), DtRtiExecConnectionFilter< DtRtiExecHandshakeProcessor >::applyFilter(), DtConnectConfirmFilter::doFilter(), DtRoutePrinterFilter::doFilter(), DtFederateTrackingFilter::doFilter(), DtFedexMsgFilter::doFilter(), DtRtiExecTrackingFilter::doFilter(), DtTcpRtiConnectionMgr::establishConnection(), DtTcpWwwSpyAdapter::getConnectMsg(), DtLanForwarderPort::getNextMsg(), kindString(), DtRtiConnection::netRead(), DtTcpWwwSpyAdapter::netRead(), DtTcpRtiConnectionMgr::netRead(), DtWwwClientProtocol::parseResponse(), printHeader(), DtFilteredTcpForwarder::readAndForward(), DtObjectMgr::sendBestEffortUpdateMsg(), DtInteractionMgr::sendInteractionMsg(), and DtObjectMgr::sendReliableUpdateMsg().
| DtRtiMsgKind DtRtiMsg::msgKind | ( | ) | const [inline, virtual] |
Get the message kind.
References netHeader().
Referenced by DtPartnerMgr::acceptMessage(), DtInteractionRoMsg::addCallback(), DtUpdateRoMsg::addCallback(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), DtConnectionMgr::destroyRelConn(), DtTcpRtiConnectionMgr::establishConnection(), DtTcpWwwSpyAdapter::getConnectMsg(), isInteractionMsgType(), isUpdateMsgType(), kindString(), DtConnectionMgr::momProcessMsg(), DtWwwClientProtocol::parseResponse(), printHeader(), DtRtiShmQNetMgr::processMsg(), DtConnectionMgr::processMsg(), DtInteractionRoMsg::removeCallback(), DtUpdateRoMsg::removeCallback(), DtConnectionMgr::repairFederationConnection(), DtObjectMgr::sendBestEffortUpdateMsg(), DtInteractionMgr::sendInteractionMsg(), DtObjectMgr::sendReliableUpdateMsg(), DtForwarderWebManager::tick(), and DtRtiExecWebManager::tickOnce().
| DtNetMsgHeader * DtRtiMsg::netHeader | ( | ) | const [inline, virtual] |
Get header of network representation.
Referenced by DtPartnerMgr::acceptMessage(), addMetadata(), DtDeleteSocketMsg::DtDeleteSocketMsg(), DtDisconnectMsg::DtDisconnectMsg(), DtInitiatedSaveMsg::DtInitiatedSaveMsg(), DtRestoreCompleteMsg::DtRestoreCompleteMsg(), DtRtiExecDisconnectMsg::DtRtiExecDisconnectMsg(), DtSaveTimeAdvanceMsg::DtSaveTimeAdvanceMsg(), federateHandle(), fedExHandle(), fedExName(), DtTestManager::getTestIDFromMetaData(), initDtRtiMsg(), isForExec(), isMetadataPresent(), isValidVersion(), msgKind(), printData(), printHeader(), DtSmRtiConnection::send(), DtGsRtiConnection::send(), DtRtiConnection::send(), sequenceNumber(), setFederateHandle(), setFedEx(), setSequenceNumber(), sizeChanged(), and version().
| DtOrderHandle DtRtiMsg::orderType | ( | ) | const [virtual] |
This base implementation always returns recieve order.
References myOrderType.
Referenced by DtInteractionRoMsg::printData(), DtUpdateRoMsg::printData(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), DtRtiMsgQueue::queueMsg(), and DtConnectionMgr::sendStampedUtilityFunction().
| void DtRtiMsg::print | ( | DtLogicalTimeFactory * | logicalTimeFactory | ) | const [virtual] |
Printing functions.
References printData(), and printHeader().
Referenced by DtRtiExecHandshakeProcessor::gotMsgToLanPort(), DtForwarderPingProcessor::gotMsgToOutPort(), DtRtiExecHandshakeProcessor::gotMsgToOutPort(), DtFederateCounterProcessor::gotMsgToOutPort(), DtNetworkMapProcessor::gotNetworkMapRequest(), DtNetworkMapProcessor::gotNetworkMapResponse(), DtRtiExecHandshakeProcessor::gotRtiExecDisconnect(), DtMessageItem::printData(), DtPubObjMsg::printData(), DtSubObjMsg::printData(), DtRegObjMsg::printData(), DtRequestMsg::printData(), DtOwnershipMsg::printData(), DtRtiShmQNetMgr::processMsg(), DtConnectionMgr::processMsg(), DtSmConnectionMgr::send(), DtAsyncConnectionMgr::send(), DtConnectionMgr::send(), and DtAsyncConnectionMgr::sendAndDelete().
| void DtRtiMsg::printData | ( | DtLogicalTimeFactory * | logicalTimeFactory | ) | const [virtual] |
Reimplemented in DtJoinResponseMsg, DtSyncPointMsg, DtOwnershipMsg, DtJoinMsg, DtRequestMsg, DtCreateMsg, DtQueryTransportMsg, DtConnectConfirmMsg, DtResignMsg, DtJoinLightWeightMsg, DtFomModuleDistributionMsg, DtMulticastDiscoveryMsg, DtMcastConfigureMsg, DtSyncPointQueryMsg, DtWwwFederateStateRspMsg, DtRtiExecConnectMsg, DtDiscObjMsg, DtRtiExecHandshakeMsg, DtFomModuleRequestMsg, DtForwarderCounterMsg, DtUpdateRoMsg, DtSaveResponseMsg, DtWwwStateRspMsg, DtFedAmbCallbackMsg, DtRegObjMsg, DtReconnectMsg, DtSubObjMsg, DtWwwControlMsg, DtWwwControlRspMsg, DtJoinConfirmMsg, DtQueryInterTransportMsg, DtCreateResponseMsg, DtDeleteRoMsg, DtInteractionRoMsg, DtMultiNameReservedMsg, DtRestoreBegunMsg, DtReportFederationsMsg, DtSaveTimeMsg, DtSmEnrollmentMsg, DtDestroyResponseMsg, DtForwarderPingMsg, DtForwarderResignMsg, DtRestoreReplyMsg, DtTestMgrStatusMsg, DtWwwFederateStateReqMsg, DtNetworkMapRspMsg, DtResignDirectiveMsg, DtSaveMsg, DtPubObjMsg, DtForwarderConnectionLostMsg, DtNetworkMapReqMsg, DtUnsubObjMsg, DtDestroyMsg, DtLatencyReportMsg, DtReqDiscObjMsg, DtTransferRidParamsMsg, DtUnpubObjMsg, DtChangeLatencyTestModeMsg, DtLocDelMsg, DtPartnerFederateMsg, DtRestoreInitiateMsg, DtUnsubInterMsg, DtEnableDisableNetworkTestingMsg, DtSubInterMsg, DtWwwStateReqMsg, DtConnectMsg, DtRidTestRequestMsg, DtReleaseMultiNameMsg, DtReserveMultiNameMsg, DtSaveCompleteMsg, DtUnpubInterMsg, DtPubInterMsg, DtSaveRequestMsg, DtDesignatedFederateMsg, DtListFederationsMsg, DtAliveMsg, DtRtiExecShutdownForwarderMsg, DtQueryRestoreStatusMsg, DtQuerySaveStatusMsg, DtAbortRestoreMsg, DtSaveBegunMsg, DtAbortSaveMsg, and DtNullMsg.
References netHeader().
Referenced by print().
| void DtRtiMsg::printHeader | ( | DtLogicalTimeFactory * | logicalTimeFactory | ) | const [virtual] |
References DtRtiMessageVersionString(), federateHandle(), fedExHandle(), fedExName(), DtRtiMtdDestinationList::get(), DtRtiMtdDestinationList::getMaxDestinations(), kindToString(), msgKind(), netHeader(), DtBitMask::print(), sequenceNumber(), serviceCallNumber(), smartForwardingEnabled(), triggerMessageNumber(), and version().
Referenced by print().
| void DtRtiMsg::printInterval | ( | const char * | label, |
| RTI::FedTime const * | intervalValue | ||
| ) | const [virtual] |
Print the interval.
References RTI::FedTime::getPrintableLength(), RTI::FedTime::getPrintableString(), and RTI::FedTime::isPositiveInfinity().
| void DtRtiMsg::printTime | ( | const char * | label, |
| RTI::FedTime const * | timeValue | ||
| ) | const [virtual] |
Print the given time.
References RTI::FedTime::getPrintableLength(), RTI::FedTime::getPrintableString(), and RTI::FedTime::isPositiveInfinity().
Referenced by DtSaveTimeMsg::printData().
| void DtRtiMsg::removeMetadata | ( | unsigned int | size | ) | [virtual] |
Update the size of the message when metadata has been removed.
Does not do the actual removing (that's done by DtRtiMetadata::remove())
Referenced by DtRtiMetadata::remove().
| unsigned long DtRtiMsg::sequenceNumber | ( | ) | const [virtual] |
Set/Get message sequence number.
References netHeader(), and DtNetMsgHeader::sequenceNumber.
Referenced by printHeader().
| unsigned long DtRtiMsg::serialNumber | ( | ) | const [virtual] |
References mySerialNumber.
Referenced by DtRetractInfoList::add(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), and DtRtiMsgQueue::removeMsg().
| unsigned long DtRtiMsg::serviceCallNumber | ( | ) | const [virtual] |
| void DtRtiMsg::setDefaultRegionSet | ( | unsigned long | defaultRegionSet | ) | [static] |
Set the default region set handle.
References theDefaultRegionSetHandle.
| void DtRtiMsg::setFederateHandle | ( | DtFederateHandle | handle | ) | [virtual] |
Set/Get federate handle.
Reimplemented in DtReconnectMsg.
References DtNetMsgHeader::fedHandle, and netHeader().
Referenced by DtResignMsg::DtResignMsg(), DtSmEnrollmentMsg::DtSmEnrollmentMsg(), DtTestMgrStatusMsg::DtTestMgrStatusMsg(), DtTcpRtiConnectionMgr::establishConnection(), DtSmartForwardingProcessor::federateJoined(), initDtRtiMsg(), DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted(), DtRtiExecTrackingFilter::processDisconnectMsg(), DtFedExec::processFedFileRequestMsg(), DtRtiExecDistributedTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processTimeout(), DtSynchronousFileDistributor::pullEntireFedFile(), DtFileDistributor::pushFedFile(), DtRtiExec::ridRequestCb(), DtObjectMgr::sendDeleteMsg(), DtObjectMgr::sendRegisterMsg(), DtRidFileTester::sendRequestForTesting(), DtConnectionMgr::sendStampedUtilityFunction(), DtFedExec::sendSyncPointStatusReport(), DtSmEnrollmentMsg::set(), DtResignMsg::set(), DtRtiMsgForwarder::tcpSocketAdditionCb(), DtRtiMsgForwarder::tcpSocketRemovalCb(), DtFilteredTcpForwarder::updateQueuedSockets(), and DtSmConnectionMgr::~DtSmConnectionMgr().
| void DtRtiMsg::setFedEx | ( | const MAKRti::DtString & | name | ) | [virtual] |
All RTI messages contain information to identify which federation execution the message applies to.
The federation execution is identified differently depending on whether or not an rtiexec is being used. When using an rtiexec, use setFedEx(int fedExHandle) to add a federation execution identifier to a message, passing the handle you received from the rtiexec in a joinResponse message when you joined. When not using an rtiexec, use setFedEx(const MAKRti::DtString fedExName), passing the name of the federation execution. In this case, the first three letters of the name will be used as the identifier. In either case, use isForExec() to find out if a received message is for a particular federation execution. Pass the federation execution name and the handle (if using an rtiexec). Set federation execution identifier as a string
References DtNetExecNameSize, DtNetMsgHeader::fedExecId, and netHeader().
Referenced by DtFedExec::changeLatencyTestMode(), DtEnableDisableNetworkTestingMsg::DtEnableDisableNetworkTestingMsg(), DtResignMsg::DtResignMsg(), DtSmEnrollmentMsg::DtSmEnrollmentMsg(), DtTestMgrStatusMsg::DtTestMgrStatusMsg(), DtWwwControlMsg::DtWwwControlMsg(), DtWwwControlRspMsg::DtWwwControlRspMsg(), DtWwwFederateStateReqMsg::DtWwwFederateStateReqMsg(), DtWwwFederateStateRspMsg::DtWwwFederateStateRspMsg(), DtFedExec::endRestore(), DtFedExec::endSave(), DtTcpRtiConnectionMgr::establishConnection(), initDtRtiMsg(), DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted(), DtWwwClientProtocol::parseCommand(), DtFedExec::processFedFileRequestMsg(), DtFedExec::processRestoreBegun(), DtFedExec::processRestoreRequest(), DtRtiExecTrackingFilter::processTimeout(), DtSynchronousFileDistributor::pullEntireFedFile(), DtFileDistributor::pushFedFile(), DtConnectionMgr::repairFederationConnection(), DtRtiExecFederateMgr::restore(), DtFedExec::restoreFederateConnection(), DtRtiExec::ridRequestCb(), DtFedExec::sendDesignatedFederate(), DtFedExec::sendEnableDisableNetworkTestingMsg(), DtFedExec::sendJoinResponseMsg(), DtFedExec::sendMultiNameReservedMsg(), DtFedExec::sendNameReservedMsg(), DtFedExec::sendResignMsg(), DtFedExec::sendRestoreStatus(), DtFedExec::sendSaveInitiateConstrainedMsg(), DtFedExec::sendSaveInitiateMsg(), DtFedExec::sendSaveResponse(), DtFedExec::sendSaveStatus(), DtConnectionMgr::sendStampedUtilityFunction(), DtFedExec::sendSyncPointMsg(), DtFedExec::sendSyncPointReport(), DtFedExec::sendSyncPointStatusReport(), DtTcpWwwSpyAdapter::sendTypeInfo(), DtEnableDisableNetworkTestingMsg::set(), DtSmEnrollmentMsg::set(), DtResignMsg::set(), DtRtiMsgForwarder::tcpSocketAdditionCb(), DtRtiMsgForwarder::tcpSocketRemovalCb(), DtFilteredTcpForwarder::updateQueuedSockets(), and DtSmConnectionMgr::~DtSmConnectionMgr().
| void DtRtiMsg::setFedEx | ( | int | handle | ) | [virtual] |
Set federation execution identifier as a handle.
References DtNetMsgHeader::fedExecId, and netHeader().
| void DtRtiMsg::setSequenceNumber | ( | unsigned long | value | ) | [virtual] |
Set/Get message sequence number.
References netHeader(), and DtNetMsgHeader::sequenceNumber.
Referenced by DtConnectionMgr::send(), DtObjectMgr::sendRegisterMsg(), DtObjectMgr::sendUpdateMessage(), and DtAsyncConnectionMgr::setMessageTracking().
| void DtRtiMsg::setSerialNumber | ( | unsigned long | serialNumberValue | ) | [virtual] |
Set/Get event retraction serial number Used in timestamped messages.
Network data must be maintained by derived messages
References mySerialNumber.
| void DtRtiMsg::setServiceCallNumber | ( | unsigned long | value | ) | [virtual] |
Set/Get service call number.
References myServiceCallNumber.
Referenced by DtConnectionMgr::send(), and DtAsyncConnectionMgr::setMessageTracking().
| void DtRtiMsg::setSmartForwardingEnabled | ( | bool | enabled | ) | [static] |
Set/Get is SmartForwarding enabled?
References theSmartForwardingEnabled.
Referenced by DtConnectionMgr::enableSmartForwarding(), and DtRtiMsgForwarder::init().
| void DtRtiMsg::setTime | ( | const RTI::FedTime & | time | ) | [virtual] |
Set/Get time Used in timestamped messages.
Network data must be maintained by derived messages
Reimplemented in DtSaveMsg.
| void DtRtiMsg::setTransportType | ( | DtTransportHandle | type | ) | [virtual] |
Set/Get transport type.
References myTransportType.
Referenced by cloneWithTransport(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), DtQueuePacket::DtQueuePacket(), DtSmConnectionMgr::getMessage(), DtConnectionMgr::getMessage(), DtSmConnectionMgr::processConnection(), DtRtiShmQNetMgr::processConnection(), DtConnectionMgr::processConnection(), DtAsyncConnectionMgr::receivePacket(), DtConnectionMgr::repairFederationConnection(), DtRtiExecFederateMgr::restore(), DtConnectionMgr::send(), DtInteractionMgr::sendInteractionMsg(), and DtObjectMgr::sendUpdateMessage().
| void DtRtiMsg::setTriggerMessageNumber | ( | unsigned long | value | ) | [virtual] |
Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).
References myTriggerMessage.
Referenced by DtConnectionMgr::send(), and DtAsyncConnectionMgr::setMessageTracking().
| void DtRtiMsg::setUse32BitsForValueSize | ( | bool | use32BitsForValueSizeEnabled | ) | [static] |
Set/Get flag to enable use of 32 bit size field for attribute/parameter values.
References theUse32BitsForValueSize.
Referenced by DtConnectionMgr::initParams().
| void DtRtiMsg::sizeChanged | ( | int | size | ) | [protected, virtual] |
Called whenever size is changed using changeSize, or insert/deleteBytes.
References netHeader(), and DtNetMsgHeader::totalSize.
| bool DtRtiMsg::smartForwardingEnabled | ( | ) | [static] |
References theSmartForwardingEnabled.
Referenced by DtInteractionClassInfo::addRemotePassiveSubscription(), DtRtiObject::addRemoteSubscribe(), DtInteractionClassInfo::addRemoteSubscription(), DtFedExec::deleteFederate(), DtInteractionClassInfo::deleteRemoteSubscription(), DtFedExec::getNextFreeFedHandle(), printHeader(), DtFedExec::processJoinConfirm(), DtFedExec::processResign(), DtRtiObject::remotePassiveSubscribe(), DtInteractionClassInfo::remoteUnsubscribe(), DtRtiObject::removeDiscoveredClass(), DtFedExec::removeFederateConnection(), DtRtiObject::removeRemoteSubscribe(), DtFedExec::restore(), DtRtiObject::setDiscoveredClass(), DtRtiMsgForwarder::ConnectionInfo::setFederateInfo(), and DtFedExec::tickJoin().
| int DtRtiMsg::status | ( | ) | const [inline, virtual] |
Returns MSG_STATUS_OK if OK, a reason enumeration otherwise.
References MSG_STATUS_OK.
Referenced by DtForwarderCounterMsg::DtForwarderCounterMsg(), DtForwarderPingMsg::DtForwarderPingMsg(), DtForwarderResignMsg::DtForwarderResignMsg(), DtMulticastDiscoveryMsg::DtMulticastDiscoveryMsg(), DtReconnectMsg::DtReconnectMsg(), DtFederateTrackingFilter::handleJoinResponseMsg(), DtRtiConnection::netRead(), DtTcpWwwSpyAdapter::netRead(), DtTcpRtiConnectionMgr::netRead(), DtForwarderResignMsg::printData(), DtForwarderCounterMsg::printData(), and DtRtiExecHandshakeMsg::printData().
| RTI::FedTime const * DtRtiMsg::time | ( | DtLogicalTimeFactory * | fedTimeFactory | ) | const [virtual] |
Reimplemented in DtSaveMsg.
References NULL.
Referenced by DtRetractInfoList::add(), DtRtiMsgQueue::nextTsoMsg(), DtMessageItem::operator<(), DtMessageItem::operator<=(), DtMessageItem::operator==(), DtMessageItem::operator>(), DtMessageItem::operator>=(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), DtRtiMsgQueue::queueMsg(), and DtLatencyReportMsg::setTime().
| DtTransportHandle DtRtiMsg::transportType | ( | ) | const [virtual] |
References myTransportType.
Referenced by DtRecipientLatencyTest::addNetReceiveTimeStamp(), DtInitiatorLatencyTest::addNetReceiveTimeStamp(), cloneWithTransport(), DtRtiShmQNetMgr::filterReliableLoopbacks(), DtInteractionRoMsg::printData(), DtUpdateRoMsg::printData(), DtInteractionMgr::processInteraction(), DtObjectMgr::processUpdate(), DtRtiExecFederateMgr::save(), DtAsyncConnectionMgr::sendPackets(), and DtQueryTransportMsg::transportationType().
| unsigned long DtRtiMsg::triggerMessageNumber | ( | ) | const [virtual] |
Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).
References myTriggerMessage.
Referenced by printHeader().
| bool DtRtiMsg::use32BitsForValueSize | ( | ) | [static] |
References theUse32BitsForValueSize.
Referenced by DtUpdateMsg::getAttrs(), DtInteractionMsg::getParams(), DtUpdateMsg::numAttrs(), DtInteractionMsg::numParams(), DtUpdateMsg::setAttrs(), DtInteractionMsg::setParams(), DtUpdateMsg::sizeNeededForNetAttrs(), and DtInteractionMsg::sizeNeededForNetParams().
| int DtRtiMsg::version | ( | ) | const [virtual] |
Return the message version.
References DtRtiMessageVersion, and netHeader().
Referenced by printHeader().
bool DtRtiMsg::myAllowedDuringSave [protected] |
Referenced by DtAbortRestoreMsg::DtAbortRestoreMsg(), DtEnableDisableNetworkTestingMsg::DtEnableDisableNetworkTestingMsg(), DtFedAmbCallbackMsg::DtFedAmbCallbackMsg(), DtInitiatedSaveMsg::DtInitiatedSaveMsg(), DtInteractionMsg::DtInteractionMsg(), DtQueryRestoreStatusMsg::DtQueryRestoreStatusMsg(), DtQuerySaveStatusMsg::DtQuerySaveStatusMsg(), DtResignMsg::DtResignMsg(), DtRestoreInitiateMsg::DtRestoreInitiateMsg(), DtSaveMsg::DtSaveMsg(), DtSaveTimeAdvanceMsg::DtSaveTimeAdvanceMsg(), DtUpdateMsg::DtUpdateMsg(), and isAllowedDuringSave().
bool DtRtiMsg::myConstrained [protected] |
RTI::FedTime* DtRtiMsg::myFedTime [protected] |
Referenced by DtSaveMsg::time(), and ~DtRtiMsg().
DtOrderHandle DtRtiMsg::myOrderType [protected] |
Referenced by orderType().
unsigned long DtRtiMsg::mySerialNumber [protected] |
Referenced by serialNumber(), and setSerialNumber().
unsigned long DtRtiMsg::myServiceCallNumber [protected] |
Referenced by serviceCallNumber(), and setServiceCallNumber().
bool DtRtiMsg::myTimeIsValid [protected] |
Referenced by hasTime().
DtTransportHandle DtRtiMsg::myTransportType [protected] |
Reimplemented in DtQueryTransportMsg.
Referenced by setTransportType(), and transportType().
unsigned long DtRtiMsg::myTriggerMessage [protected] |
Referenced by setTriggerMessageNumber(), and triggerMessageNumber().
unsigned long DtRtiMsg::theDefaultRegionSetHandle = 0 [static] |
Referenced by setDefaultRegionSet().
const char * DtRtiMsg::theDefaultTag = NULL [static] |
bool DtRtiMsg::theSmartForwardingEnabled = false [static, protected] |
Referenced by setSmartForwardingEnabled(), and smartForwardingEnabled().
bool DtRtiMsg::theUse32BitsForValueSize = false [static, protected] |
Referenced by setUse32BitsForValueSize(), and use32BitsForValueSize().
