The DtGsRtiConnection class extends the DtRtiConnection class to allow messages to be sent to multiple stored destination addresses. More...

Inheritance diagram for DtGsRtiConnection:

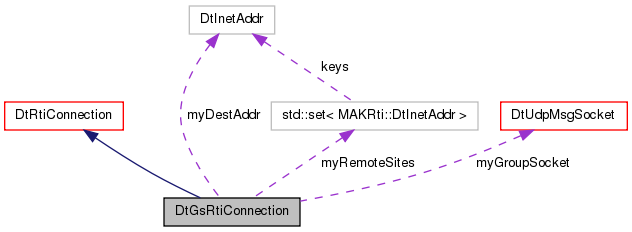

Collaboration diagram for DtGsRtiConnection:

List of all members.

Public Member Functions
	DtGsRtiConnection (DtUdpMsgSocket *skt, const MAKRti::DtInetAddr &destAddr)
	Constructor Accepts pre-created DtNetSocket (or subclass) and default destination address to use when sending and receiving.
virtual	~DtGsRtiConnection ()
	Destructor.
virtual int	send (const DtRtiMsg &msg, const MAKRti::DtInetAddr &destaddr)
	Send a message to the group socket destinations If the supplied destination is non zero, the message is sent to all destinations except the connection's default destination (if it happens to have been added as a destination to the group socket).
virtual void	removeAllRemoteSites ()
	Clear the list of remote sites.
virtual void	addRemoteSite (const MAKRti::DtInetAddr &addr)
	Add a destination address to the list.
virtual void	removeRemoteSite (const MAKRti::DtInetAddr &addr)
	Remove a destination address from the list.
Protected Member Functions
virtual int	sendToAllRemoteSites (caddr_t pkt, size_t size, const MAKRti::DtInetAddr &dwSkipAddr=MAKRti::DtInetAddr::inaddrAny())
	Send to all remote sites except dwSkipAddr.
Protected Attributes
std::set< MAKRti::DtInetAddr >	myRemoteSites
	List of DtInetAddrs (which do not need to be deleted).
MAKRti::DtInetAddr	myDestAddr
	Default destination address. Should not be added to list of remote sites.
DtUdpMsgSocket *	myGroupSocket
	Pointer to DtNetSocket (or subclass) object associated with connection.
Private Member Functions
	DtGsRtiConnection (const DtGsRtiConnection &)
	Copy CTOR Not implemented -- Copy Not Allowed!
DtGsRtiConnection &	operator= (const DtGsRtiConnection &)
	Assignment operator not implemented -- Assignment Not Allowed!

Detailed Description

The DtGsRtiConnection class extends the DtRtiConnection class to allow messages to be sent to multiple stored destination addresses.

This class accepts any type of DtUdpMsgSocket object, including instances of DtGroupSocket and DtCompressionSocket objects. It duplicates some of the functionality of the DtGroupSocket class.

Constructor & Destructor Documentation

DtGsRtiConnection::DtGsRtiConnection	(	DtUdpMsgSocket *	skt,
		const MAKRti::DtInetAddr &	destAddr
	)

Constructor Accepts pre-created DtNetSocket (or subclass) and default destination address to use when sending and receiving.

DtGsRtiConnection::~DtGsRtiConnection ( ) [virtual]

Destructor.

References removeAllRemoteSites().

DtGsRtiConnection::DtGsRtiConnection ( const DtGsRtiConnection & ) [private]

Copy CTOR Not implemented -- Copy Not Allowed!

Member Function Documentation

void DtGsRtiConnection::addRemoteSite ( const MAKRti::DtInetAddr & addr ) [virtual]

Add a destination address to the list.

References myRemoteSites.

Referenced by DtConnectionMgr::createBestEffortConn().

DtGsRtiConnection& DtGsRtiConnection::operator= ( const DtGsRtiConnection & ) [private]

Assignment operator not implemented -- Assignment Not Allowed!

void DtGsRtiConnection::removeAllRemoteSites ( ) [virtual]

Clear the list of remote sites.

References myRemoteSites.

Referenced by ~DtGsRtiConnection().

void DtGsRtiConnection::removeRemoteSite ( const MAKRti::DtInetAddr & addr ) [virtual]

Remove a destination address from the list.

References myRemoteSites.

int DtGsRtiConnection::send	(	const DtRtiMsg &	msg,
		const MAKRti::DtInetAddr &	destaddr
	)		`[virtual]`

Send a message to the group socket destinations If the supplied destination is non zero, the message is sent to all destinations except the connection's default destination (if it happens to have been added as a destination to the group socket).

The message is then sent to the supplied destination address.

Reimplemented from DtRtiConnection.

References DtUseFedObservers, DtNetMsgHeader::flags, myDestAddr, myGroupSocket, DtRtiMsg::netHeader(), DtUdpMsgSocket::sendMessage(), and sendToAllRemoteSites().

int DtGsRtiConnection::sendToAllRemoteSites	(	caddr_t	pkt,
		size_t	size,
		const MAKRti::DtInetAddr &	dwSkipAddr = `MAKRti::DtInetAddr::inaddrAny()`
	)		`[protected, virtual]`
