DtConnectionMgr Class Reference

Instances of DtConnectionMgr manage the communication objects that the RTI will use to either communicate over the network or communicate with the LRC application (using the federate ambassador pointer). More...

Inheritance diagram for DtConnectionMgr:

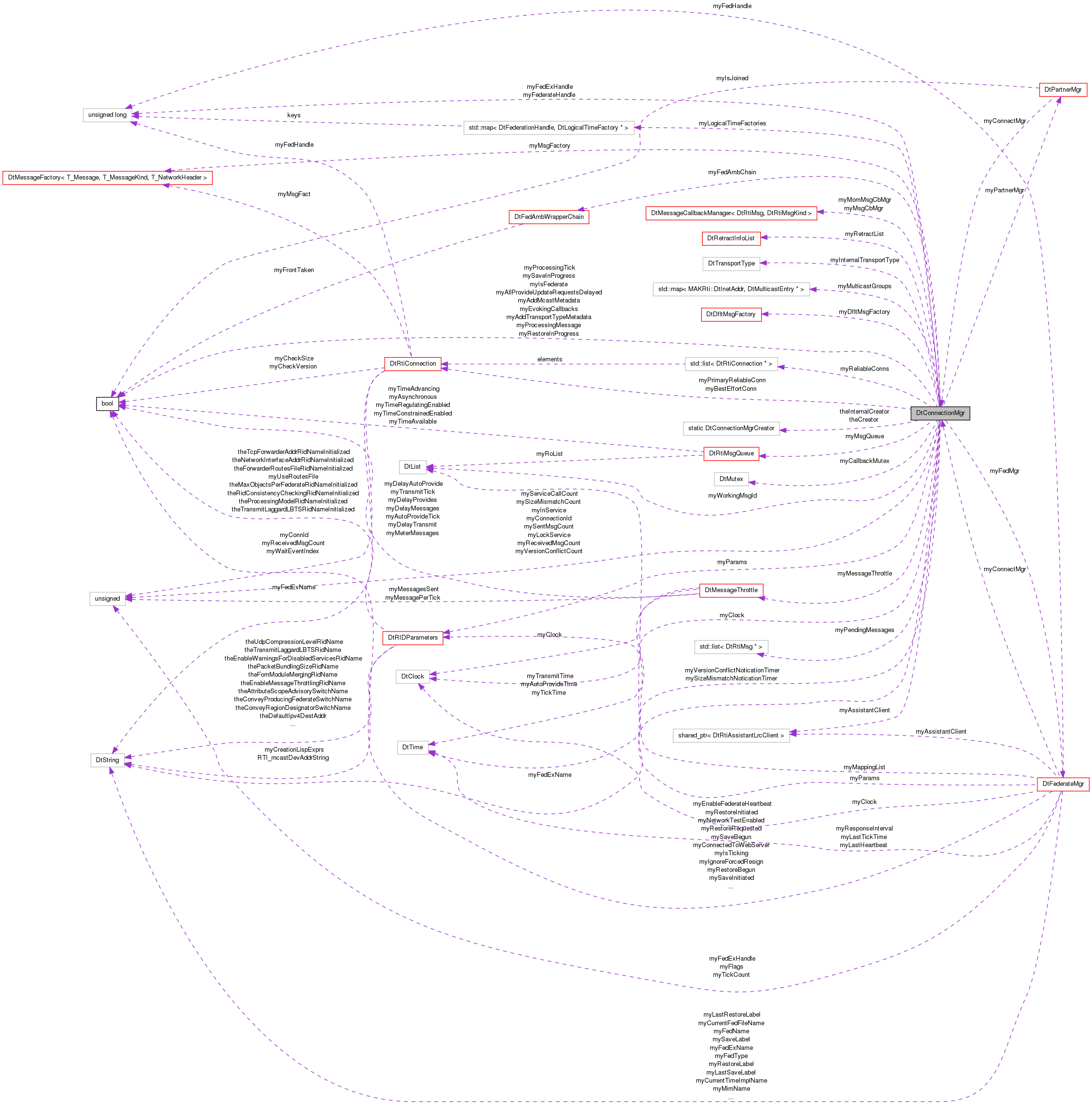

Collaboration diagram for DtConnectionMgr:

List of all members.

Public Types
typedef DtConnectionMgr *(*	DtConnectionMgrCreator )(DtRIDParameters *p, bool isFederate, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Connection Manager Creator.
Public Member Functions
virtual	~DtConnectionMgr ()
	Destructor.
virtual int	init (DtRIDParameters *params)
	Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections()
virtual void	initParams (DtRIDParameters *params)
	Initialize the parameters used by the connection manager.
virtual void	enableSmartForwarding (bool enable, int maxNumFederates)
	Enables or disables smart forwarding.
virtual DtRIDParameters *	params ()
	Get a pointer to the RID parameters.
virtual void	setFederateMgr (DtFederateMgr *fedMgrPtr)
	Set the federate manager.
virtual int	send (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Sending.
virtual int	sendStamped (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymous (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual int	sendAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message and delete the message after it has been sent Returns the size of the data sent.
virtual int	sendStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual void	sendLoopback (DtRtiMsg *msg)
	Send a message to be processed by this federate.
virtual bool	flush ()
	Send buffered messages.
virtual bool	drainBacklog (MAKRti::DtTime timeout=0.0)
	Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires.
virtual void	activateTransmitDelay ()
	Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.
virtual bool	delayTransmit () const
	Return true if retransmission of internal state should be delayed.
virtual void	testTransmitDelay ()
	Test if retransmit delay time has expired.
virtual void	activateAutoProvideDelay ()
	Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick.
virtual bool	delayAutoProvide () const
	Return true if autoprovides should be delayed.
bool	allProvideUpdateRequestsDelayed () const
	Return true if all provide update calls should be delayed (not just auto provide).
virtual void	testAutoProvideDelay ()
	Test if autoprovide delay time has expired.
virtual void	processQueuedMessages ()
	Process queued messages that are being sent at specified rate.
virtual void	flushQueuedMessages ()
	Process queued messages.
virtual unsigned long	incrementServiceCallCount ()
	Increment a counter to identify the service call being processed.
virtual unsigned long	serviceCallCount () const
	Return service call counter.
virtual bool	tick ()
	Receiving.
virtual bool	processConnection (DtRtiConnection *conn, MAKRti::DtTransportType trans)
	Read from the given connection and process the message (if received) Return boolean: message was received? (i.e.
virtual bool	processConnections ()
	Check all the connections and process any incomming messages Return boolean: message was received? (i.e.
virtual DtRtiMsg *	getMessage ()
	Get a message if one exists Message must be destroyed by caller.
virtual void	updateBufferSizes ()
	Update Buffer sizes from Rid params object.
virtual DtNetReadStatus	handleMsg (DtRtiMsg &msg)
	Handle this message by either processing it or queuing it if save pending.
virtual DtNetReadStatus	processMsg (const DtRtiMsg &msg)
	this function applies the callbacks to the message
virtual DtNetReadStatus	momProcessMsg (const DtRtiMsg &msg)
	apply MOM callbacks to message
DtFederateMgr *	fedMgr ()
	The federate manager.
DtPartnerMgr *	partnerMgr ()
	Partner manager.
virtual int	readFileDescriptor (RTI::TransportType transport)
	Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.
virtual MAKRti::DtTransportType	internalTransportType () const
	Returns the TransportType associated for the internal connection.
virtual bool	setupSelectParams (DtSelectParam *params)
	adds Read File descriptors to a DtSelectParams Return boolean: file descriptor was added? In case no descriptors have been added, should sleep instead of select as there will be no input.
virtual bool	hasTransport (MAKRti::DtTransportType trans)
	returns true if the specified transport type is available
virtual DtRtiMsg *	create (DtRtiMsgKind kind)
	Request the RTI message factory for a msg.
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Get/Set the message factory.
virtual DtRtiMsgFactory *	msgFactory () const
virtual void	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Override listen count and force drop multicast address.
virtual void	connectFederation (DtLogicalTimeFactory *logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle federateHandle, int fedExHandle)
	The LRC associates its federation information with its network connections.
virtual bool	repairFederationConnection ()
	Attempt to re-establish a broken connection to the federation Returns true if successful.
virtual void	disconnectFederation ()
	The LRC disassociates its connections from the federation.
virtual RTI::FederateAmbassador *	fedAmb () const
	Return pointer to Federate Ambassador.
virtual void	addFedAmbWrapper (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services.
virtual bool	addFedAmbWrapperAtFront (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg.
virtual DtFedAmbWrapper *	removeFedAmbWrapper (MAKRti::DtString const &name)
	Remove federate wrapper.
virtual unsigned long	connectionId () const
	Return connection ID.
virtual DtFederateHandle	fedHandle () const
	Return federate handle.
virtual unsigned long	fedExHandle () const
	Return federation execution handle.
virtual const MAKRti::DtString &	fedExName () const
	Return federation execution name.
virtual void	setFederateHandle (DtFederateHandle handle)
	set federate handle ( this is used by restore and should not be called otherwise )
virtual DtLogicalTimeFactory *	logicalTimeFactory (DtFederationHandle federationHandle=0) const
	Get the factory for the given federation that can create logical time/interval instances.
virtual void	addLogicalTimeFactory (DtFederationHandle federationHandle, DtLogicalTimeFactory *timeFactory)
	Add the factory for the given federation that can create logical time/interval instances.
virtual void	removeLogicalTimeFactory (DtFederationHandle federationHandle)
	Remove the factory for the given federation that can create logical time/interval instances.
virtual DtRtiMsgQueue *	msgQueue ()
	Set/Get the time managed message queue.
virtual void	setMsgQueue (DtRtiMsgQueue *msgQueuePtr)
virtual DtRetractInfoList *	retractList ()
	Set/Get the time managed retract list.
virtual void	setRetractList (DtRetractInfoList *listPtr)
virtual bool	wait (MAKRti::DtTime periodInSeconds, bool unlockWhileWaiting=false)
	Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?
virtual void	yield ()
	Yield processing to allow more data to arrive.
virtual bool	saveInProgress () const
	Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setSaveInProgress (bool saveIsInProgress)
virtual bool	restoreInProgress () const
	Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setRestoreInProgress (bool saveIsInProgress)
virtual bool	saveRestoreInProgress () const
	Return bool: Is save or restore in progress.
virtual void	setMetadataControl (DtMetadataType type, bool onOff)
	Set/Get metadata control indicators.
virtual bool	isMetadataEnabled (DtMetadataType type)
virtual void	sendShutdownForwarderMsg ()
	Called by the rtiExec when it is exiting, only if it started this forwarder.
virtual unsigned long	sequenceNumber () const
	Get the next sequence number.
virtual void	incrementSequenceNumber ()
	Increment the sequence number.
virtual void	setProcessingTick (bool processingTick)
	Set/Get tick processing state.
virtual bool	processingTick () const
	Set/Get tick processing state.
virtual void	setEvokingCallbacks (bool evokingCbs)
	Set/Get the evoke callbacks state.
virtual bool	evokingCallbacks () const
	Set/Get the evoke callbacks state.
virtual void	addPendingMsg (DtRtiMsg *msg)
	Add/get/process a pending message Messages will be processed during the next tick.
virtual bool	processPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual DtRtiMsg *	nextPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	emptyPendingMsgList ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual int	pendingMsgCount ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	addMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	addWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
Connections
Get pointers to the individual connections. These should be avoided by classes outside of the connectionMgr. For example in a threaded configuration calling the connection directly can cause improper behavior.
virtual DtRtiConnection *	reliableConn () const
	Returns the connection created by createTcpConn().
virtual DtRtiConnection *	bestEffortConn () const
	Returns the connection created by createBestEffortConn().
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
AsynchronousLocks
When asynchronous callbacks are enabled, these calls manipulate a mutex for synchronizing access to the RTI Ambassador and the Federate Ambassador. The mutex shall be locked upon entering an RTI Ambassador call and unlocked on exit. It shall also be locked prior to processing RTI messages and unlocked when processing completes. Asynchronous callback mode supports asynchronous message processing that can generate asynchronous Federate Ambassador callbacks and also asynchronous access to RTI Ambassador by separate federate threads.
virtual bool	lockServiceCall ()
	Called by asynchronous processing thread to gain mutually exclusive access to RTI managers.
virtual void	unlockServiceCall ()
	Called by asychronous processing thread to release mutually exclusive access to RTI managers.
virtual bool	serviceCallLocked ()
	Called by RTI Ambassador services query if mutex was set using lockServiceCall()
virtual bool	enterServiceCall ()
	Called by RTI Ambassador services to gain mutually exclusive access to RTI managers.
virtual void	exitServiceCall ()
	Called by RTI Ambassador services to release mutually exclusive access to RTI managers.
virtual bool	inServiceCall ()
	Called by RTI Ambassador services query if mutex was set using enterServiceCall()
Static Public Member Functions
static DtConnectionMgr *	create (DtRIDParameters *p, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	A Connection Manager instance is created, initialized and its pointer is returned.
static void	setCreatorFunction (DtConnectionMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtConnectionMgrCreator fn)
	Register alternate internal creators.
Protected Types
typedef std::list < DtRtiConnection * >	DtRtiConnectionList
	List of all reliable connections (for forwarder load balancing)
Protected Member Functions
	DtConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Constructor is performed through create.
virtual bool	doWait (MAKRti::DtTime period)
	perform actual wait. Called by wait
virtual int	initConnections ()
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function.
virtual bool	createBestEffortConn ()
	Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used.
virtual void	destroyBestEffortConn ()
	Destroy best effort connection.
virtual bool	createRelConn ()
	Create reliable connection; Returns true if successful.
virtual void	destroyRelConn ()
	Destroy reliable connection.
virtual unsigned int	createAncillaryRelConns ()
	Create ancillary reliable connections; Returns count of successful connections.
virtual void	destroyAncillaryRelConn (DtRtiConnection *conn)
	Destroy the given ancillary reliable connection.
virtual void	destroyAncillaryRelConns ()
	Destroy ancillary reliable connections.
virtual unsigned int	ancillaryReliableConnsCount () const
	Report number of ancillary reliable connections successfully established.
virtual bool	checkRelConn ()
	Check the reliable connection status.
virtual void	processReadResult (int readError)
	Process read result to print error diagnostics for example.
virtual int	sendStampedUtilityFunction (DtRtiMsg *msg, MAKRti::DtTransportType transport, bool performDelete, bool isAnonymous, const MAKRti::DtInetAddr &addr)
	Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc.
Protected Attributes
DtRtiMsgFactory *	myMsgFactory
	The message factory.
DtRtiConnection *	myBestEffortConn
	The best effort connection.
DtRtiConnection *	myPrimaryReliableConn
	The primary reliable connection.
DtRtiConnectionList	myReliableConns
DtRIDParameters *	myParams
	The RTI initialization parameters.
DtFederateMgr *	myFedMgr
	The federate manager.
std::map< MAKRti::DtInetAddr, DtMulticastEntry * >	myMulticastGroups
	LRC listening to these multicast groups.
DtFedAmbWrapperChain	myFedAmbChain
	Chain of Federate Ambassador Wrappers.
DtDfltMsgFactory	myDfltMsgFactory
	Default message factory.
DtRtiMsgCbMgr	myMsgCbMgr
	Message callback manager.
DtRtiMsgCbMgr	myMomMsgCbMgr
	MOM message callback manager.
MAKRti::DtTransportType	myInternalTransportType
	Transport type used for internal messages.
bool	myAddTransportTypeMetadata
	Metadata control indicators.
bool	myAddMcastMetadata
std::map< DtFederationHandle, DtLogicalTimeFactory * >	myLogicalTimeFactories
	Factories for creating logical time instances.
DtRtiMsgQueue *	myMsgQueue
	Message queue.
DtRetractInfoList *	myRetractList
	Message retractions.
std::list< DtRtiMsg * >	myPendingMessages
	Pending messages.
bool	mySaveInProgress
	Save status.
bool	myRestoreInProgress
	Restore status.
unsigned long	myConnectionId
	"unique" identifier for this connMgr (if there is a good source of unique ids)
MAKRti::DtString	myFedExName
	Federation execution name.
DtFederateHandle	myFedExHandle
	Federation execution handle.
DtFederateHandle	myFederateHandle
	Federate handle.
unsigned long	myReceivedMsgCount
	Number of received messages.
unsigned long	mySentMsgCount
	Number of sent messages.
MAKRti::DtList	myWorkingMsgId
	Diagnostic message ID stack.
DtMessageThrottle *	myMessageThrottle
	Message output throttle.
bool	myAllProvideUpdateRequestsDelayed
	Extend auto provide delay to all attribute update requests.
DtMutex *	myCallbackMutex
	Mutex to synchronize access to RTI and Federate Ambassadors.
unsigned int	myLockService
	RTI is processing a message.
unsigned int	myInService
	RTI is processing a service call.
MAKRti::DtClock	myClock
	Clock for timing.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	The assistant client.
bool	myIsFederate
	Whether this manager is for a federate.
unsigned long	myVersionConflictCount
	The count of message version conflicts.
MAKRti::DtTime	myVersionConflictNoticationTimer
unsigned long	mySizeMismatchCount
	The count of message size mismatches.
MAKRti::DtTime	mySizeMismatchNoticationTimer
DtPartnerMgr *	myPartnerMgr
unsigned long	myServiceCallCount
	Service call counter - increment before processing each service call.
bool	myProcessingTick
	Tick processing state.
bool	myEvokingCallbacks
	Indicates if callbacks are being evoked.
bool	myProcessingMessage
	Indicates if message is being processed.
Static Protected Attributes
static DtConnectionMgrCreator	theCreator = 0
	The plugin creator.
static DtConnectionMgrCreator	theInternalCreator = 0
	The internal creator.
Private Member Functions
	DtConnectionMgr (DtConnectionMgr const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtConnectionMgr &	operator= (DtConnectionMgr const &)
	Assignment not implemented -- Assignment Not Allowed!

---

Detailed Description

Instances of DtConnectionMgr manage the communication objects that the RTI will use to either communicate over the network or communicate with the LRC application (using the federate ambassador pointer).

Override this class to change the way in which the MAK RTI communicates with other LRC components (or the rtiexec). This class also stores the user's federate ambassador pointer and provides a mechanism for monitoring RTI invoked services.

---

Member Typedef Documentation

typedef DtConnectionMgr*(* DtConnectionMgr::DtConnectionMgrCreator)(DtRIDParameters *p, bool isFederate, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)

Connection Manager Creator.

typedef std::list< DtRtiConnection* > DtConnectionMgr::DtRtiConnectionList [protected]

List of all reliable connections (for forwarder load balancing)

---

Constructor & Destructor Documentation

DtConnectionMgr::DtConnectionMgr	(	DtRIDParameters *	params,
		bool	isFederate = false,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = DtBoost::shared_ptr<DtRtiAssistantLrcClient>()
	)		[protected]

Constructor is performed through create.

References DtBindMessage(), myDfltMsgFactory, myPartnerMgr, and setMsgFactory().

Referenced by create().

DtConnectionMgr::~DtConnectionMgr

(

)

[virtual]

Destructor.

References DtMulticastEntry::addr, DtMessageThrottle::clear(), destroyAncillaryRelConns(), destroyBestEffortConn(), destroyRelConn(), emptyPendingMsgList(), forceDropMulticastGroup(), myFedAmbChain, myMessageThrottle, myMulticastGroups, myPartnerMgr, DtMulticastEntry::netInterface, NULL, and DtFedAmbWrapperChain::reset().

DtConnectionMgr::DtConnectionMgr

(

DtConnectionMgr const &

)

[private]

Copy Constructor not implemented -- Copy Not Allowed!

---

Member Function Documentation

void DtConnectionMgr::activateAutoProvideDelay

(

)

[virtual]

Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick.

References DtMessageThrottle::activateAutoProvideDelay(), and myMessageThrottle.

Referenced by DtObjectMgr::processRequest().

void DtConnectionMgr::activateTransmitDelay

(

)

[virtual]

Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.

References DtMessageThrottle::activateTransmitDelay(), and myMessageThrottle.

Referenced by DtObjectMgr::addPendingRegister(), DtInteractionMgr::processPub(), and DtObjectMgr::processPub().

void DtConnectionMgr::addFedAmbWrapper	(	MAKRti::DtString const &	name,
		DtFedAmbWrapper *	fedAmb
	)		[virtual]

Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services.

Wrappers are set up in a chain: Each DtFedAmbWrapper has a pointer to the next Federate Ambassador pointer in the list. The last pointer in the list is always the one given to the RTI in joinFederationExecution.

References DtFedAmbWrapperChain::addWrapper(), and myFedAmbChain.

Referenced by DtRtiAmbassadorBaseImplementor::addFedAmbWrapper(), DtFederateMgr::applyRidParameters(), DtTestManager::postJoinInit(), and DtAsyncConnectionMgr::setFederateMgr().

bool DtConnectionMgr::addFedAmbWrapperAtFront	(	MAKRti::DtString const &	name,
		DtFedAmbWrapper *	fedAmb
	)		[virtual]

When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg.

Returns whether the addition was sucessful, or another wrapper is already designated The wrapper At Front.

References DtFedAmbWrapperChain::addWrapperAtFront(), and myFedAmbChain.

Referenced by DtAsyncConnectionMgr::setFederateMgr().

void DtConnectionMgr::addLogicalTimeFactory	(	DtFederationHandle	federationHandle,
		DtLogicalTimeFactory *	timeFactory
	)		[virtual]

Add the factory for the given federation that can create logical time/interval instances.

References myLogicalTimeFactories.

Referenced by DtSmConnectionMgr::connectFederation(), connectFederation(), and DtRtiExec::processCreate().

void DtConnectionMgr::addMsgCallback	(	DtRtiMsgKind	msgKind,
		DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = false
	)		[virtual]

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

References DtMessageCallbackManager< T_Message, T_MessageKind >::addMsgCallback(), myMomMsgCbMgr, and myMsgCbMgr.

Referenced by DtQueryRestoreStatusMsg::addCallback(), DtAbortRestoreMsg::addCallback(), DtQuerySaveStatusMsg::addCallback(), DtSaveTimeAdvanceMsg::addCallback(), DtInitiatedSaveMsg::addCallback(), DtSaveBegunMsg::addCallback(), DtRtiExecDisconnectMsg::addCallback(), DtAbortSaveMsg::addCallback(), DtDisconnectMsg::addCallback(), DtQueueFullMsg::addCallback(), DtRtiExecShutdownForwarderMsg::addCallback(), DtListFederationsMsg::addCallback(), DtDeleteSocketMsg::addCallback(), DtAliveMsg::addCallback(), DtRestoreRequestMsg::addCallback(), DtRestoreMsg::addCallback(), DtSaveInitiateConstrainedMsg::addCallback(), DtSaveInitiateMsg::addCallback(), DtRestoreCompleteMsg::addCallback(), DtSaveRequestMsg::addCallback(), DtDesignatedFederateMsg::addCallback(), DtPubInterMsg::addCallback(), DtSaveCompleteMsg::addCallback(), DtUnpubInterMsg::addCallback(), DtRidTestRequestMsg::addCallback(), DtConnectMsg::addCallback(), DtWwwStateReqMsg::addCallback(), DtReleaseMultiNameMsg::addCallback(), DtReserveMultiNameMsg::addCallback(), DtSubInterMsg::addCallback(), DtRestoreInitiateMsg::addCallback(), DtEnableDisableNetworkTestingMsg::addCallback(), DtLocDelMsg::addCallback(), DtNetworkMapReqMsg::addCallback(), DtUnsubInterMsg::addCallback(), DtDestroyMsg::addCallback(), DtTransferRidParamsMsg::addCallback(), DtForwarderConnectionLostMsg::addCallback(), DtReqDiscObjMsg::addCallback(), DtUnpubObjMsg::addCallback(), DtUnsubObjMsg::addCallback(), DtRestoreEndMsg::addCallback(), DtSaveFinishedMsg::addCallback(), DtPubObjMsg::addCallback(), DtNetworkMapRspMsg::addCallback(), DtMacAddrMsg::addCallback(), DtResignDirectiveMsg::addCallback(), DtWwwFederateStateReqMsg::addCallback(), DtForwarderPingMsg::addCallback(), DtForwarderResignMsg::addCallback(), DtDestroyResponseMsg::addCallback(), DtFedAmbCallbackMsg::addCallback(), DtForwarderPortMsg::addCallback(), DtInteractionRoMsg::addCallback(), DtReportFederationsMsg::addCallback(), DtSmEnrollmentMsg::addCallback(), DtSaveTimeMsg::addCallback(), DtMultiNameReservedMsg::addCallback(), DtCreateResponseMsg::addCallback(), DtDeleteRoMsg::addCallback(), DtRestoreBegunMsg::addCallback(), DtPartnerFederateMsg::addCallback(), DtRestoreReplyMsg::addCallback(), DtWwwControlRspMsg::addCallback(), DtWwwControlMsg::addCallback(), DtQueryInterTransportMsg::addCallback(), DtReconnectMsg::addCallback(), DtJoinConfirmMsg::addCallback(), DtUpdateRoMsg::addCallback(), DtSubObjMsg::addCallback(), DtWwwStateRspMsg::addCallback(), DtRegObjMsg::addCallback(), DtForwarderCounterMsg::addCallback(), DtSaveResponseMsg::addCallback(), DtRtiExecHandshakeMsg::addCallback(), DtFomModuleRequestMsg::addCallback(), DtDiscObjMsg::addCallback(), DtRtiExecConnectMsg::addCallback(), DtWwwFederateStateRspMsg::addCallback(), DtMcastConfigureMsg::addCallback(), DtSyncPointQueryMsg::addCallback(), DtLatencyReportMsg::addCallback(), DtMulticastDiscoveryMsg::addCallback(), DtTestMgrStatusMsg::addCallback(), DtFomModuleDistributionMsg::addCallback(), DtJoinLightWeightMsg::addCallback(), DtChangeLatencyTestModeMsg::addCallback(), DtConnectConfirmMsg::addCallback(), DtResignMsg::addCallback(), DtQueryTransportMsg::addCallback(), DtCreateMsg::addCallback(), DtRequestMsg::addCallback(), DtForwarderNodeInfoMsg::addCallback(), DtJoinMsg::addCallback(), DtOwnershipMsg::addCallback(), DtSyncPointMsg::addCallback(), and DtJoinResponseMsg::addCallback().

void DtConnectionMgr::addPendingMsg

(

DtRtiMsg *

msg

)

[virtual]

Add/get/process a pending message Messages will be processed during the next tick.

References myPendingMessages.

Referenced by createAncillaryRelConns(), createRelConn(), handleMsg(), repairFederationConnection(), DtRtiExecFederateMgr::restore(), and DtRtiExecFederateMgr::save().

void DtConnectionMgr::addWildcardMsgCallback	(	DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = false
	)		[virtual]

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

References DtMessageCallbackManager< T_Message, T_MessageKind >::addWildcardMsgCallback(), myMomMsgCbMgr, and myMsgCbMgr.

bool DtConnectionMgr::allProvideUpdateRequestsDelayed

(

)

const

Return true if all provide update calls should be delayed (not just auto provide).

References myAllProvideUpdateRequestsDelayed.

Referenced by DtObjectMgr::processRequest().

unsigned int DtConnectionMgr::ancillaryReliableConnsCount

(

)

const [protected, virtual]

Report number of ancillary reliable connections successfully established.

References myReliableConns.

Referenced by initConnections().

DtRtiConnection * DtConnectionMgr::bestEffortConn

(

)

const [virtual]

Returns the connection created by createBestEffortConn().

References myBestEffortConn.

Referenced by connectFederation(), disconnectFederation(), DtSmConnectionMgr::dropMulticastGroup(), dropMulticastGroup(), flush(), DtSmConnectionMgr::forceDropMulticastGroup(), forceDropMulticastGroup(), getMessage(), hasTransport(), DtRtiShmQNetMgr::init(), initConnections(), DtSmConnectionMgr::listenToMulticastGroup(), listenToMulticastGroup(), processConnections(), readFileDescriptor(), DtAsyncConnectionMgr::receivePackets(), send(), DtAsyncConnectionMgr::sendPackets(), setFederateHandle(), setMsgFactory(), setupSelectParams(), and DtAsyncConnectionMgr::workerThread().

bool DtConnectionMgr::checkRelConn

(

)

[protected, virtual]

Check the reliable connection status.

Attempt to reconnect if connection has been lost.

References params(), reliableConn(), and repairFederationConnection().

Referenced by processConnections(), DtAsyncConnectionMgr::receivePackets(), send(), and DtAsyncConnectionMgr::sendPackets().

void DtConnectionMgr::connectFederation	(	DtLogicalTimeFactory *	logicalTimeFactoryPtr,
		MAKRti::DtString	fedExName,
		DtFederateHandle	federateHandle,
		int	fedExHandle
	)		[virtual]

The LRC associates its federation information with its network connections.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is created here.

Reimplemented in DtAsyncConnectionMgr.

References addLogicalTimeFactory(), bestEffortConn(), DtMessageThrottle::clear(), createBestEffortConn(), DtRIDParameters::destAddr(), DtRIDParameters::DtFomTransportTypeUseReliable, fedExHandle(), fedExName(), DtFedAmbWrapperChain::init(), myFedAmbChain, myFederateHandle, myFedExHandle, myFedExName, myMessageThrottle, myParams, myReliableConns, DtRIDParameters::networkInterfaceAddr(), params(), reliableConn(), DtRtiConnection::setFederateHandle(), DtRtiConnection::setFedExHandle(), and DtRtiConnection::setFedExName().

unsigned long DtConnectionMgr::connectionId

(

)

const [virtual]

Return connection ID.

References myConnectionId.

Referenced by createAncillaryRelConns(), DtFedexTakeFileCmd::createNamesOnlyTakeFileEvent(), createRelConn(), destroyRelConn(), DtRtiExecFederateMgr::initRidTester(), DtSimpleFederateMgr::joinFederationExecution(), DtRtiExecFederateMgr::processCreateResponseMsg(), DtRtiExecFederateMgr::processFomModuleFileRequestMsg(), DtFedExec::processJoin(), DtRtiExec::processRtiExecHandshakeMsg(), repairFederationConnection(), and DtRtiExec::rtiExecToForwarderHandshake().

DtRtiMsg * DtConnectionMgr::create

(

DtRtiMsgKind

kind

)

[virtual]

Request the RTI message factory for a msg.

The caller is responsible for deletion. By default, all exercise connections use the same factory for creating messages. The returned msg is blank and must be filled in before being sent.

References DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), and msgFactory().

Referenced by DtFedExec::changeLatencyTestMode(), DtRtiAmbassadorBaseImplementor::completeConnection(), DtSmConnectionMgr::connectFederation(), DtSmConnectionMgr::disconnectFederation(), DtSmConnectionMgr::dropMulticastGroup(), dropMulticastGroup(), DtFedExec::endRestore(), DtFedExec::endSave(), DtSmConnectionMgr::forceDropMulticastGroup(), forceDropMulticastGroup(), DtSmConnectionMgr::listenToMulticastGroup(), listenToMulticastGroup(), DtFedExec::processCreateReady(), DtObjectMgr::releaseAllAttributes(), DtSmConnectionMgr::repairFederationConnection(), DtObjectMgr::sendBestEffortUpdateMsg(), DtRtiExecFederateMgr::sendCreateMsg(), DtRtiExec::sendCreateResponseMsg(), DtFedExec::sendDesignatedFederate(), DtRtiExecFederateMgr::sendDestroyMsg(), DtRtiExec::sendDestroyResponseMsg(), DtObjectMgr::sendDiscoverMsg(), DtFedExec::sendEnableDisableNetworkTestingMsg(), DtInteractionMgr::sendInteractionMsg(), DtRtiExecFederateMgr::sendJoinConfirmMsg(), DtPartnerMgr::sendJoinMessage(), DtRtiExecFederateMgr::sendJoinMsg(), DtRtiExec::sendJoinResponseMsg(), DtFedExec::sendJoinResponseMsg(), DtObjectMgr::sendLocalDeleteMsg(), DtFedExec::sendMultiNameReservedMsg(), DtFedExec::sendNameReservedMsg(), DtPartnerMgr::sendPartnerMessage(), DtObjectMgr::sendPendingDiscoveries(), DtInteractionMgr::sendPublishMsg(), DtObjectMgr::sendPublishMsg(), DtObjectMgr::sendRegisterMsg(), DtObjectMgr::sendReliableUpdateMsg(), DtObjectMgr::sendRemoveDiscoverMsg(), DtRtiExec::sendReportFederationsMsg(), DtObjectMgr::sendRequestDiscoverMsg(), DtFedExec::sendResignMsg(), DtFederateMgr::sendResignMsg(), DtRtiExecFederateMgr::sendRestoreBegunMsg(), DtRtiExecFederateMgr::sendRestoreCompleteMsg(), DtRtiExecFederateMgr::sendRestoreRequestMsg(), DtFedExec::sendRestoreStatus(), DtRtiExec::sendRtiExecHandshakeMsg(), DtRtiExecFederateMgr::sendSaveBegunMsg(), DtRtiExecFederateMgr::sendSaveCompleteMsg(), DtFedExec::sendSaveInitiateConstrainedMsg(), DtFedExec::sendSaveInitiateMsg(), DtRtiExecFederateMgr::sendSaveRequestMsg(), DtFedExec::sendSaveResponse(), DtFedExec::sendSaveStatus(), DtInteractionMgr::sendSubscribeMsg(), DtObjectMgr::sendSubscribeMsg(), DtRtiExecFederateMgr::sendSyncPointMsg(), DtFedExec::sendSyncPointMsg(), DtFedExec::sendSyncPointReport(), DtFedExec::sendSyncPointStatusReport(), DtFedExec::sendTransferRidParamsMsg(), DtInteractionMgr::sendUnpublishMsg(), DtObjectMgr::sendUnpublishMsg(), DtInteractionMgr::sendUnsubscribeMsg(), DtObjectMgr::sendUnsubscribeMsg(), and DtSmConnectionMgr::~DtSmConnectionMgr().

DtConnectionMgr * DtConnectionMgr::create	(	DtRIDParameters *	p,
		bool	isFederate = false,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = DtBoost::shared_ptr<DtRtiAssistantLrcClient>()
	)		[static]

A Connection Manager instance is created, initialized and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

References DtConnectionMgr(), init(), params(), theCreator, and theInternalCreator.

unsigned int DtConnectionMgr::createAncillaryRelConns

(

)

[protected, virtual]

Create ancillary reliable connections; Returns count of successful connections.

References addPendingMsg(), connectionId(), DtConnectMsgKind, DtMetadataTypeTransport, DtNET_READ_NO_PACKETS, DtTcpMsgSocket::enableBundling(), DtTcpMsgSocket::enableCompression(), enablePacketBundling, DtRIDParameters::forwarderGroupAddrs(), DtTcpMsgSocket::isConnected(), isMetadataEnabled(), isTcpCompressionEnabled, maxForwarderQueue, msgFactory(), DtRtiMsg::msgKind(), myClock, myParams, myReliableConns, DtRtiConnection::netRead(), DtTcpMsgSocket::openClientSocket(), packetBundlingSize, params(), processMsg(), processReadResult(), DtRIDParameters::responseInterval, DtRtiConnection::send(), DtRtiMtdTransportType::set(), DtConnectConfirmMsg::setBundleSize(), DtConnectConfirmMsg::setBundlingEnabled(), DtConnectConfirmMsg::setCompressionEnabled(), DtConnectConfirmMsg::setCompressionLevel(), DtRtiConnection::setConnId(), DtRtiConnection::setMsgFactory(), DtTcpMsgSocket::setNonBlocking(), DtMsgSocket::setRecvBufferSize(), DtMsgSocket::setSendBufferSize(), DtRtiMsg::setTransportType(), DtRtiConnection::socket(), socketReceiveBufferSize, socketSendBufferSize, and tcpCompressionLevel.

Referenced by initConnections().

bool DtConnectionMgr::createBestEffortConn

(

)

[protected, virtual]

Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used.

References DtGsRtiConnection::addRemoteSite(), bestEffortSendRetryWaitUsec, DtMulticastEntry::count, DtRIDParameters::destAddr(), DtRIDParameters::destinationAddrs(), enableBestEffortSendRetry, DtUdpMsgSocket::enableBundling(), DtUdpMsgSocket::enableCompression(), enablePacketBundling, DtUdpMsgSocket::isOpen(), DtRIDParameters::isUdpCompressionEnabled, maxUdpPacketSize, msgFactory(), myBestEffortConn, myMulticastGroups, myParams, DtRIDParameters::networkInterfaceAddr(), DtUdpMsgSocket::openSocket(), packetBundlingSize, params(), DtUdpMsgSocket::setMcastTtlOption(), DtRtiConnection::setMsgFactory(), DtMsgSocket::setRecvBufferSize(), DtUdpMsgSocket::setRetryOnSend(), DtMsgSocket::setSendBufferSize(), socketReceiveBufferSize, socketSendBufferSize, udpCompressionLevel, and DtRIDParameters::useGroupSocket().

Referenced by connectFederation(), and initConnections().

bool DtConnectionMgr::createRelConn

(

)

[protected, virtual]

Create reliable connection; Returns true if successful.

References addPendingMsg(), connectionId(), destroyRelConn(), DtConnectMsgKind, DtDefaultInterfaceAddr(), DtNET_READ_NO_PACKETS, DtTcpMsgSocket::enableBundling(), DtTcpMsgSocket::enableCompression(), enablePacketBundling, DtTcpMsgSocket::isConnected(), isTcpCompressionEnabled, maxForwarderQueue, msgFactory(), DtRtiMsg::msgKind(), myAssistantClient, myClock, myConnectionId, myIsFederate, myPrimaryReliableConn, myReliableConns, DtRtiConnection::netRead(), DtRIDParameters::networkInterfaceAddr(), NULL, DtTcpMsgSocket::openClientSocket(), packetBundlingSize, params(), processMsg(), processReadResult(), reliableConn(), DtRIDParameters::responseInterval, send(), DtConnectConfirmMsg::setBundleSize(), DtConnectConfirmMsg::setBundlingEnabled(), DtConnectConfirmMsg::setCommandArgs(), DtConnectConfirmMsg::setCompressionEnabled(), DtConnectConfirmMsg::setCompressionLevel(), DtRtiConnection::setConnId(), DtRtiConnection::setMsgFactory(), DtTcpMsgSocket::setNonBlocking(), DtConnectConfirmMsg::setProcessId(), DtConnectConfirmMsg::setProcessName(), DtMsgSocket::setRecvBufferSize(), DtMsgSocket::setSendBufferSize(), DtRtiMsg::setTransportType(), DtConnectConfirmMsg::setWebServerAddress(), DtConnectConfirmMsg::setWebServerPort(), socketReceiveBufferSize, socketSendBufferSize, tcpCompressionLevel, tcpPort, useRtiExec, and webserviceAddrString.

Referenced by initConnections(), and repairFederationConnection().

bool DtConnectionMgr::delayAutoProvide

(

)

const [virtual]

Return true if autoprovides should be delayed.

References DtMessageThrottle::delayAutoProvide(), and myMessageThrottle.

Referenced by DtObjectMgr::processRequest().

bool DtConnectionMgr::delayTransmit

(

)

const [virtual]

Return true if retransmission of internal state should be delayed.

References DtMessageThrottle::delayTransmit(), and myMessageThrottle.

Referenced by DtInteractionMgr::processPub().

void DtConnectionMgr::destroyAncillaryRelConn

(

DtRtiConnection *

conn

)

[protected, virtual]

Destroy the given ancillary reliable connection.

Reimplemented in DtAsyncConnectionMgr.

References myReliableConns, and DtRtiConnection::socket().

Referenced by processConnections().

void DtConnectionMgr::destroyAncillaryRelConns

(

)

[protected, virtual]

Destroy ancillary reliable connections.

Reimplemented in DtAsyncConnectionMgr.

References myPrimaryReliableConn, myReliableConns, and DtRtiConnection::socket().

Referenced by ~DtConnectionMgr().

void DtConnectionMgr::destroyBestEffortConn

(

)

[protected, virtual]

Destroy best effort connection.

References myBestEffortConn, and DtRtiConnection::socket().

Referenced by ~DtConnectionMgr().

void DtConnectionMgr::destroyRelConn

(

)

[protected, virtual]

Destroy reliable connection.

Reimplemented in DtAsyncConnectionMgr.

References connectionId(), drainBacklog(), DtDeleteSocketMsgKind, flushTimeoutInterval, DtRtiConnection::isOk(), DtRtiMsg::msgKind(), myClock, myPrimaryReliableConn, myReliableConns, DtRtiConnection::netRead(), params(), DtRtiConnection::send(), and DtRtiConnection::socket().

Referenced by createRelConn(), processConnections(), repairFederationConnection(), send(), and ~DtConnectionMgr().

void DtConnectionMgr::disconnectFederation

(

)

[virtual]

The LRC disassociates its connections from the federation.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is destroyed here.

Reimplemented in DtSmConnectionMgr, and DtAsyncConnectionMgr.

References DtMulticastEntry::addr, bestEffortConn(), DtMessageThrottle::clear(), emptyPendingMsgList(), forceDropMulticastGroup(), listenToMulticastGroup(), myBestEffortConn, myFedAmbChain, myFederateHandle, myFedExHandle, myFedExName, myMessageThrottle, myMsgQueue, myMulticastGroups, myReceivedMsgCount, myRestoreInProgress, myRetractList, mySaveInProgress, mySentMsgCount, myWorkingMsgId, DtMulticastEntry::netInterface, params(), reliableConn(), removeLogicalTimeFactory(), DtFedAmbWrapperChain::reset(), DtRtiConnection::setFederateHandle(), DtRtiConnection::setFedExHandle(), DtRtiConnection::setFedExName(), DtRtiConnection::socket(), and useRtiExec.

Referenced by DtFederateMgr::~DtFederateMgr().

bool DtConnectionMgr::doWait

(

MAKRti::DtTime

period

)

[protected, virtual]

perform actual wait. Called by wait

Reimplemented in DtAsyncConnectionMgr.

References params(), and setupSelectParams().

Referenced by wait().

bool DtConnectionMgr::drainBacklog

(

MAKRti::DtTime

timeout = 0.0

)

[virtual]

Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires.

References flush(), and myClock.

Referenced by destroyRelConn().

void DtConnectionMgr::dropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.

The multicast is not actually dropped until the listen count goes to zero.

Reimplemented in DtSmConnectionMgr.

References bestEffortConn(), DtMulticastEntry::count, create(), DtMcastConfigureMsgKind, DtMcastDrop, myFederateHandle, myInternalTransportType, myMulticastGroups, myParams, sendStampedAndDelete(), DtMcastConfigureMsg::set(), and DtRtiConnection::socket().

Referenced by forceDropMulticastGroup(), DtInteractionMgr::removeClassMulticast(), and DtObjectMgr::removeClassMulticast().

void DtConnectionMgr::emptyPendingMsgList

(

)

[virtual]

Add/get/process a pending message Messages will be processed during the next tick.

References myPendingMessages.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), DtRtiExecFederateMgr::processRestoreEnd(), DtRtiExecFederateMgr::restore(), ~DtConnectionMgr(), and DtSmConnectionMgr::~DtSmConnectionMgr().

void DtConnectionMgr::enableSmartForwarding	(	bool	enable,
		int	maxNumFederates
	)		[virtual]

Enables or disables smart forwarding.

References DtRtiMtdDestinationList::setMaxDestinations(), and DtRtiMsg::setSmartForwardingEnabled().

Referenced by DtRtiExecFederateMgr::applyRidParameters(), and initParams().

bool DtConnectionMgr::enterServiceCall

(

)

[virtual]

Called by RTI Ambassador services to gain mutually exclusive access to RTI managers.

Return true if lock was obtained; otherwise false (i.e., locks not used)

References myCallbackMutex, and myInService.

Referenced by DtRtiExecFederateMgr::destroyFederationExecution(), DtRtiAmbassadorBaseImplementor::enterServiceCall(), DtRtiExecFederateMgr::requestImmediateSave(), DtAsyncConnectionMgr::wait(), DtSmConnectionMgr::wait(), wait(), and DtRtiExecFederateMgr::waitForJoinResponse().

bool DtConnectionMgr::evokingCallbacks

(

)

const [virtual]

Set/Get the evoke callbacks state.

References myEvokingCallbacks.

void DtConnectionMgr::exitServiceCall

(

)

[virtual]

Called by RTI Ambassador services to release mutually exclusive access to RTI managers.

References myCallbackMutex, and myInService.

Referenced by DtRtiExecFederateMgr::destroyFederationExecution(), DtRtiAmbassadorBaseImplementor::exitServiceCall(), DtRtiExecFederateMgr::requestImmediateSave(), DtAsyncConnectionMgr::wait(), DtSmConnectionMgr::wait(), wait(), and DtRtiExecFederateMgr::waitForJoinResponse().

RTI::FederateAmbassador * DtConnectionMgr::fedAmb

(

)

const [virtual]

Return pointer to Federate Ambassador.

Referenced by DtObjectMgr::discoverObject(), DtFederateMgr::federateAmbassador(), DtRtiExecFederateMgr::initiateSave(), DtObjectMgr::invokePendingDivestNotification(), DtObjectMgr::invokeReflect(), DtRtiExecFederateMgr::posttick(), DtAsyncConnectionMgr::processCallbackMsg(), DtObjectMgr::processConfirmCancelAcquire(), DtObjectMgr::processDelete(), DtInteractionMgr::processInteraction(), DtObjectMgr::processNotifyAcquire(), DtObjectMgr::processOwnership(), DtObjectMgr::processResign(), DtRtiExecFederateMgr::processRestore(), DtRtiExecFederateMgr::processRestoreEnd(), DtRtiExecFederateMgr::processRestoreInitiate(), DtRtiExecFederateMgr::processRestoreReply(), DtRtiExecFederateMgr::processSaveFinished(), DtRtiExecFederateMgr::processSyncPointMsg(), DtObjectMgr::queryOwnership(), DtObjectMgr::releaseOwnership(), DtObjectMgr::sendPendingRemovals(), DtObjectMgr::sendPendingRequestAttributes(), DtInteractionMgr::sendPendingStartInters(), DtObjectMgr::sendPendingStartReg(), DtObjectMgr::sendPendingStartUpdates(), DtInteractionMgr::sendPendingStopInters(), DtObjectMgr::sendPendingStopReg(), DtObjectMgr::sendPendingStopUpdates(), DtObjectMgr::setAttributeTransportType(), DtObjectMgr::turnUpdatesOff(), and DtObjectMgr::turnUpdatesOn().

unsigned long DtConnectionMgr::fedExHandle

(

)

const [virtual]

Return federation execution handle.

References myFedExHandle.

Referenced by DtSmConnectionMgr::connectFederation(), connectFederation(), logicalTimeFactory(), repairFederationConnection(), and sendStampedUtilityFunction().

const MAKRti::DtString & DtConnectionMgr::fedExName

(

)

const [virtual]

Return federation execution name.

References myFedExName.

Referenced by DtSmConnectionMgr::connectFederation(), connectFederation(), and sendStampedUtilityFunction().

DtFederateHandle DtConnectionMgr::fedHandle

(

)

const [virtual]

Return federate handle.

References myFederateHandle.

Referenced by DtInteractionMgr::acceptInteraction(), DtInitiatorLatencyTest::currTestId(), DtPartnerMgr::federateHandle(), handleMsg(), DtObjectMgr::nextOffsetId(), DtObjectMgr::processDelete(), DtRtiExecFederateMgr::processDesignatedFederateMsg(), DtObjectMgr::processDiscover(), DtObjectMgr::processGiveToLrc(), DtObjectMgr::processNotifyAcquire(), DtObjectMgr::processOwnership(), processPendingMsg(), DtInteractionMgr::processPub(), DtObjectMgr::processPub(), DtObjectMgr::processRegister(), DtObjectMgr::processRequest(), DtObjectMgr::processRequestDiscover(), DtTestManager::processResign(), DtInteractionMgr::processResign(), DtFederateMgr::processResign(), DtRtiExecFederateMgr::processSaveResponse(), DtTestManager::processSub(), DtInteractionMgr::processSub(), DtInteractionMgr::processUnpub(), DtObjectMgr::processUnpub(), DtTestManager::processUnsub(), DtInteractionMgr::processUnsub(), DtObjectMgr::processUpdate(), DtObjectMgr::registerObj(), sendStampedUtilityFunction(), and DtInitiatorLatencyTest::takeCompletedTestReport().

DtFederateMgr * DtConnectionMgr::fedMgr

(

)

The federate manager.

Warning: Will return a null pointer when connection manager is not used by an LRC.

References myFedMgr.

Referenced by DtPartnerMgr::processPartnerReject().

bool DtConnectionMgr::flush

(

)

[virtual]

Send buffered messages.

Returns indication of whether the flush is complete or incomplete.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

References bestEffortConn(), DtMsgSocket::flush(), DtRtiConnection::flush(), reliableConn(), and DtRtiConnection::socket().

Referenced by DtRtiExec::cleanupConstructorException(), drainBacklog(), getMessage(), processConnections(), DtRtiExec::shutdownForwarderIfCreated(), and tick().

void DtConnectionMgr::flushQueuedMessages

(

)

[virtual]

Process queued messages.

References DtMessageThrottle::flush(), and myMessageThrottle.

void DtConnectionMgr::forceDropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Override listen count and force drop multicast address.

Listen count goes to zero.

Reimplemented in DtSmConnectionMgr.

References bestEffortConn(), create(), dropMulticastGroup(), DtMcastConfigureMsgKind, DtMcastDrop, myFederateHandle, myInternalTransportType, myMulticastGroups, myParams, sendStampedAndDelete(), DtMcastConfigureMsg::set(), and DtRtiConnection::socket().

Referenced by disconnectFederation(), and ~DtConnectionMgr().

DtRtiMsg * DtConnectionMgr::getMessage

(

)

[virtual]

Get a message if one exists Message must be destroyed by caller.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

References DtTestManager::addReceiveTimeStampIfNecessary(), bestEffortConn(), DtRtiMsg::cloneWithTransport(), DtNET_READ_NO_PACKETS, flush(), myFedMgr, DtRtiConnection::netRead(), processReadResult(), reliableConn(), DtRtiMsg::setTransportType(), and DtFederateMgr::testMgr().

DtNetReadStatus DtConnectionMgr::handleMsg

(

DtRtiMsg &

msg

)

[virtual]

Handle this message by either processing it or queuing it if save pending.

Return the status of processing the message

Reimplemented in DtAsyncConnectionMgr.

References addPendingMsg(), DtRtiMsg::cloneWithTransport(), DtNET_QUEUED_PACKET, DtNET_READ_SUCCESS, DtRtiMsg::federateHandle(), fedHandle(), DtRtiMsg::isAllowedDuringSave(), DtRtiMsg::isConstrained(), momProcessMsg(), myMsgQueue, processMsg(), DtRtiMsgQueue::queueMsg(), restoreInProgress(), and saveInProgress().

Referenced by DtSmConnectionMgr::processConnection(), processConnection(), DtObjectMgr::sendRegisterMsg(), and DtObjectMgr::sendUpdateMessage().

bool DtConnectionMgr::hasTransport

(

MAKRti::DtTransportType

trans

)

[virtual]

returns true if the specified transport type is available

References bestEffortConn(), and reliableConn().

void DtConnectionMgr::incrementSequenceNumber

(

)

[virtual]

Increment the sequence number.

References mySentMsgCount.

Referenced by DtObjectMgr::sendRegisterMsg(), and DtObjectMgr::sendUpdateMessage().

unsigned long DtConnectionMgr::incrementServiceCallCount

(

)

[virtual]

Increment a counter to identify the service call being processed.

Return the incremented value

References myServiceCallCount.

Referenced by DtRtiAmbassadorBaseImplementor::incrementServiceCallCount().

int DtConnectionMgr::init

(

DtRIDParameters *

params

)

[virtual]

Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections()

Reimplemented in DtAsyncConnectionMgr, and DtRtiShmQNetMgr.

References initConnections(), initParams(), myParams, and params().

Referenced by DtRtiShmQNetMgr::create(), create(), and DtSmConnectionMgr::createQMgr().

int DtConnectionMgr::initConnections

(

)

[protected, virtual]

Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function.

Reimplemented in DtSmConnectionMgr.

References ancillaryReliableConnsCount(), bestEffortConn(), DtRIDParameters::configureConnectionWithRid, createAncillaryRelConns(), createBestEffortConn(), createRelConn(), DtRIDParameters::destAddr(), destAddrString, DtRIDParameters::DtFomTransportTypeUseBestEffort, DtRIDParameters::DtFomTransportTypeUseFomSettings, DtRIDParameters::DtFomTransportTypeUseReliable, DtRIDParameters::forceParametersToCompliance(), DtRIDParameters::forwarderGroupSize(), DtRIDParameters::getFullPathToRidFile(), DtRIDParameters::isFullyCompliant(), lm, myAssistantClient, myConnectionId, myInternalTransportType, myIsFederate, myParams, DtRIDParameters::networkInterfaceAddr(), DtRIDParameters::networkInterfaceAddrString(), params(), DtAssistantPopupHelper::popupAssistantMessage(), reliableConn(), DtRIDParameters::revertComplianceParametersToOriginalSettings(), DtRIDParameters::sanityCheckReliableConnRIDParameters(), DtRIDParameters::sanityCheckRIDParameters(), DtRIDParameters::setNetworkInterfaceAddr(), DtRIDParameters::setTcpForwarderAddr(), DtRIDParameters::tcpForwarderAddr(), DtRIDParameters::tcpForwarderAddrString(), DtRIDParameters::tcpPort, tcpPort, and DtRIDParameters::useRtiExec.

Referenced by init().

void DtConnectionMgr::initParams

(

DtRIDParameters *

params

)

[virtual]

Initialize the parameters used by the connection manager.

This function is automatically called by init

References DtRIDParameters::allProvideUpdateRequestsDelayed, DtRIDParameters::dataDistMgmt, DtRIDParameters::enableMessageThrottling, enableSmartForwarding(), myAddMcastMetadata, myAddTransportTypeMetadata, myAllProvideUpdateRequestsDelayed, myMessageThrottle, myParams, DtInteractionMsg::setChannelIncluded(), DtUpdateMsg::setChannelIncluded(), DtRtiMsg::setUse32BitsForValueSize(), and DtRIDParameters::transmitDelay.

Referenced by init().

bool DtConnectionMgr::inServiceCall

(

)

[virtual]

Called by RTI Ambassador services query if mutex was set using enterServiceCall()

References myInService.

Referenced by DtAsyncConnectionMgr::setMessageTracking(), DtAsyncConnectionMgr::wait(), DtSmConnectionMgr::wait(), and wait().

MAKRti::DtTransportType DtConnectionMgr::internalTransportType

(

)

const [virtual]

Returns the TransportType associated for the internal connection.

References myInternalTransportType.

Referenced by DtForwarderFaultManager::disconnectFederates(), DtForwarderFaultManager::pingForwarder(), DtForwarderFaultManager::resignForwarder(), DtPartnerMgr::sendJoinMessage(), DtPartnerMgr::sendPartnerMessage(), and DtSmConnectionMgr::~DtSmConnectionMgr().

bool DtConnectionMgr::isMetadataEnabled

(

DtMetadataType

type

)

[virtual]

References DtMetadataTypeMcastAddr, DtMetadataTypeTransport, myAddMcastMetadata, and myAddTransportTypeMetadata.

Referenced by createAncillaryRelConns(), DtSmConnectionMgr::send(), send(), and DtAsyncConnectionMgr::sendPackets().

void DtConnectionMgr::listenToMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.

The multicast is not actually dropped until the listen count goes to zero.

Reimplemented in DtSmConnectionMgr.

References bestEffortConn(), DtMulticastEntry::count, create(), DtMcastConfigureMsgKind, DtMcastListen, myFederateHandle, myInternalTransportType, myMulticastGroups, myParams, sendStampedAndDelete(), DtMcastConfigureMsg::set(), and DtRtiConnection::socket().

Referenced by DtInteractionMgr::addClassMulticast(), DtObjectMgr::addClassMulticast(), and disconnectFederation().

bool DtConnectionMgr::lockServiceCall

(

)

[virtual]

Called by asynchronous processing thread to gain mutually exclusive access to RTI managers.

References myCallbackMutex, and myLockService.

Referenced by DtAsyncConnectionMgr::handleMsg(), DtAsyncConnectionMgr::processMsgQueueCallbacks(), DtAsyncConnectionMgr::processPendingMsgMakeCallbacks(), DtAsyncConnectionMgr::processPendingMsgQueueCallbacks(), DtAsyncConnectionMgr::wait(), DtSmConnectionMgr::wait(), wait(), and DtAsyncConnectionMgr::workerThread().

DtLogicalTimeFactory * DtConnectionMgr::logicalTimeFactory

(

DtFederationHandle

federationHandle = 0

)

const [virtual]

Get the factory for the given federation that can create logical time/interval instances.

References fedExHandle(), and myLogicalTimeFactories.

Referenced by DtRtiShmQNetMgr::processMsg(), processMsg(), DtObjectMgr::retainTsoDeletedObj(), DtObjectMgr::retainTsoRemovedObj(), DtSmConnectionMgr::send(), DtAsyncConnectionMgr::send(), send(), and DtAsyncConnectionMgr::sendAndDelete().

DtNetReadStatus DtConnectionMgr::momProcessMsg

(

const DtRtiMsg &

msg

)

[virtual]

apply MOM callbacks to message

References DtNET_READ_SUCCESS, DtRtiMsg::msgKind(), myMomMsgCbMgr, DtMessageCallbackManager< T_Message, T_MessageKind >::numCallbacks(), and DtMessageCallbackManager< T_Message, T_MessageKind >::processMsg().

Referenced by handleMsg().

DtRtiMsgFactory * DtConnectionMgr::msgFactory

(

)

const [virtual]

References myMsgFactory.

Referenced by create(), createAncillaryRelConns(), createBestEffortConn(), createRelConn(), DtSmConnectionMgr::createSharedMemConn(), DtFedExec::processFedFileRequestMsg(), DtSynchronousFileDistributor::pullEntireFedFile(), DtFileDistributor::pushFedFile(), DtRtiExecFederateMgr::restore(), DtRtiExec::ridRequestCb(), and DtRidFileTester::sendRequestForTesting().

DtRtiMsgQueue * DtConnectionMgr::msgQueue

(

)

[virtual]

Set/Get the time managed message queue.

References myMsgQueue.

DtRtiMsg * DtConnectionMgr::nextPendingMsg

(

)

[virtual]

Add/get/process a pending message Messages will be processed during the next tick.

References myPendingMessages.

Referenced by DtRtiExecFederateMgr::save().

DtConnectionMgr& DtConnectionMgr::operator=

(

DtConnectionMgr const &

)

[private]

Assignment not implemented -- Assignment Not Allowed!

DtRIDParameters * DtConnectionMgr::params

(

)

[virtual]

Get a pointer to the RID parameters.

References myParams.

Referenced by checkRelConn(), connectFederation(), DtRtiShmQNetMgr::create(), create(), createAncillaryRelConns(), createBestEffortConn(), createRelConn(), destroyRelConn(), disconnectFederation(), DtAsyncConnectionMgr::doWait(), doWait(), init(), initConnections(), DtPartnerMgr::joinFederationExecution(), DtSmConnectionMgr::processConnections(), DtFedExec::processCreateReady(), DtFedExec::processJoin(), DtFedExec::processJoinConfirm(), DtFedExec::processJoinMsg(), DtFedExec::processJoinReady(), DtSynchronousFileDistributor::pullEntireFedFile(), DtSmConnectionMgr::repairFederationConnection(), repairFederationConnection(), DtAsyncConnectionMgr::send(), send(), DtAsyncConnectionMgr::sendAndDelete(), DtPartnerMgr::sendJoinMessage(), DtAsyncConnectionMgr::sendPackets(), DtAsyncConnectionMgr::setFederateMgr(), DtSmConnectionMgr::startSharedMemMgr(), DtFedExec::tickFederates(), updateBufferSizes(), and DtAsyncConnectionMgr::workerThread().

DtPartnerMgr * DtConnectionMgr::partnerMgr

(

)

Partner manager.

References myPartnerMgr.

Referenced by DtSimpleFederateMgr::joinFederationExecution().

int DtConnectionMgr::pendingMsgCount

(

)

[virtual]

Add/get/process a pending message Messages will be processed during the next tick.

References myPendingMessages.

Referenced by DtRtiExecFederateMgr::save(), and DtAsyncConnectionMgr::workerThread().

bool DtConnectionMgr::processConnection	(	DtRtiConnection *	conn,
		MAKRti::DtTransportType	trans
	)		[virtual]

Read from the given connection and process the message (if received) Return boolean: message was received? (i.e.

could be more input).

Reimplemented in DtRtiShmQNetMgr, and DtSmConnectionMgr.

References DtTestManager::addReceiveTimeStampIfNecessary(), DtNET_READ_NO_PACKETS, handleMsg(), myFedMgr, DtRtiConnection::netRead(), processReadResult(), DtRtiMsg::setTransportType(), and DtFederateMgr::testMgr().

Referenced by processConnections().

bool DtConnectionMgr::processConnections

(

)

[virtual]

Check all the connections and process any incomming messages Return boolean: message was received? (i.e.

could be more input).

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

References bestEffortConn(), checkRelConn(), DtRtiConnection::connId(), destroyAncillaryRelConn(), destroyRelConn(), flush(), DtRtiConnection::isOk(), myIsFederate, myReliableConns, processConnection(), and reliableConn().

Referenced by tick().

bool DtConnectionMgr::processingTick

(

)

const [virtual]

Set/Get tick processing state.

References myProcessingTick.

Referenced by send(), DtAsyncConnectionMgr::setMessageTracking(), and setProcessingTick().

DtNetReadStatus DtConnectionMgr::processMsg

(

const DtRtiMsg &

msg

)

[virtual]

this function applies the callbacks to the message

Reimplemented in DtRtiShmQNetMgr.

References DtPartnerMgr::acceptMessage(), DtNET_READ_FILTERED_PACKET, DtNET_READ_SUCCESS, DtRtiMsg::federateHandle(), DtRtiMsg::fedExHandle(), logicalTimeFactory(), DtRtiMsg::msgKind(), myClock, myFederateHandle, myFedMgr, myMsgCbMgr, myPartnerMgr, myProcessingMessage, myReceivedMsgCount, myWorkingMsgId, DtMessageCallbackManager< T_Message, T_MessageKind >::numCallbacks(), DtRtiMsg::print(), DtMessageCallbackManager< T_Message, T_MessageKind >::processMsg(), and DtFederateMgr::tickCount().

Referenced by createAncillaryRelConns(), createRelConn(), handleMsg(), processPendingMsg(), and repairFederationConnection().

bool DtConnectionMgr::processPendingMsg

(

)

[virtual]

Add/get/process a pending message Messages will be processed during the next tick.

References DtRtiMsg::federateHandle(), fedHandle(), DtRtiMsg::isConstrained(), myMsgQueue, myPendingMessages, processMsg(), DtRtiMsgQueue::queueMsg(), restoreInProgress(), and saveInProgress().

Referenced by DtAsyncConnectionMgr::processPendingMsgMakeCallbacks(), DtAsyncConnectionMgr::processPendingMsgQueueCallbacks(), and tick().

void DtConnectionMgr::processQueuedMessages

(

)

[virtual]

Process queued messages that are being sent at specified rate.

References myMessageThrottle, and DtMessageThrottle::processQueuedMessages().

Referenced by DtFederateMgr::posttick().

void DtConnectionMgr::processReadResult

(

int

readError

)

[protected, virtual]

Process read result to print error diagnostics for example.

References DtNET_READ_SIZE_MISMATCH, DtNET_READ_VERSION_MISMATCH, DtNET_READ_VERSION_UNKNOWN, myClock, mySizeMismatchCount, mySizeMismatchNoticationTimer, myVersionConflictCount, myVersionConflictNoticationTimer, and theReportReadErrorInterval.

Referenced by createAncillaryRelConns(), createRelConn(), DtSmConnectionMgr::getMessage(), getMessage(), processConnection(), DtAsyncConnectionMgr::receivePacket(), and repairFederationConnection().

int DtConnectionMgr::readFileDescriptor

(

RTI::TransportType

transport

)

[virtual]

Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.

Returns -1 if no such file descriptor.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

References bestEffortConn(), DtMsgSocket::descriptor(), reliableConn(), and DtRtiConnection::socket().

Referenced by DtAsyncConnectionMgr::readFileDescriptor().

DtRtiConnection * DtConnectionMgr::reliableConn

(

)

const [virtual]

Returns the connection created by createTcpConn().

If no TCP/IP connection has been created, this will return NULL

References myPrimaryReliableConn.

Referenced by checkRelConn(), DtAsyncConnectionMgr::connectFederation(), connectFederation(), createRelConn(), disconnectFederation(), flush(), getMessage(), hasTransport(), initConnections(), processConnections(), readFileDescriptor(), repairFederationConnection(), send(), DtAsyncConnectionMgr::sendPackets(), sendShutdownForwarderMsg(), setFederateHandle(), setMsgFactory(), setupSelectParams(), and DtAsyncConnectionMgr::waitOnIO().

DtFedAmbWrapper * DtConnectionMgr::removeFedAmbWrapper

(

MAKRti::DtString const &

name

)

[virtual]

Remove federate wrapper.

References myFedAmbChain, and DtFedAmbWrapperChain::removeWrapper().

Referenced by DtRtiAmbassadorBaseImplementor::removeFedAmbWrapper(), DtTestManager::resign(), DtAsyncConnectionMgr::~DtAsyncConnectionMgr(), and DtFederateMgr::~DtFederateMgr().

void DtConnectionMgr::removeLogicalTimeFactory

(

DtFederationHandle

federationHandle

)

[virtual]

Remove the factory for the given federation that can create logical time/interval instances.

References myLogicalTimeFactories.

Referenced by DtRtiExec::destroyFederationByName(), DtSmConnectionMgr::disconnectFederation(), and disconnectFederation().

void DtConnectionMgr::removeMsgCallback	(	DtRtiMsgKind	msgKind,
		DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = false
	)		[virtual]

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

References myMomMsgCbMgr, myMsgCbMgr, and DtMessageCallbackManager< T_Message, T_MessageKind >::removeMsgCallback().

Referenced by DtQueryRestoreStatusMsg::removeCallback(), DtAbortRestoreMsg::removeCallback(), DtQuerySaveStatusMsg::removeCallback(), DtSaveTimeAdvanceMsg::removeCallback(), DtInitiatedSaveMsg::removeCallback(), DtSaveBegunMsg::removeCallback(), DtRtiExecDisconnectMsg::removeCallback(), DtAbortSaveMsg::removeCallback(), DtDisconnectMsg::removeCallback(), DtQueueFullMsg::removeCallback(), DtRtiExecShutdownForwarderMsg::removeCallback(), DtListFederationsMsg::removeCallback(), DtDeleteSocketMsg::removeCallback(), DtAliveMsg::removeCallback(), DtRestoreRequestMsg::removeCallback(), DtRestoreMsg::removeCallback(), DtSaveInitiateConstrainedMsg::removeCallback(), DtSaveInitiateMsg::removeCallback(), DtRestoreCompleteMsg::removeCallback(), DtSaveRequestMsg::removeCallback(), DtDesignatedFederateMsg::removeCallback(), DtPubInterMsg::removeCallback(), DtSaveCompleteMsg::removeCallback(), DtUnpubInterMsg::removeCallback(), DtWwwStateReqMsg::removeCallback(), DtRidTestRequestMsg::removeCallback(), DtConnectMsg::removeCallback(), DtReleaseMultiNameMsg::removeCallback(), DtReserveMultiNameMsg::removeCallback(), DtSubInterMsg::removeCallback(), DtRestoreInitiateMsg::removeCallback(), DtNetworkMapReqMsg::removeCallback(), DtEnableDisableNetworkTestingMsg::removeCallback(), DtLocDelMsg::removeCallback(), DtUnsubInterMsg::removeCallback(), DtDestroyMsg::removeCallback(), DtTransferRidParamsMsg::removeCallback(), DtForwarderConnectionLostMsg::removeCallback(), DtReqDiscObjMsg::removeCallback(), DtUnpubObjMsg::removeCallback(), DtUnsubObjMsg::removeCallback(), DtRestoreEndMsg::removeCallback(), DtNetworkMapRspMsg::removeCallback(), DtSaveFinishedMsg::removeCallback(), DtPubObjMsg::removeCallback(), DtMacAddrMsg::removeCallback(), DtWwwFederateStateReqMsg::removeCallback(), DtResignDirectiveMsg::removeCallback(), DtForwarderPingMsg::removeCallback(), DtForwarderResignMsg::removeCallback(), DtDestroyResponseMsg::removeCallback(), DtForwarderPortMsg::removeCallback(), DtInteractionRoMsg::removeCallback(), DtSmEnrollmentMsg::removeCallback(), DtReportFederationsMsg::removeCallback(), DtMultiNameReservedMsg::removeCallback(), DtFedAmbCallbackMsg::removeCallback(), DtSaveTimeMsg::removeCallback(), DtCreateResponseMsg::removeCallback(), DtDeleteRoMsg::removeCallback(), DtRestoreBegunMsg::removeCallback(), DtPartnerFederateMsg::removeCallback(), DtRestoreReplyMsg::removeCallback(), DtWwwControlRspMsg::removeCallback(), DtWwwControlMsg::removeCallback(), DtUpdateRoMsg::removeCallback(), DtQueryInterTransportMsg::removeCallback(), DtReconnectMsg::removeCallback(), DtJoinConfirmMsg::removeCallback(), DtWwwStateRspMsg::removeCallback(), DtSubObjMsg::removeCallback(), DtRegObjMsg::removeCallback(), DtForwarderCounterMsg::removeCallback(), DtSaveResponseMsg::removeCallback(), DtRtiExecHandshakeMsg::removeCallback(), DtFomModuleRequestMsg::removeCallback(), DtDiscObjMsg::removeCallback(), DtWwwFederateStateRspMsg::removeCallback(), DtRtiExecConnectMsg::removeCallback(), DtMcastConfigureMsg::removeCallback(), DtSyncPointQueryMsg::removeCallback(), DtLatencyReportMsg::removeCallback(), DtMulticastDiscoveryMsg::removeCallback(), DtTestMgrStatusMsg::removeCallback(), DtFomModuleDistributionMsg::removeCallback(), DtJoinLightWeightMsg::removeCallback(), DtChangeLatencyTestModeMsg::removeCallback(), DtResignMsg::removeCallback(), DtConnectConfirmMsg::removeCallback(), DtQueryTransportMsg::removeCallback(), DtCreateMsg::removeCallback(), DtRequestMsg::removeCallback(), DtForwarderNodeInfoMsg::removeCallback(), DtJoinMsg::removeCallback(), DtOwnershipMsg::removeCallback(), DtSyncPointMsg::removeCallback(), and DtJoinResponseMsg::removeCallback().

void DtConnectionMgr::removeWildcardMsgCallback	(	DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = false
	)		[virtual]

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

References myMomMsgCbMgr, myMsgCbMgr, and DtMessageCallbackManager< T_Message, T_MessageKind >::removeWildcardMsgCallback().

bool DtConnectionMgr::repairFederationConnection

(

)

[virtual]

Attempt to re-establish a broken connection to the federation Returns true if successful.

Reimplemented in DtSmConnectionMgr.

References addPendingMsg(), connectionId(), createRelConn(), destroyRelConn(), DtRIDParameters::DtFomTransportTypeUseBestEffort, DtNET_READ_NO_PACKETS, DtReconnectMsg::DtReconnectAccepted, DtReconnectMsg::DtReconnectDenied, DtReconnectMsgKind, DtReconnectMsg::DtReconnectRequest, DtRIDParameters::DtSynchronousMode, federateReconnectPause, fedExHandle(), DtRtiConnection::flush(), DtRtiMsg::msgKind(), myClock, myConnectionId, myFederateHandle, myFedExHandle, myFedExName, myIsFederate, myParams, myPrimaryReliableConn, DtRtiConnection::netRead(), params(), DtRIDParameters::processingModel(), processMsg(), processReadResult(), reliableConn(), DtRIDParameters::responseInterval, rtiExecReconnectPause, send(), DtRtiConnection::setFederateHandle(), DtRtiMsg::setFedEx(), DtRtiConnection::setFedExHandle(), DtRtiConnection::setFedExName(), DtRtiMsg::setTransportType(), and useRtiExec.

Referenced by checkRelConn().

bool DtConnectionMgr::restoreInProgress

(

)

const [virtual]

Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.

References myRestoreInProgress.

Referenced by handleMsg(), and processPendingMsg().

DtRetractInfoList * DtConnectionMgr::retractList

(

)

[virtual]

Set/Get the time managed retract list.

References myRetractList.

bool DtConnectionMgr::saveInProgress

(

)

const [virtual]

Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.

References mySaveInProgress.

Referenced by handleMsg(), and processPendingMsg().

bool DtConnectionMgr::saveRestoreInProgress

(

)

const [virtual]

Return bool: Is save or restore in progress.

References myRestoreInProgress, and mySaveInProgress.

int DtConnectionMgr::send	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Sending.

Send a message Returns the size of the data sent

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

References DtTestManager::addSendTimeStampMetaDataIfNecessary(), bestEffortConn(), checkRelConn(), destroyRelConn(), DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtRtiMsg::fedExHandle(), isMetadataEnabled(), DtFederateMgr::isTicking(), logicalTimeFactory(), myClock, myFedMgr, myIsFederate, myProcessingMessage, myReceivedMsgCount, mySentMsgCount, params(), DtRtiMsg::print(), processingTick(), reliableConn(), DtRtiConnection::send(), serviceCallCount(), DtRtiMtdTransportType::set(), DtRtiMtdMcastAddr::set(), DtRtiMsg::setSequenceNumber(), DtRtiMsg::setServiceCallNumber(), DtRtiMsg::setTransportType(), DtRtiMsg::setTriggerMessageNumber(), DtFederateMgr::testMgr(), and DtFederateMgr::tickCount().

Referenced by createRelConn(), DtForwarderFaultManager::disconnectFederates(), DtMessageThrottle::flush(), DtForwarderFaultManager::pingForwarder(), DtFedExec::processOwnership(), DtMessageThrottle::processQueuedMessages(), DtFedExec::processRestoreBegun(), DtFedExec::processRestoreRequest(), repairFederationConnection(), DtForwarderFaultManager::resignForwarder(), DtFedExec::restoreFederateConnection(), sendAndDelete(), sendShutdownForwarderMsg(), sendStampedUtilityFunction(), and DtRtiExec::tick().

int DtConnectionMgr::sendAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Send a message and delete the message after it has been sent Returns the size of the data sent.

Reimplemented in DtAsyncConnectionMgr.

References send().

Referenced by DtFedExec::changeLatencyTestMode(), DtSmConnectionMgr::connectFederation(), DtSmConnectionMgr::disconnectFederation(), DtSmConnectionMgr::dropMulticastGroup(), DtFedExec::endRestore(), DtFedExec::endSave(), DtSmConnectionMgr::forceDropMulticastGroup(), DtSmConnectionMgr::listenToMulticastGroup(), DtRtiShmQNetMgr::processConnection(), DtFedExec::processCreateReady(), DtFedExec::processFedFileRequestMsg(), DtSynchronousFileDistributor::pullEntireFedFile(), DtSmConnectionMgr::repairFederationConnection(), DtRtiExec::ridRequestCb(), DtRtiExecFederateMgr::sendCreateMsg(), DtRtiExec::sendCreateResponseMsg(), DtFedExec::sendDesignatedFederate(), DtRtiExecFederateMgr::sendDestroyMsg(), DtRtiExec::sendDestroyResponseMsg(), DtFedExec::sendEnableDisableNetworkTestingMsg(), DtRtiExecFederateMgr::sendJoinMsg(), DtRtiExec::sendJoinResponseMsg(), DtFedExec::sendJoinResponseMsg(), DtFedExec::sendMultiNameReservedMsg(), DtFedExec::sendNameReservedMsg(), DtRtiExec::sendReportFederationsMsg(), DtRidFileTester::sendRequestForTesting(), DtFedExec::sendResignMsg(), DtFedExec::sendRestoreStatus(), DtRtiExec::sendRtiExecHandshakeMsg(), DtFedExec::sendSaveInitiateConstrainedMsg(), DtFedExec::sendSaveInitiateMsg(), DtFedExec::sendSaveResponse(), DtFedExec::sendSaveStatus(), sendStampedUtilityFunction(), DtFedExec::sendSyncPointMsg(), DtFedExec::sendSyncPointStatusReport(), DtFedExec::sendTransferRidParamsMsg(), and DtSmConnectionMgr::~DtSmConnectionMgr().

void DtConnectionMgr::sendLoopback

(

DtRtiMsg *

msg

)

[virtual]

Send a message to be processed by this federate.

Will not send to any other federates. NOTE: For now, this only works for TSO messages for time managed federates.

References DtRtiMsg::isConstrained(), myMsgQueue, and DtRtiMsgQueue::queueMsg().

void DtConnectionMgr::sendShutdownForwarderMsg

(

)

[virtual]

Called by the rtiExec when it is exiting, only if it started this forwarder.

References myIsFederate, reliableConn(), and send().

Referenced by DtRtiExec::cleanupConstructorException(), and DtRtiExec::shutdownForwarderIfCreated().

int DtConnectionMgr::sendStamped	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.

References sendStampedUtilityFunction().

Referenced by DtFederateMgr::reportLatencyTestResults(), and DtFederateMgr::reportLatencyTestStatus().

int DtConnectionMgr::sendStampedAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.

References sendStampedUtilityFunction().

Referenced by dropMulticastGroup(), forceDropMulticastGroup(), listenToMulticastGroup(), DtFileDistributor::pushFedFile(), DtObjectMgr::releaseAllAttributes(), DtFederateMgr::sendAlive(), DtObjectMgr::sendDiscoverMsg(), DtInteractionMgr::sendInteractionMsg(), DtRtiExecFederateMgr::sendJoinConfirmMsg(), DtPartnerMgr::sendJoinMessage(), DtObjectMgr::sendLocalDeleteMsg(), DtPartnerMgr::sendPartnerMessage(), DtObjectMgr::sendPendingDiscoveries(), DtInteractionMgr::sendPublishMsg(), DtObjectMgr::sendPublishMsg(), DtObjectMgr::sendRegisterMsg(), DtObjectMgr::sendRemoveDiscoverMsg(), DtObjectMgr::sendRequestDiscoverMsg(), DtFederateMgr::sendResignMsg(), DtRtiExecFederateMgr::sendRestoreBegunMsg(), DtRtiExecFederateMgr::sendRestoreCompleteMsg(), DtRtiExecFederateMgr::sendRestoreRequestMsg(), DtRtiExecFederateMgr::sendSaveBegunMsg(), DtRtiExecFederateMgr::sendSaveCompleteMsg(), DtRtiExecFederateMgr::sendSaveRequestMsg(), DtInteractionMgr::sendSubscribeMsg(), DtObjectMgr::sendSubscribeMsg(), DtRtiExecFederateMgr::sendSyncPointMsg(), DtInteractionMgr::sendUnpublishMsg(), DtObjectMgr::sendUnpublishMsg(), DtInteractionMgr::sendUnsubscribeMsg(), DtObjectMgr::sendUnsubscribeMsg(), and DtObjectMgr::sendUpdateMessage().

int DtConnectionMgr::sendStampedAnonymous	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.

References sendStampedUtilityFunction().

int DtConnectionMgr::sendStampedAnonymousAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = MAKRti::DtInetAddr::inaddrAny()
	)		[virtual]

Send and delete a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.

References sendStampedUtilityFunction().

Referenced by DtInteractionMgr::sendInteractionMsg(), DtObjectMgr::sendRegisterMsg(), DtFedExec::sendSyncPointReport(), and DtObjectMgr::sendUpdateMessage().

int DtConnectionMgr::sendStampedUtilityFunction	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		bool	performDelete,
		bool	isAnonymous,
		const MAKRti::DtInetAddr &	addr
	)		[protected, virtual]

Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc.

Performs actual send, stamping, deletion.

References DtRetractInfoList::add(), DtRtiMsg::fedExHandle(), fedExHandle(), DtRtiMsg::fedExName(), fedExName(), fedHandle(), myMessageThrottle, myRetractList, DtRtiMsg::orderType(), DtMessageThrottle::queueMessage(), send(), sendAndDelete(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

Referenced by sendStamped(), sendStampedAndDelete(), sendStampedAnonymous(), and sendStampedAnonymousAndDelete().

unsigned long DtConnectionMgr::sequenceNumber

(

)

const [virtual]

Get the next sequence number.

References mySentMsgCount.

unsigned long DtConnectionMgr::serviceCallCount

(

)

const [virtual]

Return service call counter.

References myServiceCallCount.

Referenced by send().

bool DtConnectionMgr::serviceCallLocked

(

)

[virtual]

Called by RTI Ambassador services query if mutex was set using lockServiceCall()

References myLockService.

Referenced by DtAsyncConnectionMgr::wait(), DtSmConnectionMgr::wait(), and wait().

void DtConnectionMgr::setCreatorFunction

(

DtConnectionMgrCreator

fn

)

[static]

Register a creator function.

When set, it will be used to create the Connection Manager.

References DtBindCreator(), and theCreator.

void DtConnectionMgr::setEvokingCallbacks

(

bool

evokingCbs

)

[virtual]

Set/Get the evoke callbacks state.

References myEvokingCallbacks.

Referenced by DtAsyncConnectionMgr::processPendingMsgMakeCallbacks(), and setProcessingTick().

void DtConnectionMgr::setFederateHandle

(

DtFederateHandle

handle

)

[virtual]

set federate handle ( this is used by restore and should not be called otherwise )

References bestEffortConn(), myFederateHandle, reliableConn(), and DtRtiConnection::setFederateHandle().

Referenced by DtRtiExecFederateMgr::processRestoreEnd().

void DtConnectionMgr::setFederateMgr

(

DtFederateMgr *

fedMgrPtr

)

[virtual]

Set the federate manager.

Reimplemented in DtAsyncConnectionMgr.

References myFedMgr.

Referenced by DtFederateMgr::DtFederateMgr().

void DtConnectionMgr::setInternalCreatorFunction

(

DtConnectionMgrCreator

fn

)

[static]

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

References theInternalCreator.

Referenced by DtRtiExec::DtRtiExec(), and DtRtiAmbassadorBaseImplementor::setupConnection().

void DtConnectionMgr::setMetadataControl	(	DtMetadataType	type,
		bool	onOff
	)		[virtual]

Set/Get metadata control indicators.

References DtMetadataTypeMcastAddr, DtMetadataTypeTransport, myAddMcastMetadata, and myAddTransportTypeMetadata.

Referenced by DtRtiShmQNetMgr::init(), and DtSmConnectionMgr::initQMgr().

void DtConnectionMgr::setMsgFactory

(

DtRtiMsgFactory *

fact

)

[virtual]

Get/Set the message factory.

Reimplemented in DtSmConnectionMgr.

References bestEffortConn(), myMsgFactory, reliableConn(), and DtRtiConnection::setMsgFactory().

Referenced by DtConnectionMgr().

void DtConnectionMgr::setMsgQueue

(

DtRtiMsgQueue *

msgQueuePtr

)

[virtual]

References myMsgQueue.

void DtConnectionMgr::setProcessingTick

(

bool

processingTick

)

[virtual]

Set/Get tick processing state.

References myProcessingTick, processingTick(), and setEvokingCallbacks().

void DtConnectionMgr::setRestoreInProgress

(

bool

saveIsInProgress

)

[virtual]

References myRestoreInProgress.

Referenced by DtRtiExecFederateMgr::processRestore(), and DtRtiExecFederateMgr::processRestoreEnd().

void DtConnectionMgr::setRetractList

(

DtRetractInfoList *

listPtr

)

[virtual]

References myRetractList.

void DtConnectionMgr::setSaveInProgress

(

bool

saveIsInProgress

)

[virtual]

References mySaveInProgress.

Referenced by DtRtiExecFederateMgr::federateSaveNotComplete(), DtRtiExecFederateMgr::initiateSave(), and DtRtiExecFederateMgr::processSaveFinished().

bool DtConnectionMgr::setupSelectParams

(

DtSelectParam *

params

)

[virtual]

adds Read File descriptors to a DtSelectParams Return boolean: file descriptor was added? In case no descriptors have been added, should sleep instead of select as there will be no input.

Reimplemented in DtSmConnectionMgr.

References bestEffortConn(), and reliableConn().

Referenced by doWait().

void DtConnectionMgr::testAutoProvideDelay

(

)

[virtual]

Test if autoprovide delay time has expired.

When the delay has expired, the current tick will allow autoprovides.

References myMessageThrottle, and DtMessageThrottle::testAutoProvideDelay().

Referenced by DtFederateMgr::posttick().

void DtConnectionMgr::testTransmitDelay

(

)

[virtual]

Test if retransmit delay time has expired.

If so, deactivate delay and activate message metering. When the delay has expired, the current tick will allow retransmission of internal state (see method - delayTransmit). The transmission of these messages can be metered at a give rate. If so, then any messages over the specified rate are queued to be transmitted in subsequent ticks.

References myMessageThrottle, and DtMessageThrottle::testTransmitDelay().

Referenced by DtFederateMgr::posttick().

bool DtConnectionMgr::tick

(

)

[virtual]

Receiving.

Process the connections. Return boolean: a message was processed?

Reimplemented in DtAsyncConnectionMgr.

References flush(), processConnections(), and processPendingMsg().

Referenced by DtRtiExecFederateMgr::destroyFederationExecution(), DtRtiExecFederateMgr::initRidTester(), DtSynchronousFileDistributor::pullEntireFedFile(), DtFileDistributor::pushFedFile(), DtRtiExecFederateMgr::requestImmediateSave(), DtRtiExec::rtiExecToForwarderHandshake(), DtSynchronousFileDistributor::sendFedFile(), DtFederateMgr::tick(), DtRtiExec::tick(), and DtRtiExecFederateMgr::waitForJoinResponse().

void DtConnectionMgr::unlockServiceCall

(

)

[virtual]

Called by asychronous processing thread to release mutually exclusive access to RTI managers.

References myCallbackMutex, and myLockService.

Referenced by DtAsyncConnectionMgr::handleMsg(), DtAsyncConnectionMgr::processMsgQueueCallbacks(), DtAsyncConnectionMgr::processPendingMsgMakeCallbacks(), DtAsyncConnectionMgr::processPendingMsgQueueCallbacks(), DtAsyncConnectionMgr::wait(), DtSmConnectionMgr::wait(), wait(), and DtAsyncConnectionMgr::workerThread().

void DtConnectionMgr::updateBufferSizes

(

)

[virtual]

Update Buffer sizes from Rid params object.

References myPrimaryReliableConn, params(), DtMsgSocket::setRecvBufferSize(), DtMsgSocket::setSendBufferSize(), DtRtiConnection::socket(), socketReceiveBufferSize, and socketSendBufferSize.

bool DtConnectionMgr::wait	(	MAKRti::DtTime	periodInSeconds,
		bool	unlockWhileWaiting = false
	)		[virtual]

Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?

Reimplemented in DtSmConnectionMgr, and DtAsyncConnectionMgr.

References doWait(), enterServiceCall(), exitServiceCall(), inServiceCall(), lockServiceCall(), serviceCallLocked(), and unlockServiceCall().

Referenced by DtRtiExec::wait().

void DtConnectionMgr::yield

(

)

[virtual]

Yield processing to allow more data to arrive.

Reimplemented in DtAsyncConnectionMgr.

Referenced by DtRtiExecFederateMgr::destroyFederationExecution(), DtRtiExecFederateMgr::initRidTester(), DtRtiExecFederateMgr::requestImmediateSave(), DtRtiExec::rtiExecToForwarderHandshake(), and DtRtiExecFederateMgr::waitForJoinResponse().

---

Member Data Documentation

bool DtConnectionMgr::myAddMcastMetadata [protected]

Referenced by initParams(), isMetadataEnabled(), and setMetadataControl().

bool DtConnectionMgr::myAddTransportTypeMetadata [protected]

Metadata control indicators.

Referenced by initParams(), isMetadataEnabled(), and setMetadataControl().

bool DtConnectionMgr::myAllProvideUpdateRequestsDelayed [protected]

Extend auto provide delay to all attribute update requests.

Referenced by allProvideUpdateRequestsDelayed(), and initParams().

DtBoost::shared_ptr<DtRtiAssistantLrcClient> DtConnectionMgr::myAssistantClient [protected]

The assistant client.

Referenced by createRelConn(), and initConnections().

DtRtiConnection* DtConnectionMgr::myBestEffortConn [protected]

The best effort connection.

Referenced by bestEffortConn(), DtSmConnectionMgr::connectFederation(), createBestEffortConn(), destroyBestEffortConn(), disconnectFederation(), DtSmConnectionMgr::initConnections(), DtSmConnectionMgr::repairFederationConnection(), and DtSmConnectionMgr::~DtSmConnectionMgr().

DtMutex* DtConnectionMgr::myCallbackMutex [protected]

Mutex to synchronize access to RTI and Federate Ambassadors.

Referenced by DtAsyncConnectionMgr::disconnectFederation(), enterServiceCall(), exitServiceCall(), DtAsyncConnectionMgr::init(), lockServiceCall(), DtAsyncConnectionMgr::setFederateMgr(), unlockServiceCall(), and DtAsyncConnectionMgr::~DtAsyncConnectionMgr().

MAKRti::DtClock DtConnectionMgr::myClock [protected]

Clock for timing.

Referenced by createAncillaryRelConns(), createRelConn(), destroyRelConn(), drainBacklog(), processMsg(), processReadResult(), repairFederationConnection(), DtAsyncConnectionMgr::send(), send(), and DtAsyncConnectionMgr::sendAndDelete().

unsigned long DtConnectionMgr::myConnectionId [protected]

"unique" identifier for this connMgr (if there is a good source of unique ids)

Referenced by connectionId(), createRelConn(), DtSmConnectionMgr::initConnections(), initConnections(), repairFederationConnection(), and DtSmConnectionMgr::~DtSmConnectionMgr().

DtDfltMsgFactory DtConnectionMgr::myDfltMsgFactory [protected]

Default message factory.

Referenced by DtConnectionMgr().

bool DtConnectionMgr::myEvokingCallbacks [protected]

Indicates if callbacks are being evoked.

Referenced by evokingCallbacks(), and setEvokingCallbacks().

DtFedAmbWrapperChain DtConnectionMgr::myFedAmbChain [protected]

Chain of Federate Ambassador Wrappers.

Referenced by addFedAmbWrapper(), addFedAmbWrapperAtFront(), DtSmConnectionMgr::connectFederation(), connectFederation(), DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), removeFedAmbWrapper(), and ~DtConnectionMgr().

DtFederateHandle DtConnectionMgr::myFederateHandle [protected]

Federate handle.

Referenced by DtSmConnectionMgr::connectFederation(), connectFederation(), DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), DtSmConnectionMgr::dropMulticastGroup(), dropMulticastGroup(), fedHandle(), DtSmConnectionMgr::forceDropMulticastGroup(), forceDropMulticastGroup(), DtSmConnectionMgr::listenToMulticastGroup(), listenToMulticastGroup(), DtRtiShmQNetMgr::processMsg(), processMsg(), DtSmConnectionMgr::repairFederationConnection(), repairFederationConnection(), setFederateHandle(), and DtSmConnectionMgr::~DtSmConnectionMgr().

DtFederateHandle DtConnectionMgr::myFedExHandle [protected]

Federation execution handle.

Referenced by DtSmConnectionMgr::connectFederation(), connectFederation(), DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), fedExHandle(), DtSmConnectionMgr::repairFederationConnection(), repairFederationConnection(), and DtSmConnectionMgr::~DtSmConnectionMgr().

MAKRti::DtString DtConnectionMgr::myFedExName [protected]

Federation execution name.

Referenced by DtSmConnectionMgr::connectFederation(), connectFederation(), DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), fedExName(), DtSmConnectionMgr::repairFederationConnection(), and repairFederationConnection().

DtFederateMgr* DtConnectionMgr::myFedMgr [protected]

The federate manager.

Referenced by DtAsyncConnectionMgr::disconnectFederation(), fedMgr(), getMessage(), DtAsyncConnectionMgr::handleMsg(), processConnection(), processMsg(), DtAsyncConnectionMgr::processMsgQueueCallbacks(), DtAsyncConnectionMgr::processPendingMsgMakeCallbacks(), DtAsyncConnectionMgr::processPendingMsgQueueCallbacks(), DtAsyncConnectionMgr::queueMsg(), DtAsyncConnectionMgr::receivePacket(), DtAsyncConnectionMgr::receivePackets(), DtAsyncConnectionMgr::send(), send(), DtAsyncConnectionMgr::sendAndDelete(), DtAsyncConnectionMgr::sendPackets(), DtAsyncConnectionMgr::setFederateMgr(), setFederateMgr(), and DtAsyncConnectionMgr::workerThread().

unsigned int DtConnectionMgr::myInService [protected]

RTI is processing a service call.

Referenced by DtAsyncConnectionMgr::disconnectFederation(), enterServiceCall(), exitServiceCall(), and inServiceCall().

MAKRti::DtTransportType DtConnectionMgr::myInternalTransportType [protected]

Transport type used for internal messages.

Referenced by DtSmConnectionMgr::connectFederation(), DtSmConnectionMgr::disconnectFederation(), DtSmConnectionMgr::dropMulticastGroup(), dropMulticastGroup(), DtSmConnectionMgr::forceDropMulticastGroup(), forceDropMulticastGroup(), DtSmConnectionMgr::initConnections(), initConnections(), internalTransportType(), DtSmConnectionMgr::listenToMulticastGroup(), listenToMulticastGroup(), DtSmConnectionMgr::processConnections(), and DtSmConnectionMgr::repairFederationConnection().

bool DtConnectionMgr::myIsFederate [protected]

Whether this manager is for a federate.

Referenced by createRelConn(), initConnections(), processConnections(), repairFederationConnection(), send(), and sendShutdownForwarderMsg().

unsigned int DtConnectionMgr::myLockService [protected]

RTI is processing a message.

Referenced by DtAsyncConnectionMgr::disconnectFederation(), lockServiceCall(), serviceCallLocked(), and unlockServiceCall().

std::map<DtFederationHandle, DtLogicalTimeFactory*> DtConnectionMgr::myLogicalTimeFactories [protected]

Factories for creating logical time instances.

Referenced by addLogicalTimeFactory(), logicalTimeFactory(), and removeLogicalTimeFactory().

DtMessageThrottle* DtConnectionMgr::myMessageThrottle [protected]

Message output throttle.

Referenced by activateAutoProvideDelay(), activateTransmitDelay(), DtSmConnectionMgr::connectFederation(), connectFederation(), delayAutoProvide(), delayTransmit(), DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), flushQueuedMessages(), initParams(), processQueuedMessages(), sendStampedUtilityFunction(), testAutoProvideDelay(), testTransmitDelay(), and ~DtConnectionMgr().

DtRtiMsgCbMgr DtConnectionMgr::myMomMsgCbMgr [protected]

MOM message callback manager.

Referenced by addMsgCallback(), addWildcardMsgCallback(), momProcessMsg(), removeMsgCallback(), and removeWildcardMsgCallback().

DtRtiMsgCbMgr DtConnectionMgr::myMsgCbMgr [protected]

Message callback manager.

Referenced by addMsgCallback(), addWildcardMsgCallback(), DtRtiShmQNetMgr::processMsg(), processMsg(), removeMsgCallback(), and removeWildcardMsgCallback().

DtRtiMsgFactory* DtConnectionMgr::myMsgFactory [protected]

The message factory.

Referenced by msgFactory(), DtSmConnectionMgr::setMsgFactory(), and setMsgFactory().

DtRtiMsgQueue* DtConnectionMgr::myMsgQueue [protected]

Message queue.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), handleMsg(), msgQueue(), processPendingMsg(), sendLoopback(), and setMsgQueue().

std::map<MAKRti::DtInetAddr, DtMulticastEntry*> DtConnectionMgr::myMulticastGroups [protected]

LRC listening to these multicast groups.

Referenced by createBestEffortConn(), disconnectFederation(), DtSmConnectionMgr::dropMulticastGroup(), dropMulticastGroup(), DtSmConnectionMgr::forceDropMulticastGroup(), forceDropMulticastGroup(), DtSmConnectionMgr::listenToMulticastGroup(), listenToMulticastGroup(), and ~DtConnectionMgr().

DtRIDParameters* DtConnectionMgr::myParams [protected]

The RTI initialization parameters.

Referenced by connectFederation(), createAncillaryRelConns(), createBestEffortConn(), dropMulticastGroup(), forceDropMulticastGroup(), DtRtiShmQNetMgr::init(), init(), DtSmConnectionMgr::initConnections(), initConnections(), initParams(), listenToMulticastGroup(), params(), DtRtiShmQNetMgr::performMulticastDiscovery(), and repairFederationConnection().

DtPartnerMgr* DtConnectionMgr::myPartnerMgr [protected]

Referenced by DtConnectionMgr(), partnerMgr(), processMsg(), and ~DtConnectionMgr().

std::list<DtRtiMsg*> DtConnectionMgr::myPendingMessages [protected]

Pending messages.

Referenced by addPendingMsg(), emptyPendingMsgList(), nextPendingMsg(), pendingMsgCount(), and processPendingMsg().

DtRtiConnection* DtConnectionMgr::myPrimaryReliableConn [protected]

The primary reliable connection.

Referenced by DtSmConnectionMgr::connectFederation(), createRelConn(), destroyAncillaryRelConns(), destroyRelConn(), DtSmConnectionMgr::initConnections(), reliableConn(), DtSmConnectionMgr::repairFederationConnection(), repairFederationConnection(), updateBufferSizes(), and DtSmConnectionMgr::~DtSmConnectionMgr().

bool DtConnectionMgr::myProcessingMessage [protected]

Indicates if message is being processed.

Referenced by processMsg(), send(), and DtAsyncConnectionMgr::setMessageTracking().

bool DtConnectionMgr::myProcessingTick [protected]

Tick processing state.

Referenced by processingTick(), and setProcessingTick().

unsigned long DtConnectionMgr::myReceivedMsgCount [protected]

Number of received messages.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), DtRtiShmQNetMgr::processMsg(), processMsg(), send(), and DtAsyncConnectionMgr::setMessageTracking().

DtRtiConnectionList DtConnectionMgr::myReliableConns [protected]

Referenced by ancillaryReliableConnsCount(), connectFederation(), createAncillaryRelConns(), createRelConn(), destroyAncillaryRelConn(), destroyAncillaryRelConns(), destroyRelConn(), processConnections(), DtAsyncConnectionMgr::receivePackets(), and DtAsyncConnectionMgr::workerThread().

bool DtConnectionMgr::myRestoreInProgress [protected]

Restore status.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), restoreInProgress(), saveRestoreInProgress(), and setRestoreInProgress().

DtRetractInfoList* DtConnectionMgr::myRetractList [protected]

Message retractions.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), retractList(), sendStampedUtilityFunction(), and setRetractList().

bool DtConnectionMgr::mySaveInProgress [protected]

Save status.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), saveInProgress(), saveRestoreInProgress(), and setSaveInProgress().

unsigned long DtConnectionMgr::mySentMsgCount [protected]

Number of sent messages.

Referenced by disconnectFederation(), incrementSequenceNumber(), DtAsyncConnectionMgr::send(), send(), DtAsyncConnectionMgr::sendAndDelete(), sequenceNumber(), and DtAsyncConnectionMgr::setMessageTracking().

unsigned long DtConnectionMgr::myServiceCallCount [protected]

Service call counter - increment before processing each service call.

Referenced by incrementServiceCallCount(), serviceCallCount(), and DtAsyncConnectionMgr::setMessageTracking().

unsigned long DtConnectionMgr::mySizeMismatchCount [protected]

The count of message size mismatches.

Referenced by processReadResult().

MAKRti::DtTime DtConnectionMgr::mySizeMismatchNoticationTimer [protected]

Referenced by processReadResult().

unsigned long DtConnectionMgr::myVersionConflictCount [protected]

The count of message version conflicts.

Referenced by processReadResult().

MAKRti::DtTime DtConnectionMgr::myVersionConflictNoticationTimer [protected]

Referenced by processReadResult().

MAKRti::DtList DtConnectionMgr::myWorkingMsgId [protected]

Diagnostic message ID stack.

Referenced by DtSmConnectionMgr::disconnectFederation(), disconnectFederation(), DtRtiShmQNetMgr::processMsg(), and processMsg().

DtConnectionMgr::DtConnectionMgrCreator DtConnectionMgr::theCreator = 0 [static, protected]

The plugin creator.

Referenced by DtRtiShmQNetMgr::create(), create(), and setCreatorFunction().

DtConnectionMgr::DtConnectionMgrCreator DtConnectionMgr::theInternalCreator = 0 [static, protected]

The internal creator.

Referenced by create(), and setInternalCreatorFunction().

---

The documentation for this class was generated from the following files:

• connectMgr.h
• connectMgr.cxx
