The object manager class processes the object management services. More...

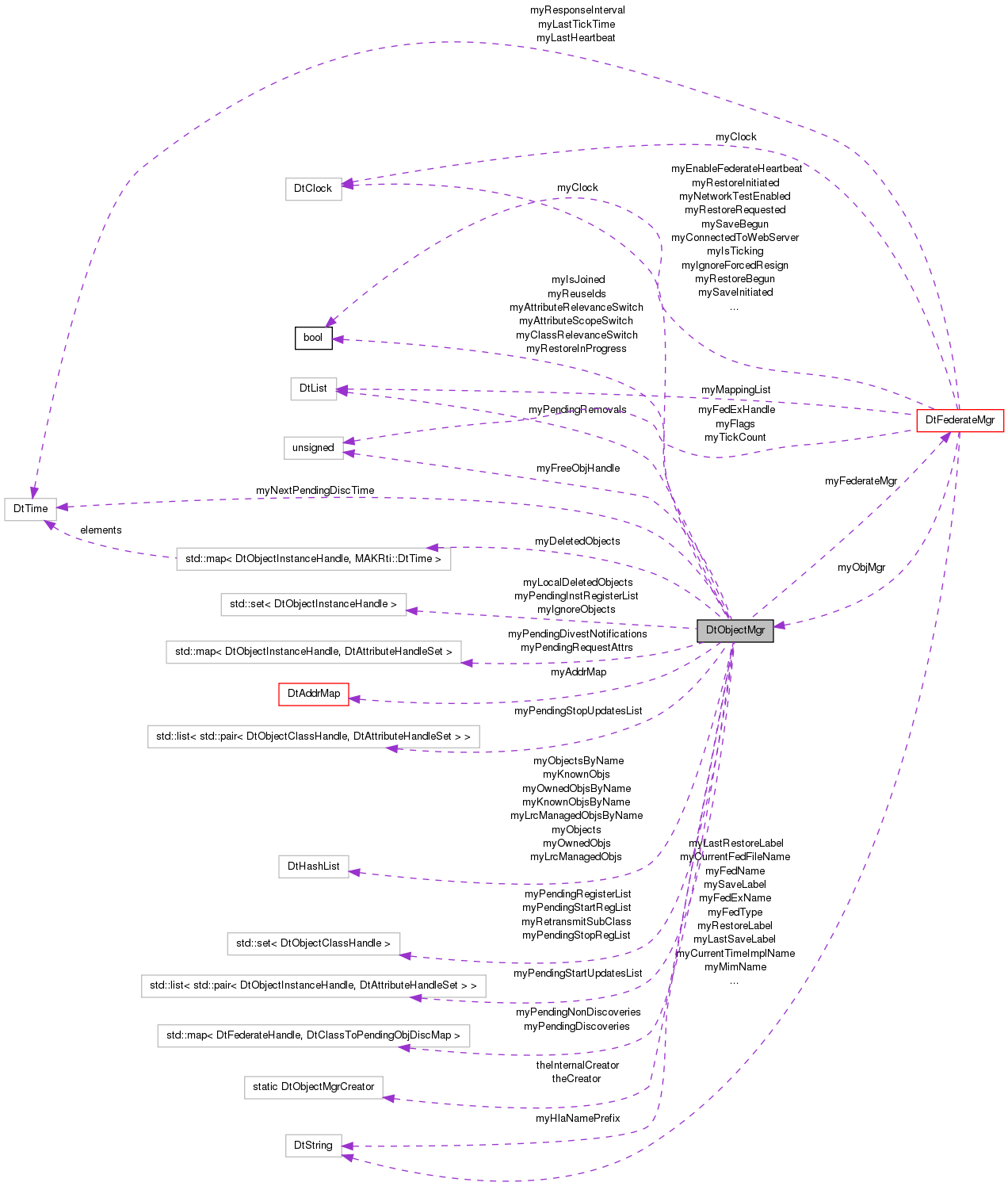

Collaboration diagram for DtObjectMgr:

Public Types
typedef DtObjectMgr (	DtObjectMgrCreator )(DtFederateMgr *fedMgr)
	Object manager creator type.
typedef std::map < DtObjectInstanceHandle, DtAttributeHandleSet >	DtPendingRequestAttrMap
	Map of requested attributes.
Public Member Functions
virtual	~DtObjectMgr ()
	Destructor.
virtual void	postJoinInit ()
	Post join processing. All managers shall have been created and initialized.
virtual bool	isPostJoined () const
	Return bool: Was the post join initialization perfomerd?
virtual DtFederateMgr *	federateMgr ()
	Access to the federate manager.
virtual DtFederateMgr *	federateMgr () const
virtual DtConnectionMgr *	connectMgr ()
	Returns pointer to network connection mgr.
virtual DtConnectionMgr *	connectMgr () const
virtual bool	useHlaNamePrefix ()
	Get switch to use HLA prefix for object names.
virtual DtObjectInstanceHandle	objectHandle (const char *name)
	Get objectHandle from name.
virtual const char *	objectName (DtObjectInstanceHandle handle)
	Get object name from handle.
virtual DtObjectClassHandle	objectClass (DtObjectInstanceHandle handle)
	Get an object's class.
virtual int	subscribed (DtObjectClassHandle handle)
	Returns 1 if subscribed to the class, 0 otherwise.
virtual int	published (DtObjectClassHandle handle)
	Returns 1 if published the class, 0 otherwise.
virtual void	publish (DtObjectClassHandle theObject, const DtAttributeHandleSet &attributeList)
	Publish specified class attributes.
virtual void	unpublishClass (DtObjectClassHandle theObject)
	Unpublishes all attributes but privilege to delete is implicit.
virtual void	unpublishAttributes (DtObjectClassHandle theClass, DtAttributeHandleSet const &attributeList)
	Explicit unpublish of specified attributes.
virtual void	unpublishAttributes (DtObjectClassInfo &classDesc, DtAttributeHandleSet const &attributeList, bool implicitlyUnpublishPrivilegeToDelete)
	Explicit unpublish of specified attributes Except privilege to delete is implicit if so designated.
virtual void	subscribe (DtObjectClassHandle theClass, const DtAttributeHandleSet &attributeList, bool active)
	Subscribe specified class attributes.
virtual void	unsubscribeClass (DtObjectClassHandle theClass)
	Unsubscribe from all attributes of specified class.
virtual void	unsubscribeAttributes (DtObjectClassHandle theClass, DtAttributeHandleSet const &attributeList)
	Unsubscribe specified class attributes.
virtual void	unsubscribeAttributes (DtObjectClassInfo &classDesc, DtAttributeHandleSet const &attributeList)
	Unsubscribe specified class attributes.
virtual DtObjectInstanceHandle	registerObj (DtObjectClassHandle theClass, const char *name)
	Register a locally simulated object.
virtual DtObjectInstanceHandle	registerObj (DtObjectClassHandle theClass)
	Register a locally simulated object.
virtual unsigned long	deleteObj (DtObjectInstanceHandle objectID, RTI::FedTime const theTime, char const theTag)
	Delete a locally simulated object Return retraction handle serial number.
virtual void	localDeleteObj (DtObjectInstanceHandle obj)
	Implements the localDeleteObjectInstance service.
virtual void	requestObjectUpdate (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, char const *tag=DtRtiMsg::theDefaultTag)
	Request an attribute value update for an object.
virtual void	requestClassUpdate (DtObjectClassHandle theClass, const DtAttributeHandleSet &theAttributes, char const *tag=DtRtiMsg::theDefaultTag, DtHandle regionSetHandle=DtDefaultRegionSetHandle)
	Request an attribute value update for a class of objects.
virtual unsigned long	sendUpdate (DtObjectInstanceHandle theObject, const DtAhvps &theAttrs, RTI::FedTime const theTime, char const tag)
	Implements update attribute values Checks attributes definition and ownership Return retraction handle serial number.
virtual unsigned long	sendUpdate (DtRtiObject theObject, const DtAhvps &theAttrs, RTI::FedTime const theTime, char const *tag)
	Generate and transmit update attribute value messages Return retraction handle serial number.
virtual void	acquireAttrs (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &desiredAttributes, bool onlyIfAvail, char const *tag=DtRtiMsg::theDefaultTag)
	Process an attribute acquisition.
virtual void	cancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Cancel an attribute acquisition.
virtual void	divestOwnership (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtDivestCondition condition, char const *tag=DtRtiMsg::theDefaultTag)
	Process a attribute divestiture.
virtual void	cancelDivest (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Cancel an attribute divestiture.
virtual DtAttributeHandleSet *	releaseResponse (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Respond to an attribute acquisition.
virtual void	removeFromAllLists (DtRtiObject *object)
	Remove an object from all lists.
virtual void	queryOwnership (DtObjectInstanceHandle obj, DtAttributeHandle attr)
	Implements the queryAttributeOwnership service.
virtual bool	isAcquistionPending ()
	Return true if ownership acquistion is pending for remote attrs.
virtual void	autoProvideAttrValueUpdate ()
	Invoke provide for all owned attributes.
virtual void	sendRegister (DtRtiObject *obj)
	Sends register information, if DDM is active then this information could include region and region association information.
virtual void	resendRegister (DtRtiObject *obj)
	Re-sends register information, if DDM is active then this information could include region and region association information.
virtual void	addPendingStartUpdates (DtObjectInstanceHandle obj, const DtAttributeHandleSet &attributeList)
	Add pending startUpdates that will get called during the next tick.
virtual void	addPendingStopUpdates (DtObjectClassHandle theClass, const DtAttributeHandleSet &attributeList)
	Add pending stopUpdates that will get called during the next tick.
virtual void	addPendingStartReg (DtObjectClassHandle theClass)
	Add pending startRegistration that will get processed during the next tick.
virtual void	addPendingStopReg (DtObjectClassHandle theClass)
	Add pending stopRegistration that will get processed during the next tick.
virtual void	addPendingRegister (DtObjectClassHandle theClass)
	Add pending Register that will get processed during the next tick.
virtual void	addPendingSubscription (DtObjectClassHandle theClass)
	Add pending subscription class retransmissions that will get processed during next tick.
virtual void	addPendingRegisterForObject (DtObjectInstanceHandle objHandle)
	Add pending Register for the given object that will get processed during next tick.
virtual void	addPendingRemoval (DtObjectInstanceHandle id)
	Add pending object removals that will get processed during the next tick.
virtual void	addPendingRequestAttrs (DtObjectInstanceHandle objectHandle, DtAttributeHandleSet attributes)
	Add pending request attribute value that will get processed during the next tick.
virtual void	addPendingDivestNotification (DtObjectInstanceHandle objectHandle, DtAttributeHandleSet attributes)
	Add pending divest notification that will get processed during the next tick.
virtual void	addPendingDiscovery (DtObjectInstanceHandle objectHandle, DtObjectClassHandle classHandle, DtFederateHandle federate, bool isNonDiscovery)
	Add pending discovery/non-discovery.
virtual void	processResign (const DtResignMsg &msg)
	Process the resign message.
virtual void	preTick ()
	Called before processing messages in RTI ambassador tick / evoke callbacks.
virtual void	postTick ()
	Called after processing messages in RTI ambassador tick / evoke callbacks.
virtual void	setClassRelevanceSwitch (bool enableSwitch)
	Set/Get value of classRelevanceAdvisorySwitch.
virtual bool	classRelevanceSwitch ()
virtual void	setAttributeRelevanceSwitch (bool enableSwitch)
	Set/Get value of attributeRelevanceAdvisorySwitch.
virtual bool	attributeRelevanceSwitch ()
virtual void	setAttributeScopeSwitch (bool enableSwitch)
	Set/Get value of attributeScopeAdvisorySwitch.
virtual bool	attributeScopeSwitch ()
virtual void	turnUpdatesOn (DtRtiObject const &object, DtAttributeHandleSet const &oldOnSet)
	Turn updates on for any attribute now on but it is not in old on set.
virtual void	turnUpdatesOff (DtRtiObject const &object, DtAttributeHandleSet const &oldOnSet)
	Turn updates off for any attribute now off but it is in old on set.
virtual DtObjectInstanceHandle	uniqueHandle ()
	Returns an ObjectHandle that is unique across the federation.
virtual void	getUniqueName (DtObjectInstanceHandle handle, MAKRti::DtString &objectName)
	Use the supplied object handle to construct a unique object name and assign a unique name to the supplied string.
virtual bool	objectWasCreatedByFederate (DtRtiObject const &obj, DtFederateHandle const &fedHandle)
	Query the object manager to determine whether the specified federate was the initial creator of the specified object.
virtual DtRtiObject *	processNewObj (DtObjectInstanceHandle objHand, DtObjectClassHandle realClass, const char *name, const DtAttributeHandleSet &inSet, DtHandle regSetHandle, DtFederateHandle sourceFederate)
	Assumes we have not yet discovered objHand.
virtual DtObjectClassInfo *	firstSubscribedClass (DtObjectClassInfo *classDesc, DtHandle regSetHandle)
	Returns most specific superclass of class, to which we are subscribed.
virtual int	numObjectsOwned ()
	return the number of owned objects
virtual void	setAttributeTransportType (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, MAKRti::DtTransportType theType)
	Set the transport type of the attribute instance.
virtual void	setAttributeOrderType (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, MAKRti::DtOrderType theType)
	Set the order type of the attribute instance.
virtual bool	save (DtRtiSaveFile &file)
	DDM.
virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data).
virtual bool	restore (DtRtiSaveFile &file)
	Restore the state information from the given file.
virtual void	sendNotDiscoveredMsgForSmartForwarding (DtObjectInstanceHandle handle, const DtObjectClassInfo &classInfo, DtFederateHandle federate, const DtAttributeHandleSet *attributes=0)
	Send a message removing this federate from remote federate's smart forwarding list for the given object.
virtual void	sendNotDiscoveredMsgForSmartForwarding (DtObjectInstanceHandle handle, const DtObjectClassInfo &classInfo, DtFederateHandle federate, const DtAhvps *attributes)
virtual void	ignoreNextUpdate (DtObjectInstanceHandle hdl)
	Tells the object manager to ignore the next update for the given object.

virtual DtRIDParameters *	params ()
	Return pointer to RID parameters.
virtual DtRIDParameters *	params () const
	Return pointer to RID parameters.

virtual DtFomClassMgr *	fom ()
	Return fom pointer.
virtual DtFomClassMgr *	fom () const
	Return fom pointer.

virtual void	addAllObj (DtRtiObject *obj)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual void	removeAllObj (DtObjectInstanceHandle obj)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual const MAKRti::DtList &	allObjects () const
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual DtRtiObject *	allObj (DtObjectInstanceHandle id)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual DtRtiObject *	allObj (const char *name)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

virtual void	addKnownObj (DtRtiObject *obj)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual void	removeKnownObj (DtObjectInstanceHandle obj)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual const MAKRti::DtList &	knownObjects () const
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual DtRtiObject *	knownObj (DtObjectInstanceHandle id)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual DtRtiObject *	knownObj (const char *name)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

virtual void	addOwnedObj (DtRtiObject *obj)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual void	removeOwnedObj (DtObjectInstanceHandle obj)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual const MAKRti::DtList &	ownedObjects () const
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual DtRtiObject *	ownedObj (DtObjectInstanceHandle id)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual DtRtiObject *	ownedObj (const char *name)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

virtual void	addLrcManagedObj (DtRtiObject *obj)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual void	removeLrcManagedObj (DtObjectInstanceHandle obj)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual const MAKRti::DtList &	lrcManagedObjects () const
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual DtRtiObject *	lrcManagedObj (DtObjectInstanceHandle id)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual DtRtiObject *	lrcManagedObj (const char *name)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

void	testResign (RTI::ResignAction const &theAction)
	Called when resigning from a federation to test conditions and to delete owned objects.
void	prepareToResign (RTI::ResignAction const &theAction)
	Called when resigning from a federation to test conditions and to delete owned objects.

virtual void	setRestoreInProgress (bool isRestore)
	Note: The advisory switches are disabled by a restore in progress.
virtual bool	restoreInProgress () const
	Note: The advisory switches are disabled by a restore in progress.

virtual void	enableClassRelevanceSwitch ()
	Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	disableClassRelevanceSwitch ()
	Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual void	enableAttributeRelevanceSwitch ()
	Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	disableAttributeRelevanceSwitch ()
	Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual void	enableAttributeScopeSwitch ()
	Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	disableAttributeScopeSwitch ()
	Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.
Static Public Member Functions
static DtObjectMgr *	create (DtFederateMgr *fedMgr)
	A Object Manager instance is created and its pointer is returned.
static void	setCreatorFunction (DtObjectMgrCreator creator)
	Register a creator function.
static void	setInternalCreatorFunction (DtObjectMgrCreator fn)
	Register alternate internal creators.
Protected Types
typedef std::set < DtObjectClassHandle >	DtObjectClassHandleSet
typedef std::set < DtObjectInstanceHandle >	DtObjectInstanceHandleSet
typedef std::list< std::pair < DtObjectClassHandle, DtAttributeHandleSet > >	DtObjClassAttrSetPairList
typedef std::list< std::pair < DtObjectInstanceHandle, DtAttributeHandleSet > >	DtObjInstAttrSetPairList
typedef std::set < DtObjectInstanceHandle >	DtObjHandleSet
	Pending discoveries and non-discoveries.
typedef std::map < DtObjectClassHandle, DtObjHandleSet >	DtClassToPendingObjDiscMap
typedef std::map < DtFederateHandle, DtClassToPendingObjDiscMap >	DtFederateToPendingObjDiscMap
Protected Member Functions
	DtObjectMgr (DtFederateMgr *fedMgr)
	Constructor.
virtual void	provideAttrValueUpdate (const DtRtiObject obj, const DtAttributeHandleSet &attrHandles, char const tag)
	Make the fedAmb call to provide attrValUpdate for this object.
virtual void	remoteSubscribe (DtObjectClassInfo &classDesc, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement)
	Add a remote subscription to object known database and determine effects on advisories.
virtual void	remotePassiveSubscribe (DtObjectClassInfo &classDesc, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement)
	Track passive subscriptions ( no effect on advisories )
virtual void	remoteUnsubscribe (DtObjectClassHandle classHandle, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle)
	Remove a remote subscription to object known database and determine effects on advisories.
virtual void	setDiscoveredClass (DtRtiObject &object, DtFederateHandle federateHandle, DtObjectClassHandle classHandle)
	Set the remote federate's discovered class and update the object's remote subscription information.
virtual void	processAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed, bool onlyIfAvail, char const *tag)
	Process a remote attribute acquisition.
virtual void	processCancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed)
	Process a remote cancel attribute acquisition.
virtual void	processConfirmCancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Process a remote confirm attribute acquisition.
virtual void	processDivest (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed, bool negotiated, char const *tag=DtRtiMsg::theDefaultTag)
	Process a remote attribute divestiture.
virtual void	notifyDivestedAttributes (DtObjectClassHandle objectClass, DtAttributeHandleSet const &attrs)
	Find any divested attributes instances that match (is of) the supplied class and set.
virtual void	processQueryOwner (DtObjectInstanceHandle objHand, DtAttributeHandle attr, DtFederateHandle requestor)
	Process a remote attribute ownership queury.
virtual void	processNotifyAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, char const *tag=DtRtiMsg::theDefaultTag, bool forceAcquire=false)
	Process a remote notify attribute acquisition.
virtual void	processGiveToLrc (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, char const *tag, DtHandle hand)
	Give the supplied attributes to the local RTI component.
virtual void	resetOwner (DtFederateHandle fedHandle, DtObjectInstanceHandle objHandle)
	Reset the owner of the object.
virtual void	sendPendingStartUpdates ()
	Send pending startUpdates.
virtual void	sendPendingStopUpdates ()
	Send pending stopUpdates.
virtual void	sendPendingStartReg ()
	Send pending startRegistration.
virtual void	sendPendingStopReg ()
	Send pending stopRegistration.
virtual void	sendPendingRegister ()
	Send pending Register.
virtual void	sendPendingSubscription ()
	Send pending subscription class retransmissions.
virtual void	sendPendingRemovals ()
	Send pending object removals.
virtual void	sendPendingRequestAttributes ()
	Send pending request attribute value.
virtual void	sendPendingDiscoveries ()
	Send pending discoveries.
virtual void	invokePendingDivestNotification ()
	Invoke pending divest notification.
virtual void	purgeDeletedObjects ()
	Purge entries for recently deleted objects that have timed out.
virtual void	throwIfAcquisitionPending (DtObjectClassHandle classHand, const DtAttributeHandleSet &attrs)
	If an acquisition request is pending for an attributes in attrs for any objects known at class classHand, throw RTI::OwnershipAcquisitionPending.
virtual void	divestAllInstances (DtObjectClassHandle classHand, const DtAttributeHandleSet &attrs)
	Divest ownership (unconditionally) of all owned attributes in attrs for each object that's known at class classHand.
virtual void	divestAllInstances ()
	Divest ownership (unconditionally) of all owned attributes of all objects.
virtual void	releaseAllAttributes (DtRtiObject *object)
	Release (unconditionally) all owned and LRC managed attributes Only used during a resign.
virtual void	releaseOwnership (DtRtiObject *obj, const DtAttributeHandleSet &attrs)
	Releases ownership of the specified attributes to the LRC Used when unpublishing.
virtual void	sendUpdateMessage (DtUpdateMsg update, DtObjectClassInfo classDesc, DtUpdateType updateType, MAKRti::DtTransportType trans, unsigned int numberAttrs, MAKRti::DtInetAddr destAddr=DtInetAddr::inaddrAny(), unsigned int offset=0)
	Send update message.
virtual void	deleteAllOwnedObjects ()
	Delete all objects for which we own the privilege.
virtual void	deleteObj (DtRtiObject *obj, bool isLocalDelete=false)
	Remove object from all lists and delete it.
virtual void	retainTsoDeletedObj (DtRtiObject *obj, RTI::FedTime const &time)
	TSO deleted object was prematurely deleted when regulation disabled Hold onto it until deletion time passes in order to process discovery.
virtual void	retainTsoRemovedObj (DtRtiObject *obj, RTI::FedTime const &time)
	TSO removed object may be discovered by other federates but should not be rediscovered by this federate.
virtual bool	removedObjectIsRetained (DtObjectInstanceHandle objectHandle)
	Check list of objects that have been removed via TSO delete and are unknown to the federate but whose delete time has not passed yet.
virtual void	removeObjectAssociations (DtRtiObject &object)
	Remove associations to this object (e.g., regions)
virtual void	collectRemoteSubscriptions (DtRtiObject &object)
	Collect existing remote subscriptions and apply them to given object Supports attribute advisories when not distributing discovered class.
virtual DtFederateHandle	federateHandleFromObjectID (DtObjectInstanceHandle id) const
	Return the federate handle used to construct the given object ID.
virtual unsigned long	nextOffsetId ()
	Return the next offset ID.
virtual DtObjectInstanceHandle	findReusableHandle ()
	Attempt to find an instance handle that can be re-assigned to a new registration Returns a 0 handle if no free handle found.
virtual DtRtiObject *	registerObj (DtObjectClassHandle theClass, DtObjectInstanceHandle objHandle, const char *name)
	Register a locally simulated object.
virtual DtRtiObject *	processNewObj (DtObjectInstanceHandle objHand, DtObjectClassInfo actualClass, DtObjectClassInfo subscribedClass, const char *name, const DtAhvps &inSet, DtHandle regSetHandle, DtFederateHandle sourceFederate)
	Assumes we have not yet discovered objHand.
virtual DtRtiObject *	discoverObject (DtObjectInstanceHandle objHandle, const char objName, DtObjectClassInfo actualClass, DtObjectClassInfo *discoveredClass, const DtAttributeHandleSet &attrSet, DtFederateHandle federateHandle, bool federateOwnsPrivilegeToDelete)
	Discover this object using the actual and discovered class and the supplied attributes that intersect the federate's subscription(s) Return object if discover successful; otherwise, NULL.
virtual void	invokeReflect (DtFederateHandle federateHandle, DtObjectInstanceHandle objectHandle, DtAhvps const &reflectedValues, DtTransportHandle transportType, DtOrderHandle sentOrder, char const tag=0, RTI::FedTime const time=0, unsigned long serialNumber=0)
	Invoke the reflect attribute values update call.
virtual bool	acceptObjectChannel (unsigned long channel)
	Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.
virtual bool	acceptRequestChannel (unsigned long channel)
	Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.
virtual bool	saveObjectList (DtRtiSaveFile &file)
	save out the list of of known and owned objects
virtual bool	restoreObjectList (DtRtiSaveFile &file)
	restore the list of known and owned objects
virtual void	destroyObjectLists ()
	Destroy all the object lists and their elements.
virtual unsigned long	savePacketLength ()
	Return the length of buffer needed to save the state data.

virtual void	processUpdate (const DtUpdateMsg &msg)
	Process messages.
virtual void	processRegister (const DtRegObjMsg &msg)
	Process messages.
virtual void	processDiscover (const DtDiscObjMsg &msg)
	Process messages.
virtual void	processRequestDiscover (const DtReqDiscObjMsg &msg)
	Process messages.
virtual void	processDelete (const DtDeleteRoMsg &msg)
	Process messages.
virtual void	processLocDelete (const DtLocDelMsg &msg)
	Process messages.
virtual void	processPub (const DtPubObjMsg &msg)
	Process messages.
virtual void	processUnpub (const DtUnpubObjMsg &msg)
	Process messages.
virtual void	processSub (const DtSubObjMsg &msg)
	Process messages.
virtual void	processUnsub (const DtUnsubObjMsg &msg)
	Process messages.
virtual void	processRequest (const DtRequestMsg &msg)
	Process messages.
virtual void	processOwnership (const DtOwnershipMsg &msg)
	Process messages.

virtual void	sendPublishMsg (DtObjectClassHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendUnpublishMsg (DtObjectInstanceHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendUnsubscribeMsg (DtObjectClassHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendSubscribeMsg (DtObjectClassHandle theObj, bool isPassive, bool replacement, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendRegisterMsg (DtRtiObject *object)
	Send various types of RTI messages.
virtual void	sendLocalDeleteMsg (DtObjectInstanceHandle handle)
	Send various types of RTI messages.
virtual void	sendDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle, DtFederateHandle owner)
	Send various types of RTI messages.
virtual void	sendRequestDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle)
	Send various types of RTI messages.
virtual void	sendRemoveDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle=0)
	Send various types of RTI messages.
virtual void	sendBestEffortUpdateMsg (DtRtiObject obj, const DtAhvps &theAttrs, DtOrderHandle orderType, RTI::FedTime const theTime, char const *tag, unsigned long serialNumber, const MAKRti::DtInetAddr &destAddr, unsigned int offset=0)
	Send various types of RTI messages.
virtual void	sendReliableUpdateMsg (DtRtiObject obj, const DtAhvps &theAttrs, DtOrderHandle orderType, RTI::FedTime const theTime, char const *tag, unsigned long serialNumber)
	Send various types of RTI messages.
virtual void	sendRequestMsg (DtRequestType type, unsigned long idOrClass, const DtAttributeHandleSet &theSet, char const *tag, bool anonymous, DtHandle regionSetHandle=DtRtiMsg::theDefaultRegionSetHandle)
	Send various types of RTI messages.
virtual unsigned long	sendDeleteMsg (DtObjectInstanceHandle handle, DtOrderHandle orderType, RTI::FedTime const theTime, char const tag)
	Send various types of RTI messages.
virtual void	sendOwnershipMsg (DtOwnerMsgKind kind, DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle targetFed=0, char const *tag=DtRtiMsg::theDefaultTag)
	Send various types of RTI messages.
virtual void	sendOwnershipMsg (DtOwnerMsgKind kind, DtObjectInstanceHandle objHand, const DtAttributeHandle attr, DtFederateHandle targetFed=0, char const *tag=DtRtiMsg::theDefaultTag)
	Send various types of RTI messages.

virtual void	addClassMulticast (DtObjectClassInfo *classDesc, float rate=-1.0)
	Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.
virtual void	removeClassMulticast (DtObjectClassInfo *classDesc, float rate=-1.0)
	Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.
Static Protected Member Functions

static void	processUpdate (const DtUpdateMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processRegister (const DtRegObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processDiscover (const DtDiscObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processRequestDiscover (const DtReqDiscObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processDelete (const DtDeleteRoMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processLocDelete (const DtLocDelMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processPub (const DtPubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processUnpub (const DtUnpubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processSub (const DtSubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processUnsub (const DtUnsubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processRequest (const DtRequestMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processOwnership (const DtOwnershipMsg &msg, void *usr)
	Message callback methods to register with connection manager.
Protected Attributes
DtFederateMgr *	myFederateMgr
	Access to the federate manager.
MAKRti::DtString	myHlaNamePrefix
	The HLA object instance name prefix.
MAKRti::DtHashList	myObjects
	List of all objects by handle.
MAKRti::DtHashList	myObjectsByName
	List of all objects by name.
MAKRti::DtHashList	myKnownObjs
	List of known objects by handle.
MAKRti::DtHashList	myKnownObjsByName
	List of known objects by name.
MAKRti::DtHashList	myOwnedObjs
	List of owned objects by handle.
MAKRti::DtHashList	myOwnedObjsByName
	List of owned objects by name.
MAKRti::DtHashList	myLrcManagedObjs
	List of LRC owned objects by handle.
MAKRti::DtHashList	myLrcManagedObjsByName
	List of LRC owned objects by name.
DtAddrMap	myAddrMap
	Map of routing addresses by region set handle.
std::map < DtObjectInstanceHandle, MAKRti::DtTime >	myDeletedObjects
	Set of objects that have been recently deleted that will not be discovered via update.
DtHandle	myFreeObjHandle
	The next free object handle.
bool	myIsJoined
	Manager has performed join processing.
bool	myRestoreInProgress
	Status of restore.
bool	myReuseIds
	Unique object IDs have been exhausted, attempt to reuse IDs.
MAKRti::DtClock	myClock
	Clock for timing.
DtFederateToPendingObjDiscMap	myPendingDiscoveries
DtFederateToPendingObjDiscMap	myPendingNonDiscoveries
DtTime	myNextPendingDiscTime
	Next time we should send pending discovery messages.
DtObjHandleSet	myIgnoreObjects
	Set of object handles whose next updates should be ignored.

DtObjectClassHandleSet	myRetransmitSubClass
	Post processing lists.
DtObjectInstanceHandleSet	myLocalDeletedObjects
	Post processing lists.
DtObjInstAttrSetPairList	myPendingStartUpdatesList
	Post processing lists.
DtObjClassAttrSetPairList	myPendingStopUpdatesList
	Post processing lists.
DtObjectClassHandleSet	myPendingStartRegList
	Post processing lists.
DtObjectClassHandleSet	myPendingStopRegList
	Post processing lists.
DtObjectClassHandleSet	myPendingRegisterList
	Post processing lists.
DtObjectInstanceHandleSet	myPendingInstRegisterList
	Post processing lists.
MAKRti::DtList	myPendingRemovals
	Post processing lists.
DtPendingRequestAttrMap	myPendingRequestAttrs
	Post processing lists.
DtPendingRequestAttrMap	myPendingDivestNotifications
	Post processing lists.

bool	myClassRelevanceSwitch
	Advisory switches.
bool	myAttributeRelevanceSwitch
	Advisory switches.
bool	myAttributeScopeSwitch
	Advisory switches.
Static Protected Attributes
static DtObjectMgrCreator	theCreator = 0
	The plugin creator.
static DtObjectMgrCreator	theInternalCreator = 0
	The internal creator.
Private Member Functions
	DtObjectMgr (DtObjectMgr const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtObjectMgr &	operator= (DtObjectMgr const &)
	Assignment not implemented -- Assignment Not Allowed!

Detailed Description

The object manager class processes the object management services.

The object manager manages all the objects in a federation. It handles registers, discovers, updates, reflects, subscriptions, publications, and ownership management.

Member Typedef Documentation

typedef std::map<DtObjectClassHandle, DtObjHandleSet> DtObjectMgr::DtClassToPendingObjDiscMap [protected]

typedef std::map<DtFederateHandle, DtClassToPendingObjDiscMap> DtObjectMgr::DtFederateToPendingObjDiscMap [protected]

typedef std::list< std::pair< DtObjectClassHandle, DtAttributeHandleSet > > DtObjectMgr::DtObjClassAttrSetPairList [protected]

typedef std::set< DtObjectClassHandle > DtObjectMgr::DtObjectClassHandleSet [protected]

typedef std::set< DtObjectInstanceHandle > DtObjectMgr::DtObjectInstanceHandleSet [protected]

typedef DtObjectMgr*(* DtObjectMgr::DtObjectMgrCreator)(DtFederateMgr *fedMgr)

Object manager creator type.

typedef std::set<DtObjectInstanceHandle> DtObjectMgr::DtObjHandleSet [protected]

Pending discoveries and non-discoveries.

typedef std::list< std::pair< DtObjectInstanceHandle, DtAttributeHandleSet > > DtObjectMgr::DtObjInstAttrSetPairList [protected]

typedef std::map<DtObjectInstanceHandle, DtAttributeHandleSet> DtObjectMgr::DtPendingRequestAttrMap

Map of requested attributes.

Constructor & Destructor Documentation

DtObjectMgr::DtObjectMgr ( DtFederateMgr * fedMgr ) [protected]

Constructor.

Referenced by create().

DtObjectMgr::~DtObjectMgr ( ) [virtual]

DtObjectMgr::DtObjectMgr ( DtObjectMgr const & ) [private]

Copy Constructor not implemented -- Copy Not Allowed!

Member Function Documentation

bool DtObjectMgr::acceptObjectChannel ( unsigned long channel ) [protected, virtual]

Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.

Referenced by processUpdate().

bool DtObjectMgr::acceptRequestChannel ( unsigned long channel ) [protected, virtual]

Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.

void DtObjectMgr::acquireAttrs	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	desiredAttributes,
		bool	onlyIfAvail,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)		`[virtual]`

Process an attribute acquisition.

References DtRtiObject::acquireRemoteSubscriptions(), DtRtiObject::actualClassHandle(), DtRtiObject::addRequest(), DtObjectClassInfo::allAttrs(), DtAcquire, DtAcquireIfAvail, DtAttributeHandleSet::getHandle(), DtRtiObject::id(), DtAttributeHandleSet::isEmpty(), DtAttributeHandleSet::isEmptySet(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), DtRtiObject::lrcManagedAttrs(), DtRtiObject::objHandle(), DtRtiObject::owned(), DtRtiObject::ownedAttrs(), DtRtiObject::pendingUncondRequest(), DtObjectClassInfo::published(), DtObjectClassInfo::publishedAttrs(), DtObjectClassInfo::relevantAttrs(), DtAttributeHandleSet::removeSetIntersection(), DtRtiObject::rtiOwnedAttrs(), DtRtiObject::setAllDestinations(), DtAttributeHandleSet::setIntersection(), DtRtiObject::setTimeToUseDestinations(), DtAttributeHandleSet::size(), DtRtiObject::takeFromLrc(), and DtRtiObject::updateOnAttrs().

void DtObjectMgr::addAllObj ( DtRtiObject * obj ) [virtual]

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjects, myObjectsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by discoverObject(), processGiveToLrc(), registerObj(), and restoreObjectList().

void DtObjectMgr::addClassMulticast	(	DtObjectClassInfo *	classDesc,
		float	rate = `-1.0`
	)		`[protected, virtual]`

Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

References connectMgr(), DtObjectClassInfo::destinationAddress(), DtObjectClassInfo::destinationDevice(), DtRIDParameters::enableUpdateRateReduction, fom(), DtConnectionMgr::listenToMulticastGroup(), DtObjectClassInfo::maxSubscribedRate(), params(), DtFomClassMgr::positionOfRate(), and DtObjectClassInfo::subclasses().

Referenced by subscribe().

void DtObjectMgr::addKnownObj ( DtRtiObject * obj ) [virtual]

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjs, myKnownObjsByName, DtRtiObject::objHandle(), DtRtiObject::objName(), and DtRtiObject::setIsKnown().

Referenced by discoverObject(), registerObj(), and restoreObjectList().

void DtObjectMgr::addLrcManagedObj ( DtRtiObject * obj ) [virtual]

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjs, myLrcManagedObjsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by processGiveToLrc(), registerObj(), and restoreObjectList().

void DtObjectMgr::addOwnedObj ( DtRtiObject * obj ) [virtual]

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs, myOwnedObjsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by processNotifyAcquire(), registerObj(), and restoreObjectList().

void DtObjectMgr::addPendingDiscovery	(	DtObjectInstanceHandle	objectHandle,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	federate,
		bool	isNonDiscovery
	)		`[virtual]`

Add pending discovery/non-discovery.

References myPendingDiscoveries, myPendingNonDiscoveries, sendDiscoverMsg(), and sendRemoveDiscoverMsg().

Referenced by discoverObject(), processRequestDiscover(), and sendNotDiscoveredMsgForSmartForwarding().

void DtObjectMgr::addPendingDivestNotification	(	DtObjectInstanceHandle	objectHandle,
		DtAttributeHandleSet	attributes
	)		`[virtual]`

Add pending divest notification that will get processed during the next tick.

References myPendingDivestNotifications, and DtAttributeHandleSet::setUnion().

void DtObjectMgr::addPendingRegister ( DtObjectClassHandle theClass ) [virtual]

Add pending Register that will get processed during the next tick.

References DtConnectionMgr::activateTransmitDelay(), DtFomClassMgr::classByHandle(), connectMgr(), fom(), DtObjectClassInfo::isOfClass(), myPendingRegisterList, and restoreInProgress().

Referenced by DtObjectClassInfo::remotePassiveSubscribe(), DtObjectClassInfo::remoteSubscribe(), and DtObjectClassInfo::updateRelevance().

void DtObjectMgr::addPendingRegisterForObject ( DtObjectInstanceHandle objHandle ) [virtual]

Add pending Register for the given object that will get processed during next tick.

References myPendingInstRegisterList, and restoreInProgress().

Referenced by processNotifyAcquire().

void DtObjectMgr::addPendingRemoval ( DtObjectInstanceHandle id ) [virtual]

Add pending object removals that will get processed during the next tick.

References myPendingRemovals.

void DtObjectMgr::addPendingRequestAttrs	(	DtObjectInstanceHandle	objectHandle,
		DtAttributeHandleSet	attributes
	)		`[virtual]`

Add pending request attribute value that will get processed during the next tick.

References myPendingRequestAttrs, and DtAttributeHandleSet::setUnion().

Referenced by processRequest().

void DtObjectMgr::addPendingStartReg ( DtObjectClassHandle theClass ) [virtual]

Add pending startRegistration that will get processed during the next tick.

References classRelevanceSwitch(), and myPendingStartRegList.

Referenced by DtObjectClassInfo::publish(), and DtObjectClassInfo::updateRelevance().

void DtObjectMgr::addPendingStartUpdates	(	DtObjectInstanceHandle	obj,
		const DtAttributeHandleSet &	attributeList
	)		`[virtual]`

Add pending startUpdates that will get called during the next tick.

References attributeRelevanceSwitch(), and myPendingStartUpdatesList.

void DtObjectMgr::addPendingStopReg ( DtObjectClassHandle theClass ) [virtual]

Add pending stopRegistration that will get processed during the next tick.

References classRelevanceSwitch(), and myPendingStopRegList.

Referenced by DtObjectClassInfo::publish(), and DtObjectClassInfo::updateRelevance().

void DtObjectMgr::addPendingStopUpdates	(	DtObjectClassHandle	theClass,
		const DtAttributeHandleSet &	attributeList
	)		`[virtual]`

Add pending stopUpdates that will get called during the next tick.

References attributeRelevanceSwitch(), and myPendingStopUpdatesList.

void DtObjectMgr::addPendingSubscription ( DtObjectClassHandle theClass ) [virtual]

Add pending subscription class retransmissions that will get processed during next tick.

References myRetransmitSubClass.

Referenced by processPub().

DtRtiObject * DtObjectMgr::allObj ( DtObjectInstanceHandle id ) [virtual]

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjects.

Referenced by destroyObjectLists(), discoverObject(), processGiveToLrc(), processOwnership(), processQueryOwner(), registerObj(), removeAllObj(), and resetOwner().

DtRtiObject * DtObjectMgr::allObj ( const char * name ) [virtual]

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjectsByName.

const MAKRti::DtList & DtObjectMgr::allObjects ( ) const [virtual]

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjects.

bool DtObjectMgr::attributeRelevanceSwitch ( ) [virtual]

References myAttributeRelevanceSwitch, and restoreInProgress().

Referenced by addPendingStartUpdates(), addPendingStopUpdates(), collectRemoteSubscriptions(), disableAttributeRelevanceSwitch(), enableAttributeRelevanceSwitch(), processDiscover(), processNotifyAcquire(), processResign(), remoteSubscribe(), and remoteUnsubscribe().

bool DtObjectMgr::attributeScopeSwitch ( ) [virtual]

References myAttributeScopeSwitch, and restoreInProgress().

Referenced by disableAttributeScopeSwitch(), discoverObject(), and enableAttributeScopeSwitch().

void DtObjectMgr::autoProvideAttrValueUpdate ( ) [virtual]

Invoke provide for all owned attributes.

References myOwnedObjs, NULL, provideAttrValueUpdate(), DtAttributeHandleSet::size(), and DtRtiObject::updateOnAttrs().

void DtObjectMgr::cancelAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)		`[virtual]`

Cancel an attribute acquisition.

References DtObjectClassInfo::allAttrs(), DtCancelAcquire, DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::owned(), DtRtiObject::pendingUncondRequest(), sendOwnershipMsg(), and DtAttributeHandleSet::size().

void DtObjectMgr::cancelDivest	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)		`[virtual]`

Cancel an attribute divestiture.

References DtObjectClassInfo::allAttrs(), DtRtiObject::cancelDivest(), DtRtiObject::divestingAttrs(), DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::owned(), and DtAttributeHandleSet::size().

bool DtObjectMgr::classRelevanceSwitch ( ) [virtual]

References myClassRelevanceSwitch, and restoreInProgress().

Referenced by addPendingStartReg(), addPendingStopReg(), disableClassRelevanceSwitch(), and enableClassRelevanceSwitch().

void DtObjectMgr::collectRemoteSubscriptions ( DtRtiObject & object ) [protected, virtual]

Collect existing remote subscriptions and apply them to given object Supports attribute advisories when not distributing discovered class.

Actually can report more attributes than required.

References attributeRelevanceSwitch(), DtObjectClassInfo::baseClass(), DtIsFound(), DtObjectClassInfo::handle(), setDiscoveredClass(), DtObjectClassInfo::subscribedFederates(), turnUpdatesOff(), and turnUpdatesOn().

Referenced by processLocDelete(), and processRegister().

DtConnectionMgr * DtObjectMgr::connectMgr ( ) [virtual]

Returns pointer to network connection mgr.

References DtFederateMgr::connectMgr(), and federateMgr().

Referenced by addClassMulticast(), addPendingRegister(), discoverObject(), DtObjectMgr(), invokePendingDivestNotification(), invokeReflect(), nextOffsetId(), postJoinInit(), processCancelAcquire(), processConfirmCancelAcquire(), processDelete(), processDiscover(), processGiveToLrc(), processNotifyAcquire(), processOwnership(), processPub(), processRegister(), processRequest(), processRequestDiscover(), processResign(), processSub(), processUnpub(), processUnsub(), processUpdate(), queryOwnership(), registerObj(), releaseAllAttributes(), releaseOwnership(), removeClassMulticast(), retainTsoDeletedObj(), retainTsoRemovedObj(), sendBestEffortUpdateMsg(), sendDiscoverMsg(), sendLocalDeleteMsg(), sendPendingDiscoveries(), sendPendingRegister(), sendPendingRemovals(), sendPendingRequestAttributes(), sendPendingStartReg(), sendPendingStartUpdates(), sendPendingStopReg(), sendPendingStopUpdates(), sendPendingSubscription(), sendPublishMsg(), sendRegisterMsg(), sendReliableUpdateMsg(), sendRemoveDiscoverMsg(), sendRequestDiscoverMsg(), sendSubscribeMsg(), sendUnpublishMsg(), sendUnsubscribeMsg(), sendUpdateMessage(), setAttributeTransportType(), turnUpdatesOff(), turnUpdatesOn(), and ~DtObjectMgr().

DtConnectionMgr * DtObjectMgr::connectMgr ( ) const [virtual]

References DtFederateMgr::connectMgr(), and federateMgr().

DtObjectMgr * DtObjectMgr::create ( DtFederateMgr * fedMgr ) [static]

A Object Manager instance is created and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated.

References DtObjectMgr(), theCreator, and theInternalCreator.

Referenced by setCreatorFunction(), and setInternalCreatorFunction().

void DtObjectMgr::deleteAllOwnedObjects ( ) [protected, virtual]

Delete all objects for which we own the privilege.

References deleteObj(), myOwnedObjs, NULL, DtRtiObject::objHandle(), DtRtiObject::ownPriviledgeToDelete(), and DtRtiMsg::theDefaultTag.

unsigned long DtObjectMgr::deleteObj	(	DtObjectInstanceHandle	objectID,
		RTI::FedTime const *	theTime,
		char const *	theTag
	)		`[virtual]`

Delete a locally simulated object Return retraction handle serial number.

References DtRtiObject::attrOrder(), DtPrivilegeToDelete, and DtRtiObject::ownPriviledgeToDelete().

Referenced by deleteAllOwnedObjects(), destroyObjectLists(), localDeleteObj(), processDelete(), and processResign().

void DtObjectMgr::deleteObj	(	DtRtiObject *	obj,
		bool	isLocalDelete = `false`
	)		`[protected, virtual]`

Remove object from all lists and delete it.

References DtRtiObject::objHandle(), DtRtiObject::objName(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

void DtObjectMgr::destroyObjectLists ( ) [protected, virtual]

Destroy all the object lists and their elements.

References allObj(), deleteObj(), DtPrivilegeToDelete, DtAddrMap::empty(), myAddrMap, myObjects, DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), removeObjectAssociations(), removeOwnedObj(), and DtRtiObject::rtiOwned().

Referenced by prepareToRestore(), and ~DtObjectMgr().

void DtObjectMgr::disableAttributeRelevanceSwitch ( ) [virtual]

Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References attributeRelevanceSwitch(), and setAttributeRelevanceSwitch().

void DtObjectMgr::disableAttributeScopeSwitch ( ) [virtual]

Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

References attributeScopeSwitch(), and setAttributeScopeSwitch().

void DtObjectMgr::disableClassRelevanceSwitch ( ) [virtual]

Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References classRelevanceSwitch(), and setClassRelevanceSwitch().

DtRtiObject * DtObjectMgr::discoverObject	(	DtObjectInstanceHandle	objHandle,
		const char *	objName,
		DtObjectClassInfo *	actualClass,
		DtObjectClassInfo *	discoveredClass,
		const DtAttributeHandleSet &	attrSet,
		DtFederateHandle	federateHandle,
		bool	federateOwnsPrivilegeToDelete
	)		`[protected, virtual]`

Discover this object using the actual and discovered class and the supplied attributes that intersect the federate's subscription(s) Return object if discover successful; otherwise, NULL.

References addAllObj(), addKnownObj(), addPendingDiscovery(), allObj(), attributeScopeSwitch(), RTI::FederateAmbassador::attributesInScope(), connectMgr(), DtRtiObject::createDiscoveredObject(), RTI::FederateAmbassador::discoverObjectInstance(), DtAutoRequestById, DtToWString(), DtConnectionMgr::fedAmb(), fom(), DtRtiObject::knownClassHandle(), knownObj(), NULL, params(), removedObjectIsRetained(), sendDiscoverMsg(), and sendRequestMsg().

Referenced by processNewObj(), and processRegister().

void DtObjectMgr::divestAllInstances	(	DtObjectClassHandle	classHand,
		const DtAttributeHandleSet &	attrs
	)		`[protected, virtual]`

Divest ownership (unconditionally) of all owned attributes in attrs for each object that's known at class classHand.

References DtRtiObject::knownClassHandle(), myOwnedObjs, NULL, DtRtiObject::ownedAttrs(), releaseOwnership(), DtAttributeHandleSet::setIntersection(), and DtAttributeHandleSet::size().

void DtObjectMgr::divestAllInstances ( ) [protected, virtual]

Divest ownership (unconditionally) of all owned attributes of all objects.

References myOwnedObjs, NULL, DtRtiObject::ownedAttrs(), and releaseOwnership().

Referenced by publish(), and unpublishAttributes().

void DtObjectMgr::divestOwnership	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtDivestCondition	condition,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)		`[virtual]`

void DtObjectMgr::enableAttributeRelevanceSwitch ( ) [virtual]

Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References attributeRelevanceSwitch(), and setAttributeRelevanceSwitch().

void DtObjectMgr::enableAttributeScopeSwitch ( ) [virtual]

Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

References attributeScopeSwitch(), and setAttributeScopeSwitch().

void DtObjectMgr::enableClassRelevanceSwitch ( ) [virtual]

Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References classRelevanceSwitch(), and setClassRelevanceSwitch().

DtFederateHandle DtObjectMgr::federateHandleFromObjectID ( DtObjectInstanceHandle id ) const [protected, virtual]

Return the federate handle used to construct the given object ID.

References DtRIDParameters::maxObjectsPerFederate(), and params().

Referenced by objectWasCreatedByFederate().

DtFederateMgr * DtObjectMgr::federateMgr ( ) [virtual]

Access to the federate manager.

References myFederateMgr.

Referenced by connectMgr(), fom(), params(), processResign(), and sendPendingRemovals().

DtFederateMgr * DtObjectMgr::federateMgr ( ) const [virtual]

References myFederateMgr.

DtObjectInstanceHandle DtObjectMgr::findReusableHandle ( ) [protected, virtual]

Attempt to find an instance handle that can be re-assigned to a new registration Returns a 0 handle if no free handle found.

References myFreeObjHandle, myKnownObjs, and nextOffsetId().

Referenced by uniqueHandle().

DtObjectClassInfo * DtObjectMgr::firstSubscribedClass	(	DtObjectClassInfo *	classDesc,
		DtHandle	regSetHandle
	)		`[virtual]`

Returns most specific superclass of class, to which we are subscribed.

References DtObjectClassInfo::baseClass(), NULL, and DtObjectClassInfo::subscribed().

Referenced by processNewObj(), processRegister(), and processUpdate().

DtFomClassMgr * DtObjectMgr::fom ( ) const [virtual]

Return fom pointer.

References federateMgr(), and DtFederateMgr::fom().

void DtObjectMgr::getUniqueName	(	DtObjectInstanceHandle	handle,
		MAKRti::DtString &	objectName
	)		`[virtual]`

Use the supplied object handle to construct a unique object name and assign a unique name to the supplied string.

References myHlaNamePrefix.

Referenced by registerObj().

void DtObjectMgr::ignoreNextUpdate ( DtObjectInstanceHandle hdl ) [virtual]

Tells the object manager to ignore the next update for the given object.

References myIgnoreObjects.

void DtObjectMgr::invokePendingDivestNotification ( ) [protected, virtual]

Invoke pending divest notification.

References RTI::FederateAmbassador::attributeOwnershipDivestitureNotification(), connectMgr(), DtConnectionMgr::fedAmb(), myPendingDivestNotifications, and ownedObj().

Referenced by postTick(), and preTick().

void DtObjectMgr::invokeReflect	(	DtFederateHandle	federateHandle,
		DtObjectInstanceHandle	objectHandle,
		DtAhvps const &	reflectedValues,
		DtTransportHandle	transportType,
		DtOrderHandle	sentOrder,
		char const *	tag = `0`,
		RTI::FedTime const *	time = `0`,
		unsigned long	serialNumber = `0`
	)		`[protected, virtual]`

Invoke the reflect attribute values update call.

References connectMgr(), DtConnectionMgr::fedAmb(), and RTI::FederateAmbassador::reflectAttributeValues().

Referenced by processUpdate().

bool DtObjectMgr::isAcquistionPending ( ) [virtual]

Return true if ownership acquistion is pending for remote attrs.

References DtRtiObject::ifAvailRequestedAttrs(), myObjects, DtAttributeHandleSet::size(), and DtRtiObject::uncondRequestedAttrs().

bool DtObjectMgr::isPostJoined ( ) const [virtual]

Return bool: Was the post join initialization perfomerd?

References myIsJoined.

DtRtiObject * DtObjectMgr::knownObj ( DtObjectInstanceHandle id ) [virtual]

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjs.

Referenced by cancelAcquire(), cancelDivest(), discoverObject(), localDeleteObj(), objectClass(), objectHandle(), objectName(), processCancelAcquire(), processConfirmCancelAcquire(), processDelete(), processNotifyAcquire(), processOwnership(), processRegister(), processRequestDiscover(), processUpdate(), queryOwnership(), releaseResponse(), removeKnownObj(), setAttributeOrderType(), and setAttributeTransportType().

DtRtiObject * DtObjectMgr::knownObj ( const char * name ) [virtual]

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjsByName.

const MAKRti::DtList & DtObjectMgr::knownObjects ( ) const [virtual]

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjs.

void DtObjectMgr::localDeleteObj ( DtObjectInstanceHandle obj ) [virtual]

Implements the localDeleteObjectInstance service.

References deleteObj(), DtRtiObject::ifAvailRequestedAttrs(), knownObj(), lrcManagedObj(), myLocalDeletedObjects, DtRtiObject::ownedAttrs(), params(), removeKnownObj(), removeObjectAssociations(), DtRtiObject::rtiOwnedAttrs(), sendLocalDeleteMsg(), DtAttributeHandleSet::size(), and DtRtiObject::uncondRequestedAttrs().

DtRtiObject * DtObjectMgr::lrcManagedObj ( DtObjectInstanceHandle id ) [virtual]

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjs.

Referenced by localDeleteObj(), processGiveToLrc(), and removeLrcManagedObj().

DtRtiObject * DtObjectMgr::lrcManagedObj ( const char * name ) [virtual]

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjsByName.

const MAKRti::DtList & DtObjectMgr::lrcManagedObjects ( ) const [virtual]

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjs.

unsigned long DtObjectMgr::nextOffsetId ( ) [protected, virtual]

Return the next offset ID.

An invalid ID of 0 is returned if this next offset exceeded the maximum.

References connectMgr(), DtConnectionMgr::fedHandle(), DtRIDParameters::maxObjectsPerFederate(), myFreeObjHandle, and params().

Referenced by findReusableHandle(), and uniqueHandle().

void DtObjectMgr::notifyDivestedAttributes	(	DtObjectClassHandle	objectClass,
		DtAttributeHandleSet const &	attrs
	)		`[protected, virtual]`

Find any divested attributes instances that match (is of) the supplied class and set.

Send a notify divest for them.

References DtRtiObject::actualClass(), DtRtiObject::divestedAttrs(), DtUncondDivest, DtObjectClassInfo::isOfClass(), myOwnedObjs, DtRtiObject::objHandle(), sendOwnershipMsg(), DtAttributeHandleSet::setIntersection(), and DtAttributeHandleSet::size().

Referenced by processPub().

int DtObjectMgr::numObjectsOwned ( ) [virtual]

return the number of owned objects

References myOwnedObjs, and DtRtiObject::ownPriviledgeToDelete().

Referenced by testResign().

DtObjectClassHandle DtObjectMgr::objectClass ( DtObjectInstanceHandle handle ) [virtual]

Get an object's class.

References DtRtiObject::knownClassHandle(), and knownObj().

DtObjectInstanceHandle DtObjectMgr::objectHandle ( const char * name ) [virtual]

Get objectHandle from name.

References knownObj(), and DtRtiObject::objHandle().

Referenced by removedObjectIsRetained().

const char * DtObjectMgr::objectName ( DtObjectInstanceHandle handle ) [virtual]

Get object name from handle.

Returns pointer to internal memory.

References knownObj(), and DtRtiObject::objName().

Referenced by registerObj().

bool DtObjectMgr::objectWasCreatedByFederate	(	DtRtiObject const &	obj,
		DtFederateHandle const &	fedHandle
	)		`[virtual]`

Query the object manager to determine whether the specified federate was the initial creator of the specified object.

References federateHandleFromObjectID(), and DtRtiObject::id().

Referenced by processResign().

DtObjectMgr& DtObjectMgr::operator= ( DtObjectMgr const & ) [private]

Assignment not implemented -- Assignment Not Allowed!

DtRtiObject * DtObjectMgr::ownedObj ( DtObjectInstanceHandle id ) [virtual]

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs.

Referenced by invokePendingDivestNotification(), processDiscover(), processLocDelete(), processRequest(), removeOwnedObj(), sendPendingRegister(), sendPendingRequestAttributes(), and sendPendingStartUpdates().

DtRtiObject * DtObjectMgr::ownedObj ( const char * name ) [virtual]

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjsByName.

const MAKRti::DtList & DtObjectMgr::ownedObjects ( ) const [virtual]

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs.

Referenced by remotePassiveSubscribe(), remoteSubscribe(), remoteUnsubscribe(), and testResign().

DtRIDParameters * DtObjectMgr::params ( ) [virtual]

DtRIDParameters * DtObjectMgr::params ( ) const [virtual]

Return pointer to RID parameters.

References federateMgr(), and DtFederateMgr::params().

void DtObjectMgr::postJoinInit ( ) [virtual]

Post join processing. All managers shall have been created and initialized.

References connectMgr(), myIsJoined, and params().

void DtObjectMgr::postTick ( ) [virtual]

Called after processing messages in RTI ambassador tick / evoke callbacks.

References invokePendingDivestNotification(), purgeDeletedObjects(), sendPendingDiscoveries(), sendPendingRegister(), sendPendingRemovals(), sendPendingRequestAttributes(), sendPendingStartReg(), sendPendingStartUpdates(), sendPendingStopReg(), sendPendingStopUpdates(), and sendPendingSubscription().

Referenced by DtFederateMgr::posttick().

void DtObjectMgr::prepareToResign ( RTI::ResignAction const & theAction )

Called when resigning from a federation to test conditions and to delete owned objects.

References RTI::Exception::_name, RTI::Exception::_reason, rti1516::CANCEL_PENDING_OWNERSHIP_ACQUISITIONS, rti1516e::CANCEL_PENDING_OWNERSHIP_ACQUISITIONS, rti1516::CANCEL_THEN_DELETE_THEN_DIVEST, rti1516e::CANCEL_THEN_DELETE_THEN_DIVEST, rti1516::DELETE_OBJECTS, rti1516e::DELETE_OBJECTS, RTI::DELETE_OBJECTS, RTI::DELETE_OBJECTS_AND_RELEASE_ATTRIBUTES, rti1516::DELETE_OBJECTS_THEN_DIVEST, rti1516e::DELETE_OBJECTS_THEN_DIVEST, DtCancelAcquire, DtDivestUnconditional, DtRtiObject::id(), DtRtiObject::ifAvailRequestedAttrs(), NULL, DtRtiObject::objHandle(), DtRtiObject::objName(), DtRtiObject::ownedAttrs(), DtRtiObject::ownPriviledgeToDelete(), RTI::RELEASE_ATTRIBUTES, DtRtiObject::rtiOwnedAttrs(), DtAttributeHandleSet::setUnion(), DtAttributeHandleSet::size(), DtRtiMsg::theDefaultTag, rti1516::UNCONDITIONALLY_DIVEST_ATTRIBUTES, rti1516e::UNCONDITIONALLY_DIVEST_ATTRIBUTES, and DtRtiObject::uncondRequestedAttrs().

void DtObjectMgr::prepareToRestore ( ) [virtual]

Prepare the state information to be restored (i.e., clear out existing data).

References destroyObjectLists().

Referenced by DtRtiExecFederateMgr::prepareToRestoreLRC().

void DtObjectMgr::preTick ( ) [virtual]

Called before processing messages in RTI ambassador tick / evoke callbacks.

References invokePendingDivestNotification().

Referenced by DtFederateMgr::pretick().

void DtObjectMgr::processAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed,
		bool	onlyIfAvail,
		char const *	tag
	)		`[protected, virtual]`

void DtObjectMgr::processCancelAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed
	)		`[protected, virtual]`

Process a remote cancel attribute acquisition.

References DtRtiObject::cancelRemoteRequest(), connectMgr(), DtRtiObject::divestingAttrs(), DtConfirmCancelAcquire, knownObj(), DtRtiObject::ownedAttrs(), DtAttributeHandleSet::removeSetIntersection(), DtRtiObject::requestedByFed(), sendOwnershipMsg(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

Referenced by processOwnership().

void DtObjectMgr::processConfirmCancelAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)		`[protected, virtual]`

Process a remote confirm attribute acquisition.

References RTI::FederateAmbassador::confirmAttributeOwnershipAcquisitionCancellation(), connectMgr(), DtConnectionMgr::fedAmb(), knownObj(), and DtRtiObject::removeRequest().

Referenced by processOwnership().

void DtObjectMgr::processDelete ( const DtDeleteRoMsg & msg ) [protected, virtual]

void DtObjectMgr::processDelete	(	const DtDeleteRoMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processDiscover ( const DtDiscObjMsg & msg ) [protected, virtual]

Process messages.

References attributeRelevanceSwitch(), DtDiscObjMsg::classHandle(), connectMgr(), DtPrivilegeToDelete, DtResetOwner, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), DtDiscObjMsg::getObjHandles(), DtRtiObject::objHandle(), ownedObj(), DtDiscObjMsg::ownerHandle(), DtRtiObject::ownerHandle(), DtDiscObjMsg::removeDiscover(), sendOwnershipMsg(), setDiscoveredClass(), turnUpdatesOff(), and turnUpdatesOn().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processDiscover	(	const DtDiscObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processDivest	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed,
		bool	negotiated,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)		`[protected, virtual]`

Process a remote attribute divestiture.

References DtRtiObject::knownClass(), DtObjectClassInfo::publishedAttrs(), DtAttributeHandleSet::setIntersection(), and DtAttributeHandleSet::size().

Referenced by processOwnership().

void DtObjectMgr::processGiveToLrc	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		char const *	tag,
		DtHandle	hand
	)		`[protected, virtual]`

Give the supplied attributes to the local RTI component.

References addAllObj(), addLrcManagedObj(), allObj(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiObject::createDiscoveredObject(), DtPrivilegeToDelete, DtResetOwner, DtConnectionMgr::fedHandle(), fom(), DtRtiObject::giveToLrc(), DtAttributeHandleSet::isMember(), lrcManagedObj(), DtRtiObject::objHandle(), sendOwnershipMsg(), and DtRtiObject::setOwnerHandle().

Referenced by processOwnership().

void DtObjectMgr::processLocDelete ( const DtLocDelMsg & msg ) [protected, virtual]

Process messages.

References collectRemoteSubscriptions(), DtLocDelMsg::objHandle(), DtRtiObject::ownedAttrs(), ownedObj(), params(), resendRegister(), and DtAttributeHandleSet::size().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processLocDelete	(	const DtLocDelMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

DtRtiObject * DtObjectMgr::processNewObj	(	DtObjectInstanceHandle	objHand,
		DtObjectClassHandle	realClass,
		const char *	name,
		const DtAttributeHandleSet &	inSet,
		DtHandle	regSetHandle,
		DtFederateHandle	sourceFederate
	)		`[virtual]`

Assumes we have not yet discovered objHand.

If the object meets our discovery criteria, create a new object, add to the list of known objects, and call discover RTI service. Returns the new object if discovered; otherwise, NULL.

References DtFomClassMgr::classByHandle(), discoverObject(), DtPrivilegeToDelete, firstSubscribedClass(), fom(), DtAttributeHandleSet::isMember(), NULL, DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribedAttrs().

Referenced by processUpdate().

DtRtiObject * DtObjectMgr::processNewObj	(	DtObjectInstanceHandle	objHand,
		DtObjectClassInfo *	actualClass,
		DtObjectClassInfo *	subscribedClass,
		const char *	name,
		const DtAhvps &	inSet,
		DtHandle	regSetHandle,
		DtFederateHandle	sourceFederate
	)		`[protected, virtual]`

Assumes we have not yet discovered objHand.

If the object meets our discovery criteria, create a new object, add to the list of known objects, and call discover RTI service. Returns the new object if discovered; otherwise, NULL.

References DtAttributeHandleSet::add(), discoverObject(), DtAttributeHandleSet::getHandle(), DtObjectClassInfo::isSubscribed(), NULL, and DtAttributeHandleSet::size().

void DtObjectMgr::processNotifyAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		char const *	tag = `DtRtiMsg::theDefaultTag`,
		bool	forceAcquire = `false`
	)		`[protected, virtual]`

Process a remote notify attribute acquisition.

References DtRtiObject::acquireRemoteSubscriptions(), DtRtiObject::actualClassHandle(), addOwnedObj(), addPendingRegisterForObject(), RTI::FederateAmbassador::attributeOwnershipAcquisitionNotification(), attributeRelevanceSwitch(), connectMgr(), dataDistMgmt, DtPrivilegeToDelete, DtResetOwner, DtConnectionMgr::fedAmb(), DtConnectionMgr::fedHandle(), fom(), DtRtiObject::ifAvailRequestedAttrs(), DtAttributeHandleSet::isEmpty(), DtRtiObject::knownClass(), knownObj(), myClock, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtRtiObject::ownPriviledgeToDelete(), params(), DtObjectClassInfo::relevantAttrs(), DtAttributeHandleSet::removeSetIntersection(), sendOwnershipMsg(), sendRequestDiscoverMsg(), DtRtiObject::setAllDestinations(), DtAttributeHandleSet::setIntersection(), DtRtiObject::setTimeToUseDestinations(), DtAttributeHandleSet::size(), DtRtiObject::takeAttrs(), turnUpdatesOn(), DtRtiObject::uncondRequestedAttrs(), and DtRtiObject::updateOnAttrs().

Referenced by processOwnership().

void DtObjectMgr::processOwnership ( const DtOwnershipMsg & msg ) [protected, virtual]

Process messages.

References allObj(), DtOwnershipMsg::attrHandles(), RTI::FederateAmbassador::attributeIsNotOwned(), RTI::FederateAmbassador::attributeOwnedByRTI(), RTI::FederateAmbassador::attributeOwnershipUnavailable(), DtRtiObject::attrTransport(), DtOwnershipMsg::classHandle(), connectMgr(), DtAcquire, DtAcquireIfAvail, DtCancelAcquire, DtCancelNegotiatedDivest, DtConfirmCancelAcquire, DtGiveToLRC, DtInformOwner, DtMomTransfer, DtNegotiatedDivest, DtNotifyAcquire, DtNotOwned, DtOwnedByRti, DtOwnershipUnavail, DtQueryAttrTransportType, DtQueryOwner, DtResetOwner, DtUncondDivest, DtConnectionMgr::fedAmb(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), DtAttributeHandleSet::getHandle(), DtRtiObject::ifAvailRequestedAttrs(), RTI::FederateAmbassador::informAttributeOwnership(), DtAttributeHandleSet::isEmpty(), knownObj(), DtRtiObject::lrcManagedAttrs(), DtOwnershipMsg::objHandle(), DtRtiObject::objHandle(), DtRtiObject::owned(), DtRtiObject::ownedAttrs(), DtOwnershipMsg::ownerMsgKind(), processAcquire(), processCancelAcquire(), processConfirmCancelAcquire(), processDivest(), processGiveToLrc(), processNotifyAcquire(), processQueryOwner(), DtOwnershipMsg::recipientFederate(), removeLrcManagedObj(), removeOwnedObj(), resetOwner(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and DtOwnershipMsg::tag().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processOwnership	(	const DtOwnershipMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processPub ( const DtPubObjMsg & msg ) [protected, virtual]

Process messages.

References DtConnectionMgr::activateTransmitDelay(), addPendingSubscription(), DtPubObjMsg::attrHandles(), DtObjectClassInfo::baseClass(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), fom(), DtObjectClassInfo::handle(), notifyDivestedAttributes(), DtPubObjMsg::objectClassHandle(), sendSubscribeMsg(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribedActiveAttrs().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processPub	(	const DtPubObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processQueryOwner	(	DtObjectInstanceHandle	objHand,
		DtAttributeHandle	attr,
		DtFederateHandle	requestor
	)		`[protected, virtual]`

Process a remote attribute ownership queury.

References allObj(), DtInformOwner, DtNotOwned, DtOwnedByRti, DtRtiObject::lrcManaged(), DtRtiObject::owned(), DtRtiObject::rtiOwned(), and sendOwnershipMsg().

Referenced by processOwnership().

void DtObjectMgr::processRegister ( const DtRegObjMsg & msg ) [protected, virtual]

void DtObjectMgr::processRegister	(	const DtRegObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processRequest	(	const DtRequestMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processRequestDiscover ( const DtReqDiscObjMsg & msg ) [protected, virtual]

Process messages.

References addPendingDiscovery(), connectMgr(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), knownObj(), DtReqDiscObjMsg::objHandle(), DtRtiObject::objHandle(), params(), sendDiscoverMsg(), and sendNotDiscoveredMsgForSmartForwarding().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processRequestDiscover	(	const DtReqDiscObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processResign ( const DtResignMsg & msg ) [virtual]

Process the resign message.

References attributeRelevanceSwitch(), DtFederateMgr::automaticResignDirective(), DtRtiObject::cancelAllRemoteRequests(), DtFomClassMgr::classByHandle(), connectMgr(), deleteObj(), DtConnectionMgr::fedAmb(), DtRtiMsg::federateHandle(), federateMgr(), fom(), rti1516e::SupplementalRemoveInfo::hasProducingFederate, DtRtiObject::id(), DtAttributeHandleSet::isEmpty(), myObjects, NULL, DtFomClassMgr::numClasses(), objectWasCreatedByFederate(), DtRtiObject::ownedAttrs(), DtRtiObject::ownerHandle(), rti1516e::SupplementalRemoveInfo::producingFederate, rti1516::RECEIVE, rti1516e::RECEIVE, DtRtiObject::removeDiscoveredClass(), RTI::FederateAmbassador::removeObjectInstance(), DtObjectClassInfo::removeSubscriptions(), DtRtiObject::requestedByFed(), DtResignMsg::resignAction(), DtAttributeHandleSet::size(), turnUpdatesOff(), and DtRtiObject::updateOnAttrs().

Referenced by DtFederateMgr::processResign().

void DtObjectMgr::processSub ( const DtSubObjMsg & msg ) [protected, virtual]

Process messages.

References DtSubObjMsg::attrHandles(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiMsg::federateHandle(), fom(), DtSubObjMsg::isPassive(), DtSubObjMsg::objectClassHandle(), DtObjectClassInfo::remotePassiveSubscribe(), remotePassiveSubscribe(), DtObjectClassInfo::remoteSubscribe(), remoteSubscribe(), remoteUnsubscribe(), DtSubObjMsg::replacement(), and true.

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processSub	(	const DtSubObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processUnpub ( const DtUnpubObjMsg & msg ) [protected, virtual]

Process messages.

References connectMgr(), DtRtiMsg::federateHandle(), and DtConnectionMgr::fedHandle().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processUnpub	(	const DtUnpubObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processUnsub ( const DtUnsubObjMsg & msg ) [protected, virtual]

Process messages.

References DtUnsubObjMsg::attrHandles(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiMsg::federateHandle(), fom(), DtUnsubObjMsg::objectClassHandle(), remoteUnsubscribe(), and DtObjectClassInfo::remoteUnsubscribeAttributes().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processUnsub	(	const DtUnsubObjMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::processUpdate ( const DtUpdateMsg & msg ) [protected, virtual]

Process messages.

References acceptObjectChannel(), DtObjectClassInfo::attrByHandle(), DtUpdateMsg::channel(), DtFomClassMgr::classByHandle(), DtUpdateMsg::classHandle(), connectMgr(), DtAttrInfo::dimensions(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), firstSubscribedClass(), fom(), DtUpdateMsg::getAttrs(), DtRtiMsg::hasTime(), invokeReflect(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::markAsReflected(), myDeletedObjects, myIgnoreObjects, DtUpdateMsg::numAttrs(), DtUpdateMsg::objHandle(), DtUpdateMsg::objName(), DtRtiMsg::orderType(), params(), processNewObj(), rti1516::RECEIVE, DtRIDParameters::receiveTolerance, receiveTolerance, sendNotDiscoveredMsgForSmartForwarding(), DtRtiMsg::serialNumber(), DtUpdateMsg::tag(), DtRtiMsg::time(), rti1516::TIMESTAMP, rti1516e::TIMESTAMP, and DtRtiMsg::transportType().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processUpdate	(	const DtUpdateMsg &	msg,
		void *	usr
	)		`[static, protected]`

Message callback methods to register with connection manager.

void DtObjectMgr::provideAttrValueUpdate	(	const DtRtiObject *	obj,
		const DtAttributeHandleSet &	attrHandles,
		char const *	tag
	)		`[protected, virtual]`

Make the fedAmb call to provide attrValUpdate for this object.

References DtRtiObject::filterOwned(), DtAttributeHandleSet::isEmpty(), and DtRtiObject::objHandle().

Referenced by autoProvideAttrValueUpdate(), and processRequest().

void DtObjectMgr::publish	(	DtObjectClassHandle	theObject,
		const DtAttributeHandleSet &	attributeList
	)		`[virtual]`

Publish specified class attributes.

References DtAttributeHandleSet::add(), DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), divestAllInstances(), DtPrivilegeToDelete, errorChecking, fom(), DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), params(), DtObjectClassInfo::publish(), DtObjectClassInfo::publishedAttrs(), DtAttributeHandleSet::removeSetIntersection(), sendPublishMsg(), DtAttributeHandleSet::size(), and throwIfAcquisitionPending().

int DtObjectMgr::published ( DtObjectClassHandle handle ) [virtual]

Returns 1 if published the class, 0 otherwise.

References DtFomClassMgr::classByHandle(), fom(), and DtObjectClassInfo::published().

void DtObjectMgr::purgeDeletedObjects ( ) [protected, virtual]

Purge entries for recently deleted objects that have timed out.

References myClock, and myDeletedObjects.

Referenced by postTick().

void DtObjectMgr::queryOwnership	(	DtObjectInstanceHandle	obj,
		DtAttributeHandle	attr
	)		`[virtual]`

Implements the queryAttributeOwnership service.

References DtObjectClassInfo::attrByHandle(), RTI::FederateAmbassador::attributeIsNotOwned(), RTI::FederateAmbassador::attributeOwnedByRTI(), connectMgr(), DtQueryOwner, DtConnectionMgr::fedAmb(), RTI::FederateAmbassador::informAttributeOwnership(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::lrcManaged(), DtRtiObject::owned(), DtRtiObject::rtiOwned(), and sendOwnershipMsg().

DtObjectInstanceHandle DtObjectMgr::registerObj	(	DtObjectClassHandle	theClass,
		const char *	name
	)		`[virtual]`

Register a locally simulated object.

References uniqueHandle(), and useHlaNamePrefix().

Referenced by registerObj().

DtObjectInstanceHandle DtObjectMgr::registerObj ( DtObjectClassHandle theClass ) [virtual]

Register a locally simulated object.

References getUniqueName(), objectName(), registerObj(), and uniqueHandle().

DtRtiObject * DtObjectMgr::registerObj	(	DtObjectClassHandle	theClass,
		DtObjectInstanceHandle	objHandle,
		const char *	name
	)		`[protected, virtual]`

void DtObjectMgr::releaseAllAttributes ( DtRtiObject * object ) [protected, virtual]

Release (unconditionally) all owned and LRC managed attributes Only used during a resign.

References DtRtiObject::actualClassHandle(), connectMgr(), DtConnectionMgr::create(), DtGiveToLRC, DtOwnershipMsgKind, DtRtiObject::lrcManagedAttrs(), DtRtiObject::objHandle(), DtRtiObject::objName(), DtRtiObject::ownedAttrs(), DtRtiObject::rtiOwnedAttrs(), DtConnectionMgr::sendStampedAndDelete(), DtOwnershipMsg::set(), DtOwnershipMsg::setClassHandle(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

void DtObjectMgr::releaseOwnership	(	DtRtiObject *	obj,
		const DtAttributeHandleSet &	attrs
	)		`[protected, virtual]`

Releases ownership of the specified attributes to the LRC Used when unpublishing.

References RTI::FederateAmbassador::attributeOwnershipDivestitureNotification(), connectMgr(), DtRtiObject::divestRemoteSubscriptions(), DtNotifyAcquire, DtUncondDivest, DtConnectionMgr::fedAmb(), DtRtiObject::giveToLrc(), DtAttributeHandleSet::isEmpty(), DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtRtiObject::releaseRequested(), removeOwnedObj(), DtAttributeHandleSet::removeSetIntersection(), sendOwnershipMsg(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

Referenced by divestAllInstances().

DtAttributeHandleSet * DtObjectMgr::releaseResponse	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)		`[virtual]`

Respond to an attribute acquisition.

References DtObjectClassInfo::allAttrs(), DtNotifyAcquire, DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), DtRtiObject::isRequestCanceled(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::owned(), DtRtiObject::pendingRemoteRequest(), DtRtiObject::releaseRequested(), sendOwnershipMsg(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

void DtObjectMgr::remotePassiveSubscribe	(	DtObjectClassInfo &	classDesc,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	isReplacement
	)		`[protected, virtual]`

Track passive subscriptions ( no effect on advisories )

References DtObjectClassInfo::handle(), ownedObjects(), and params().

Referenced by processSub().

void DtObjectMgr::remoteSubscribe	(	DtObjectClassInfo &	classDesc,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	isReplacement
	)		`[protected, virtual]`

Add a remote subscription to object known database and determine effects on advisories.

References attributeRelevanceSwitch(), DtObjectClassInfo::handle(), ownedObjects(), params(), DtObjectClassInfo::remoteSubscription(), DtRtiObject::remoteUnsubscribe(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), turnUpdatesOff(), and turnUpdatesOn().

Referenced by processSub().

void DtObjectMgr::remoteUnsubscribe	(	DtObjectClassHandle	classHandle,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle
	)		`[protected, virtual]`

Remove a remote subscription to object known database and determine effects on advisories.

References attributeRelevanceSwitch(), DtRtiObject::isDiscovered(), ownedObjects(), and turnUpdatesOff().

Referenced by processSub(), and processUnsub().

void DtObjectMgr::removeAllObj ( DtObjectInstanceHandle obj ) [virtual]

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References allObj(), myObjects, myObjectsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by deleteObj(), destroyObjectLists(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::removeClassMulticast	(	DtObjectClassInfo *	classDesc,
		float	rate = `-1.0`
	)		`[protected, virtual]`

Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

References connectMgr(), DtObjectClassInfo::destinationAddress(), DtConnectionMgr::dropMulticastGroup(), DtRIDParameters::enableUpdateRateReduction, fom(), DtObjectClassInfo::maxSubscribedRate(), params(), DtFomClassMgr::positionOfRate(), and DtObjectClassInfo::subclasses().

Referenced by unsubscribeAttributes().

bool DtObjectMgr::removedObjectIsRetained ( DtObjectInstanceHandle objectHandle ) [protected, virtual]

Check list of objects that have been removed via TSO delete and are unknown to the federate but whose delete time has not passed yet.

Return boolean: is the specified object retained?

References objectHandle().

Referenced by discoverObject().

void DtObjectMgr::removeFromAllLists ( DtRtiObject * object ) [virtual]

Remove an object from all lists.

References DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

void DtObjectMgr::removeKnownObj ( DtObjectInstanceHandle obj ) [virtual]

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References knownObj(), myKnownObjs, myKnownObjsByName, DtRtiObject::objHandle(), DtRtiObject::objName(), and DtRtiObject::setIsKnown().

Referenced by deleteObj(), destroyObjectLists(), localDeleteObj(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::removeLrcManagedObj ( DtObjectInstanceHandle obj ) [virtual]

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References lrcManagedObj(), myLrcManagedObjs, myLrcManagedObjsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by deleteObj(), destroyObjectLists(), processOwnership(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::removeObjectAssociations ( DtRtiObject & object ) [protected, virtual]

Remove associations to this object (e.g., regions)

Referenced by destroyObjectLists(), localDeleteObj(), and processDelete().

void DtObjectMgr::removeOwnedObj ( DtObjectInstanceHandle obj ) [virtual]

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs, myOwnedObjsByName, DtRtiObject::objHandle(), DtRtiObject::objName(), and ownedObj().

Referenced by deleteObj(), destroyObjectLists(), processOwnership(), releaseOwnership(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::requestClassUpdate	(	DtObjectClassHandle	theClass,
		const DtAttributeHandleSet &	theAttributes,
		char const *	tag = `DtRtiMsg::theDefaultTag`,
		DtHandle	regionSetHandle = `DtDefaultRegionSetHandle`
	)		`[virtual]`

Request an attribute value update for a class of objects.

References DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), DtRequestByClass, fom(), DtAttributeHandleSet::getHandle(), sendRequestMsg(), and DtAttributeHandleSet::size().

void DtObjectMgr::requestObjectUpdate	(	DtObjectInstanceHandle	theObject,
		const DtAttributeHandleSet &	theAttributes,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)		`[virtual]`

Request an attribute value update for an object.

References DtObjectClassInfo::allAttrs(), DtRequestById, DtRtiObject::knownClass(), DtAttributeHandleSet::removeSetIntersection(), and DtAttributeHandleSet::size().

void DtObjectMgr::resendRegister ( DtRtiObject * obj ) [virtual]

Re-sends register information, if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

References sendRegisterMsg().

Referenced by processLocDelete(), and sendPendingRegister().

void DtObjectMgr::resetOwner	(	DtFederateHandle	fedHandle,
		DtObjectInstanceHandle	objHandle
	)		`[protected, virtual]`

Reset the owner of the object.

References allObj(), and DtRtiObject::setOwnerHandle().

Referenced by processOwnership().

bool DtObjectMgr::restore ( DtRtiSaveFile & file ) [virtual]

Restore the state information from the given file.

Referenced by DtRtiExecFederateMgr::restoreLRC().

bool DtObjectMgr::restoreInProgress ( ) const [virtual]

Note: The advisory switches are disabled by a restore in progress.

They are restored to saved state upon completion of restore. Set/Get restore in progress status

References myRestoreInProgress.

Referenced by addPendingRegister(), addPendingRegisterForObject(), attributeRelevanceSwitch(), attributeScopeSwitch(), and classRelevanceSwitch().

bool DtObjectMgr::restoreObjectList ( DtRtiSaveFile & file ) [protected, virtual]

restore the list of known and owned objects

References addAllObj(), addKnownObj(), addLrcManagedObj(), addOwnedObj(), DtRtiObject::createEmptyObject(), DtRtiObject::decode(), DtRtiSaveObjectType, DtRtiSaveTerminateType, fom(), DtObjectPacket::header, DtRtiObject::isKnown(), DtRtiObject::lrcManagedAttrs(), DtRtiObject::ownedAttrs(), DtSaveDataHeader::packetType, DtRtiSaveFile::readNextPacket(), and DtAttributeHandleSet::size().

Referenced by restore().

void DtObjectMgr::retainTsoDeletedObj	(	DtRtiObject *	obj,
		RTI::FedTime const &	time
	)		`[protected, virtual]`

TSO deleted object was prematurely deleted when regulation disabled Hold onto it until deletion time passes in order to process discovery.

References connectMgr(), DtConnectionMgr::logicalTimeFactory(), DtLogicalTimeFactory::makeInitial(), DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

void DtObjectMgr::retainTsoRemovedObj	(	DtRtiObject *	obj,
		RTI::FedTime const &	time
	)		`[protected, virtual]`

TSO removed object may be discovered by other federates but should not be rediscovered by this federate.

Hold onto it until deletion time passes in order to prevent rediscovery

References connectMgr(), DtConnectionMgr::logicalTimeFactory(), DtLogicalTimeFactory::makeInitial(), DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

bool DtObjectMgr::save ( DtRtiSaveFile & file ) [virtual]

DDM.

Save the state information to the given file

Referenced by DtRtiExecFederateMgr::saveLRC().

bool DtObjectMgr::saveObjectList ( DtRtiSaveFile & file ) [protected, virtual]

save out the list of of known and owned objects

References DtPrivilegeToDelete, DtRtiSaveTerminateType, DtRtiObject::encode(), DtRtiObject::encodedLength(), myObjects, NULL, DtSaveDataHeader::packetSize, DtSaveDataHeader::packetType, DtRtiObject::rtiOwned(), and DtRtiSaveFile::writePacket().

Referenced by save().

unsigned long DtObjectMgr::savePacketLength ( ) [protected, virtual]

Return the length of buffer needed to save the state data.

Referenced by save().

void DtObjectMgr::sendBestEffortUpdateMsg	(	DtRtiObject *	obj,
		const DtAhvps &	theAttrs,
		DtOrderHandle	orderType,
		RTI::FedTime const *	theTime,
		char const *	tag,
		unsigned long	serialNumber,
		const MAKRti::DtInetAddr &	destAddr,
		unsigned int	offset = `0`
	)		`[protected, virtual]`

Send various types of RTI messages.

References DtRtiObject::actualClass(), DtRtiObject::actualClassHandle(), connectMgr(), DtConnectionMgr::create(), DtUpdateRoMsgKind, DtUpdateTsoMsgKind, DtRtiObject::getDestinations(), DtBitMask::isEmpty(), DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), NULL, DtRtiObject::objHandle(), DtRtiObject::objName(), params(), sendUpdateMessage(), DtUpdateRoMsg::set(), and DtRtiObject::updateType().

unsigned long DtObjectMgr::sendDeleteMsg	(	DtObjectInstanceHandle	handle,
		DtOrderHandle	orderType,
		RTI::FedTime const *	theTime,
		char const *	tag
	)		`[protected, virtual]`

Send various types of RTI messages.

References DtMultiNameReservedMsg::create(), DtDeleteRoMsgKind, DtDeleteTsoMsgKind, NULL, DtDeleteRoMsg::set(), and DtRtiMsg::setFederateHandle().

void DtObjectMgr::sendDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	owner
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtDiscObjMsgKind, params(), DtConnectionMgr::sendStampedAndDelete(), and DtDiscObjMsg::set().

Referenced by addPendingDiscovery(), discoverObject(), and processRequestDiscover().

void DtObjectMgr::sendLocalDeleteMsg ( DtObjectInstanceHandle handle ) [protected, virtual]

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtLocDelMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtLocDelMsg::set().

Referenced by localDeleteObj().

void DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding	(	DtObjectInstanceHandle	handle,
		const DtObjectClassInfo &	classInfo,
		DtFederateHandle	federate,
		const DtAttributeHandleSet *	attributes = `0`
	)		`[virtual]`

Send a message removing this federate from remote federate's smart forwarding list for the given object.

References addPendingDiscovery(), DtObjectClassInfo::allAttrs(), DtObjectClassInfo::attrTransport(), DtRIDParameters::DtFomTransportTypeUseReliable, DtAttributeHandleSet::getHandle(), DtObjectClassInfo::handle(), params(), sendRemoveDiscoverMsg(), and DtAttributeHandleSet::size().

Referenced by processRegister(), processRequestDiscover(), processUpdate(), and sendNotDiscoveredMsgForSmartForwarding().

void DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding	(	DtObjectInstanceHandle	handle,
		const DtObjectClassInfo &	classInfo,
		DtFederateHandle	federate,
		const DtAhvps *	attributes
	)		`[virtual]`

References addPendingDiscovery(), DtObjectClassInfo::attrTransport(), DtRIDParameters::DtFomTransportTypeUseReliable, DtObjectClassInfo::handle(), params(), sendNotDiscoveredMsgForSmartForwarding(), and sendRemoveDiscoverMsg().

void DtObjectMgr::sendOwnershipMsg	(	DtOwnerMsgKind	kind,
		DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	targetFed = `0`,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)		`[protected, virtual]`

Send various types of RTI messages.

References DtQueryInterTransportMsg::create(), DtOwnershipMsgKind, and DtOwnershipMsg::set().

Referenced by cancelAcquire(), notifyDivestedAttributes(), processCancelAcquire(), processDiscover(), processGiveToLrc(), processNotifyAcquire(), processQueryOwner(), queryOwnership(), registerObj(), releaseOwnership(), and releaseResponse().

void DtObjectMgr::sendOwnershipMsg	(	DtOwnerMsgKind	kind,
		DtObjectInstanceHandle	objHand,
		const DtAttributeHandle	attr,
		DtFederateHandle	targetFed = `0`,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)		`[protected, virtual]`

Send various types of RTI messages.

References DtQueryInterTransportMsg::create(), DtOwnershipMsgKind, and DtOwnershipMsg::set().

void DtObjectMgr::sendPendingDiscoveries ( ) [protected, virtual]

Send pending discoveries.

References connectMgr(), DtConnectionMgr::create(), DtDiscObjMsgKind, myClock, myNextPendingDiscTime, myPendingDiscoveries, myPendingNonDiscoveries, params(), DtConnectionMgr::sendStampedAndDelete(), DtDiscObjMsg::setClassHandle(), DtDiscObjMsg::setObjHandles(), DtDiscObjMsg::setOwnerHandle(), and DtDiscObjMsg::setRemoveDiscover().

Referenced by postTick().

void DtObjectMgr::sendPendingRegister ( ) [protected, virtual]

Send pending Register.

References DtRtiObject::actualClass(), connectMgr(), DtObjectClassInfo::isOfClass(), myOwnedObjs, myPendingInstRegisterList, myPendingRegisterList, NULL, ownedObj(), and resendRegister().

Referenced by postTick().

void DtObjectMgr::sendPendingRemovals ( ) [protected, virtual]

Send pending object removals.

References connectMgr(), DtConnectionMgr::fedAmb(), federateMgr(), fom(), rti1516e::SupplementalRemoveInfo::hasProducingFederate, myPendingRemovals, NULL, rti1516e::SupplementalRemoveInfo::producingFederate, rti1516::RECEIVE, rti1516e::RECEIVE, and RTI::FederateAmbassador::removeObjectInstance().

Referenced by postTick().

void DtObjectMgr::sendPendingRequestAttributes ( ) [protected, virtual]

Send pending request attribute value.

References connectMgr(), DtConnectionMgr::fedAmb(), DtRtiObject::filterOwned(), DtAttributeHandleSet::isEmpty(), myPendingRequestAttrs, DtRtiObject::objHandle(), ownedObj(), and RTI::FederateAmbassador::provideAttributeValueUpdate().

Referenced by postTick().

void DtObjectMgr::sendPendingStartReg ( ) [protected, virtual]

Send pending startRegistration.

References connectMgr(), DtConnectionMgr::fedAmb(), myPendingStartRegList, and RTI::FederateAmbassador::startRegistrationForObjectClass().

Referenced by postTick().

void DtObjectMgr::sendPendingStartUpdates ( ) [protected, virtual]

Send pending startUpdates.

References connectMgr(), DtConnectionMgr::fedAmb(), myPendingStartUpdatesList, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), ownedObj(), DtAttributeHandleSet::setIntersection(), and RTI::FederateAmbassador::turnUpdatesOnForObjectInstance().

Referenced by postTick().

void DtObjectMgr::sendPendingStopReg ( ) [protected, virtual]

Send pending stopRegistration.

References DtFomClassMgr::classByHandle(), connectMgr(), DtConnectionMgr::fedAmb(), fom(), myPendingStopRegList, DtObjectClassInfo::published(), and RTI::FederateAmbassador::stopRegistrationForObjectClass().

Referenced by postTick().

void DtObjectMgr::sendPendingStopUpdates ( ) [protected, virtual]

Send pending stopUpdates.

References connectMgr(), DtConnectionMgr::fedAmb(), DtRtiObject::knownClassHandle(), myOwnedObjs, myPendingStopUpdatesList, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtAttributeHandleSet::setIntersection(), and RTI::FederateAmbassador::turnUpdatesOffForObjectInstance().

Referenced by postTick().

void DtObjectMgr::sendPendingSubscription ( ) [protected, virtual]

Send pending subscription class retransmissions.

References DtFomClassMgr::classByHandle(), connectMgr(), fom(), DtObjectClassInfo::handle(), DtAttributeHandleSet::isEmpty(), myRetransmitSubClass, sendSubscribeMsg(), and DtObjectClassInfo::subscribedActiveAttrs().

Referenced by postTick().

void DtObjectMgr::sendPublishMsg	(	DtObjectClassHandle	handle,
		const DtAttributeHandleSet &	theSet
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtPubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtPubObjMsg::set().

Referenced by publish().

void DtObjectMgr::sendRegister ( DtRtiObject * obj ) [virtual]

Sends register information, if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

References sendRegisterMsg().

Referenced by registerObj().

void DtObjectMgr::sendRegisterMsg ( DtRtiObject * object ) [protected, virtual]

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtRegObjMsgKind, DtUpdateFederateObject, DtUpdateMomFederateObject, DtUpdateMomFederationObject, DtConnectionMgr::handleMsg(), DtConnectionMgr::incrementSequenceNumber(), DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtConnectionMgr::sendStampedAndDelete(), DtConnectionMgr::sendStampedAnonymousAndDelete(), DtRegObjMsg::set(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setSequenceNumber(), and DtRtiObject::updateType().

Referenced by resendRegister(), and sendRegister().

void DtObjectMgr::sendReliableUpdateMsg	(	DtRtiObject *	obj,
		const DtAhvps &	theAttrs,
		DtOrderHandle	orderType,
		RTI::FedTime const *	theTime,
		char const *	tag,
		unsigned long	serialNumber
	)		`[protected, virtual]`

Send various types of RTI messages.

References DtRtiObject::actualClass(), DtRtiObject::actualClassHandle(), connectMgr(), DtConnectionMgr::create(), DtUpdateRoMsgKind, DtUpdateTsoMsgKind, DtRtiObject::getDestinations(), DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), NULL, DtRtiObject::objHandle(), DtRtiObject::objName(), params(), sendUpdateMessage(), DtRtiMtdDestinationList::set(), DtUpdateRoMsg::set(), and DtRtiObject::updateType().

void DtObjectMgr::sendRemoveDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle = `0`
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtDiscObjMsgKind, params(), DtConnectionMgr::sendStampedAndDelete(), and DtDiscObjMsg::set().

Referenced by addPendingDiscovery(), processRegister(), and sendNotDiscoveredMsgForSmartForwarding().

void DtObjectMgr::sendRequestDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtReqDiscObjMsgKind, params(), DtConnectionMgr::sendStampedAndDelete(), and DtReqDiscObjMsg::set().

Referenced by processNotifyAcquire().

void DtObjectMgr::sendRequestMsg	(	DtRequestType	type,
		unsigned long	idOrClass,
		const DtAttributeHandleSet &	theSet,
		char const *	tag,
		bool	anonymous,
		DtHandle	regionSetHandle = `DtRtiMsg::theDefaultRegionSetHandle`
	)		`[protected, virtual]`

Send various types of RTI messages.

References DtMultiNameReservedMsg::create(), DtRequestMsgKind, and DtRequestMsg::set().

Referenced by discoverObject(), and requestClassUpdate().

void DtObjectMgr::sendSubscribeMsg	(	DtObjectClassHandle	theObj,
		bool	isPassive,
		bool	replacement,
		const DtAttributeHandleSet &	theSet
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtSubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtSubObjMsg::set().

Referenced by processPub(), sendPendingSubscription(), and subscribe().

void DtObjectMgr::sendUnpublishMsg	(	DtObjectInstanceHandle	handle,
		const DtAttributeHandleSet &	theSet
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtUnpubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtUnpubObjMsg::set().

Referenced by unpublishAttributes().

void DtObjectMgr::sendUnsubscribeMsg	(	DtObjectClassHandle	handle,
		const DtAttributeHandleSet &	theSet
	)		`[protected, virtual]`

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtUnsubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtUnsubObjMsg::set().

Referenced by unsubscribeAttributes().

unsigned long DtObjectMgr::sendUpdate	(	DtObjectInstanceHandle	theObject,
		const DtAhvps &	theAttrs,
		RTI::FedTime const *	theTime,
		char const *	tag
	)		`[virtual]`

Implements update attribute values Checks attributes definition and ownership Return retraction handle serial number.

References DtRtiObject::actualClass(), DtObjectClassInfo::attrByHandle(), errorChecking, and DtRtiObject::owned().

unsigned long DtObjectMgr::sendUpdate	(	DtRtiObject *	theObject,
		const DtAhvps &	theAttrs,
		RTI::FedTime const *	theTime,
		char const *	tag
	)		`[virtual]`

Generate and transmit update attribute value messages Return retraction handle serial number.

References DtRtiObject::attrHasDimensions(), dataDistMgmt, ddmFixedGrid, DtRIDParameters::DtFomTransportTypeUseBestEffort, DtRIDParameters::DtFomTransportTypeUseFomSettings, DtRIDParameters::DtFomTransportTypeUseReliable, DtUpdateMomFederateObject, DtUpdateMomFederationObject, enableUpdateRateReduction, DtObjectClassInfo::handle(), NULL, DtRtiObject::regionSetHandle(), DtRtiObject::updateType(), and useRtiExec.

void DtObjectMgr::sendUpdateMessage	(	DtUpdateMsg *	update,
		DtObjectClassInfo *	classDesc,
		DtUpdateType	updateType,
		MAKRti::DtTransportType	trans,
		unsigned int	numberAttrs,
		MAKRti::DtInetAddr	destAddr = `DtInetAddr::inaddrAny()`,
		unsigned int	offset = `0`
	)		`[protected, virtual]`

Send update message.

References connectMgr(), DtObjectClassInfo::destinationAddress(), DtUpdateMomFederateObject, DtUpdateMomFederationObject, DtObjectClassInfo::handle(), DtConnectionMgr::handleMsg(), DtConnectionMgr::incrementSequenceNumber(), DtConnectionMgr::sendStampedAndDelete(), DtConnectionMgr::sendStampedAnonymousAndDelete(), DtRtiMsg::setSequenceNumber(), and DtRtiMsg::setTransportType().

Referenced by sendBestEffortUpdateMsg(), and sendReliableUpdateMsg().

void DtObjectMgr::setAttributeOrderType	(	DtObjectInstanceHandle	theObject,
		const DtAttributeHandleSet &	theAttributes,
		MAKRti::DtOrderType	theType
	)		`[virtual]`

Set the order type of the attribute instance.

References DtRIDParameters::errorChecking, DtAttributeHandleSet::getHandle(), knownObj(), DtRtiObject::owned(), params(), DtRtiObject::setAttrOrder(), and DtAttributeHandleSet::size().

void DtObjectMgr::setAttributeRelevanceSwitch ( bool enableSwitch ) [virtual]

Set/Get value of attributeRelevanceAdvisorySwitch.

References myAttributeRelevanceSwitch.

Referenced by disableAttributeRelevanceSwitch(), and enableAttributeRelevanceSwitch().

void DtObjectMgr::setAttributeScopeSwitch ( bool enableSwitch ) [virtual]

Set/Get value of attributeScopeAdvisorySwitch.

References myAttributeScopeSwitch.

Referenced by disableAttributeScopeSwitch(), and enableAttributeScopeSwitch().

void DtObjectMgr::setAttributeTransportType	(	DtObjectInstanceHandle	theObject,
		const DtAttributeHandleSet &	theAttributes,
		MAKRti::DtTransportType	theType
	)		`[virtual]`

Set the transport type of the attribute instance.

References connectMgr(), DtRIDParameters::errorChecking, DtConnectionMgr::fedAmb(), DtAttributeHandleSet::getHandle(), knownObj(), DtRtiObject::objHandle(), DtRtiObject::owned(), params(), DtRtiObject::setAttrTransport(), and DtAttributeHandleSet::size().

void DtObjectMgr::setClassRelevanceSwitch ( bool enableSwitch ) [virtual]

Set/Get value of classRelevanceAdvisorySwitch.

References myClassRelevanceSwitch.

Referenced by disableClassRelevanceSwitch(), and enableClassRelevanceSwitch().

void DtObjectMgr::setCreatorFunction ( DtObjectMgrCreator creator ) [static]

Register a creator function.

When set, it will be used to create the Object Manager.

References create(), DtBindCreator(), and theCreator.

void DtObjectMgr::setDiscoveredClass	(	DtRtiObject &	object,
		DtFederateHandle	federateHandle,
		DtObjectClassHandle	classHandle
	)		`[protected, virtual]`

Set the remote federate's discovered class and update the object's remote subscription information.

References DtFomClassMgr::classByHandle(), and fom().

Referenced by collectRemoteSubscriptions(), and processDiscover().

void DtObjectMgr::setInternalCreatorFunction ( DtObjectMgrCreator fn ) [static]

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

References create(), and theInternalCreator.

void DtObjectMgr::setRestoreInProgress ( bool isRestore ) [virtual]

Note: The advisory switches are disabled by a restore in progress.

They are restored to saved state upon completion of restore. Set/Get restore in progress status

References myRestoreInProgress.

void DtObjectMgr::subscribe	(	DtObjectClassHandle	theClass,
		const DtAttributeHandleSet &	attributeList,
		bool	active
	)		`[virtual]`

Subscribe specified class attributes.

References addClassMulticast(), DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), errorChecking, fom(), DtAttributeHandleSet::getHandle(), params(), sendSubscribeMsg(), DtAttributeHandleSet::size(), DtObjectClassInfo::subscribe(), and DtObjectClassInfo::subscribed().

int DtObjectMgr::subscribed ( DtObjectClassHandle handle ) [virtual]

Returns 1 if subscribed to the class, 0 otherwise.

References DtFomClassMgr::classByHandle(), fom(), and DtObjectClassInfo::subscribed().

void DtObjectMgr::testResign ( RTI::ResignAction const & theAction )

Called when resigning from a federation to test conditions and to delete owned objects.

References RTI::DELETE_OBJECTS, RTI::DELETE_OBJECTS_AND_RELEASE_ATTRIBUTES, RTI::NO_ACTION, numObjectsOwned(), ownedObjects(), and RTI::RELEASE_ATTRIBUTES.

Referenced by DtFederateMgr::testResign().

void DtObjectMgr::throwIfAcquisitionPending	(	DtObjectClassHandle	classHand,
		const DtAttributeHandleSet &	attrs
	)		`[protected, virtual]`

If an acquisition request is pending for an attributes in attrs for any objects known at class classHand, throw RTI::OwnershipAcquisitionPending.

References DtRtiObject::ifAvailRequestedAttrs(), DtRtiObject::knownClassHandle(), myObjects, DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::setUnion(), DtAttributeHandleSet::size(), and DtRtiObject::uncondRequestedAttrs().

Referenced by publish(), and unpublishAttributes().

void DtObjectMgr::turnUpdatesOff	(	DtRtiObject const &	object,
		DtAttributeHandleSet const &	oldOnSet
	)		`[virtual]`

Turn updates off for any attribute now off but it is in old on set.

References connectMgr(), DtConnectionMgr::fedAmb(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and RTI::FederateAmbassador::turnUpdatesOffForObjectInstance().

Referenced by collectRemoteSubscriptions(), processDiscover(), processResign(), remoteSubscribe(), and remoteUnsubscribe().

void DtObjectMgr::turnUpdatesOn	(	DtRtiObject const &	object,
		DtAttributeHandleSet const &	oldOnSet
	)		`[virtual]`

Turn updates on for any attribute now on but it is not in old on set.

References connectMgr(), DtConnectionMgr::fedAmb(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and RTI::FederateAmbassador::turnUpdatesOnForObjectInstance().

Referenced by collectRemoteSubscriptions(), processDiscover(), processNotifyAcquire(), and remoteSubscribe().

DtObjectInstanceHandle DtObjectMgr::uniqueHandle ( ) [virtual]

Returns an ObjectHandle that is unique across the federation.

Uniqueness isn't truly guaranteed unless you're using rtiexec mode.

References DtToWString(), findReusableHandle(), DtRIDParameters::maxObjectsPerFederate(), myFreeObjHandle, myReuseIds, nextOffsetId(), params(), DtAssistantPopupHelper::popupAssistantMessage(), and DtRIDParameters::reuseReleasedObjectHandles.

Referenced by registerObj().

void DtObjectMgr::unpublishAttributes	(	DtObjectClassHandle	theClass,
		DtAttributeHandleSet const &	attributeList
	)		`[virtual]`

Explicit unpublish of specified attributes.

References DtFomClassMgr::classByHandle(), and fom().

Referenced by unpublishClass().

void DtObjectMgr::unpublishAttributes	(	DtObjectClassInfo &	classDesc,
		DtAttributeHandleSet const &	attributeList,
		bool	implicitlyUnpublishPrivilegeToDelete
	)		`[virtual]`
