DtSynchronousFileDistributor Class Reference

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates. More...

Inheritance diagram for DtSynchronousFileDistributor:

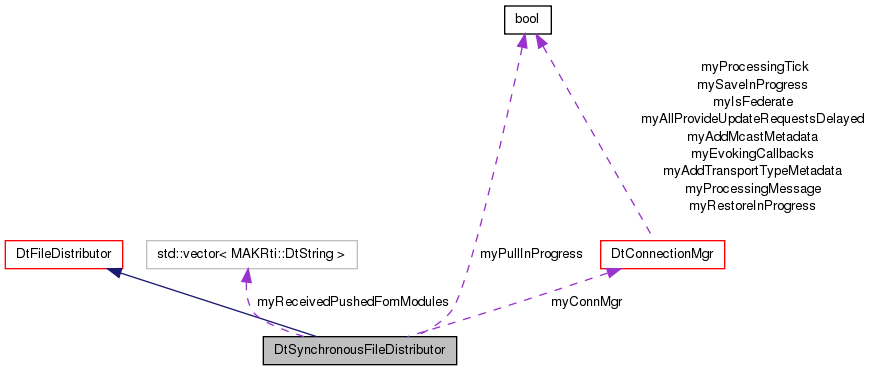

Collaboration diagram for DtSynchronousFileDistributor:

List of all members.

Public Member Functions
	DtSynchronousFileDistributor (const int fedEx, const MAKRti::DtString &fedExName, DtConnectionMgr *connMgr)
	Federate Constructor.
virtual	~DtSynchronousFileDistributor ()
	Destructor.
virtual bool	tick ()
	Tick the multFileDistributor.
virtual bool	sendFedFile (const std::vector< MAKRti::DtString > &modules)
	Override sendFedFile upload fed files passed in.
virtual bool	pullEntireFedFile (const std::vector< MAKRti::DtString > &modules)
	Download FED File from the RtiExec ( blocking )
bool	pushedFomModules () const
	Has the fedex pushed an entire fom module since the last time getPushedFomModules called?
bool	pullInProgress () const
	Is the distributor currently pulling FOM modules?
void	getPushedFomModules (std::vector< MAKRti::DtString > &modules)
	Populate modules w/ the names of pushedFomModules.
void	multFileRequestedCb (const DtFomModuleRequestMsg &msg)
	File requested callback ( part of multiple file requested)
void	multFileReceivedCb (const DtFomModuleDistributionMsg &msg)
	File received callback ( part of multiple file recieved)
void	fileReceivedCb (const DtFomModuleDistributionMsg &msg)
	We're hiding DtFileDistributorRunnable's fileReceivedCb.
Static Public Member Functions
static DtSynchronousFileDistributor *	create (const int fedEx, const MAKRti::DtString &fedExName, DtConnectionMgr *connMgr)
static void	multFileReceivedCb (const DtFomModuleDistributionMsg &msg, void *usr)
	File received callback ( part of multiple file recieved)
Private Member Functions
	DtSynchronousFileDistributor ()
	DtSynchronousFileDistributor (const DtSynchronousFileDistributor &orig)
DtSynchronousFileDistributor &	operator= (const DtSynchronousFileDistributor &orig)
Private Attributes
DtConnectionMgr *	myConnMgr
	Map between files that have been uploaded to me and their 'file names'.
std::vector< MAKRti::DtString >	myReceivedPushedFomModules
bool	myPullInProgress
	Indicates that a FOM module pull is currently in progress.

---

Detailed Description

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates.

---

Constructor & Destructor Documentation

DtSynchronousFileDistributor::DtSynchronousFileDistributor	(	const int	fedEx,
		const MAKRti::DtString &	fedExName,
		DtConnectionMgr *	connMgr
	)

Federate Constructor.

References DtFomModuleDistributionMsg::addCallback(), multFileReceivedCb(), and myConnMgr.

DtSynchronousFileDistributor::~DtSynchronousFileDistributor

(

)

[virtual]

Destructor.

References multFileReceivedCb(), myConnMgr, and DtFomModuleDistributionMsg::removeCallback().

DtSynchronousFileDistributor::DtSynchronousFileDistributor

(

)

[private]

DtSynchronousFileDistributor::DtSynchronousFileDistributor

(

const DtSynchronousFileDistributor &

orig

)

[private]

---

Member Function Documentation

static DtSynchronousFileDistributor* DtSynchronousFileDistributor::create	(	const int	fedEx,
		const MAKRti::DtString &	fedExName,
		DtConnectionMgr *	connMgr
	)		[static]

void DtSynchronousFileDistributor::fileReceivedCb

(

const DtFomModuleDistributionMsg &

msg

)

We're hiding DtFileDistributorRunnable's fileReceivedCb.

void DtSynchronousFileDistributor::getPushedFomModules

(

std::vector< MAKRti::DtString > &

modules

)

Populate modules w/ the names of pushedFomModules.

References myReceivedPushedFomModules.

Referenced by DtRtiExecFederateMgr::posttick().

void DtSynchronousFileDistributor::multFileReceivedCb	(	const DtFomModuleDistributionMsg &	msg,
		void *	usr
	)		[static]

File received callback ( part of multiple file recieved)

Referenced by DtSynchronousFileDistributor(), and ~DtSynchronousFileDistributor().

void DtSynchronousFileDistributor::multFileReceivedCb

(

const DtFomModuleDistributionMsg &

msg

)

File received callback ( part of multiple file recieved)

References DtFileDistributor::fedFileUploaded(), DtFileDistributor::fileReceived(), DtFomModuleDistributionMsg::fomModuleName(), DtFileDistributor::myFiles, and myReceivedPushedFomModules.

void DtSynchronousFileDistributor::multFileRequestedCb

(

const DtFomModuleRequestMsg &

msg

)

File requested callback ( part of multiple file requested)

References DtFileDistributor::fileRequested(), DtFomModuleRequestMsg::getFomModuleNames(), DtFileDistributor::myPendingRequests, and DtFomModuleRequestMsg::sourceID().

DtSynchronousFileDistributor& DtSynchronousFileDistributor::operator=

(

const DtSynchronousFileDistributor &

orig

)

[private]

bool DtSynchronousFileDistributor::pullEntireFedFile

(

const std::vector< MAKRti::DtString > &

modules

)

[virtual]

Download FED File from the RtiExec ( blocking )

References DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), DtFomModuleRequestMsgKind, DtConnectionMgr::msgFactory(), myConnMgr, DtFileDistributor::myFederateHandle, DtFileDistributor::myFedExHandle, DtFileDistributor::myFedExName, DtFileDistributor::myFiles, myPullInProgress, NULL, DtConnectionMgr::params(), DtRIDParameters::responseInterval, DtConnectionMgr::sendAndDelete(), DtFomModuleRequestMsg::set(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), tick(), and DtConnectionMgr::tick().

bool DtSynchronousFileDistributor::pullInProgress

(

)

const

Is the distributor currently pulling FOM modules?

References myPullInProgress.

Referenced by DtRtiExecFederateMgr::posttick().

bool DtSynchronousFileDistributor::pushedFomModules

(

)

const

Has the fedex pushed an entire fom module since the last time getPushedFomModules called?

References myReceivedPushedFomModules.

Referenced by DtRtiExecFederateMgr::posttick().

bool DtSynchronousFileDistributor::sendFedFile

(

const std::vector< MAKRti::DtString > &

modules

)

[virtual]

Override sendFedFile upload fed files passed in.

Reimplemented from DtFileDistributor.

References myConnMgr, DtFileDistributor::myFiles, DtFileDistributor::pushFedFile(), DtFileDistributor::sendFedFile(), and DtConnectionMgr::tick().

bool DtSynchronousFileDistributor::tick

(

)

[virtual]

Tick the multFileDistributor.

References myConnMgr, DtFileDistributor::myFiles, DtFileDistributor::myPendingRequests, NULL, and DtFileDistributor::pushFedFile().

Referenced by pullEntireFedFile().

---

Member Data Documentation

DtConnectionMgr* DtSynchronousFileDistributor::myConnMgr [private]

Map between files that have been uploaded to me and their 'file names'.

Referenced by DtSynchronousFileDistributor(), pullEntireFedFile(), sendFedFile(), tick(), and ~DtSynchronousFileDistributor().

bool DtSynchronousFileDistributor::myPullInProgress [private]

Indicates that a FOM module pull is currently in progress.

Referenced by pullEntireFedFile(), and pullInProgress().

std::vector<MAKRti::DtString> DtSynchronousFileDistributor::myReceivedPushedFomModules [private]

Referenced by getPushedFomModules(), multFileReceivedCb(), and pushedFomModules().

---

The documentation for this class was generated from the following files:

• synchronousFileDistributor.h
• synchronousFileDistributor.cxx
