The DtNetworkMapProcessor class registers filters for NetworkMap messages and merges them into the complete map. More...

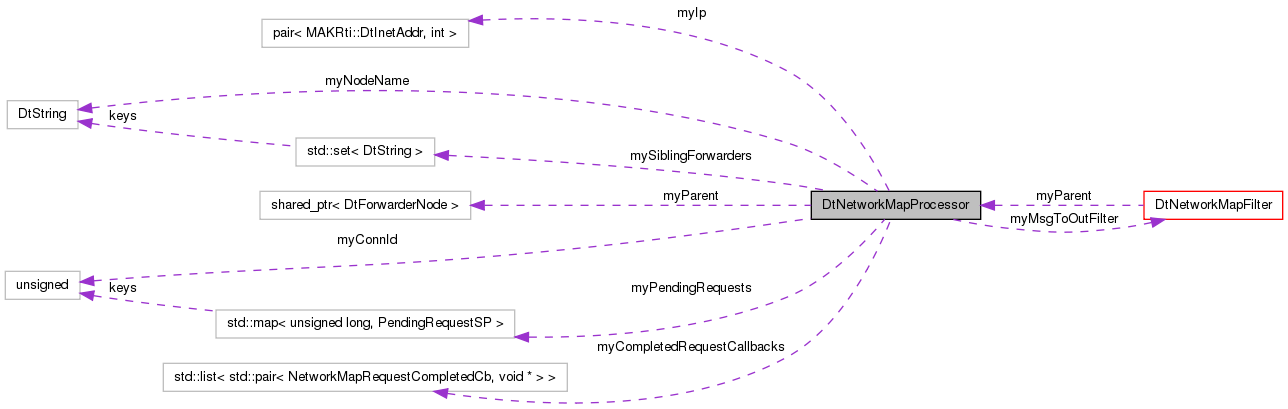

Collaboration diagram for DtNetworkMapProcessor:

Classes
struct	PendingRequest
	Simple helper class to hold status of pending requests. More...
Public Types
typedef bool(DtNetworkMapProcessor::*	NetworkMapMsgReqHandlerMemberCb )(const DtInetAddrAndPort &src, const DtNetworkMapReqMsg &msg)
	Pointer to member function callbacks used by the port filters.
typedef bool(DtNetworkMapProcessor::*	NetworkMapMsgRspHandlerMemberCb )(const DtInetAddrAndPort &src, const DtNetworkMapRspMsg &msg)
typedef bool(DtNetworkMapProcessor::*	DestinationProcessingMemberCb )(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
typedef void(*	NetworkMapRequestCompletedCb )(DtNetworkMapRspMsg &msg, void *usr)
	Pointer to function callback used by owner to register for completed Response events.
typedef std::list< std::pair < NetworkMapRequestCompletedCb, void * > >	RequestCompleteCallbackList
Public Member Functions
	DtNetworkMapProcessor (DtBoost::shared_ptr< DtForwarderNode > parent)
	Default Ctor.
virtual	~DtNetworkMapProcessor ()
	Default Dtor.
virtual bool	gotNetworkMapRequest (const DtInetAddrAndPort &src, const DtNetworkMapReqMsg &msg)
	Handle a new request for a network map from either :
virtual bool	gotNetworkMapResponse (const DtInetAddrAndPort &src, const DtNetworkMapRspMsg &msg)
	Handle an incoming response to a network map request from either :
virtual void	addRequestCompletedCb (NetworkMapRequestCompletedCb fn, void *usr)
	(Un)Register a callback function to be called when a request is completed NOTE: callback is only fired when network map is final (not for intermediate response messages)
virtual void	removeRequestCompletedCb (NetworkMapRequestCompletedCb fn, void *usr)
virtual bool	processNetworkMapMsgDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Set forwarding destination list based on source (eg.
Static Public Member Functions
static int	lostConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
	Connection loss callback.
Protected Types
typedef DtBoost::shared_ptr < PendingRequest >	PendingRequestSP
typedef std::map< unsigned long, PendingRequestSP >	RequestorToRequestsMap
Protected Member Functions
virtual int	lostConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
	Connection loss callback.
virtual void	sendResponseMsg (PendingRequestSP request)
	Send a Network Map Response based on aggregating all downstream WAN responses.
virtual void	sendRequestMsg (PendingRequestSP request)
	Send a new downstream request to the LAN and OUT ports indicating that the source is upstream ( for messages from the IN Port, only send to downstream nodes on the OUT port)
virtual bool	processInToOutRspMsg (const DtInetAddrAndPort &src, const DtNetworkMapRspMsg &msg)
	Got Network Map response from the IN Port to the OUT Port.
virtual bool	processLanToOutRspMsg (const DtInetAddrAndPort &src, const DtNetworkMapRspMsg &msg)
	Got Network Map response from the LAN Port to the OUT Port.
Protected Attributes
DtBoost::shared_ptr < DtForwarderNode >	myParent
DtNetworkMapFilter *	myMsgToOutFilter
MAKRti::DtString	myNodeName
unsigned long	myConnId
DtInetAddrAndPort	myIp
DtNetMapForwarderXmlBlock::SiblingList	mySiblingForwarders
RequestCompleteCallbackList	myCompletedRequestCallbacks
	List of callback functions to be called when a request is complete.
RequestorToRequestsMap	myPendingRequests
	Map of outstanding Network Map Requests by requestor ID to pending requests.

Detailed Description

The DtNetworkMapProcessor class registers filters for NetworkMap messages and merges them into the complete map.

The NetworkMap algorithm allows forwarder nodes or the rtiexec to obtain a complete view of all RTI components downstream from a given node ( including components directly attached to the specified node ). NOTES:

the rtiexec obtains a network map by querying the node to which it is directly attached.
the network map must contain the rtiexec node as well as all federates and forwarders ( including the local forwarder )
only connections which exist at the time of the request will be shown in the map (new connections are not guaranteed to appear), this implies that the network map should be requested periodically

ALGO: http://intranet.mak.com/index.php/ MAK_RTI:Specification::Web_Spy::Building_the_Network_Map_at_Runtime

Member Typedef Documentation

typedef bool(DtNetworkMapProcessor::* DtNetworkMapProcessor::DestinationProcessingMemberCb)(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

typedef bool(DtNetworkMapProcessor::* DtNetworkMapProcessor::NetworkMapMsgReqHandlerMemberCb)(const DtInetAddrAndPort &src, const DtNetworkMapReqMsg &msg)

Pointer to member function callbacks used by the port filters.

typedef bool(DtNetworkMapProcessor::* DtNetworkMapProcessor::NetworkMapMsgRspHandlerMemberCb)(const DtInetAddrAndPort &src, const DtNetworkMapRspMsg &msg)

typedef void(* DtNetworkMapProcessor::NetworkMapRequestCompletedCb)(DtNetworkMapRspMsg &msg, void *usr)

Pointer to function callback used by owner to register for completed Response events.

typedef DtBoost::shared_ptr<PendingRequest> DtNetworkMapProcessor::PendingRequestSP [protected]

typedef std::list< std::pair< NetworkMapRequestCompletedCb, void* > > DtNetworkMapProcessor::RequestCompleteCallbackList

typedef std::map< unsigned long, PendingRequestSP > DtNetworkMapProcessor::RequestorToRequestsMap [protected]

Constructor & Destructor Documentation

DtNetworkMapProcessor::DtNetworkMapProcessor ( DtBoost::shared_ptr< DtForwarderNode > parent )

Default Ctor.

References DtNetworkMapFilter, gotNetworkMapRequest(), gotNetworkMapResponse(), lostConnection(), myIp, myMsgToOutFilter, myNodeName, myParent, mySiblingForwarders, and processNetworkMapMsgDestinations().

DtNetworkMapProcessor::~DtNetworkMapProcessor ( ) [virtual]

Default Dtor.

References myMsgToOutFilter, and myParent.

Member Function Documentation

void DtNetworkMapProcessor::addRequestCompletedCb	(	NetworkMapRequestCompletedCb	fn,
		void *	usr
	)		`[virtual]`

(Un)Register a callback function to be called when a request is completed NOTE: callback is only fired when network map is final (not for intermediate response messages)

References myCompletedRequestCallbacks.

Referenced by DtForwarderWebManager::DtForwarderWebManager().

bool DtNetworkMapProcessor::gotNetworkMapRequest	(	const DtInetAddrAndPort &	src,
		const DtNetworkMapReqMsg &	msg
	)		`[virtual]`

Handle a new request for a network map from either :

a local connection (generally either from the LAN port, or from the local web-client)
or from the IN Port (an upstream forwarder is passing the request down)

References myConnId, myIp, myNodeName, myParent, myPendingRequests, mySiblingForwarders, DtRtiMsg::print(), DtNetworkMapReqMsg::requestorId(), sendRequestMsg(), sendResponseMsg(), and DtNetworkMapReqMsg::sourceId().

Referenced by DtNetworkMapProcessor(), and DtForwarderWebManager::issueNetworkMapRequest().

bool DtNetworkMapProcessor::gotNetworkMapResponse	(	const DtInetAddrAndPort &	src,
		const DtNetworkMapRspMsg &	msg
	)		`[virtual]`

Handle an incoming response to a network map request from either :

the LAN Port ( ie - the list of local connections)
the IN Port ( ie - the portion of the network map downstream from that connection )

References myParent, DtRtiMsg::print(), processInToOutRspMsg(), and processLanToOutRspMsg().

Referenced by DtNetworkMapProcessor().

int DtNetworkMapProcessor::lostConnection	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr,
		void *	usr
	)		`[static]`

Connection loss callback.

need to track connection losses in order to close pending requests
no need to track new connections (they will simply not be shown in the network map currently being built )

Referenced by DtNetworkMapProcessor().

int DtNetworkMapProcessor::lostConnection	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	addr
	)		`[protected, virtual]`

Connection loss callback.

References myParent, myPendingRequests, and sendResponseMsg().

bool DtNetworkMapProcessor::processInToOutRspMsg	(	const DtInetAddrAndPort &	src,
		const DtNetworkMapRspMsg &	msg
	)		`[protected, virtual]`

Got Network Map response from the IN Port to the OUT Port.

References DtNetMapXmlBlock::childForwarders(), myPendingRequests, DtNetworkMapRspMsg::payload(), DtNetworkMapRspMsg::requestorId(), sendResponseMsg(), and DtNetworkMapRspMsg::sourceId().

Referenced by gotNetworkMapResponse().

bool DtNetworkMapProcessor::processLanToOutRspMsg	(	const DtInetAddrAndPort &	src,
		const DtNetworkMapRspMsg &	msg
	)		`[protected, virtual]`

Got Network Map response from the LAN Port to the OUT Port.

References myPendingRequests, DtNetworkMapRspMsg::payload(), DtNetworkMapRspMsg::requestorId(), and sendResponseMsg().

Referenced by gotNetworkMapResponse().

bool DtNetworkMapProcessor::processNetworkMapMsgDestinations	(	const DtInetAddrAndPort &	src,
		DtForwarderPort::DtAddressPortList &	destinations
	)		`[virtual]`

Set forwarding destination list based on source (eg.

which inlet the message was received on) and forwarder network configuration

References myParent.

Referenced by DtNetworkMapProcessor().

void DtNetworkMapProcessor::removeRequestCompletedCb	(	NetworkMapRequestCompletedCb	fn,
		void *	usr
	)		`[virtual]`

References myCompletedRequestCallbacks.

Referenced by DtForwarderWebManager::~DtForwarderWebManager().

void DtNetworkMapProcessor::sendRequestMsg ( DtNetworkMapProcessor::PendingRequestSP requestSP ) [protected, virtual]

Send a new downstream request to the LAN and OUT ports indicating that the source is upstream ( for messages from the IN Port, only send to downstream nodes on the OUT port)

References DtForwarderIntfcLan, DtForwarderIntfcOut, myConnId, and myParent.

Referenced by gotNetworkMapRequest().

void DtNetworkMapProcessor::sendResponseMsg ( DtNetworkMapProcessor::PendingRequestSP requestSP ) [protected, virtual]

Send a Network Map Response based on aggregating all downstream WAN responses.

References DtForwarderIntfcLan, DtForwarderIntfcOut, myCompletedRequestCallbacks, and myParent.

Referenced by gotNetworkMapRequest(), lostConnection(), processInToOutRspMsg(), and processLanToOutRspMsg().
