DtRtiMtdForwarderGroupId Class Reference

Inheritance diagram for DtRtiMtdForwarderGroupId:

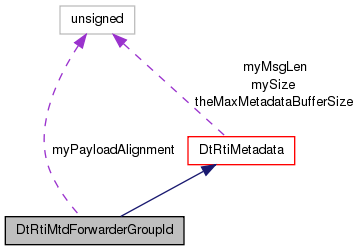

Collaboration diagram for DtRtiMtdForwarderGroupId:

List of all members.

Public Member Functions
	DtRtiMtdForwarderGroupId (caddr_t msg)
	Constructor.
	DtRtiMtdForwarderGroupId (DtRtiMsg *msg)
virtual	~DtRtiMtdForwarderGroupId ()
	Destructor.
virtual int	get (char **groupName) const
	Find the first destination list within the message metadata.
virtual bool	set (const char *groupName, unsigned int nameLen=0)
	Reserves space in RTI message buffer (if necessary) for group name metadata, encodes (serializes) string, and copies into message buffer.
Protected Attributes
const unsigned int	myPayloadAlignment
Private Member Functions
	DtRtiMtdForwarderGroupId (const DtRtiMtdForwarderGroupId &)
	Copy CTOR Not Implemented -- Copy Not Allowed!
DtRtiMtdForwarderGroupId &	operator= (const DtRtiMtdForwarderGroupId &)
	Assignment Operator Not Implemented -- Assignment Not Allowed!

---

Constructor & Destructor Documentation

DtRtiMtdForwarderGroupId::DtRtiMtdForwarderGroupId

(

caddr_t

msg

)

Constructor.

DtRtiMtdForwarderGroupId::DtRtiMtdForwarderGroupId

(

DtRtiMsg *

msg

)

DtRtiMtdForwarderGroupId::~DtRtiMtdForwarderGroupId

(

)

[virtual]

Destructor.

DtRtiMtdForwarderGroupId::DtRtiMtdForwarderGroupId

(

const DtRtiMtdForwarderGroupId &

)

[private]

Copy CTOR Not Implemented -- Copy Not Allowed!

---

Member Function Documentation

int DtRtiMtdForwarderGroupId::get

(

char **

groupName

)

const [virtual]

Find the first destination list within the message metadata.

If none found returns 0. If found copies decoded metatdata to string object supplied (groupName) and returns the size of the string (in bytes). Resizes 'groupName' if original supplied is not large enough to accommodate value in message metadata.

References DtRtiMetadata::locate().

Referenced by DtSmartForwardingProcessor::federateJoined().

DtRtiMtdForwarderGroupId& DtRtiMtdForwarderGroupId::operator=

(

const DtRtiMtdForwarderGroupId &

)

[private]

Assignment Operator Not Implemented -- Assignment Not Allowed!

bool DtRtiMtdForwarderGroupId::set	(	const char *	groupName,
		unsigned int	nameLen = 0
	)		[virtual]

Reserves space in RTI message buffer (if necessary) for group name metadata, encodes (serializes) string, and copies into message buffer.

Returns true if successful, false otherwise.

References DtRtiMsg::addMetadata(), DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::alignPad, DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::copy, DtMetadataHeader_s::ctl, DtMetadataHeader_s::DtMetadataHeaderCtl_u::field, DtRtiMetadata::getHeaderByType(), DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::hasPayload, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::len, DtMetadataHeader_s::lenOrVal, DtRtiMetadata::locate(), DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::more, DtRtiMetadata::myCopyEnabled, DtRtiMetadata::myMetaDataType, DtRtiMetadata::myMsg, DtRtiMetadata::myMsgAddr, DtRtiMetadata::myMsgLen, myPayloadAlignment, DtRtiMetadata::myStartAddr, NULL, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::pad, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::payloadAlignment, DtMetadataHeader_s::DtMetadataHeaderLenOrVal_u::DtMetadataHeaderPayloadLen_s::payloadLen, DtRtiMetadata::reverseTransmogrifyHeader(), and DtMetadataHeader_s::DtMetadataHeaderCtl_u::DtMetadataHeaderCtl_s::type.

Referenced by DtSmartForwardingProcessor::federateJoined().

---

Member Data Documentation

const unsigned int DtRtiMtdForwarderGroupId::myPayloadAlignment [protected]

Referenced by set().

---

The documentation for this class was generated from the following files:

• metadataFwderGroupId.h
• metadataFwderGroupId.cxx
