DtWebSpyRtiConnectionMgr Class Reference

The DtWebSpyRtiConnectionMgr is the RTI connection manager component of the web spy. More...

Inheritance diagram for DtWebSpyRtiConnectionMgr:

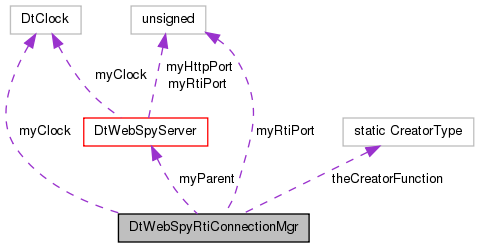

Collaboration diagram for DtWebSpyRtiConnectionMgr:

List of all members.

Public Types
typedef DtWebSpyRtiConnectionMgr *(*	CreatorType )(DtWebSpyServer &parent)
	Web Spy RTI Connection Manager creator method.
Public Member Functions
virtual	~DtWebSpyRtiConnectionMgr ()
	Dtor.
virtual bool	tick (unsigned int timeout=0)=0
	Do the actual message processing.
virtual void	postCommand (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtRtiMsg > command)=0
	Post the next command message from the HTTP server to the specified connection.
virtual unsigned int	numConnections () const =0
	Return the number of current RTI component connections.
Static Public Member Functions
static DtWebSpyRtiConnectionMgr *	create (DtWebSpyServer &parent)
	Virtual constructor.
static void	setCreatorFunction (CreatorType creator)
	Set the concrete type for the virtual constructor method.
Protected Member Functions
	DtWebSpyRtiConnectionMgr (DtWebSpyServer &parent)
	Uses Virtual Constructor idiom.
virtual DtString	createDescription (DtWebSpyUtils::ConnectionType connType, unsigned long connHandle, const DtString &info) const
	Generate a text description of a connection based on connection type.
Protected Attributes
unsigned int	myRtiPort
	Port to which RTI components may connect if this is a network connection manager.
DtWebSpyServer &	myParent
	The server that owns this RTI conn. manager.
DtClock	myClock
	Clock for timeouts.
Static Protected Attributes
static CreatorType	theCreatorFunction = 0
	RTI Connection Manager creator method.
Private Member Functions
	DtWebSpyRtiConnectionMgr (const DtWebSpyRtiConnectionMgr &)
	Copy and Assignment unimplemented.
DtWebSpyRtiConnectionMgr &	operator= (DtWebSpyRtiConnectionMgr &)
	Copy and Assignment unimplmented.

---

Detailed Description

The DtWebSpyRtiConnectionMgr is the RTI connection manager component of the web spy.

It handles all connections between the web server and the RTI components.

DtWebSpyRtiConnectionMgr is a base class from which connection-type-specific conn. managers are derived (ex. TCP, or shared memory)

---

Member Typedef Documentation

typedef DtWebSpyRtiConnectionMgr*(* DtWebSpyRtiConnectionMgr::CreatorType)(DtWebSpyServer &parent)

Web Spy RTI Connection Manager creator method.

---

Constructor & Destructor Documentation

DtWebSpyRtiConnectionMgr::DtWebSpyRtiConnectionMgr

(

const DtWebSpyRtiConnectionMgr &

)

[private]

Copy and Assignment unimplemented.

DtWebSpyRtiConnectionMgr::~DtWebSpyRtiConnectionMgr

(

)

[virtual]

Dtor.

DtWebSpyRtiConnectionMgr::DtWebSpyRtiConnectionMgr

(

DtWebSpyServer &

parent

)

[protected]

Uses Virtual Constructor idiom.

---

Member Function Documentation

DtWebSpyRtiConnectionMgr * DtWebSpyRtiConnectionMgr::create

(

DtWebSpyServer &

parent

)

[static]

Virtual constructor.

Reimplemented in DtTcpRtiConnectionMgr.

References theCreatorFunction.

DtString DtWebSpyRtiConnectionMgr::createDescription	(	DtWebSpyUtils::ConnectionType	connType,
		unsigned long	connHandle,
		const DtString &	info
	)		const [protected, virtual]

Generate a text description of a connection based on connection type.

References DtWebSpyUtils::connectionTypeString().

Referenced by DtTcpRtiConnectionMgr::establishConnection().

virtual unsigned int DtWebSpyRtiConnectionMgr::numConnections

(

)

const [pure virtual]

Return the number of current RTI component connections.

Implemented in DtTcpRtiConnectionMgr.

DtWebSpyRtiConnectionMgr& DtWebSpyRtiConnectionMgr::operator=

(

DtWebSpyRtiConnectionMgr &

)

[private]

Copy and Assignment unimplmented.

virtual void DtWebSpyRtiConnectionMgr::postCommand	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtRtiMsg >	command
	)		[pure virtual]

Post the next command message from the HTTP server to the specified connection.

Implemented in DtTcpRtiConnectionMgr.

void DtWebSpyRtiConnectionMgr::setCreatorFunction

(

CreatorType

creator

)

[static]

Set the concrete type for the virtual constructor method.

References theCreatorFunction.

virtual bool DtWebSpyRtiConnectionMgr::tick

(

unsigned int

timeout = 0

)

[pure virtual]

Do the actual message processing.

• RTI connections are treated as synchronous in main thread

Implemented in DtTcpRtiConnectionMgr.

---

Member Data Documentation

DtClock DtWebSpyRtiConnectionMgr::myClock [protected]

Clock for timeouts.

Referenced by DtTcpRtiConnectionMgr::establishConnection(), DtTcpRtiConnectionMgr::readAndForward(), and DtTcpRtiConnectionMgr::tick().

DtWebSpyServer& DtWebSpyRtiConnectionMgr::myParent [protected]

The server that owns this RTI conn. manager.

Referenced by DtTcpRtiConnectionMgr::establishConnection(), DtTcpRtiConnectionMgr::readAndForward(), DtTcpRtiConnectionMgr::tcpSocketAdditionCb(), DtTcpRtiConnectionMgr::tcpSocketRemovalCb(), and DtTcpRtiConnectionMgr::tick().

unsigned int DtWebSpyRtiConnectionMgr::myRtiPort [protected]

Port to which RTI components may connect if this is a network connection manager.

Referenced by DtTcpRtiConnectionMgr::DtTcpRtiConnectionMgr().

DtWebSpyRtiConnectionMgr::CreatorType DtWebSpyRtiConnectionMgr::theCreatorFunction = 0 [static, protected]

RTI Connection Manager creator method.

Referenced by create(), and setCreatorFunction().

---

The documentation for this class was generated from the following files:

• wwwSpyRtiConnMgr.h
• wwwSpyRtiConnMgr.cxx
