The DtWwwSpyAdapter class provides the interface between any RTI component and the WebSpy server. More...

Inheritance diagram for DtWwwSpyAdapter:

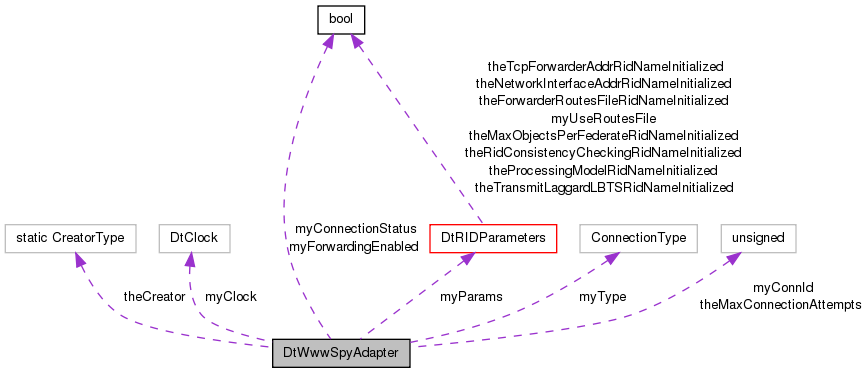

Collaboration diagram for DtWwwSpyAdapter:

Public Types
typedef DtWwwSpyAdapter (	CreatorType )(const DtRIDParameters &params, DtWebSpyUtils::ConnectionType type, unsigned long connId)
	Web Spy Adapter creator method.
Public Member Functions
virtual	~DtWwwSpyAdapter ()
	Dtor.
virtual bool	connectionStatusOk () const
	Is the adapter connected and viable? False until initial connection, and Set to false if HTTP server goes down.
virtual DtRtiMsg *	getNextMsg ()=0
	Read a message from the web server (returns null if none pending)
virtual void	postMsg (const DtRtiMsg &msg)=0
	Post a response to the web server.
Static Public Member Functions
static DtWwwSpyAdapter *	create (const DtRIDParameters &params, DtWebSpyUtils::ConnectionType type, unsigned long connId)
	Virtual constructor.
static void	setCreatorFunction (CreatorType creator)
	Set the concrete type for the virtual constructor method.
static bool	startWebServerProcess (const DtFilename &processName, const DtFilename &workingDir, std::vector< const char * > &args)
	Attempt to start the WWW Server process Return boolean: process started (not necessarily complete but at least the executable was there)
Protected Member Functions
	DtWwwSpyAdapter (const DtRIDParameters &params, DtWebSpyUtils::ConnectionType type, unsigned long connId)
	Ctor protected - use virtual ctor method.
virtual void	initialize ()
	Post-construction initialization called by virtual ctor (by default, it creates a server and connects)
virtual bool	connectToWebServer ()=0
	Attempt to open a connection and handshake with the server Returns false if connection fails NOTE: by default failure indicates that server needs to be started.
virtual bool	startWebServer ()=0
	Attempt to start a new web server Return boolean: process started (not necessarily complete but at least the executable was there)
Protected Attributes
const DtRIDParameters &	myParams
DtWebSpyUtils::ConnectionType	myType
bool	myForwardingEnabled
DtClock	myClock
unsigned long	myConnId
bool	myConnectionStatus
Static Protected Attributes
static unsigned int	theMaxConnectionAttempts = 10
static CreatorType	theCreator = 0
Private Member Functions
	DtWwwSpyAdapter (const DtWwwSpyAdapter &)
	Copy and Assignment unimplemented.
DtWwwSpyAdapter &	operator= (DtWwwSpyAdapter &)
	Copy and Assignment unimplmented.

Detailed Description

The DtWwwSpyAdapter class provides the interface between any RTI component and the WebSpy server.

It is responsible for creating, connecting to, and communicating with the web server.

The DtWwwSpyAdapter is an abstract base class. This allows the derived class to select the method of connection to the Web Server ( tcp, shared mem, etc.)

Member Typedef Documentation

typedef DtWwwSpyAdapter*(* DtWwwSpyAdapter::CreatorType)(const DtRIDParameters &params, DtWebSpyUtils::ConnectionType type, unsigned long connId)

Web Spy Adapter creator method.

Constructor & Destructor Documentation

DtWwwSpyAdapter::DtWwwSpyAdapter ( const DtWwwSpyAdapter & ) [private]

Copy and Assignment unimplemented.

DtWwwSpyAdapter::~DtWwwSpyAdapter ( ) [virtual]

Dtor.

DtWwwSpyAdapter::DtWwwSpyAdapter	(	const DtRIDParameters &	params,
		DtWebSpyUtils::ConnectionType	type,
		unsigned long	connId
	)		`[protected]`

Ctor protected - use virtual ctor method.

Member Function Documentation

bool DtWwwSpyAdapter::connectionStatusOk ( ) const [virtual]

Is the adapter connected and viable? False until initial connection, and Set to false if HTTP server goes down.

References myConnectionStatus.

virtual bool DtWwwSpyAdapter::connectToWebServer ( ) [protected, pure virtual]

Attempt to open a connection and handshake with the server Returns false if connection fails NOTE: by default failure indicates that server needs to be started.

Implemented in DtTcpWwwSpyAdapter.

Referenced by initialize().

DtWwwSpyAdapter * DtWwwSpyAdapter::create	(	const DtRIDParameters &	params,
		DtWebSpyUtils::ConnectionType	type,
		unsigned long	connId
	)		`[static]`

Virtual constructor.

Reimplemented in DtTcpWwwSpyAdapter.

References initialize(), and theCreator.

Referenced by DtForwarderWebManager::DtForwarderWebManager(), and DtRtiExecWebManager::DtRtiExecWebManager().

virtual DtRtiMsg* DtWwwSpyAdapter::getNextMsg ( ) [pure virtual]

Read a message from the web server (returns null if none pending)

Implemented in DtTcpWwwSpyAdapter.

void DtWwwSpyAdapter::initialize ( ) [protected, virtual]

Post-construction initialization called by virtual ctor (by default, it creates a server and connects)

References connectToWebServer(), myConnectionStatus, myParams, startWebServer(), theMaxConnectionAttempts, and DtRIDParameters::webserviceAddrString.

Referenced by create().

DtWwwSpyAdapter& DtWwwSpyAdapter::operator= ( DtWwwSpyAdapter & ) [private]

Copy and Assignment unimplmented.

virtual void DtWwwSpyAdapter::postMsg ( const DtRtiMsg & msg ) [pure virtual]

Post a response to the web server.

Implemented in DtTcpWwwSpyAdapter.

void DtWwwSpyAdapter::setCreatorFunction ( CreatorType creator ) [static]

Set the concrete type for the virtual constructor method.

References theCreator.

Referenced by DtForwarderWebManager::DtForwarderWebManager(), and DtRtiExecWebManager::DtRtiExecWebManager().

virtual bool DtWwwSpyAdapter::startWebServer ( ) [protected, pure virtual]

Attempt to start a new web server Return boolean: process started (not necessarily complete but at least the executable was there)

Implemented in DtTcpWwwSpyAdapter.

Referenced by initialize().

bool DtWwwSpyAdapter::startWebServerProcess	(	const DtFilename &	processName,
		const DtFilename &	workingDir,
		std::vector< const char * > &	args
	)		`[static]`
