MAKLogger::DtLgrGuiComponent Class Reference

Provides the base interface for Logger Application gui components. More...

Inheritance diagram for MAKLogger::DtLgrGuiComponent:

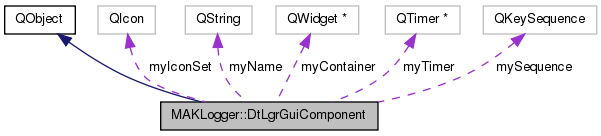

Collaboration diagram for MAKLogger::DtLgrGuiComponent:

Public Slots
virtual void	update ()=0
	Called repeatedly by the host application in the GUI thread.

Public Member Functions
virtual	~DtLgrGuiComponent ()
	Default Destructor.
virtual void	startTimer (QObject *parent)
	Called to start the update timer.
virtual void	stopTimer ()
	Called to stop the update timer.
virtual QWidget *	initialize (QWidget *parent)=0
	This method is called when the logger Gui has been initialized.
virtual void	release (QWidget *parent)
	The component is being removed.
virtual void	activate ()=0
	This method is called when the component is shown.
virtual void	deactivate ()=0
	This method is called when the component is hidden.
virtual bool	canExit () const
	This method provides a way for components to control whether the application can quit.
virtual bool	canCloseFile () const
	This method provides a way for components to control whether the application can close a file.
virtual double	updateTime ()=0
	Returns the desired times between updates in seconds.
virtual QWidget *	container ()
	Get the container widget.
virtual void	setContainer (QWidget *widget)
	Sets the container.
virtual const QIcon &	iconSet () const
	Get an optional icon set. By default returns null QIconSet.
virtual void	setIconSet (const QIcon &iconSet)
virtual QString	name () const
	Get the component name.
virtual QKeySequence	shortcut () const
	Get the component's accelerator.
virtual void	setKeySequence (const QKeySequence &sequence)
	Set the key sequence of the view component menu item.
virtual DtLgrZoomableWidget *	zoomComponent ()=0
	Access component as zoom component, return NULL if component is not a zoom component.

Protected Member Functions
	DtLgrGuiComponent (QString name)

Protected Attributes
QWidget *	myContainer
QTimer *	myTimer
QString	myName
QIcon	myIconSet
QKeySequence	mySequence

Detailed Description

Provides the base interface for Logger Application gui components.

class SimpleComponent : public DtLgrGuiComponent, public DtZoomComponent, public DtTimeComponent { virtual DtZoomComponent* zoomComponent() { return this; } virtual DtTimeComponent* timeComponent() { return this; } }

Constructor & Destructor Documentation

virtual MAKLogger::DtLgrGuiComponent::~DtLgrGuiComponent ( )

virtual

Default Destructor.

MAKLogger::DtLgrGuiComponent::DtLgrGuiComponent ( QString  name )

protected

Member Function Documentation

virtual void MAKLogger::DtLgrGuiComponent::activate ( )

pure virtual

This method is called when the component is shown.

Implemented in MAKLogger::DtTrafficAnalyzerComponent, MAKLogger::DtStateObserverView, MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtLgrDataViewComponent, and MAKLogger::DtLgrMediaStreamView.

virtual bool MAKLogger::DtLgrGuiComponent::canCloseFile ( ) const

virtual

This method provides a way for components to control whether the application can close a file.

Return values

true	The component allows the file to be closed.
false	The component does not want the file closed.

Reimplemented in MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtStateObserverView, and MAKLogger::DtLgrMediaStreamView.

virtual bool MAKLogger::DtLgrGuiComponent::canExit ( ) const

virtual

This method provides a way for components to control whether the application can quit.

The mainWindow calls canQuit for all components and all components must return true for the program to quit.

Return values

true	The component can quit.
false	The component does not want to quit.

Reimplemented in MAKLogger::DtLgrAnnotationComponent.

virtual QWidget* MAKLogger::DtLgrGuiComponent::container ( )

virtual

Get the container widget.

Components are placed inside widgets.

virtual void MAKLogger::DtLgrGuiComponent::deactivate ( )

pure virtual

This method is called when the component is hidden.

Implemented in MAKLogger::DtTrafficAnalyzerComponent, MAKLogger::DtStateObserverView, MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtLgrDataViewComponent, and MAKLogger::DtLgrMediaStreamView.

virtual const QIcon& MAKLogger::DtLgrGuiComponent::iconSet ( ) const

virtual

Get an optional icon set. By default returns null QIconSet.

virtual QWidget* MAKLogger::DtLgrGuiComponent::initialize ( QWidget *  parent )

pure virtual

This method is called when the logger Gui has been initialized.

Returns the components main widget

Implemented in MAKLogger::DtStateObserverView, MAKLogger::DtTrafficAnalyzerComponent, MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtLgrDataViewComponent, MAKLogger::DtLgrMediaStreamView, and MAKLogger::DtLgrSizeViewComponent.

virtual QString MAKLogger::DtLgrGuiComponent::name ( ) const

virtual

Get the component name.

virtual void MAKLogger::DtLgrGuiComponent::release ( QWidget *  parent )

virtual

The component is being removed.

It should perform any clean up associated with connections to the GUI.

Reimplemented in MAKLogger::DtTrafficAnalyzerComponent.

virtual void MAKLogger::DtLgrGuiComponent::setContainer ( QWidget *  widget )

virtual

Sets the container.

virtual void MAKLogger::DtLgrGuiComponent::setIconSet ( const QIcon &  iconSet )

virtual

virtual void MAKLogger::DtLgrGuiComponent::setKeySequence ( const QKeySequence &  sequence )

virtual

Set the key sequence of the view component menu item.

virtual QKeySequence MAKLogger::DtLgrGuiComponent::shortcut ( ) const

virtual

Get the component's accelerator.

virtual void MAKLogger::DtLgrGuiComponent::startTimer ( QObject *  parent )

virtual

Called to start the update timer.

virtual void MAKLogger::DtLgrGuiComponent::stopTimer ( )

virtual

Called to stop the update timer.

virtual void MAKLogger::DtLgrGuiComponent::update ( )

pure virtualslot

Called repeatedly by the host application in the GUI thread.

The time between calls is controlled by updateTime.

Implemented in MAKLogger::DtStateObserverView, MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtLgrMediaStreamView, and MAKLogger::DtLgrDataViewComponent.

virtual double MAKLogger::DtLgrGuiComponent::updateTime ( )

pure virtual

Returns the desired times between updates in seconds.

If updateTime returns 1.0 the component will be updated every second, if it is 0.5 the component will be updated every 30 seconds. Return -1 if update should not be called.

Implemented in MAKLogger::DtStateObserverView, MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtTrafficAnalyzerComponent, MAKLogger::DtLgrMediaStreamView, and MAKLogger::DtLgrDataViewComponent.

virtual DtLgrZoomableWidget* MAKLogger::DtLgrGuiComponent::zoomComponent ( )

pure virtual

Access component as zoom component, return NULL if component is not a zoom component.

This interface will be used to automatically connect and disconnect the zoom component slots.

Implemented in MAKLogger::DtLgrAnnotationComponent, MAKLogger::DtStateObserverView, MAKLogger::DtTrafficAnalyzerComponent, MAKLogger::DtLgrMediaStreamView, and MAKLogger::DtLgrDataViewComponent.

Member Data Documentation

QWidget* MAKLogger::DtLgrGuiComponent::myContainer

protected

QIcon MAKLogger::DtLgrGuiComponent::myIconSet

protected

QString MAKLogger::DtLgrGuiComponent::myName

protected

QKeySequence MAKLogger::DtLgrGuiComponent::mySequence

protected

QTimer* MAKLogger::DtLgrGuiComponent::myTimer

protected

---

The documentation for this class was generated from the following file:

• lgrGuiComponent.h
