DtGenericConfigWidget Class Reference

Base class for GenericConfig widgets The superclass is generated from Qt Designer, and has a central QListView widget. More...

Inheritance diagram for DtGenericConfigWidget:

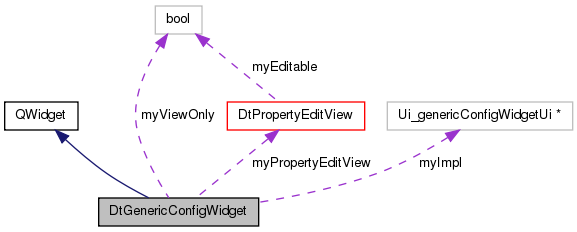

Collaboration diagram for DtGenericConfigWidget:

Public Member Functions
	DtGenericConfigWidget (bool viewOnly, QWidget *parent=0)
	Construct a base GenericConfig widget.
	~DtGenericConfigWidget ()
	Destructor.
void	addProperty (const DtProperty &p)
	Add a DtProperty to the property list.
void	addToProperty (const DtProperty &p)
	Extend existing DtProperty.
void	setProperty (QString prop, int value)
void	setProperty (QString prop, QString value)
void	setProperty (QString prop, bool value)
void	setProperty (QString prop, double value)
void	setProperty (QString prop, const QStringList &value)
virtual bool	property (QString name, int &value) const
virtual bool	property (QString name, QString &value) const
virtual bool	property (QString name, double &value) const
virtual bool	property (QString name, bool &value) const
virtual bool	property (QString name, QStringList &value) const
virtual bool	property (QString name) const
DtPropertyEditView *	propertyEditView ()
	Return a pointer to the internal DtPropertyEditView object.
const DtPropertyEditView *	propertyEditView () const

Protected Member Functions
virtual void	init ()
	Initialize internal data. Called from the constructors.

Protected Attributes
DtPropertyEditView *	myPropertyEditView
bool	myViewOnly
Ui_genericConfigWidgetUi *	myImpl

Detailed Description

Base class for GenericConfig widgets The superclass is generated from Qt Designer, and has a central QListView widget.

This class adds some convenience functions for setting important data properties. This class is not intended to be used on its own, but rather provide a base interface.

Constructor & Destructor Documentation

DtGenericConfigWidget::DtGenericConfigWidget	(	bool	viewOnly,
		QWidget *	parent = 0
	)

Construct a base GenericConfig widget.

References init().

DtGenericConfigWidget::~DtGenericConfigWidget

(

)

Destructor.

References myImpl.

Member Function Documentation

void DtGenericConfigWidget::addProperty

(

const DtProperty &

p

)

Add a DtProperty to the property list.

References DtPropertyListView::addProperty(), and myPropertyEditView.

Referenced by DtRidWidget::displayAllProperties(), and DtRidWidget::displaySubsetOnly().

void DtGenericConfigWidget::addToProperty

(

const DtProperty &

p

)

Extend existing DtProperty.

References DtPropertyListView::addToProperty(), and myPropertyEditView.

Referenced by DtRidWidget::displayAllProperties(), and DtRidWidget::displaySubsetOnly().

void DtGenericConfigWidget::init ( )

protectedvirtual

Initialize internal data. Called from the constructors.

Reimplemented in DtRidWidget.

References myImpl, myPropertyEditView, myViewOnly, and DtPropertyEditView::setEditable().

Referenced by DtGenericConfigWidget().

bool DtGenericConfigWidget::property ( QString  name, int &  value  ) const

virtual

References myPropertyEditView, DtPropertyListView::property(), and DtProperty::value().

bool DtGenericConfigWidget::property ( QString  name, QString &  value  ) const

virtual

References myPropertyEditView, DtPropertyListView::property(), and DtProperty::value().

bool DtGenericConfigWidget::property ( QString  name, double &  value  ) const

virtual

References myPropertyEditView, DtPropertyListView::property(), and DtProperty::value().

bool DtGenericConfigWidget::property ( QString  name, bool &  value  ) const

virtual

References myPropertyEditView, DtPropertyListView::property(), and DtProperty::value().

bool DtGenericConfigWidget::property ( QString  name, QStringList &  value  ) const

virtual

References myPropertyEditView, DtPropertyListView::property(), and DtProperty::value().

bool DtGenericConfigWidget::property ( QString  name ) const

virtual

References myPropertyEditView, and DtPropertyListView::property().

DtPropertyEditView * DtGenericConfigWidget::propertyEditView

(

)

Return a pointer to the internal DtPropertyEditView object.

References myPropertyEditView.

Referenced by DtRidWidget::displayAllProperties(), DtRidWidget::displaySubsetOnly(), DtRidWidget::DtRidWidget(), DtRidWidget::propHeaderClicked(), and DtRidWidget::refreshValues().

const DtPropertyEditView * DtGenericConfigWidget::propertyEditView

(

)

const

References myPropertyEditView.

void DtGenericConfigWidget::setProperty	(	QString	prop,
		int	value
	)

References myPropertyEditView, and DtPropertyListView::setProperty().

Referenced by DtRidWidget::changeSpecificProperty().

void DtGenericConfigWidget::setProperty	(	QString	prop,
		QString	value
	)

References myPropertyEditView, and DtPropertyListView::setProperty().

void DtGenericConfigWidget::setProperty	(	QString	prop,
		bool	value
	)

References myPropertyEditView, and DtPropertyListView::setProperty().

void DtGenericConfigWidget::setProperty	(	QString	prop,
		double	value
	)

References myPropertyEditView, and DtPropertyListView::setProperty().

void DtGenericConfigWidget::setProperty	(	QString	prop,
		const QStringList &	value
	)

References myPropertyEditView, and DtPropertyListView::setProperty().

Member Data Documentation

Ui_genericConfigWidgetUi* DtGenericConfigWidget::myImpl

protected

Referenced by DtRidWidget::addButton(), init(), DtRidWidget::init(), DtRidWidget::setLoadingState(), DtRidWidget::setRidFileName(), and ~DtGenericConfigWidget().

DtPropertyEditView* DtGenericConfigWidget::myPropertyEditView

protected

Referenced by addProperty(), addToProperty(), init(), DtRidWidget::init(), property(), propertyEditView(), DtRidWidget::propHeaderClicked(), DtRidWidget::setLoadingState(), and setProperty().

bool DtGenericConfigWidget::myViewOnly

protected

Referenced by init(), and DtRidWidget::init().

---

The documentation for this class was generated from the following files:

• genericConfigWidget.h
• genericConfigWidget.cxx
