DtPropertyListView Class Reference

A class to display a list (properties) alternating the colors of the rows. More...

Inheritance diagram for DtPropertyListView:

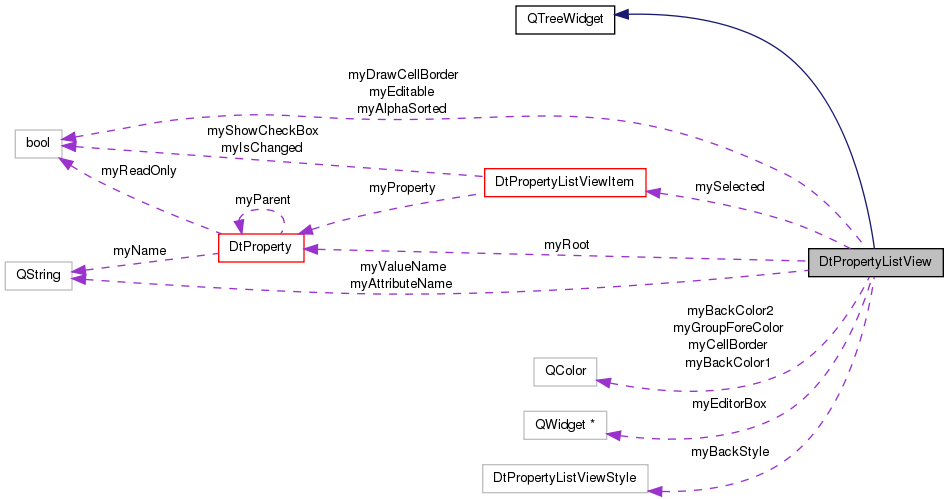

Collaboration diagram for DtPropertyListView:

Public Member Functions
	DtPropertyListView (QWidget *parent=0)
	DtPropertyListView (QColor, QColor, bool drawBorder=true, QWidget *parent=0)
	DtPropertyListView (const DtPropertyListView &orig)
virtual	~DtPropertyListView ()
virtual void	expandAll ()
virtual void	collapseAll ()
virtual DtPropertyListViewItem *	addProperty (const DtProperty &, QTreeWidgetItem *parentTree=0)
virtual DtPropertyListViewItem *	addToProperty (const DtProperty &)
virtual bool	setProperty (QString prop, QVariant value)
virtual bool	setProperty (QString prop, QString sub, QVariant value)
virtual bool	setProperty (QString prop, QString sub, QString sub2, QVariant value)
virtual DtProperty *	property (QString prop)
virtual DtProperty *	property (QString prop, QString sub)
virtual DtProperty *	property (QString prop, QString sub, QString sub2)
virtual QColor	backgroundColor1 () const
virtual QColor	backgroundColor2 () const
virtual QColor	groupForegroundColor () const
virtual void	setGroupForegroundColor (const QColor &color)
virtual DtPropertyListViewStyle	backgroundStyle () const
virtual void	setBackgroundStyle (const DtPropertyListViewStyle &style)
virtual bool	drawCellBorder ()
virtual QColor	cellBorderColor () const
virtual void	setCellBorderColor (const QColor &color)
virtual QWidget *	editorBox ()
virtual bool	alphaSorted () const
int	attributeNameColumn () const
int	attributeValueColumn () const

Protected Slots
virtual void	headerClicked (int column)
virtual void	headerSizeChanged ()

Protected Member Functions
virtual void	init ()
virtual void	resizeEvent (QResizeEvent *)
virtual void	resizeValueColumn (QSize size)

Protected Attributes
QColor	myBackColor1
QColor	myBackColor2
QColor	myCellBorder
QColor	myGroupForeColor
bool	myAlphaSorted
bool	myDrawCellBorder
bool	myEditable
QWidget *	myEditorBox
const QString	myAttributeName
const QString	myValueName
DtProperty	myRoot
DtPropertyListViewItem *	mySelected
DtPropertyListViewStyle	myBackStyle

Properties
QColor	cellBorderColor
QColor	backgroundColor1
QColor	backgroundColor2
QColor	groupForegroundColor

Detailed Description

A class to display a list (properties) alternating the colors of the rows.

A class that displays a list (properties) alternating the colors of the rows. The information displayed is query-able, settable, and sortable. NOTE that the property sheet UI pattern only allows for top-level properties and one level of sub-property children (see the Qt 3.X Designer for an example) and the API to this class reflects that.

Constructor & Destructor Documentation

DtPropertyListView::DtPropertyListView

(

QWidget *

parent = 0

)

References init(), myBackColor1, and myBackColor2.

DtPropertyListView::DtPropertyListView	(	QColor	c1,
		QColor	c2,
		bool	drawBorder = true,
		QWidget *	parent = 0
	)

References init().

DtPropertyListView::DtPropertyListView

(

const DtPropertyListView &

orig

)

DtPropertyListView::~DtPropertyListView ( )

virtual

Member Function Documentation

DtPropertyListViewItem * DtPropertyListView::addProperty ( const DtProperty &  prop, QTreeWidgetItem *  parentTree = 0  )

virtual

References attributeNameColumn(), attributeValueColumn(), DtProperty::children(), DtProperty::name(), DtPropertyType::text(), DtProperty::type(), and DtProperty::value().

Referenced by DtGenericConfigDialog::addProperty(), DtGenericConfigWidget::addProperty(), and addToProperty().

DtPropertyListViewItem * DtPropertyListView::addToProperty ( const DtProperty &  prop )

virtual

References addProperty(), attributeNameColumn(), attributeValueColumn(), DtProperty::children(), and DtProperty::name().

Referenced by DtGenericConfigDialog::addToProperty(), and DtGenericConfigWidget::addToProperty().

bool DtPropertyListView::alphaSorted ( ) const

virtual

References myAlphaSorted.

int DtPropertyListView::attributeNameColumn

(

)

const

References myAttributeName.

Referenced by addProperty(), addToProperty(), DtConfigurablePropertyEditView::init(), init(), property(), resizeValueColumn(), DtConfigurablePropertyEditView::setColumnIconForProperty(), and setProperty().

int DtPropertyListView::attributeValueColumn

(

)

const

References myValueName.

Referenced by addProperty(), addToProperty(), and setProperty().

virtual QColor DtPropertyListView::backgroundColor1 ( ) const

inlinevirtual

virtual QColor DtPropertyListView::backgroundColor2 ( ) const

inlinevirtual

DtPropertyListViewStyle DtPropertyListView::backgroundStyle ( ) const

virtual

References myBackStyle.

Referenced by DtPropertyListViewItemDelegate::paint().

virtual QColor DtPropertyListView::cellBorderColor ( ) const

virtual

void DtPropertyListView::collapseAll ( )

virtual

References DtPropertyListViewItem::collapseAll().

virtual bool DtPropertyListView::drawCellBorder ( )

inlinevirtual

Referenced by DtPropertyListViewItemDelegate::paint().

virtual QWidget* DtPropertyListView::editorBox ( )

inlinevirtual

void DtPropertyListView::expandAll ( )

virtual

References DtPropertyListViewItem::expandAll().

virtual QColor DtPropertyListView::groupForegroundColor ( ) const

virtual

void DtPropertyListView::headerClicked ( int  column )

protectedvirtualslot

References myAlphaSorted, and myEditorBox.

Referenced by init().

void DtPropertyListView::headerSizeChanged ( )

protectedvirtualslot

References resizeValueColumn().

Referenced by init().

void DtPropertyListView::init ( )

protectedvirtual

Reimplemented in DtPropertyEditView, and DtConfigurablePropertyEditView.

References attributeNameColumn(), connect(), headerClicked(), headerSizeChanged(), myAlphaSorted, myAttributeName, myCellBorder, myDrawCellBorder, and myValueName.

Referenced by DtPropertyListView().

DtProperty * DtPropertyListView::property ( QString  prop )

virtual

References attributeNameColumn(), and DtPropertyListViewItem::property().

Referenced by DtGenericConfigDialog::property(), DtGenericConfigWidget::property(), and DtPropertyEditView::slotClicked().

DtProperty * DtPropertyListView::property ( QString  prop, QString  sub  )

virtual

References attributeNameColumn(), and DtPropertyListViewItem::property().

DtProperty * DtPropertyListView::property ( QString  prop, QString  sub, QString  sub2  )

virtual

References attributeNameColumn(), and DtPropertyListViewItem::property().

void DtPropertyListView::resizeEvent ( QResizeEvent *  r )

protectedvirtual

References resizeValueColumn().

void DtPropertyListView::resizeValueColumn ( QSize  size )

protectedvirtual

References attributeNameColumn(), and myEditorBox.

Referenced by headerSizeChanged(), and resizeEvent().

void DtPropertyListView::setBackgroundStyle ( const DtPropertyListViewStyle &  style )

virtual

References myBackStyle.

void DtPropertyListView::setCellBorderColor ( const QColor &  color )

virtual

References myCellBorder.

void DtPropertyListView::setGroupForegroundColor ( const QColor &  color )

virtual

References myGroupForeColor.

bool DtPropertyListView::setProperty ( QString  prop, QVariant  value  )

virtual

References attributeNameColumn(), attributeValueColumn(), DtPropertyListViewItem::property(), DtProperty::setValue(), DtPropertyType::text(), and DtProperty::type().

Referenced by DtGenericConfigDialog::setProperty(), and DtGenericConfigWidget::setProperty().

bool DtPropertyListView::setProperty ( QString  prop, QString  sub, QVariant  value  )

virtual

References attributeNameColumn(), attributeValueColumn(), DtPropertyListViewItem::property(), DtProperty::setValue(), DtPropertyType::text(), and DtProperty::type().

bool DtPropertyListView::setProperty ( QString  prop, QString  sub, QString  sub2, QVariant  value  )

virtual

References attributeNameColumn(), attributeValueColumn(), DtPropertyListViewItem::property(), DtProperty::setValue(), DtPropertyType::text(), and DtProperty::type().

Member Data Documentation

bool DtPropertyListView::myAlphaSorted

protected

Referenced by alphaSorted(), headerClicked(), DtConfigurablePropertyEditView::init(), and init().

const QString DtPropertyListView::myAttributeName

protected

Referenced by attributeNameColumn(), DtConfigurablePropertyEditView::init(), and init().

QColor DtPropertyListView::myBackColor1

protected

Referenced by DtPropertyListView().

QColor DtPropertyListView::myBackColor2

protected

Referenced by DtPropertyListView().

DtPropertyListViewStyle DtPropertyListView::myBackStyle

protected

Referenced by backgroundStyle(), and setBackgroundStyle().

QColor DtPropertyListView::myCellBorder

protected

Referenced by DtConfigurablePropertyEditView::init(), init(), and setCellBorderColor().

bool DtPropertyListView::myDrawCellBorder

protected

Referenced by DtConfigurablePropertyEditView::init(), and init().

bool DtPropertyListView::myEditable

protected

Referenced by DtPropertyEditView::editable().

QWidget* DtPropertyListView::myEditorBox

protected

Referenced by DtPropertyEditView::clear(), DtPropertyEditView::collapseClicked(), DtPropertyEditView::expandClicked(), headerClicked(), DtPropertyEditView::init(), resizeValueColumn(), and DtPropertyEditView::slotClicked().

QColor DtPropertyListView::myGroupForeColor

protected

Referenced by setGroupForegroundColor().

DtProperty DtPropertyListView::myRoot

protected

DtPropertyListViewItem* DtPropertyListView::mySelected

protected

Referenced by DtPropertyEditView::clear(), DtPropertyEditView::collapseClicked(), DtPropertyEditView::expandClicked(), DtPropertyEditView::refresh(), DtPropertyEditView::slotClicked(), and DtPropertyEditView::slotItemEdited().

const QString DtPropertyListView::myValueName

protected

Referenced by attributeValueColumn(), DtConfigurablePropertyEditView::init(), and init().

Property Documentation

QColor DtPropertyListView::backgroundColor1

read

QColor DtPropertyListView::backgroundColor2

read

QColor DtPropertyListView::cellBorderColor

readwrite

Referenced by DtPropertyListViewItemDelegate::paint().

QColor DtPropertyListView::groupForegroundColor

readwrite

---

The documentation for this class was generated from the following files:

• propertyListView.h
• propertyListView.cxx
