DtRtiAssistantLrcClient Class Reference

The client connection to the RTI Assistant for an LRC. More...

Inheritance diagram for DtRtiAssistantLrcClient:

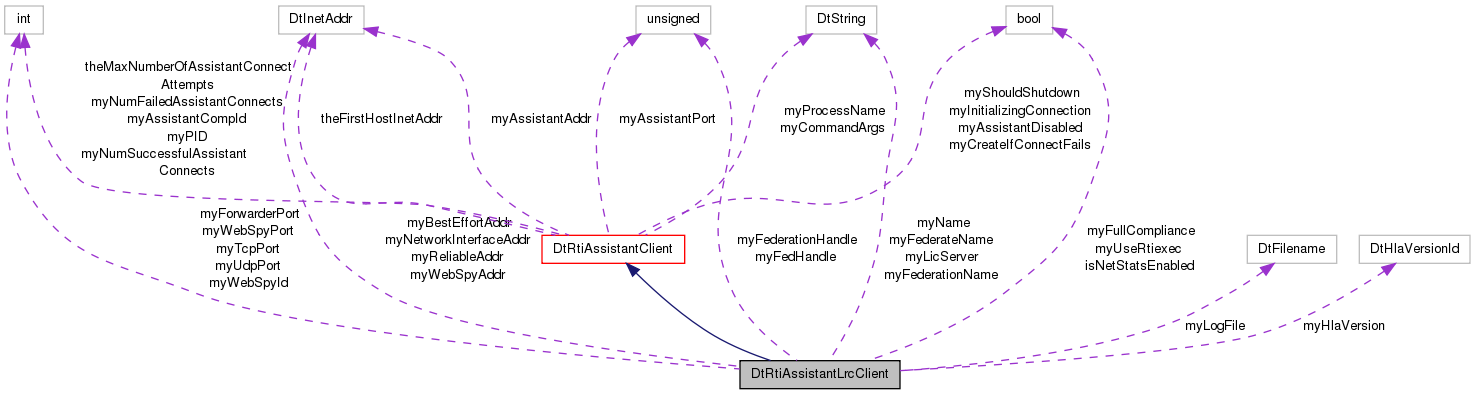

Collaboration diagram for DtRtiAssistantLrcClient:

Public Member Functions
	DtRtiAssistantLrcClient (int port=0)
virtual	~DtRtiAssistantLrcClient ()
virtual void	updateLrcName (const MAKRti::DtString &name)
	Updates the name used by the Assistant to identify this LRC.
virtual void	updateFederateName (const MAKRti::DtString &fedName)
	Updates the federate name used by the assistant.
virtual void	updateFederationInfo (unsigned long federationHandle, const MAKRti::DtString &federationName, unsigned long fedHandle, DtHlaVersionId hlaVersion)
	Updates the federation name and federate handle used by the Assistant to help identify this LRC.
virtual void	updateLrcLogFile (const MAKRti::DtFilename &file)
	Updates the log file name used by this LRC.
virtual void	updateLicenseServer (const MAKRti::DtString &server)
	Updates the license server used by this LRC.
virtual void	updateWebSpyInfo (const MAKRti::DtInetAddr &ipAddr, int port, int id)
	Updates the information needed for the Assistant to open the web spy page for this LRC, namely the host IP address, port number, and the connection ID.
virtual void	updateConnInfo (const MAKRti::DtInetAddr &ipAddr, const MAKRti::DtInetAddr &bestEffortIpAddr, const MAKRti::DtInetAddr &interfaceAddr, int udpPort, int tcpPort, bool useRtiexec, bool fullCompliance, int forwarderPort)
	Updates the information on this LRC's RTI connection.
virtual void	updateNetStats (bool enabled)
virtual void	sendClientInfo ()
	Sends the stored LRC information to the Assistant.
virtual void	sendNetStatsUpdate (DtFloat64 absTime, const std::vector< DtRtiAmbAPIType > &rtiAmbTypes, const std::vector< DtU32 > &rtiAmbNumCalls, const std::vector< DtFloat64 > &rtiAmbTotalTime, const std::vector< DtFloat64 > &rtiAmbAvgTime, const std::vector< DtFloat64 > &rtiAmbMinTime, const std::vector< DtFloat64 > &rtiAmbMaxTime, const std::vector< DtFedAmbAPIType > &fedAmbTypes, const std::vector< DtU32 > &fedAmbNumCalls, const std::vector< DtFloat64 > &fedAmbTotalTime, const std::vector< DtFloat64 > &fedAmbAvgTime, const std::vector< DtFloat64 > &fedAmbMinTime, const std::vector< DtFloat64 > &fedAmbMaxTime, const std::vector< DtRtiMsgKind > &msgKinds, const std::vector< DtU32 > &msgNumSent, const std::vector< DtU32 > &msgNumReceived, const std::vector< DtU32 > &msgBytesSent, const std::vector< DtU32 > &msgBytesReceived, const std::vector< DtU32 > &objectInstanceHandles, const std::vector< DtU32 > &objectClassHandles, const std::vector< DtU32 > &objectUpdatesReceived, const std::vector< DtU32 > &objectBytesReceived, const std::vector< DtU32 > &objectUpdatesSent, const std::vector< DtU32 > &objectBytesSent, const std::vector< DtU32 > &interactionClassHandles, const std::vector< DtU32 > &interactionUpdatesReceived, const std::vector< DtU32 > &interactionBytesReceived, const std::vector< DtU32 > &interactionUpdatesSent, const std::vector< DtU32 > &interactionBytesSent)
virtual void	sendNetStatsStringUpdate (const std::vector< DtU32 > &objectClassHandles, const std::vector< MAKRti::DtString > &objectClassNames, const std::vector< DtU32 > &interactionClassHandles, const std::vector< MAKRti::DtString > &interactionClassNames)
virtual void	sendNetStatsAttrStringUpdate (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< MAKRti::DtString > &attributeNames, const std::vector< MAKRti::DtU32 > &parentClassHandles, const std::vector< MAKRti::DtU32 > &totalObjHandles)
void	sendNetStatsParamStringUpdate (const std::vector< MAKRti::DtU32 > &interClassHandles, const std::vector< MAKRti::DtU32 > &parameterHandles, const std::vector< MAKRti::DtString > &parameterNames, const std::vector< MAKRti::DtU32 > &parentInterHandles, const std::vector< MAKRti::DtU32 > &totalInterHandles)
virtual void	sendNetStatsAttrParamStringUpdate (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< MAKRti::DtString > &attributeNames, const std::vector< MAKRti::DtU32 > &parentClassHandles, const std::vector< MAKRti::DtU32 > &totalObjHandles, DtAssistantHandleType objInterType, DtAssistantHandleType attrParamType, DtAssistantHandleType parentClassType)
virtual void	sendNetStatsFomAttrParamUpdate (DtAssistantHandleType handleType, bool isInit, const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< bool > &attributePub, const std::vector< bool > &attributeSub, const std::vector< DtTransportType > &attributeTransport, const std::vector< DtOrderType > &attributeOrder, const std::vector< bool > &objectPub, const std::vector< bool > &objectSub, const std::vector< MAKRti::DtU32 > &objPubSubHandles)
virtual void	sendObjectInstanceNetStatsStringUpdate (const std::vector< DtU32 > &objectInstanceHandles, const std::vector< MAKRti::DtString > &objectInstanceNames)
virtual void	sendFomTreeData (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &parentObjectClassHandles, const std::vector< MAKRti::DtString > &objectClassNames, const std::vector< MAKRti::DtU32 > &interactionClassHandles, const std::vector< MAKRti::DtU32 > &parentInteractionClassHandles, const std::vector< MAKRti::DtString > &interactionClassNames)
virtual void	sendFomUpdate (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< bool > &attributePub, const std::vector< bool > &attributeSub, const std::vector< DtTransportType > &attributeTransport, const std::vector< DtOrderType > &attributeOrder, DtAssistantHandleType handleType, DtFloat64 absTime, bool isFullUpdate)
Public Member Functions inherited from DtRtiAssistantClient
	DtRtiAssistantClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor.
virtual	~DtRtiAssistantClient ()
	Destructor.
virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing.
virtual bool	isConnected ()
	Returns true if the socket is connected.
virtual bool	isDisabled ()
	Returns true if the socket is disabled.
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
	These functions add callbacks for notification of a socket disconnect.
virtual void	removeDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
virtual bool	sendLRCConnQueryMsg (bool error, MAKRti::DtInetAddr &relIpAddr, MAKRti::DtInetAddr &beIpAddr, MAKRti::DtInetAddr &interfaceAddr, int &udpPort, int &tcpPort, bool &useRtiexec, bool &forceFullCompliance, int &forwarderPort)
	Send a message querying for the connection parameters.
virtual bool	sendForwardingComponentConnQueryMsg (bool error, MAKRti::DtInetAddr &relIpAddr, MAKRti::DtInetAddr &beIpAddr, MAKRti::DtInetAddr &interfaceAddr, int &udpPort, int &tcpPort, bool &forceFullCompliance, int &forwarderPort, MAKRti::DtInetAddr &forwardrToConnectTo)
	Send a message querying for the rtiexec connection parameters.
virtual void	sendLatencyTestMsg (const DtAssistantLatencyReportMsg &msg)
	Send a message to the assistant with latency test measurements.
virtual void	sendLatencyTestStatusMsg (const DtAssistantTestMgrStatusMsg &msg)
	Send an updated latency test status message to the assistant.
virtual bool	getNewLicenseServerFromAssistant (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &serverName, const MAKRti::DtString &featToCheck)
	Send a message to the assistant to query the user for an alternate license server.
virtual void	sendNotifyMsg (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)
	Send a message to display a pop up notification above the tray icon.
virtual void	sendSignalTickedMsg ()
	Send a signal ticked message to the assistant.
virtual void	sendDialogBoxMsg (const MAKRti::DtString &text, const MAKRti::DtString &advancedText)
	Send a message to display a dialog notification.
virtual void	sendClose ()
	Send connection closed message to Assistant.
virtual void	sendRidParamsMsg (const MAKRti::DtString &params, const MAKRti::DtFilename &filename, const MAKRti::DtString &federation=MAKRti::DtString::nullString(), unsigned federateHdl=0)
	Send the RID parameters.
virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory.
virtual DtAssistantMessageFactory *	msgFactory () const
virtual void	shutDownConnection ()
	AssistantClientOwner should call this function when it processes an assistantExitMsg.
virtual MAKRti::DtString	getProcessName () const
	get the process name
virtual int	getPID () const
	get the PID
virtual MAKRti::DtString	getCommandArgs () const
	get the command args
bool	testConnectionStatus ()
	test the connection
virtual int	componentId () const
	Returns the component ID assigned by the assistant.

Protected Attributes
MAKRti::DtString	myName
	The name the Assistant uses to identify this LRC.
unsigned long	myFedHandle
	This LRC's federate handle.
unsigned long	myFederationHandle
	This LRC's federation handle.
MAKRti::DtString	myFederationName
	This LRC's federation name.
MAKRti::DtFilename	myLogFile
	The name and full path of the log file.
MAKRti::DtString	myLicServer
	The license server used by this LRC.
MAKRti::DtInetAddr	myWebSpyAddr
	The host address for the web spy.
int	myWebSpyPort
	The port for the web spy.
int	myWebSpyId
	The connection ID used to identify this LRC's page.
bool	isNetStatsEnabled
MAKRti::DtInetAddr	myReliableAddr
	The RTI reliable IP address.
MAKRti::DtInetAddr	myBestEffortAddr
	The RTI best effort IP address.
MAKRti::DtInetAddr	myNetworkInterfaceAddr
	The address of the network interface being used.
int	myUdpPort
	The RTI UDP port.
int	myTcpPort
	The RTI TCP port.
bool	myUseRtiexec
	Whether use of an rtiexec is enabled.
bool	myFullCompliance
	Whether full compliance is enabled.
int	myForwarderPort
	The port the forwarder uses to connect to other forwarders.
MAKRti::DtString	myFederateName
	The federate name.
DtHlaVersionId	myHlaVersion
	The federate's HLA version.
Protected Attributes inherited from DtRtiAssistantClient
bool	myAssistantDisabled
	Set to true if the Assistant is disabled.
MAKRti::DtInetAddr	myAssistantAddr
	The IP address of the Assistant.
unsigned int	myAssistantPort
	The port on which the RTI Assistant listens for connections.
DtTcpMsgSocket *	mySocket
	The socket to the RTI Assistant.
bool	myCreateIfConnectFails
	Indicates whether an Assistant should be created if a connection cannot be established.
DtAssistantConnectionStatus	myConnStatus
	The current connection status.
bool	myInitializingConnection
	Is connection being initialized.
MAKRti::DtU32	mySockOpts
	The socket options to be used when connecting to the Assistant.
DtAssistantMessageFactory *	myMessageFactory
	The message factory.
DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory.
DtAssistantComponentType	myComponentType
	The component type. (LRC, rtiexec, etc.)
MAKRti::DtClock	myClock
	Clock for timeouts.
MAKRti::DtTime	myConnTestInterval
	Interval at which connection should be tested.
MAKRti::DtTime	myTimeToTestConnection
	Next time to test connection.
DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager.
std::auto_ptr< DtAssistantMsg >	myRespMsg
	The last response message to be received.
std::list < DtAssistantDisconnectCbInfo * >	myDisconnectCallbacks
	Lists of pointers to socket disconnect callbacks.
MAKRti::DtMutex *	mySocketMutex
	locks access to the socket connection.
bool	myShouldShutdown
	should be set when assistant exit msg has been received.
int	myNumFailedAssistantConnects
	How many assistant restarts have we attempted.
int	myNumSuccessfulAssistantConnects
	How many assistant reconnects occurred.
int	myPID
	the Process ID ( PID )
MAKRti::DtString	myProcessName
	the Process Name
MAKRti::DtString	myCommandArgs
	the command line arguments
int	myAssistantCompId
	The assistant assigned component ID.

Additional Inherited Members
Protected Member Functions inherited from DtRtiAssistantClient
virtual bool	initialize ()
	Attempts to connect to the RTI Assistant.
virtual DtAssistantConnectionStatus	connectToAssistant ()
	Attempt to open a connection and handshake with the Assistant.
virtual DtAssistantConnectionStatus	makeSingleConnectionAttempt ()
virtual bool	startAssistant ()
	Attempt to start a new Assistant.
virtual bool	readAndProcess (MAKRti::DtTime maxTime)
	Read and process any messages on the socket for up to the maxTime.
virtual bool	sendMsg (const DtAssistantMsg &msg)
	Send a message to the RTI Assistant.
virtual DtAssistantMsg *	sendMsgAndWait (const DtAssistantMsg &msg, DtAssistantMsgKind respKind, unsigned int waitSecs=0)
	Send a message to the RTI Assistant and wait for response of the specified kind.
virtual DtAssistantConnectionStatus	sendConnectMsg ()
	Send basic component information to the Assistant for a new connection.
virtual void	processRespMsg (const DtAssistantMsg &respMsg)
virtual void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg)
virtual void	processAssistantExitMsg (const DtAssistantExitMsg &inter)
virtual void	processDisconnect ()
	Process Assistant socket disconnect.
virtual std::auto_ptr < DtAssistantMsg >	netRead (int *retCode) const
	Attempt to read a new message from the socket.
virtual bool	sendLicQueryMsg (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &licServer)
	Send a message querying for the license server.
Static Protected Member Functions inherited from DtRtiAssistantClient
static void	processRespMsg (const DtAssistantMsg &respMsg, void *usr)
	Response message callback.
static void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg, void *usr)
	Notify level update message callback.
static void	processAssistantExitMsg (const DtAssistantExitMsg &inter, void *usr)
	Process the assistant exit message. The assistant is commanding us to exit.
Static Protected Attributes inherited from DtRtiAssistantClient
static const int	theMaxNumberOfAssistantConnectAttempts = 10
	either starting up or reconnecting, how many assistant restarts do we tolerate before giving up.
static const MAKRti::DtInetAddr	theFirstHostInetAddr = DtDefaultInterfaceAddr()
	The first InetAddr when the federate was launched.

Detailed Description

The client connection to the RTI Assistant for an LRC.

DtRtiAssistantLrcClient manages the client connection of an LRC to the RTI Assistant. Provides routines to create and send messages to the Assistant.

Constructor & Destructor Documentation

DtRtiAssistantLrcClient::DtRtiAssistantLrcClient

(

int

port = 0

)

References DtRtiAssistantClient::initialize().

DtRtiAssistantLrcClient::~DtRtiAssistantLrcClient ( )

virtual

Member Function Documentation

void DtRtiAssistantLrcClient::sendClientInfo ( )

virtual

Sends the stored LRC information to the Assistant.

Reimplemented from DtRtiAssistantClient.

References DtAssistantLrcCompInfoMsgKind, isNetStatsEnabled, DtRtiAssistantClient::msgFactory(), myBestEffortAddr, DtRtiAssistantClient::myCommandArgs, myFederateName, myFederationHandle, myFederationName, myFedHandle, myForwarderPort, myFullCompliance, myHlaVersion, myLicServer, myLogFile, myName, myNetworkInterfaceAddr, DtRtiAssistantClient::myPID, DtRtiAssistantClient::myProcessName, myReliableAddr, myTcpPort, myUdpPort, myUseRtiexec, myWebSpyAddr, myWebSpyId, myWebSpyPort, DtRtiAssistantClient::sendMsg(), DtAssistantLrcCompInfoMsg::setBestEffortIpAddress(), DtAssistantLrcCompInfoMsg::setCommandArgs(), DtAssistantLrcCompInfoMsg::setFederateHandle(), DtAssistantLrcCompInfoMsg::setFederateName(), DtAssistantLrcCompInfoMsg::setFederationHandle(), DtAssistantLrcCompInfoMsg::setFederationName(), DtAssistantLrcCompInfoMsg::setForwarderPort(), DtAssistantLrcCompInfoMsg::setFullCompliance(), DtAssistantLrcCompInfoMsg::setHlaVersion(), DtAssistantLrcCompInfoMsg::setIpAddress(), DtAssistantLrcCompInfoMsg::setIsNetStatsEnabled(), DtAssistantLrcCompInfoMsg::setLicServer(), DtAssistantLrcCompInfoMsg::setLogFilename(), DtAssistantLrcCompInfoMsg::setName(), DtAssistantLrcCompInfoMsg::setNetworkInterfaceAddress(), DtAssistantLrcCompInfoMsg::setNotifyLevel(), DtAssistantLrcCompInfoMsg::setProcessId(), DtAssistantLrcCompInfoMsg::setProcessName(), DtAssistantLrcCompInfoMsg::setTcpPort(), DtAssistantLrcCompInfoMsg::setUdpPort(), DtAssistantLrcCompInfoMsg::setUseRtiexec(), DtAssistantLrcCompInfoMsg::setWebSpyId(), DtAssistantLrcCompInfoMsg::setWebSpyIpAddress(), and DtAssistantLrcCompInfoMsg::setWebSpyPort().

Referenced by DtRtiExecFederateMgr::processJoinResponseMsg().

void DtRtiAssistantLrcClient::sendFomTreeData ( const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  parentObjectClassHandles, const std::vector< MAKRti::DtString > &  objectClassNames, const std::vector< MAKRti::DtU32 > &  interactionClassHandles, const std::vector< MAKRti::DtU32 > &  parentInteractionClassHandles, const std::vector< MAKRti::DtString > &  interactionClassNames  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantNetStatsFomTreeUpdateMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

void DtRtiAssistantLrcClient::sendFomUpdate ( const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< bool > &  attributePub, const std::vector< bool > &  attributeSub, const std::vector< DtTransportType > &  attributeTransport, const std::vector< DtOrderType > &  attributeOrder, DtAssistantHandleType  handleType, DtFloat64  absTime, bool  isFullUpdate  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantNetStatsFomUpdateMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

void DtRtiAssistantLrcClient::sendNetStatsAttrParamStringUpdate ( const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< MAKRti::DtString > &  attributeNames, const std::vector< MAKRti::DtU32 > &  parentClassHandles, const std::vector< MAKRti::DtU32 > &  totalObjHandles, DtAssistantHandleType  objInterType, DtAssistantHandleType  attrParamType, DtAssistantHandleType  parentClassType  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantNetStatsAttrParamStringUpdateMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

Referenced by sendNetStatsAttrStringUpdate(), and sendNetStatsParamStringUpdate().

void DtRtiAssistantLrcClient::sendNetStatsAttrStringUpdate ( const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< MAKRti::DtString > &  attributeNames, const std::vector< MAKRti::DtU32 > &  parentClassHandles, const std::vector< MAKRti::DtU32 > &  totalObjHandles  )

virtual

References DtAssistantAttributeHandleType, DtAssistantObjectClassHandleType, and sendNetStatsAttrParamStringUpdate().

void DtRtiAssistantLrcClient::sendNetStatsFomAttrParamUpdate ( DtAssistantHandleType  handleType, bool  isInit, const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< bool > &  attributePub, const std::vector< bool > &  attributeSub, const std::vector< DtTransportType > &  attributeTransport, const std::vector< DtOrderType > &  attributeOrder, const std::vector< bool > &  objectPub, const std::vector< bool > &  objectSub, const std::vector< MAKRti::DtU32 > &  objPubSubHandles  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantNetStatsFomAttrParamUpdateMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

void DtRtiAssistantLrcClient::sendNetStatsParamStringUpdate	(	const std::vector< MAKRti::DtU32 > &	interClassHandles,
		const std::vector< MAKRti::DtU32 > &	parameterHandles,
		const std::vector< MAKRti::DtString > &	parameterNames,
		const std::vector< MAKRti::DtU32 > &	parentInterHandles,
		const std::vector< MAKRti::DtU32 > &	totalInterHandles
	)

References DtAssistantInteractionClassHandleType, DtAssistantParameterHandleType, and sendNetStatsAttrParamStringUpdate().

void DtRtiAssistantLrcClient::sendNetStatsStringUpdate ( const std::vector< DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtString > &  objectClassNames, const std::vector< DtU32 > &  interactionClassHandles, const std::vector< MAKRti::DtString > &  interactionClassNames  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantInteractionClassHandleType, DtAssistantNetStatsStringUpdateMsgKind, DtAssistantObjectClassHandleType, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

Referenced by DtNetStatsMonitor::gatherClassDataAndSend().

void DtRtiAssistantLrcClient::sendNetStatsUpdate ( DtFloat64  absTime, const std::vector< DtRtiAmbAPIType > &  rtiAmbTypes, const std::vector< DtU32 > &  rtiAmbNumCalls, const std::vector< DtFloat64 > &  rtiAmbTotalTime, const std::vector< DtFloat64 > &  rtiAmbAvgTime, const std::vector< DtFloat64 > &  rtiAmbMinTime, const std::vector< DtFloat64 > &  rtiAmbMaxTime, const std::vector< DtFedAmbAPIType > &  fedAmbTypes, const std::vector< DtU32 > &  fedAmbNumCalls, const std::vector< DtFloat64 > &  fedAmbTotalTime, const std::vector< DtFloat64 > &  fedAmbAvgTime, const std::vector< DtFloat64 > &  fedAmbMinTime, const std::vector< DtFloat64 > &  fedAmbMaxTime, const std::vector< DtRtiMsgKind > &  msgKinds, const std::vector< DtU32 > &  msgNumSent, const std::vector< DtU32 > &  msgNumReceived, const std::vector< DtU32 > &  msgBytesSent, const std::vector< DtU32 > &  msgBytesReceived, const std::vector< DtU32 > &  objectInstanceHandles, const std::vector< DtU32 > &  objectClassHandles, const std::vector< DtU32 > &  objectUpdatesReceived, const std::vector< DtU32 > &  objectBytesReceived, const std::vector< DtU32 > &  objectUpdatesSent, const std::vector< DtU32 > &  objectBytesSent, const std::vector< DtU32 > &  interactionClassHandles, const std::vector< DtU32 > &  interactionUpdatesReceived, const std::vector< DtU32 > &  interactionBytesReceived, const std::vector< DtU32 > &  interactionUpdatesSent, const std::vector< DtU32 > &  interactionBytesSent  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantNetStatsFedAmbUpdateMsgKind, DtAssistantNetStatsInteractionsUpdateMsgKind, DtAssistantNetStatsMsgUpdateMsgKind, DtAssistantNetStatsObjectsUpdateMsgKind, DtAssistantNetStatsRtiAmbUpdateMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

void DtRtiAssistantLrcClient::sendObjectInstanceNetStatsStringUpdate ( const std::vector< DtU32 > &  objectInstanceHandles, const std::vector< MAKRti::DtString > &  objectInstanceNames  )

virtual

References DtRtiAssistantClient::componentId(), DtAssistantNetStatsStringUpdateMsgKind, DtAssistantObjectInstanceHandleType, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantMsg::setCompId().

Referenced by DtNetStatsMonitor::gatherInstanceDataAndSend().

void DtRtiAssistantLrcClient::updateConnInfo ( const MAKRti::DtInetAddr &  ipAddr, const MAKRti::DtInetAddr &  bestEffortIpAddr, const MAKRti::DtInetAddr &  interfaceAddr, int  udpPort, int  tcpPort, bool  useRtiexec, bool  fullCompliance, int  forwarderPort  )

virtual

Updates the information on this LRC's RTI connection.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References DtDefaultInterfaceAddr(), myBestEffortAddr, myForwarderPort, myFullCompliance, myNetworkInterfaceAddr, myReliableAddr, myTcpPort, myUdpPort, myUseRtiexec, and tcpPort.

void DtRtiAssistantLrcClient::updateFederateName ( const MAKRti::DtString &  fedName )

virtual

Updates the federate name used by the assistant.

Note that this method does not send the message to the assistant, just stores the name to be send when sendClientInfo is called.

References myFederateName.

Referenced by DtRtiExecFederateMgr::processJoinResponseMsg().

void DtRtiAssistantLrcClient::updateFederationInfo ( unsigned long  federationHandle, const MAKRti::DtString &  federationName, unsigned long  fedHandle, DtHlaVersionId  hlaVersion  )

virtual

Updates the federation name and federate handle used by the Assistant to help identify this LRC.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References federationName(), myFederationHandle, myFederationName, myFedHandle, and myHlaVersion.

void DtRtiAssistantLrcClient::updateLicenseServer ( const MAKRti::DtString &  server )

virtual

Updates the license server used by this LRC.

Used by the Assistant to help other LRCs locate a license. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myLicServer.

Referenced by initControl().

void DtRtiAssistantLrcClient::updateLrcLogFile ( const MAKRti::DtFilename &  file )

virtual

Updates the log file name used by this LRC.

This is sent to the Assistant so that it may display the log to interested users. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myLogFile, and NULL.

void DtRtiAssistantLrcClient::updateLrcName ( const MAKRti::DtString &  name )

virtual

Updates the name used by the Assistant to identify this LRC.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myName.

void DtRtiAssistantLrcClient::updateNetStats ( bool  enabled )

virtual

References isNetStatsEnabled.

void DtRtiAssistantLrcClient::updateWebSpyInfo ( const MAKRti::DtInetAddr &  ipAddr, int  port, int  id  )

virtual

Updates the information needed for the Assistant to open the web spy page for this LRC, namely the host IP address, port number, and the connection ID.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myWebSpyAddr, myWebSpyId, and myWebSpyPort.

Member Data Documentation

bool DtRtiAssistantLrcClient::isNetStatsEnabled

protected

Referenced by sendClientInfo(), and updateNetStats().

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myBestEffortAddr

protected

The RTI best effort IP address.

Referenced by sendClientInfo(), and updateConnInfo().

MAKRti::DtString DtRtiAssistantLrcClient::myFederateName

protected

The federate name.

Referenced by sendClientInfo(), and updateFederateName().

unsigned long DtRtiAssistantLrcClient::myFederationHandle

protected

This LRC's federation handle.

Referenced by sendClientInfo(), and updateFederationInfo().

MAKRti::DtString DtRtiAssistantLrcClient::myFederationName

protected

This LRC's federation name.

Referenced by sendClientInfo(), and updateFederationInfo().

unsigned long DtRtiAssistantLrcClient::myFedHandle

protected

This LRC's federate handle.

Referenced by sendClientInfo(), and updateFederationInfo().

int DtRtiAssistantLrcClient::myForwarderPort

protected

The port the forwarder uses to connect to other forwarders.

Referenced by sendClientInfo(), and updateConnInfo().

bool DtRtiAssistantLrcClient::myFullCompliance

protected

Whether full compliance is enabled.

Referenced by sendClientInfo(), and updateConnInfo().

DtHlaVersionId DtRtiAssistantLrcClient::myHlaVersion

protected

The federate's HLA version.

Referenced by sendClientInfo(), and updateFederationInfo().

MAKRti::DtString DtRtiAssistantLrcClient::myLicServer

protected

The license server used by this LRC.

Referenced by sendClientInfo(), and updateLicenseServer().

MAKRti::DtFilename DtRtiAssistantLrcClient::myLogFile

protected

The name and full path of the log file.

Referenced by sendClientInfo(), and updateLrcLogFile().

MAKRti::DtString DtRtiAssistantLrcClient::myName

protected

The name the Assistant uses to identify this LRC.

Referenced by sendClientInfo(), and updateLrcName().

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myNetworkInterfaceAddr

protected

The address of the network interface being used.

Referenced by sendClientInfo(), and updateConnInfo().

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myReliableAddr

protected

The RTI reliable IP address.

Referenced by sendClientInfo(), and updateConnInfo().

int DtRtiAssistantLrcClient::myTcpPort

protected

The RTI TCP port.

Referenced by sendClientInfo(), and updateConnInfo().

int DtRtiAssistantLrcClient::myUdpPort

protected

The RTI UDP port.

Referenced by sendClientInfo(), and updateConnInfo().

bool DtRtiAssistantLrcClient::myUseRtiexec

protected

Whether use of an rtiexec is enabled.

Referenced by sendClientInfo(), and updateConnInfo().

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myWebSpyAddr

protected

The host address for the web spy.

Referenced by sendClientInfo(), and updateWebSpyInfo().

int DtRtiAssistantLrcClient::myWebSpyId

protected

The connection ID used to identify this LRC's page.

Referenced by sendClientInfo(), and updateWebSpyInfo().

int DtRtiAssistantLrcClient::myWebSpyPort

protected

The port for the web spy.

Referenced by sendClientInfo(), and updateWebSpyInfo().

---

The documentation for this class was generated from the following files:

• rtiAssistantLrcClient.h
• rtiAssistantLrcClient.cxx
