DtRtiExecFederateMgr Class Reference

Instances of DtRtiExecFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) for HLA applications that are using the rtiexec. More...

Inheritance diagram for DtRtiExecFederateMgr:

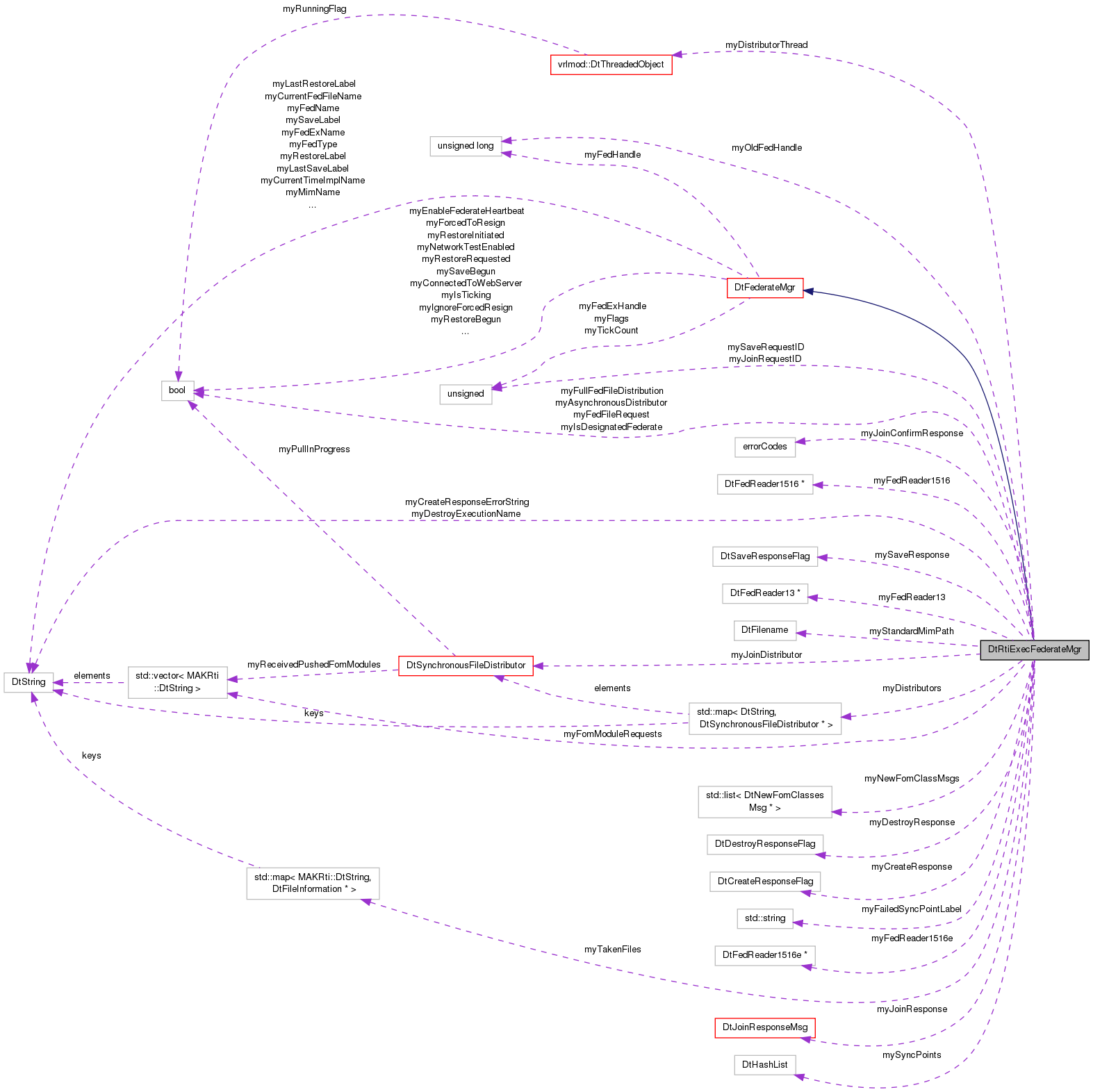

Collaboration diagram for DtRtiExecFederateMgr:

Public Member Functions
	DtRtiExecFederateMgr (DtRIDParameters *params, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Constructor.
virtual	~DtRtiExecFederateMgr ()
	Destructor.
std::map< DtString, DtSynchronousFileDistributor * >	distributors ()
	Access to the file distributor.
std::map< DtString, DtSynchronousFileDistributor * >	distributors () const
DtSynchronousFileDistributor *	joinDistributor ()
DtSynchronousFileDistributor *	joinDistributor () const
virtual void	init ()
	Virtual initialization within create.
CreateDestoryJoinResignServices
Handle the create/destroy and join/resign services
virtual void	createFederationExecution (const char *executionName, const char *timeImplName, const char *fed)
	Process the create federation execution service.
virtual void	destroyFederationExecution (const char *executionName)
	Process the destroy federation execution service.
virtual RTI::FederateHandle	joinFederationExecution (const char *yourName, const char *executionName, RTI::FederateAmbassador *federateAmbassadorReference, unsigned long flags)
	Process the join federation execution service.
virtual void	resignFederationExecution (RTI::ResignAction theAction)
	Process the resign federation execution service.
SynchronizationPointServices
Handle the synchronization point services
virtual void	registerFederationSynchronizationPoint (char const *label, char const *theTag)
	Process the register synchronization point service.
virtual void	registerFederationSynchronizationPoint (char const *label, char const *theTag, DtFederateHandleSet const &syncSet)
	Process the register synchronization point service.
virtual void	synchronizationPointAchieved (char const *label, bool successfully=true)
	Process the synchronization point achieved service.
SaveRestoreServices
Process the save and restore services
virtual void	requestFederationSave (char const *label, RTI::FedTime const *time=NULL)
	Process the request federation save service.
virtual void	federateSaveBegun ()
	Process the federate save begun service.
virtual void	federateSaveComplete ()
	Process the federate save complete service.
virtual void	federateSaveNotComplete ()
	Process the federate save complete service.
virtual void	requestFederationRestore (const char *label)
	Process the request federation restore service.
virtual void	federateRestoreComplete ()
	Process the federate restore complete service.
virtual void	federateRestoreNotComplete ()
	Process the federate restore complete service.
Public Member Functions inherited from DtFederateMgr
virtual	~DtFederateMgr ()
	Destructor.
virtual MAKRti::DtString	fedFileName (MAKRti::DtString execName)
	Return the .fed file name associated with the federation execution name.
virtual MAKRti::DtString	timeImplName (MAKRti::DtString execName)
	Return the time implementation name associated with the federation execution name.
virtual bool	tick ()
	Update the state of the federation.
virtual void	pretick ()
virtual void	postTickCallbacks ()
virtual void	addPostTickCallback (const MAKRti::DtString &label, const DtFedMgrPostTickCallbackInfo &cb)
virtual void	removePostTickCallback (const MAKRti::DtString &label)
virtual char *	getTransportationName (MAKRti::DtTransportType transport)
	Get transport name service.
virtual char *	getOrderName (MAKRti::DtOrderType order)
	Get order name service.
virtual MAKRti::DtTransportType	getTransportationHandle (MAKRti::DtString transport)
	Get transport handle service.
virtual MAKRti::DtOrderType	getOrderHandle (MAKRti::DtString order)
	Get order handle service.
virtual DtFederateHandle	federateHandle () const
	Get the federate handle.
virtual MAKRti::DtString const &	fedType () const
	Get the federate type.
virtual MAKRti::DtString const &	fedName () const
	Get the federate name (HLA Evolved)
virtual MAKRti::DtString const &	fedExName () const
	Get the federation execution name.
virtual unsigned long	fedExHandle () const
	Get the federation execution handle.
virtual bool	isJoined () const
	Return boolean: federate is joined?
virtual DtConnectionMgr *	connectMgr ()
	Access to the connection manager.
virtual DtConnectionMgr *	connectMgr () const
virtual DtRIDParameters *	params ()
	Access to the RID parameters.
virtual DtRIDParameters *	params () const
virtual DtFomClassMgr *	fom ()
	Access to the fom.
virtual DtFomClassMgr *	fom () const
virtual DtInteractionMgr *	interMgr ()
	Access to the interaction mgr.
virtual DtInteractionMgr *	interMgr () const
virtual DtTestManager *	testMgr ()
	Access to the test Manager.
virtual DtTestManager *	testMgr () const
virtual DtObjectMgr *	objMgr ()
	Access to the object mgr.
virtual DtObjectMgr *	objMgr () const
virtual DtLogicalTimeFactory *	timeFactory ()
	Access to the time factory.
virtual DtLogicalTimeFactory *	timeFactory () const
virtual DtRtiAssistantLrcClient *	assistantClient ()
	Access to the RTI Assistant client.
virtual DtRtiAssistantLrcClient *	assistantClient () const
virtual bool	isJoinedFederate (DtFederateHandle federateHandleValue) const
	Return bool: Is the federate handle known to be in the federation.
virtual bool	forcedToResign () const
	Return bool: Was federate forced to resign?
virtual bool	saveInitiated () const
	return bool: save initiated?
virtual bool	saveBegun () const
	return bool: save begun?
virtual bool	restoreRequested () const
	return bool: restore requested?
virtual bool	restoreInitiated () const
	return bool: restore initiated ?
virtual bool	restoreBegun () const
	return bool: restore begun?
virtual const MAKRti::DtString &	restoreLabel () const
	return current restore label
virtual const MAKRti::DtString &	lastRestoreLabel () const
	return last restore label
const MAKRti::DtString &	currentFedFileName () const
	get/set current FED file name
void	setCurrentFedFileName (const MAKRti::DtString &)
const MAKRti::DtString &	mimName () const
	get/set MIM name
void	setMimName (const MAKRti::DtString &)
const MAKRti::DtString &	currentTimeImplName () const
	get/set current time implementation name
void	setCurrentTimeImplName (const MAKRti::DtString &)
virtual const MAKRti::DtString &	saveLabel () const
	Set/Get save label.
virtual void	setSaveLabel (const MAKRti::DtString &value)
virtual const MAKRti::DtString &	lastSaveLabel () const
	Set/Get last save label.
virtual void	setLastSaveLabel (const MAKRti::DtString &value)
virtual MAKRti::DtString &	getSaveFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName, bool extendName=true)
	Create a save file name from the label and return in supplied parameter.
virtual MAKRti::DtString &	getRestoreFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName)
	Create a restore file name from the label and return in supplied parameter.
virtual unsigned long	tickCount () const
	Return the number of ticks.
virtual bool	isTicking () const
	Return true if currently processing tick.
virtual void	reportLatencyTestResults (const DtLatencyReportMsg &msg)
	Report results of a latency test.
virtual void	reportLatencyTestStatus (const DtTestMgrStatusMsg &msg)
	Report current latency test status.
virtual void	setWebServerConnected (bool connected)
	Inform assistant and rtiexec that a web server connection has been established.
unsigned long	flags () const
DtResignAction	automaticResignDirective () const
virtual void	setTopLevelAmbassador (RTI::RTIambassador *ambPtr)
	Provide access to top level RTI Ambassador (and Federate Ambassador for 1516E)
RTI::RTIambassador *	rtiAmb ()
	Access to the top level RTI Ambassador given to the federate.
RTI::RTIambassador *	rtiAmb () const
	Access to the top level RTI Ambassador given to the federate.
virtual RTI::FederateAmbassador *	federateAmbassador () const
	Access to the Federate Ambassador submitted by the federate.

Static Public Member Functions
static DtFederateMgr *	create (DtRIDParameters *params, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Creates an instance of this derived class;.
MessageCallbacks
Register these methods for callbacks. Pass this manager as the user data
static void	processSyncPointMsg (const DtSyncPointMsg &msg, void *usr)
	sync point message callback
static void	processDesignatedFederateMsg (const DtDesignatedFederateMsg &msg, void *usr)
	designated federate message callback
static void	processFomModuleFileRequestMsg (const DtFomModuleRequestMsg &msg, void *usr)
	Fom Module file distribution message callback.
static void	processCreateResponseMsg (const DtCreateResponseMsg &msg, void *usr)
	Create response message callback.
static void	processJoinResponseMsg (const DtJoinResponseMsg &msg, void *usr)
	Join response message callback.
static void	processDestroyResponseMsg (const DtDestroyResponseMsg &msg, void *usr)
	Destroy response message callback.
static void	processNewFomClassesMsg (const DtNewFomClassesMsg &msg, void *usr)
	Callback for message indicating new FOM classes have been added via FOM module merging.
Static Public Member Functions inherited from DtFederateMgr
static void	setCreatorFunction (DtFederateMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtFederateMgrCreator fn)
	Register alternate internal creators.

Protected Member Functions
virtual void	initRidTester ()
	Initialize the RidTester.
virtual void	initializeDistributor (const char *executionName)
	This function will create the distributor if necessary and initialize it.
virtual void	waitForCreateResponse (const char *executionName)
	This function will wait for the create response or fail and throw.
virtual void	waitForJoinResponse (const char *executionName, std::vector< MAKRti::DtString > &joinModules)
	This function will wait for the join response or fail and throw.
void	checkJoinResponse ()
	Check the join response and throw appropriate exception on error.
virtual void	initializeTimeFactory ()
	Initialize the time factory.
virtual void	initializeFOM (const char *executionName)
	Initialize the FOM.
virtual void	postJoinInit (const char *yourName, const char *executionName, const char *federateName, RTI::FederateAmbassador *federateAmbassadorReference)
	Uses the given information to initialize federate data.
virtual void	handleFailedJoin (unsigned long sourceID, DtJoinConfirmMsg::errorCodes code)
	Handle the join failure before throwing an exception.
virtual void	setDesignatedFederate (bool isDesignated)
	Set/Get designated status of this federate's LRC.
virtual bool	isDesignatedFederate ()
void	appendFomModule (std::vector< MAKRti::DtString > &target, MAKRti::DtString const &source)
	Append the source FED file name into the target list, stripping the path name as it is appended into the target.
void	appendFomModules (std::vector< MAKRti::DtString > &target, std::vector< MAKRti::DtString > const &source)
	Append the source FED file names into the target list, stripping the path names as they are appended into the target.
virtual bool	findFedFileNameFromMapping (const MAKRti::DtString execName, const std::vector< MAKRti::DtString > &orig, std::vector< MAKRti::DtString > &namesToUse) const
	Find the full FED file path from the stripped name.
void	testReadFomModules (const DtRIDParameters::DtStringList &, MAKRti::DtString executionName, bool isMim=false)
	Attempt to read modules.
virtual void	mergeFomModules (const std::vector< MAKRti::DtString > *fomModules)
	Merge the given FOM Modules into the current FOM.
virtual void	testSaveProgress ()
	Check for save/restore in progress exceptions.
virtual void	applyRidParameters ()
	Apply RID parameters.
virtual void	processNewFomClasses (const DtNewFomClassesMsg &msg)
	Takes note of any FOM classes added after we have joined.
virtual void	posttick ()
	Processing after a tick.
DtFedReader *	getReader (DtFomType theFomType)
void	populateWithUnknownFoms (std::vector< DtString > &mods, std::vector< DtString > &requestedMods)
bool	isFomAvailable (const DtString &fomName)
void	getCrcsOfFoms (std::vector< unsigned int > &moduleCrcs, const std::vector< MAKRti::DtString > &creationFomModuleNames)
MAKRti::DtFilename &	getStandardMimPath ()
MessageHandling
Process federation management messages Registered callback call these methods
virtual void	processSyncPointMsg (const DtSyncPointMsg &msg)
	Process a sync point message.
virtual void	processDesignatedFederateMsg (const DtDesignatedFederateMsg &msg)
	Process designated federate message.
virtual void	processFomModuleFileRequestMsg (const DtFomModuleRequestMsg &msg)
	Process Fom Module file distribution message.
virtual void	processCreateResponseMsg (const DtCreateResponseMsg &msg)
	Process create response message.
virtual void	processJoinResponseMsg (const DtJoinResponseMsg &msg)
	Process join response message.
virtual void	processDestroyResponseMsg (const DtDestroyResponseMsg &msg)
	Process destroy response message.
virtual void	processSaveInitiate (const DtSaveInitiateMsg &msg)
	Process the save initiate message.
virtual void	processSaveInitiate (const char *label)
	Process the save initiate.
virtual void	requestImmediateSave (const char *label)
	Process the immediate save message.
virtual void	processSaveResponse (const DtSaveResponseMsg &msg)
	Process the save response message.
virtual void	processSaveFinished (const DtSaveFinishedMsg &msg)
	Process the save finished message.
virtual void	processRestoreReply (const DtRestoreReplyMsg &msg)
	Process the restore reply message.
virtual void	processRestoreEnd (const DtRestoreEndMsg &msg)
	Process the restore end message.
virtual void	processRestoreInitiate (const DtRestoreInitiateMsg &msg)
	Process the restore initiate message.
virtual void	processRestore (const DtRestoreMsg &msg)
	Process the restore message.
virtual void	processNewFomClassesMsg (const DtNewFomClassesMsg &msg)
	Process message indicating new FOM classes have been added via FOM module merging.
SendMessages
Send messages of different types
virtual void	sendCreateMsg (MAKRti::DtString const &fedExNameVal, MAKRti::DtString const &timeImplName, const std::vector< unsigned int > &moduleCrcs, MAKRti::DtFomType fedType, MAKRti::DtString const &momModuleName, const std::vector< MAKRti::DtString > &fomModules, unsigned int momModuleCrc)
	Send create federation message.
virtual void	sendDestroyMsg (const char *name)
	Send destroy federation message.
virtual void	sendJoinMsg (unsigned long sourceID, unsigned short requestID, const char *fedType, const char *fedExName, const char *fedName, const std::vector< MAKRti::DtString > &fomModules, const unsigned long flags, const std::vector< unsigned int > &joinModulesCrcs)
	Send join federation message.
virtual void	sendJoinConfirmMsg (unsigned long sourceID, DtJoinConfirmMsg::errorCodes errorCode)
	Send join federation confirm message.
virtual void	sendSyncPointMsg (DtSyncMsgType kind, DtFederateHandle &id, char const *name, char const *tag=NULL, DtFederateHandleSet const *set=NULL)
	Send synchronization point message.
virtual void	sendSaveRequestMsg (unsigned long requestID, const char *label)
	Send save federation request message.
virtual void	sendSaveBegunMsg ()
	Send save federate begun message.
virtual void	sendSaveCompleteMsg (const char *label, bool success)
	Send federate complete message.
virtual void	sendRestoreRequestMsg (const char *label)
	Send restore federation request message.
virtual void	sendRestoreBegunMsg (const char *label, DtResponseFlag response)
	Send restore federate begun message.
virtual void	sendRestoreCompleteMsg (const char *label, bool success)
	Send restore federate complete message.
SaveRestoreHelpers
Helper methods to process save and restore
virtual void	initiateSave ()
	Perform the actual save possibly after waiting to enter time advancing state.
virtual void	initiateTimedSave (RTI::FedTime const &saveTime)
	Perform the actual save possibly after waiting to enter time advancing state.
virtual bool	saveLRC (DtRtiSaveFile &saveFile)
	Save the LRC state information.
virtual bool	save (DtRtiSaveFile &file)
	Save the federation manager state information to the given file.
virtual void	prepareToRestoreLRC ()
	Prepare the state information of the LRC for a restore (may include a back up save in case restore fails).
virtual bool	restoreLRC (DtRtiSaveFile &saveFile)
	Restore the LRC state information Return bool: restore successful?
virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data).
virtual bool	restore (DtRtiSaveFile &file)
	Restore the federation manager state information from the given file.
Protected Member Functions inherited from DtFederateMgr
	DtFederateMgr (DtRIDParameters *params, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Constructor.
virtual void	sendAlive ()
	Send the alive message.
virtual void	sendResignMsg (const char *fedExName, DtFederateHandle fedHandle, DtResignAction action)
	Send the resign message.
void	sendTickedMsg ()
	Send the signal ticked message.
virtual MAKRti::DtFilename	fedFileNameToUse (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Utility function, finds fed file name to use based on fed file name and exeution name.
virtual void	testReadFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Attempts to read a fed file but does not fill in the fom class.
virtual void	readFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Reads a FED file into a DtFomClassMgr object.
virtual void	readFedFilePtr (const FILE *fp, const MAKRti::DtString &fileName, const MAKRti::DtString &executionName)
	Reads a FED file into a DtFomClassMgr object.
virtual void	addFedExNameMapping (const MAKRti::DtString &execName, const MAKRti::DtString &timeImplName, const MAKRti::DtString &fed)
	Add mapping between federation execution name, time Impl Name and fed file name.
virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const std::vector< MAKRti::DtString > &modules)
virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const MAKRti::DtString &modules)
virtual DtResignAction	testResign (RTI::ResignAction theAction)
	Test the resign action and return the internal representation.
virtual MAKRti::DtResignAction	convertResignAction (RTI::ResignAction) const
virtual RTI::ResignAction	convertResignAction (MAKRti::DtResignAction) const
DtFedReader *	getReader (DtFomType theFomType, DtFomClassMgr *target)
void	addToParsedFomMap (DtFedReader *myFedReader, const MAKRti::DtString &fileNameToUse, DtFomClassMgr *fedTarget, unsigned long theCrc=0)
virtual void	processResign (const DtResignMsg &msg)
	Process resign message.
virtual void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg)
	disable network testing
virtual void	processAssistantResign (const DtAssistantExitMsg &msg)
	Process resign message from Assistant.
virtual void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg)
	Process resign message from Assistant.
virtual void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg)
	Process a change in the interval at which a federate is expected to tick.
virtual void	processRidParamRequest (const DtAssistantRidParamsMsg &msg)
	Process a RID parameter request from the Assistant.
virtual void	createObjectMgr ()
	Create the Object Manager.
virtual void	createInteractionMgr ()
	Create the Interaction Manager.
virtual void	createDdmMgr ()
	Create the DDM Manager.
virtual void	createTimeMgr ()
	Create the Time manager.
virtual void	createMomMgr ()
	Create the MOM Manager.
virtual void	createTestMgr ()
	Create the test Manager.

Protected Attributes
std::map< DtString, DtSynchronousFileDistributor * >	myDistributors
	federate Fed File Distributors.
DtSynchronousFileDistributor *	myJoinDistributor
	The Fed File Distributor of the joined federation execution.
DtCreateResponseFlag	myCreateResponse
	Status of create federation.
MAKRti::DtString	myCreateResponseErrorString
	Error String of create federation.
DtDestroyResponseFlag	myDestroyResponse
	Status of destroy federation.
DtJoinResponseMsg *	myJoinResponse
	Copy of join response.
DtJoinConfirmMsg::errorCodes	myJoinConfirmResponse
	Status of join confirm.
MAKRti::DtString	myDestroyExecutionName
	Name of federation to destroy.
bool	myFedFileRequest
	Status of fed file request.
std::vector< MAKRti::DtString >	myFomModuleRequests
	Queue of modules requested.
unsigned short	myJoinRequestID
	Join request ID.
unsigned long	mySaveRequestID
	Save request ID.
DtSaveResponseFlag	mySaveResponse
	Save response status.
MAKRti::DtHashList	mySyncPoints
	MAKRti::DtHashList of DtStringHashKeys representing synch point names that have been announced to us.
std::string *	myFailedSyncPointLabel
	Failed sync point request.
DtFederateHandle	myOldFedHandle
	during a restore the fedhandle changes.
bool	myIsDesignatedFederate
	This federate LRC is designated for handling some federation wide tasks (e.g., MOM Federation attribute ownership)
vrlmod::DtThreadedObject *	myDistributorThread
	Should we use local or distributed fed file?
bool	myAsynchronousDistributor
std::map< MAKRti::DtString, DtFileInformation * >	myTakenFiles
	When files are received from distributor, store them here until requester takes them.
std::list< DtNewFomClassesMsg * >	myNewFomClassMsgs
	Queue of FOM class messages to be processed after we join.
DtFedReader13 *	myFedReader13
DtFedReader1516 *	myFedReader1516
DtFedReader1516e *	myFedReader1516e
MAKRti::DtFilename	myStandardMimPath
bool	myFullFedFileDistribution
Protected Attributes inherited from DtFederateMgr
RTI::RTIambassador *	myRtiAmb
	The federate's RTI Ambassador.
DtRtiAmbassadorBaseImplementor *	myAmbImpl
	The federate's RTI Ambassador Implementor.
MAKRti::DtTime	myResponseInterval
	Interval to wait for response message during a message protocol.
MAKRti::DtString	myFedExName
	Federation execution name.
unsigned long	myFedExHandle
	Federation handle.
MAKRti::DtString	myFedType
	Federate type.
MAKRti::DtString	myFedName
	Federate name.
DtFederateHandle	myFedHandle
	Federate handle.
MAKRti::DtString	myCurrentFedFileName
	Current FED/FDD file name.
MAKRti::DtString	myMimName
	MIM name.
MAKRti::DtString	myCurrentTimeImplName
	Current time implementation name.
MAKRti::DtTime	myLastHeartbeat
	Time of last heartbeat.
DtLogicalTimeFactory *	myLogicalTimeFactory
	Logical time factory Even if NULL, need to have this factory.
RTI::FedTimeFactory	myHlaTimeFactory
DtFedAmbWrapper *	myPrinter
	Prints data for federate ambassador calls.
DtFedAmbWrapper *	myFedAmbCatch
	Catches exceptions from federate ambassador calls.
DtRIDParameters *	myParams
	Initialization data.
DtFedReader *	myFedReader
	Temporary internal reader used until changes made to VR-Link fed reader.
DtFedReader *	myFedReader13
DtFedReader *	myFedReader1516
DtFedReader *	myFedReader1516e
MAKRti::DtList	myMappingList
	List of federation execution names with FED files names and time implementation names.
std::map< MAKRti::DtString, std::set< MAKRti::DtString > >	myFedFileNames
std::map< MAKRti::DtString, DtFomClassMgr * >	myParsedFoms
	Map containing FOMs parsed into FedTargets.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	Manages the connection to the RTI Assistant.
bool	myIgnoreForcedResign
	Prevents forcing duplicate resign.
bool	myForcedToResign
	Indicates forced resign occured.
MAKRti::DtClock	myClock
	Clock for timing.
unsigned long	myTickCount
	Tick counter.
bool	myIsTicking
	indicates currently processing tick
bool	myEnableFederateHeartbeat
	is heartbeating enabled?
bool	myConnectedToWebServer
	This is set when the federate connects to the web server.
unsigned long	myFlags
DtTestManager *	myTestMgr
bool	myNetworkTestEnabled
float	mySignalTickInterval
	The Signal Tick Interval.
DtTime	myLastTickTime
	The last tick time.
DtPostTickCallbackMap	myPostTickCallbacks
MAKRti::DtResignAction	myResignAction
	The resign action.
DtConnectionMgr *	myConnectMgr
	The connection manager.
DtFomClassMgr *	myFom
	The FOM manager.
DtInteractionMgr *	myInterMgr
	The interaction manager.
DtObjectMgr *	myObjMgr
	The object manager.
DtMomMgr *	myMomMgr
	The MOM manager.
bool	mySaveInitiated
	Indicates save initiated.
bool	mySaveBegun
	Indicates save begun.
bool	myRestoreRequested
	Indicates restore requested.
bool	myRestoreInitiated
	Indicates restore initiated.
bool	myRestoreBegun
	Indicates restore begun.
MAKRti::DtString	mySaveLabel
	The save label.
MAKRti::DtString	myLastSaveLabel
	The last save label.
MAKRti::DtString	myRestoreLabel
	The restore label.
MAKRti::DtString	myLastRestoreLabel
	The last restore label.

Private Member Functions
	DtRtiExecFederateMgr (DtFederateMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtRtiExecFederateMgr &	operator= (DtRtiExecFederateMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Additional Inherited Members
Public Types inherited from DtFederateMgr
typedef DtFederateMgr *(*	DtFederateMgrCreator )(DtRIDParameters *ridParams, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Federate manager creator.
typedef void(*	DtFedMgrPostTickCallbackFcn )(void *)
typedef std::pair < DtFedMgrPostTickCallbackFcn, void * >	DtFedMgrPostTickCallbackInfo
typedef std::map < MAKRti::DtString, DtFedMgrPostTickCallbackInfo >	DtPostTickCallbackMap
Static Protected Member Functions inherited from DtFederateMgr
static void	processResign (const DtResignMsg &msg, void *usr)
	resign message callback
static void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg, void *usr)
	process enable / disable network testing callback
static void	processSaveInitiate (const DtSaveInitiateMsg &msg, void *usr)
	save initiate message callback
static void	processSaveResponse (const DtSaveResponseMsg &msg, void *usr)
	save response message callback
static void	processSaveFinished (const DtSaveFinishedMsg &msg, void *usr)
	save finished message callback
static void	processRestoreReply (const DtRestoreReplyMsg &msg, void *usr)
	restore reply message callback
static void	processRestore (const DtRestoreMsg &msg, void *usr)
	restore message callback
static void	processRestoreInitiate (const DtRestoreInitiateMsg &msg, void *usr)
	restore initiate message callback
static void	processRestoreEnd (const DtRestoreEndMsg &msg, void *usr)
	restore end message callback
static void	processAssistantResign (const DtAssistantExitMsg &msg, void *usr)
	Assistant resign message callback.
static void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg, void *usr)
	Assistant logging enable message callback.
static void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg, void *usr)
	Assistant signal tick interval message callback.
static void	processRidParamRequest (const DtAssistantRidParamsMsg &msg, void *usr)
	Assistant RID parameter request message callback.
Static Protected Attributes inherited from DtFederateMgr
static DtFederateMgrCreator	theCreator = 0
	The plugin creator.
static DtFederateMgrCreator	theInternalCreator = 0
	The internal creator.

Detailed Description

Instances of DtRtiExecFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) for HLA applications that are using the rtiexec.

It also manages the manager objects responsible for handling general communication, objects, interactions, the FOM, MOM, and data distribution mmg. Override this class if you want to change how federation-level messages get processed. To inspect federation data, users can obtain a pointer to an instance of this class through the RTI's DtRtiAmbassadorImplementor pointer.

Constructor & Destructor Documentation

DtRtiExecFederateMgr::DtRtiExecFederateMgr	(	DtRIDParameters *	params,
		DtRtiAmbassadorBaseImplementor *	ambImplPtr,
		DtConnectionMgr *	connMgr,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient
	)

Constructor.

References myFullFedFileDistribution.

Referenced by create().

DtRtiExecFederateMgr::~DtRtiExecFederateMgr ( )

virtual

Destructor.

References DtFederateMgr::connectMgr(), distributeFedFile, fomModuleMerging, myDistributors, myFedReader13, myFedReader1516, myFedReader1516e, myJoinResponse, mySyncPoints, myTakenFiles, DtFederateMgr::params(), processDesignatedFederateMsg(), processFomModuleFileRequestMsg(), processJoinResponseMsg(), processNewFomClassesMsg(), processSyncPointMsg(), DtDesignatedFederateMsg::removeCallback(), DtReportFederationsMsg::removeCallback(), DtFomModuleRequestMsg::removeCallback(), DtSyncPointMsg::removeCallback(), and DtJoinResponseMsg::removeCallback().

DtRtiExecFederateMgr::DtRtiExecFederateMgr ( DtFederateMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtRtiExecFederateMgr::appendFomModule ( std::vector< MAKRti::DtString > &  target, MAKRti::DtString const &  source  )

protected

Append the source FED file name into the target list, stripping the path name as it is appended into the target.

Referenced by createFederationExecution().

void DtRtiExecFederateMgr::appendFomModules ( std::vector< MAKRti::DtString > &  target, std::vector< MAKRti::DtString > const &  source  )

protected

Append the source FED file names into the target list, stripping the path names as they are appended into the target.

Referenced by createFederationExecution().

void DtRtiExecFederateMgr::applyRidParameters ( )

protectedvirtual

Apply RID parameters.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtConnectionMgr::enableSmartForwarding(), initRidTester(), DtRIDParameters::maxNumFederates, DtFederateMgr::myParams, and DtRIDParameters::ridConsistencyChecking().

void DtRtiExecFederateMgr::checkJoinResponse ( )

protected

Check the join response and throw appropriate exception on error.

References DtFederateMgr::connectMgr(), DtJoinResponseMsg::DT_FAILED_TO_GET_LICENSE, DtJoinResponseMsg::DT_FED_FILE_MERGE_PROBLEM, DtJoinResponseMsg::DT_FED_FILE_NOT_READY, DtJoinResponseMsg::DT_FEDEX_DOES_NOT_EXIST, DtJoinResponseMsg::DT_MAX_FEDERATES_JOINED, DtJoinResponseMsg::DT_NAME_IN_USE, DtJoinResponseMsg::DT_NO_ERROR, DtJoinResponseMsg::DT_PARTNER_TAKEN, DtJoinResponseMsg::DT_RESTORE_IN_PROGRESS, DtJoinResponseMsg::DT_RTIEXEC_LICENSING_PARAM_MISMATCH, DtJoinResponseMsg::DT_SAVE_IN_PROGRESS, DtJoinResponseMsg::DT_TYPE_CONFLICT, DtJoinConfirmMsg::DtTimedOut, DtToWString(), DtJoinResponseMsg::errorString(), DtJoinResponseMsg::errorValue(), handleFailedJoin(), DtFederateMgr::myFedName, myJoinResponse, DtAssistantPopupHelper::popupAssistantMessage(), processJoinResponseMsg(), and DtJoinResponseMsg::removeCallback().

DtFederateMgr * DtRtiExecFederateMgr::create ( DtRIDParameters *  params, DtRtiAmbassadorBaseImplementor *  ambImplPtr, DtConnectionMgr *  connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient >  assistantClient  )

static

Creates an instance of this derived class;.

Reimplemented from DtFederateMgr.

References DtRtiExecFederateMgr().

Referenced by DtRtiAmbassadorBaseImplementor::completeConnection(), and mergeFomModules().

void DtRtiExecFederateMgr::createFederationExecution ( const char *  executionName, const char *  timeImplName, const char *  fed  )

virtual

Process the create federation execution service.

Implements DtFederateMgr.

References DtCreateResponseMsg::addCallback(), DtFederateMgr::addFedExNameMapping(), DtFederateMgr::addFomModuleNameMapping(), appendFomModule(), appendFomModules(), DtFederateMgr::connectMgr(), distributeFedFile, DtCRWaiting, DtToWString(), getCrcsOfFoms(), initializeDistributor(), DtRIDParameters::momModuleExtensionFileName, momModuleExtensionFileName, myCreateResponse, DtFederateMgr::myFedExName, DtFederateMgr::myFedReader, DtFederateMgr::myParsedFoms, DtFederateMgr::params(), DtAssistantPopupHelper::popupAssistantMessage(), processCreateResponseMsg(), sendCreateMsg(), DtFederateMgr::testReadFedFile(), testReadFomModules(), and waitForCreateResponse().

void DtRtiExecFederateMgr::destroyFederationExecution ( const char *  executionName )

virtual

Process the destroy federation execution service.

Implements DtFederateMgr.

References DtDestroyResponseMsg::addCallback(), DtFederateMgr::connectMgr(), DtDRExecDestroyed, DtDRExecDoesNotExist, DtDRFederatesJoined, DtDRWaiting, DtToWString(), DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), interval, DtFederateMgr::myClock, myDestroyExecutionName, myDestroyResponse, DtFederateMgr::myFedExName, DtFederateMgr::params(), DtAssistantPopupHelper::popupAssistantMessage(), processDestroyResponseMsg(), DtDestroyResponseMsg::removeCallback(), DtRIDParameters::responseInterval, sendDestroyMsg(), DtConnectionMgr::tick(), and DtConnectionMgr::yield().

std::map< DtString, DtSynchronousFileDistributor * > DtRtiExecFederateMgr::distributors

(

)

Access to the file distributor.

References myDistributors.

Referenced by initializeFOM(), waitForCreateResponse(), and waitForJoinResponse().

std::map< DtString, DtSynchronousFileDistributor * > DtRtiExecFederateMgr::distributors

(

)

const

References myDistributors.

void DtRtiExecFederateMgr::federateRestoreComplete ( )

virtual

Process the federate restore complete service.

Implements DtFederateMgr.

References DtFederateMgr::myRestoreLabel, and sendRestoreCompleteMsg().

void DtRtiExecFederateMgr::federateRestoreNotComplete ( )

virtual

Process the federate restore complete service.

Implements DtFederateMgr.

References DtFederateMgr::myRestoreLabel, and sendRestoreCompleteMsg().

Referenced by processRestoreInitiate().

void DtRtiExecFederateMgr::federateSaveBegun ( )

virtual

Process the federate save begun service.

Implements DtFederateMgr.

References DtFederateMgr::mySaveBegun, and sendSaveBegunMsg().

void DtRtiExecFederateMgr::federateSaveComplete ( )

virtual

Process the federate save complete service.

Implements DtFederateMgr.

References DtFederateMgr::federateHandle(), DtRtiSaveFile::fileName(), DtFederateMgr::getSaveFileName(), DtFederateMgr::myLastSaveLabel, DtFederateMgr::mySaveBegun, DtFederateMgr::mySaveLabel, saveLRC(), and sendSaveCompleteMsg().

void DtRtiExecFederateMgr::federateSaveNotComplete ( )

virtual

Process the federate save complete service.

Implements DtFederateMgr.

References DtFederateMgr::connectMgr(), DtFederateMgr::mySaveInitiated, DtFederateMgr::mySaveLabel, sendSaveCompleteMsg(), and DtConnectionMgr::setSaveInProgress().

Referenced by initiateSave().

bool DtRtiExecFederateMgr::findFedFileNameFromMapping ( const MAKRti::DtString  execName, const std::vector< MAKRti::DtString > &  orig, std::vector< MAKRti::DtString > &  namesToUse  ) const

protectedvirtual

Find the full FED file path from the stripped name.

References DtFederateMgr::myFedFileNames.

Referenced by initializeFOM(), waitForCreateResponse(), and waitForJoinResponse().

void DtRtiExecFederateMgr::getCrcsOfFoms ( std::vector< unsigned int > &  moduleCrcs, const std::vector< MAKRti::DtString > &  creationFomModuleNames  )

protected

References DtFederateMgr::myParsedFoms.

Referenced by createFederationExecution().

DtFedReader * DtRtiExecFederateMgr::getReader ( DtFomType  theFomType )

protected

Reimplemented from DtFederateMgr.

References DtFederateMgr::myFedReader, myFedReader13, myFedReader1516, myFedReader1516e, and NULL.

Referenced by mergeFomModules(), and testReadFomModules().

MAKRti::DtFilename & DtRtiExecFederateMgr::getStandardMimPath ( )

protected

References DtRtiLibPath(), and myStandardMimPath.

Referenced by isFomAvailable(), and mergeFomModules().

void DtRtiExecFederateMgr::handleFailedJoin ( unsigned long  sourceID, DtJoinConfirmMsg::errorCodes  code  )

protectedvirtual

Handle the join failure before throwing an exception.

References DtFederateMgr::connectMgr(), DtFederateMgr::myFedExHandle, DtFederateMgr::myFedHandle, processJoinResponseMsg(), DtJoinResponseMsg::removeCallback(), and sendJoinConfirmMsg().

Referenced by checkJoinResponse(), initializeFOM(), initializeTimeFactory(), and waitForJoinResponse().

void DtRtiExecFederateMgr::init ( )

virtual

Virtual initialization within create.

Reimplemented from DtFederateMgr.

References DtReportFederationsMsg::addCallback(), DtFomModuleRequestMsg::addCallback(), DtFederateMgr::connectMgr(), distributeFedFile, DtFederateMgr::params(), and processFomModuleFileRequestMsg().

void DtRtiExecFederateMgr::initializeDistributor ( const char *  executionName )

protectedvirtual

This function will create the distributor if necessary and initialize it.

References distributeFedFile, DtFederateMgr::myConnectMgr, myDistributors, myFedFileRequest, and DtFederateMgr::params().

Referenced by createFederationExecution().

void DtRtiExecFederateMgr::initializeFOM ( const char *  executionName )

protectedvirtual

Initialize the FOM.

References DtFederateMgr::addFedExNameMapping(), DtFederateMgr::connectMgr(), DtRIDParameters::crcCheckFedFile, DtLibRTIUtil::crcOfBuff(), DtJoinResponseMsg::crcOfFedFile(), distributeFedFile, distributors(), DtJoinConfirmMsg::DtFomError, DtToString(), DtToWString(), findFedFileNameFromMapping(), DtRIDParameters::fomModuleMerging, fomModuleMerging, DtJoinResponseMsg::fullFedExName(), DtJoinResponseMsg::getFomModuleNames(), handleFailedJoin(), mergeFomModules(), DtJoinResponseMsg::momModuleName(), DtFederateMgr::myFedReader, myFullFedFileDistribution, myJoinResponse, DtFederateMgr::params(), populateWithUnknownFoms(), DtAssistantPopupHelper::popupAssistantMessage(), DtFederateMgr::readFedFile(), DtFederateMgr::setCurrentFedFileName(), DtFederateMgr::setMimName(), and DtJoinResponseMsg::timeImplName().

void DtRtiExecFederateMgr::initializeTimeFactory ( )

protectedvirtual

Initialize the time factory.

References DtFederateMgr::connectMgr(), DtJoinConfirmMsg::DtCouldNotCreateTimeFactory, DtToWString(), handleFailedJoin(), rti1516::LogicalTimeFactoryFactory::makeLogicalTimeFactory(), rti1516e::LogicalTimeFactoryFactory::makeLogicalTimeFactory(), DtFederateMgr::myHlaTimeFactory, myJoinResponse, DtFederateMgr::myLogicalTimeFactory, DtAssistantPopupHelper::popupAssistantMessage(), DtFederateMgr::setCurrentTimeImplName(), DtFederateMgr::timeFactory(), DtJoinResponseMsg::timeImplName(), and DtFederateMgr::timeImplName().

void DtRtiExecFederateMgr::initiateSave ( )

protectedvirtual

Perform the actual save possibly after waiting to enter time advancing state.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtConnectionMgr::fedAmb(), federateSaveNotComplete(), RTI::FederateAmbassador::initiateFederateSave(), DtFederateMgr::mySaveInitiated, DtFederateMgr::mySaveLabel, and DtConnectionMgr::setSaveInProgress().

Referenced by initiateTimedSave(), and processSaveInitiate().

void DtRtiExecFederateMgr::initiateTimedSave ( RTI::FedTime const &  saveTime )

protectedvirtual

Perform the actual save possibly after waiting to enter time advancing state.

Provide time of save.

Reimplemented from DtFederateMgr.

References initiateSave().

void DtRtiExecFederateMgr::initRidTester ( )

protectedvirtual

Initialize the RidTester.

References DtConnectionMgr::connectionId(), DtFederateMgr::connectMgr(), DtFederateMgr::myClock, DtFederateMgr::myConnectMgr, DtFederateMgr::myParams, DtRidFileTester::receivedResponse(), DtRIDParameters::responseInterval, DtRidFileTester::sendRequestForTesting(), DtConnectionMgr::tick(), DtFederateMgr::tick(), and DtConnectionMgr::yield().

Referenced by applyRidParameters().

bool DtRtiExecFederateMgr::isDesignatedFederate ( )

protectedvirtual

References myIsDesignatedFederate.

bool DtRtiExecFederateMgr::isFomAvailable ( const DtString &  fomName )

protected

References DtReadFile(), getStandardMimPath(), myTakenFiles, and DtLibRTIUtil::openFedFile().

Referenced by populateWithUnknownFoms().

DtSynchronousFileDistributor * DtRtiExecFederateMgr::joinDistributor

(

)

References myJoinDistributor.

Referenced by mergeFomModules(), and posttick().

DtSynchronousFileDistributor * DtRtiExecFederateMgr::joinDistributor

(

)

const

References myJoinDistributor.

RTI::FederateHandle DtRtiExecFederateMgr::joinFederationExecution ( const char *  yourName, const char *  executionName, RTI::FederateAmbassador *  federateAmbassadorReference, unsigned long  flags  )

virtual

Process the join federation execution service.

Implements DtFederateMgr.

References DtJoinResponseMsg::addCallback(), distributeFedFile, DtGENERATE_KEY, DtJoinConfirmMsg::DtNoError, fedFileName(), fomModuleMerging, and DtAssistantPopupHelper::popupAssistantMessage().

void DtRtiExecFederateMgr::mergeFomModules ( const std::vector< MAKRti::DtString > *  fomModules )

protectedvirtual

Merge the given FOM Modules into the current FOM.

References DtScopedNotifyLevelChange::changeNotifyLevel(), DtFomClassMgr::clone(), DtRIDParameters::crcCheckFedFile, DtLibRTIUtil::crcOfRTIFedFileContents(), create(), DtMergeFomStatusAlreadyPresentSuccess, DtMergeFomStatusFailedContent, DtMergeFomStatusFailedDimensions, DtMergeFomStatusFailedDTD, DtMergeFomStatusFailedInteractionClass, DtMergeFomStatusFailedObjectClass, DtMergeFomStatusFailedScaffolding, DtMergeFomStatusFailedSwitches, DtMergeFomStatusFailedTime, DtMergeFomStatusFailedTransportTypes, DtMergeFomStatusFailedUpdateRates, DtMergeFomStatusFailedUserDefinedTags, DtMergeFomStatusSuccess, DtToWString(), false, DtFileDistributor::fedFilePtr(), getReader(), getStandardMimPath(), joinDistributor(), DtFederateMgr::myFom, DtFederateMgr::myParsedFoms, NULL, DtLibRTIUtil::openFedFile(), DtFederateMgr::params(), and DtScopedNotifyLevelChange::restoreNotifyLevel().

Referenced by initializeFOM().

DtRtiExecFederateMgr& DtRtiExecFederateMgr::operator= ( DtRtiExecFederateMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

void DtRtiExecFederateMgr::populateWithUnknownFoms ( std::vector< DtString > &  mods, std::vector< DtString > &  requestedMods  )

protected

References isFomAvailable().

Referenced by initializeFOM().

void DtRtiExecFederateMgr::postJoinInit ( const char *  yourName, const char *  executionName, const char *  federateName, RTI::FederateAmbassador *  federateAmbassadorReference  )

protectedvirtual

Uses the given information to initialize federate data.

DtFomClassMgr needs to be initialized before this function is called.

Reimplemented from DtFederateMgr.

References DtDesignatedFederateMsg::addCallback(), DtSyncPointMsg::addCallback(), DtJoinConfirmMsg::DtNoError, and DtFederateMgr::postJoinInit().

void DtRtiExecFederateMgr::posttick ( )

protectedvirtual

Processing after a tick.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtRIDParameters::distributeFedFile, DtConnectionMgr::fedAmb(), DtRIDParameters::fomModuleMerging, DtSynchronousFileDistributor::getPushedFomModules(), joinDistributor(), myFailedSyncPointLabel, DtFederateMgr::params(), DtSynchronousFileDistributor::pullInProgress(), DtSynchronousFileDistributor::pushedFomModules(), rti1516::SYNCHRONIZATION_POINT_LABEL_NOT_UNIQUE, rti1516e::SYNCHRONIZATION_POINT_LABEL_NOT_UNIQUE, and RTI::FederateAmbassador::synchronizationPointRegistrationFailed().

void DtRtiExecFederateMgr::prepareToRestore ( )

protectedvirtual

Prepare the state information to be restored (i.e., clear out existing data).

Referenced by prepareToRestoreLRC().

void DtRtiExecFederateMgr::prepareToRestoreLRC ( )

protectedvirtual

Prepare the state information of the LRC for a restore (may include a back up save in case restore fails).

References DtFederateMgr::myFom, DtFederateMgr::myInterMgr, DtFederateMgr::myMomMgr, DtFederateMgr::myObjMgr, DtInteractionMgr::prepareToRestore(), DtFomClassMgr::prepareToRestore(), prepareToRestore(), and DtObjectMgr::prepareToRestore().

Referenced by processRestoreInitiate().

void DtRtiExecFederateMgr::processCreateResponseMsg ( const DtCreateResponseMsg &  msg )

protectedvirtual

Process create response message.

References DtConnectionMgr::connectionId(), DtFederateMgr::connectMgr(), DtCreateResponseMsg::destinationID(), DtCreateResponseMsg::errorString(), myCreateResponse, myCreateResponseErrorString, and DtCreateResponseMsg::responseFlag().

Referenced by createFederationExecution(), and waitForCreateResponse().

void DtRtiExecFederateMgr::processCreateResponseMsg ( const DtCreateResponseMsg &  msg, void *  usr  )

static

Create response message callback.

void DtRtiExecFederateMgr::processDesignatedFederateMsg ( const DtDesignatedFederateMsg &  msg )

protectedvirtual

Process designated federate message.

References DtFederateMgr::connectMgr(), DtDesignatedFederateMsg::designatedFederate(), DtConnectionMgr::fedHandle(), DtFederateMgr::myMomMgr, and setDesignatedFederate().

Referenced by ~DtRtiExecFederateMgr().

void DtRtiExecFederateMgr::processDesignatedFederateMsg ( const DtDesignatedFederateMsg &  msg, void *  usr  )

static

designated federate message callback

void DtRtiExecFederateMgr::processDestroyResponseMsg ( const DtDestroyResponseMsg &  msg )

protectedvirtual

Process destroy response message.

References DtDestroyResponseMsg::fullFedExName(), myDestroyExecutionName, myDestroyResponse, and DtDestroyResponseMsg::responseFlag().

Referenced by destroyFederationExecution().

void DtRtiExecFederateMgr::processDestroyResponseMsg ( const DtDestroyResponseMsg &  msg, void *  usr  )

static

Destroy response message callback.

void DtRtiExecFederateMgr::processFomModuleFileRequestMsg ( const DtFomModuleRequestMsg &  msg )

protectedvirtual

Process Fom Module file distribution message.

References DtConnectionMgr::connectionId(), DtFederateMgr::connectMgr(), DtFomModuleRequestMsg::destinationID(), distributeFedFile, DtFomModuleRequestMsg::getFomModuleNames(), myFedFileRequest, myFomModuleRequests, and DtFederateMgr::params().

Referenced by init(), and ~DtRtiExecFederateMgr().

void DtRtiExecFederateMgr::processFomModuleFileRequestMsg ( const DtFomModuleRequestMsg &  msg, void *  usr  )

static

Fom Module file distribution message callback.

void DtRtiExecFederateMgr::processJoinResponseMsg ( const DtJoinResponseMsg &  msg )

protectedvirtual

Process join response message.

References DtFederateMgr::assistantClient(), DtJoinResponseMsg::clone(), DtFederateMgr::connectMgr(), DtJoinResponseMsg::destinationID(), DtJoinResponseMsg::DT_CRC_FAILURE, DtJoinResponseMsg::errorString(), DtJoinResponseMsg::errorValue(), DtJoinResponseMsg::federateHandleToUse(), DtJoinResponseMsg::federateName(), DtJoinResponseMsg::getFederateNamesAndHandles(), myJoinRequestID, myJoinResponse, NULL, DtJoinResponseMsg::printData(), DtJoinResponseMsg::requestID(), DtRtiAssistantLrcClient::sendClientInfo(), and DtRtiAssistantLrcClient::updateFederateName().

Referenced by checkJoinResponse(), handleFailedJoin(), and ~DtRtiExecFederateMgr().

void DtRtiExecFederateMgr::processJoinResponseMsg ( const DtJoinResponseMsg &  msg, void *  usr  )

static

Join response message callback.

void DtRtiExecFederateMgr::processNewFomClasses ( const DtNewFomClassesMsg &  msg )

protectedvirtual

Takes note of any FOM classes added after we have joined.

This is so that we can tell what the parentage of any new classes are, so that we can discover new objects of those classes as their appropriate parent classes.

References DtFomClassMgr::addClassHdlForUnknownClass(), DtFomClassMgr::addInteractionHdlForUnknownClass(), DtFederateMgr::federateHandle(), and DtFederateMgr::fom().

Referenced by processNewFomClassesMsg().

void DtRtiExecFederateMgr::processNewFomClassesMsg ( const DtNewFomClassesMsg &  msg )

protectedvirtual

Process message indicating new FOM classes have been added via FOM module merging.

References DtRtiMsg::clone(), DtFederateMgr::isJoined(), myNewFomClassMsgs, and processNewFomClasses().

Referenced by ~DtRtiExecFederateMgr().

void DtRtiExecFederateMgr::processNewFomClassesMsg ( const DtNewFomClassesMsg &  msg, void *  usr  )

static

Callback for message indicating new FOM classes have been added via FOM module merging.

void DtRtiExecFederateMgr::processRestore ( const DtRestoreMsg &  msg )

protectedvirtual

Process the restore message.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtResponseFail, DtResponseSuccess, enableSaveRestoreWhenUsingRtiexec, DtConnectionMgr::fedAmb(), RTI::FederateAmbassador::federationRestoreBegun(), DtSaveMsg::label(), DtFederateMgr::myRestoreBegun, DtFederateMgr::myRestoreLabel, DtFederateMgr::params(), sendRestoreBegunMsg(), DtConnectionMgr::setRestoreInProgress(), and useRtiExec.

void DtRtiExecFederateMgr::processRestoreEnd ( const DtRestoreEndMsg &  msg )

protectedvirtual

Process the restore end message.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtRestoreResultAborted, DtRestoreResultFailureDetected, DtRestoreResultFederateFailure, DtRestoreResultFederateResigned, DtRestoreResultSucess, DtRestoreResultUnableToRestore, DtConnectionMgr::emptyPendingMsgList(), enableSaveRestoreWhenUsingRtiexec, DtRestoreEndMsg::endResult(), DtConnectionMgr::fedAmb(), rti1516::FEDERATE_REPORTED_FAILURE_DURING_RESTORE, rti1516::FEDERATE_RESIGNED_DURING_RESTORE, RTI::FederateAmbassador::federationNotRestored(), RTI::FederateAmbassador::federationRestored(), DtFederateMgr::myFedHandle, myOldFedHandle, DtFederateMgr::myRestoreBegun, DtFederateMgr::myRestoreInitiated, DtFederateMgr::myRestoreRequested, DtFederateMgr::params(), rti1516e::RESTORE_ABORTED, rti1516::RTI_DETECTED_FAILURE_DURING_RESTORE, rti1516::RTI_UNABLE_TO_RESTORE, DtConnectionMgr::setFederateHandle(), DtConnectionMgr::setRestoreInProgress(), and useRtiExec.

void DtRtiExecFederateMgr::processRestoreInitiate ( const DtRestoreInitiateMsg &  msg )

protectedvirtual

Process the restore initiate message.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtToWString(), enableSaveRestoreWhenUsingRtiexec, DtConnectionMgr::fedAmb(), DtFederateMgr::federateHandle(), federateRestoreNotComplete(), DtFederateMgr::getRestoreFileName(), RTI::FederateAmbassador::initiateFederateRestore(), DtFederateMgr::myFedHandle, DtFederateMgr::myFedName, DtFederateMgr::myRestoreInitiated, DtFederateMgr::myRestoreLabel, DtRestoreInitiateMsg::newHandle(), DtRestoreInitiateMsg::oldHandle(), DtFederateMgr::params(), prepareToRestoreLRC(), restoreLRC(), and useRtiExec.

void DtRtiExecFederateMgr::processRestoreReply ( const DtRestoreReplyMsg &  msg )

protectedvirtual

Process the restore reply message.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtRestoreReplyMsg::destinationID(), DtRestoreReplyMsg::DT_RESTORE_IN_PROCESS, DtRestoreReplyMsg::DT_RESTORE_NO_LABEL, DtRestoreReplyMsg::DT_RESTORE_OK, DtRestoreReplyMsg::DT_RESTORE_WRONG_CONFIG, DtToWString(), enableSaveRestoreWhenUsingRtiexec, DtConnectionMgr::fedAmb(), DtRestoreReplyMsg::label(), DtFederateMgr::myFedHandle, DtFederateMgr::params(), DtRestoreReplyMsg::reply(), RTI::FederateAmbassador::requestFederationRestoreFailed(), RTI::FederateAmbassador::requestFederationRestoreSucceeded(), and useRtiExec.

void DtRtiExecFederateMgr::processSaveFinished ( const DtSaveFinishedMsg &  msg )

protectedvirtual

Process the save finished message.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtSaveFinishedAborted, DtSaveFinishedFailureDetected, DtSaveFinishedFederateFailure, DtSaveFinishedFederateResigned, DtSaveFinishedInvalidSaveTime, DtSaveFinishedRtiUnableToSave, DtSaveFinishedSuccess, enableSaveRestoreWhenUsingRtiexec, DtConnectionMgr::fedAmb(), rti1516::FEDERATE_REPORTED_FAILURE_DURING_SAVE, rti1516::FEDERATE_RESIGNED_DURING_SAVE, RTI::FederateAmbassador::federationNotSaved(), RTI::FederateAmbassador::federationSaved(), DtSaveFinishedMsg::finishedResult(), DtFederateMgr::mySaveBegun, DtFederateMgr::mySaveInitiated, DtFederateMgr::params(), rti1516::RTI_DETECTED_FAILURE_DURING_SAVE, rti1516::RTI_UNABLE_TO_SAVE, rti1516e::SAVE_ABORTED, rti1516::SAVE_TIME_CANNOT_BE_HONORED, DtConnectionMgr::setSaveInProgress(), and useRtiExec.

void DtRtiExecFederateMgr::processSaveInitiate ( const DtSaveInitiateMsg &  msg )

protectedvirtual

Process the save initiate message.

Reimplemented from DtFederateMgr.

References DtSaveMsg::label().

void DtRtiExecFederateMgr::processSaveInitiate ( const char *  label )

protectedvirtual

Process the save initiate.

References enableSaveRestoreWhenUsingRtiexec, initiateSave(), DtFederateMgr::mySaveLabel, DtFederateMgr::params(), and useRtiExec.

void DtRtiExecFederateMgr::processSaveResponse ( const DtSaveResponseMsg &  msg )

protectedvirtual

Process the save response message.

Reimplemented from DtFederateMgr.

References DtFederateMgr::connectMgr(), DtConnectionMgr::fedHandle(), mySaveRequestID, mySaveResponse, DtSaveResponseMsg::requestID(), DtSaveResponseMsg::requestingFederate(), and DtSaveResponseMsg::responseFlag().

void DtRtiExecFederateMgr::processSyncPointMsg ( const DtSyncPointMsg &  msg )

protectedvirtual

Process a sync point message.

References RTI::FederateAmbassador::announceSynchronizationPoint(), DtFederateMgr::connectMgr(), DtAchieved, DtAnnouncePt, DtRegister, DtSynchronized, DtSyncPointRegFailed, DtSyncPointRegSucceeded, DtSyncStatusFailLabelNotUnique, DtSyncStatusFailMemberNotJoined, DtSyncStatusFailResignDuringSync, DtSyncStatusFailRtiInternal, DtSyncStatusFailTimeNotHonored, DtToWString(), DtConnectionMgr::fedAmb(), rti1516::FEDERATE_RESIGNED_DURING_SYNCHRONIZATION, DtSyncPointMsg::federateId(), DtSyncPointMsg::federates(), RTI::FederateAmbassador::federationSynchronized(), DtSyncPointMsg::getFederates(), DtSyncPointMsg::getUnsuccessfulFederates(), DtRtiMsg::isForExec(), DtFederateMgr::myFedExHandle, DtFederateMgr::myFedExName, DtFederateMgr::myFedHandle, mySyncPoints, rti1516::RTI_DETECTED_FAILURE_DURING_SYNCHRONIZATION, rti1516::SYNCHRONIZATION_POINT_LABEL_NOT_UNIQUE, rti1516::SYNCHRONIZATION_SET_MEMBER_NOT_JOINED, rti1516::SYNCHRONIZATION_TIME_CANNOT_BE_HONORED, RTI::FederateAmbassador::synchronizationPointRegistrationFailed(), RTI::FederateAmbassador::synchronizationPointRegistrationSucceeded(), DtSyncPointMsg::syncMsgKind(), DtSyncPointMsg::syncPointName(), DtSyncPointMsg::syncPointStatus(), DtSyncPointMsg::tag(), and DtRtiMsg::theDefaultTag.

Referenced by ~DtRtiExecFederateMgr().

void DtRtiExecFederateMgr::processSyncPointMsg ( const DtSyncPointMsg &  msg, void *  usr  )

static

sync point message callback

void DtRtiExecFederateMgr::registerFederationSynchronizationPoint ( char const *  label, char const *  theTag  )

virtual

Process the register synchronization point service.

Implements DtFederateMgr.

References DtRegister, myFailedSyncPointLabel, DtFederateMgr::myFedHandle, mySyncPoints, and sendSyncPointMsg().

void DtRtiExecFederateMgr::registerFederationSynchronizationPoint ( char const *  label, char const *  theTag, DtFederateHandleSet const &  syncSet  )

virtual

Process the register synchronization point service.

Implements DtFederateMgr.

References DtRegister, myFailedSyncPointLabel, DtFederateMgr::myFedHandle, mySyncPoints, and sendSyncPointMsg().

void DtRtiExecFederateMgr::requestFederationRestore ( const char *  label )

virtual

Process the request federation restore service.

Implements DtFederateMgr.

References DtFederateMgr::myRestoreLabel, DtFederateMgr::myRestoreRequested, and sendRestoreRequestMsg().

void DtRtiExecFederateMgr::requestFederationSave ( char const *  label, RTI::FedTime const *  time = NULL  )

virtual

Process the request federation save service.

Implements DtFederateMgr.

References DtFederateMgr::mySaveLabel, and requestImmediateSave().

void DtRtiExecFederateMgr::requestImmediateSave ( const char *  label )

protectedvirtual

Process the immediate save message.

References DtSaveResponseMsg::addCallback(), DtFederateMgr::connectMgr(), DtSRSaveAccepted, DtSRSaveInProgress, DtSRSaveWaiting, DtToWString(), DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), interval, DtFederateMgr::myClock, mySaveRequestID, mySaveResponse, DtFederateMgr::params(), DtFederateMgr::processSaveResponse(), DtSaveResponseMsg::removeCallback(), DtRIDParameters::responseInterval, sendSaveRequestMsg(), DtConnectionMgr::tick(), and DtConnectionMgr::yield().

Referenced by requestFederationSave().

void DtRtiExecFederateMgr::resignFederationExecution ( RTI::ResignAction  theAction )

virtual

Process the resign federation execution service.

Reimplemented from DtFederateMgr.

References distributeFedFile, DtSRSaveWaiting, fomModuleMerging, NULL, DtDesignatedFederateMsg::removeCallback(), DtSyncPointMsg::removeCallback(), DtJoinResponseMsg::removeCallback(), and DtFederateMgr::resignFederationExecution().

bool DtRtiExecFederateMgr::restore ( DtRtiSaveFile &  file )

protectedvirtual

Restore the federation manager state information from the given file.

Reimplemented from DtFederateMgr.

References DtConnectionMgr::addPendingMsg(), DtFederateMgr::connectMgr(), DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), DtRtiSaveBestEffortMsgType, DtRtiSaveFedMgrType, DtRtiSaveReliableMsgType, DtConnectionMgr::emptyPendingMsgList(), DtFedMgrPacket::fedHandle, DtFedMgrPacket::header, DtConnectionMgr::msgFactory(), DtFederateMgr::myConnectMgr, DtFederateMgr::myFedExHandle, DtFederateMgr::myFedHandle, myOldFedHandle, mySyncPoints, DtFedMgrPacket::numMsgs, DtFedMgrPacket::numSyncPts, DtSaveDataHeader::packetType, DtRtiSaveFile::readNextPacket(), DtRtiMsg::setFedEx(), and DtRtiMsg::setTransportType().

Referenced by restoreLRC().

bool DtRtiExecFederateMgr::restoreLRC ( DtRtiSaveFile &  saveFile )

protectedvirtual

Restore the LRC state information Return bool: restore successful?

References DtRtiSaveFile::isOk(), DtFederateMgr::myFom, DtFederateMgr::myInterMgr, DtFederateMgr::myMomMgr, DtFederateMgr::myObjMgr, DtInteractionMgr::restore(), DtFomClassMgr::restore(), restore(), and DtObjectMgr::restore().

Referenced by processRestoreInitiate().

bool DtRtiExecFederateMgr::save ( DtRtiSaveFile &  file )

protectedvirtual

Save the federation manager state information to the given file.

Reimplemented from DtFederateMgr.

References DtConnectionMgr::addPendingMsg(), DtFederateMgr::connectMgr(), DtRtiSaveBestEffortMsgType, DtRtiSaveFedMgrType, DtRtiSaveReliableMsgType, DtFedMgrPacket::fedHandle, DtFedMgrPacket::header, DtFederateMgr::myFedHandle, mySyncPoints, DtConnectionMgr::nextPendingMsg(), DtFedMgrPacket::numMsgs, DtFedMgrPacket::numSyncPts, DtSaveDataHeader::packetSize, DtSaveDataHeader::packetType, DtFederateMgr::params(), DtConnectionMgr::pendingMsgCount(), DtRIDParameters::saveTransientMessages, saveTransientMessages, DtRtiMsg::transportType(), and DtRtiSaveFile::writePacket().

Referenced by saveLRC().

bool DtRtiExecFederateMgr::saveLRC ( DtRtiSaveFile &  saveFile )

protectedvirtual

Save the LRC state information.

Return bool: save successful?

References DtRtiSaveFile::isOk(), DtFederateMgr::myFom, DtFederateMgr::myInterMgr, DtFederateMgr::myMomMgr, DtFederateMgr::myObjMgr, DtInteractionMgr::save(), DtFomClassMgr::save(), save(), and DtObjectMgr::save().

Referenced by federateSaveComplete().

void DtRtiExecFederateMgr::sendCreateMsg ( MAKRti::DtString const &  fedExNameVal, MAKRti::DtString const &  timeImplName, const std::vector< unsigned int > &  moduleCrcs, MAKRti::DtFomType  fedType, MAKRti::DtString const &  momModuleName, const std::vector< MAKRti::DtString > &  fomModules, unsigned int  momModuleCrc  )

protectedvirtual

Send create federation message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtCreateMsgKind, DtConnectionMgr::sendAndDelete(), and DtCreateMsg::set().

Referenced by createFederationExecution().

void DtRtiExecFederateMgr::sendDestroyMsg ( const char *  name )

protectedvirtual

Send destroy federation message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtDestroyMsgKind, DtConnectionMgr::sendAndDelete(), and DtDestroyMsg::set().

Referenced by destroyFederationExecution().

void DtRtiExecFederateMgr::sendJoinConfirmMsg ( unsigned long  sourceID, DtJoinConfirmMsg::errorCodes  errorCode  )

protectedvirtual

Send join federation confirm message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtJoinConfirmMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtJoinConfirmMsg::set().

Referenced by handleFailedJoin().

void DtRtiExecFederateMgr::sendJoinMsg ( unsigned long  sourceID, unsigned short  requestID, const char *  fedType, const char *  fedExName, const char *  fedName, const std::vector< MAKRti::DtString > &  fomModules, const unsigned long  flags, const std::vector< unsigned int > &  joinModulesCrcs  )

protectedvirtual

Send join federation message.

References DtFederateMgr::assistantClient(), DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtGetLocalHostName(), DtHlaVersion(), DtJoinMsgKind, DtUseFedObservers, DtFederateMgr::params(), DtConnectionMgr::sendAndDelete(), DtJoinMsg::set(), and DtJoinMsg::setIpAddress().

void DtRtiExecFederateMgr::sendRestoreBegunMsg ( const char *  label, DtResponseFlag  response  )

protectedvirtual

Send restore federate begun message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtRestoreBegunMsgKind, DtFederateMgr::federateHandle(), DtConnectionMgr::sendStampedAndDelete(), and DtRestoreBegunMsg::set().

Referenced by processRestore().

void DtRtiExecFederateMgr::sendRestoreCompleteMsg ( const char *  label, bool  success  )

protectedvirtual

Send restore federate complete message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtRestoreCompleteMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtSaveCompleteMsg::set().

Referenced by federateRestoreComplete(), and federateRestoreNotComplete().

void DtRtiExecFederateMgr::sendRestoreRequestMsg ( const char *  label )

protectedvirtual

Send restore federation request message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtRestoreRequestMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtSaveMsg::set().

Referenced by requestFederationRestore().

void DtRtiExecFederateMgr::sendSaveBegunMsg ( )

protectedvirtual

Send save federate begun message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtSaveBegunMsgKind, and DtConnectionMgr::sendStampedAndDelete().

Referenced by federateSaveBegun().

void DtRtiExecFederateMgr::sendSaveCompleteMsg ( const char *  label, bool  success  )

protectedvirtual

Send federate complete message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtSaveCompleteMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtSaveCompleteMsg::set().

Referenced by federateSaveComplete(), and federateSaveNotComplete().

void DtRtiExecFederateMgr::sendSaveRequestMsg ( unsigned long  requestID, const char *  label  )

protectedvirtual

Send save federation request message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtSaveRequestMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtSaveRequestMsg::set().

Referenced by requestImmediateSave().

void DtRtiExecFederateMgr::sendSyncPointMsg ( DtSyncMsgType  kind, DtFederateHandle &  id, char const *  name, char const *  tag = NULL, DtFederateHandleSet const *  set = NULL  )

protectedvirtual

Send synchronization point message.

References DtFederateMgr::connectMgr(), DtConnectionMgr::create(), DtSyncPointMsgKind, DtSyncStatusSucceeded, DtConnectionMgr::sendStampedAndDelete(), and DtSyncPointMsg::set().

Referenced by registerFederationSynchronizationPoint(), and synchronizationPointAchieved().

void DtRtiExecFederateMgr::setDesignatedFederate ( bool  isDesignated )

protectedvirtual

Set/Get designated status of this federate's LRC.

References myIsDesignatedFederate.

Referenced by processDesignatedFederateMsg().

void DtRtiExecFederateMgr::synchronizationPointAchieved ( char const *  label, bool  successfully = true  )

virtual

Process the synchronization point achieved service.

Implements DtFederateMgr.

References DtAchieved, DtAchievedUnsuccessfully, DtFederateMgr::myFedHandle, mySyncPoints, and sendSyncPointMsg().

void DtRtiExecFederateMgr::testReadFomModules ( const DtRIDParameters::DtStringList &  modulesNames, MAKRti::DtString  executionName, bool  isMim = false  )

protected

Attempt to read modules.

References DtFederateMgr::addToParsedFomMap(), DtScopedNotifyLevelChange::changeNotifyLevel(), DtLibRTIUtil::crcOfRTIFedFileContents(), DtFomClassMgr::create(), extend13and1516interop, getReader(), DtFederateMgr::myFedReader, DtFederateMgr::myParsedFoms, DtLibRTIUtil::openFedFile(), DtFederateMgr::params(), DtAssistantPopupHelper::popupAssistantMessage(), and DtFomClassMgr::setExtend13and1516interop().

Referenced by createFederationExecution().

void DtRtiExecFederateMgr::testSaveProgress ( )

protectedvirtual

Check for save/restore in progress exceptions.

Implements DtFederateMgr.

References DtFederateMgr::myRestoreLabel, DtFederateMgr::mySaveLabel, DtFederateMgr::restoreBegun(), and DtFederateMgr::saveInitiated().

void DtRtiExecFederateMgr::waitForCreateResponse ( const char *  executionName )

protectedvirtual

This function will wait for the create response or fail and throw.

References DtFederateMgr::connectMgr(), distributeFedFile, distributors(), DtCRExecAlreadyExists, DtCRExecCouldNotCreateTimeFactory, DtCRExecCouldNotOpenFed, DtCRExecCreated, DtCRWaiting, DtToWString(), DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), findFedFileNameFromMapping(), interval, DtFederateMgr::myClock, myCreateResponse, myCreateResponseErrorString, myFedFileRequest, myFomModuleRequests, DtFederateMgr::params(), DtAssistantPopupHelper::popupAssistantMessage(), processCreateResponseMsg(), DtCreateResponseMsg::removeCallback(), DtRIDParameters::responseInterval, DtConnectionMgr::tick(), and DtConnectionMgr::yield().

Referenced by createFederationExecution().

void DtRtiExecFederateMgr::waitForJoinResponse ( const char *  executionName, std::vector< MAKRti::DtString > &  joinModules  )

protectedvirtual

This function will wait for the join response or fail and throw.

References DtFederateMgr::connectMgr(), DtRIDParameters::distributeFedFile, distributeFedFile, distributors(), DtJoinConfirmMsg::DtFomError, DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), findFedFileNameFromMapping(), handleFailedJoin(), interval, DtFederateMgr::myClock, myFedFileRequest, myFomModuleRequests, myJoinResponse, DtFederateMgr::params(), DtAssistantPopupHelper::popupAssistantMessage(), preferLocalFomModules, DtRIDParameters::responseInterval, DtConnectionMgr::tick(), DtFederateMgr::tick(), and DtConnectionMgr::yield().

Member Data Documentation

bool DtRtiExecFederateMgr::myAsynchronousDistributor

protected

DtCreateResponseFlag DtRtiExecFederateMgr::myCreateResponse

protected

Status of create federation.

Referenced by createFederationExecution(), processCreateResponseMsg(), and waitForCreateResponse().

MAKRti:: DtString DtRtiExecFederateMgr::myCreateResponseErrorString

protected

Error String of create federation.

Referenced by processCreateResponseMsg(), and waitForCreateResponse().

MAKRti::DtString DtRtiExecFederateMgr::myDestroyExecutionName

protected

Name of federation to destroy.

Referenced by destroyFederationExecution(), and processDestroyResponseMsg().

DtDestroyResponseFlag DtRtiExecFederateMgr::myDestroyResponse

protected

Status of destroy federation.

Referenced by destroyFederationExecution(), and processDestroyResponseMsg().

std::map<DtString, DtSynchronousFileDistributor*> DtRtiExecFederateMgr::myDistributors

protected

federate Fed File Distributors.

Referenced by distributors(), initializeDistributor(), and ~DtRtiExecFederateMgr().

vrlmod::DtThreadedObject* DtRtiExecFederateMgr::myDistributorThread

protected

Should we use local or distributed fed file?

std::string* DtRtiExecFederateMgr::myFailedSyncPointLabel

protected

Failed sync point request.

Referenced by posttick(), and registerFederationSynchronizationPoint().

bool DtRtiExecFederateMgr::myFedFileRequest

protected

Status of fed file request.

Referenced by initializeDistributor(), processFomModuleFileRequestMsg(), waitForCreateResponse(), and waitForJoinResponse().

DtFedReader13* DtRtiExecFederateMgr::myFedReader13

protected

Referenced by getReader(), and ~DtRtiExecFederateMgr().

DtFedReader1516* DtRtiExecFederateMgr::myFedReader1516

protected

Referenced by getReader(), and ~DtRtiExecFederateMgr().

DtFedReader1516e* DtRtiExecFederateMgr::myFedReader1516e

protected

Referenced by getReader(), and ~DtRtiExecFederateMgr().

std::vector<MAKRti::DtString> DtRtiExecFederateMgr::myFomModuleRequests

protected

Queue of modules requested.

Referenced by processFomModuleFileRequestMsg(), waitForCreateResponse(), and waitForJoinResponse().

bool DtRtiExecFederateMgr::myFullFedFileDistribution

protected

Referenced by DtRtiExecFederateMgr(), and initializeFOM().

bool DtRtiExecFederateMgr::myIsDesignatedFederate

protected

This federate LRC is designated for handling some federation wide tasks (e.g., MOM Federation attribute ownership)

Referenced by isDesignatedFederate(), and setDesignatedFederate().

DtJoinConfirmMsg::errorCodes DtRtiExecFederateMgr::myJoinConfirmResponse

protected

Status of join confirm.

DtSynchronousFileDistributor* DtRtiExecFederateMgr::myJoinDistributor

protected

The Fed File Distributor of the joined federation execution.

Referenced by joinDistributor().

unsigned short DtRtiExecFederateMgr::myJoinRequestID

protected

Join request ID.

Referenced by processJoinResponseMsg().

DtJoinResponseMsg* DtRtiExecFederateMgr::myJoinResponse

protected

Copy of join response.

Referenced by checkJoinResponse(), initializeFOM(), initializeTimeFactory(), processJoinResponseMsg(), waitForJoinResponse(), and ~DtRtiExecFederateMgr().

std::list<DtNewFomClassesMsg*> DtRtiExecFederateMgr::myNewFomClassMsgs

protected

Queue of FOM class messages to be processed after we join.

Referenced by processNewFomClassesMsg().

DtFederateHandle DtRtiExecFederateMgr::myOldFedHandle

protected

during a restore the fedhandle changes.

this stores the old handle so it can make some communications with the fedex during a restore but after changing the fedhandle

Referenced by processRestoreEnd(), and restore().

unsigned long DtRtiExecFederateMgr::mySaveRequestID

protected

Save request ID.

Referenced by processSaveResponse(), and requestImmediateSave().

DtSaveResponseFlag DtRtiExecFederateMgr::mySaveResponse

protected

Save response status.

Referenced by processSaveResponse(), and requestImmediateSave().

MAKRti::DtFilename DtRtiExecFederateMgr::myStandardMimPath

protected

Referenced by getStandardMimPath().

MAKRti::DtHashList DtRtiExecFederateMgr::mySyncPoints

protected

MAKRti::DtHashList of DtStringHashKeys representing synch point names that have been announced to us.

Data associated with the string is just (void*)

1. (NULL wouldn't work, because it's indistinguishable from "not present" in a lookup result.)

Referenced by processSyncPointMsg(), registerFederationSynchronizationPoint(), restore(), save(), synchronizationPointAchieved(), and ~DtRtiExecFederateMgr().

std::map<MAKRti::DtString, DtFileInformation*> DtRtiExecFederateMgr::myTakenFiles

protected

When files are received from distributor, store them here until requester takes them.

Referenced by isFomAvailable(), and ~DtRtiExecFederateMgr().

---

The documentation for this class was generated from the following files:

• execFedMgr.h
• execFedMgr.cxx
