DtAssistantConnQueryWidget Class Reference

Widget used to request the user to provide new connection parameters when a component cannot establish an RTI connection. More...

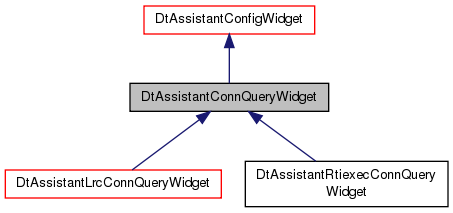

Inheritance diagram for DtAssistantConnQueryWidget:

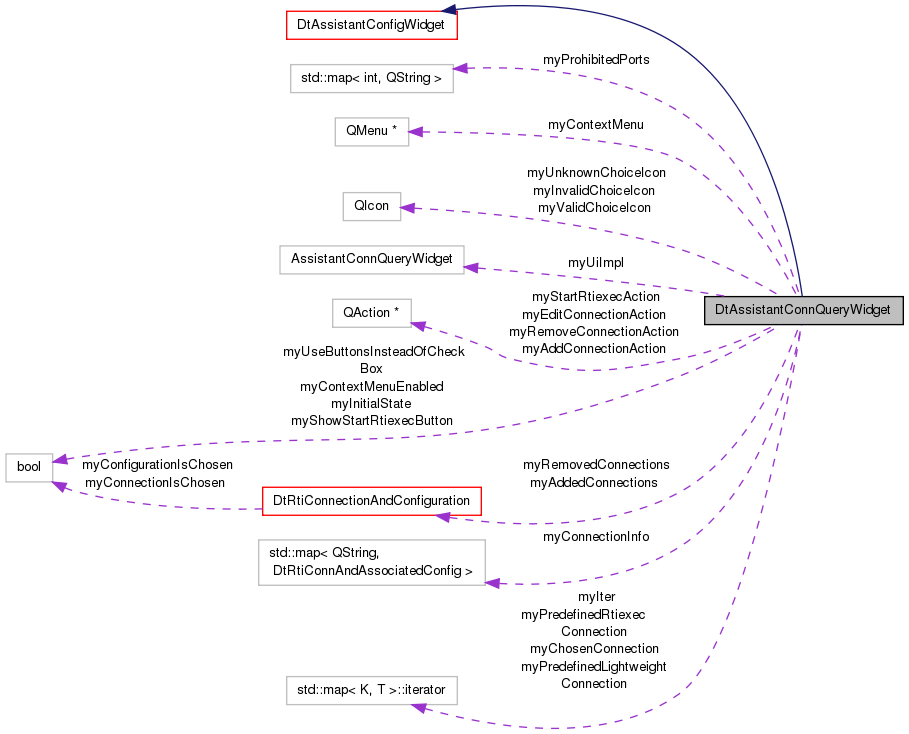

Collaboration diagram for DtAssistantConnQueryWidget:

Classes
struct	DtRtiConnAndAssociatedConfig

Public Slots
virtual void	processAdd ()
	Processes the pressing of the add connection button by the user.
virtual void	processRemove ()
	Processes the pressing of the remove connection button by the user.
virtual void	processEdit ()
	Processes the pressing of the edit connection button by the user.
virtual void	processSelectionChange (QTreeWidgetItem *item=0)
	Processes a selection change.
virtual void	showContextMenu (const QPoint &)
	Shows the context menu at the given location.

Signals
void	selectionAccepted ()
	Signal emitted when the selection is accepted.
void	acceptEnabled (bool)
	Signal that the accept button should be enabled/disabled.
void	connectionAdded (const DtRtiConnectionInfoDataPair &conn, DtAssistantConnQueryWidget *widget)
	Signal emitted when a new connection is added by a user (but not yet accepted).
Signals inherited from DtAssistantConfigWidget
void	enablePrefAccept ()
	Emitted to indicate that the accept button can be enabled.
void	disablePrefAccept ()
	Emitted to indicate that the accept button should be disabled.

Public Member Functions
	DtAssistantConnQueryWidget (QWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConnQueryWidget ()
	Destructor.
virtual void	useButtonsInsteadOfCheckBox (bool useButtons)
	Configure the widget to use radio buttons rather than a check box to set/unset the whether to use the chosen connection in the future.
virtual void	showStartRtiexecButton (bool show)
	Configure the widget to show the start rtiexec button.
virtual void	setConnections (const DtRtiConnectionAndConfiguration &conns, bool preserveSelection)
	Sets the list of connections.
virtual void	addConnections (const DtRtiConnectionAndConfiguration &conns)
	Adds a set of available connections to the list.
virtual void	removeConnections (const DtRtiConnectionAndConfiguration &conns)
	Removes a set of available connections from the list.
virtual void	getResults (DtRtiConnectionInfoDataPair &conn, DtRtiConnectionConfigurationInfo &config, bool &choose) const
	Fills in the current chosen connection information settings.
virtual const DtRtiConnectionAndConfiguration &	userAddedConnections ()
	Returns the set of user added connections during this execution of the dialog.
virtual const DtRtiConnectionAndConfiguration &	userRemovedConnections ()
	Returns the set of user removed connections during this execution of the dialog.
virtual void	clearUserAddedAndRemoved ()
	Clears all connections added and removed by the user during this execution of the dialog.
virtual bool	selectConnection (const DtRtiConnectionInfo &conn)
	Sets which connection should be selected.
virtual void	reselectConnection ()
	Unselects and reselects the specified connection to update the state of the current buttons and dialog options.
virtual void	getSelectedConnection (DtRtiConnectionInfo &conn) const
	Get the currently selected connection.
virtual void	getSelectedConfiguration (DtRtiConnectionConfigurationInfo &config) const
	Get the currently selected configuration.
virtual void	addProhibitedPort (int port, const QString &reason)
	Add a port which is prohibited, along with a reason.
virtual void	removeProhibitedPort (int port)
	Remove a port which is prohibited.
virtual void	setInitialState (bool check)
	Set the initial state of the dialog when it is shown for the very first time.
virtual bool	isConnectionNameInUse (const QString &name) const
	Returns true if the given connection name is already in use by a known connection.
Check Functions - PASS = return true; FAIL = error dialog, return false
virtual bool	checkForPortConflicts (int port1, int port2=0)
	Check if the port is prohibited and display an error if it is.
virtual bool	checkForValidAddr (const QString &addrStr, const MAKRti::DtInetAddr &ifAddr, MAKRti::DtInetAddr &addr)
	Check if the string is a valid address, as well as valid for the specified interface.
virtual bool	checkForConnNameConflict (const QString &name)
	Check if the new connection name is unique.
virtual bool	checkForDuplicateConn (const DtRtiConnectionInfo &conn)
	Check if the given connection is a duplicate of an existing connection.
Public Member Functions inherited from DtAssistantConfigWidget
	DtAssistantConfigWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConfigWidget ()
	Destructor.
virtual QString	reasonForDisabledAccept () const
	If the widget has disabled the accept button, returns the reason why.

Protected Types
enum	DtConnQueryCol { ConnectionNameCol, StatusCol, SortCol }
typedef std::map< QString, DtRtiConnAndAssociatedConfig >	DtNameToConnInfoMap

Protected Member Functions
virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &config, DtNameToConnInfoMap::iterator &connIter)=0
	Adds an available connection to the list.
virtual void	removeConnection (const DtRtiConnectionInfoDataPair &conn)=0
	Removes an available connection from the list.
virtual void	clearAllConnections ()=0
	Clears the entire connection list.
virtual void	storeUserAddedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to add.
virtual void	storeUserRemovedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to remove.
virtual QTreeWidgetItem *	findConnInTree (const DtRtiConnectionInfo &conn, DtNameToConnInfoMap::iterator &connIter)=0
	Finds the connection item in the tree.
virtual void	setConnItemToolTip (QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn=std::make_pair(DtRtiConnectionInfo::invalidConn(), DtRtiAssociatedConnectionData()), const DtRtiConfigurationInfoDataPair &config=DtRtiConfigurationInfoDataPair())
	Set the tool tip for the given item.
virtual void	getConnStatusText (const QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &, QString &text)=0
	Gets the connection status text to be used in the tool tip for the given connection.
virtual void	loadLocalInterfaceList ()=0
	Reloads the list of local network interfaces which can be selected for new connections.
virtual bool	promptUserForNewConnInfo (DtRtiConnectionInfoDataPair &conn)=0
	Prompts the user for new connection info.
virtual bool	promptUserToEditConnInfo (DtRtiConnectionInfoDataPair &conn)=0
	Prompts the user to edit connection info.
virtual void	setAcceptEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)=0
	Enables or disables the accept button based on the state of the given currently selected connection.
virtual void	updateDisplayedConnection (const QString &name, const DtRtiConnectionInfoDataPair &updatedConn, QTreeWidgetItem *connItem)=0
	Depending on the type of our current query connection, we update connItem based on updatedConn.
virtual void	setFullyCompliantStateBasedOnConn (const DtRtiConnectionInfoDataPair *conn, const DtRtiConfigurationInfoDataPair *config)
	Enables or disables and sets the fully compliant check box based on the state of the given currently selected connection and configuration.
virtual void	setRemoveEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the remove button based on the state of the given currently selected connection.
virtual void	setEditEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the edit button based on the state of the given currently selected connection.
virtual void	updateDialogBasedOnConn (const DtRtiConnectionInfoDataPair *conn, const DtRtiConfigurationInfoDataPair *config, bool isDisabled)
	Updates the dialog based on the state of the given currently selected connection and configuration.
virtual void	disableItem (QTreeWidgetItem *item, bool disable)
	Marks the item as disabled.
virtual bool	isItemDisabled (const QTreeWidgetItem *item) const
	Returns true if the item is marked as disabled.
virtual QString	reserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Reserves the name for the given connection.
virtual void	unreserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Unreserves the given connection name.
virtual void	setAcceptEnabled (bool enabled, const QString &reasonForDisable)
	Sets whether or not accept is enabled.
bool	isAddressNotation (const QString &addrString) const
	Checks if the given string contains an address notation.

Protected Attributes
DtNameToConnInfoMap::iterator	myIter
Ui::AssistantConnQueryWidget	myUiImpl
DtNameToConnInfoMap	myConnectionInfo
	The map of connection entries to detailed connection info.
DtRtiConnectionAndConfiguration	myAddedConnections
	Set of added connections.
DtRtiConnectionAndConfiguration	myRemovedConnections
	Set of added connections.
DtNameToConnInfoMap::iterator	myPredefinedLightweightConnection
	The predefined lightweight connection.
DtNameToConnInfoMap::iterator	myPredefinedRtiexecConnection
	The predefined rtiexec connection.
DtNameToConnInfoMap::iterator	myChosenConnection
	The connection chosen to be used without prompting.
std::map< int, QString >	myProhibitedPorts
	List of prohibited ports and reasons why.
QMenu *	myContextMenu
	Context Menu.
bool	myContextMenuEnabled
	Controls whether the context menu should be displayed on right clicks.
bool	myShowStartRtiexecButton
	Whether the start rtiexec button is displayed.
bool	myUseButtonsInsteadOfCheckBox
	Whether the radio buttons are used instead of the check box to set the selected connection to be used automatically in the future.
bool	myInitialState
	The dialog is being displayed for the first time ever and should be in its default initial state.
QAction *	myAddConnectionAction
	Context menu actions.
QAction *	myRemoveConnectionAction
	Context menu actions.
QAction *	myEditConnectionAction
	Context menu actions.
QAction *	myStartRtiexecAction
	Context menu actions.
QIcon	myValidChoiceIcon
	Icons.
QIcon	myUnknownChoiceIcon
	Icons.
QIcon	myInvalidChoiceIcon
	Icons.

Private Member Functions
	DtAssistantConnQueryWidget (DtAssistantConnQueryWidget const &)
	Copy constructor not implemented.
DtAssistantConnQueryWidget &	operator= (DtAssistantConnQueryWidget const &)
	Assignment operator not implemented.

Detailed Description

Widget used to request the user to provide new connection parameters when a component cannot establish an RTI connection.

Member Typedef Documentation

typedef std::map< QString, DtRtiConnAndAssociatedConfig > DtAssistantConnQueryWidget::DtNameToConnInfoMap

protected

Member Enumeration Documentation

enum DtAssistantConnQueryWidget::DtConnQueryCol

protected

Enumerator:

ConnectionNameCol
StatusCol
SortCol

Constructor & Destructor Documentation

DtAssistantConnQueryWidget::DtAssistantConnQueryWidget	(	QWidget *	parent,
		Qt::WindowFlags	f = 0
	)

Constructor.

References connect(), DtIconAndTextureManager::getIcon(), DtIconAndTextureManager::getInstance(), myAddConnectionAction, myChosenConnection, myConnectionInfo, myContextMenu, myEditConnectionAction, myInvalidChoiceIcon, myPredefinedLightweightConnection, myPredefinedRtiexecConnection, myRemoveConnectionAction, myStartRtiexecAction, myUiImpl, myUnknownChoiceIcon, myValidChoiceIcon, processAdd(), processEdit(), processRemove(), processSelectionChange(), selectionAccepted(), showContextMenu(), SortCol, and StatusCol.

DtAssistantConnQueryWidget::~DtAssistantConnQueryWidget ( )

virtual

Destructor.

DtAssistantConnQueryWidget::DtAssistantConnQueryWidget ( DtAssistantConnQueryWidget const &  )

private

Copy constructor not implemented.

Member Function Documentation

void DtAssistantConnQueryWidget::acceptEnabled ( bool  )

signal

Signal that the accept button should be enabled/disabled.

Referenced by setAcceptEnabled().

virtual bool DtAssistantConnQueryWidget::addConnection ( const DtRtiConnectionInfoDataPair &  conn, const DtRtiConfigurationInfoDataPair &  config, DtNameToConnInfoMap::iterator &  connIter  )

protectedpure virtual

Adds an available connection to the list.

Returns true if it was successfully added and sets the iterator to location in the map of the new connection.

Referenced by addConnections(), processAdd(), and processEdit().

void DtAssistantConnQueryWidget::addConnections ( const DtRtiConnectionAndConfiguration &  conns )

virtual

Adds a set of available connections to the list.

References addConnection(), ConnectionNameCol, DtRtiConnectionAndConfiguration::connections(), DtRtiConnectionAndConfiguration::findConfigMapping(), DtRtiConnectionAndConfiguration::findConnection(), findConnInTree(), myAddedConnections, myChosenConnection, myConnectionInfo, myPredefinedLightweightConnection, myPredefinedRtiexecConnection, myRemovedConnections, myUiImpl, DtRtiConnectionAndConfiguration::removeConnection(), reselectConnection(), reserveNameForConnection(), DtRtiConnectionAndConfiguration::size(), SortCol, unreserveNameForConnection(), DtRtiConnectionAndConfiguration::updateConnectionAssociatedDataOnly(), and updateDisplayedConnection().

Referenced by DtAssistantConnQueryMgr::addToAllConnQuery(), DtAssistantConnQueryMgr::checkForConflictingUnsavedConns(), DtAssistantConnQueryMgr::processNewUserAddedConnection(), and setConnections().

void DtAssistantConnQueryWidget::addProhibitedPort ( int  port, const QString &  reason  )

virtual

Add a port which is prohibited, along with a reason.

References myProhibitedPorts.

Referenced by DtAssistantConnQueryMgr::addProhibitedPort().

bool DtAssistantConnQueryWidget::checkForConnNameConflict ( const QString &  name )

virtual

Check if the new connection name is unique.

References myConnectionInfo.

Referenced by processAdd(), and processEdit().

bool DtAssistantConnQueryWidget::checkForDuplicateConn ( const DtRtiConnectionInfo &  conn )

virtual

Check if the given connection is a duplicate of an existing connection.

References myConnectionInfo.

Referenced by processAdd(), and processEdit().

bool DtAssistantConnQueryWidget::checkForPortConflicts ( int  port1, int  port2 = 0  )

virtual

Check if the port is prohibited and display an error if it is.

Checks one or two ports, and will make sure the two do not conflict with each other.

References myProhibitedPorts.

Referenced by DtAssistantLrcConnQueryWidget::acceptCurrentSelection(), DtAssistantLrcConnQueryWidget::processStartRtiexec(), DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

bool DtAssistantConnQueryWidget::checkForValidAddr ( const QString &  addrStr, const MAKRti::DtInetAddr &  ifAddr, MAKRti::DtInetAddr &  addr  )

virtual

Check if the string is a valid address, as well as valid for the specified interface.

Return the constructed DtInetAddr.

References isAddressNotation().

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

virtual void DtAssistantConnQueryWidget::clearAllConnections ( )

protectedpure virtual

Clears the entire connection list.

Implemented in DtAssistantLrcConnQueryWidget, DtAssistantRtiexecConnQueryWidget, and DtAssistantConnConfigWidget.

Referenced by setConnections().

void DtAssistantConnQueryWidget::clearUserAddedAndRemoved ( )

virtual

Clears all connections added and removed by the user during this execution of the dialog.

References DtRtiConnectionAndConfiguration::clearAllInfo(), myAddedConnections, and myRemovedConnections.

Referenced by DtAssistantRtiexecConnQueryWidget::showEvent(), DtAssistantLrcConnQueryWidget::showEvent(), and DtAssistantConnQueryMgr::updateConfigFromWidgetResults().

void DtAssistantConnQueryWidget::connectionAdded ( const DtRtiConnectionInfoDataPair &  conn, DtAssistantConnQueryWidget *  widget  )

signal

Signal emitted when a new connection is added by a user (but not yet accepted).

Referenced by storeUserAddedConnection().

void DtAssistantConnQueryWidget::disableItem ( QTreeWidgetItem *  item, bool  disable  )

protectedvirtual

Marks the item as disabled.

References ConnectionNameCol.

Referenced by DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), and DtAssistantLrcConnQueryWidget::loadLocalInterfaceList().

virtual QTreeWidgetItem* DtAssistantConnQueryWidget::findConnInTree ( const DtRtiConnectionInfo &  conn, DtNameToConnInfoMap::iterator &  connIter  )

protectedpure virtual

Finds the connection item in the tree.

Returns a pointer to the tree item as well as an iterator to its location in the map.

Referenced by addConnections(), removeConnections(), reserveNameForConnection(), selectConnection(), and unreserveNameForConnection().

virtual void DtAssistantConnQueryWidget::getConnStatusText ( const QTreeWidgetItem *  item, const DtRtiConnectionInfoDataPair &  conn, const DtRtiConfigurationInfoDataPair &  , QString &  text  )

protectedpure virtual

Gets the connection status text to be used in the tool tip for the given connection.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

Referenced by setConnItemToolTip().

void DtAssistantConnQueryWidget::getResults ( DtRtiConnectionInfoDataPair &  conn, DtRtiConnectionConfigurationInfo &  config, bool &  choose  ) const

virtual

Fills in the current chosen connection information settings.

The choose parameter will be set to true if the user selected to set this as the chosen connection for the future in order to avoid further prompts.

References ConnectionNameCol, myConnectionInfo, myUiImpl, and myUseButtonsInsteadOfCheckBox.

Referenced by DtAssistantConnQueryMgr::updateConfigFromWidgetResults().

void DtAssistantConnQueryWidget::getSelectedConfiguration ( DtRtiConnectionConfigurationInfo &  config ) const

virtual

Get the currently selected configuration.

References myUiImpl, and DtRtiConnectionConfigurationInfo::setForceFullCompliance().

void DtAssistantConnQueryWidget::getSelectedConnection ( DtRtiConnectionInfo &  conn ) const

virtual

Get the currently selected connection.

References ConnectionNameCol, DtRtiConnectionInfo::invalidConn(), myConnectionInfo, and myUiImpl.

Referenced by reselectConnection(), and setConnections().

bool DtAssistantConnQueryWidget::isAddressNotation ( const QString &  addrString ) const

protected

Checks if the given string contains an address notation.

e.g. "192.168.3.226" or "fe80::a8f5:2359:6c86:3890"

Referenced by checkForValidAddr(), and DtAssistantLrcConnQueryWidget::checkForValidAddrAndHost().

bool DtAssistantConnQueryWidget::isConnectionNameInUse ( const QString &  name ) const

virtual

Returns true if the given connection name is already in use by a known connection.

References myConnectionInfo.

Referenced by DtAssistantAddConnDialog::getDefaultLightweightConnName(), and DtAssistantAddConnDialog::getDefaultRtiexecConnName().

bool DtAssistantConnQueryWidget::isItemDisabled ( const QTreeWidgetItem *  item ) const

protectedvirtual

Returns true if the item is marked as disabled.

References ConnectionNameCol.

Referenced by DtAssistantRtiexecConnQueryWidget::getConnStatusText(), DtAssistantLrcConnQueryWidget::getConnStatusText(), processSelectionChange(), DtAssistantConnConfigWidget::updateDisplayedConnection(), DtAssistantRtiexecConnQueryWidget::updateDisplayedConnection(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

virtual void DtAssistantConnQueryWidget::loadLocalInterfaceList ( )

protectedpure virtual

Reloads the list of local network interfaces which can be selected for new connections.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

Referenced by setConnections().

DtAssistantConnQueryWidget& DtAssistantConnQueryWidget::operator= ( DtAssistantConnQueryWidget const &  )

private

Assignment operator not implemented.

void DtAssistantConnQueryWidget::processAdd ( )

virtualslot

Processes the pressing of the add connection button by the user.

References addConnection(), checkForConnNameConflict(), checkForDuplicateConn(), ConnectionNameCol, myConnectionInfo, myUiImpl, promptUserForNewConnInfo(), selectConnection(), SortCol, and storeUserAddedConnection().

Referenced by DtAssistantConnQueryWidget().

void DtAssistantConnQueryWidget::processEdit ( )

virtualslot

Processes the pressing of the edit connection button by the user.

References addConnection(), checkForConnNameConflict(), checkForDuplicateConn(), ConnectionNameCol, myConnectionInfo, myUiImpl, promptUserToEditConnInfo(), removeConnection(), selectConnection(), storeUserAddedConnection(), and storeUserRemovedConnection().

Referenced by DtAssistantConnQueryWidget().

void DtAssistantConnQueryWidget::processRemove ( )

virtualslot

Processes the pressing of the remove connection button by the user.

References ConnectionNameCol, myConnectionInfo, myUiImpl, removeConnection(), and storeUserRemovedConnection().

Referenced by DtAssistantConnQueryWidget().

void DtAssistantConnQueryWidget::processSelectionChange ( QTreeWidgetItem *  item = 0 )

virtualslot

Processes a selection change.

If no item is specified the current selected item will attempt to be found.

References ConnectionNameCol, isItemDisabled(), myConnectionInfo, myContextMenuEnabled, myUiImpl, setAcceptEnabled(), setAcceptEnabledBasedOnConn(), setEditEnabledBasedOnConn(), setFullyCompliantStateBasedOnConn(), setRemoveEnabledBasedOnConn(), and updateDialogBasedOnConn().

Referenced by DtAssistantConnQueryWidget(), and removeConnections().

virtual bool DtAssistantConnQueryWidget::promptUserForNewConnInfo ( DtRtiConnectionInfoDataPair &  conn )

protectedpure virtual

Prompts the user for new connection info.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

Referenced by processAdd().

virtual bool DtAssistantConnQueryWidget::promptUserToEditConnInfo ( DtRtiConnectionInfoDataPair &  conn )

protectedpure virtual

Prompts the user to edit connection info.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

Referenced by processEdit().

virtual void DtAssistantConnQueryWidget::removeConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedpure virtual

Removes an available connection from the list.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

Referenced by processEdit(), processRemove(), and removeConnections().

void DtAssistantConnQueryWidget::removeConnections ( const DtRtiConnectionAndConfiguration &  conns )

virtual

Removes a set of available connections from the list.

References ConnectionNameCol, DtRtiConnectionAndConfiguration::connections(), DtRtiAssociatedConnectionData::DtUnknownState, DtRtiConnectionAndConfiguration::findConnection(), findConnInTree(), myAddedConnections, myConnectionInfo, myUiImpl, processSelectionChange(), removeConnection(), setAcceptEnabled(), DtRtiConnectionAndConfiguration::size(), SortCol, DtRtiConnectionAndConfiguration::updateConnectionAssociatedDataOnly(), and updateDisplayedConnection().

Referenced by DtAssistantConnQueryMgr::removeFromAllConnQuery().

void DtAssistantConnQueryWidget::removeProhibitedPort ( int  port )

virtual

Remove a port which is prohibited.

References myProhibitedPorts.

Referenced by DtAssistantConnQueryMgr::removeProhibitedPort().

void DtAssistantConnQueryWidget::reselectConnection ( )

virtual

Unselects and reselects the specified connection to update the state of the current buttons and dialog options.

References getSelectedConnection(), myUiImpl, and selectConnection().

Referenced by addConnections(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

QString DtAssistantConnQueryWidget::reserveNameForConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Reserves the name for the given connection.

Ensures that all connections are listed with unique names in the dialog. Returns the name that should be used for this connection.

References ConnectionNameCol, DtAssistantConnNameForDisplay(), findConnInTree(), and myConnectionInfo.

Referenced by DtAssistantRtiexecConnQueryWidget::addConnection(), DtAssistantLrcConnQueryWidget::addConnection(), and addConnections().

bool DtAssistantConnQueryWidget::selectConnection ( const DtRtiConnectionInfo &  conn )

virtual

Sets which connection should be selected.

Returns true if connection was found and selected.

References findConnInTree(), DtRtiConnectionInfo::isValid(), and myUiImpl.

Referenced by processAdd(), processEdit(), reselectConnection(), setConnections(), DtAssistantRtiexecConnQueryWidget::showEvent(), and DtAssistantLrcConnQueryWidget::showEvent().

void DtAssistantConnQueryWidget::selectionAccepted ( )

signal

Signal emitted when the selection is accepted.

Referenced by DtAssistantConnQueryWidget(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

void DtAssistantConnQueryWidget::setAcceptEnabled ( bool  enabled, const QString &  reasonForDisable  )

protectedvirtual

Sets whether or not accept is enabled.

Reimplemented from DtAssistantConfigWidget.

Reimplemented in DtAssistantConnConfigWidget.

References acceptEnabled().

Referenced by processSelectionChange(), removeConnections(), DtAssistantRtiexecConnQueryWidget::setAcceptEnabledBasedOnConn(), DtAssistantLrcConnQueryWidget::setAcceptEnabledBasedOnConn(), and setConnections().

virtual void DtAssistantConnQueryWidget::setAcceptEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedpure virtual

Enables or disables the accept button based on the state of the given currently selected connection.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

Referenced by processSelectionChange().

void DtAssistantConnQueryWidget::setConnections ( const DtRtiConnectionAndConfiguration &  conns, bool  preserveSelection  )

virtual

Sets the list of connections.

Clears the current list first. Will preserve the current selection if preserveSelection is true and the connection still exists after the update.

References addConnections(), clearAllConnections(), getSelectedConnection(), DtRtiConnectionInfo::isValid(), loadLocalInterfaceList(), myUiImpl, selectConnection(), and setAcceptEnabled().

Referenced by DtAssistantConnQueryMgr::updateConnQueryWidget().

void DtAssistantConnQueryWidget::setConnItemToolTip ( QTreeWidgetItem *  item, const DtRtiConnectionInfoDataPair &  conn = std::make_pair( DtRtiConnectionInfo::invalidConn(), DtRtiAssociatedConnectionData() ), const DtRtiConfigurationInfoDataPair &  config = DtRtiConfigurationInfoDataPair()  )

protectedvirtual

Set the tool tip for the given item.

If the connection info is not provided it will be looked up.

References ConnectionNameCol, getConnStatusText(), and myConnectionInfo.

Referenced by DtAssistantConnConfigWidget::updateDisplayedConnection(), DtAssistantRtiexecConnQueryWidget::updateDisplayedConnection(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

void DtAssistantConnQueryWidget::setEditEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedvirtual

Enables or disables the edit button based on the state of the given currently selected connection.

References DtGetLocalHostName(), myEditConnectionAction, and myUiImpl.

Referenced by processSelectionChange().

void DtAssistantConnQueryWidget::setFullyCompliantStateBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn, const DtRtiConfigurationInfoDataPair *  config  )

protectedvirtual

Enables or disables and sets the fully compliant check box based on the state of the given currently selected connection and configuration.

References myUiImpl.

Referenced by processSelectionChange().

void DtAssistantConnQueryWidget::setInitialState ( bool  check )

virtual

Set the initial state of the dialog when it is shown for the very first time.

References myInitialState.

Referenced by DtAssistantConnQueryMgr::updateConnQueryWidget().

void DtAssistantConnQueryWidget::setRemoveEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedvirtual

Enables or disables the remove button based on the state of the given currently selected connection.

References myRemoveConnectionAction, and myUiImpl.

Referenced by processSelectionChange().

void DtAssistantConnQueryWidget::showContextMenu ( const QPoint &  pos )

virtualslot

Shows the context menu at the given location.

References myContextMenu, myContextMenuEnabled, and myUiImpl.

Referenced by DtAssistantConnQueryWidget().

void DtAssistantConnQueryWidget::showStartRtiexecButton ( bool  show )

virtual

Configure the widget to show the start rtiexec button.

References myShowStartRtiexecButton, myStartRtiexecAction, and myUiImpl.

Referenced by DtAssistantConnConfigWidget::DtAssistantConnConfigWidget(), and DtAssistantLrcConnQueryWidget::DtAssistantLrcConnQueryWidget().

void DtAssistantConnQueryWidget::storeUserAddedConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Store information on a connection that user requested to add.

References DtRtiConnectionAndConfiguration::addConnection(), connectionAdded(), and myAddedConnections.

Referenced by processAdd(), and processEdit().

void DtAssistantConnQueryWidget::storeUserRemovedConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Store information on a connection that user requested to remove.

References DtRtiConnectionAndConfiguration::addConnection(), myAddedConnections, myRemovedConnections, and DtRtiConnectionAndConfiguration::removeConnection().

Referenced by processEdit(), and processRemove().

void DtAssistantConnQueryWidget::unreserveNameForConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Unreserves the given connection name.

References ConnectionNameCol, findConnInTree(), and myConnectionInfo.

Referenced by addConnections(), DtAssistantRtiexecConnQueryWidget::removeConnection(), and DtAssistantLrcConnQueryWidget::removeConnection().

virtual void DtAssistantConnQueryWidget::updateDialogBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn, const DtRtiConfigurationInfoDataPair *  config, bool  isDisabled  )

inlineprotectedvirtual

Updates the dialog based on the state of the given currently selected connection and configuration.

Reimplemented in DtAssistantLrcConnQueryWidget.

Referenced by processSelectionChange().

virtual void DtAssistantConnQueryWidget::updateDisplayedConnection ( const QString &  name, const DtRtiConnectionInfoDataPair &  updatedConn, QTreeWidgetItem *  connItem  )

protectedpure virtual

Depending on the type of our current query connection, we update connItem based on updatedConn.

Implemented in DtAssistantLrcConnQueryWidget, DtAssistantRtiexecConnQueryWidget, and DtAssistantConnConfigWidget.

Referenced by addConnections(), and removeConnections().

void DtAssistantConnQueryWidget::useButtonsInsteadOfCheckBox ( bool  useButtons )

virtual

Configure the widget to use radio buttons rather than a check box to set/unset the whether to use the chosen connection in the future.

References myUiImpl, and myUseButtonsInsteadOfCheckBox.

Referenced by DtAssistantConnConfigWidget::DtAssistantConnConfigWidget().

const DtRtiConnectionAndConfiguration & DtAssistantConnQueryWidget::userAddedConnections ( )

virtual

Returns the set of user added connections during this execution of the dialog.

References myAddedConnections.

Referenced by DtAssistantConnQueryMgr::checkForConflictingUnsavedConns(), and DtAssistantConnQueryMgr::updateConfigFromWidgetResults().

const DtRtiConnectionAndConfiguration & DtAssistantConnQueryWidget::userRemovedConnections ( )

virtual

Returns the set of user removed connections during this execution of the dialog.

References myRemovedConnections.

Referenced by DtAssistantConnQueryMgr::updateConfigFromWidgetResults().

Member Data Documentation

QAction* DtAssistantConnQueryWidget::myAddConnectionAction

protected

Context menu actions.

Referenced by DtAssistantConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), and DtAssistantLrcConnQueryWidget::loadLocalInterfaceList().

DtRtiConnectionAndConfiguration DtAssistantConnQueryWidget::myAddedConnections

protected

Set of added connections.

Referenced by addConnections(), clearUserAddedAndRemoved(), removeConnections(), storeUserAddedConnection(), storeUserRemovedConnection(), and userAddedConnections().

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myChosenConnection

protected

The connection chosen to be used without prompting.

Referenced by addConnections(), DtAssistantRtiexecConnQueryWidget::clearAllConnections(), DtAssistantLrcConnQueryWidget::clearAllConnections(), DtAssistantConnQueryWidget(), DtAssistantLrcConnQueryWidget::removeConnection(), DtAssistantRtiexecConnQueryWidget::showEvent(), and DtAssistantLrcConnQueryWidget::showEvent().

DtNameToConnInfoMap DtAssistantConnQueryWidget::myConnectionInfo

protected

The map of connection entries to detailed connection info.

Referenced by DtAssistantLrcConnQueryWidget::acceptCurrentSelection(), DtAssistantRtiexecConnQueryWidget::addConnection(), DtAssistantLrcConnQueryWidget::addConnection(), addConnections(), checkForConnNameConflict(), checkForDuplicateConn(), DtAssistantRtiexecConnQueryWidget::clearAllConnections(), DtAssistantLrcConnQueryWidget::clearAllConnections(), DtAssistantConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::findConnInTree(), DtAssistantLrcConnQueryWidget::findConnInTree(), getResults(), getSelectedConnection(), isConnectionNameInUse(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), processAdd(), processEdit(), processRemove(), processSelectionChange(), DtAssistantLrcConnQueryWidget::processStartRtiexec(), DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), DtAssistantRtiexecConnQueryWidget::removeConnection(), DtAssistantLrcConnQueryWidget::removeConnection(), removeConnections(), reserveNameForConnection(), setConnItemToolTip(), DtAssistantRtiexecConnQueryWidget::showEvent(), DtAssistantLrcConnQueryWidget::showEvent(), and unreserveNameForConnection().

QMenu* DtAssistantConnQueryWidget::myContextMenu

protected

Context Menu.

Referenced by DtAssistantConnQueryWidget(), and showContextMenu().

bool DtAssistantConnQueryWidget::myContextMenuEnabled

protected

Controls whether the context menu should be displayed on right clicks.

Referenced by processSelectionChange(), and showContextMenu().

QAction* DtAssistantConnQueryWidget::myEditConnectionAction

protected

Context menu actions.

Referenced by DtAssistantConnQueryWidget(), and setEditEnabledBasedOnConn().

bool DtAssistantConnQueryWidget::myInitialState

protected

The dialog is being displayed for the first time ever and should be in its default initial state.

Referenced by setInitialState(), DtAssistantRtiexecConnQueryWidget::showEvent(), and DtAssistantLrcConnQueryWidget::showEvent().

QIcon DtAssistantConnQueryWidget::myInvalidChoiceIcon

protected

Icons.

Referenced by DtAssistantConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::updateDisplayedConnection(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myIter

protected

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myPredefinedLightweightConnection

protected

The predefined lightweight connection.

Referenced by addConnections(), DtAssistantRtiexecConnQueryWidget::clearAllConnections(), DtAssistantLrcConnQueryWidget::clearAllConnections(), DtAssistantConnQueryWidget(), DtAssistantLrcConnQueryWidget::promptUserForConnInfo(), DtAssistantLrcConnQueryWidget::removeConnection(), and DtAssistantLrcConnQueryWidget::showEvent().

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myPredefinedRtiexecConnection

protected

The predefined rtiexec connection.

Referenced by addConnections(), DtAssistantRtiexecConnQueryWidget::clearAllConnections(), DtAssistantLrcConnQueryWidget::clearAllConnections(), DtAssistantConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), DtAssistantLrcConnQueryWidget::removeConnection(), DtAssistantRtiexecConnQueryWidget::showEvent(), and DtAssistantLrcConnQueryWidget::showEvent().

std::map<int, QString> DtAssistantConnQueryWidget::myProhibitedPorts

protected

List of prohibited ports and reasons why.

Referenced by addProhibitedPort(), checkForPortConflicts(), and removeProhibitedPort().

QAction* DtAssistantConnQueryWidget::myRemoveConnectionAction

protected

Context menu actions.

Referenced by DtAssistantConnQueryWidget(), and setRemoveEnabledBasedOnConn().

DtRtiConnectionAndConfiguration DtAssistantConnQueryWidget::myRemovedConnections

protected

Set of added connections.

Referenced by addConnections(), clearUserAddedAndRemoved(), storeUserRemovedConnection(), and userRemovedConnections().

bool DtAssistantConnQueryWidget::myShowStartRtiexecButton

protected

Whether the start rtiexec button is displayed.

Referenced by showStartRtiexecButton().

QAction* DtAssistantConnQueryWidget::myStartRtiexecAction

protected

Context menu actions.

Referenced by DtAssistantConnQueryWidget(), DtAssistantLrcConnQueryWidget::DtAssistantLrcConnQueryWidget(), DtAssistantLrcConnQueryWidget::setStartRtiexecEnabled(), and showStartRtiexecButton().

Ui::AssistantConnQueryWidget DtAssistantConnQueryWidget::myUiImpl

protected

Referenced by DtAssistantLrcConnQueryWidget::acceptCurrentSelection(), DtAssistantRtiexecConnQueryWidget::addConnection(), addConnections(), DtAssistantRtiexecConnQueryWidget::clearAllConnections(), DtAssistantLrcConnQueryWidget::displayErrorText(), DtAssistantConnConfigWidget::DtAssistantConnConfigWidget(), DtAssistantConnQueryWidget(), DtAssistantLrcConnQueryWidget::DtAssistantLrcConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::DtAssistantRtiexecConnQueryWidget(), DtAssistantConnConfigWidget::enableOrDisablePrefAccept(), DtAssistantRtiexecConnQueryWidget::findConnInTree(), getResults(), getSelectedConfiguration(), getSelectedConnection(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), processAdd(), processEdit(), processRemove(), processSelectionChange(), DtAssistantLrcConnQueryWidget::processStartRtiexec(), DtAssistantLrcConnQueryWidget::promptUserForConnInfo(), DtAssistantRtiexecConnQueryWidget::removeConnection(), removeConnections(), reselectConnection(), selectConnection(), setConnections(), setEditEnabledBasedOnConn(), setFullyCompliantStateBasedOnConn(), setRemoveEnabledBasedOnConn(), DtAssistantLrcConnQueryWidget::setStartRtiexecEnabled(), showContextMenu(), DtAssistantConnConfigWidget::showEvent(), DtAssistantRtiexecConnQueryWidget::showEvent(), DtAssistantLrcConnQueryWidget::showEvent(), showStartRtiexecButton(), DtAssistantLrcConnQueryWidget::updateDisplayedConnection(), and useButtonsInsteadOfCheckBox().

QIcon DtAssistantConnQueryWidget::myUnknownChoiceIcon

protected

Icons.

Referenced by DtAssistantConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::updateDisplayedConnection(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

bool DtAssistantConnQueryWidget::myUseButtonsInsteadOfCheckBox

protected

Whether the radio buttons are used instead of the check box to set the selected connection to be used automatically in the future.

Referenced by getResults(), and useButtonsInsteadOfCheckBox().

QIcon DtAssistantConnQueryWidget::myValidChoiceIcon

protected

Icons.

Referenced by DtAssistantConnQueryWidget(), DtAssistantRtiexecConnQueryWidget::updateDisplayedConnection(), and DtAssistantLrcConnQueryWidget::updateDisplayedConnection().

---

The documentation for this class was generated from the following files:

• connQueryWidget.h
• connQueryWidget.cxx
