DtAssistantLrcConnQueryWidget Class Reference

Widget used to request the user to provide new connection parameters when an LRC cannot establish a connection. More...

Inheritance diagram for DtAssistantLrcConnQueryWidget:

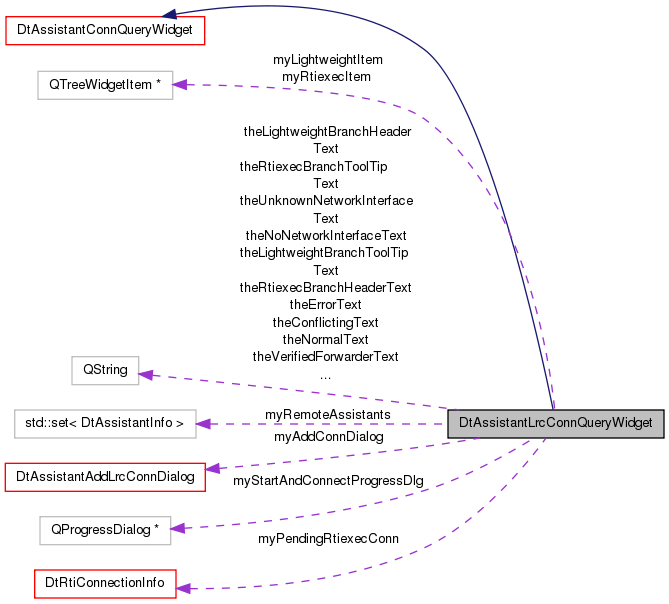

Collaboration diagram for DtAssistantLrcConnQueryWidget:

Public Slots
void	processStartRtiexec ()
	Processes the pressing of the start rtiexec button by the user.
void	cancelStartAndConnect ()
	Processes a cancel from progress dialog for starting and connecting to an rtiexec.
Public Slots inherited from DtAssistantConnQueryWidget
virtual void	processAdd ()
	Processes the pressing of the add connection button by the user.
virtual void	processRemove ()
	Processes the pressing of the remove connection button by the user.
virtual void	processEdit ()
	Processes the pressing of the edit connection button by the user.
virtual void	processSelectionChange (QTreeWidgetItem *item=0)
	Processes a selection change.
virtual void	showContextMenu (const QPoint &)
	Shows the context menu at the given location.

Signals
void	startRtiexec (const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool isRemote)
	Signal emitted when user chooses to start an rtiexec.
void	updateWindowTitle (const QString &)
	Signal emitted when the window title should be changed.
void	requestStartRtiexecEnable (const DtRtiConnectionInfoDataPair &)
	Signal emitted when we think we may want to enable the "Start rtiexec" option, but need to be told if its ok (could be disabled by remote assistant for this connection)
Signals inherited from DtAssistantConnQueryWidget
void	selectionAccepted ()
	Signal emitted when the selection is accepted.
void	acceptEnabled (bool)
	Signal that the accept button should be enabled/disabled.
void	connectionAdded (const DtRtiConnectionInfoDataPair &conn, DtAssistantConnQueryWidget *widget)
	Signal emitted when a new connection is added by a user (but not yet accepted).
Signals inherited from DtAssistantConfigWidget
void	enablePrefAccept ()
	Emitted to indicate that the accept button can be enabled.
void	disablePrefAccept ()
	Emitted to indicate that the accept button should be disabled.

Public Member Functions
	DtAssistantLrcConnQueryWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantLrcConnQueryWidget ()
	Destructor.
virtual void	addKnownAssistant (const DtAssistantInfo &assistant)
	Adds an assistant to the list of known remote assistants.
virtual void	removeKnownAssistant (const DtAssistantInfo &assistant)
	Removes an assistant to the list of known remote assistants.
virtual const DtAssistantInfoSet &	knownAssistants () const
virtual void	displayErrorText (bool error)
	Set the variation of widget text based on whether or not it is being displayed due to an error.
virtual void	setStartRtiexecEnabled (bool enable, const QString &reason)
	Sets whether or not the "Start rtiexec" button is enabled.
virtual bool	acceptCurrentSelection ()
	Processes acceptance of the current selection, starting an rtiexec if necessary and possible.
Public Member Functions inherited from DtAssistantConnQueryWidget
	DtAssistantConnQueryWidget (QWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConnQueryWidget ()
	Destructor.
virtual void	useButtonsInsteadOfCheckBox (bool useButtons)
	Configure the widget to use radio buttons rather than a check box to set/unset the whether to use the chosen connection in the future.
virtual void	showStartRtiexecButton (bool show)
	Configure the widget to show the start rtiexec button.
virtual void	setConnections (const DtRtiConnectionAndConfiguration &conns, bool preserveSelection)
	Sets the list of connections.
virtual void	addConnections (const DtRtiConnectionAndConfiguration &conns)
	Adds a set of available connections to the list.
virtual void	removeConnections (const DtRtiConnectionAndConfiguration &conns)
	Removes a set of available connections from the list.
virtual void	getResults (DtRtiConnectionInfoDataPair &conn, DtRtiConnectionConfigurationInfo &config, bool &choose) const
	Fills in the current chosen connection information settings.
virtual const DtRtiConnectionAndConfiguration &	userAddedConnections ()
	Returns the set of user added connections during this execution of the dialog.
virtual const DtRtiConnectionAndConfiguration &	userRemovedConnections ()
	Returns the set of user removed connections during this execution of the dialog.
virtual void	clearUserAddedAndRemoved ()
	Clears all connections added and removed by the user during this execution of the dialog.
virtual bool	selectConnection (const DtRtiConnectionInfo &conn)
	Sets which connection should be selected.
virtual void	reselectConnection ()
	Unselects and reselects the specified connection to update the state of the current buttons and dialog options.
virtual void	getSelectedConnection (DtRtiConnectionInfo &conn) const
	Get the currently selected connection.
virtual void	getSelectedConfiguration (DtRtiConnectionConfigurationInfo &config) const
	Get the currently selected configuration.
virtual void	addProhibitedPort (int port, const QString &reason)
	Add a port which is prohibited, along with a reason.
virtual void	removeProhibitedPort (int port)
	Remove a port which is prohibited.
virtual void	setInitialState (bool check)
	Set the initial state of the dialog when it is shown for the very first time.
virtual bool	isConnectionNameInUse (const QString &name) const
	Returns true if the given connection name is already in use by a known connection.
virtual bool	checkForPortConflicts (int port1, int port2=0)
	Check if the port is prohibited and display an error if it is.
virtual bool	checkForValidAddr (const QString &addrStr, const MAKRti::DtInetAddr &ifAddr, MAKRti::DtInetAddr &addr)
	Check if the string is a valid address, as well as valid for the specified interface.
virtual bool	checkForConnNameConflict (const QString &name)
	Check if the new connection name is unique.
virtual bool	checkForDuplicateConn (const DtRtiConnectionInfo &conn)
	Check if the given connection is a duplicate of an existing connection.
Public Member Functions inherited from DtAssistantConfigWidget
	DtAssistantConfigWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConfigWidget ()
	Destructor.
virtual QString	reasonForDisabledAccept () const
	If the widget has disabled the accept button, returns the reason why.

Protected Member Functions
virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &config, DtNameToConnInfoMap::iterator &connIter)
	Adds an available connection to the list.
virtual void	removeConnection (const DtRtiConnectionInfoDataPair &conn)
	Removes an available connection from the list.
virtual void	clearAllConnections ()
	Clears the entire connection list.
virtual void	updateDisplayedConnection (const QString &name, const DtRtiConnectionInfoDataPair &updatedConn, QTreeWidgetItem *connItem)
	Depending on the type of our current query connection, we update connItem based on updatedConn.
virtual QTreeWidgetItem *	findConnInTree (const DtRtiConnectionInfo &conn, DtNameToConnInfoMap::iterator &connIter)
	Finds the connection item in the tree.
virtual void	getConnStatusText (const QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &, QString &text)
	Gets the connection status text for the given connection.
virtual void	loadLocalInterfaceList ()
	Reloads the list of local interfaces which can be selected for new connections.
virtual bool	isKnownAssistant (const DtRtiConnectionInfo &conn)
	Determine if this connection is an rtiexec connection on the same host as one of the known assistants.
virtual bool	checkForValidAddrAndHost (const QString &addrStr, const MAKRti::DtInetAddr &ifAddr, MAKRti::DtInetAddr &addr, MAKRti::DtString &hostName)
	Check if the string is a valid address, as well as valid for the specified interface.
virtual void	setHostNameFromKnownAssistants (const MAKRti::DtInetAddr &ip, const MAKRti::DtInetAddr &interfaceAddr, MAKRti::DtString &hostName)
	Attempts to set the host name of the connection by matching the IP address and network interface address with a known assistant.
virtual bool	setReliableIpFromKnownAssistants (const MAKRti::DtString &hostName, const MAKRti::DtInetAddr &interfaceAddr, MAKRti::DtInetAddr &ip)
	Attempts to set the reliable IP address of the connection by matching the host name and network interface address with a known assistant.
virtual void	showEvent (QShowEvent *event)
	Prepare the widget to be shown.
virtual bool	promptUserForNewConnInfo (DtRtiConnectionInfoDataPair &conn)
	Prompts the user for new connection info.
virtual bool	promptUserToEditConnInfo (DtRtiConnectionInfoDataPair &conn)
	Prompts the user to edit connection info.
virtual bool	promptUserForConnInfo (DtRtiConnectionInfoDataPair &conn, const QString &dialogTitle, bool useNameOfGivenConn)
	Prompts the user for connection info.
virtual void	setAcceptEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the accept button based on the state of the given currently selected connection.
virtual void	updateDialogBasedOnConn (const DtRtiConnectionInfoDataPair *conn, const DtRtiConfigurationInfoDataPair *config, bool isDisabled)
	Updates the LRC connection query dialog specific items based on the state of the given currently selected connection and configuration.
Protected Member Functions inherited from DtAssistantConnQueryWidget
virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &config, DtNameToConnInfoMap::iterator &connIter)=0
	Adds an available connection to the list.
virtual void	storeUserAddedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to add.
virtual void	storeUserRemovedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to remove.
virtual QTreeWidgetItem *	findConnInTree (const DtRtiConnectionInfo &conn, DtNameToConnInfoMap::iterator &connIter)=0
	Finds the connection item in the tree.
virtual void	setConnItemToolTip (QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn=std::make_pair(DtRtiConnectionInfo::invalidConn(), DtRtiAssociatedConnectionData()), const DtRtiConfigurationInfoDataPair &config=DtRtiConfigurationInfoDataPair())
	Set the tool tip for the given item.
virtual void	setFullyCompliantStateBasedOnConn (const DtRtiConnectionInfoDataPair *conn, const DtRtiConfigurationInfoDataPair *config)
	Enables or disables and sets the fully compliant check box based on the state of the given currently selected connection and configuration.
virtual void	setRemoveEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the remove button based on the state of the given currently selected connection.
virtual void	setEditEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the edit button based on the state of the given currently selected connection.
virtual void	disableItem (QTreeWidgetItem *item, bool disable)
	Marks the item as disabled.
virtual bool	isItemDisabled (const QTreeWidgetItem *item) const
	Returns true if the item is marked as disabled.
virtual QString	reserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Reserves the name for the given connection.
virtual void	unreserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Unreserves the given connection name.
virtual void	setAcceptEnabled (bool enabled, const QString &reasonForDisable)
	Sets whether or not accept is enabled.
bool	isAddressNotation (const QString &addrString) const
	Checks if the given string contains an address notation.

Protected Attributes
DtAssistantInfoSet	myRemoteAssistants
	The set of known remote assistants.
DtAssistantAddLrcConnDialog *	myAddConnDialog
	Dialog used to set information for a new connection.
QTreeWidgetItem *	myLightweightItem
	Top level item for the lightweight connection type.
QTreeWidgetItem *	myRtiexecItem
	Top level item for the rtiexec connection type.
QProgressDialog *	myStartAndConnectProgressDlg
	A dialog to display progress when starting and connecting to an rtiexec.
DtRtiConnectionInfo	myPendingRtiexecConn
	The rtiexec connection we are attempting to start and connect to.
Protected Attributes inherited from DtAssistantConnQueryWidget
DtNameToConnInfoMap::iterator	myIter
Ui::AssistantConnQueryWidget	myUiImpl
DtNameToConnInfoMap	myConnectionInfo
	The map of connection entries to detailed connection info.
DtRtiConnectionAndConfiguration	myAddedConnections
	Set of added connections.
DtRtiConnectionAndConfiguration	myRemovedConnections
	Set of added connections.
DtNameToConnInfoMap::iterator	myPredefinedLightweightConnection
	The predefined lightweight connection.
DtNameToConnInfoMap::iterator	myPredefinedRtiexecConnection
	The predefined rtiexec connection.
DtNameToConnInfoMap::iterator	myChosenConnection
	The connection chosen to be used without prompting.
std::map< int, QString >	myProhibitedPorts
	List of prohibited ports and reasons why.
QMenu *	myContextMenu
	Context Menu.
bool	myContextMenuEnabled
	Controls whether the context menu should be displayed on right clicks.
bool	myShowStartRtiexecButton
	Whether the start rtiexec button is displayed.
bool	myUseButtonsInsteadOfCheckBox
	Whether the radio buttons are used instead of the check box to set the selected connection to be used automatically in the future.
bool	myInitialState
	The dialog is being displayed for the first time ever and should be in its default initial state.
QAction *	myAddConnectionAction
	Context menu actions.
QAction *	myRemoveConnectionAction
	Context menu actions.
QAction *	myEditConnectionAction
	Context menu actions.
QAction *	myStartRtiexecAction
	Context menu actions.
QIcon	myValidChoiceIcon
	Icons.
QIcon	myUnknownChoiceIcon
	Icons.
QIcon	myInvalidChoiceIcon
	Icons.

Static Protected Attributes
static const QString	theErrorText
	Text to be displayed when there was a connection error.
static const QString	theNormalText
	Text to be displayed when there was no error.
static const QString	theErrorTitle
	Title to be displayed when there was a connection error.
static const QString	theNormalTitle
	Title to be displayed when there was no error.
static const QString	theVerifiedText
	Text descriptions for each possible connection status.
static const QString	theVerifiedForwarderText
	Text descriptions for each possible connection status.
static const QString	theUnknownText
	Text descriptions for each possible connection status.
static const QString	theConflictingText
	Text descriptions for each possible connection status.
static const QString	theUnknownNetworkInterfaceText
	Text descriptions for each possible connection status.
static const QString	theNoNetworkInterfaceText
	Text descriptions for each possible connection status.
static const QString	theLightweightBranchHeaderText
	Connection tree branch headers and tool tips.
static const QString	theLightweightBranchToolTipText
	Connection tree branch headers and tool tips.
static const QString	theRtiexecBranchHeaderText
	Connection tree branch headers and tool tips.
static const QString	theRtiexecBranchToolTipText
	Connection tree branch headers and tool tips.

Private Member Functions
	DtAssistantLrcConnQueryWidget (DtAssistantLrcConnQueryWidget const &)
	Copy constructor not implemented.
DtAssistantLrcConnQueryWidget &	operator= (DtAssistantLrcConnQueryWidget const &)
	Assignment operator not implemented.

Additional Inherited Members
Protected Types inherited from DtAssistantConnQueryWidget
enum	DtConnQueryCol { ConnectionNameCol, StatusCol, SortCol }
typedef std::map< QString, DtRtiConnAndAssociatedConfig >	DtNameToConnInfoMap

Detailed Description

Widget used to request the user to provide new connection parameters when an LRC cannot establish a connection.

Constructor & Destructor Documentation

DtAssistantLrcConnQueryWidget::DtAssistantLrcConnQueryWidget	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

References connect(), DtAssistantConnQueryWidget::ConnectionNameCol, myLightweightItem, myRtiexecItem, DtAssistantConnQueryWidget::myStartRtiexecAction, DtAssistantConnQueryWidget::myUiImpl, processStartRtiexec(), DtAssistantConnQueryWidget::showStartRtiexecButton(), theLightweightBranchHeaderText, theLightweightBranchToolTipText, theRtiexecBranchHeaderText, and theRtiexecBranchToolTipText.

DtAssistantLrcConnQueryWidget::~DtAssistantLrcConnQueryWidget ( )

virtual

Destructor.

DtAssistantLrcConnQueryWidget::DtAssistantLrcConnQueryWidget ( DtAssistantLrcConnQueryWidget const &  )

private

Copy constructor not implemented.

Member Function Documentation

bool DtAssistantLrcConnQueryWidget::acceptCurrentSelection ( )

virtual

Processes acceptance of the current selection, starting an rtiexec if necessary and possible.

Returns true if selection is acceptable.

References cancelStartAndConnect(), DtAssistantConnQueryWidget::checkForPortConflicts(), connect(), DtAssistantConnQueryWidget::ConnectionNameCol, DtAssistantConnQueryWidget::myConnectionInfo, myPendingRtiexecConn, myStartAndConnectProgressDlg, DtAssistantConnQueryWidget::myUiImpl, and startRtiexec().

bool DtAssistantLrcConnQueryWidget::addConnection ( const DtRtiConnectionInfoDataPair &  conn, const DtRtiConfigurationInfoDataPair &  config, DtNameToConnInfoMap::iterator &  connIter  )

protectedvirtual

Adds an available connection to the list.

Returns true if it was successfully added and sets the iterator to location in the map of the new connection.

References DtAssistantConnQueryWidget::DtRtiConnAndAssociatedConfig::config, DtAssistantConnQueryWidget::DtRtiConnAndAssociatedConfig::conn, findConnInTree(), DtAssistantConnQueryWidget::myConnectionInfo, myLightweightItem, myRtiexecItem, DtAssistantConnQueryWidget::reserveNameForConnection(), and updateDisplayedConnection().

void DtAssistantLrcConnQueryWidget::addKnownAssistant ( const DtAssistantInfo &  assistant )

virtual

Adds an assistant to the list of known remote assistants.

References myRemoteAssistants.

Referenced by DtAssistantConnQueryMgr::DtAssistantConnQueryMgr(), and DtAssistantConnQueryMgr::processAssistantFound().

void DtAssistantLrcConnQueryWidget::cancelStartAndConnect ( )

slot

Processes a cancel from progress dialog for starting and connecting to an rtiexec.

References DtRtiConnectionInfo::invalidConn(), myPendingRtiexecConn, and myStartAndConnectProgressDlg.

Referenced by acceptCurrentSelection().

bool DtAssistantLrcConnQueryWidget::checkForValidAddrAndHost ( const QString &  addrStr, const MAKRti::DtInetAddr &  ifAddr, MAKRti::DtInetAddr &  addr, MAKRti::DtString &  hostName  )

protectedvirtual

Check if the string is a valid address, as well as valid for the specified interface.

Return the constructed DtInetAddr and the host name of the machine if it can be determined.

References DtGetLocalHostName(), DtAssistantConnQueryWidget::isAddressNotation(), setHostNameFromKnownAssistants(), and setReliableIpFromKnownAssistants().

Referenced by promptUserForConnInfo().

void DtAssistantLrcConnQueryWidget::clearAllConnections ( )

protectedvirtual

Clears the entire connection list.

Implements DtAssistantConnQueryWidget.

Reimplemented in DtAssistantConnConfigWidget.

References DtAssistantConnQueryWidget::myChosenConnection, DtAssistantConnQueryWidget::myConnectionInfo, myLightweightItem, DtAssistantConnQueryWidget::myPredefinedLightweightConnection, DtAssistantConnQueryWidget::myPredefinedRtiexecConnection, and myRtiexecItem.

void DtAssistantLrcConnQueryWidget::displayErrorText ( bool  error )

virtual

Set the variation of widget text based on whether or not it is being displayed due to an error.

References DtAssistantConnQueryWidget::myUiImpl, theErrorText, theErrorTitle, theNormalText, theNormalTitle, and updateWindowTitle().

Referenced by DtAssistantConnQueryMgr::processConnQueryMsg().

QTreeWidgetItem * DtAssistantLrcConnQueryWidget::findConnInTree ( const DtRtiConnectionInfo &  conn, DtNameToConnInfoMap::iterator &  connIter  )

protectedvirtual

Finds the connection item in the tree.

Returns a pointer to the tree item as well as an iterator to its location in the map.

References DtAssistantConnQueryWidget::ConnectionNameCol, DtAssistantConnQueryWidget::myConnectionInfo, myLightweightItem, myRtiexecItem, and DtRtiConnectionInfo::useRtiexec().

Referenced by addConnection(), and removeConnection().

void DtAssistantLrcConnQueryWidget::getConnStatusText ( const QTreeWidgetItem *  item, const DtRtiConnectionInfoDataPair &  conn, const DtRtiConfigurationInfoDataPair &  , QString &  text  )

protectedvirtual

Gets the connection status text for the given connection.

Implements DtAssistantConnQueryWidget.

References DtRtiAssociatedConnectionData::DtConnectionConflicting, DtRtiAssociatedConnectionData::DtConnectionForwarderVerified, DtRtiAssociatedConnectionData::DtConnectionVerified, DtAssistantConnQueryWidget::isItemDisabled(), theConflictingText, theNoNetworkInterfaceText, theUnknownNetworkInterfaceText, theUnknownText, theVerifiedForwarderText, and theVerifiedText.

bool DtAssistantLrcConnQueryWidget::isKnownAssistant ( const DtRtiConnectionInfo &  conn )

protectedvirtual

Determine if this connection is an rtiexec connection on the same host as one of the known assistants.

References DtAssistantInfo::findMatchingHostInfo(), DtRtiConnectionInfo::hostName(), myRemoteAssistants, DtRtiConnectionInfo::networkInterfaceAddr(), and DtRtiConnectionInfo::reliableIp().

Referenced by updateDialogBasedOnConn().

const DtAssistantInfoSet & DtAssistantLrcConnQueryWidget::knownAssistants ( ) const

virtual

References myRemoteAssistants.

void DtAssistantLrcConnQueryWidget::loadLocalInterfaceList ( )

protectedvirtual

Reloads the list of local interfaces which can be selected for new connections.

Implements DtAssistantConnQueryWidget.

References DtAssistantConnQueryWidget::ConnectionNameCol, DtAssistantConnQueryWidget::disableItem(), DtRtiConnectionInfo::invalidConn(), DtRtiConnectionInfo::localIpAddresses(), myAddConnDialog, DtAssistantConnQueryWidget::myAddConnectionAction, DtAssistantConnQueryWidget::myConnectionInfo, myLightweightItem, myRtiexecItem, DtAssistantConnQueryWidget::myUiImpl, DtRtiConnectionInfo::networkInterfaceAddr(), DtAssistantAddLrcConnDialog::setNetworkInterfaceAddrs(), and updateDisplayedConnection().

Referenced by promptUserForConnInfo(), and showEvent().

DtAssistantLrcConnQueryWidget& DtAssistantLrcConnQueryWidget::operator= ( DtAssistantLrcConnQueryWidget const &  )

private

Assignment operator not implemented.

void DtAssistantLrcConnQueryWidget::processStartRtiexec ( )

slot

Processes the pressing of the start rtiexec button by the user.

References DtAssistantConnQueryWidget::checkForPortConflicts(), DtAssistantConnQueryWidget::ConnectionNameCol, DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myUiImpl, and startRtiexec().

Referenced by DtAssistantLrcConnQueryWidget().

bool DtAssistantLrcConnQueryWidget::promptUserForConnInfo ( DtRtiConnectionInfoDataPair &  conn, const QString &  dialogTitle, bool  useNameOfGivenConn  )

protectedvirtual

Prompts the user for connection info.

References DtAssistantConnQueryWidget::checkForPortConflicts(), DtAssistantConnQueryWidget::checkForValidAddr(), checkForValidAddrAndHost(), DtAssistantConnQueryWidget::ConnectionNameCol, DtRtiConnectionInfo::defaultBestEffortIp(), DtRtiConnectionInfo::defaultForwarderPort(), DtRtiConnectionInfo::defaultHostName(), DtRtiConnectionInfo::defaultLightweightPort(), DtRtiConnectionInfo::defaultNetworkInterfaceAddr(), DtRtiConnectionInfo::defaultReliableIp(), DtRtiConnectionInfo::defaultRtiexecPort(), DtGetLocalHostName(), DtRtiAssociatedConnectionData::DtUnknownState, DtAssistantAddLrcConnDialog::getData(), loadLocalInterfaceList(), myAddConnDialog, DtAssistantConnQueryWidget::myPredefinedLightweightConnection, myRemoteAssistants, DtAssistantConnQueryWidget::myUiImpl, DtAssistantAddLrcConnDialog::setAvailableHosts(), DtAssistantAddLrcConnDialog::setData(), DtAssistantAddLrcConnDialog::setName(), and theLightweightBranchHeaderText.

Referenced by promptUserForNewConnInfo(), and promptUserToEditConnInfo().

bool DtAssistantLrcConnQueryWidget::promptUserForNewConnInfo ( DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Prompts the user for new connection info.

Implements DtAssistantConnQueryWidget.

References promptUserForConnInfo().

bool DtAssistantLrcConnQueryWidget::promptUserToEditConnInfo ( DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Prompts the user to edit connection info.

Implements DtAssistantConnQueryWidget.

References promptUserForConnInfo().

void DtAssistantLrcConnQueryWidget::removeConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Removes an available connection from the list.

The list of available connections should be set prior to every execution of the widget.

Implements DtAssistantConnQueryWidget.

References findConnInTree(), DtAssistantConnQueryWidget::myChosenConnection, DtAssistantConnQueryWidget::myConnectionInfo, myLightweightItem, DtAssistantConnQueryWidget::myPredefinedLightweightConnection, DtAssistantConnQueryWidget::myPredefinedRtiexecConnection, myRtiexecItem, and DtAssistantConnQueryWidget::unreserveNameForConnection().

void DtAssistantLrcConnQueryWidget::removeKnownAssistant ( const DtAssistantInfo &  assistant )

virtual

Removes an assistant to the list of known remote assistants.

References myRemoteAssistants.

Referenced by DtAssistantConnQueryMgr::processAssistantLost().

void DtAssistantLrcConnQueryWidget::requestStartRtiexecEnable ( const DtRtiConnectionInfoDataPair &  )

signal

Signal emitted when we think we may want to enable the "Start rtiexec" option, but need to be told if its ok (could be disabled by remote assistant for this connection)

Referenced by updateDialogBasedOnConn().

void DtAssistantLrcConnQueryWidget::setAcceptEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedvirtual

Enables or disables the accept button based on the state of the given currently selected connection.

Implements DtAssistantConnQueryWidget.

References DtAssistantConnQueryWidget::setAcceptEnabled().

void DtAssistantLrcConnQueryWidget::setHostNameFromKnownAssistants ( const MAKRti::DtInetAddr &  ip, const MAKRti::DtInetAddr &  interfaceAddr, MAKRti::DtString &  hostName  )

protectedvirtual

Attempts to set the host name of the connection by matching the IP address and network interface address with a known assistant.

Will set the host name to a null string if it could not be determined.

References DtAssistantInfo::findMatchingHostInfo(), and myRemoteAssistants.

Referenced by checkForValidAddrAndHost().

bool DtAssistantLrcConnQueryWidget::setReliableIpFromKnownAssistants ( const MAKRti::DtString &  hostName, const MAKRti::DtInetAddr &  interfaceAddr, MAKRti::DtInetAddr &  ip  )

protectedvirtual

Attempts to set the reliable IP address of the connection by matching the host name and network interface address with a known assistant.

Will set and return false if the IP to the invalid value if it could not be determined.

References DtAssistantInfo::findMatchingHostInfo(), and myRemoteAssistants.

Referenced by checkForValidAddrAndHost().

void DtAssistantLrcConnQueryWidget::setStartRtiexecEnabled ( bool  enable, const QString &  reason  )

virtual

Sets whether or not the "Start rtiexec" button is enabled.

If button is to be disabled, reason will be used as a tool tip for the user.

References DtAssistantConnQueryWidget::myStartRtiexecAction, and DtAssistantConnQueryWidget::myUiImpl.

Referenced by DtAssistantConnQueryMgr::setStartRtiexecEnableBasedOnConn(), and updateDialogBasedOnConn().

void DtAssistantLrcConnQueryWidget::showEvent ( QShowEvent *  event )

protectedvirtual

Prepare the widget to be shown.

Reimplemented in DtAssistantConnConfigWidget.

References DtAssistantConnQueryWidget::clearUserAddedAndRemoved(), DtAssistantConnQueryWidget::ConnectionNameCol, loadLocalInterfaceList(), DtAssistantConnQueryWidget::myChosenConnection, DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myInitialState, myLightweightItem, DtAssistantConnQueryWidget::myPredefinedLightweightConnection, DtAssistantConnQueryWidget::myPredefinedRtiexecConnection, myRtiexecItem, DtAssistantConnQueryWidget::myUiImpl, DtAssistantConnQueryWidget::selectConnection(), and DtAssistantConnQueryWidget::SortCol.

void DtAssistantLrcConnQueryWidget::startRtiexec ( const DtRtiConnectionInfoDataPair &  conn, const DtRtiConnectionConfigurationInfo &  config, bool  isRemote  )

signal

Signal emitted when user chooses to start an rtiexec.

Referenced by acceptCurrentSelection(), and processStartRtiexec().

void DtAssistantLrcConnQueryWidget::updateDialogBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn, const DtRtiConfigurationInfoDataPair *  config, bool  isDisabled  )

protectedvirtual

Updates the LRC connection query dialog specific items based on the state of the given currently selected connection and configuration.

Reimplemented from DtAssistantConnQueryWidget.

References isKnownAssistant(), requestStartRtiexecEnable(), and setStartRtiexecEnabled().

void DtAssistantLrcConnQueryWidget::updateDisplayedConnection ( const QString &  name, const DtRtiConnectionInfoDataPair &  updatedConn, QTreeWidgetItem *  connItem  )

protectedvirtual

Depending on the type of our current query connection, we update connItem based on updatedConn.

Implements DtAssistantConnQueryWidget.

Reimplemented in DtAssistantConnConfigWidget.

References DtAssistantConnQueryWidget::ConnectionNameCol, DtRtiAssociatedConnectionData::DtConnectionForwarderVerified, DtRtiAssociatedConnectionData::DtConnectionVerified, DtRtiAssociatedConnectionData::DtUnknownState, DtRtiConnectionInfo::invalidConn(), DtAssistantConnQueryWidget::isItemDisabled(), DtAssistantConnQueryWidget::myInvalidChoiceIcon, myPendingRtiexecConn, myStartAndConnectProgressDlg, DtAssistantConnQueryWidget::myUiImpl, DtAssistantConnQueryWidget::myUnknownChoiceIcon, DtAssistantConnQueryWidget::myValidChoiceIcon, DtAssistantConnQueryWidget::reselectConnection(), DtAssistantConnQueryWidget::selectionAccepted(), DtAssistantConnQueryWidget::setConnItemToolTip(), and DtAssistantConnQueryWidget::SortCol.

Referenced by addConnection(), and loadLocalInterfaceList().

void DtAssistantLrcConnQueryWidget::updateWindowTitle ( const QString &  )

signal

Signal emitted when the window title should be changed.

Referenced by displayErrorText().

Member Data Documentation

DtAssistantAddLrcConnDialog* DtAssistantLrcConnQueryWidget::myAddConnDialog

protected

Dialog used to set information for a new connection.

Referenced by loadLocalInterfaceList(), and promptUserForConnInfo().

QTreeWidgetItem* DtAssistantLrcConnQueryWidget::myLightweightItem

protected

Top level item for the lightweight connection type.

Referenced by addConnection(), clearAllConnections(), DtAssistantLrcConnQueryWidget(), findConnInTree(), loadLocalInterfaceList(), removeConnection(), and showEvent().

DtRtiConnectionInfo DtAssistantLrcConnQueryWidget::myPendingRtiexecConn

protected

The rtiexec connection we are attempting to start and connect to.

Referenced by acceptCurrentSelection(), cancelStartAndConnect(), and updateDisplayedConnection().

DtAssistantInfoSet DtAssistantLrcConnQueryWidget::myRemoteAssistants

protected

The set of known remote assistants.

Referenced by addKnownAssistant(), isKnownAssistant(), knownAssistants(), promptUserForConnInfo(), removeKnownAssistant(), setHostNameFromKnownAssistants(), and setReliableIpFromKnownAssistants().

QTreeWidgetItem* DtAssistantLrcConnQueryWidget::myRtiexecItem

protected

Top level item for the rtiexec connection type.

Referenced by addConnection(), clearAllConnections(), DtAssistantLrcConnQueryWidget(), findConnInTree(), loadLocalInterfaceList(), removeConnection(), and showEvent().

QProgressDialog* DtAssistantLrcConnQueryWidget::myStartAndConnectProgressDlg

protected

A dialog to display progress when starting and connecting to an rtiexec.

Referenced by acceptCurrentSelection(), cancelStartAndConnect(), and updateDisplayedConnection().

const QString DtAssistantLrcConnQueryWidget::theConflictingText

staticprotected

Initial value:

   tr( "This connection cannot be active because a conflicting connection is active." )

Text descriptions for each possible connection status.

Referenced by getConnStatusText(), and DtAssistantConnConfigWidget::updateDisplayedConnection().

const QString DtAssistantLrcConnQueryWidget::theErrorText

staticprotected

Initial value:

   tr( "The RTI is configured to connect to an rtiexec or RTI Forwarder but "
   "a connection could not be made.  Please verify that the rtiexec is "
   "running, and then choose or add the correct connection information below." )

Text to be displayed when there was a connection error.

Referenced by displayErrorText().

const QString DtAssistantLrcConnQueryWidget::theErrorTitle

staticprotected

Initial value:

   tr( "Connection Failed" )

Title to be displayed when there was a connection error.

Referenced by displayErrorText().

const QString DtAssistantLrcConnQueryWidget::theLightweightBranchHeaderText

staticprotected

Initial value:

   tr("Lightweight connections")

Connection tree branch headers and tool tips.

Referenced by DtAssistantLrcConnQueryWidget(), and promptUserForConnInfo().

const QString DtAssistantLrcConnQueryWidget::theLightweightBranchToolTipText

staticprotected

Initial value:

   tr("Connections that don't use rtiexecs. Connections may be faster, but\n"
      "they offer fewer features and only best effort message exchanges.")

Connection tree branch headers and tool tips.

Referenced by DtAssistantLrcConnQueryWidget().

const QString DtAssistantLrcConnQueryWidget::theNoNetworkInterfaceText

staticprotected

Initial value:

   tr( "This connection has no configured network interface." )

Text descriptions for each possible connection status.

Referenced by getConnStatusText().

const QString DtAssistantLrcConnQueryWidget::theNormalText

staticprotected

Initial value:


   tr( "Please choose the RTI connection you would like to use." )

Text to be displayed when there was no error.

Referenced by displayErrorText().

const QString DtAssistantLrcConnQueryWidget::theNormalTitle

staticprotected

Initial value:


   tr( "Choose RTI Connection" )

Title to be displayed when there was no error.

Referenced by displayErrorText().

const QString DtAssistantLrcConnQueryWidget::theRtiexecBranchHeaderText

staticprotected

Initial value:

   tr("rtiexec connections")

Connection tree branch headers and tool tips.

Referenced by DtAssistantLrcConnQueryWidget().

const QString DtAssistantLrcConnQueryWidget::theRtiexecBranchToolTipText

staticprotected

Initial value:

   tr("Connections that use rtiexecs. These connections support\n"
      "reliable messages and full RTI compliance.")

Connection tree branch headers and tool tips.

Referenced by DtAssistantLrcConnQueryWidget().

const QString DtAssistantLrcConnQueryWidget::theUnknownNetworkInterfaceText

staticprotected

Initial value:

   tr( "This connection is configured to use a network interface that cannot be found." )

Text descriptions for each possible connection status.

Referenced by getConnStatusText(), and DtAssistantConnConfigWidget::updateDisplayedConnection().

const QString DtAssistantLrcConnQueryWidget::theUnknownText

staticprotected

Initial value:

   tr( "Unable to determine if this connection is active." )

Text descriptions for each possible connection status.

Referenced by getConnStatusText(), and DtAssistantConnConfigWidget::updateDisplayedConnection().

const QString DtAssistantLrcConnQueryWidget::theVerifiedForwarderText

staticprotected

Initial value:

   tr( "The RTI Forwarder is active, but rtiexec is not." )

Text descriptions for each possible connection status.

Referenced by getConnStatusText(), and DtAssistantConnConfigWidget::updateDisplayedConnection().

const QString DtAssistantLrcConnQueryWidget::theVerifiedText

staticprotected

Initial value:

   tr( "This connection is active" )

Text descriptions for each possible connection status.

Referenced by getConnStatusText(), and DtAssistantConnConfigWidget::updateDisplayedConnection().

---

The documentation for this class was generated from the following files:

• lrcConnQueryWidget.h
• lrcConnQueryWidget.cxx
