DtAssistantMgr Class Reference

Base class for all classes which perform management activities for the Assistant. More...

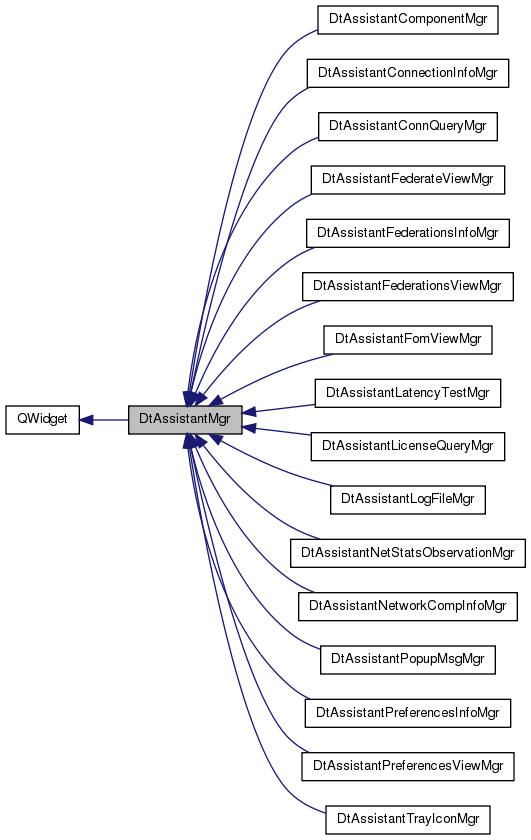

Inheritance diagram for DtAssistantMgr:

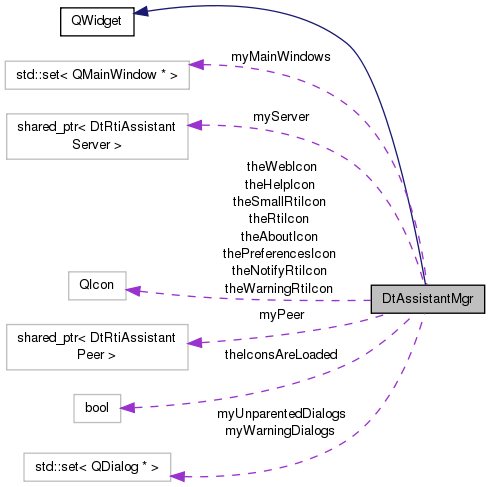

Collaboration diagram for DtAssistantMgr:

Public Slots
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Member Functions
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Protected Attributes
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Static Protected Attributes
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded = false
	Whether or not the icons have yet been loaded.

Private Member Functions
	DtAssistantMgr (DtAssistantMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantMgr &	operator= (DtAssistantMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Detailed Description

Base class for all classes which perform management activities for the Assistant.

Derived from the QObject class in order to receive Qt signals.

Constructor & Destructor Documentation

DtAssistantMgr::DtAssistantMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter
	)

Constructor.

References displayWarningDialogs(), DtDisplayActiveWarningDialogsSig, DtLocalCompNotificationSig, DtLocalCompPopupSig, DtNotificationSig, DtPopupSig, DtWarningDialogDismissedSig, DtWarningDialogDisplayedSig, DtIconAndTextureManager::getIcon(), DtIconAndTextureManager::getInstance(), notificationRequested(), popupRequested(), DtAssistantSignalRouter::registerSignal(), DtAssistantSignalRouter::registerSlot(), theAboutIcon, theHelpIcon, theIconsAreLoaded, theNotifyRtiIcon, thePreferencesIcon, theRtiIcon, theSmallRtiIcon, theWarningRtiIcon, theWebIcon, warningDialogDismissed(), and warningDialogDisplayed().

DtAssistantMgr::~DtAssistantMgr ( )

virtual

Destructor.

References myUnparentedDialogs.

DtAssistantMgr::DtAssistantMgr ( DtAssistantMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual void DtAssistantMgr::configWidget ( DtAssistantConfigWidget **  widget, QIcon &  icon, QString &  name, DtPreferencesPage &  pageId  )

inlinevirtual

Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.

Reimplemented in DtAssistantConnQueryMgr, and DtAssistantLicenseQueryMgr.

bool DtAssistantMgr::dialogsVisible ( ) const

virtual

Determines if there are any visible dialogs for which this manager is responsible.

If possible, derived manager classes should call startDialog on all dialogs. Otherwise it should should override this method to take those into account as well.

Reimplemented in DtAssistantFederationsViewMgr.

References myMainWindows, and myUnparentedDialogs.

void DtAssistantMgr::displayNotification ( const MAKRti::DtString &  message, MAKRti::DtNotifyLevelType  notifyLevel, int  sourceCompId = -1  )

protected

Displays and logs a notification from the given component.

A source of -1 is the Assistant.

References notificationRequested().

Referenced by DtAssistantPopupMsgMgr::addPopupMsgToQueue(), DtAssistantPopupMsgMgr::popup(), DtAssistantComponentMgr::processSocketRemoval(), and DtAssistantFederationsInfoMgr::tick().

void DtAssistantMgr::displayNotification ( const MAKRti::DtString &  message, MAKRti::DtNotifyLevelType  notifyLevel, const MAKRti::DtString &  source  )

protected

Displays and logs notification with the given component name.

References notificationRequested().

void DtAssistantMgr::displayWarningDialogs ( )

slot

Displays all warning dialogs.

References myWarningDialogs, and showDialog().

Referenced by DtAssistantMgr().

void DtAssistantMgr::finishDialog ( QDialog *  dlg )

protected

Should be called prior to deleting any dialog started with startDialog.

References myUnparentedDialogs.

Referenced by DtAssistantLogFileMgr::disableComponentLog(), DtAssistantLogFileMgr::enableComponentLog(), DtAssistantFederationsViewMgr::processAwaitingForwardersMsg(), DtAssistantFederationsViewMgr::processFederationRemoved(), DtAssistantFederationsViewMgr::processForwarderRemoved(), DtAssistantFederationsViewMgr::~DtAssistantFederationsViewMgr(), and DtAssistantPopupMsgMgr::~DtAssistantPopupMsgMgr().

void DtAssistantMgr::finishMainWindow ( QMainWindow *  dlg )

protected

Should be called prior to deleting any dialog started with startMainWindow.

References myMainWindows.

Referenced by DtAssistantFederateViewMgr::federateStatDlgClosing(), DtAssistantFomViewMgr::fomStatDlgClosing(), DtAssistantFederateViewMgr::~DtAssistantFederateViewMgr(), DtAssistantFederationsViewMgr::~DtAssistantFederationsViewMgr(), and DtAssistantFomViewMgr::~DtAssistantFomViewMgr().

virtual void DtAssistantMgr::initialize ( )

inlinevirtual

Initializes this manager just prior to beginning assistant processing.

Reimplemented in DtAssistantPreferencesInfoMgr, and DtAssistantPreferencesViewMgr.

void DtAssistantMgr::logNotification ( const MAKRti::DtString &  message, MAKRti::DtNotifyLevelType  notifyLevel, int  sourceCompId = -1  )

protected

Logs a notification from the given component, does not display.

A source of -1 is the Assistant.

References notificationRequested().

void DtAssistantMgr::logNotification ( const MAKRti::DtString &  message, MAKRti::DtNotifyLevelType  notifyLevel, const MAKRti::DtString &  source  )

protected

Logs a notification with the given component name, does not display.

References notificationRequested().

void DtAssistantMgr::notificationRequested ( const MAKRti::DtString &  message, MAKRti::DtNotifyLevelType  notifyLevel, int  sourceCompId, bool  logOnly  )

signal

Emitted when a notification should be displayed.

Referenced by displayNotification(), DtAssistantMgr(), and logNotification().

void DtAssistantMgr::notificationRequested ( const MAKRti::DtString &  message, MAKRti::DtNotifyLevelType  notifyLevel, const MAKRti::DtString &  source, bool  logOnly  )

signal

Emitted when a notification should be displayed.

DtAssistantMgr& DtAssistantMgr::operator= ( DtAssistantMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

void DtAssistantMgr::popupRequested ( const MAKRti::DtString &  text, int  sourceCompId, const MAKRti::DtString &  advancedText  )

signal

Emitted when a popup dialog should be displayed.

Referenced by DtAssistantMgr(), and showPopup().

void DtAssistantMgr::popupRequested ( const MAKRti::DtString &  text, const MAKRti::DtString &  source, const MAKRti::DtString &  advancedText  )

signal

Emitted when a popup dialog should be displayed.

virtual void DtAssistantMgr::processConfigWidgetAccept ( )

inlinevirtual

Process the changes that were accepted in the configuration widget.

Reimplemented in DtAssistantConnQueryMgr.

void DtAssistantMgr::showDialog ( QDialog *  dlg )

protected

Shows the dialog.

Should be used instead of the show method for any dialogs started with startDialog.

References myWarningDialogs, and warningDialogDisplayed().

Referenced by displayWarningDialogs(), DtAssistantPopupMsgMgr::popup(), DtAssistantFederationsViewMgr::processAwaitingForwardersMsg(), DtAssistantConnQueryMgr::processConnQueryMsg(), DtAssistantLicenseQueryMgr::processLicQueryMsg(), DtAssistantLicenseQueryMgr::processLicQueryResults(), DtAssistantTrayIconMgr::showAboutDialog(), DtAssistantLogFileMgr::showComponentConsole(), DtAssistantPreferencesViewMgr::showConfigDialog(), DtAssistantFederationsViewMgr::showFederateRidParams(), DtAssistantLatencyTestMgr::showLrcLatencyTestDialog(), DtAssistantPreferencesViewMgr::showMsgStats(), DtAssistantTrayIconMgr::showNotifyConsole(), DtAssistantFederationsViewMgr::showRidDialog(), DtAssistantLatencyTestMgr::showRtiexecLatencyTestDialog(), and DtAssistantFederationsViewMgr::showSyncPtDialog().

void DtAssistantMgr::showMainWindow ( QMainWindow *  dlg )

protected

Shows the dialog.

Should be used instead of the show method for any dialogs started with startDialog.

Referenced by DtAssistantFederateViewMgr::showFederateStatsDialog(), DtAssistantFederationsViewMgr::showFederationsView(), and DtAssistantFomViewMgr::showFomDialog().

void DtAssistantMgr::showPopup ( const MAKRti::DtString &  text, int  sourceCompId = -1, const MAKRti::DtString &  advancedText = MAKRti::DtString::nullString()  )

protected

Displays a popup message with the given text, advanced text, and name of the given source component.

A source of -1 is the Assistant.

References popupRequested().

Referenced by DtAssistantFederationsInfoMgr::processRemoteRtiexecPopupMsg().

void DtAssistantMgr::showPopup ( const MAKRti::DtString &  text, const MAKRti::DtString &  source, const MAKRti::DtString &  advancedText = MAKRti::DtString::nullString()  )

protected

Displays a popup message with the given text, advanced text, and source name.

References popupRequested().

void DtAssistantMgr::startDialog ( QDialog *  dlg, bool  inTaskbar, bool  warningDialog  )

protected

Sets up the given widget as a dialog.

This method should be called for all dialogs created by this class in order to make sure they are initialized and kept track of correctly. Can specify whether the dialog will have a task bar entry and whether it will result in a warning icon in the tray when displayed.

References connect(), myUnparentedDialogs, myWarningDialogs, theRtiIcon, and warningDialogDismissed().

Referenced by DtAssistantFederationsViewMgr::createRidDialog(), DtAssistantConnQueryMgr::DtAssistantConnQueryMgr(), DtAssistantLatencyTestMgr::DtAssistantLatencyTestMgr(), DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr(), DtAssistantLogFileMgr::DtAssistantLogFileMgr(), DtAssistantPopupMsgMgr::DtAssistantPopupMsgMgr(), DtAssistantPreferencesViewMgr::DtAssistantPreferencesViewMgr(), DtAssistantTrayIconMgr::DtAssistantTrayIconMgr(), DtAssistantLogFileMgr::enableComponentLog(), DtAssistantFederationsViewMgr::processAwaitingForwardersMsg(), DtAssistantFederationsViewMgr::processFederationUpdate(), and DtAssistantPreferencesViewMgr::showAssistantLog().

void DtAssistantMgr::startMainWindow ( QMainWindow *  dlg )

protected

Sets up a main window dialog.

This method should be called for all main windows created by this class in order to make sure they are initialized and kept track of correctly. All main windows will appear in the task bar and will not be considered warning dialogs.

References myMainWindows, and theRtiIcon.

Referenced by DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr(), DtAssistantFederateViewMgr::showFederateStatsDialog(), and DtAssistantFomViewMgr::showFomDialog().

virtual void DtAssistantMgr::startShutdown ( )

inlinevirtual

Performs any necessary processing at the start of shutdown.

Reimplemented in DtAssistantFederationsViewMgr, DtAssistantPreferencesInfoMgr, DtAssistantTrayIconMgr, DtAssistantConnectionInfoMgr, DtAssistantFederateViewMgr, and DtAssistantFomViewMgr.

virtual void DtAssistantMgr::tick ( )

inlinevirtual

Performs tasks that need to be completed periodically.

Reimplemented in DtAssistantFederationsInfoMgr, DtAssistantFederationsViewMgr, DtAssistantPreferencesViewMgr, DtAssistantConnQueryMgr, DtAssistantConnectionInfoMgr, DtAssistantNetworkCompInfoMgr, DtAssistantLicenseQueryMgr, and DtAssistantPopupMsgMgr.

virtual void DtAssistantMgr::updateConfigWidget ( )

inlinevirtual

Forces the configuration widget to be updated.

Reimplemented in DtAssistantConnQueryMgr, and DtAssistantLicenseQueryMgr.

void DtAssistantMgr::warningDialogDismissed ( )

signal

Emitted when a warning dialog is dismissed.

Referenced by DtAssistantMgr(), and startDialog().

void DtAssistantMgr::warningDialogDisplayed ( )

signal

Emitted when a warning dialog is displayed.

Referenced by DtAssistantMgr(), and showDialog().

Member Data Documentation

std::set<QMainWindow *> DtAssistantMgr::myMainWindows

protected

All main windows that are created by the GUI should be added to this set.

Referenced by dialogsVisible(), finishMainWindow(), and startMainWindow().

DtBoost::shared_ptr<DtRtiAssistantPeer> DtAssistantMgr::myPeer

protected

The Assistant peer which communicates with other Assistants.

Referenced by DtAssistantFederationsViewMgr::destroyFederation(), DtAssistantConnectionInfoMgr::DtAssistantConnectionInfoMgr(), DtAssistantConnQueryMgr::DtAssistantConnQueryMgr(), DtAssistantFederationsInfoMgr::DtAssistantFederationsInfoMgr(), DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr(), DtAssistantFomViewMgr::DtAssistantFomViewMgr(), DtAssistantLatencyTestMgr::DtAssistantLatencyTestMgr(), DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr(), DtAssistantNetworkCompInfoMgr::DtAssistantNetworkCompInfoMgr(), DtAssistantTrayIconMgr::DtAssistantTrayIconMgr(), DtAssistantNetStatsObservationMgr::federateDisconnected(), DtAssistantFederateViewMgr::federateStatDlgClosing(), DtAssistantFomViewMgr::fomStatDlgClosing(), DtAssistantFederationsInfoMgr::forwardMsgFromLocalRtiexec(), DtAssistantNetStatsObservationMgr::forwardNetStatsUpdateToRemoteAstnt(), DtAssistantLatencyTestMgr::getRtiexecConn(), DtAssistantFomViewMgr::handleNetStatsInitStateReq(), DtAssistantConnectionInfoMgr::heartbeatAssistant(), DtAssistantConnectionInfoMgr::heartbeatLightweightConnections(), DtAssistantFomViewMgr::lrcNetStatsUpdateIntervalUpdated(), DtAssistantFederateViewMgr::lrcNetStatsUpdateIntervalUpdated(), DtAssistantFederationsViewMgr::processExecObserveRspMsg(), DtAssistantFederationsInfoMgr::processExecObserveRspMsg(), DtAssistantFederationsInfoMgr::processFederateRequestMsg(), DtAssistantFederationsInfoMgr::processFederateResponseMsg(), DtAssistantFederationsInfoMgr::processFederationStateMsg(), DtAssistantNetworkCompInfoMgr::processForwarderObserveMsg(), DtAssistantNetworkCompInfoMgr::processForwarderStateMsgForConnection(), DtAssistantConnectionInfoMgr::processInfoMsg(), DtAssistantLatencyTestMgr::processLatencyTestResults(), DtAssistantConnectionInfoMgr::processLightweightInfoMsg(), DtAssistantConnectionInfoMgr::processLocalRtiComponentConnected(), DtAssistantFederateViewMgr::processNetStatsObserveReqMsg(), DtAssistantFederateViewMgr::processNetStatsObserveRspMsg(), DtAssistantTrayIconMgr::processNotifyObserveMsg(), DtAssistantFederationsInfoMgr::processObserveMsg(), DtAssistantFomViewMgr::processPeerNetStatsAttrParamStringUpdateMsg(), DtAssistantFederateViewMgr::processPeerNetStatsFedAmbUpdateMsg(), DtAssistantFomViewMgr::processPeerNetStatsFomAttrParamUpdateMsg(), DtAssistantFomViewMgr::processPeerNetStatsFomTreeUpdateMsg(), DtAssistantFomViewMgr::processPeerNetStatsInitStateRequestMsg(), DtAssistantFederateViewMgr::processPeerNetStatsInteractionsUpdateMsg(), DtAssistantFederateViewMgr::processPeerNetStatsMsgUpdateMsg(), DtAssistantFederateViewMgr::processPeerNetStatsObjectsUpdateMsg(), DtAssistantFomViewMgr::processPeerNetStatsObserveReqMsg(), DtAssistantFomViewMgr::processPeerNetStatsObserveRspMsg(), DtAssistantFederateViewMgr::processPeerNetStatsRtiAmbUpdateMsg(), DtAssistantFederateViewMgr::processPeerNetStatsStringReqMsg(), DtAssistantFederateViewMgr::processPeerNetStatsStringUpdateMsg(), DtAssistantFederationsInfoMgr::processRemoteRtiexecPopupMsg(), DtAssistantConnectionInfoMgr::processRemovalMsg(), DtAssistantFederationsViewMgr::processRidParamMsg(), DtAssistantFederationsViewMgr::processRtiexecNotifyMsg(), DtAssistantFomViewMgr::processServerNetStatsAttrParamStringUpdateMsg(), DtAssistantFomViewMgr::processServerNetStatsFomAttrParamUpdateMsg(), DtAssistantFomViewMgr::processServerNetStatsFomTreeUpdateMsg(), DtAssistantFederationsInfoMgr::processSyncPtStateMsg(), DtAssistantLatencyTestMgr::processTestCommand(), DtAssistantFederationsInfoMgr::removeFederationsForRtiexec(), DtAssistantFederationsInfoMgr::requestFederateLoc(), DtAssistantFederateViewMgr::requestNetStatsStringUpdate(), DtAssistantFederationsViewMgr::resignFederate(), DtAssistantFederationsInfoMgr::sendAllFederationInfo(), DtAssistantNetworkCompInfoMgr::sendAllForwarderInfo(), DtAssistantFederateViewMgr::sendFederateObservationRequest(), DtAssistantFomViewMgr::sendFomObservationRequest(), DtAssistantLatencyTestMgr::sendLatencyTestCommand(), DtAssistantFederationsViewMgr::sendLogRequest(), DtAssistantNetStatsObservationMgr::sendNetStatsInitStateReq(), DtAssistantNetStatsObservationMgr::sendNetStatsObserveRsp(), DtAssistantFederationsViewMgr::sendNetworkTestingDisableMsg(), DtAssistantFederationsViewMgr::sendNetworkTestingEnableMsg(), DtAssistantTrayIconMgr::sendNotifyObserveMsg(), DtAssistantFederationsInfoMgr::sendObserveFederationsMsg(), DtAssistantNetworkCompInfoMgr::sendObserveForwarderMsg(), DtAssistantFederationsViewMgr::sendPendingRidRequest(), DtAssistantPreferencesViewMgr::showConfigDialog(), DtAssistantFederationsViewMgr::showForwarderRidParams(), DtAssistantPreferencesViewMgr::showMsgStats(), DtAssistantFederationsViewMgr::showRtiexecRidParams(), DtAssistantFederationsViewMgr::shutdownRtiexec(), DtAssistantFederationsViewMgr::shutdownRtiForwarder(), DtAssistantFederationsInfoMgr::startRtiexec(), DtAssistantFederationsInfoMgr::viewFederationsForConnection(), DtAssistantNetworkCompInfoMgr::viewNetworkComponentsForConnection(), DtAssistantConnectionInfoMgr::~DtAssistantConnectionInfoMgr(), DtAssistantFederationsInfoMgr::~DtAssistantFederationsInfoMgr(), DtAssistantFederationsViewMgr::~DtAssistantFederationsViewMgr(), DtAssistantLatencyTestMgr::~DtAssistantLatencyTestMgr(), DtAssistantLicenseQueryMgr::~DtAssistantLicenseQueryMgr(), and DtAssistantNetworkCompInfoMgr::~DtAssistantNetworkCompInfoMgr().

DtBoost::shared_ptr<DtRtiAssistantServer> DtAssistantMgr::myServer

protected

The Assistant server from which new messages will arrive from local RTI components.

Referenced by DtAssistantConnQueryMgr::addConnQueryMsgToQueue(), DtAssistantLicenseQueryMgr::addLicQueryMsgToQueue(), DtAssistantNetStatsObservationMgr::addObserver(), DtAssistantPopupMsgMgr::addPopupMsgToQueue(), DtAssistantFederationsViewMgr::destroyFederation(), DtAssistantComponentMgr::DtAssistantComponentMgr(), DtAssistantConnQueryMgr::DtAssistantConnQueryMgr(), DtAssistantFederationsInfoMgr::DtAssistantFederationsInfoMgr(), DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr(), DtAssistantFomViewMgr::DtAssistantFomViewMgr(), DtAssistantLatencyTestMgr::DtAssistantLatencyTestMgr(), DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr(), DtAssistantNetworkCompInfoMgr::DtAssistantNetworkCompInfoMgr(), DtAssistantPopupMsgMgr::DtAssistantPopupMsgMgr(), DtAssistantTrayIconMgr::DtAssistantTrayIconMgr(), DtAssistantNetworkCompInfoMgr::federateRemovalTimeChanged(), DtAssistantFederationsInfoMgr::forwardMsgFromLocalRtiexec(), DtAssistantFederationsInfoMgr::forwardMsgToLocalRtiexec(), DtAssistantNetStatsObservationMgr::forwardNetStatsUpdateToRemoteAstnt(), DtAssistantLatencyTestMgr::getRtiexecConn(), DtAssistantNetworkCompInfoMgr::handleRtiCommands(), DtAssistantNetworkCompInfoMgr::processAssistantCommandMsg(), DtAssistantFederationsInfoMgr::processAssistantCommandMsg(), DtAssistantFederationsViewMgr::processAwaitingForwardersMsg(), DtAssistantComponentMgr::processCloseConnMsg(), DtAssistantConnQueryMgr::processConnQueryMsg(), DtAssistantConnQueryMgr::processConnQueryResults(), DtAssistantFederationsViewMgr::processDoNotWaitForForwarders(), DtAssistantFederationsInfoMgr::processExecStateMsgForConnection(), DtAssistantFederationsInfoMgr::processFederateStateMsg(), DtAssistantFederationsInfoMgr::processFederationStateMsg(), DtAssistantNetworkCompInfoMgr::processForwarderObserveMsg(), DtAssistantNetworkCompInfoMgr::processForwarderStateMsgForConnection(), DtAssistantLatencyTestMgr::processLatencyTestResults(), DtAssistantLicenseQueryMgr::processLicQueryMsg(), DtAssistantLicenseQueryMgr::processLicQueryResults(), DtAssistantFederationsInfoMgr::processLocalFederateJoined(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processNewConnMsg(), DtAssistantTrayIconMgr::processNotifyMsg(), DtAssistantFederationsInfoMgr::processObserveMsg(), DtAssistantFederationsViewMgr::processRidParamMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), DtAssistantFederationsViewMgr::processRtiexecNotifyMsg(), DtAssistantComponentMgr::processRtiForwarderCompInfoMsg(), DtAssistantTrayIconMgr::processShowDialogMsg(), DtAssistantFederationsViewMgr::processShutDownWaitingForwarder(), DtAssistantFederationsInfoMgr::processSignalTickedMsg(), DtAssistantFederationsInfoMgr::processSyncPtStateMsg(), DtAssistantLatencyTestMgr::processTestCommand(), DtAssistantLatencyTestMgr::processTestMgrStatusUpdate(), DtAssistantFederationsInfoMgr::processTimeStateMsg(), DtAssistantFederationsInfoMgr::pruneStaleFederationsAndObservers(), DtAssistantFederationsInfoMgr::pruneTimedOutSingleUpdates(), DtAssistantNetworkCompInfoMgr::pruneTimedOutSingleUpdates(), DtAssistantNetStatsObservationMgr::removeObserver(), DtAssistantNetworkCompInfoMgr::requestSingleUpdateFromConnectedForwarders(), DtAssistantFederationsInfoMgr::requestSingleUpdateFromConnectedRtiexecs(), DtAssistantFederationsViewMgr::resignFederate(), DtAssistantLogFileMgr::sendComponentUpdateNotifyLevel(), DtAssistantLatencyTestMgr::sendLatencyTestCommand(), DtAssistantFederationsViewMgr::sendLogRequest(), DtAssistantFederationsViewMgr::sendNetworkTestingDisableMsg(), DtAssistantFederationsViewMgr::sendNetworkTestingEnableMsg(), DtAssistantFederationsViewMgr::sendPendingRidRequest(), DtAssistantLogFileMgr::showComponentConsole(), DtAssistantPreferencesViewMgr::showConfigDialog(), DtAssistantFederationsViewMgr::showForwarderRidParams(), DtAssistantFederationsViewMgr::showRtiexecRidParams(), DtAssistantFederationsViewMgr::shutdownRtiexec(), DtAssistantFederationsViewMgr::shutdownRtiForwarder(), DtAssistantNetworkCompInfoMgr::tick(), DtAssistantFederationsInfoMgr::tick(), DtAssistantFederationsInfoMgr::updateFederateWarningTickInterval(), DtAssistantFederationsInfoMgr::viewFederationsForConnection(), DtAssistantNetworkCompInfoMgr::viewNetworkComponentsForConnection(), DtAssistantComponentMgr::~DtAssistantComponentMgr(), DtAssistantConnQueryMgr::~DtAssistantConnQueryMgr(), DtAssistantFederateViewMgr::~DtAssistantFederateViewMgr(), DtAssistantFederationsInfoMgr::~DtAssistantFederationsInfoMgr(), DtAssistantFederationsViewMgr::~DtAssistantFederationsViewMgr(), DtAssistantLatencyTestMgr::~DtAssistantLatencyTestMgr(), DtAssistantLicenseQueryMgr::~DtAssistantLicenseQueryMgr(), DtAssistantNetworkCompInfoMgr::~DtAssistantNetworkCompInfoMgr(), DtAssistantPopupMsgMgr::~DtAssistantPopupMsgMgr(), and DtAssistantTrayIconMgr::~DtAssistantTrayIconMgr().

std::set<QDialog *> DtAssistantMgr::myUnparentedDialogs

protected

All unparented dialogs that are created by the GUI should be added to this set.

Referenced by dialogsVisible(), finishDialog(), startDialog(), and ~DtAssistantMgr().

std::set<QDialog*> DtAssistantMgr::myWarningDialogs

protected

Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Referenced by displayWarningDialogs(), showDialog(), and startDialog().

QIcon DtAssistantMgr::theAboutIcon

staticprotected

Referenced by DtAssistantMgr(), and DtAssistantTrayIconMgr::DtAssistantTrayIconMgr().

QIcon DtAssistantMgr::theHelpIcon

staticprotected

Referenced by DtAssistantMgr(), and DtAssistantTrayIconMgr::DtAssistantTrayIconMgr().

bool DtAssistantMgr::theIconsAreLoaded = false

staticprotected

Whether or not the icons have yet been loaded.

Referenced by DtAssistantMgr().

QIcon DtAssistantMgr::theNotifyRtiIcon

staticprotected

Referenced by DtAssistantTrayIconMgr::clearWarningIcon(), DtAssistantMgr(), DtAssistantTrayIconMgr::DtAssistantTrayIconMgr(), and DtAssistantTrayIconMgr::showNotifyIcon().

QIcon DtAssistantMgr::thePreferencesIcon

staticprotected

Referenced by DtAssistantMgr(), and DtAssistantTrayIconMgr::DtAssistantTrayIconMgr().

QIcon DtAssistantMgr::theRtiIcon

staticprotected

The icons used by the RTI Assistant.

Referenced by DtAssistantMgr(), startDialog(), and startMainWindow().

QIcon DtAssistantMgr::theSmallRtiIcon

staticprotected

Referenced by DtAssistantTrayIconMgr::clearNotifyIcon(), DtAssistantTrayIconMgr::clearWarningIcon(), DtAssistantMgr(), and DtAssistantTrayIconMgr::DtAssistantTrayIconMgr().

QIcon DtAssistantMgr::theWarningRtiIcon

staticprotected

Referenced by DtAssistantMgr(), and DtAssistantTrayIconMgr::showWarningIcon().

QIcon DtAssistantMgr::theWebIcon

staticprotected

Referenced by DtAssistantMgr(), and DtAssistantTrayIconMgr::DtAssistantTrayIconMgr().

---

The documentation for this class was generated from the following files:

• assistantMgr.h
• assistantMgr.cxx
