DtRtiAssistantPeer Class Reference

DtRtiAssistantPeer manages the sharing of information between one Assistant to other Assistants using the same multicast address. More...

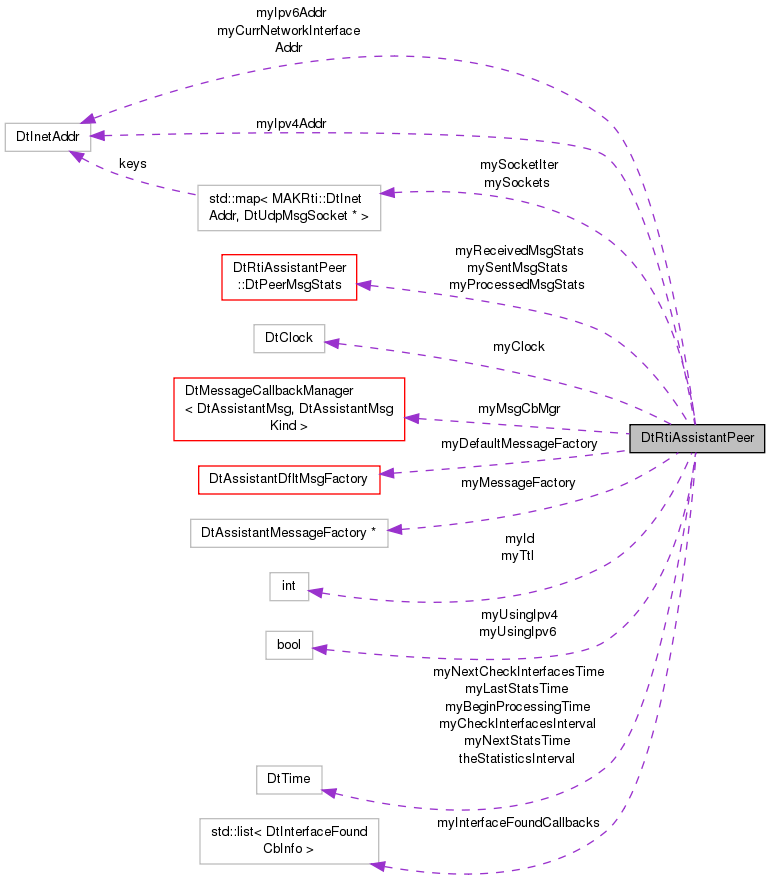

Collaboration diagram for DtRtiAssistantPeer:

Classes
struct	DtPeerMsgStats

Public Member Functions
	DtRtiAssistantPeer (int id, int port=DtASSISTANT_DEFAULT_PORT, const MAKRti::DtInetAddr &ipv4Addr=DtASSISTANT_DEFAULT_IPV4_ADDR, const MAKRti::DtInetAddr &ipv6Addr=DtASSISTANT_DEFAULT_IPV6_ADDR, int ttl=DtASSISTANT_DEFAULT_TTL)
	Constructor.
virtual	~DtRtiAssistantPeer ()
	Destructor.
virtual bool	tick (double timeout=0)
	Do the actual message processing.
virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Set the message factory.
virtual DtAssistantMessageFactory *	msgFactory () const
	Get the message factory.
virtual void	sendQueryMsg ()
	Sends a query message to the other Assistants for their information.
virtual void	sendInfoMsg (const DtRtiConnectionAndConfiguration &connsAndConfigs, unsigned memoryPeriod, bool acceptRemoteCommands, bool removal)
	Sends the information from this Assistant to the other Assistants.
virtual void	sendLightweightInfoMsg (const DtRtiConnectionAndConfiguration &connsAndConfigs, unsigned memoryPeriod)
	Sends the local lightweight connection information from this Assistant to the other Assistants.
virtual void	sendLicServerInfoMsg (const DtLicServerSet &licServers, bool removal)
	Sends the information from this Assistant to the other Assistants.
virtual void	sendStartRtiexecMsg (const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config)
	Sends a message to another Assistant to start an rtiexec with the given connection parameters.
virtual void	sendObserveFederationsMsg (const DtRtiConnectionInfo &conn, bool observe, const DtAssistantInfo &assistant=DtAssistantInfo(), int compId=-1)
	Sends a message to another Assistant to either begin or stop observing the federations of the given connection.
virtual void	sendObserveRtiExecLogMsg (const DtAssistantInfo &assistant, int compId, bool observe)
	Sends a message to another Assistant to either begin or stop observing the given rtiExec printer connection.
virtual void	sendObserveRtiexecRspMsg (DtNotifyLevelType notifyLevel, int compId, const DtAssistantInfo &destination)
	Sends an observe response message to a remote Assistant observing a local rtiexec.
virtual void	sendObserveRtiForwarderMsg (const DtRtiConnectionInfo &conn, bool observe, const DtAssistantInfo &assistant, int compId)
	Sends a message to another Assistant to either begin or stop observing the RTI Forwarder on the given connection.
virtual void	sendFederationStateMsg (const DtRtiConnectionInfoDataPair &conn, const DtAssistantFederationInfo &federation, bool isRemoval)
	Sends a message to the other Assistants with the state of the given federation.
virtual void	sendNoFederationMsg (const DtRtiConnectionInfoDataPair &conn)
	Sends a message to the other Assistants informing them that a local rtiexec has no federations.
virtual void	sendFederateResignMsg (const DtAssistantInfo &assistant, int compId, int federationHdl, int federateHdl)
	Sends a force federate resign message to a remote Assistant to be forwarded to a remote rtiexec.
virtual void	sendFederationDestroyMsg (const DtAssistantInfo &assistant, int compId, int federationHdl)
	Sends a force federation destroy message to a remote Assistant to be forwarded to a remote rtiexec.
virtual void	sendRidParamsRequestMsg (const DtAssistantInfo &assistant, int compId)
	Sends a message to a remote Assistant to get the RID parameters of one of its rtiexecs.
virtual void	sendLogRequestMsg (const DtAssistantInfo &assistant, int compId, unsigned maxLogSize)
	Sends a message to a remote Assistant to get the log, or at least the most recent entries up to a size of maxLogSize bytes, of one of its rtiexecs.
virtual bool	sendLatencyTestRequestMsg (const DtAssistantInfo &assistant, int compId, int federationHdl, int federateHdl, bool runTest, bool continuous, bool shouldHalt, bool observing, unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes)
	Sends a latency test request message to a remote Assistant to be forwarded to a remote rtiexec.
virtual void	sendNetworkTestEnableMsg (const DtAssistantInfo &assistant, int compId, int federationHdl, bool enable)
	Sends a message enabling or disabling network testing for the given federation.
virtual void	sendRtiexecExitMsg (const DtAssistantInfo &assistant, int compId)
	Sends a message to a remote Assistant asking it to shutdown one of its local rtiexecs.
virtual void	sendNotifyObserveMsg (bool isObserving)
	Sends a message to other assistants letting them know that we are observing notification messages.
virtual void	sendNotifyMsg (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel, const MAKRti::DtString &sourceName)
	Sends a notification message to other assistants.
virtual void	sendRemovalMsg ()
	Sends a removal message to the other Assistants to inform them that this Assistant should be removed from their lists of known Assistants.
virtual void	sendFederateInfoReqMsg (const DtAssistantInfo &astnt, const DtRtiConnectionInfo &conn, const MAKRti::DtString &federation=MAKRti::DtString::nullString(), unsigned federateHandle=0)
	Sends a message to the other Assistants which queries for federate info.
virtual void	sendFederateInfoRespMsg (const DtRtiConnectionInfo &conn, std::vector< const DtAssistantFederateInfo * > federates)
	Sends a message to the other Assistants in response to a federate info request with information on one or more matching federates.
virtual void	sendNetStatsObservationRequestMsg (const DtAssistantInfo &astnt, DtAssistantObservationType observationType, int compId, bool observe=false, unsigned int interval=0)
	Sends a Observation Request to an assistant.
virtual void	sendNetStatsObservationResponseMsg (const DtAssistantInfo &astnt, DtAssistantObservationType observationType, int compId, bool observe)
virtual void	sendNetStatsStringUpdateReqMsg (const DtAssistantInfo &assistant, int compId, DtAssistantHandleType handletype, const std::set< DtU32 > &handles)
virtual void	sendNetStatsStringUpdate (const DtAssistantInfo &assistant, int compId, DtAssistantHandleType handletype, const std::vector< DtU32 > &objectInstanceHandles, const std::vector< MAKRti::DtString > &objectInstanceNames)
virtual void	forwardNetStatsUpdate (const DtAssistantMsg &msg, const std::set< DtAssistantInfo > &observers)
virtual void	sendFedDisconnectNetStatsObsRespMsg (DtAssistantObservationType observationType, int compId, const std::set< DtAssistantInfo > &observers)
virtual void	sendNetStatsInitStateRequestMsg (const DtAssistantInfo &astnt, DtAssistantObservationType observationType, int compId)
virtual void	sendFomTreeData (const DtAssistantInfo &astnt, int compId, const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &parentObjectClassHandles, const std::vector< MAKRti::DtString > &objectClassNames, const std::vector< MAKRti::DtU32 > &interactionClassHandles, const std::vector< MAKRti::DtU32 > &parentInteractionClassHandles, const std::vector< MAKRti::DtString > &interactionClassNames)
virtual void	sendNetStatsAttrStringUpdate (const DtAssistantInfo &astnt, int compId, const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< MAKRti::DtString > &attributeNames, const std::vector< MAKRti::DtU32 > &parentClassHandles, const std::vector< MAKRti::DtU32 > &totalObjHandles)
virtual void	sendNetStatsParamStringUpdate (const DtAssistantInfo &astnt, int compId, const std::vector< MAKRti::DtU32 > &interClassHandles, const std::vector< MAKRti::DtU32 > &parameterHandles, const std::vector< MAKRti::DtString > &parameterNames, const std::vector< MAKRti::DtU32 > &parentInterHandles, const std::vector< MAKRti::DtU32 > &totalInterHandles)
virtual void	sendNetStatsAttrParamStringUpdate (const DtAssistantInfo &astnt, int compId, const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< MAKRti::DtString > &attributeNames, const std::vector< MAKRti::DtU32 > &parentClassHandles, const std::vector< MAKRti::DtU32 > &totalObjHandles, DtAssistantHandleType objInterType, DtAssistantHandleType attrParamType, DtAssistantHandleType parentClassType)
virtual void	sendNetStatsFomAttrParamUpdate (const DtAssistantInfo &astnt, int compId, DtAssistantHandleType handleType, bool isInit, const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< bool > &attributePub, const std::vector< bool > &attributeSub, const std::vector< DtTransportType > &attributeTransport, const std::vector< DtOrderType > &attributeOrder, const std::vector< bool > &objectPub, const std::vector< bool > &objectSub, const std::vector< MAKRti::DtU32 > &objPubSubHandles)
virtual void	forwardMsg (const DtAssistantMsg &msg, int astntCompId, const DtAssistantInfo &dest=DtAssistantInfo())
	Forwards the given message to the other Assistants over the given interface.
virtual int	port () const
	Returns the Assistant peer port.
virtual MAKRti::DtInetAddr	ipv4Address () const
	Returns the Assistant IPv4 peer address.
virtual MAKRti::DtInetAddr	ipv6Address () const
	Returns the Assistant IPv6 peer address.
virtual int	id () const
	Returns the Assistant peer ID.
virtual const MAKRti::DtInetAddr &	currentNetworkInterfaceAddr () const
	Returns the network interface address of the current socket being processed.
virtual void	getMsgStats (unsigned &totalRecv, double &recvPerSecOverall, double &recvPerSecCurr, unsigned &totalProc, double &procPerSecOverall, double &procPerSecCurr, unsigned &totalSent, double &sentPerSecOverall, double &sentPerSecCurr)
	Get message statistics.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
void	sendMsgToAssistant (const DtAssistantInfo &ifAddr, DtAssistantMsg &msg)
	Sends the message to the specified Assistant.
Callback addition and removal methods
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Adds/removes callback for a particular message kind.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Adds/removes callback for a particular message kind.
virtual void	addInterfaceFoundCallback (DtInterfaceFoundCb cb, void *usr)
	Adds a callback for notification for the discovery of a new network interface on the local machine.
virtual void	removeInterfaceFoundCallback (DtInterfaceFoundCb cb, void *usr)
	Adds/removes callback for a particular message kind.

Public Attributes
DtCbInfoStruct(DtInterfaceFoundCb) protected MAKRti::DtInetAddr	myIpv4Addr
	The IPv4 multicast or broadcast address used by the assistant peer.
MAKRti::DtInetAddr	myIpv6Addr
	The IPv6 multicast address used by the assistant peer.
int	myTtl
	The TTL (Time To Live) for Assistant communication.
int	myId
	A unique ID assigned to this assistant peer.
std::map< MAKRti::DtInetAddr, DtUdpMsgSocket * >	mySockets
	A map of network interface addresses to the sockets used on those interfaces to communicate with other Assistants.
std::map< MAKRti::DtInetAddr, DtUdpMsgSocket * >::iterator	mySocketIter
	Iterator of the current socket being processed or the next one that will be processed.
MAKRti::DtInetAddr	myCurrNetworkInterfaceAddr
	The address of the current network interface being read from.
DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager.
DtAssistantMessageFactory *	myMessageFactory
	The message factory.
DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory.
DtClock	myClock
	Clock for timeouts and periodic update messages.
DtTime	myNextCheckInterfacesTime
	Time to recheck the interfaces that are available.
DtTime	myCheckInterfacesInterval
	Interval at which periodic interface checking should be performed.
DtTime	myBeginProcessingTime
	The time when this assistant began processing messages.
DtTime	myNextStatsTime
	The next time to compute message statistics.
DtTime	myLastStatsTime
	The last time message statistics were computed.
DtPeerMsgStats	myReceivedMsgStats
	Message statistics for messages received from other assistants.
DtPeerMsgStats	myProcessedMsgStats
	Message statistics for messages processed from other assistants.
DtPeerMsgStats	mySentMsgStats
	Message statistics for messages sent to other assistants.
std::list< DtInterfaceFoundCbInfo >	myInterfaceFoundCallbacks
	The list of network interface discovery callbacks.
bool	myUsingIpv4
	Indicates whether any IPv4 sockets are currently in use.
bool	myUsingIpv6
	Indicates whether any IPv4 sockets are currently in use.

Static Public Attributes
static const DtTime	theStatisticsInterval = 60
	The interval at which message statistics are calculated.

Protected Member Functions
bool	needsProcessing (const DtAssistantMsg &msg)
	Returns true if the message should be processed by this assistant.
bool	addSocketsForInterfaces ()
	Adds a new socket for each new interface.
bool	readAndProcess (DtTime maxTime)
	Read and process the messages on the socket for up to the maximum time.
void	calculateMsgStatistics ()
	Calculate message statistics.
void	sendMsgOnInterface (const MAKRti::DtInetAddr &ifAddr, DtAssistantMsg &msg)
	Sends the message on the specified interface.
void	sendMsg (std::map< MAKRti::DtInetAddr, DtUdpMsgSocket * >::iterator sockIter, DtAssistantMsg &msg)
	Sends the message to the other Assistants on the given socket.
void	sendMsgToAll (DtAssistantMsg &msg)
	Sends the message to the other Assistants on all sockets.
std::auto_ptr< DtAssistantMsg >	netRead (DtUdpMsgSocket *sock, int *retCode) const
	Read a message from the socket.

Detailed Description

DtRtiAssistantPeer manages the sharing of information between one Assistant to other Assistants using the same multicast address.

Constructor & Destructor Documentation

DtRtiAssistantPeer::DtRtiAssistantPeer	(	int	id,
		int	port = DtASSISTANT_DEFAULT_PORT,
		const MAKRti::DtInetAddr &	ipv4Addr = DtASSISTANT_DEFAULT_IPV4_ADDR,
		const MAKRti::DtInetAddr &	ipv6Addr = DtASSISTANT_DEFAULT_IPV6_ADDR,
		int	ttl = DtASSISTANT_DEFAULT_TTL
	)

Constructor.

References addSocketsForInterfaces(), myCheckInterfacesInterval, myClock, myId, myNextCheckInterfacesTime, mySocketIter, mySockets, and DtAssistantInfo::setThisAssistantId().

DtRtiAssistantPeer::~DtRtiAssistantPeer ( )

virtual

Destructor.

References mySockets.

Member Function Documentation

void DtRtiAssistantPeer::addInterfaceFoundCallback ( DtInterfaceFoundCb  cb, void *  usr  )

virtual

Adds a callback for notification for the discovery of a new network interface on the local machine.

References myInterfaceFoundCallbacks.

void DtRtiAssistantPeer::addMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

Adds/removes callback for a particular message kind.

References myMsgCbMgr.

Referenced by DtAssistantRemovalMsg::addCallback(), DtAssistantQueryMsg::addCallback(), DtAssistantNotifyObserveMsg::addCallback(), DtAssistantForwarderStateMsg::addCallback(), DtAssistantExitMsg::addCallback(), DtAssistantFederateSignalTickIntervalMsg::addCallback(), DtAssistantLicServerInfoMsg::addCallback(), DtAssistantExecStateMsg::addCallback(), DtAssistantLogRequestMsg::addCallback(), DtAssistantExecObserveRspMsg::addCallback(), DtAssistantDeleteFederationMsg::addCallback(), DtAssistantLightweightInfoMsg::addCallback(), DtAssistantDeleteFederateMsg::addCallback(), DtAssistantLogMsg::addCallback(), DtAssistantInfoMsg::addCallback(), DtAssistantNotifyMsg::addCallback(), DtAssistantPopupMsg::addCallback(), DtAssistantSyncPtUpdateMsg::addCallback(), DtAssistantLatencyReportMsg::addCallback(), DtAssistantRidParamsMsg::addCallback(), DtAssistantTestMgrStatusMsg::addCallback(), DtAssistantStartRtiexecMsg::addCallback(), DtAssistantChangeLatencyTestModeMsg::addCallback(), DtAssistantStateObserveMsg::addCallback(), DtAssistantFederationStateMsg::addCallback(), and DtAssistantFederateStateMsg::addCallback().

bool DtRtiAssistantPeer::addSocketsForInterfaces ( )

protected

Adds a new socket for each new interface.

Returns true if any sockets were added.

References DtUdpMsgSocket::isOpen(), DtRtiConnectionInfo::localIpAddresses(), myIpv4Addr, myIpv6Addr, mySockets, myTtl, myUsingIpv4, myUsingIpv6, DtUdpMsgSocket::openSocket(), DtRtiConnectionInfo::setLocalIpAddresses(), and DtUdpMsgSocket::setMcastTtlOption().

Referenced by DtRtiAssistantPeer(), and tick().

void DtRtiAssistantPeer::calculateMsgStatistics ( )

protected

Calculate message statistics.

References DtRtiAssistantPeer::DtPeerMsgStats::msgsPerSecLastPeriod, DtRtiAssistantPeer::DtPeerMsgStats::msgsPerSecOverall, myBeginProcessingTime, myClock, myLastStatsTime, myNextStatsTime, myProcessedMsgStats, myReceivedMsgStats, mySentMsgStats, DtRtiAssistantPeer::DtPeerMsgStats::numMsgsCurrPeriod, DtRtiAssistantPeer::DtPeerMsgStats::numMsgsTotal, and theStatisticsInterval.

Referenced by tick().

const MAKRti::DtInetAddr & DtRtiAssistantPeer::currentNetworkInterfaceAddr ( ) const

virtual

Returns the network interface address of the current socket being processed.

References myCurrNetworkInterfaceAddr.

void DtRtiAssistantPeer::forwardMsg ( const DtAssistantMsg &  msg, int  astntCompId, const DtAssistantInfo &  dest = DtAssistantInfo()  )

virtual

Forwards the given message to the other Assistants over the given interface.

The local assistant component ID will be included in the message to indicate the original message sender. Optional parameter specifies a specific assistant to send the message to.

References DtAssistantMsg::clone(), and sendMsgToAssistant().

void DtRtiAssistantPeer::forwardNetStatsUpdate ( const DtAssistantMsg &  msg, const std::set< DtAssistantInfo > &  observers  )

virtual

References DtAssistantMsg::clone(), and sendMsgOnInterface().

void DtRtiAssistantPeer::getMsgStats ( unsigned &  totalRecv, double &  recvPerSecOverall, double &  recvPerSecCurr, unsigned &  totalProc, double &  procPerSecOverall, double &  procPerSecCurr, unsigned &  totalSent, double &  sentPerSecOverall, double &  sentPerSecCurr  )

virtual

Get message statistics.

References DtRtiAssistantPeer::DtPeerMsgStats::msgsPerSecLastPeriod, DtRtiAssistantPeer::DtPeerMsgStats::msgsPerSecOverall, myProcessedMsgStats, myReceivedMsgStats, mySentMsgStats, and DtRtiAssistantPeer::DtPeerMsgStats::numMsgsTotal.

int DtRtiAssistantPeer::id ( ) const

virtual

Returns the Assistant peer ID.

References myId.

MAKRti::DtInetAddr DtRtiAssistantPeer::ipv4Address ( ) const

virtual

Returns the Assistant IPv4 peer address.

Returns inaddr_any address if IPv4 is not in use.

References myIpv4Addr, and myUsingIpv4.

MAKRti::DtInetAddr DtRtiAssistantPeer::ipv6Address ( ) const

virtual

Returns the Assistant IPv6 peer address.

Returns in6addr_any address if IPv6 is not in use.

References myIpv6Addr, and myUsingIpv6.

DtU32 DtRtiAssistantPeer::maxMsgSize ( ) const

virtual

Gets the maximum message size.

References mySockets.

DtAssistantMessageFactory * DtRtiAssistantPeer::msgFactory ( ) const

virtual

Get the message factory.

References myMessageFactory.

Referenced by netRead(), sendFedDisconnectNetStatsObsRespMsg(), sendFederateInfoReqMsg(), sendFederateInfoRespMsg(), sendFederateResignMsg(), sendFederationDestroyMsg(), sendFederationStateMsg(), sendFomTreeData(), sendInfoMsg(), sendLatencyTestRequestMsg(), sendLicServerInfoMsg(), sendLightweightInfoMsg(), sendLogRequestMsg(), sendNetStatsAttrParamStringUpdate(), sendNetStatsFomAttrParamUpdate(), sendNetStatsInitStateRequestMsg(), sendNetStatsObservationRequestMsg(), sendNetStatsObservationResponseMsg(), sendNetStatsStringUpdate(), sendNetStatsStringUpdateReqMsg(), sendNetworkTestEnableMsg(), sendNoFederationMsg(), sendNotifyMsg(), sendNotifyObserveMsg(), sendObserveFederationsMsg(), sendObserveRtiExecLogMsg(), sendObserveRtiexecRspMsg(), sendObserveRtiForwarderMsg(), sendQueryMsg(), sendRemovalMsg(), sendRidParamsRequestMsg(), sendRtiexecExitMsg(), and sendStartRtiexecMsg().

bool DtRtiAssistantPeer::needsProcessing ( const DtAssistantMsg &  msg )

protected

Returns true if the message should be processed by this assistant.

Filters out messages that were either sent by the local assistant or are specifically targeted to another assistant.

References DtAssistantMsg::destAddr(), DtAssistantMsg::destId(), DtASSISTANT_DEFAULT_DEST_ID, myId, mySockets, DtAssistantMsg::sourceAddr(), and DtAssistantMsg::sourceId().

Referenced by readAndProcess().

std::auto_ptr< DtAssistantMsg > DtRtiAssistantPeer::netRead ( DtUdpMsgSocket *  sock, int *  retCode  ) const

protected

Read a message from the socket.

References DtASSISTANT_BUFFER_TOO_SMALL, DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_BAD_PACKET, DtASSISTANT_READ_FILTERED_PACKET, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SIZE_MISMATCH, DtASSISTANT_READ_SUCCESS, DtASSISTANT_UNKNOWN_ERROR, DtAssistantMessageVersion, DtUdpMsgSocket::inetUdpSocket(), DtAssistantMsg::isOk(), msgFactory(), DtUdpMsgSocket::recvMessage(), DtAssistantMsg::sourceAddr(), DtNetAssistantMsgHeader::totalSize, DtNetAssistantMsgHeader::version, and DtNetAssistantMsgHeader::versionMatches().

Referenced by readAndProcess().

int DtRtiAssistantPeer::port ( ) const

virtual

Returns the Assistant peer port.

bool DtRtiAssistantPeer::readAndProcess ( DtTime  maxTime )

protected

Read and process the messages on the socket for up to the maximum time.

References DtASSISTANT_READ_SUCCESS, DtAssistantMsg::kindToString(), DtAssistantMsg::msgKind(), myClock, myCurrNetworkInterfaceAddr, myMsgCbMgr, myProcessedMsgStats, myReceivedMsgStats, mySocketIter, mySockets, needsProcessing(), netRead(), DtRtiAssistantPeer::DtPeerMsgStats::numMsgsCurrPeriod, DtRtiAssistantPeer::DtPeerMsgStats::numMsgsTotal, and DtAssistantMsg::sourceHost().

Referenced by tick().

void DtRtiAssistantPeer::removeInterfaceFoundCallback ( DtInterfaceFoundCb  cb, void *  usr  )

virtual

Adds/removes callback for a particular message kind.

References myInterfaceFoundCallbacks.

void DtRtiAssistantPeer::removeMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

Adds/removes callback for a particular message kind.

References myMsgCbMgr.

Referenced by DtAssistantRemovalMsg::removeCallback(), DtAssistantQueryMsg::removeCallback(), DtAssistantNotifyObserveMsg::removeCallback(), DtAssistantForwarderStateMsg::removeCallback(), DtAssistantExitMsg::removeCallback(), DtAssistantFederateSignalTickIntervalMsg::removeCallback(), DtAssistantLicServerInfoMsg::removeCallback(), DtAssistantExecStateMsg::removeCallback(), DtAssistantLogRequestMsg::removeCallback(), DtAssistantExecObserveRspMsg::removeCallback(), DtAssistantDeleteFederationMsg::removeCallback(), DtAssistantLightweightInfoMsg::removeCallback(), DtAssistantLogMsg::removeCallback(), DtAssistantDeleteFederateMsg::removeCallback(), DtAssistantInfoMsg::removeCallback(), DtAssistantNotifyMsg::removeCallback(), DtAssistantPopupMsg::removeCallback(), DtAssistantSyncPtUpdateMsg::removeCallback(), DtAssistantLatencyReportMsg::removeCallback(), DtAssistantRidParamsMsg::removeCallback(), DtAssistantTestMgrStatusMsg::removeCallback(), DtAssistantStartRtiexecMsg::removeCallback(), DtAssistantChangeLatencyTestModeMsg::removeCallback(), DtAssistantStateObserveMsg::removeCallback(), DtAssistantFederationStateMsg::removeCallback(), and DtAssistantFederateStateMsg::removeCallback().

void DtRtiAssistantPeer::sendFedDisconnectNetStatsObsRespMsg ( DtAssistantObservationType  observationType, int  compId, const std::set< DtAssistantInfo > &  observers  )

virtual

References DtAssistantNetStatsObserveRspMsgKind, msgFactory(), sendMsgOnInterface(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendFederateInfoReqMsg ( const DtAssistantInfo &  astnt, const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federation = MAKRti::DtString::nullString(), unsigned  federateHandle = 0  )

virtual

Sends a message to the other Assistants which queries for federate info.

Can be as specific as desired. The remote assistant will respond with all federates that match any specified criteria.

References DtAssistantInfo::address(), DtRtiConnectionInfo::bestEffortIp(), DtAssistantFederateReqMsgKind, DtRtiConnectionInfo::forwarderPort(), DtAssistantInfo::id(), DtRtiConnectionInfo::isValid(), msgFactory(), DtRtiConnectionInfo::networkInterfaceAddr(), DtAssistantInfo::networkInterfaceAddress(), DtRtiConnectionInfo::reliableIp(), sendMsgToAssistant(), DtAssistantMsg::setDestAddr(), DtAssistantMsg::setDestId(), DtAssistantInfo::setNetworkInterfaceAddress(), DtRtiConnectionInfo::tcpPort(), DtRtiConnectionInfo::udpPort(), and DtRtiConnectionInfo::useRtiexec().

void DtRtiAssistantPeer::sendFederateInfoRespMsg ( const DtRtiConnectionInfo &  conn, std::vector< const DtAssistantFederateInfo * >  federates  )

virtual

Sends a message to the other Assistants in response to a federate info request with information on one or more matching federates.

References DtRtiConnectionInfo::bestEffortIp(), DtAssistantFederateRespMsgKind, DtHlaVersionUnknown, DtRtiConnectionInfo::forwarderPort(), DtRtiConnectionInfo::isValid(), msgFactory(), DtRtiConnectionInfo::networkInterfaceAddr(), DtRtiConnectionInfo::reliableIp(), sendMsgOnInterface(), DtRtiConnectionInfo::tcpPort(), DtRtiConnectionInfo::udpPort(), and DtRtiConnectionInfo::useRtiexec().

void DtRtiAssistantPeer::sendFederateResignMsg ( const DtAssistantInfo &  assistant, int  compId, int  federationHdl, int  federateHdl  )

virtual

Sends a force federate resign message to a remote Assistant to be forwarded to a remote rtiexec.

References DtAssistantDeleteFederateMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), DtAssistantDeleteFederateMsg::setFederateHandle(), and DtAssistantDeleteFederateMsg::setFederationHandle().

void DtRtiAssistantPeer::sendFederationDestroyMsg ( const DtAssistantInfo &  assistant, int  compId, int  federationHdl  )

virtual

Sends a force federation destroy message to a remote Assistant to be forwarded to a remote rtiexec.

References DtAssistantDeleteFederationMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), and DtAssistantDeleteFederationMsg::setFederationHandle().

void DtRtiAssistantPeer::sendFederationStateMsg ( const DtRtiConnectionInfoDataPair &  conn, const DtAssistantFederationInfo &  federation, bool  isRemoval  )

virtual

Sends a message to the other Assistants with the state of the given federation.

References DtAssistantFederationStateMsgKind, DtAssistantFederationInfo::federates(), DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::federationName(), DtAssistantFederationInfo::fomModules(), msgFactory(), sendMsgOnInterface(), DtAssistantMsg::setCompId(), DtAssistantFederationStateMsg::setConnection(), DtAssistantFederationStateMsg::setFederateStates(), DtAssistantFederationStateMsg::setFederationHandle(), DtAssistantFederationStateMsg::setFederationName(), DtAssistantFederationStateMsg::setFedFileName(), DtAssistantFederationStateMsg::setFomModules(), DtAssistantFederationStateMsg::setIsRemoval(), DtAssistantFederationStateMsg::setIsTestEnabled(), DtAssistantFederationStateMsg::setNoFederations(), and DtAssistantFederationInfo::testingEnabled().

void DtRtiAssistantPeer::sendFomTreeData ( const DtAssistantInfo &  astnt, int  compId, const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  parentObjectClassHandles, const std::vector< MAKRti::DtString > &  objectClassNames, const std::vector< MAKRti::DtU32 > &  interactionClassHandles, const std::vector< MAKRti::DtU32 > &  parentInteractionClassHandles, const std::vector< MAKRti::DtString > &  interactionClassNames  )

virtual

References DtAssistantNetStatsFomTreeUpdateMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendInfoMsg ( const DtRtiConnectionAndConfiguration &  connsAndConfigs, unsigned  memoryPeriod, bool  acceptRemoteCommands, bool  removal  )

virtual

Sends the information from this Assistant to the other Assistants.

This message includes rtiexecs, forwarders, and assistant settings

References DtRtiConnectionAndConfiguration::connections(), DtAssistantInfoMsgKind, DtRtiConnectionAndConfiguration::findConfigMapping(), msgFactory(), mySockets, sendMsg(), DtAssistantInfoMsg::setAssistantInfoMemoryPeriod(), DtAssistantInfoMsg::setRemoteCmdsAccepted(), DtAssistantInfoMsg::setRemoval(), and DtAssistantInfoMsg::setRtiexecsAndForwarders().

bool DtRtiAssistantPeer::sendLatencyTestRequestMsg ( const DtAssistantInfo &  assistant, int  compId, int  federationHdl, int  federateHdl, bool  runTest, bool  continuous, bool  shouldHalt, bool  observing, unsigned int  interactionPeriod, unsigned int  numInteractions, unsigned int  payloadBytes  )

virtual

Sends a latency test request message to a remote Assistant to be forwarded to a remote rtiexec.

References DtAssistantChangeLatencyTestModeMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), DtAssistantChangeLatencyTestModeMsg::setContinuousUpdate(), DtAssistantChangeLatencyTestModeMsg::setFederationHandle(), DtAssistantChangeLatencyTestModeMsg::setInitFedHandle(), DtAssistantChangeLatencyTestModeMsg::setInteractionPeriod(), DtAssistantChangeLatencyTestModeMsg::setNumInteractions(), DtAssistantChangeLatencyTestModeMsg::setObservingResults(), DtAssistantChangeLatencyTestModeMsg::setPayloadBytes(), DtAssistantChangeLatencyTestModeMsg::setRunTest(), and DtAssistantChangeLatencyTestModeMsg::setShouldHaltContinuous().

void DtRtiAssistantPeer::sendLicServerInfoMsg ( const DtLicServerSet &  licServers, bool  removal  )

virtual

Sends the information from this Assistant to the other Assistants.

This message includes rtiexecs, forwarders, and licenses

References DtAssistantLicServerInfoMsgKind, msgFactory(), sendMsgToAll(), DtAssistantLicServerInfoMsg::setLicenseServers(), and DtAssistantLicServerInfoMsg::setRemoval().

void DtRtiAssistantPeer::sendLightweightInfoMsg ( const DtRtiConnectionAndConfiguration &  connsAndConfigs, unsigned  memoryPeriod  )

virtual

Sends the local lightweight connection information from this Assistant to the other Assistants.

References DtRtiConnectionAndConfiguration::addConfiguration(), DtRtiConnectionAndConfiguration::addConnection(), DtRtiConnectionAndConfiguration::connections(), DtAssistantLightweightInfoMsgKind, DtRtiConnectionAndConfiguration::findConfigMapping(), msgFactory(), mySockets, sendMsg(), DtRtiConnectionAndConfiguration::setConnectionConfigMapping(), DtAssistantLightweightInfoMsg::setLightweightConns(), and DtAssistantLightweightInfoMsg::setLightweightMemoryPeriod().

void DtRtiAssistantPeer::sendLogRequestMsg ( const DtAssistantInfo &  assistant, int  compId, unsigned  maxLogSize  )

virtual

Sends a message to a remote Assistant to get the log, or at least the most recent entries up to a size of maxLogSize bytes, of one of its rtiexecs.

References DtAssistantLogRequestMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), and DtAssistantLogRequestMsg::setMaxLogSize().

void DtRtiAssistantPeer::sendMsg ( std::map< MAKRti::DtInetAddr, DtUdpMsgSocket * >::iterator  sockIter, DtAssistantMsg &  msg  )

protected

Sends the message to the other Assistants on the given socket.

References DtAssistantMsg::destAddr(), DtGetLocalHostName(), DtUdpMsgSocket::isOpen(), DtAssistantMsg::kindToString(), DtAssistantMsg::msgKind(), myId, mySentMsgStats, DtRtiAssistantPeer::DtPeerMsgStats::numMsgsCurrPeriod, DtRtiAssistantPeer::DtPeerMsgStats::numMsgsTotal, DtUdpMsgSocket::sendMessage(), DtAssistantMsg::setSourceAddr(), DtAssistantMsg::setSourceHost(), DtAssistantMsg::setSourceId(), and DtAssistantMsg::sourceHost().

Referenced by sendInfoMsg(), sendLightweightInfoMsg(), sendMsgOnInterface(), and sendMsgToAll().

void DtRtiAssistantPeer::sendMsgOnInterface ( const MAKRti::DtInetAddr &  ifAddr, DtAssistantMsg &  msg  )

protected

Sends the message on the specified interface.

If interface is not found, sends to all interfaces.

References mySockets, sendMsg(), and sendMsgToAll().

Referenced by forwardNetStatsUpdate(), sendFedDisconnectNetStatsObsRespMsg(), sendFederateInfoRespMsg(), sendFederationStateMsg(), sendMsgToAssistant(), sendNoFederationMsg(), sendObserveFederationsMsg(), and sendStartRtiexecMsg().

void DtRtiAssistantPeer::sendMsgToAll ( DtAssistantMsg &  msg )

protected

Sends the message to the other Assistants on all sockets.

References mySockets, and sendMsg().

Referenced by sendLicServerInfoMsg(), sendMsgOnInterface(), sendMsgToAssistant(), sendNotifyMsg(), sendNotifyObserveMsg(), sendQueryMsg(), and sendRemovalMsg().

void DtRtiAssistantPeer::sendMsgToAssistant	(	const DtAssistantInfo &	ifAddr,
		DtAssistantMsg &	msg
	)

Sends the message to the specified Assistant.

References DtAssistantInfo::address(), DtAssistantMsg::destId(), DtAssistantInfo::host(), DtAssistantInfo::id(), DtHostNameAddress::isValid(), DtAssistantInfo::networkInterfaceAddress(), sendMsgOnInterface(), sendMsgToAll(), DtAssistantMsg::setDestAddr(), and DtAssistantMsg::setDestId().

Referenced by forwardMsg(), sendFederateInfoReqMsg(), sendFederateResignMsg(), sendFederationDestroyMsg(), sendFomTreeData(), sendLatencyTestRequestMsg(), sendLogRequestMsg(), sendNetStatsAttrParamStringUpdate(), sendNetStatsFomAttrParamUpdate(), sendNetStatsInitStateRequestMsg(), sendNetStatsObservationRequestMsg(), sendNetStatsObservationResponseMsg(), sendNetStatsStringUpdate(), sendNetStatsStringUpdateReqMsg(), sendNetworkTestEnableMsg(), sendObserveRtiExecLogMsg(), sendObserveRtiexecRspMsg(), sendObserveRtiForwarderMsg(), sendRidParamsRequestMsg(), and sendRtiexecExitMsg().

void DtRtiAssistantPeer::sendNetStatsAttrParamStringUpdate ( const DtAssistantInfo &  astnt, int  compId, const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< MAKRti::DtString > &  attributeNames, const std::vector< MAKRti::DtU32 > &  parentClassHandles, const std::vector< MAKRti::DtU32 > &  totalObjHandles, DtAssistantHandleType  objInterType, DtAssistantHandleType  attrParamType, DtAssistantHandleType  parentClassType  )

virtual

References DtAssistantNetStatsAttrParamStringUpdateMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

Referenced by sendNetStatsAttrStringUpdate(), and sendNetStatsParamStringUpdate().

void DtRtiAssistantPeer::sendNetStatsAttrStringUpdate ( const DtAssistantInfo &  astnt, int  compId, const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< MAKRti::DtString > &  attributeNames, const std::vector< MAKRti::DtU32 > &  parentClassHandles, const std::vector< MAKRti::DtU32 > &  totalObjHandles  )

virtual

References DtAssistantAttributeHandleType, DtAssistantObjectClassHandleType, and sendNetStatsAttrParamStringUpdate().

void DtRtiAssistantPeer::sendNetStatsFomAttrParamUpdate ( const DtAssistantInfo &  astnt, int  compId, DtAssistantHandleType  handleType, bool  isInit, const std::vector< MAKRti::DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtU32 > &  attributeHandles, const std::vector< bool > &  attributePub, const std::vector< bool > &  attributeSub, const std::vector< DtTransportType > &  attributeTransport, const std::vector< DtOrderType > &  attributeOrder, const std::vector< bool > &  objectPub, const std::vector< bool > &  objectSub, const std::vector< MAKRti::DtU32 > &  objPubSubHandles  )

virtual

References DtAssistantNetStatsFomAttrParamUpdateMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendNetStatsInitStateRequestMsg ( const DtAssistantInfo &  astnt, DtAssistantObservationType  observationType, int  compId  )

virtual

References DtAssistantNetStatsInitStateRequestMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendNetStatsObservationRequestMsg ( const DtAssistantInfo &  astnt, DtAssistantObservationType  observationType, int  compId, bool  observe = false, unsigned int  interval = 0  )

virtual

Sends a Observation Request to an assistant.

It will either request that it observe and interval the federate should send, or tell the federate not observing.

References DtAssistantNetStatsObserveReqMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendNetStatsObservationResponseMsg ( const DtAssistantInfo &  astnt, DtAssistantObservationType  observationType, int  compId, bool  observe  )

virtual

References DtAssistantNetStatsObserveRspMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendNetStatsParamStringUpdate ( const DtAssistantInfo &  astnt, int  compId, const std::vector< MAKRti::DtU32 > &  interClassHandles, const std::vector< MAKRti::DtU32 > &  parameterHandles, const std::vector< MAKRti::DtString > &  parameterNames, const std::vector< MAKRti::DtU32 > &  parentInterHandles, const std::vector< MAKRti::DtU32 > &  totalInterHandles  )

virtual

References DtAssistantInteractionClassHandleType, DtAssistantParameterHandleType, and sendNetStatsAttrParamStringUpdate().

void DtRtiAssistantPeer::sendNetStatsStringUpdate ( const DtAssistantInfo &  assistant, int  compId, DtAssistantHandleType  handletype, const std::vector< DtU32 > &  objectInstanceHandles, const std::vector< MAKRti::DtString > &  objectInstanceNames  )

virtual

References DtAssistantNetStatsStringUpdateMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendNetStatsStringUpdateReqMsg ( const DtAssistantInfo &  assistant, int  compId, DtAssistantHandleType  handletype, const std::set< DtU32 > &  handles  )

virtual

References DtAssistantNetStatsStringReqMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendNetworkTestEnableMsg ( const DtAssistantInfo &  assistant, int  compId, int  federationHdl, bool  enable  )

virtual

Sends a message enabling or disabling network testing for the given federation.

References DtAssistantNetworkTestEnableMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), DtAssistantNetworkTestEnableMsg::setEnableTesting(), and DtAssistantNetworkTestEnableMsg::setFederationHandle().

void DtRtiAssistantPeer::sendNoFederationMsg ( const DtRtiConnectionInfoDataPair &  conn )

virtual

Sends a message to the other Assistants informing them that a local rtiexec has no federations.

References DtAssistantFederationStateMsgKind, msgFactory(), sendMsgOnInterface(), DtAssistantMsg::setCompId(), DtAssistantFederationStateMsg::setConnection(), and DtAssistantFederationStateMsg::setNoFederations().

void DtRtiAssistantPeer::sendNotifyMsg ( const MAKRti::DtString &  text, DtNotifyLevelType  notifyLevel, const MAKRti::DtString &  sourceName  )

virtual

Sends a notification message to other assistants.

References DtAssistantNotifyMsgKind, msgFactory(), sendMsgToAll(), DtAssistantNotifyMsg::setNotifyLevel(), DtAssistantNotifyMsg::setSourceName(), and DtAssistantNotifyMsg::setText().

void DtRtiAssistantPeer::sendNotifyObserveMsg ( bool  isObserving )

virtual

Sends a message to other assistants letting them know that we are observing notification messages.

References DtAssistantNotifyObserveMsgKind, msgFactory(), sendMsgToAll(), and DtAssistantNotifyObserveMsg::setIsObserved().

void DtRtiAssistantPeer::sendObserveFederationsMsg ( const DtRtiConnectionInfo &  conn, bool  observe, const DtAssistantInfo &  assistant = DtAssistantInfo(), int  compId = -1  )

virtual

Sends a message to another Assistant to either begin or stop observing the federations of the given connection.

Can optionally specify the specific location (Assistant and component ID) of the rtiexec.

References DtAssistantInfo::address(), DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, DtAssistantInfo::id(), msgFactory(), DtRtiConnectionInfo::networkInterfaceAddr(), sendMsgOnInterface(), DtAssistantMsg::setCompId(), DtAssistantStateObserveMsg::setConnection(), DtAssistantMsg::setDestAddr(), DtAssistantMsg::setDestId(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), and DtAssistantStateObserveMsg::setTargetType().

void DtRtiAssistantPeer::sendObserveRtiExecLogMsg ( const DtAssistantInfo &  assistant, int  compId, bool  observe  )

virtual

Sends a message to another Assistant to either begin or stop observing the given rtiExec printer connection.

References DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), DtAssistantStateObserveMsg::setTargetType(), and DtAssistantStateObserveMsg::setTimeStateUpdateInterval().

void DtRtiAssistantPeer::sendObserveRtiexecRspMsg ( DtNotifyLevelType  notifyLevel, int  compId, const DtAssistantInfo &  destination  )

virtual

Sends an observe response message to a remote Assistant observing a local rtiexec.

References DtAssistantExecObserveRspMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), and DtAssistantExecObserveRspMsg::setNotifyLevel().

void DtRtiAssistantPeer::sendObserveRtiForwarderMsg ( const DtRtiConnectionInfo &  conn, bool  observe, const DtAssistantInfo &  assistant, int  compId  )

virtual

Sends a message to another Assistant to either begin or stop observing the RTI Forwarder on the given connection.

References DtAssistantStateObserveForwarderPersistent, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), DtAssistantStateObserveMsg::setConnection(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), and DtAssistantStateObserveMsg::setTargetType().

void DtRtiAssistantPeer::sendQueryMsg ( )

virtual

Sends a query message to the other Assistants for their information.

References DtAssistantQueryMsgKind, msgFactory(), and sendMsgToAll().

void DtRtiAssistantPeer::sendRemovalMsg ( )

virtual

Sends a removal message to the other Assistants to inform them that this Assistant should be removed from their lists of known Assistants.

References DtAssistantRemovalMsgKind, msgFactory(), and sendMsgToAll().

void DtRtiAssistantPeer::sendRidParamsRequestMsg ( const DtAssistantInfo &  assistant, int  compId  )

virtual

Sends a message to a remote Assistant to get the RID parameters of one of its rtiexecs.

References DtAssistantRidParamsMsgKind, msgFactory(), sendMsgToAssistant(), DtAssistantMsg::setCompId(), and DtAssistantRidParamsMsg::setIsRequest().

void DtRtiAssistantPeer::sendRtiexecExitMsg ( const DtAssistantInfo &  assistant, int  compId  )

virtual

Sends a message to a remote Assistant asking it to shutdown one of its local rtiexecs.

References DtAssistantExitMsgKind, msgFactory(), sendMsgToAssistant(), and DtAssistantMsg::setCompId().

void DtRtiAssistantPeer::sendStartRtiexecMsg ( const DtRtiConnectionInfoDataPair &  conn, const DtRtiConnectionConfigurationInfo &  config  )

virtual

Sends a message to another Assistant to start an rtiexec with the given connection parameters.

References DtAssistantStartRtiexecMsgKind, DtRtiConnectionConfigurationInfo::forceFullCompliance(), msgFactory(), DtAssistantStartRtiexecMsg::reliableIpAddress(), sendMsgOnInterface(), DtAssistantStartRtiexecMsg::setBestEffortIpAddress(), DtAssistantStartRtiexecMsg::setConnectionName(), DtAssistantStartRtiexecMsg::setForwarderPort(), DtAssistantStartRtiexecMsg::setForwarderToConnectTo(), DtAssistantStartRtiexecMsg::setFullCompliance(), DtAssistantStartRtiexecMsg::setReliableIpAddress(), DtAssistantStartRtiexecMsg::setTcpPort(), and DtAssistantStartRtiexecMsg::setUdpPort().

void DtRtiAssistantPeer::setMsgFactory ( DtAssistantMessageFactory *  fact )

virtual

Set the message factory.

References myMessageFactory.

bool DtRtiAssistantPeer::tick ( double  timeout = 0 )

virtual

Do the actual message processing.

• RTI connections are treated as synchronous in main thread.

References addSocketsForInterfaces(), calculateMsgStatistics(), myBeginProcessingTime, myCheckInterfacesInterval, myClock, myInterfaceFoundCallbacks, myLastStatsTime, myNextCheckInterfacesTime, myNextStatsTime, mySocketIter, mySockets, and readAndProcess().

Member Data Documentation

DtTime DtRtiAssistantPeer::myBeginProcessingTime

The time when this assistant began processing messages.

Referenced by calculateMsgStatistics(), and tick().

DtTime DtRtiAssistantPeer::myCheckInterfacesInterval

Interval at which periodic interface checking should be performed.

Referenced by DtRtiAssistantPeer(), and tick().

DtClock DtRtiAssistantPeer::myClock

Clock for timeouts and periodic update messages.

Referenced by calculateMsgStatistics(), DtRtiAssistantPeer(), readAndProcess(), and tick().

MAKRti::DtInetAddr DtRtiAssistantPeer::myCurrNetworkInterfaceAddr

The address of the current network interface being read from.

Will have an invalid value if no messages are currently being processed.

Referenced by currentNetworkInterfaceAddr(), and readAndProcess().

DtAssistantDfltMsgFactory DtRtiAssistantPeer::myDefaultMessageFactory

Default message factory.

int DtRtiAssistantPeer::myId

A unique ID assigned to this assistant peer.

This ID, along with the IP address of this machine, should uniquely identify this Assistant.

Referenced by DtRtiAssistantPeer(), id(), needsProcessing(), and sendMsg().

std::list<DtInterfaceFoundCbInfo> DtRtiAssistantPeer::myInterfaceFoundCallbacks

The list of network interface discovery callbacks.

Referenced by addInterfaceFoundCallback(), removeInterfaceFoundCallback(), and tick().

DtCbInfoStruct (DtInterfaceFoundCb) protected MAKRti::DtInetAddr DtRtiAssistantPeer::myIpv4Addr

The IPv4 multicast or broadcast address used by the assistant peer.

Referenced by addSocketsForInterfaces(), and ipv4Address().

MAKRti::DtInetAddr DtRtiAssistantPeer::myIpv6Addr

The IPv6 multicast address used by the assistant peer.

Referenced by addSocketsForInterfaces(), and ipv6Address().

DtTime DtRtiAssistantPeer::myLastStatsTime

The last time message statistics were computed.

Referenced by calculateMsgStatistics(), and tick().

DtAssistantMessageFactory* DtRtiAssistantPeer::myMessageFactory

The message factory.

Referenced by msgFactory(), and setMsgFactory().

DtAssistantMsgCbMgr DtRtiAssistantPeer::myMsgCbMgr

Message callback manager.

Referenced by addMsgCallback(), readAndProcess(), and removeMsgCallback().

DtTime DtRtiAssistantPeer::myNextCheckInterfacesTime

Time to recheck the interfaces that are available.

Referenced by DtRtiAssistantPeer(), and tick().

DtTime DtRtiAssistantPeer::myNextStatsTime

The next time to compute message statistics.

Referenced by calculateMsgStatistics(), and tick().

DtPeerMsgStats DtRtiAssistantPeer::myProcessedMsgStats

Message statistics for messages processed from other assistants.

Referenced by calculateMsgStatistics(), getMsgStats(), and readAndProcess().

DtPeerMsgStats DtRtiAssistantPeer::myReceivedMsgStats

Message statistics for messages received from other assistants.

Referenced by calculateMsgStatistics(), getMsgStats(), and readAndProcess().

DtPeerMsgStats DtRtiAssistantPeer::mySentMsgStats

Message statistics for messages sent to other assistants.

Referenced by calculateMsgStatistics(), getMsgStats(), and sendMsg().

std::map< MAKRti::DtInetAddr, DtUdpMsgSocket*>::iterator DtRtiAssistantPeer::mySocketIter

Iterator of the current socket being processed or the next one that will be processed.

Referenced by DtRtiAssistantPeer(), readAndProcess(), and tick().

std::map< MAKRti::DtInetAddr, DtUdpMsgSocket*> DtRtiAssistantPeer::mySockets

A map of network interface addresses to the sockets used on those interfaces to communicate with other Assistants.

Referenced by addSocketsForInterfaces(), DtRtiAssistantPeer(), maxMsgSize(), needsProcessing(), readAndProcess(), sendInfoMsg(), sendLightweightInfoMsg(), sendMsgOnInterface(), sendMsgToAll(), tick(), and ~DtRtiAssistantPeer().

int DtRtiAssistantPeer::myTtl

The TTL (Time To Live) for Assistant communication.

Referenced by addSocketsForInterfaces().

bool DtRtiAssistantPeer::myUsingIpv4

Indicates whether any IPv4 sockets are currently in use.

Referenced by addSocketsForInterfaces(), and ipv4Address().

bool DtRtiAssistantPeer::myUsingIpv6

Indicates whether any IPv4 sockets are currently in use.

Referenced by addSocketsForInterfaces(), and ipv6Address().

const DtTime DtRtiAssistantPeer::theStatisticsInterval = 60

static

The interval at which message statistics are calculated.

Referenced by calculateMsgStatistics().

---

The documentation for this class was generated from the following files:

• rtiAssistantPeer.h
• rtiAssistantPeer.cxx
