DtRtiConnectionInfo Class Reference

Stores the information on an RTI connection known by the Assistant. More...

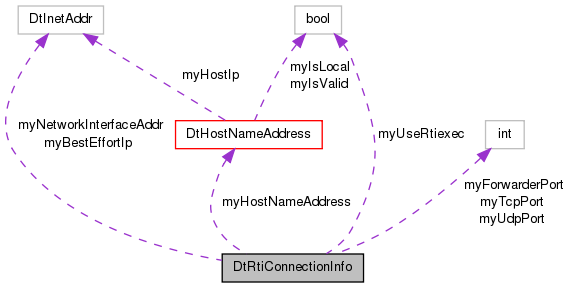

Collaboration diagram for DtRtiConnectionInfo:

Public Member Functions
	DtRtiConnectionInfo ()
	Constructor.
	DtRtiConnectionInfo (const MAKRti::DtString &hostname, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	rtiexec connection constructors
	DtRtiConnectionInfo (const MAKRti::DtInetAddr &reliableAddress, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	DtRtiConnectionInfo (const MAKRti::DtInetAddr &bestEffortAddress, int port, const MAKRti::DtInetAddr &interfaceAddr)
	Lightweight connection constructor.
	DtRtiConnectionInfo (const DtHostNameAddress &host, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, bool useRtiexec, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	Constructor to set all values explicitly.
virtual	~DtRtiConnectionInfo ()
	Destructor.
virtual bool	operator< (const DtRtiConnectionInfo &other) const
	Less than operator.
virtual bool	operator== (const DtRtiConnectionInfo &other) const
	Equals operator.
virtual bool	operator!= (const DtRtiConnectionInfo &other) const
	Not equals operator.
virtual DtRtiConnectionInfo &	operator= (const DtRtiConnectionInfo &other)
	Assignment operator.
virtual bool	isEquivalentHost (const DtRtiConnectionInfo &other) const
	Determines if another connection has an equivalent host, based on the IP address and host name and network interface address.
virtual bool	isEquivalentHostAllInterfaces (const DtRtiConnectionInfo &other) const
	Determines if another connection has an equivalent host, based on the IP address and host name, assuming the host is bound on all interfaces.
virtual bool	isLocalHost () const
	Determines if the host for this connection is the local machine, based on the IP address and host name.
virtual bool	conflictsWith (const DtRtiConnectionInfo &other, MAKRti::DtString &reason) const
	Returns true if the connection conflicts with this connection and sets a description of the reason for the conflict.
virtual MAKRti::DtString	defaultName () const
	Default name for this connection.
virtual MAKRti::DtString	description () const
	Returns a text description of this connection.
virtual const MAKRti::DtInetAddr &	reliableIp () const
	Returns IP address for reliable communication.
virtual void	setReliableIp (const MAKRti::DtInetAddr &ip)
	Sets the reliable IP address.
virtual const MAKRti::DtInetAddr &	bestEffortIp () const
	Returns IP address for best effort communication.
virtual void	setBestEffortIp (const MAKRti::DtInetAddr &ip)
	Sets the best effort IP address.
virtual int	udpPort () const
	Returns UDP port.
virtual void	setUdpPort (int port)
	Sets the UDP port.
virtual int	tcpPort () const
	Returns TCP port.
virtual void	setTcpPort (int port)
	Sets the TCP port.
virtual MAKRti::DtString	hostName () const
	Returns host name.
virtual void	setHostName (const MAKRti::DtString &host)
	Sets the host name.
virtual const MAKRti::DtInetAddr &	networkInterfaceAddr () const
	Returns the local network interface address to use for this connection.
virtual void	setNetworkInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Sets the local network interface address to use for this connection.
virtual bool	useRtiexec () const
	Returns whether this connection uses an rtiexec.
virtual void	setUseRtiexec (bool useExec)
	Sets whether this connection uses an rtiexec.
virtual int	forwarderPort () const
	Returns the forwarder port.
virtual void	setForwarderPort (int port)
	Sets the port.
virtual bool	isValid () const
	Returns true if this connection info passes a basic validity check.

Static Public Member Functions
static const DtRtiConnectionInfo &	invalidConn ()
	Returns an invalid connection.
static void	setLocalIpAddresses (bool reset=false)
	Sets the list of recognized local IP addresses.
static const std::set < MAKRti::DtInetAddr > &	localIpAddresses ()
	Returns list of local IP addresses.
static bool	localSupportsIPv4 (bool reset=false)
	Returns whether any of the local interfaces support IPv4.
static bool	localSupportsIPv6 (bool reset=false)
	Returns whether any of the local interfaces support IPv6.
static MAKRti::DtString	constructConnName (const DtHostNameAddress &hostname, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, bool useRtiexec, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	Constructs the default connection name using the given parameters.
static MAKRti::DtString	constructConnDescription (const DtHostNameAddress &hostname, int udpPort, int tcpPort, const MAKRti::DtInetAddr &bestEffortAddress, bool useRtiexec, const MAKRti::DtInetAddr &interfaceAddr, int forwarderPort)
	Constructs the connection description text using the given parameters.
static const MAKRti::DtInetAddr &	defaultReliableIp ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultBestEffortIp ()
	Returns the default parameters.
static int	defaultLightweightPort ()
	Returns the default parameters.
static int	defaultRtiexecPort ()
	Returns the default parameters.
static const MAKRti::DtString &	defaultHostName ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultNetworkInterfaceAddr ()
	Returns the default parameters.
static int	defaultForwarderPort ()
	Returns the default parameters.

Static Protected Member Functions
static std::set < MAKRti::DtInetAddr > &	theLocalIpAddresses ()
	Returns a reference to a static map of local IP addresses to netmasks.

Protected Attributes
MAKRti::DtInetAddr	myBestEffortIp
	IP address for best effort transport.
int	myUdpPort
	UDP port for the connection.
int	myTcpPort
	TCP port for the connection.
DtHostNameAddress	myHostNameAddress
	Host of the rtiexec or forwarder.
MAKRti::DtInetAddr	myNetworkInterfaceAddr
	Local network interface address to use for this connection.
bool	myUseRtiexec
	Whether or not an rtiexec should be used.
int	myForwarderPort
	The port used by the forwarder to connect to other forwarders.

Detailed Description

Stores the information on an RTI connection known by the Assistant.

Constructor & Destructor Documentation

DtRtiConnectionInfo::DtRtiConnectionInfo

(

)

Constructor.

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtString &	hostname,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)

rtiexec connection constructors

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtInetAddr &	reliableAddress,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtInetAddr &	bestEffortAddress,
		int	port,
		const MAKRti::DtInetAddr &	interfaceAddr
	)

Lightweight connection constructor.

References setLocalIpAddresses().

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const DtHostNameAddress &	host,
		int	udpPort,
		int	tcpPort,
		const MAKRti::DtInetAddr &	bestEffortAddress,
		bool	useRtiexec,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	forwarderPort
	)

Constructor to set all values explicitly.

References setLocalIpAddresses().

DtRtiConnectionInfo::~DtRtiConnectionInfo ( )

virtual

Destructor.

Member Function Documentation

const MAKRti::DtInetAddr & DtRtiConnectionInfo::bestEffortIp ( ) const

virtual

Returns IP address for best effort communication.

References myBestEffortIp.

Referenced by conflictsWith(), operator<(), operator=(), operator==(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), DtFederationsViewDialog::showForwarderInfo(), and DtFederationsViewDialog::showLightweightInfo().

bool DtRtiConnectionInfo::conflictsWith ( const DtRtiConnectionInfo &  other, MAKRti::DtString &  reason  ) const

virtual

Returns true if the connection conflicts with this connection and sets a description of the reason for the conflict.

References bestEffortIp(), forwarderPort(), isEquivalentHost(), isEquivalentHostAllInterfaces(), myBestEffortIp, myForwarderPort, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), tcpPort(), udpPort(), and useRtiexec().

Referenced by DtRtiConnectionAndConfiguration::willConflict().

MAKRti::DtString DtRtiConnectionInfo::constructConnDescription ( const DtHostNameAddress &  hostname, int  udpPort, int  tcpPort, const MAKRti::DtInetAddr &  bestEffortAddress, bool  useRtiexec, const MAKRti::DtInetAddr &  interfaceAddr, int  forwarderPort  )

static

Constructs the connection description text using the given parameters.

References forwarderPort(), DtHostNameAddress::hostName(), and DtHostNameAddress::ip().

Referenced by description().

MAKRti::DtString DtRtiConnectionInfo::constructConnName ( const DtHostNameAddress &  hostname, int  udpPort, int  tcpPort, const MAKRti::DtInetAddr &  bestEffortAddress, bool  useRtiexec, const MAKRti::DtInetAddr &  interfaceAddr, int  forwarderPort  )

static

Constructs the default connection name using the given parameters.

References DtHostNameAddress::hostName(), DtHostNameAddress::ip(), and DtHostNameAddress::isValid().

Referenced by defaultName().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::defaultBestEffortIp ( )

static

Returns the default parameters.

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

int DtRtiConnectionInfo::defaultForwarderPort ( )

static

Returns the default parameters.

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

const MAKRti::DtString & DtRtiConnectionInfo::defaultHostName ( )

static

Returns the default parameters.

References DtGetLocalHostName().

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

int DtRtiConnectionInfo::defaultLightweightPort ( )

static

Returns the default parameters.

Referenced by DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

MAKRti::DtString DtRtiConnectionInfo::defaultName ( ) const

virtual

Default name for this connection.

References constructConnName(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, and myUseRtiexec.

Referenced by DtAssistantStateObserveMsg::printData(), and DtAssistantFederationStateMsg::printData().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::defaultNetworkInterfaceAddr ( )

static

Returns the default parameters.

References DtDefaultInterfaceAddr().

Referenced by DtAssistantConnectionInfoMgr::DtAssistantConnectionInfoMgr(), DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::defaultReliableIp ( )

static

Returns the default parameters.

References DtDefaultInterfaceAddr().

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

int DtRtiConnectionInfo::defaultRtiexecPort ( )

static

Returns the default parameters.

Referenced by DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo(), and DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

MAKRti::DtString DtRtiConnectionInfo::description ( ) const

virtual

Returns a text description of this connection.

References constructConnDescription(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, and myUseRtiexec.

Referenced by DtAssistantFederationsViewMgr::logConnectionInfo().

int DtRtiConnectionInfo::forwarderPort ( ) const

virtual

Returns the forwarder port.

References myForwarderPort.

Referenced by conflictsWith(), constructConnDescription(), operator<(), operator=(), operator==(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtFederationsViewDialog::showForwarderInfo().

MAKRti::DtString DtRtiConnectionInfo::hostName ( ) const

virtual

Returns host name.

References DtHostNameAddress::hostName(), and myHostNameAddress.

Referenced by DtAssistantLrcConnQueryWidget::isKnownAssistant(), DtAssistantFederationsViewMgr::saveToLog(), and DtFederationsViewDialog::showForwarderInfo().

const DtRtiConnectionInfo & DtRtiConnectionInfo::invalidConn ( )

static

Returns an invalid connection.

Referenced by DtAssistantLrcConnQueryWidget::cancelStartAndConnect(), DtAssistantFederationsViewMgr::changeViewedConnection(), DtAssistantConnQueryWidget::getSelectedConnection(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), DtFederationsViewDialog::processConnectionSelection(), DtAssistantConnQueryMgr::processConnQueryMsg(), DtAssistantLatencyTestMgr::processLatencyTestDismiss(), DtAssistantFederationsViewMgr::showFederationsView(), DtAssistantFederationsViewMgr::tick(), DtAssistantLrcConnQueryWidget::updateDisplayedConnection(), DtAssistantFederationsInfoMgr::viewFederationsForConnection(), and DtAssistantNetworkCompInfoMgr::viewNetworkComponentsForConnection().

bool DtRtiConnectionInfo::isEquivalentHost ( const DtRtiConnectionInfo &  other ) const

virtual

Determines if another connection has an equivalent host, based on the IP address and host name and network interface address.

References DtHostNameAddress::compareHostName(), DtHostNameAddress::ip(), isLocalHost(), DtHostNameAddress::isValid(), myHostNameAddress, myNetworkInterfaceAddr, and networkInterfaceAddr().

Referenced by conflictsWith(), operator<(), operator=(), and operator==().

bool DtRtiConnectionInfo::isEquivalentHostAllInterfaces ( const DtRtiConnectionInfo &  other ) const

virtual

Determines if another connection has an equivalent host, based on the IP address and host name, assuming the host is bound on all interfaces.

References isLocalHost(), and myHostNameAddress.

Referenced by conflictsWith().

bool DtRtiConnectionInfo::isLocalHost ( ) const

virtual

Determines if the host for this connection is the local machine, based on the IP address and host name.

References DtHostNameAddress::isLocal(), and myHostNameAddress.

Referenced by isEquivalentHost(), and isEquivalentHostAllInterfaces().

bool DtRtiConnectionInfo::isValid ( ) const

virtual

Returns true if this connection info passes a basic validity check.

References DtHostNameAddress::isValid(), myBestEffortIp, myHostNameAddress, myTcpPort, myUdpPort, and myUseRtiexec.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), DtFederationsViewDialog::enableOrDisableMenuActions(), DtAssistantFederationsViewMgr::logConnectionInfo(), DtAssistantFederationsViewMgr::processExecObserveRspMsg(), DtAssistantFederationsInfoMgr::processExecObserveRspMsg(), DtAssistantNetworkCompInfoMgr::processForwarderStateMsgForConnection(), DtAssistantFederationsViewMgr::processForwarderUpdated(), DtAssistantFederationsViewMgr::processRtiexecNotifyMsg(), DtAssistantFederationsViewMgr::saveToLog(), DtAssistantConnQueryWidget::selectConnection(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantFederationsViewMgr::sendLogRequest(), DtAssistantFederationsViewMgr::sendNetworkTestingDisableMsg(), DtAssistantFederationsViewMgr::sendNetworkTestingEnableMsg(), DtAssistantFederationsInfoMgr::sendObserveFederationsMsg(), DtAssistantNetworkCompInfoMgr::sendObserveForwarderMsg(), DtAssistantConnQueryWidget::setConnections(), DtFederationsViewDialog::setViewedConnectionDescription(), DtAssistantFederationsViewMgr::showFederateLog(), DtAssistantFederationsViewMgr::showForwarderLog(), DtAssistantFederationsViewMgr::showForwarderRidParams(), DtAssistantFederationsViewMgr::showRtiexecLog(), DtAssistantFederationsViewMgr::showRtiexecRidParams(), DtAssistantFederationsViewMgr::shutdownRtiexec(), DtAssistantFederationsViewMgr::shutdownRtiForwarder(), DtAssistantFederationsViewMgr::tick(), DtAssistantFederationsInfoMgr::viewFederationsForConnection(), and DtAssistantNetworkCompInfoMgr::viewNetworkComponentsForConnection().

const std::set< MAKRti::DtInetAddr > & DtRtiConnectionInfo::localIpAddresses ( )

inlinestatic

Returns list of local IP addresses.

References theLocalIpAddresses().

Referenced by DtRtiAssistantPeer::addSocketsForInterfaces(), DtAssistantConnQueryMgr::checkForInterfaces(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), DtAssistantConnQueryMgr::processConnQueryMsg(), DtAssistantConnectionInfoMgr::processInterfaceFound(), and DtAssistantConnectionInfoMgr::tick().

bool DtRtiConnectionInfo::localSupportsIPv4 ( bool  reset = false )

static

Returns whether any of the local interfaces support IPv4.

References theLocalIpAddresses().

Referenced by DtRtiAssistant::DtRtiAssistant(), and setLocalIpAddresses().

bool DtRtiConnectionInfo::localSupportsIPv6 ( bool  reset = false )

static

Returns whether any of the local interfaces support IPv6.

References theLocalIpAddresses().

Referenced by DtRtiAssistant::DtRtiAssistant(), and setLocalIpAddresses().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::networkInterfaceAddr ( ) const

virtual

Returns the local network interface address to use for this connection.

References myNetworkInterfaceAddr.

Referenced by conflictsWith(), isEquivalentHost(), DtAssistantLrcConnQueryWidget::isKnownAssistant(), DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList(), DtAssistantLrcConnQueryWidget::loadLocalInterfaceList(), operator<(), operator=(), operator==(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtRtiAssistantPeer::sendObserveFederationsMsg(), DtFederationsViewDialog::showForwarderInfo(), and DtFederationsViewDialog::showLightweightInfo().

bool DtRtiConnectionInfo::operator!= ( const DtRtiConnectionInfo &  other ) const

virtual

Not equals operator.

bool DtRtiConnectionInfo::operator< ( const DtRtiConnectionInfo &  other ) const

virtual

Less than operator.

Comparisons are based on the following parameters in the order listed: 1) Lightweight connections are "less than" rtiexec connections 2) For lightweight connections: best effort IP and port 3) For rtiexec connections: host name or IP address (host name is used if available, though it is resolved to an IP and that is used as the actual value for comparison), port, best effort IP, forwarder port

References bestEffortIp(), forwarderPort(), isEquivalentHost(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), tcpPort(), udpPort(), and useRtiexec().

DtRtiConnectionInfo & DtRtiConnectionInfo::operator= ( const DtRtiConnectionInfo &  other )

virtual

Assignment operator.

If the connections have equivalent hosts and the host name is already set, it will not be overwritten.

References bestEffortIp(), forwarderPort(), DtHostNameAddress::hostName(), isEquivalentHost(), DtHostNameAddress::isValid(), myBestEffortIp, myForwarderPort, myHostNameAddress, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), reliableIp(), DtHostNameAddress::setHostName(), DtHostNameAddress::setIp(), tcpPort(), udpPort(), and useRtiexec().

bool DtRtiConnectionInfo::operator== ( const DtRtiConnectionInfo &  other ) const

virtual

Equals operator.

References bestEffortIp(), forwarderPort(), isEquivalentHost(), myBestEffortIp, myForwarderPort, myNetworkInterfaceAddr, myTcpPort, myUdpPort, myUseRtiexec, networkInterfaceAddr(), tcpPort(), udpPort(), and useRtiexec().

const MAKRti::DtInetAddr & DtRtiConnectionInfo::reliableIp ( ) const

virtual

Returns IP address for reliable communication.

References DtHostNameAddress::ip(), and myHostNameAddress.

Referenced by DtAssistantLrcConnQueryWidget::isKnownAssistant(), operator=(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtFederationsViewDialog::showForwarderInfo().

void DtRtiConnectionInfo::setBestEffortIp ( const MAKRti::DtInetAddr &  ip )

virtual

Sets the best effort IP address.

References myBestEffortIp.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setForwarderPort ( int  port )

virtual

Sets the port.

References myForwarderPort.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setHostName ( const MAKRti::DtString &  host )

virtual

Sets the host name.

References myHostNameAddress, and DtHostNameAddress::setHostName().

Referenced by DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setLocalIpAddresses ( bool  reset = false )

static

Sets the list of recognized local IP addresses.

If the set of local IP addresses has already been created it will not be reset unless the reset flag is true.

References DtEnumerateInterfaces(), localSupportsIPv4(), localSupportsIPv6(), and theLocalIpAddresses().

Referenced by DtRtiAssistantPeer::addSocketsForInterfaces(), DtAssistantConnQueryMgr::checkForInterfaces(), DtRtiAssistant::DtRtiAssistant(), and DtRtiConnectionInfo().

void DtRtiConnectionInfo::setNetworkInterfaceAddr ( const MAKRti::DtInetAddr &  addr )

virtual

Sets the local network interface address to use for this connection.

References myNetworkInterfaceAddr.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setReliableIp ( const MAKRti::DtInetAddr &  ip )

virtual

Sets the reliable IP address.

References myHostNameAddress, and DtHostNameAddress::setIp().

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setTcpPort ( int  port )

virtual

Sets the TCP port.

References myTcpPort.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setUdpPort ( int  port )

virtual

Sets the UDP port.

References myUdpPort.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

void DtRtiConnectionInfo::setUseRtiexec ( bool  useExec )

virtual

Sets whether this connection uses an rtiexec.

References myUseRtiexec.

Referenced by DtAssistantStateObserveMsg::getConnection(), DtAssistantFederationStateMsg::getConnection(), DtAssistantComponentMgr::processLrcCompInfoMsg(), DtAssistantComponentMgr::processRtiexecCompInfoMsg(), and DtAssistantComponentMgr::processRtiForwarderCompInfoMsg().

int DtRtiConnectionInfo::tcpPort ( ) const

virtual

Returns TCP port.

References myTcpPort.

Referenced by conflictsWith(), operator<(), operator=(), operator==(), DtAssistantFederationsViewMgr::saveToLog(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), and DtFederationsViewDialog::showForwarderInfo().

std::set< MAKRti::DtInetAddr > & DtRtiConnectionInfo::theLocalIpAddresses ( )

staticprotected

Returns a reference to a static map of local IP addresses to netmasks.

This is a shallow wrapper function which is provided to guarantee the std::map is initialized. Please note that this class is only used by the assistant, which is single threaded. If this class is ever used by a multithreaded application, this static member should be mutex protected.

Referenced by localIpAddresses(), localSupportsIPv4(), localSupportsIPv6(), and setLocalIpAddresses().

int DtRtiConnectionInfo::udpPort ( ) const

virtual

Returns UDP port.

References myUdpPort.

Referenced by conflictsWith(), operator<(), operator=(), operator==(), DtAssistantFederationsViewMgr::saveToLog(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), DtFederationsViewDialog::showForwarderInfo(), and DtFederationsViewDialog::showLightweightInfo().

bool DtRtiConnectionInfo::useRtiexec ( ) const

virtual

Returns whether this connection uses an rtiexec.

References myUseRtiexec.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), conflictsWith(), DtAssistantFederationsViewMgr::destroyFederation(), DtFederationsViewDialog::enableOrDisableMenuActions(), DtAssistantLrcConnQueryWidget::findConnInTree(), operator<(), operator=(), operator==(), DtAssistantFederationsViewMgr::processFederateRemoved(), DtAssistantFederationsViewMgr::processFederateUpdated(), DtAssistantFederationsViewMgr::processFederationRemoved(), DtAssistantFederationsViewMgr::processFederationUpdate(), DtAssistantFederationsInfoMgr::processObserveMsg(), DtAssistantFederationsViewMgr::resignFederate(), DtAssistantFederationsViewMgr::saveToLog(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendFederateInfoRespMsg(), DtAssistantFederationsViewMgr::sendNetworkTestingDisableMsg(), DtAssistantFederationsViewMgr::sendNetworkTestingEnableMsg(), DtAssistantFederationsInfoMgr::sendObserveFederationsMsg(), DtAssistantStateObserveMsg::setConnection(), DtAssistantFederationStateMsg::setConnection(), DtFederationsViewDialog::setViewedConnectionDescription(), DtAssistantFederationsViewMgr::showForwarderLog(), DtAssistantFederationsViewMgr::showForwarderRidParams(), DtAssistantFederationsViewMgr::showLatencyTestDialog(), DtAssistantFederationsViewMgr::showRtiexecLog(), DtAssistantFederationsViewMgr::showRtiexecRidParams(), and DtAssistantFederationsInfoMgr::viewFederationsForConnection().

Member Data Documentation

MAKRti::DtInetAddr DtRtiConnectionInfo::myBestEffortIp

protected

IP address for best effort transport.

Referenced by bestEffortIp(), conflictsWith(), defaultName(), description(), isValid(), operator<(), operator=(), operator==(), and setBestEffortIp().

int DtRtiConnectionInfo::myForwarderPort

protected

The port used by the forwarder to connect to other forwarders.

Referenced by conflictsWith(), defaultName(), description(), forwarderPort(), operator<(), operator=(), operator==(), and setForwarderPort().

DtHostNameAddress DtRtiConnectionInfo::myHostNameAddress

protected

Host of the rtiexec or forwarder.

Referenced by defaultName(), description(), hostName(), isEquivalentHost(), isEquivalentHostAllInterfaces(), isLocalHost(), isValid(), operator<(), operator=(), reliableIp(), setHostName(), and setReliableIp().

MAKRti::DtInetAddr DtRtiConnectionInfo::myNetworkInterfaceAddr

protected

Local network interface address to use for this connection.

Referenced by conflictsWith(), defaultName(), description(), isEquivalentHost(), networkInterfaceAddr(), operator<(), operator=(), operator==(), and setNetworkInterfaceAddr().

int DtRtiConnectionInfo::myTcpPort

protected

TCP port for the connection.

Referenced by conflictsWith(), defaultName(), description(), isValid(), operator<(), operator=(), operator==(), setTcpPort(), and tcpPort().

int DtRtiConnectionInfo::myUdpPort

protected

UDP port for the connection.

Referenced by conflictsWith(), defaultName(), description(), isValid(), operator<(), operator=(), operator==(), setUdpPort(), and udpPort().

bool DtRtiConnectionInfo::myUseRtiexec

protected

Whether or not an rtiexec should be used.

Referenced by conflictsWith(), defaultName(), description(), isValid(), operator<(), operator=(), operator==(), setUseRtiexec(), and useRtiexec().

---

The documentation for this class was generated from the following files:

• assistantConnectionInfo.h
• assistantConnectionInfo.cxx
